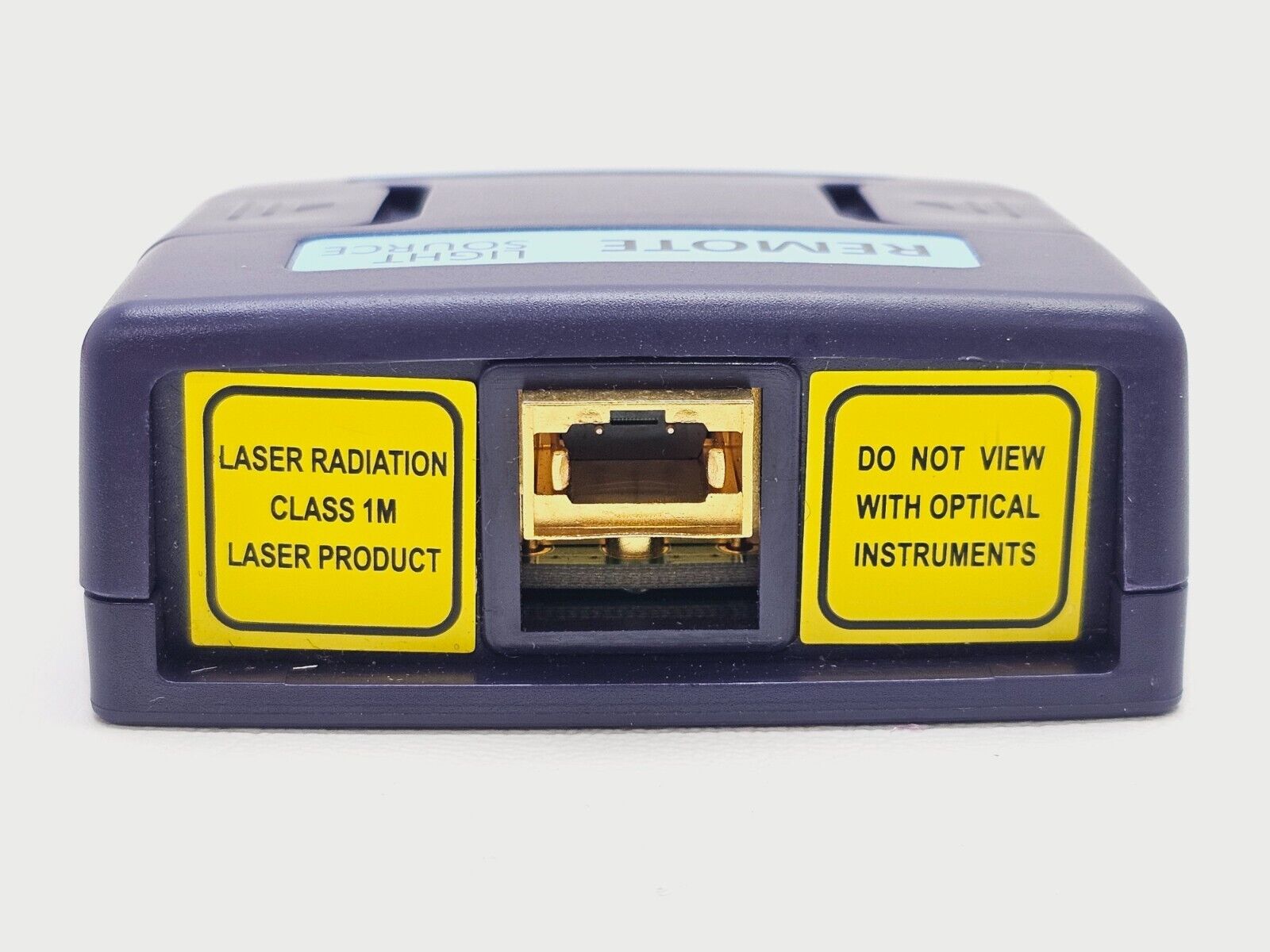

Viavi Certifier MPO Light Source Adapter multimode MPO Type A pinned connector front view

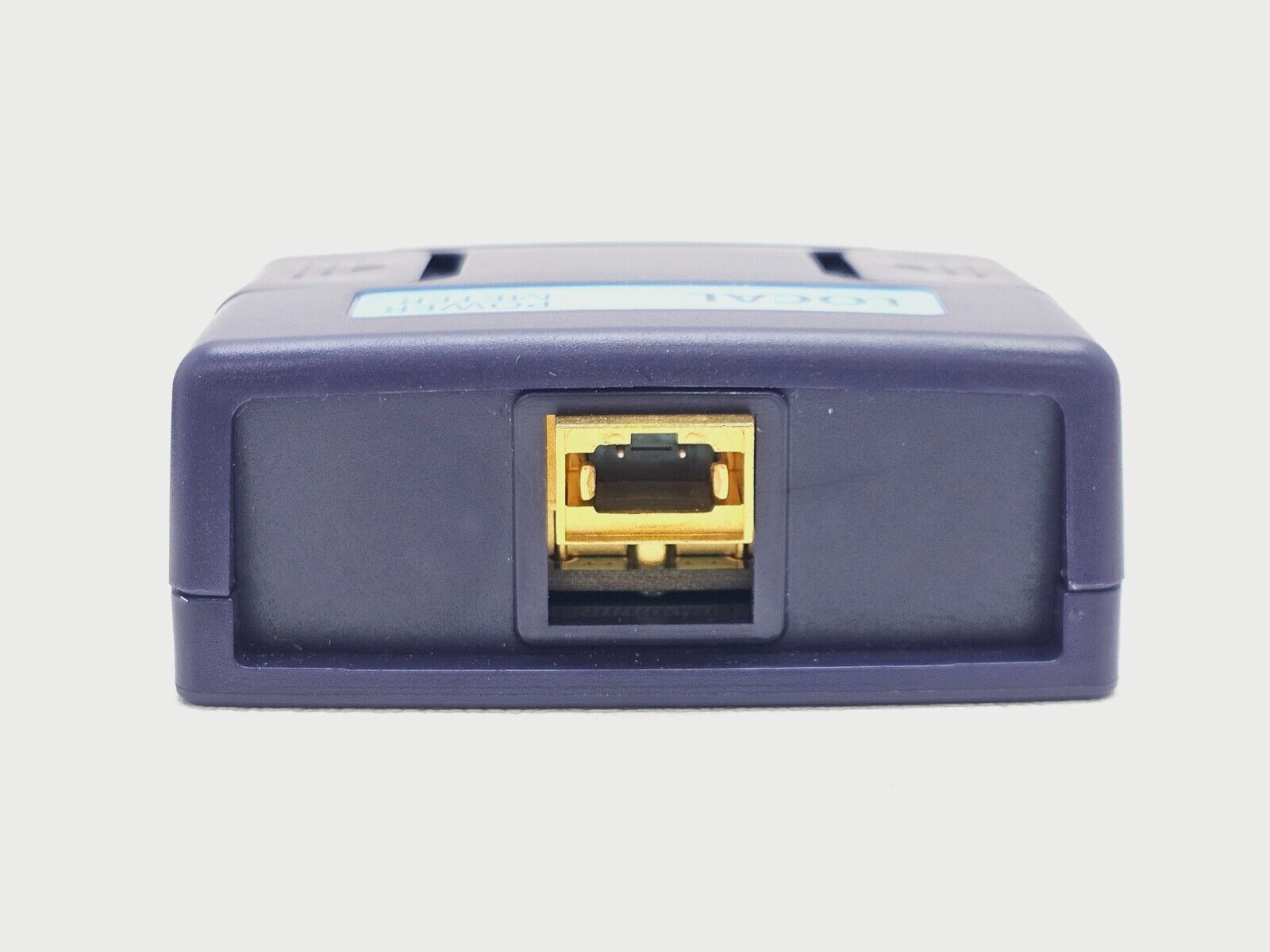

Viavi Certifier MPO Power Meter Adapter multimode MPO Type A pinned connector front view

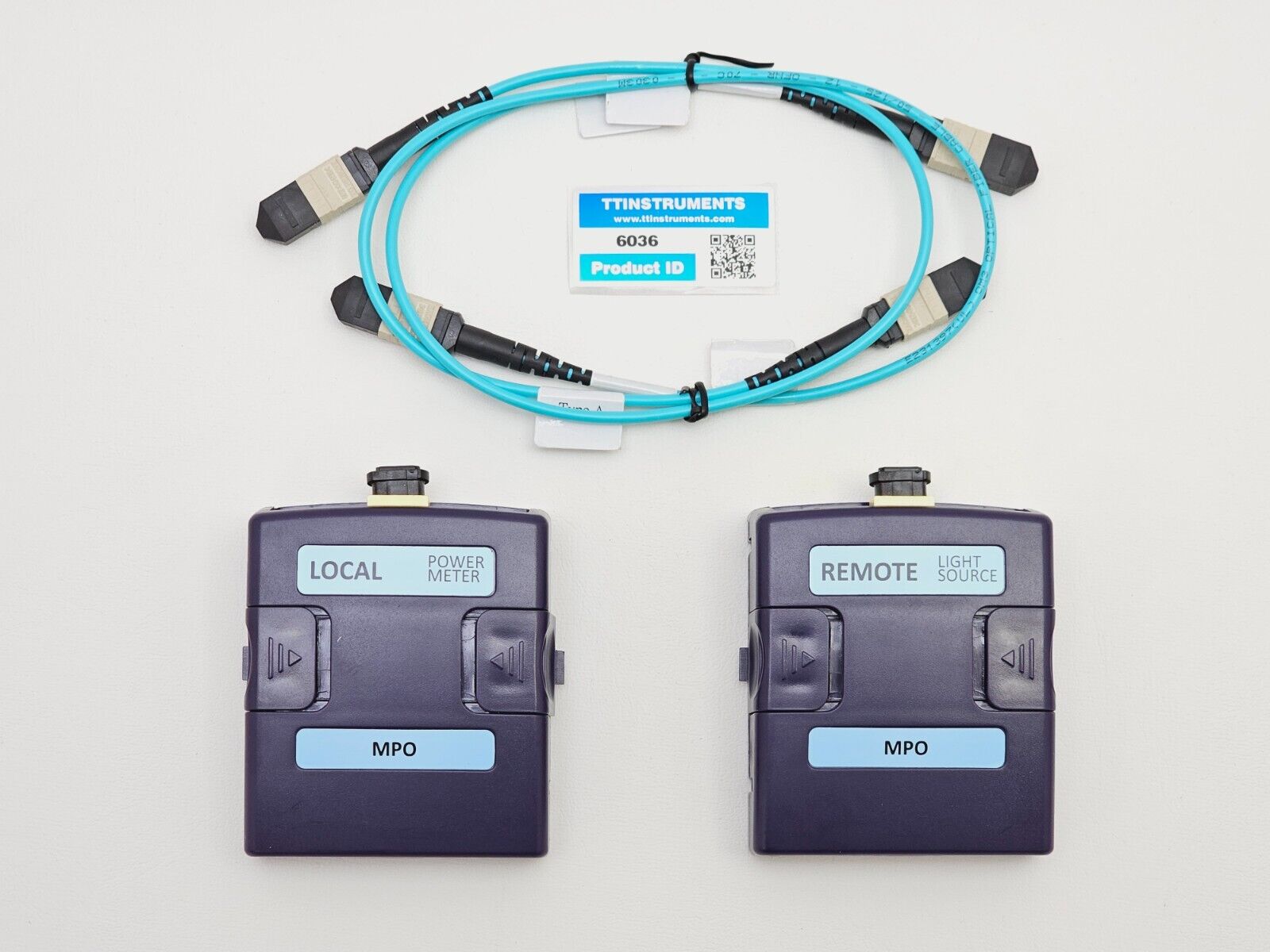

Viavi JDSU Certifier MPO adapter kit showing both local and remote units side by side

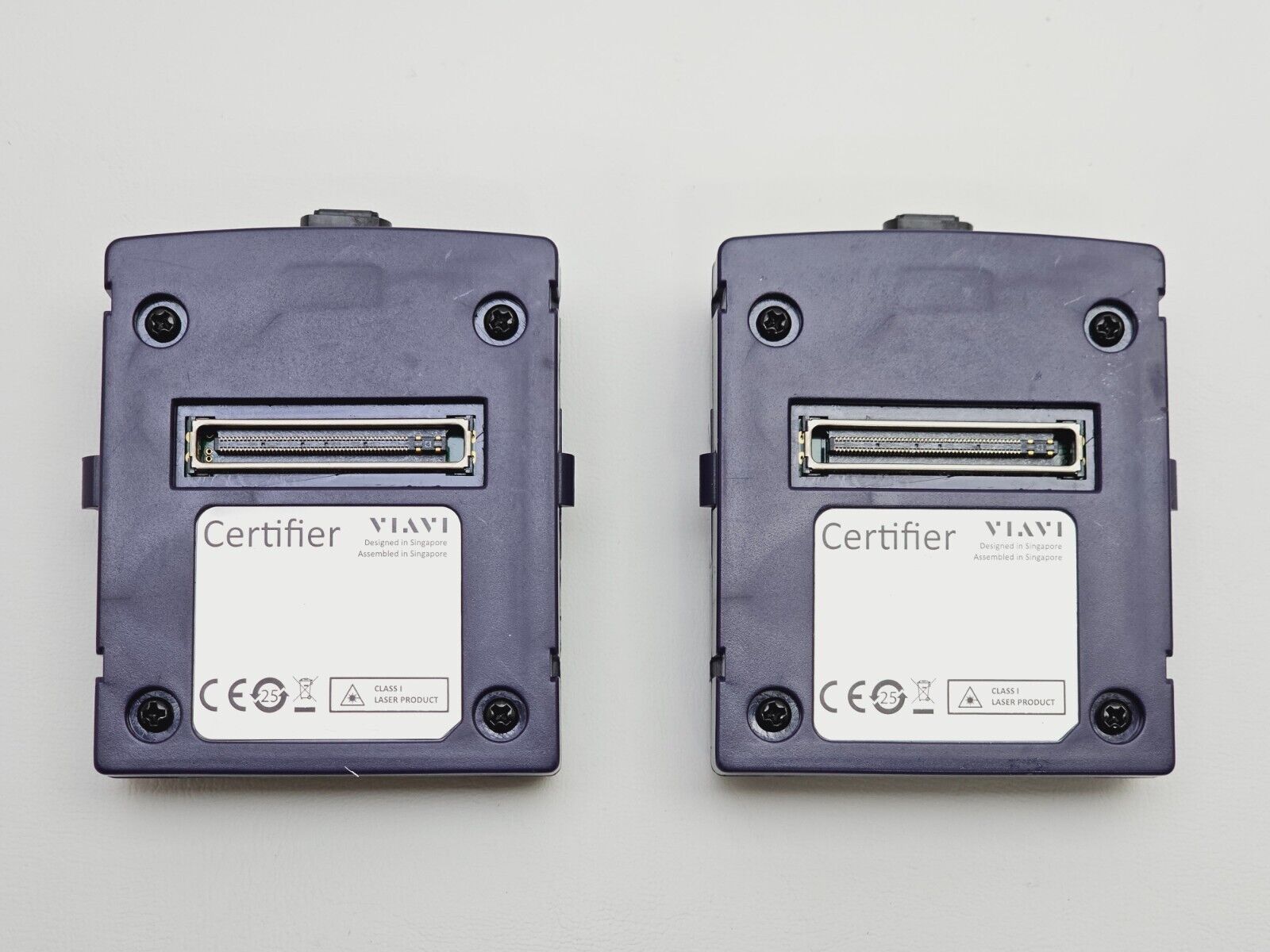

Viavi Certifier MPO adapter detail view showing MPO connector interface and housing

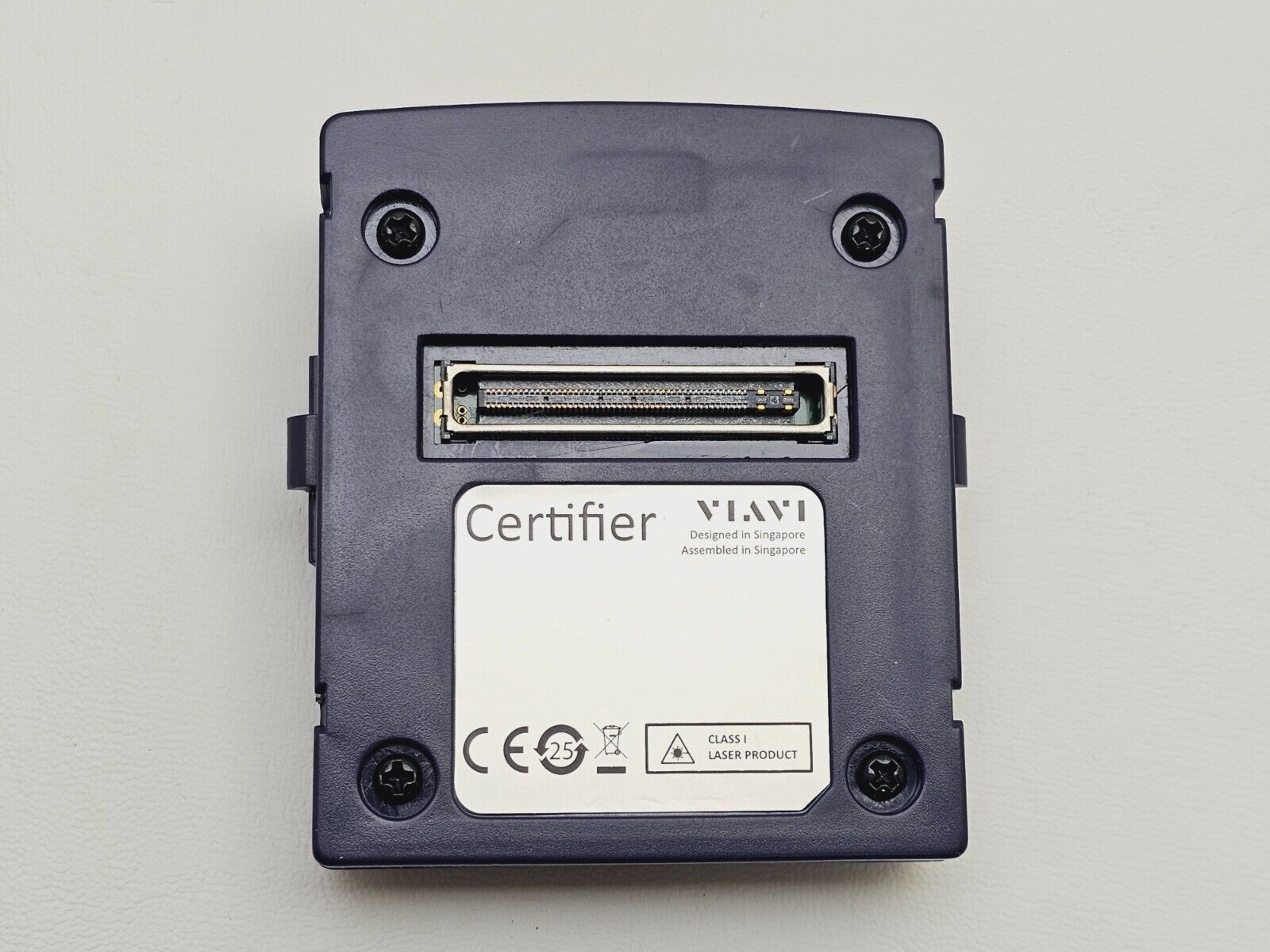

Viavi JDSU Certifier MPO Power Meter Adapter label and identification markings

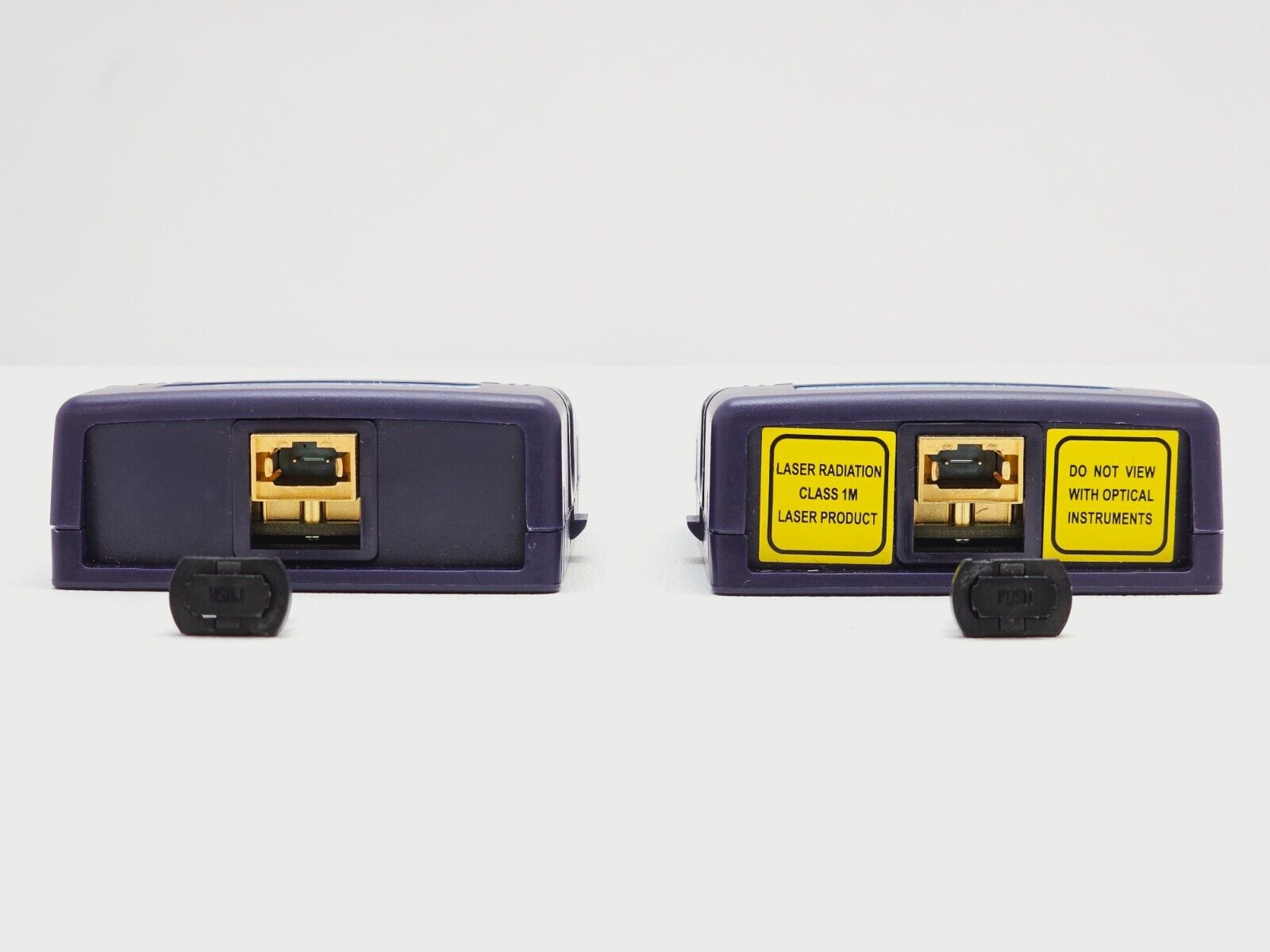

Viavi Certifier MPO Light Source and Power Meter adapter kit accessories and components

Viavi JDSU Certifier MPO Power Meter & Light Source Adapters Local & Remote MM

Name: Viavi JDSU Certifier MPO Power Meter & Light Source Adapters Local & Remote MM
Brand: Viavi JDSU
SKU: 6036 5C02 EP12
Price: 212.5 GBP
Availability: OutOfStock

Viavi JDSU

Model: Certifier MPO

Condition: Used

In stock: 0

SKU: 6036 5C02

£212.50

Fiber Optics
Loss Testers & Fault Locators
Optical Loss Test Sets

Sold Out Browse Similar Products in Fiber Optics

Condition: Used — supplied in good condition as pictured.

This is a Viavi JDSU Certifier MPO Power Meter and Light Source Adapter Kit designed exclusively for use with the Certifier40G platform. The kit enables multimode MPO/MTP fibre certification with a fast 5-second autotest, measuring insertion loss per channel in graphical and tabular format, verifying link polarity (A, B, C, or Custom), and providing pass/fail results against user-defined limits. Both local and remote adapters are included.

Items included in the sale:
• MPO Light Source Adapter — Multimode MPO (Type A, pinned), 830–860 nm
• MPO Power Meter Adapter — Multimode MPO (Type A, pinned)
• Local and Remote units as pictured

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

Product Overview

Condition: Used — supplied in good condition as pictured.

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

Manufacturer's Description

Viavi Solutions (formerly JDSU) Certifier MPO/MTP Light Source and Power Meter Kit — designed for use with the Certifier40G platform only.

This kit provides a complete multimode MPO fibre certification solution, supporting all 12 fibres simultaneously or user-selected channels. It is compatible with MPO-MPO and MPO-SC/LC test configurations (the latter requires a duplex multimode fibre adapter on the local unit).

Autotest
Test Time: 5 seconds
Test Parameters: Loss per channel (graphical and tabular format), polarity of link (A, B, C, Custom), pass/fail against user-set limit
MPO Link Configurations: All 12 fibres or user-selected channels
Test Configurations: MPO-MPO; MPO-SC/LC (requires duplex multimode fibre adapter on local unit)

MPO Light Source Adapter
Fibre/Connector Type: Multimode MPO (Type A, pinned)
Wavelength: 830–860 nm

MPO Power Meter Adapter
Fibre/Connector Type: Multimode MPO (Type A, pinned)
Dynamic Range: 15 dB
Accuracy: ±0.2 dB

Verification
Verification Period: Yearly verification recommended
Calibration Storage: Copper calibration stored on mainframe; fibre calibration stored on fibre test probes
