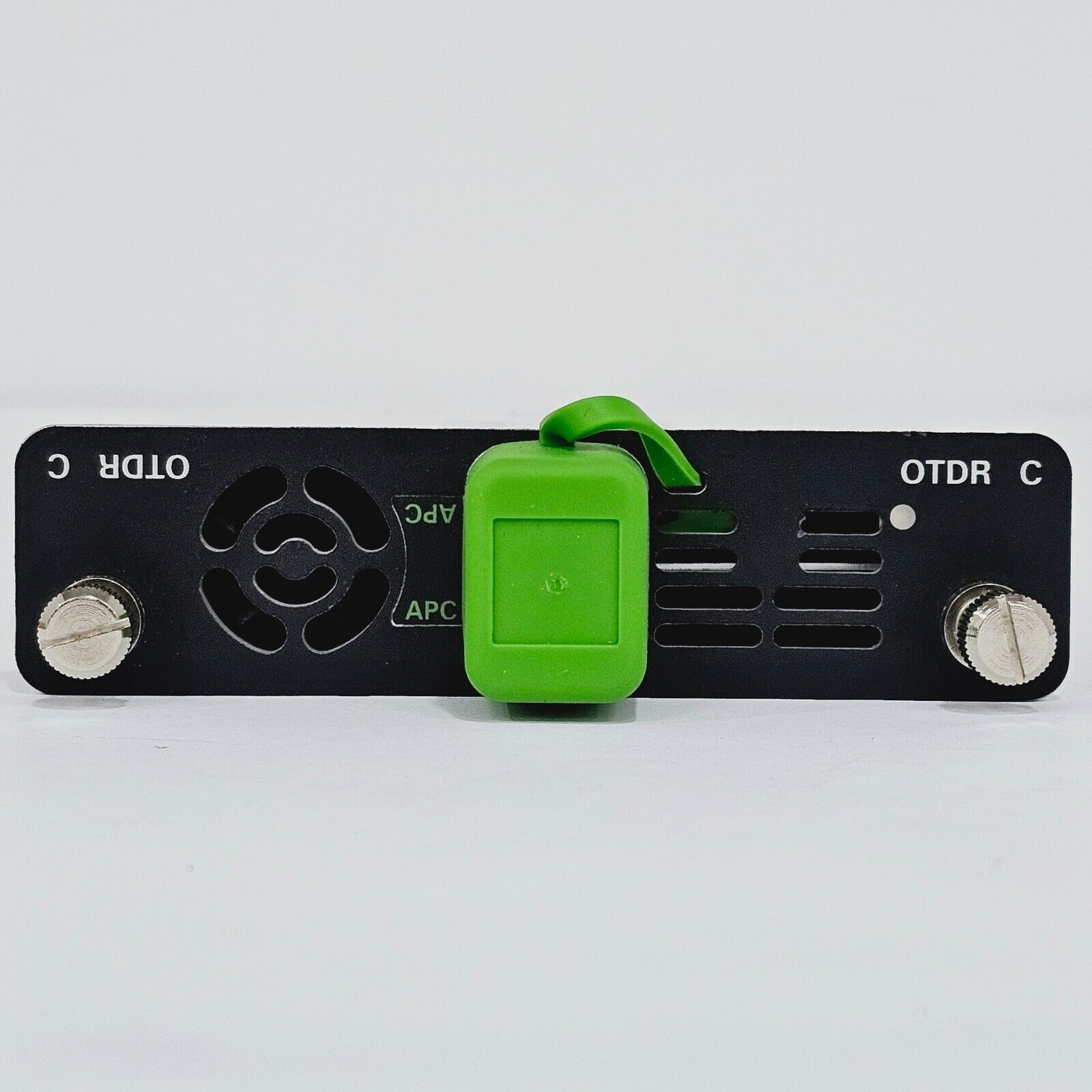

Viavi JDSU E8138C-65 singlemode VLR OTDR module front view showing SC-APC connector port

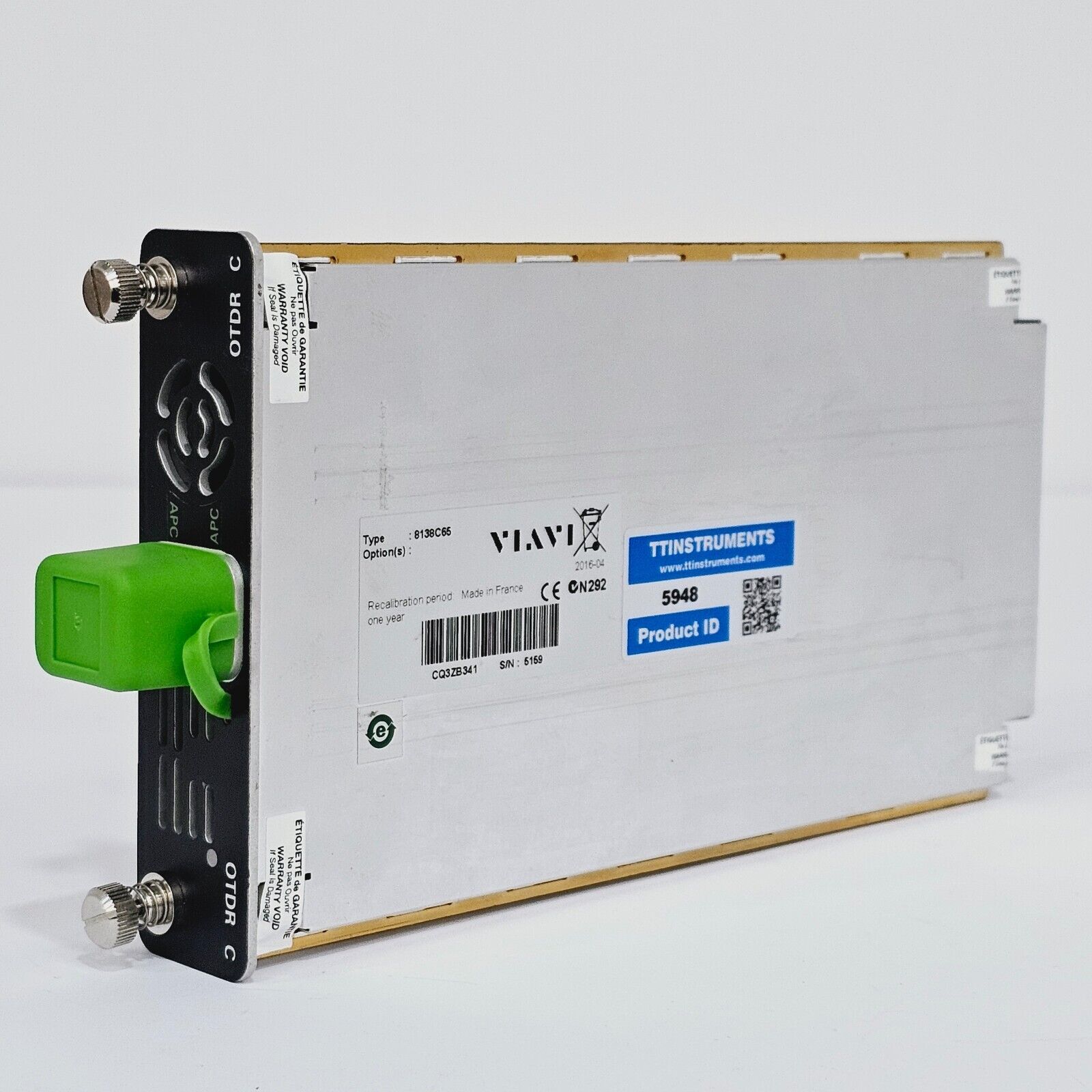

Viavi E8138C-65 VLR OTDR module top view showing connector and body detail

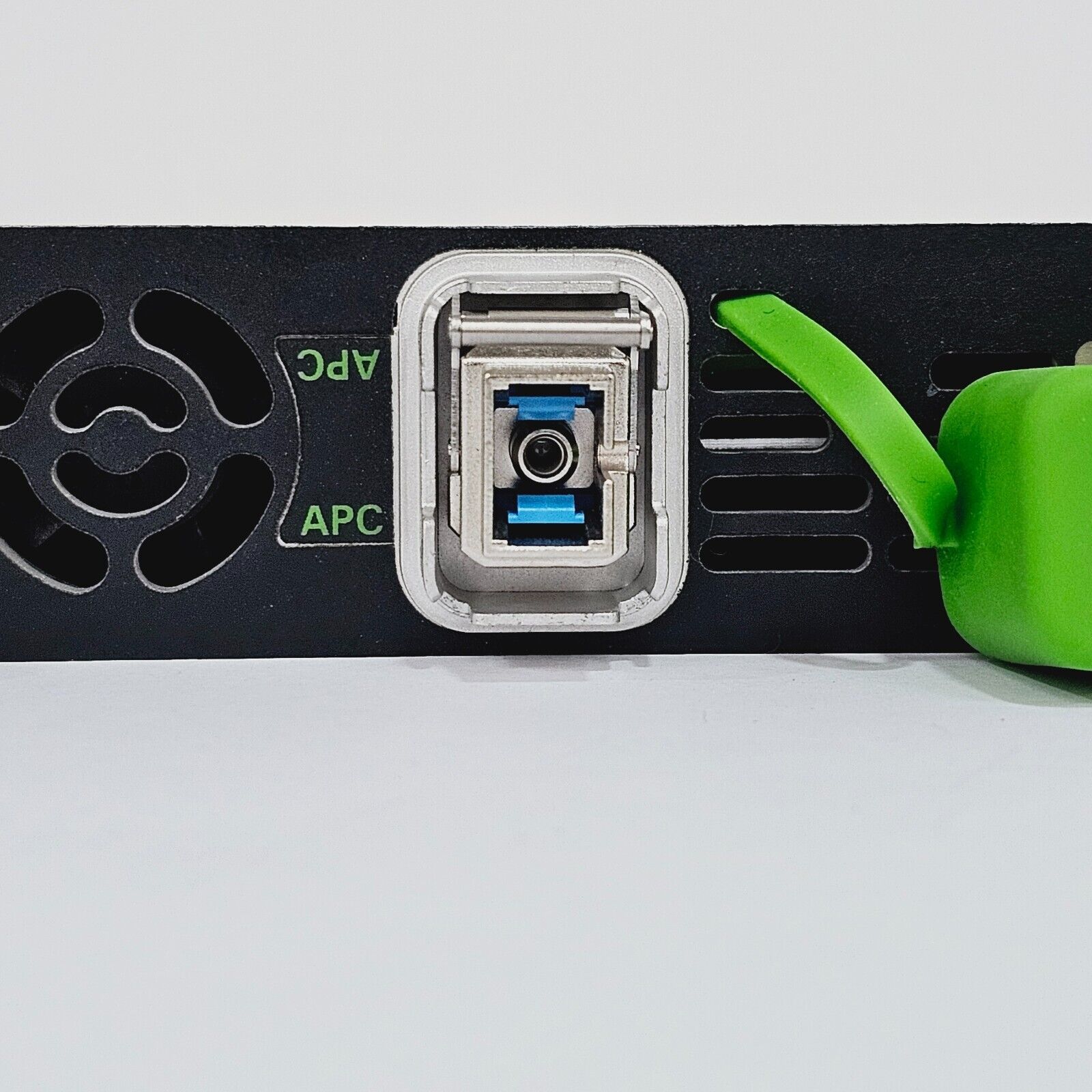

Close-up of SC-APC connector port on Viavi E8138C-65 OTDR module

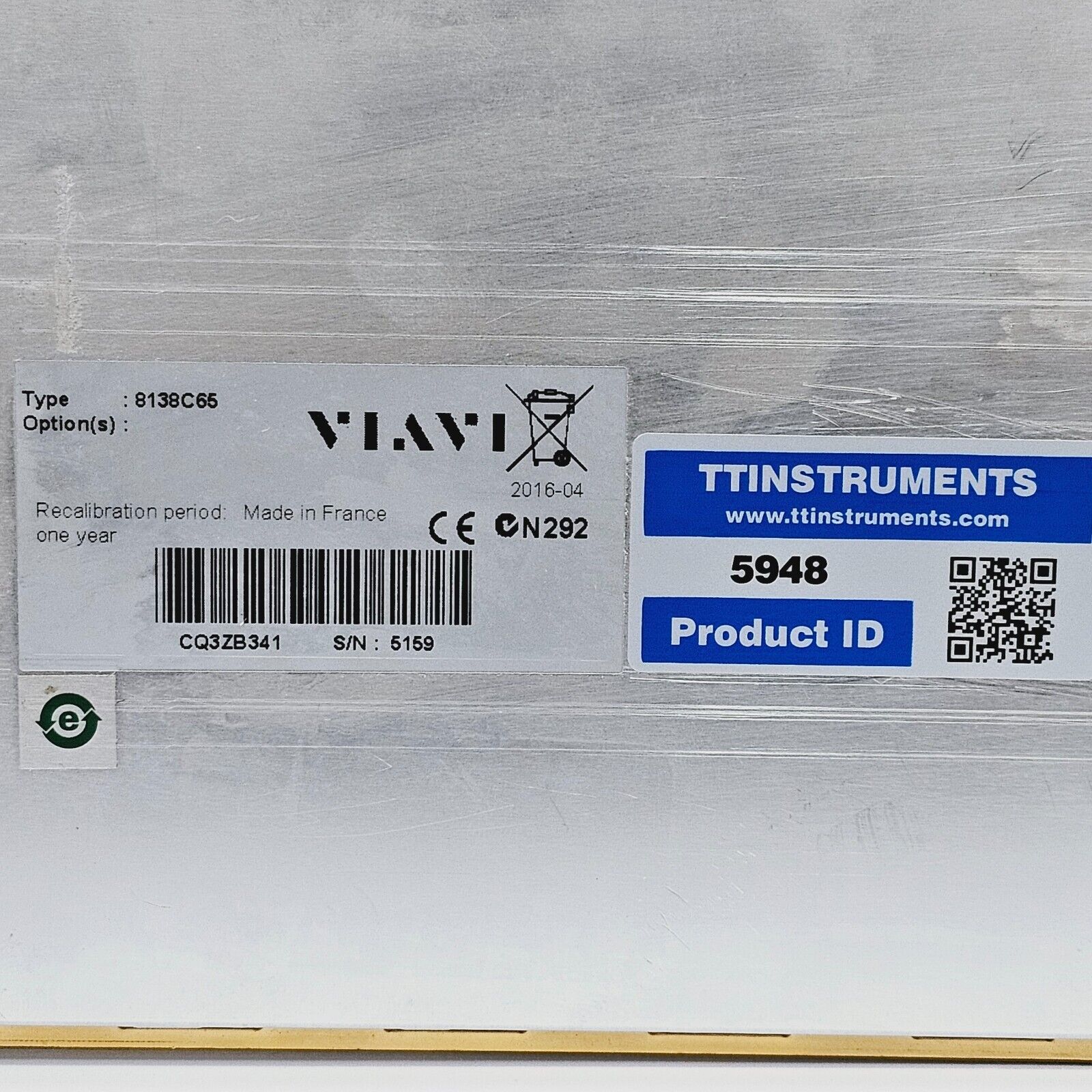

Viavi E8138C-65 module label showing 1310 1550 1650 nm wavelengths and serial number

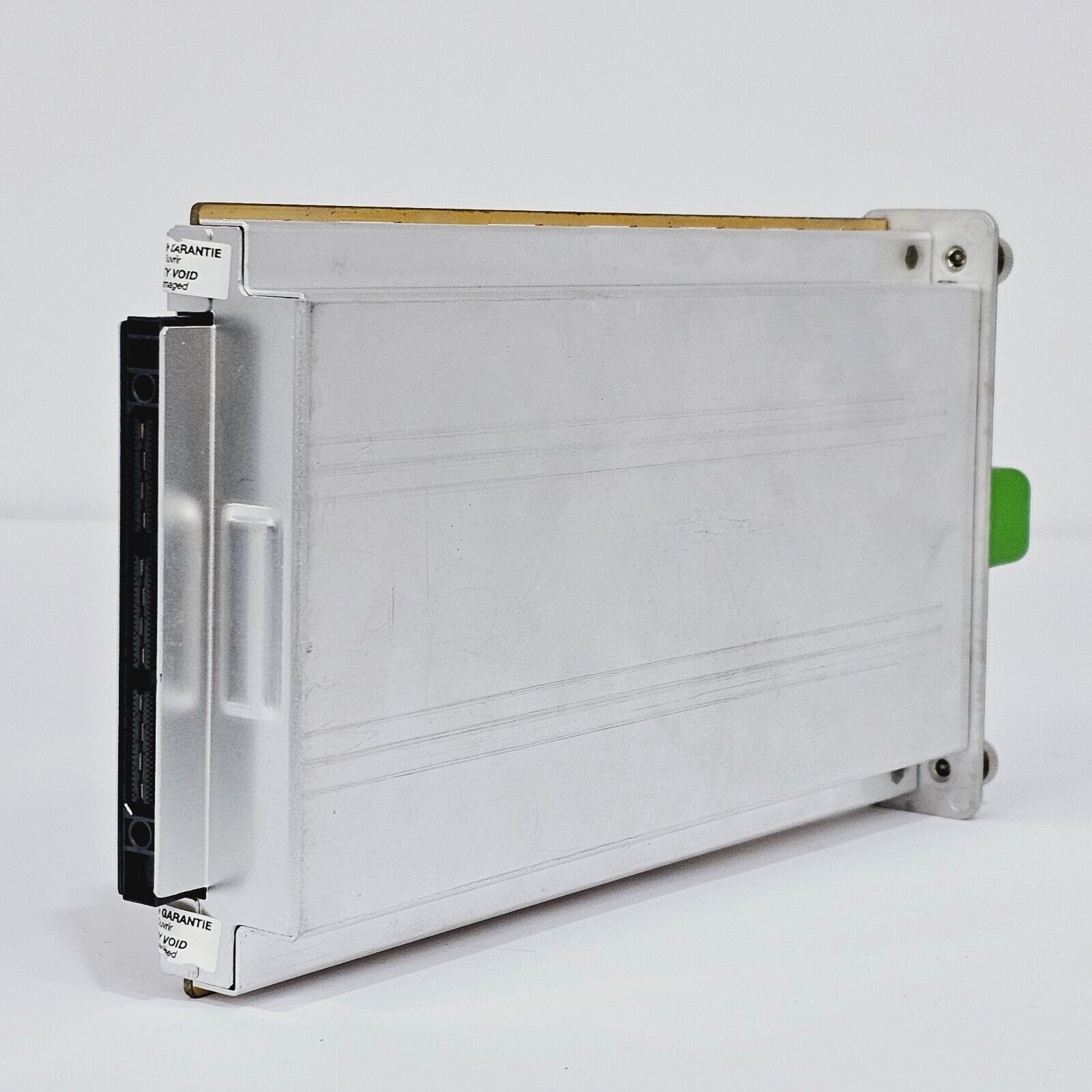

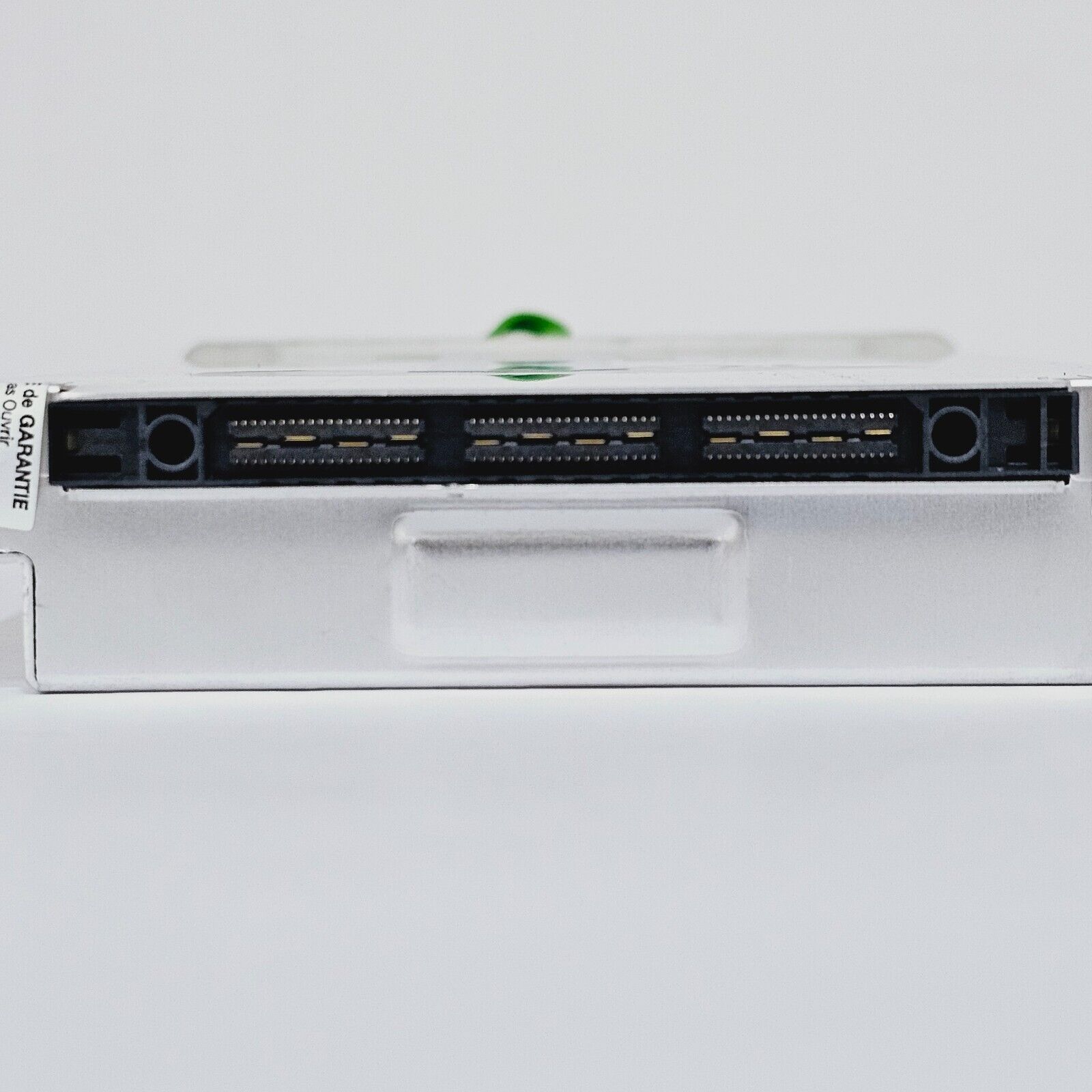

Viavi JDSU E8138C-65 VLR singlemode OTDR module rear and edge detail

Tested

14 Day Money Back Guarantee

Great Value

Global Shipping

Viavi JDSU 8138C65 1310/1550/F1650 nm SM 45 dB OTDR Module E8138C-65 SC-APC VLR

Name: Viavi JDSU 8138C65 1310/1550/F1650 nm SM 45 dB OTDR Module E8138C-65 SC-APC VLR
Brand: Viavi JDSU
SKU: 5948 6A03 ER50
Price: 1015.75 GBP
Availability: OutOfStock

The Viavi E8138C-65 is a Very Long Range singlemode OTDR module supporting 1310/1550 nm and in-service 1650 nm testing, designed for use with the MTS/T-BERD 8000 platform.

• Dynamic range up to 47.5/47/43 dB at 1310/1550/1650 nm for ultra-long-haul fibre characterisation
• In-service/live 1650 nm testing capability with SC-APC connector interface
• Testing range from 0.1 to 400 km with event dead zone as low as 0.6 m

Manufacturer

Viavi JDSU

Model

E8138C65

Condition

Used

In stock

SKU

5948 6A03

£1,015.75

Fiber Optics
Offers Accepted
OTDR

Make an Offer

Condition: Used

This is a Viavi (JDSU) E8138C-65 Very Long Range Singlemode OTDR Module, compatible with the MTS/T-BERD 8000 platform. The unit supports three wavelengths — 1310 nm, 1550 nm, and 1650 nm (in-service/live/filtered) — and delivers a dynamic range of 47.5/47/43 dB respectively. Key specifications include an event dead zone of 0.6 m, attenuation dead zone of 2 m, pulse width range of 2 ns to 20 µs, and a testing range of 0.1–400 km. The SC-APC connector is fitted. Splitter attenuation dead zone is 25 m after a 15 dB splitter loss and 60 m after an 18 dB splitter loss.

Included in the sale:
• Viavi E8138C-65 OTDR module

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

Product Overview

Condition: Used

Included in the sale:
• Viavi E8138C-65 OTDR module

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

Manufacturer's Description

The Viavi (formerly JDSU) E8138C-65 is a Very Long Range (VLR) singlemode OTDR module from the 8100 Series, designed for integration into the T-BERD/MTS-8000 modular test platform. It is engineered for long-haul, metro, and FTTx fibre network testing, including live in-service testing at 1650 nm without interrupting traffic.

The module supports three test wavelengths and is optimised for high dynamic range performance, enabling accurate characterisation of extremely long or high-loss fibre spans. The SC-APC connector minimises back-reflection interference during measurement.

Key Specifications:
Wavelengths: 1310 nm, 1550 nm, 1650 nm (in-service/live/filtered)
Dynamic Range: 47.5 dB (1310 nm) / 47 dB (1550 nm) / 43 dB (1650 nm)
Connector: SC-APC
Event Dead Zone: 0.6 m
Attenuation Dead Zone: 2 m
Splitter Attenuation Dead Zone: 25 m (after 15 dB splitter loss) / 60 m (after 18 dB splitter loss)
Pulse Width: 2 ns to 20 µs
Measurement Range: 0.1 to 400 km
Fibre Type: Singlemode
Platform Compatibility: Viavi MTS/T-BERD 8000 series

The 1650 nm in-service wavelength allows technicians to test fibres carrying live traffic without service interruption, making this module particularly valuable for maintenance and troubleshooting of operational networks.
