Condition: New other (see details)

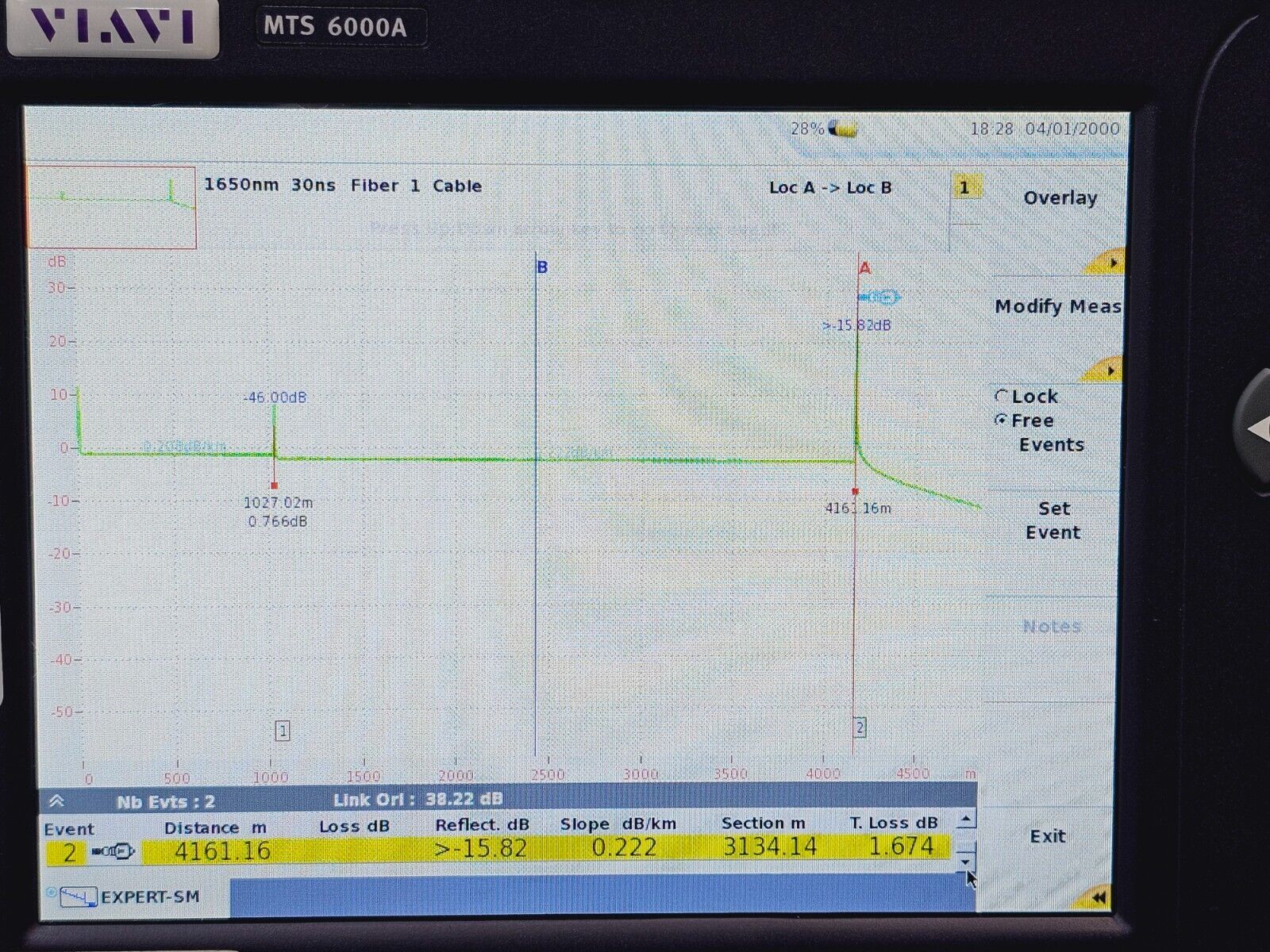

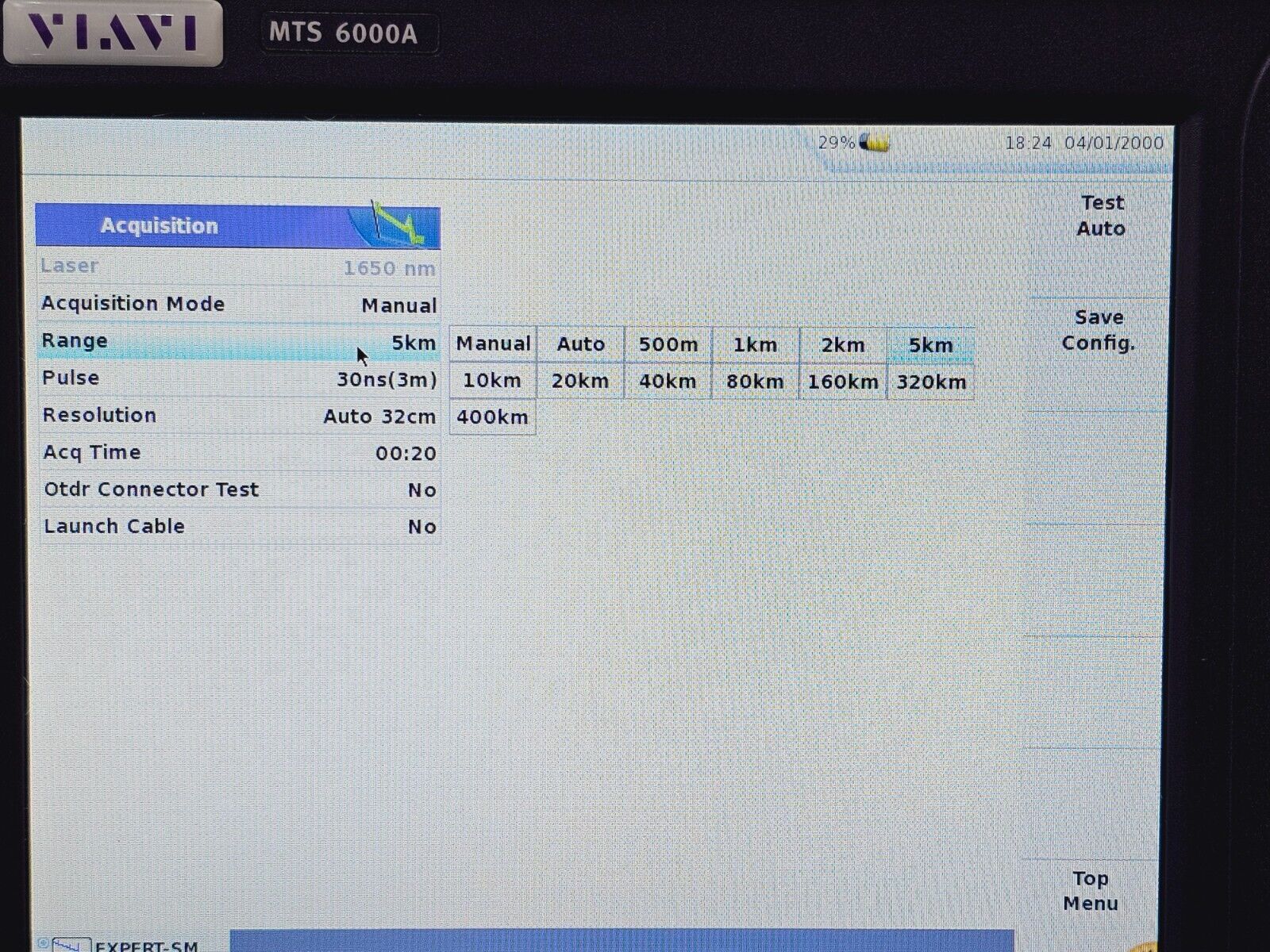

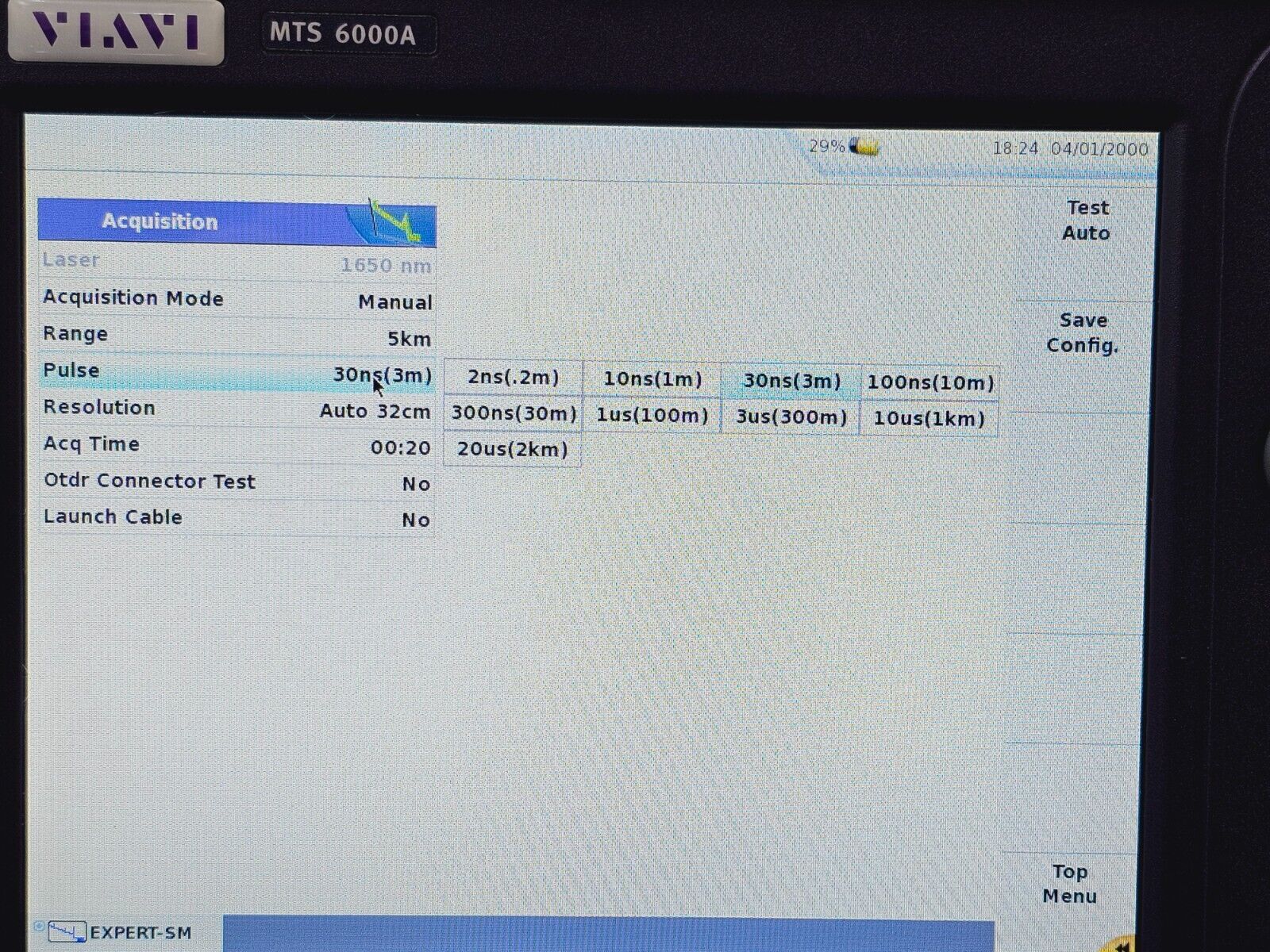

New module, used for testing only, compatible with the MTS/T-BERD 6000/8000 and the OTU 8000 (v2) mainframes (sold separately).

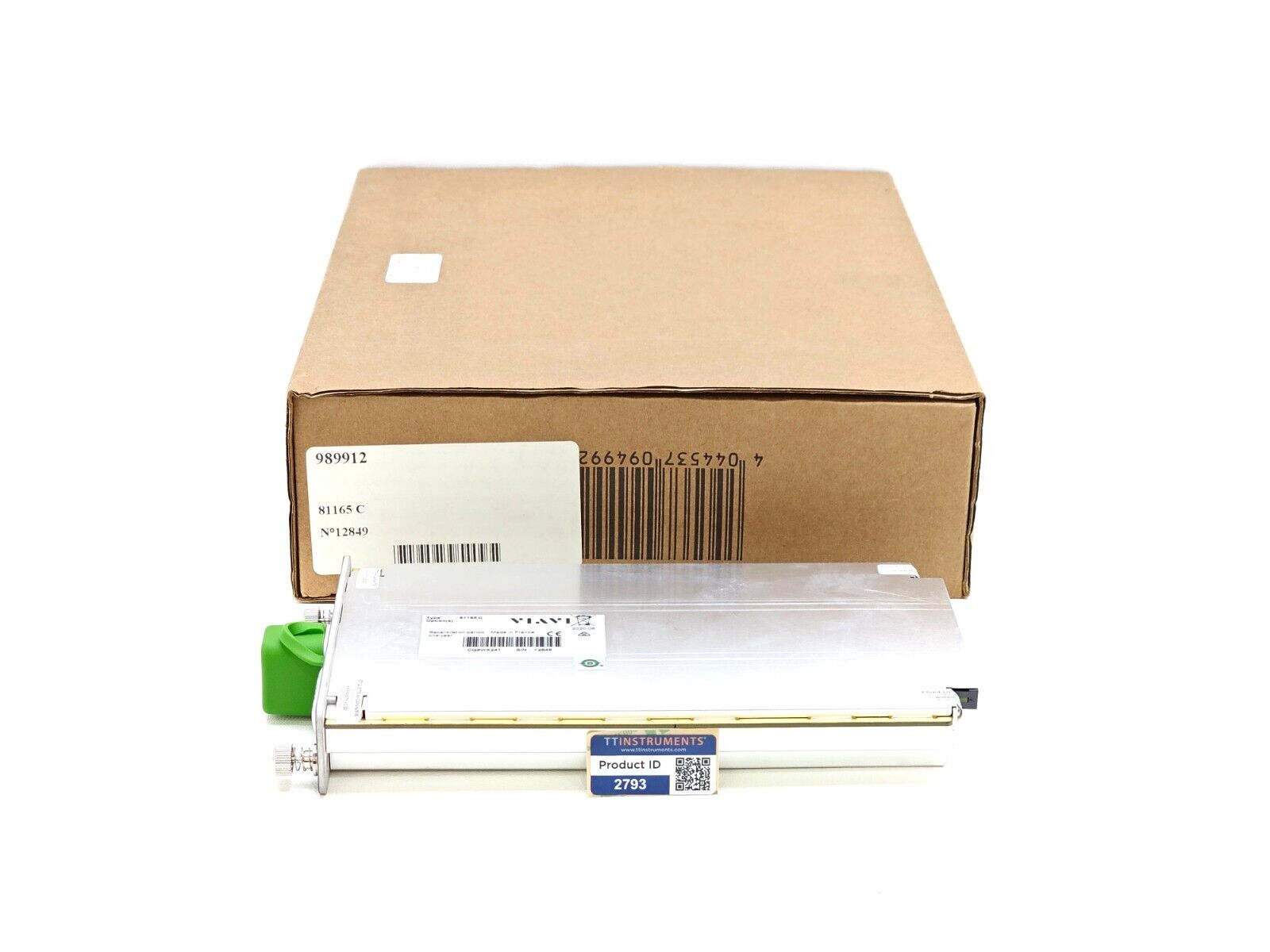

Included in the sale:

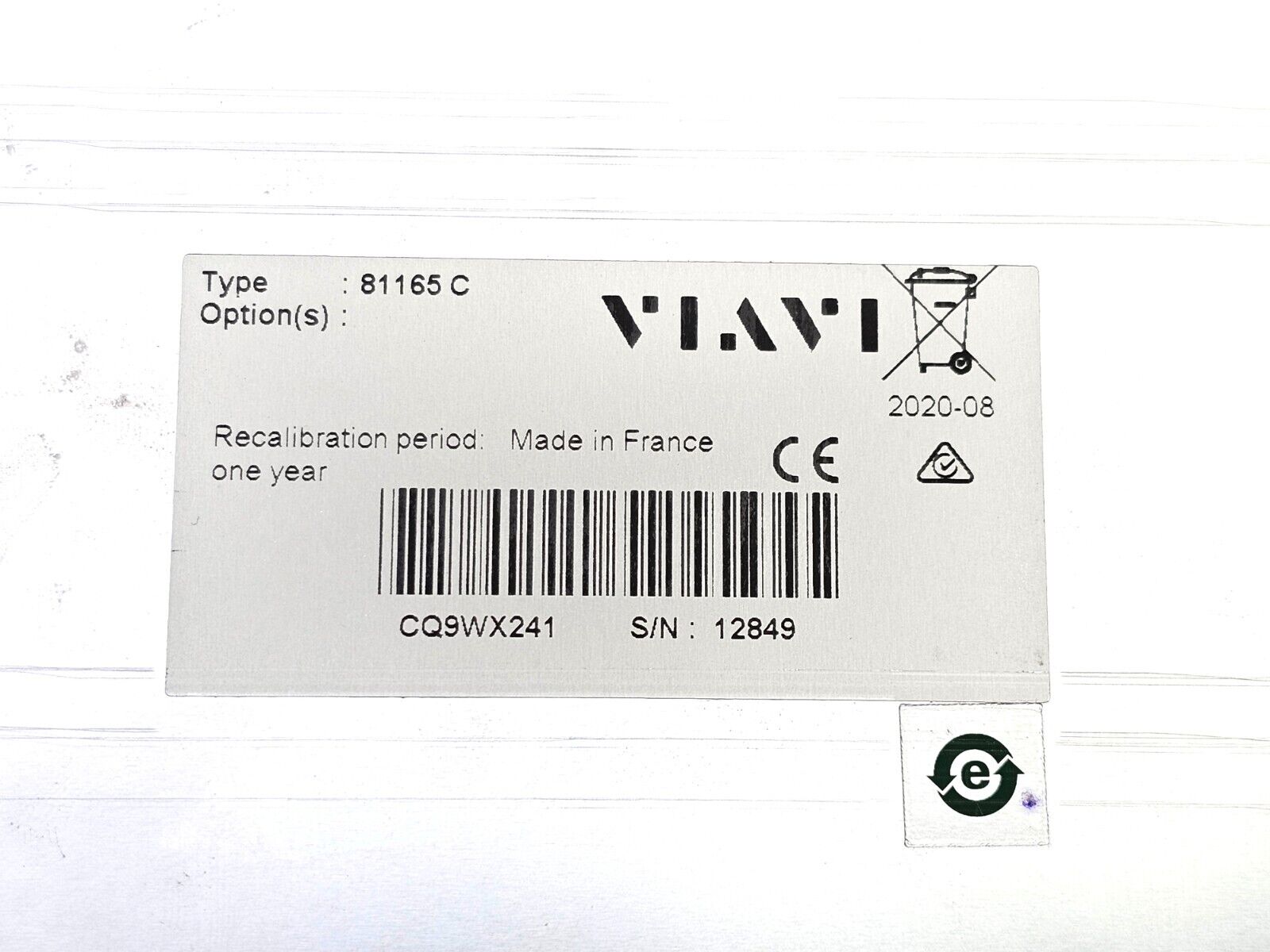

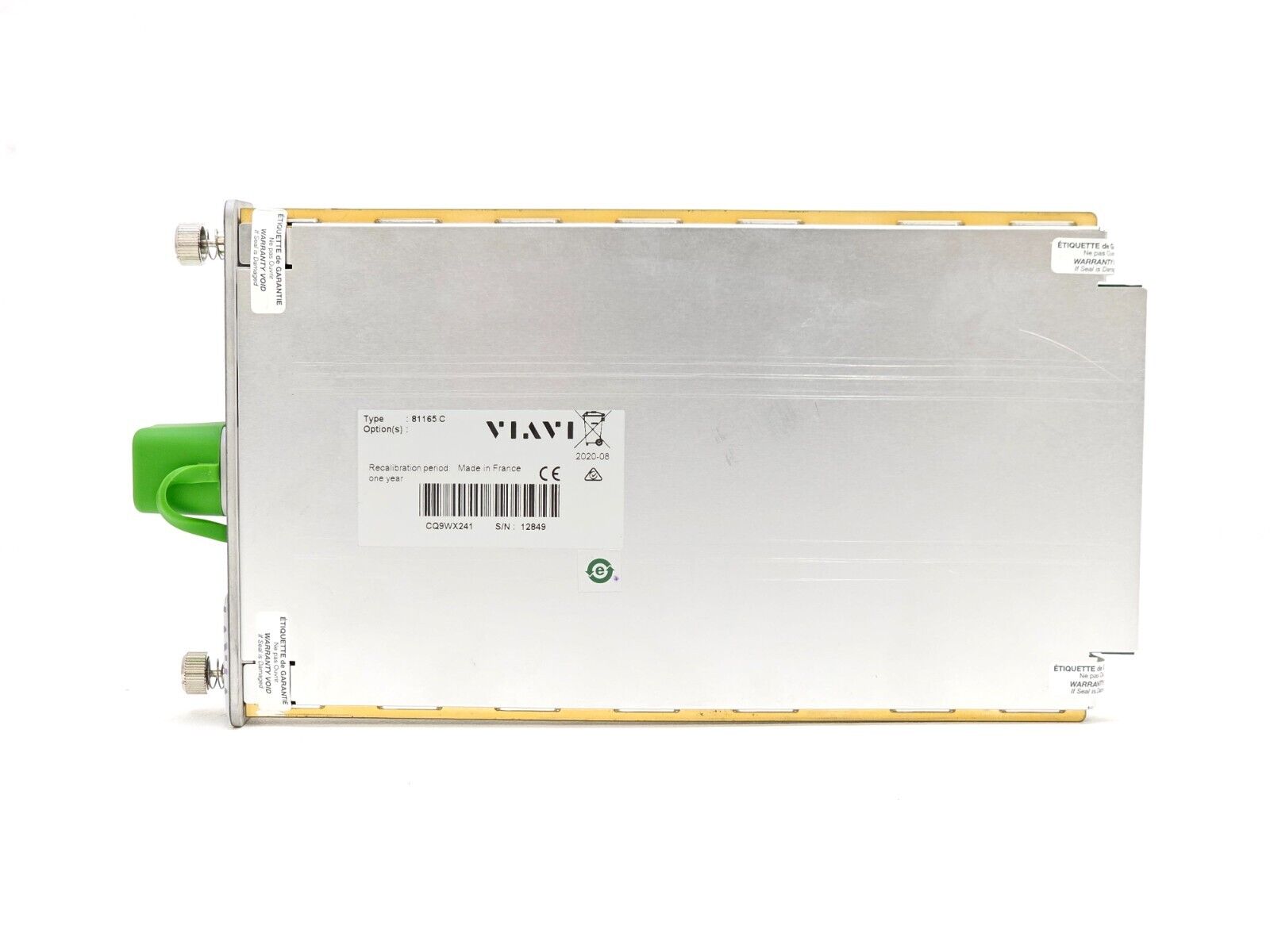

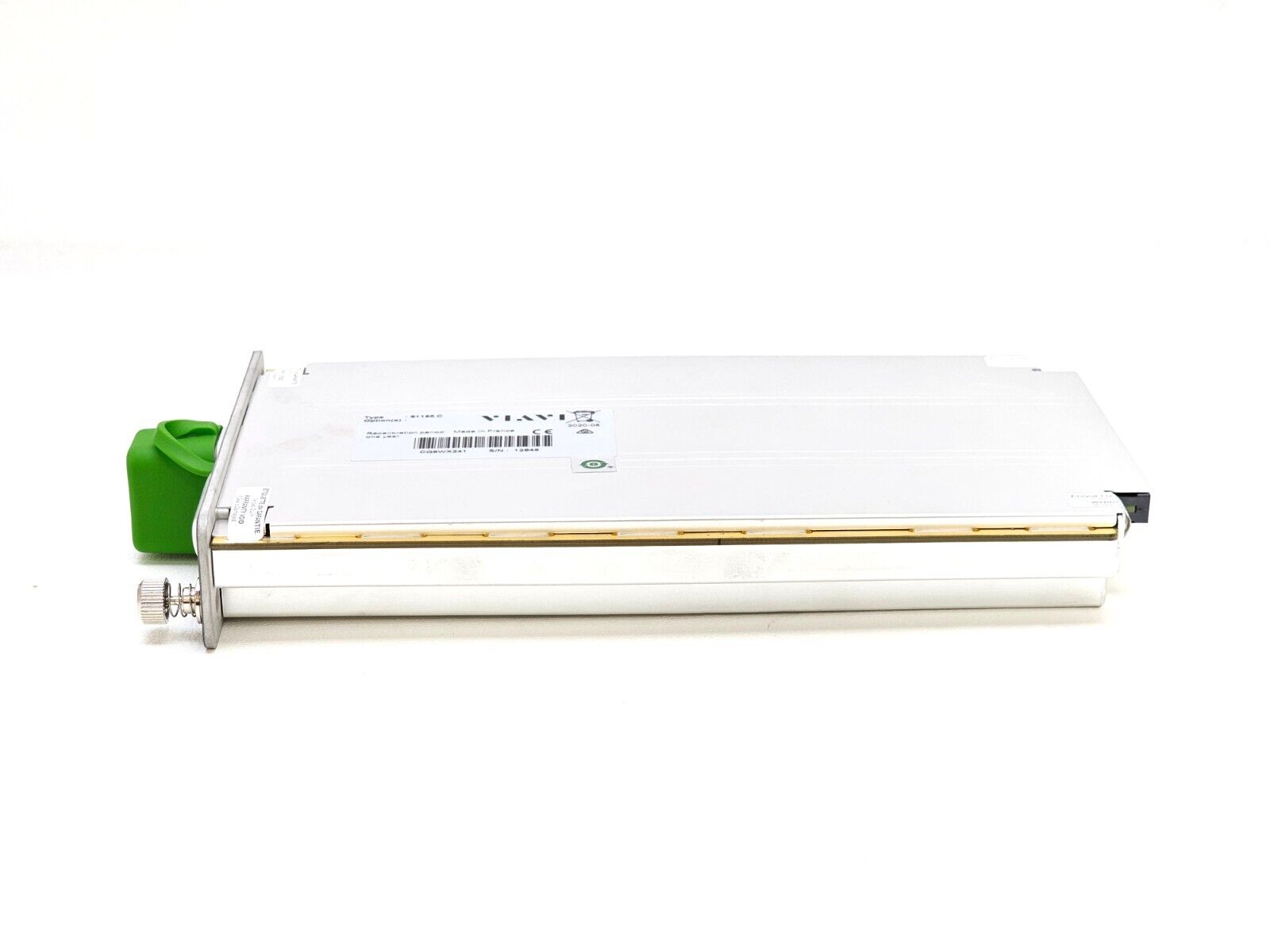

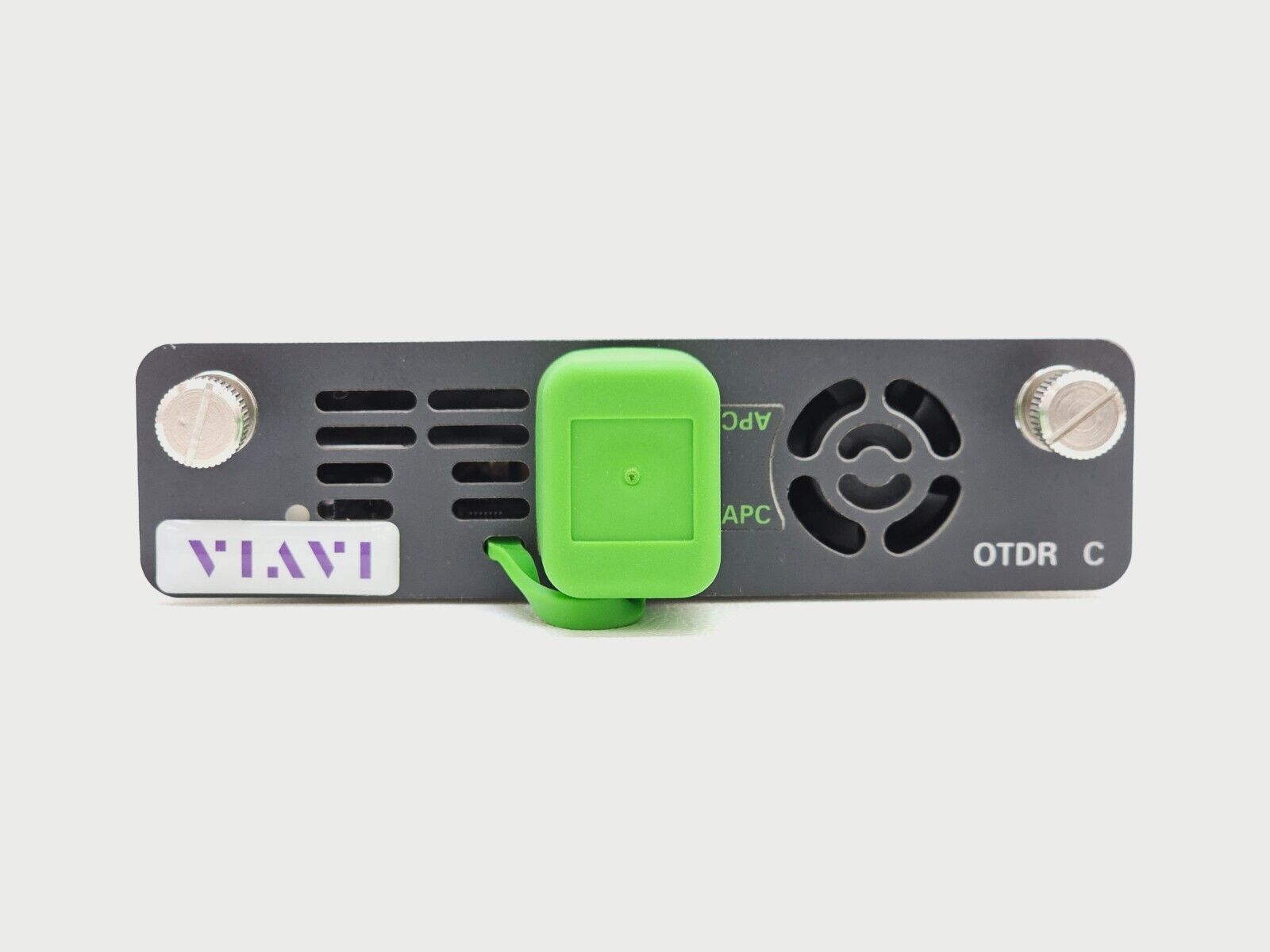

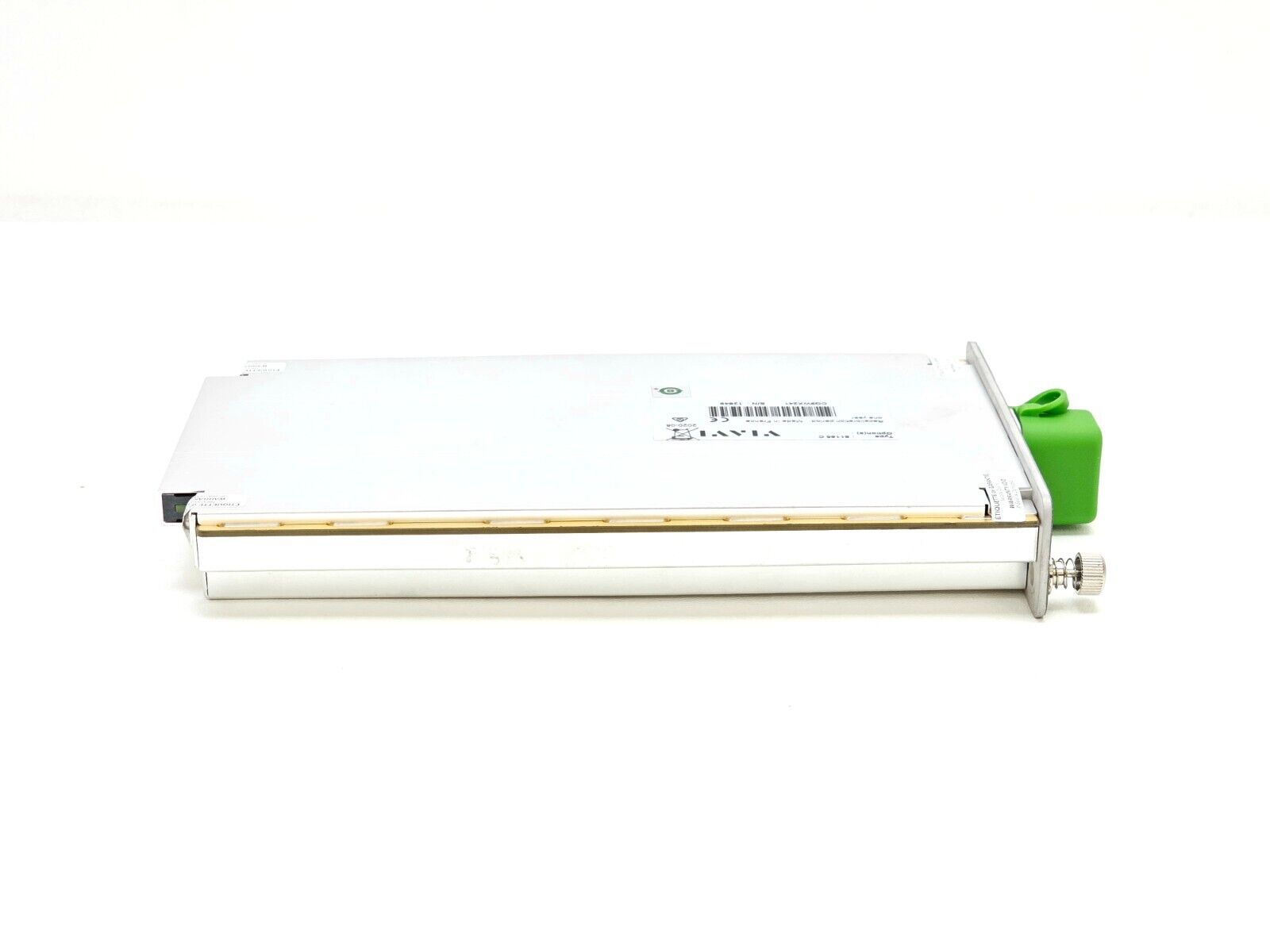

E81165C 1650 nm Live OTDR module 46 dB

The VIAVI Solutions® 8100-Series OTDR EVO family transforms fiber testing. Connect the OTDR EVO family anywhere on the fiber to characterize single-mode and multimode fibers for commissioning, network upgrades, and troubleshooting with the added insurance of workflow optimization and accurate fiber-link fingerprinting.

The OTDR EVO family’s optical performance combined with the T-BERD/MTS platform’s complete suite of testing features ensures that testing jobs are performed right—the first time.

Standard testing features include:

y Automatic macrobend detection
y Summary results table with pass/fail analysis
y Bidirectional OTDR analysis
y FastReport onboard report generation

Applications

y Metro and ultra-long-haul fiber network characterization
y Advanced FTTH PON network qualification and troubleshooting
y Upgrading core fiber networks to 40 and 100 G
y Remotely monitoring fiber while in or out of service
y Advanced Tier-2 certification for enterprise and data center networks

Key Benefits

y Industry-leading dead zone performance for full element event characterization on fiber links 2 m apart
y Includes an integrated power meter, light source, and OTDR in a one-port tool for added flexibility
y Instantaneous, automatic traffic detection avoids risking live signal interference or optical transmitter damage during an OTDR test y Eliminates OTDR interpretation errors with Smart Link Mapper (SLM) without compromising on test time
y Reduces event loss measurement uncertainty and improves measurement repeatability

Key Features

y Up to 50 dB dynamic range
y Integrated CW light source and broadband power meter (single-mode wavelengths)
y PON-optimized to test through a 1x128 splitter

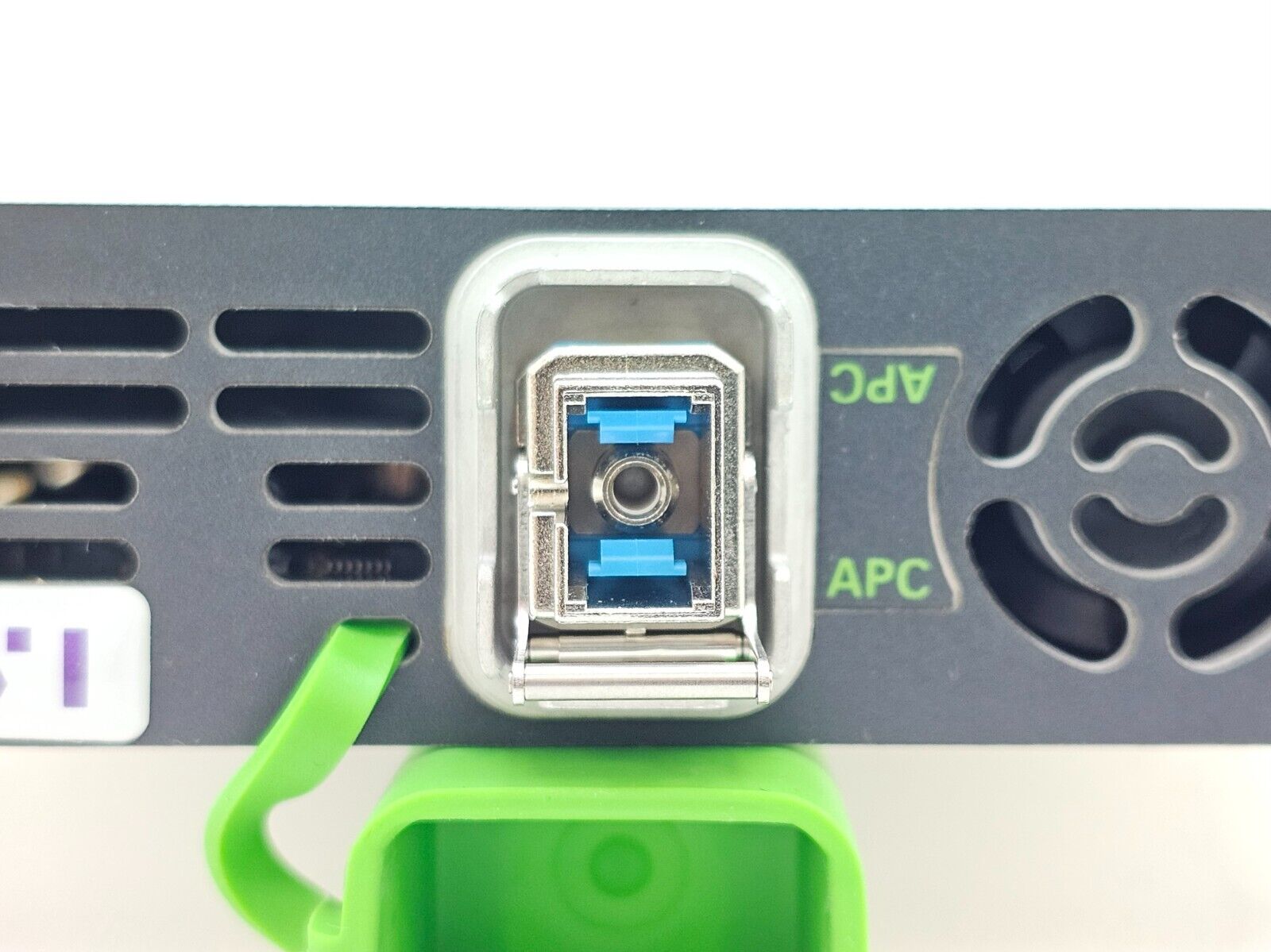

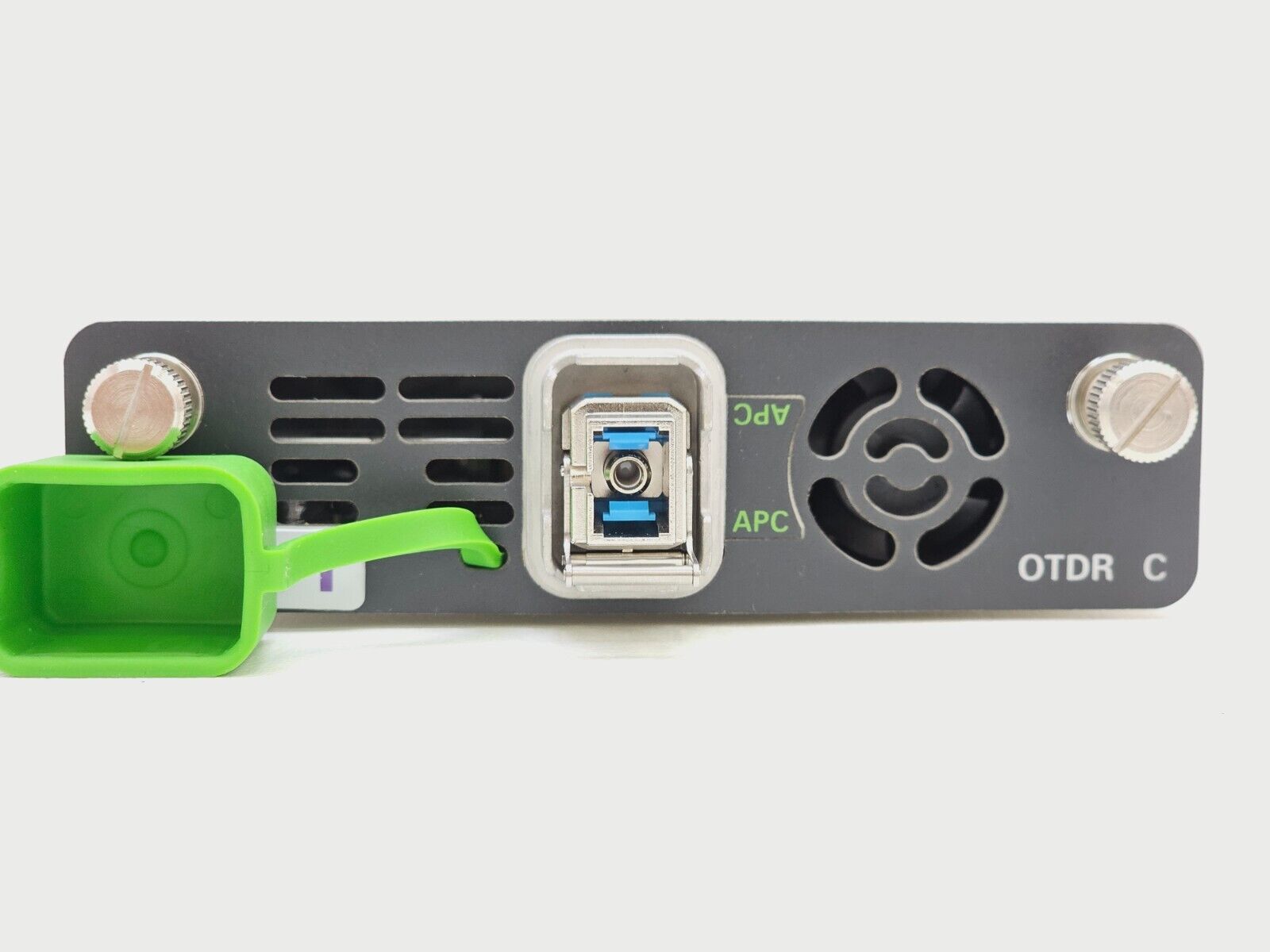

y Single connector port for 1310, 1550, and inservice 1650 nm wavelengths
y FiberComplete™ version available for automated bidirectional OTDR, IL, and ORL measurements
y Built-in encircled flux multimode source compliant with IEC 61280-1-4 and TIA-526- 14-B

For the manufacturer datasheet, please click here
