Condition: Used — In excellent condition, minimal use.

The Viavi (JDSU) MTS 6000A V2 mainframe is fitted with the E8138C-65 Single-Mode OTDR module, configured for very long range fibre characterisation. The module supports triple-wavelength testing at 1310/1550 nm and in-service/live/filtered 1650 nm, with a peak dynamic range of 47.5 dB and measurement range up to 400 km. Event dead zone is an impressive 0.6 m, with an attenuation dead zone of 2 m. Pulse width is selectable from 2 ns to 20 µs. Splitter attenuation dead zone is 25 m after a 15 dB splitter loss, or 60 m after an 18 dB splitter loss. The APC connector is fitted as standard.

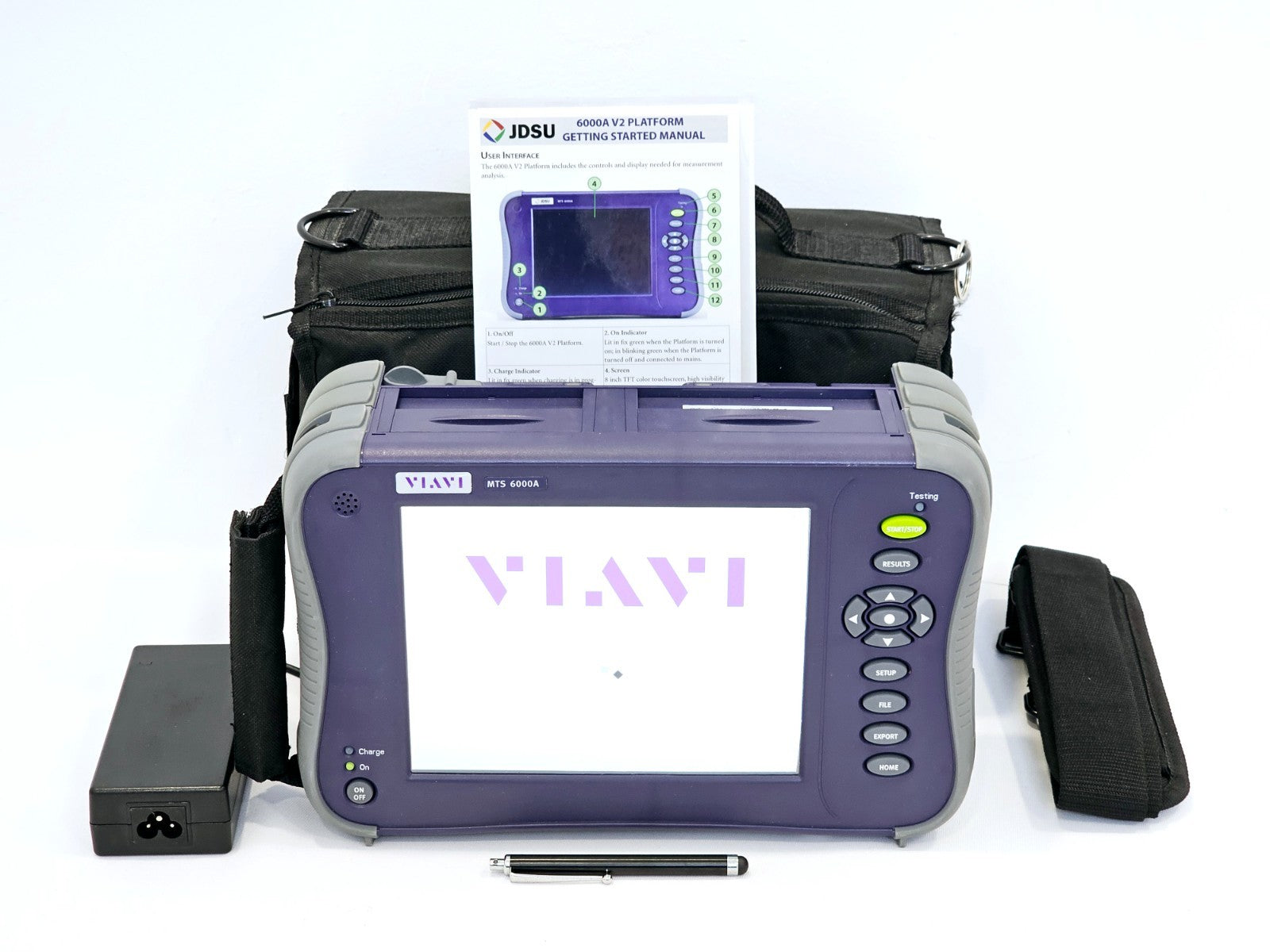

Included in the sale:

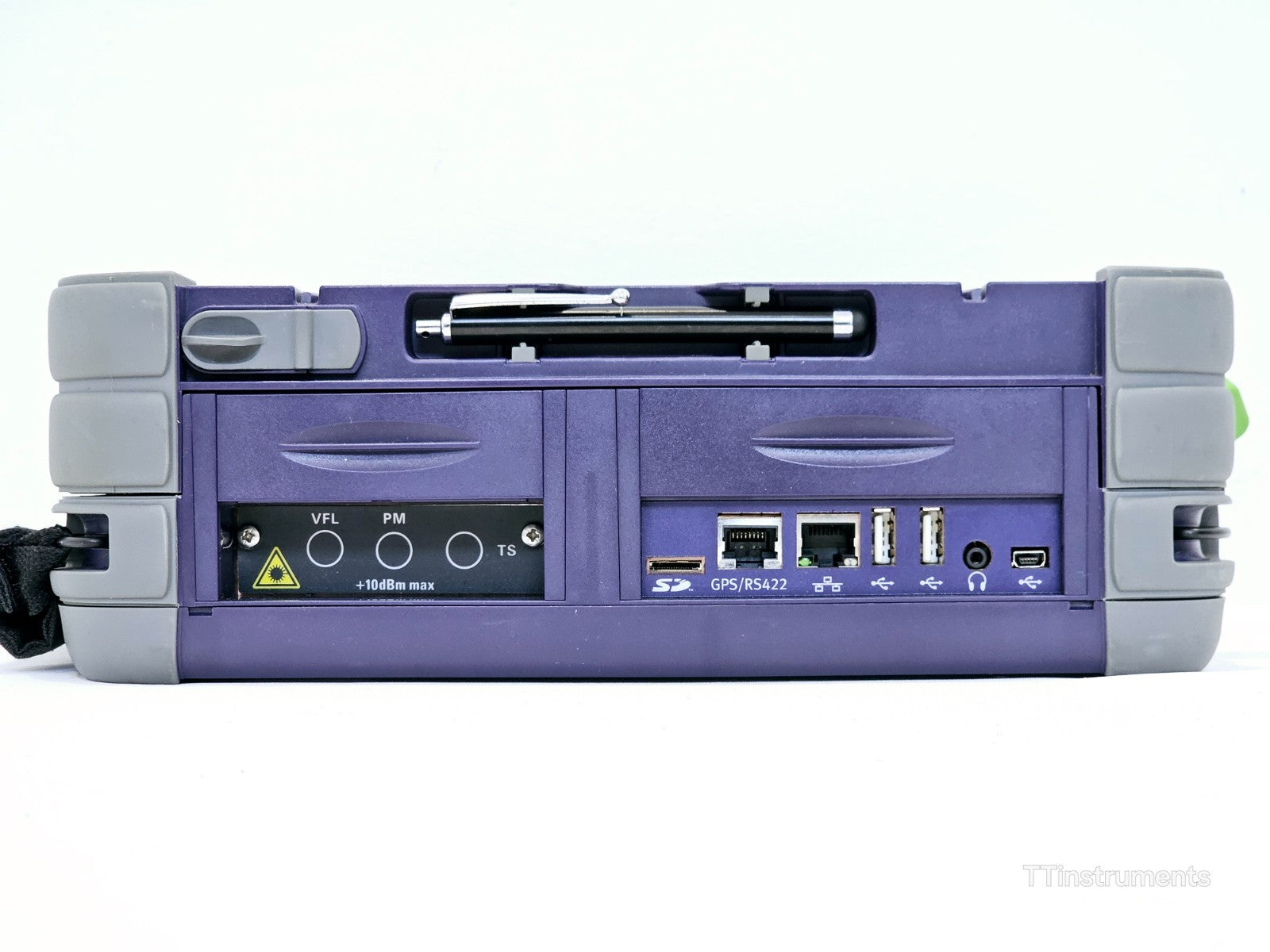

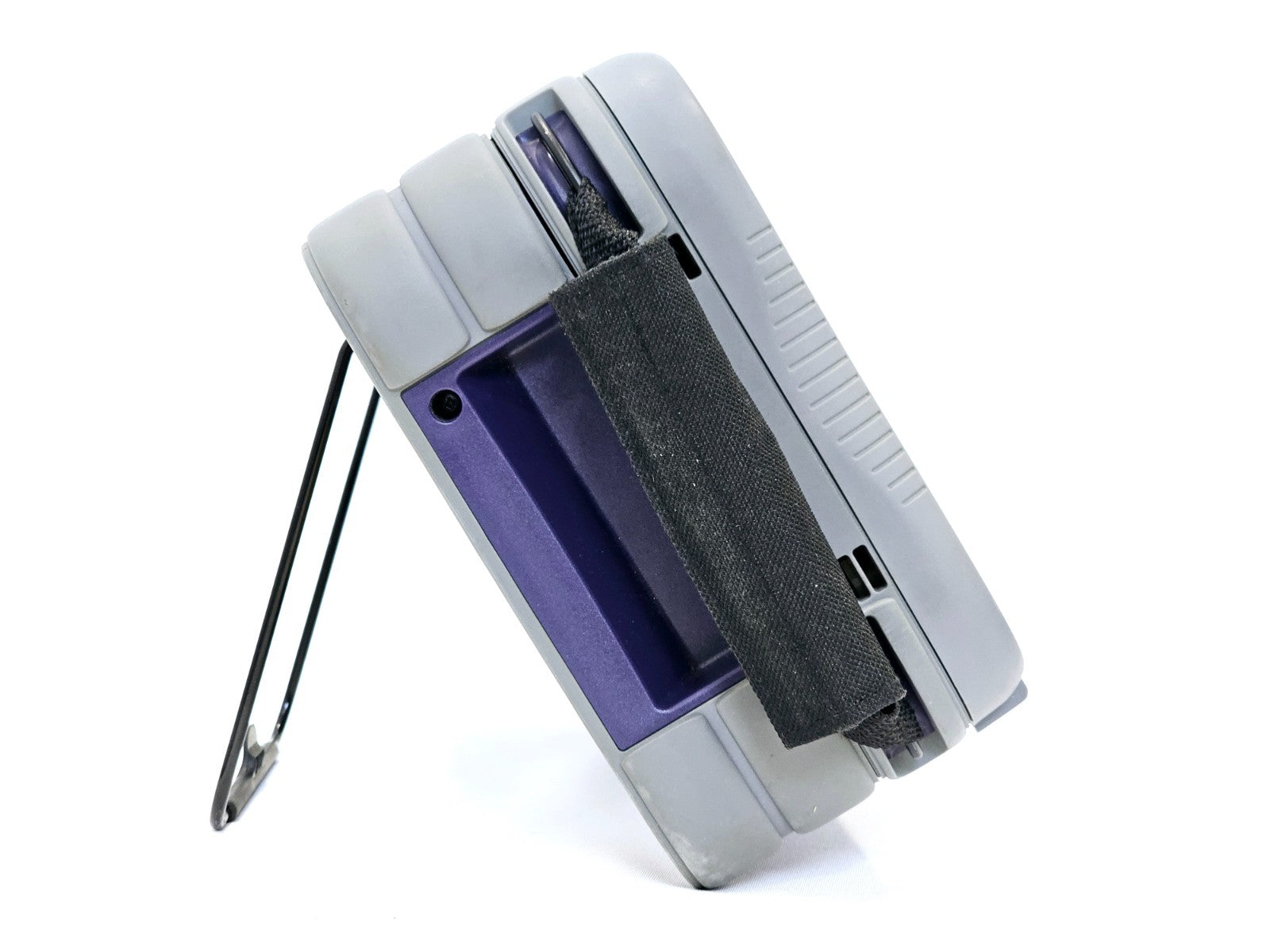

• Viavi MTS 6000A V2 mainframe

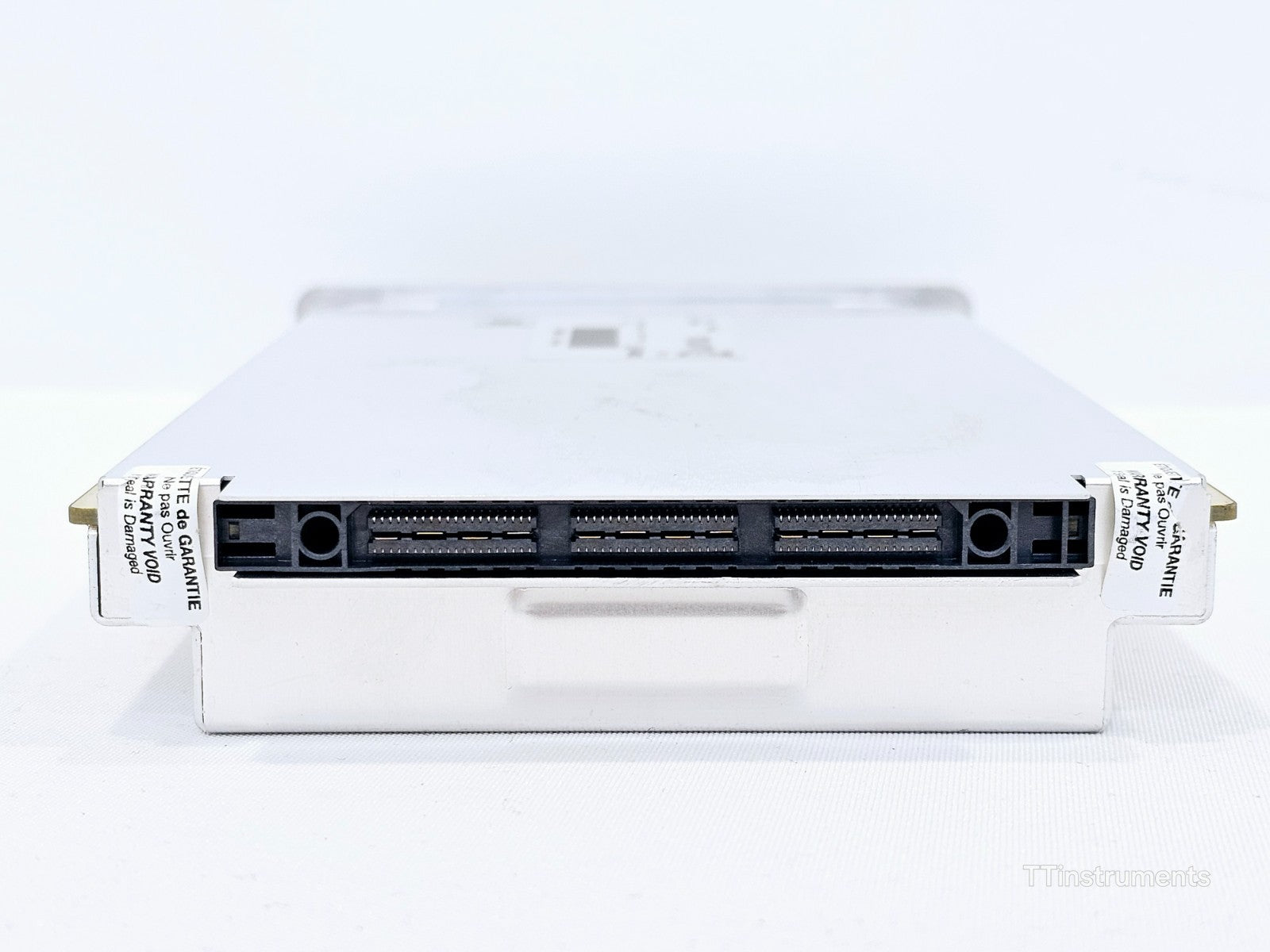

• E8138C-65 SM OTDR module (1310/1550/1650 nm, 47.5/47/46 dB dynamic range)
• AC power adapter
• Carry bag

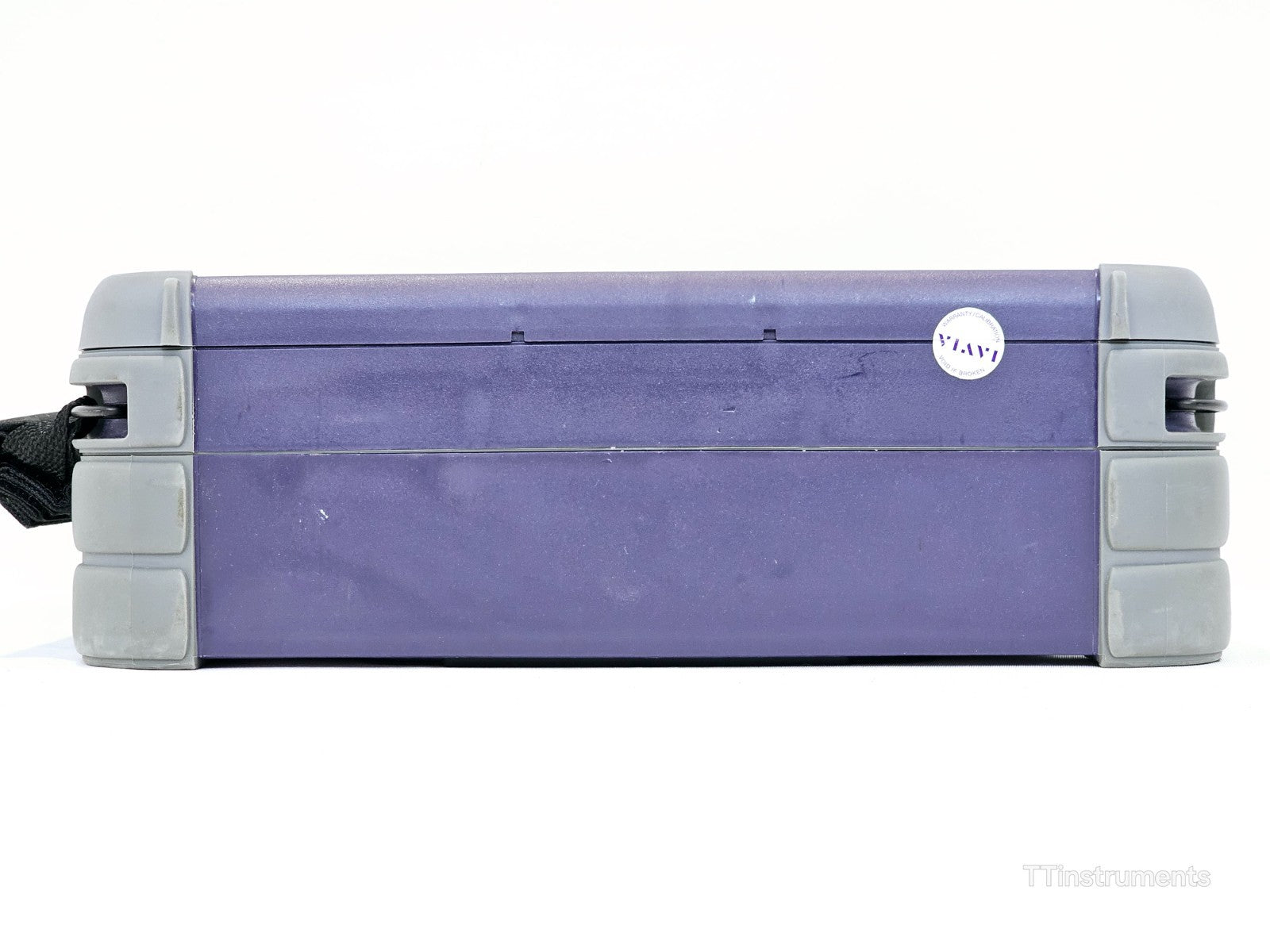

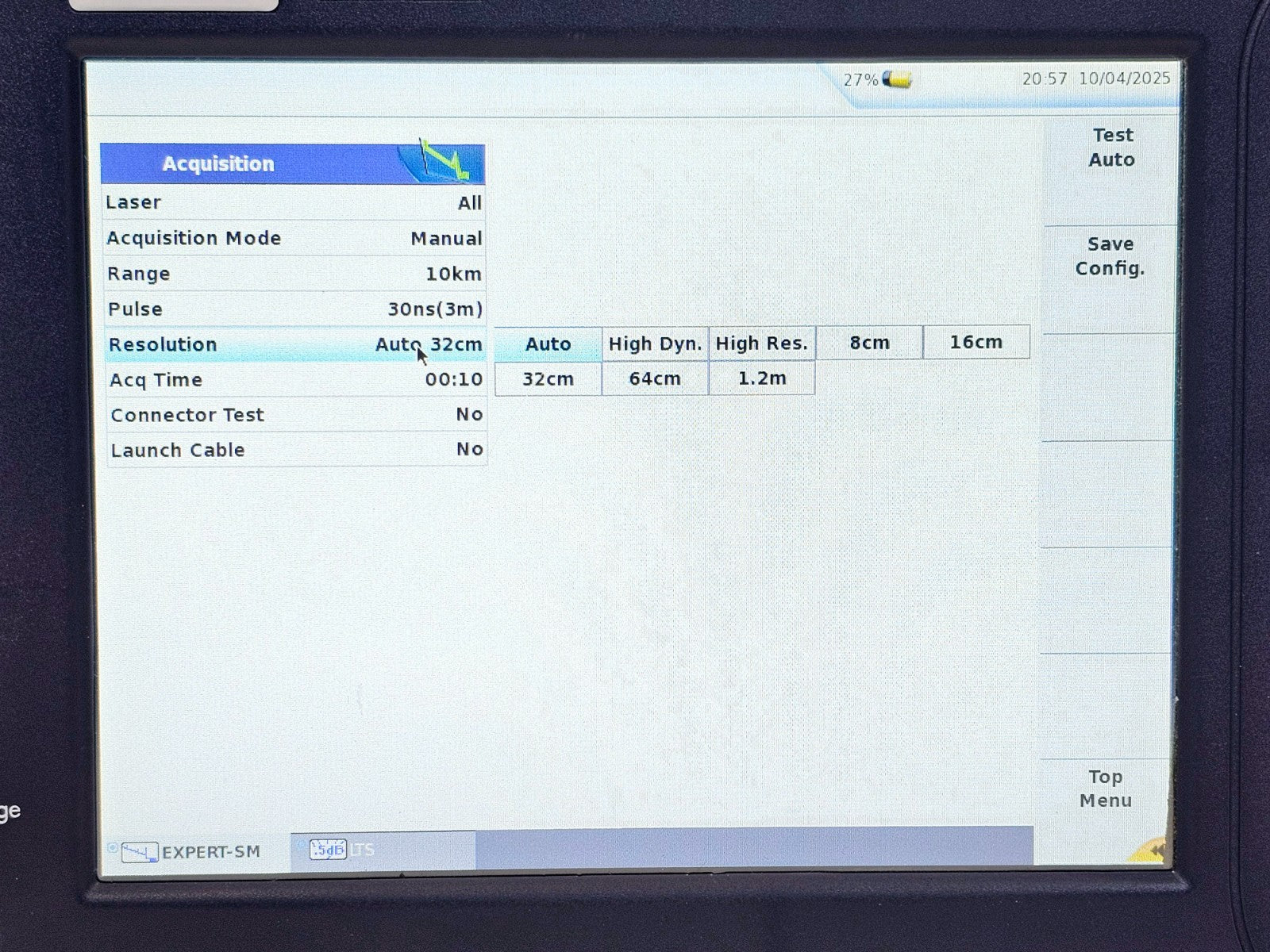

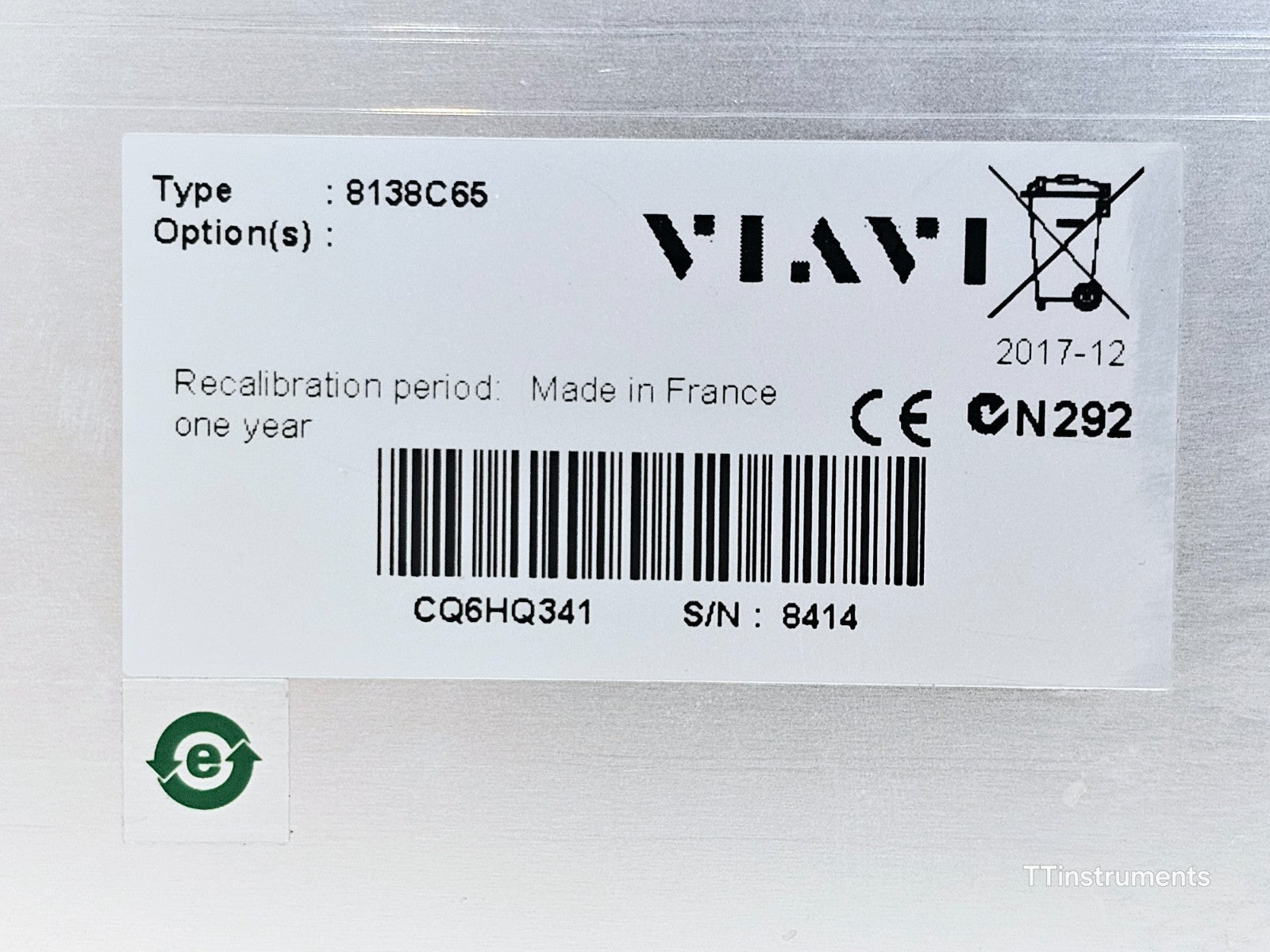

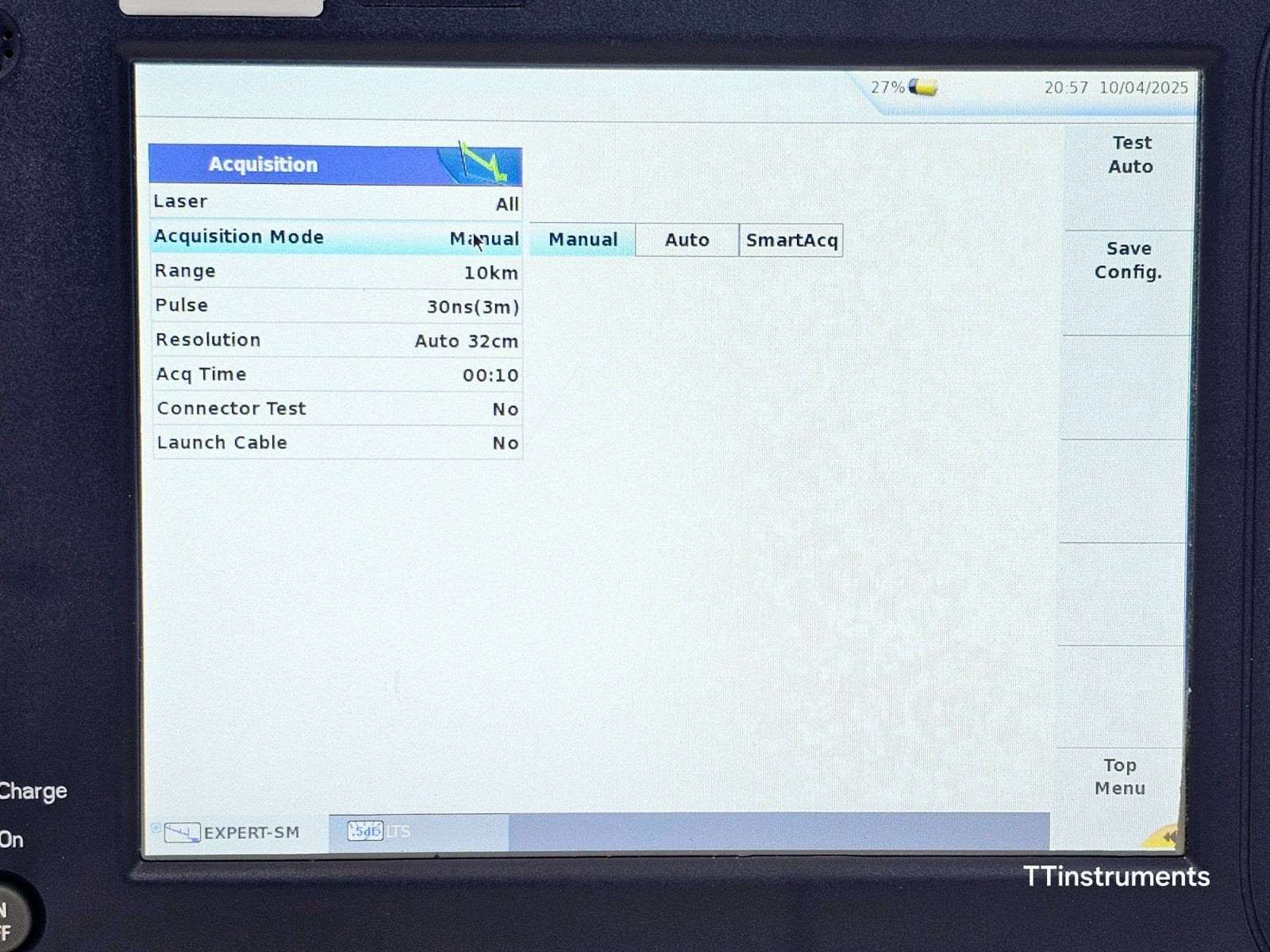

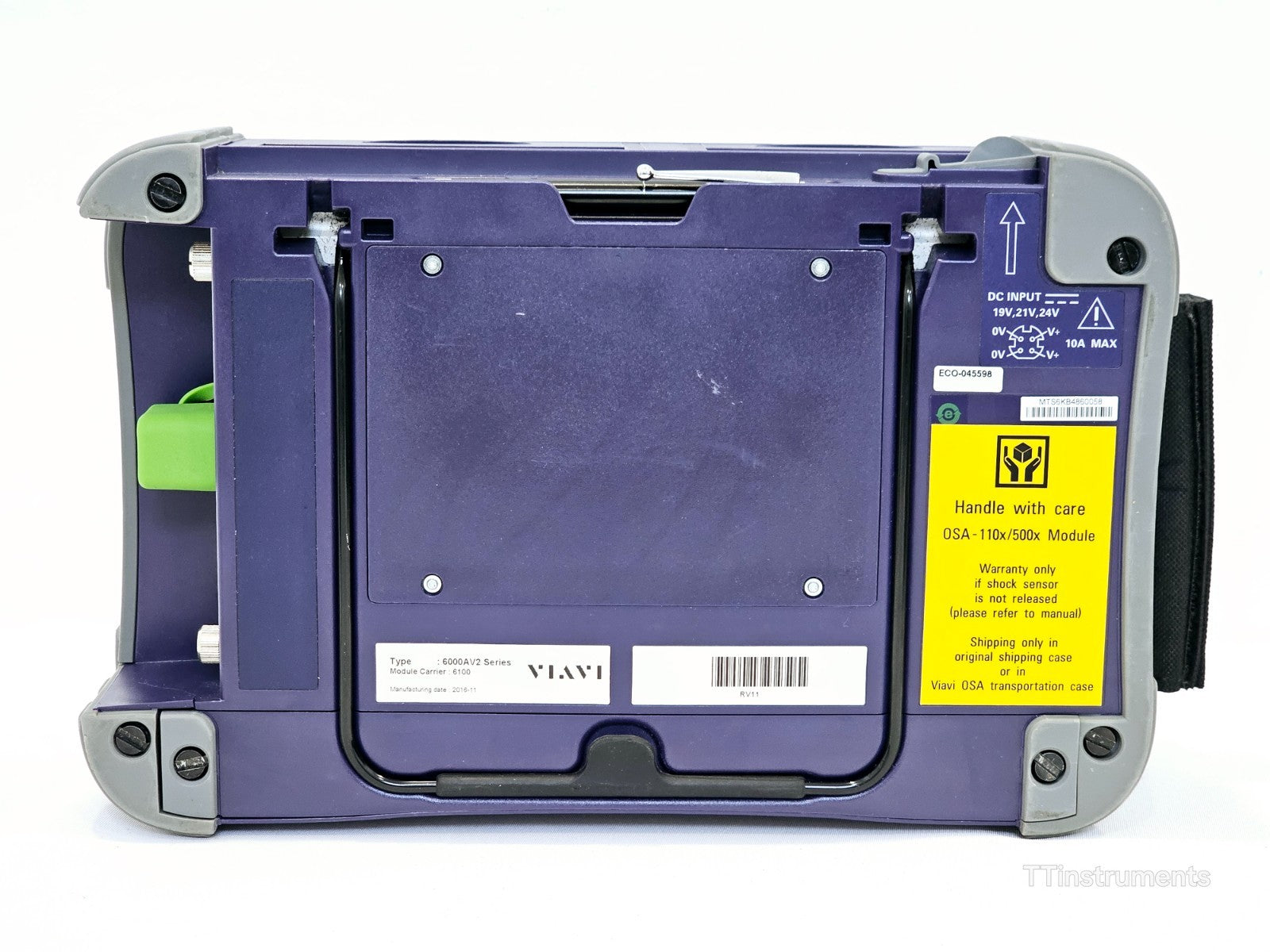

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

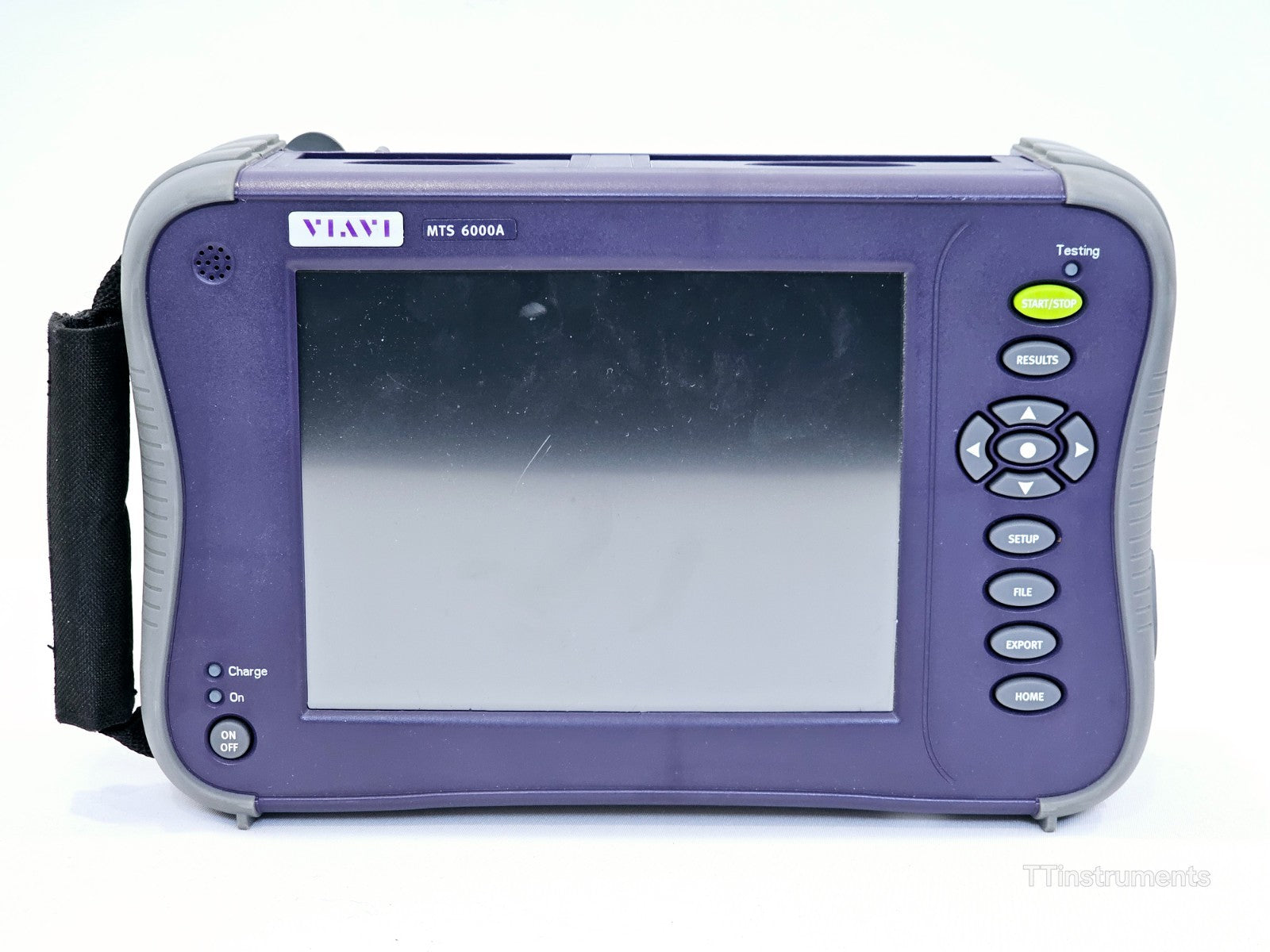

The Viavi (formerly JDSU) T-BERD/MTS 6000A V2 is a compact, modular, multi-application network test platform designed for the installation, commissioning, and maintenance of fibre optic and transport networks. Its scalable single-module carrier design allows field technicians to configure the instrument for a wide range of current and future test requirements by swapping test modules.

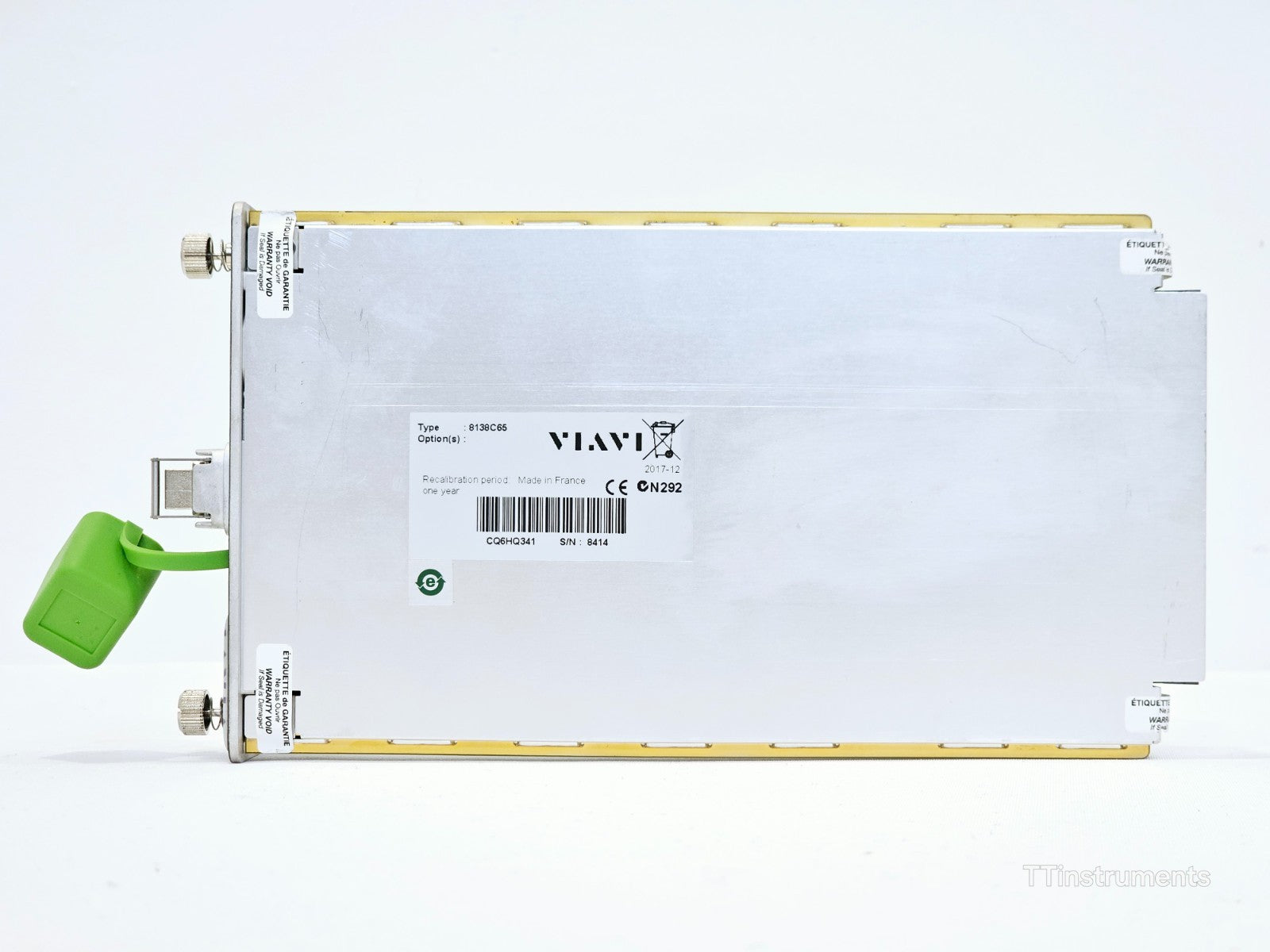

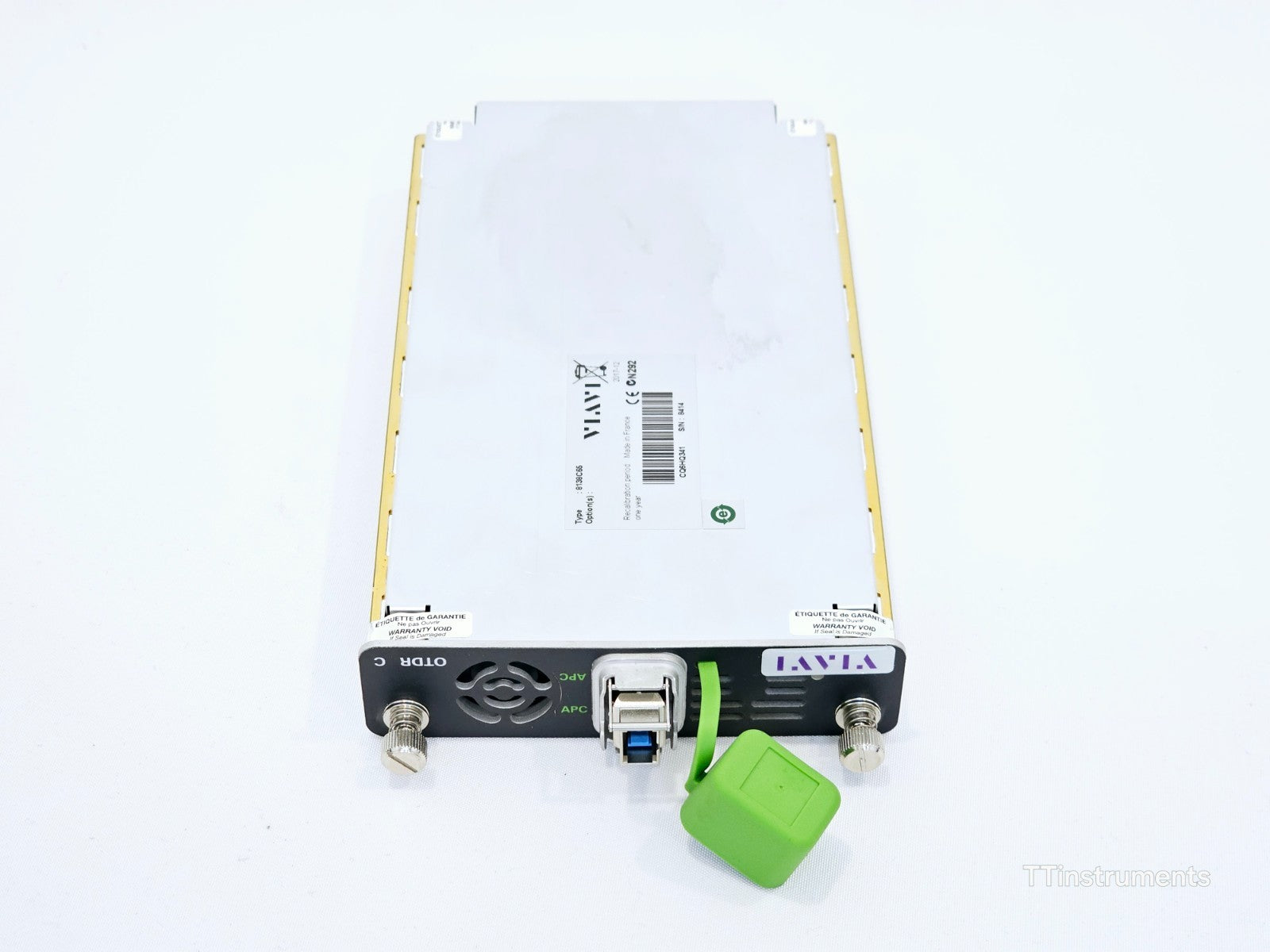

The E8138C-65 is a very long range single-mode OTDR module delivering industry-leading dynamic range for the characterisation of long-haul and ultra-long-haul fibre spans. It supports in-service fibre testing at 1650 nm using a filtered wavelength approach, allowing technicians to test live fibres without service interruption.

Key Specifications — Viavi E8138C-65 OTDR Module:

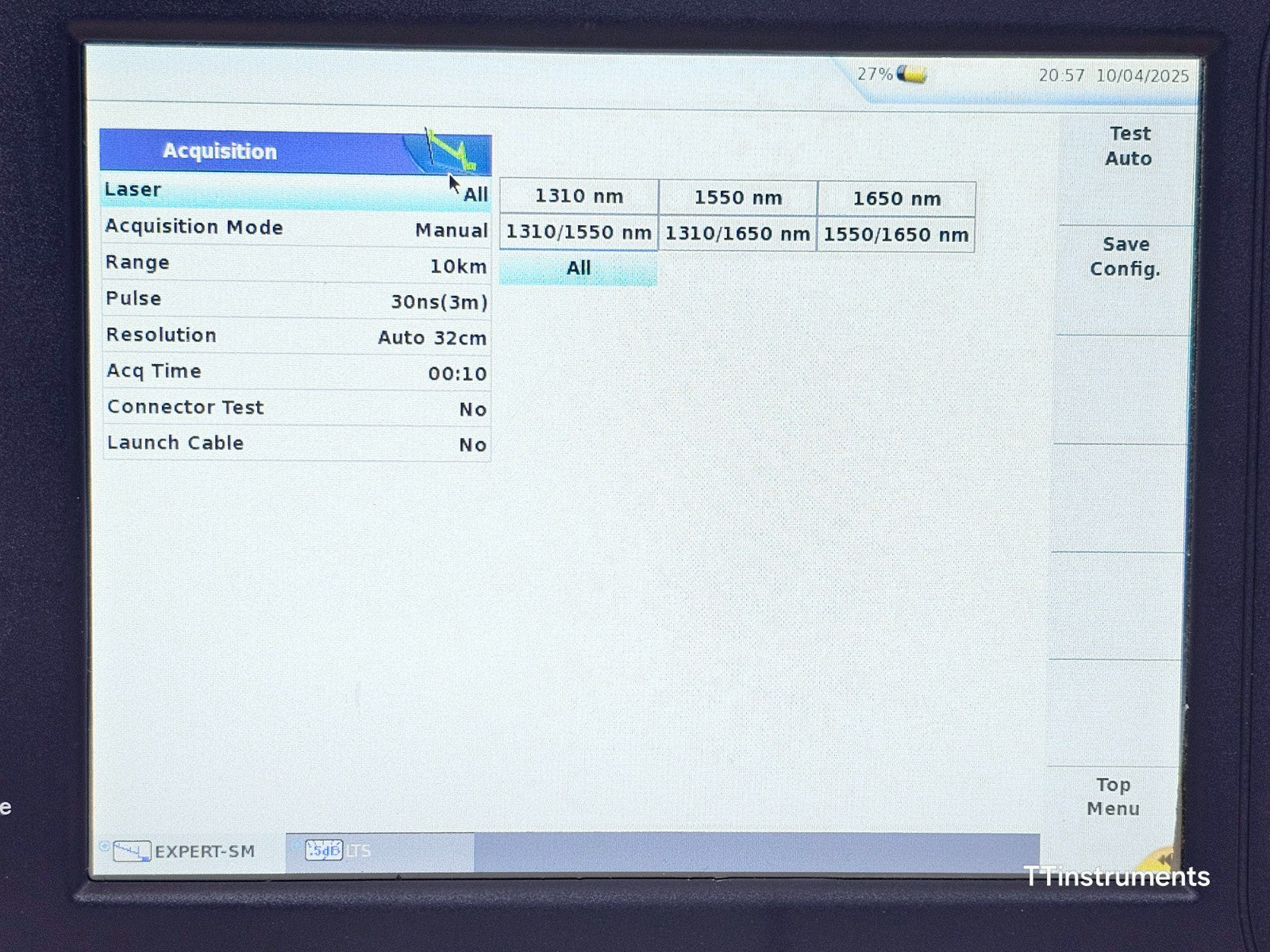

Wavelengths: 1310 nm / 1550 nm / 1650 nm (in-service/live/filtered)
Dynamic Range: 47.5 dB (1310 nm) / 47 dB (1550 nm) / 46 dB (1650 nm)
Event Dead Zone: 0.6 m
Attenuation Dead Zone: 2 m
Splitter Attenuation Dead Zone: 25 m (after 15 dB splitter loss) / 60 m (after 18 dB splitter loss)
Measurement Range: Up to 400 km

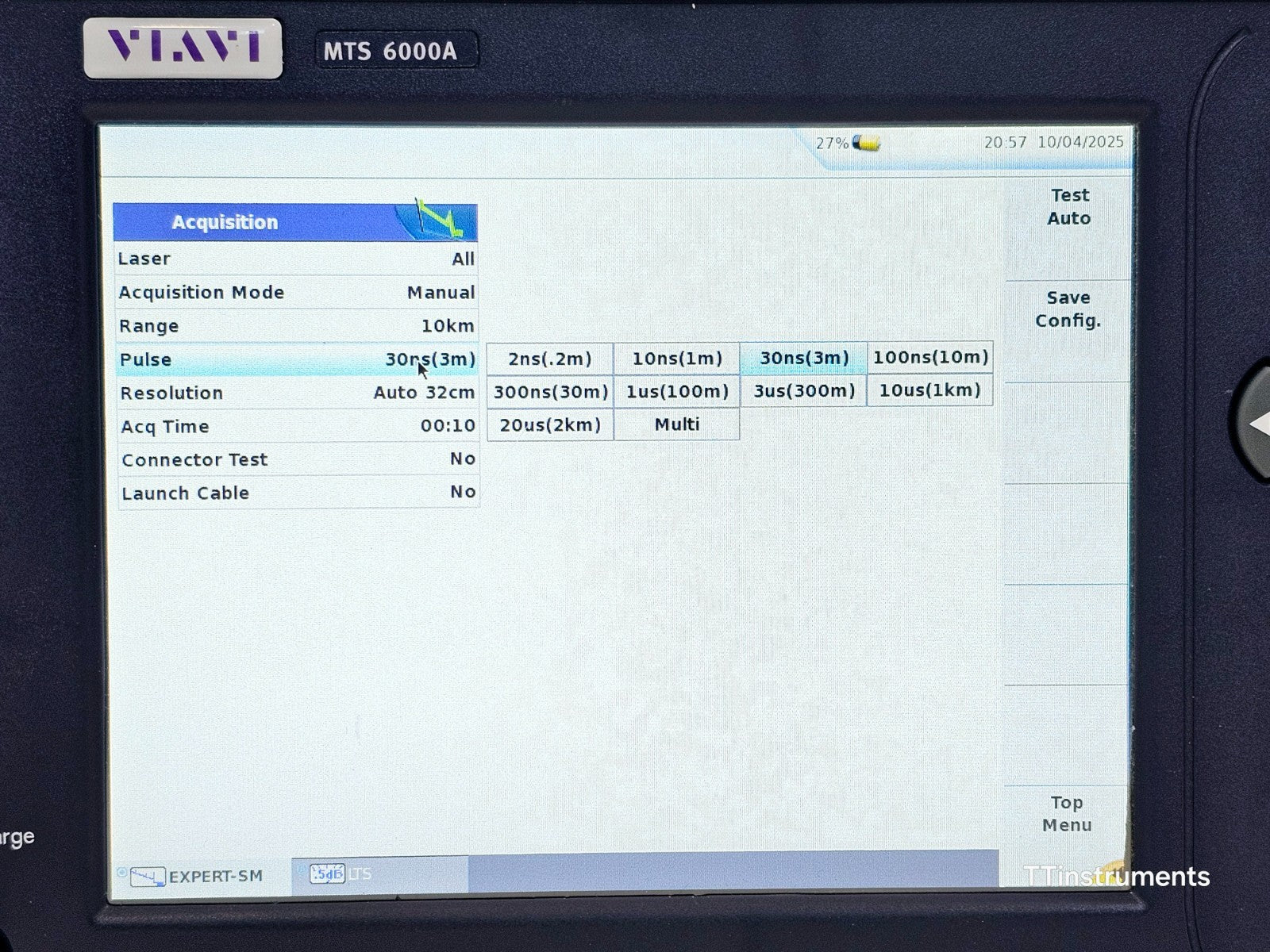

Pulse Width: 2 ns to 20 µs

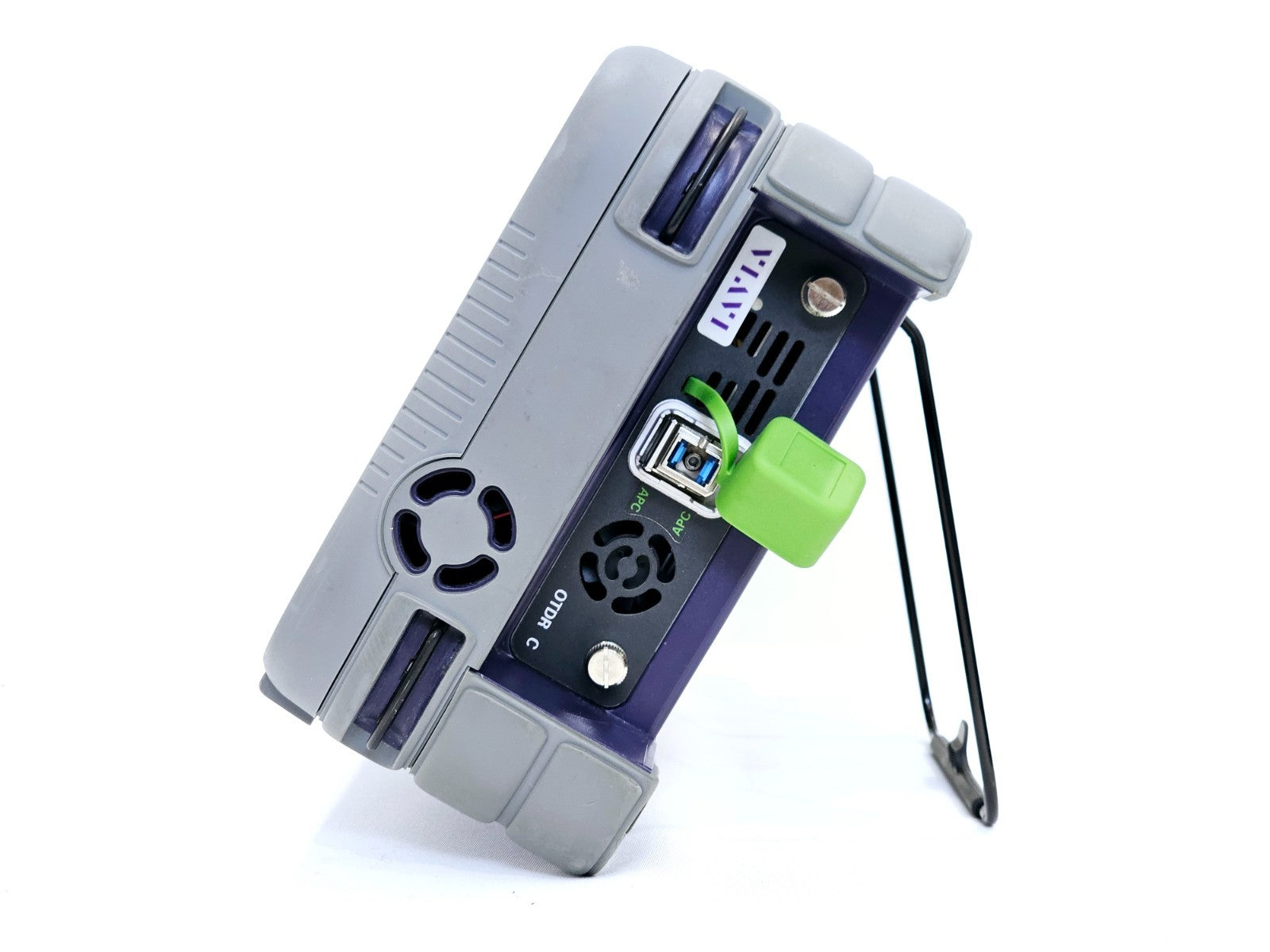

Connector: APC
Platform: Viavi MTS / T-BERD 6000A V2 mainframe

The MTS 6000A V2 platform features a rugged, field-hardened enclosure, a high-resolution colour display, and long battery life — making it well suited for both central office and outside plant environments.

Viavi T-BERD/MTS 6000A V2 compact network test platform datasheet (PDF): Download PDF
