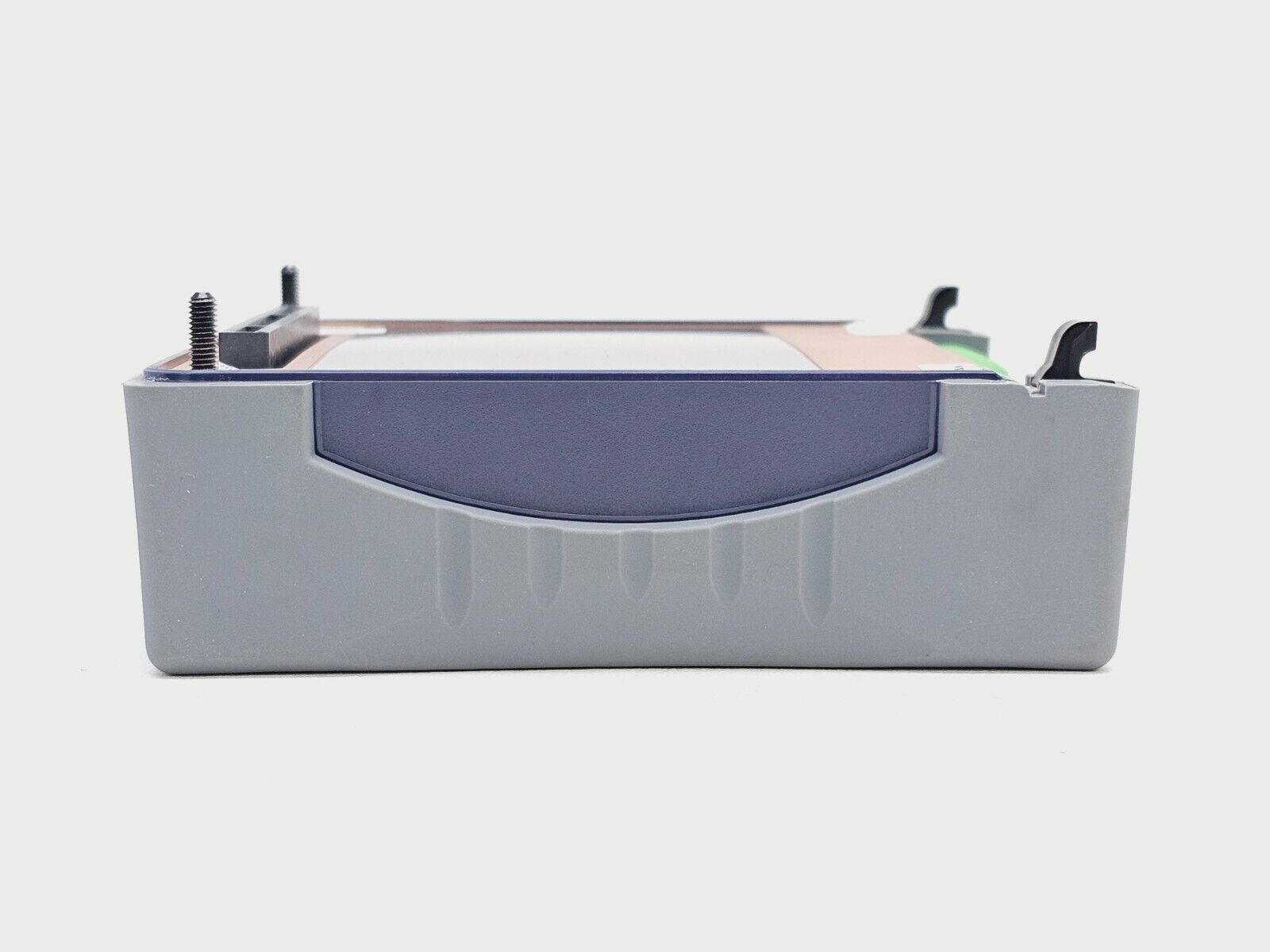

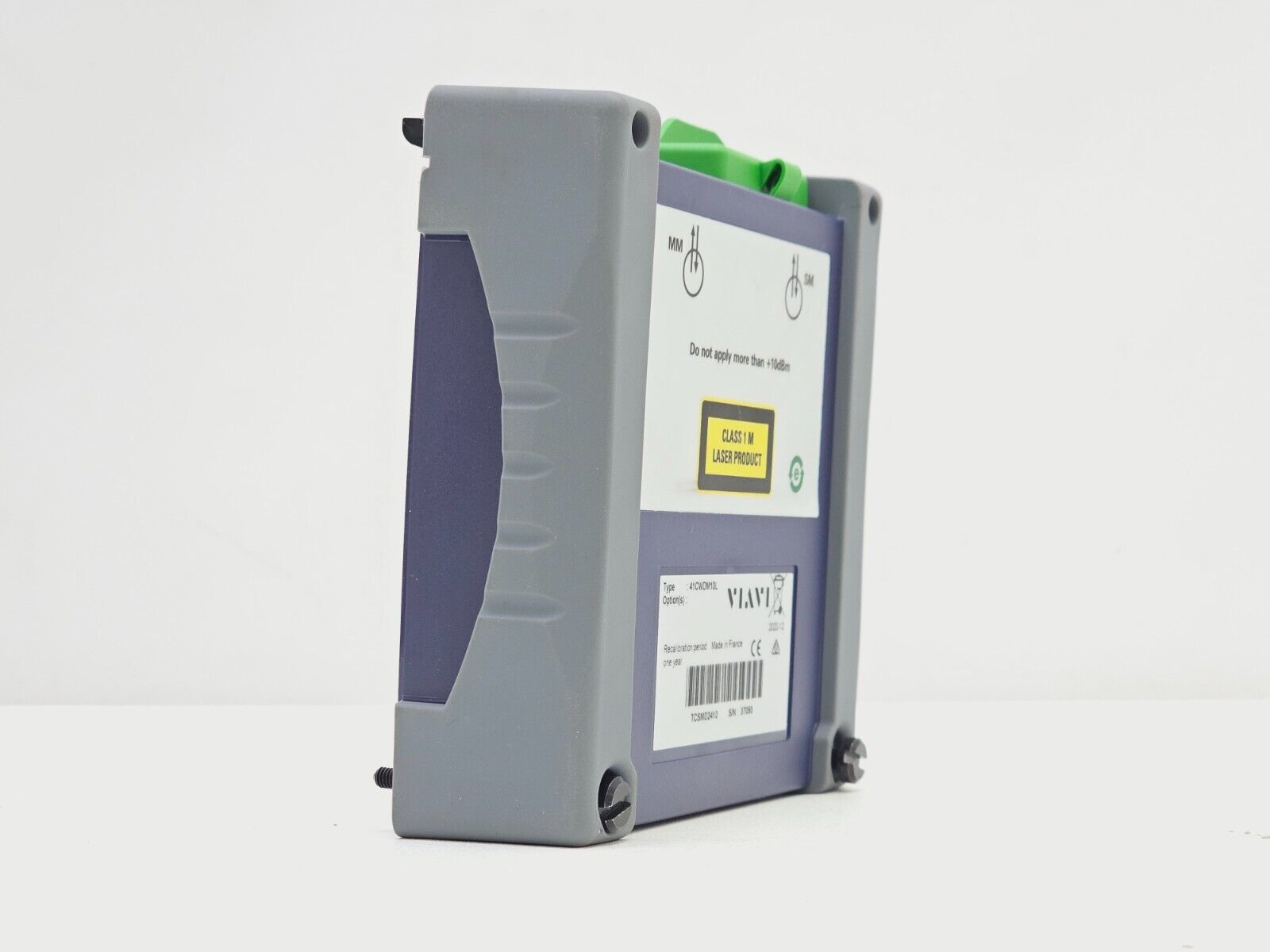

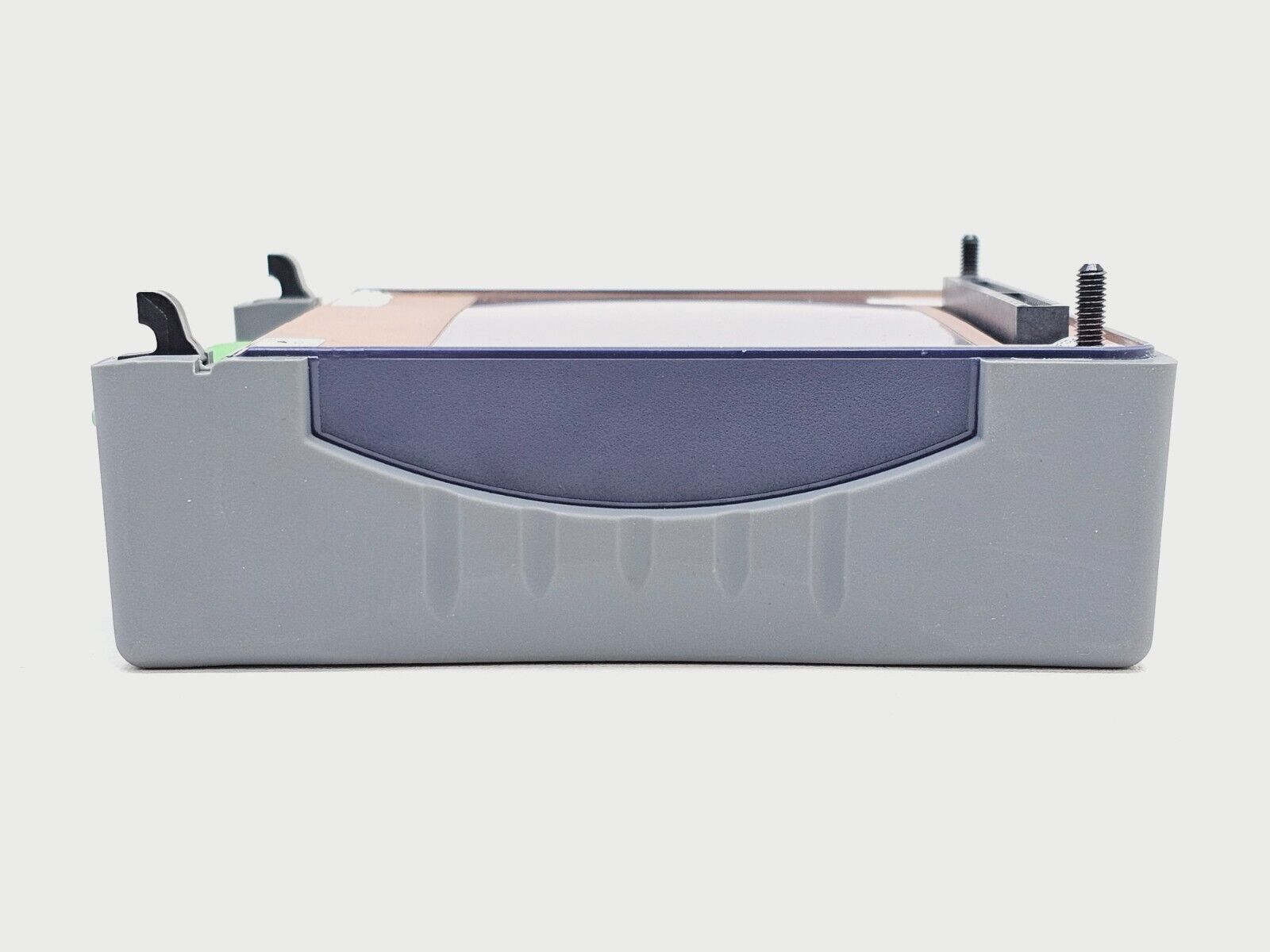

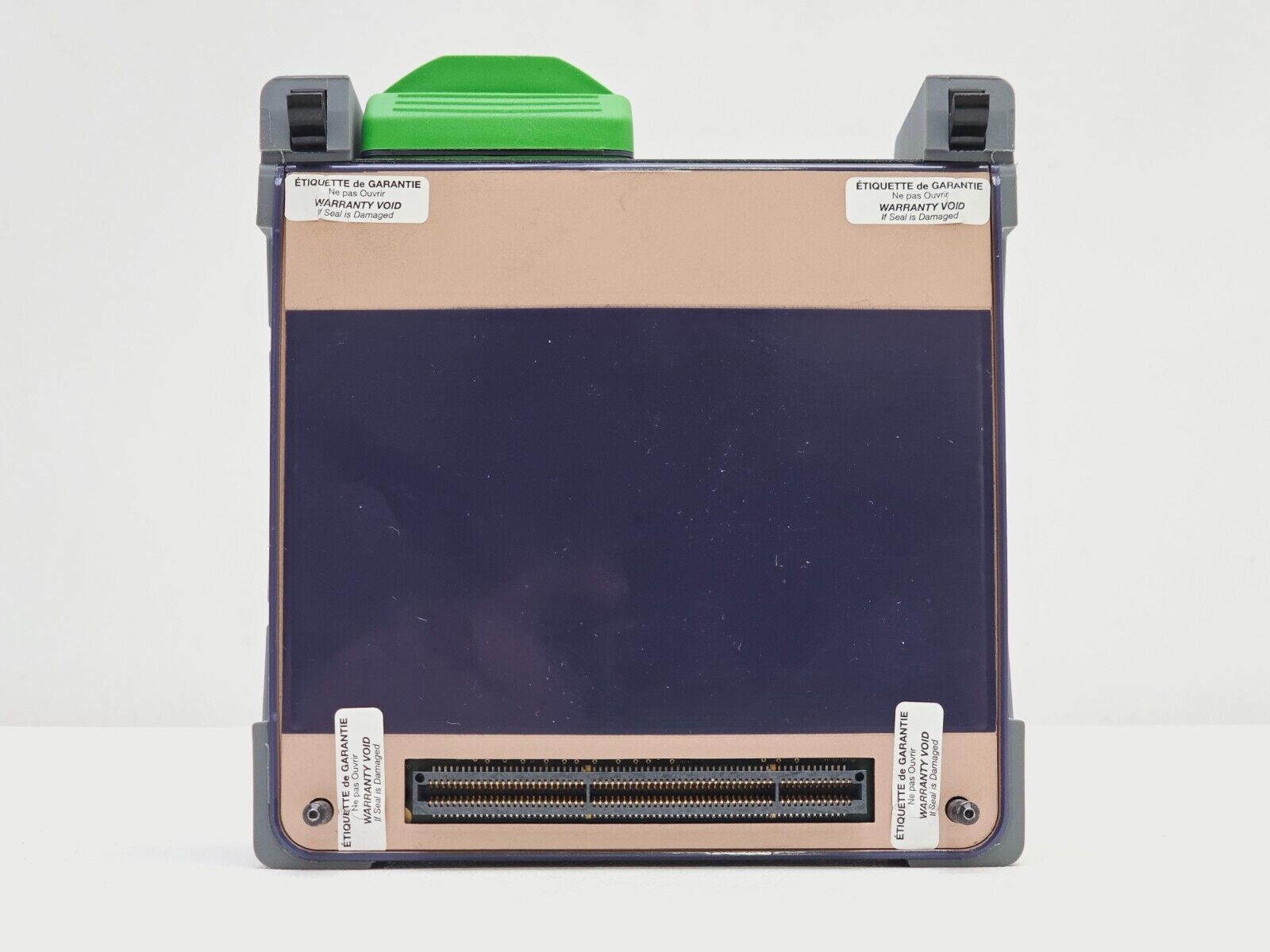

CWDM OTDR Modules (4100 Series)4100 Series Module for T-BERD/MTS-2000, -4000 V2 and 5800 and OneAdvisor 800, FTH-9000 PlatformsA CWDM OTDR test solution to deploy or maintain and troubleshoot in-service CWDM fiber networks
VIAVI CWDM OTDR solution enables cable operators, dark fiber providers and telecommunication service providers to test through MUX/DEMUX and perform a complete end-to-end link characterization or troubleshooting of active C-RAN, DAS and mobile fronthaul CWDM networks. Learn more about OTDR Testing.
Benefits
The most compact CWDM OTDR solution in the market: 18 CWDM wavelengths covered in only 2 OTDR modules
Perfect for end-to-end link characterization during network deployment/ construction
Ideal to test new CWDM wavelength routes or pinpoint faults and know their exact locations without disrupting traffic on active channels
Can be combined with a CWDM spectrum analyzer module (COSA-4055) to measure the wavelengths and power levels of active CWDM channels
Applications
Characterize end-to-end links with exact CWDM wavelengths
Troubleshoot active networks with in-service testing capability
Verify end-to-end continuity with the continuous wave source function
Key Features
CWDM8U version includes 8 wavelengths from 1471nm to 1611nm
CWDM10U version includes 10 wavelengths from 1431nm to 1611nm

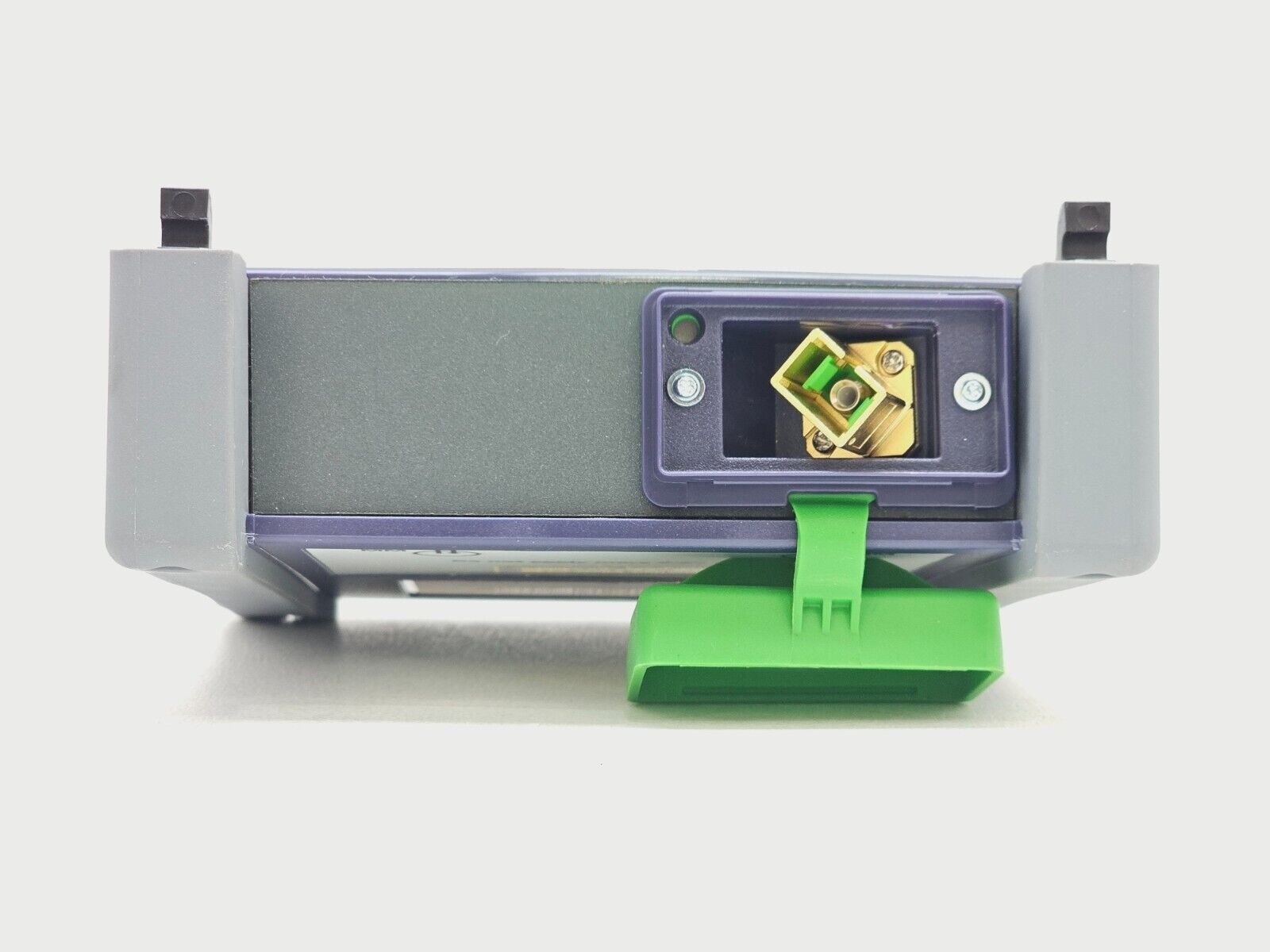

CWDM10L version includes 10 wavelengths from 1271nm to 1451nm
Integrated CW light source with modulation capability (same OTDR wavelengths)
Eliminate OTDR interpretation errors with Smart Link Mapper (SLM) option (converts the OTDR trace into icons – splice, connector, MUX/DEMUX)

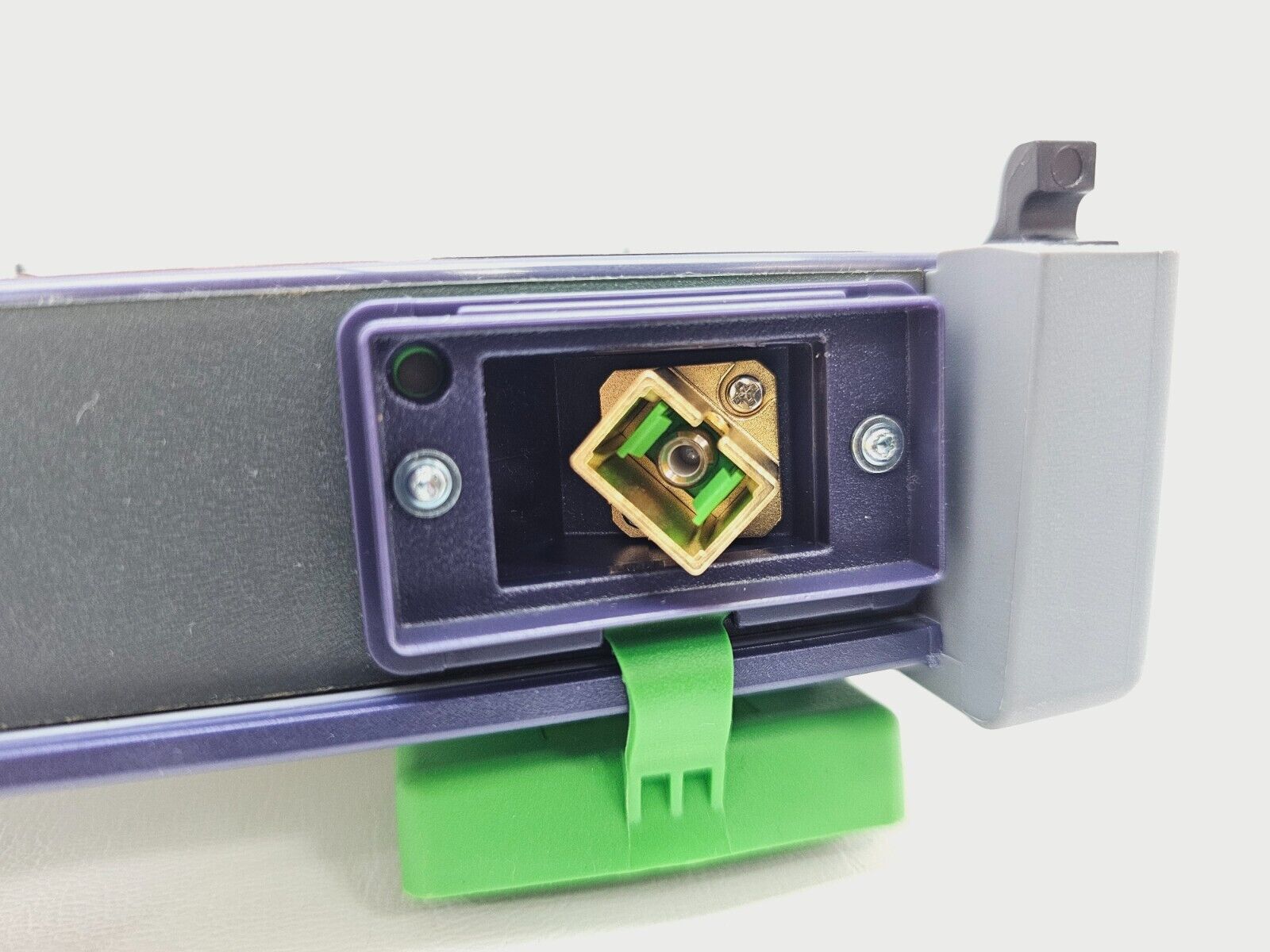

Compatible with T-BERD/MTS-2000, -4000, -4000 V2 and -5800 platforms
