Condition: Used

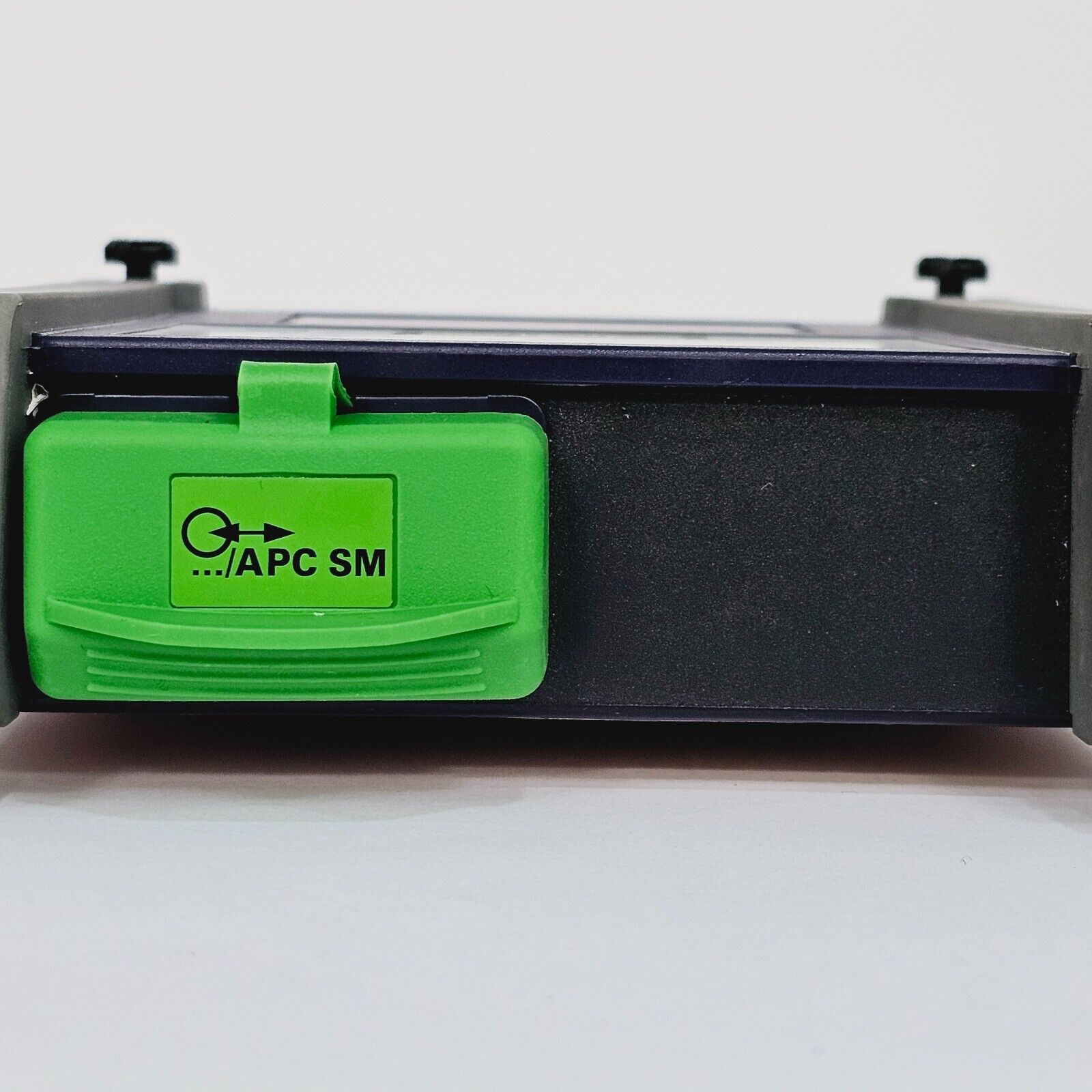

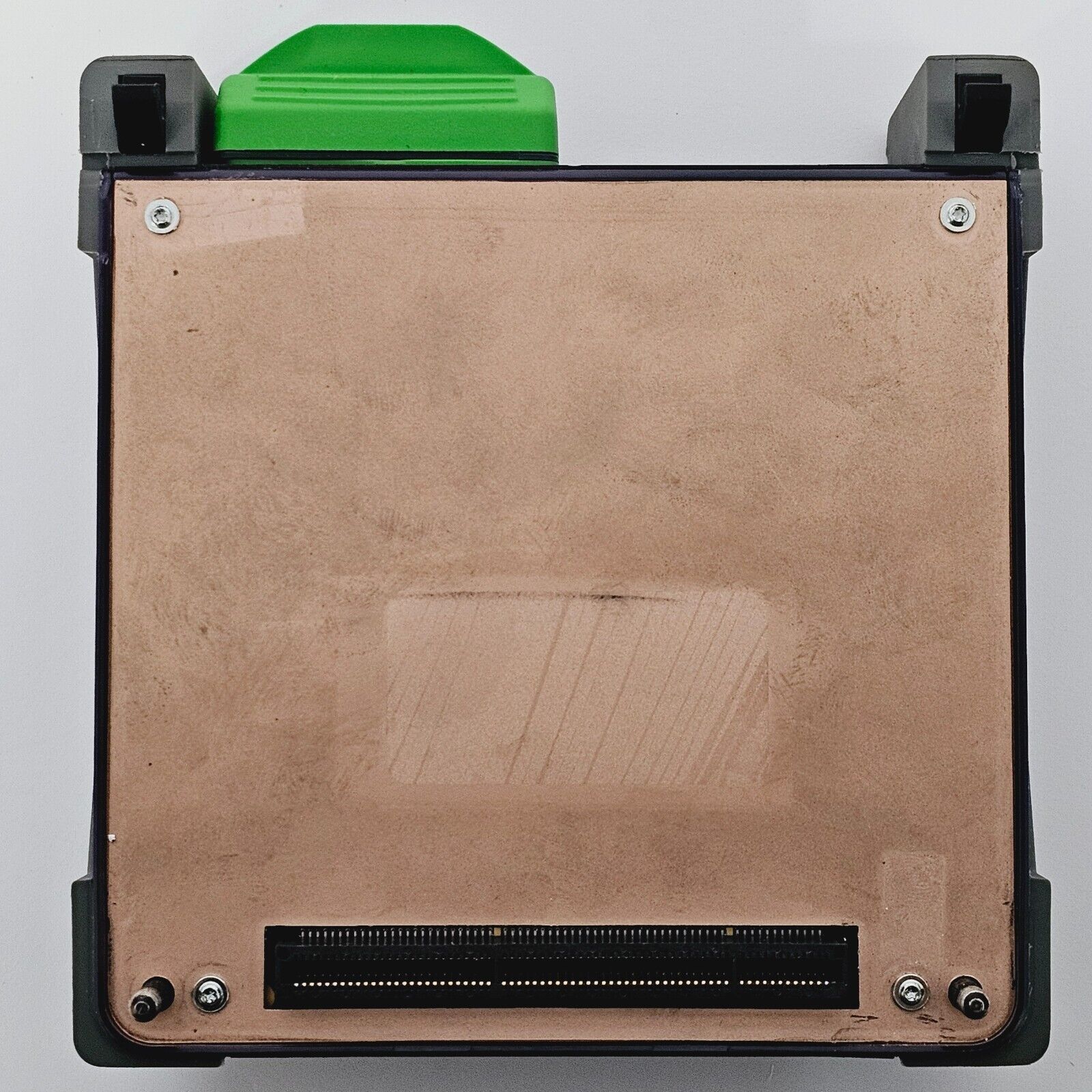

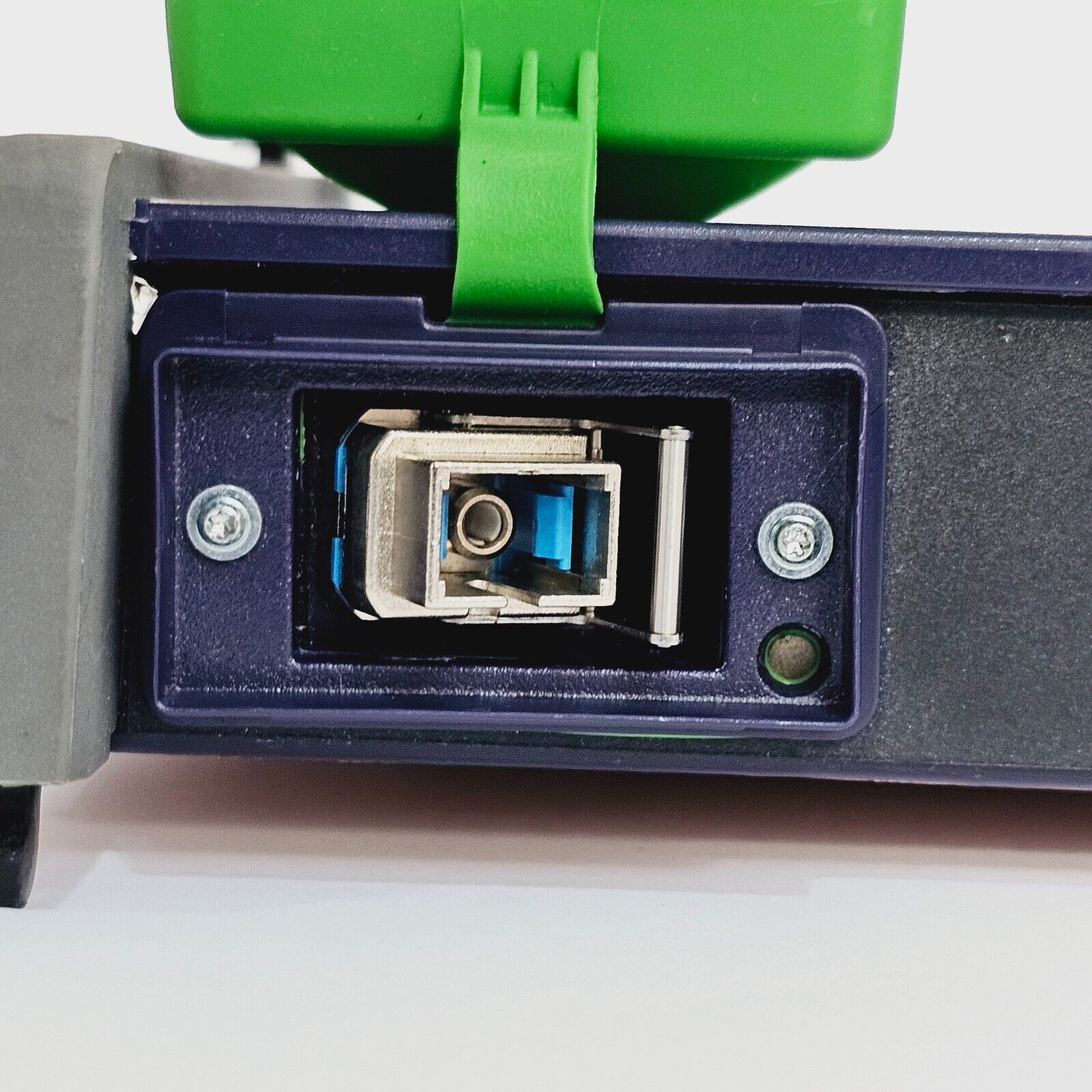

This Viavi JDSU 4138 MP49 is in working condition and is supplied as a module only, compatible with the Viavi 2000 and 4000 series test platforms. It features tri-wavelength operation at 1310/1490/1550 nm with a dynamic range of 43/41/41 dB, an event dead zone of just 0.8 m, attenuation dead zone of 4 m, APC/SC connector, and a maximum range of 260 km.

Included in the sale:

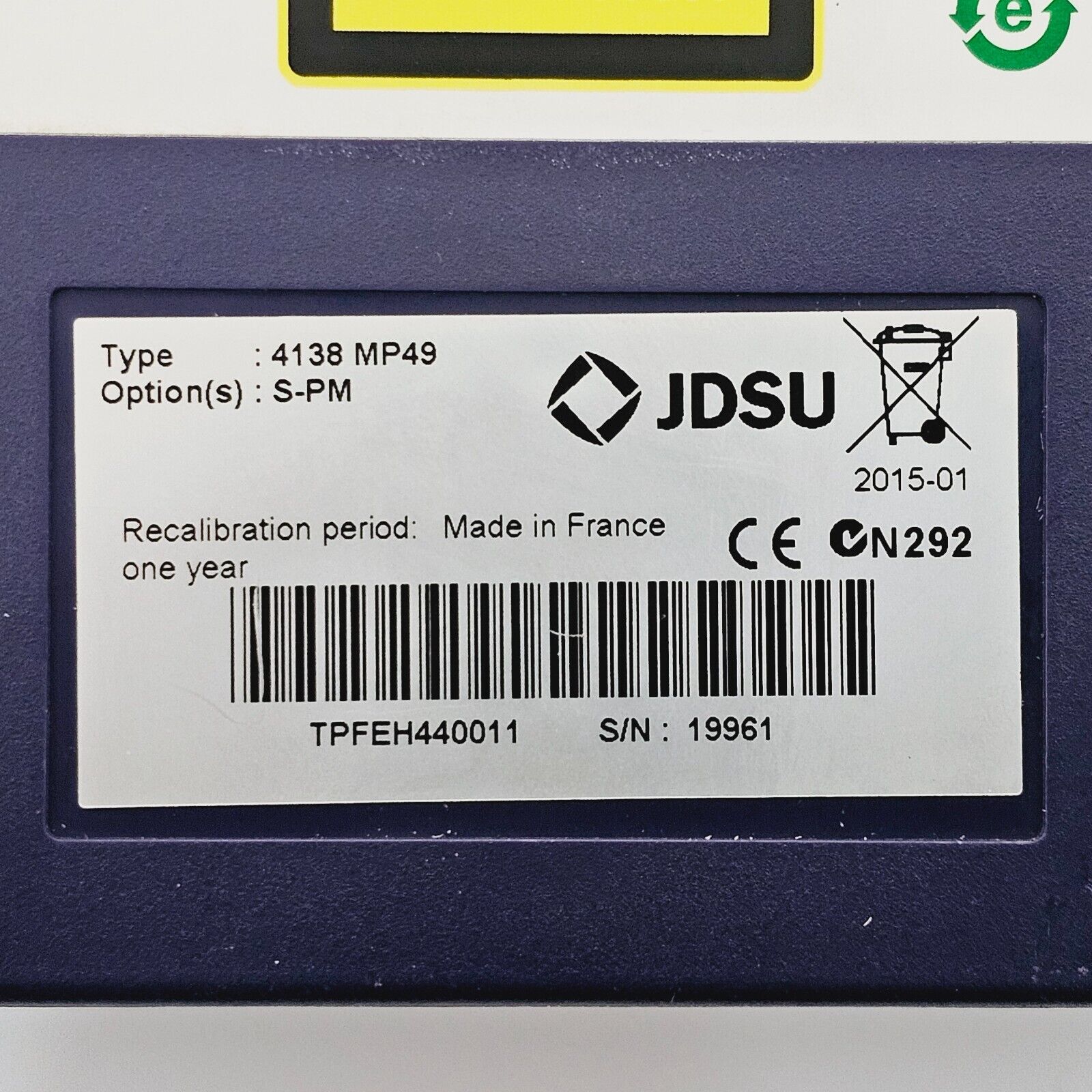

• Viavi 4138 MP49 SM OTDR Module (E4138MP49 PM/S)

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Viavi Solutions MP OTDR module provides the optimum performance that fibre installers and service providers need to test metro, cable TV (CATV), and FTTH networks with high-port-count splitters. With various wavelength combinations including filtered wavelengths for in-service testing, an improved dynamic range, and optimised resolution and dead zones at short pulses, the MP module is the ideal OTDR to test any PON system with up to a 1x128 splitting ratio. The MP module's optical performance, combined with the T-BERD/MTS platform's complete suite of features, ensures that testing is done right the first time.

Standard Testing Features:
- Automatic macrobend detection
- Summary results table with pass/fail analysis
- Bidirectional OTDR analysis
- FastReport on-board report generation
- Instantly detects traffic when connected to live fibre

Key Specifications:
Wavelengths: 1310 / 1490 / 1550 nm
Dynamic Range: 43 / 41 / 41 dB
Acquisition Points: Up to 256,000
Event Dead Zone: 0.8 m
Attenuation Dead Zone: 4 m
Maximum Range: 260 km
Connector: APC/SC
Fibre Type: Singlemode
Splitter Support: Up to 1x128
Platform Compatibility: Viavi T-BERD/MTS 2000 and 4000 series
Integrated CW light source and power meter: Yes
FiberComplete Compatible: Yes
Software Ready: SLM, FTTA-SLM, FTTH-SLM intelligent optical application software
