Condition: Used — in working condition.

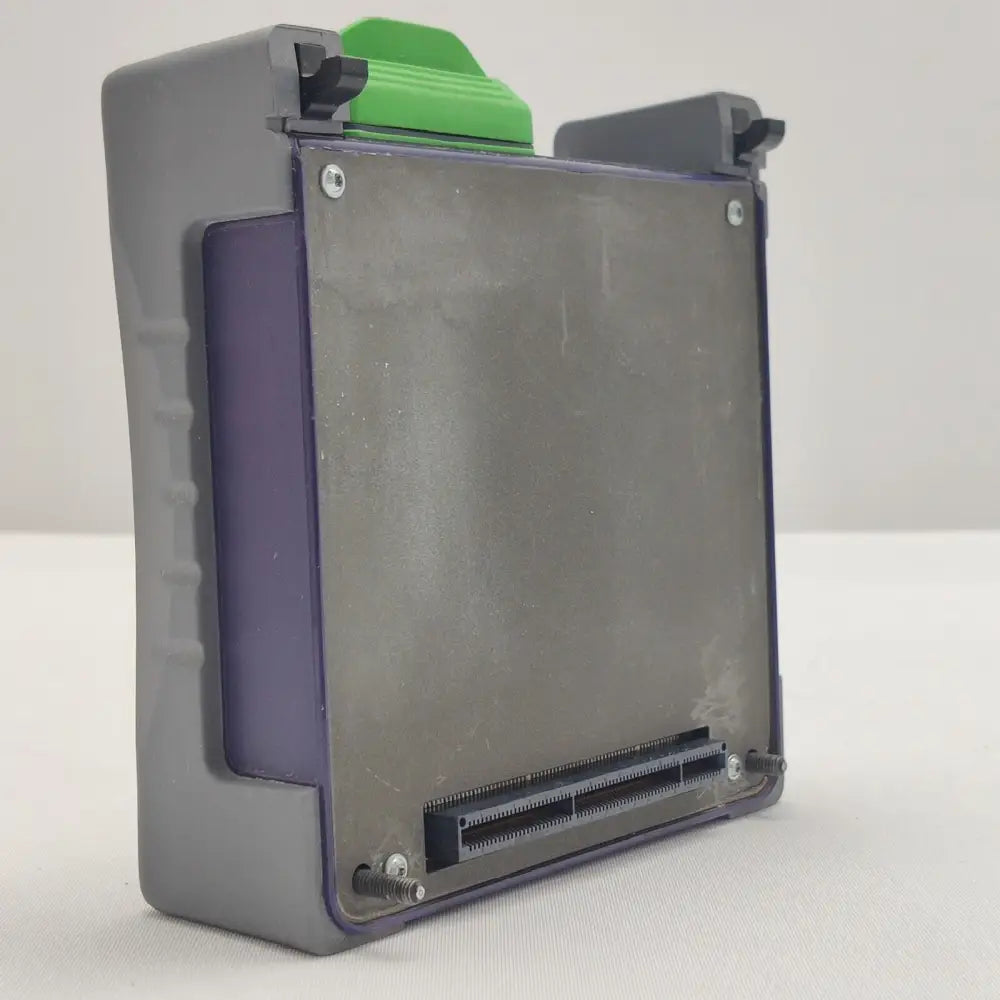

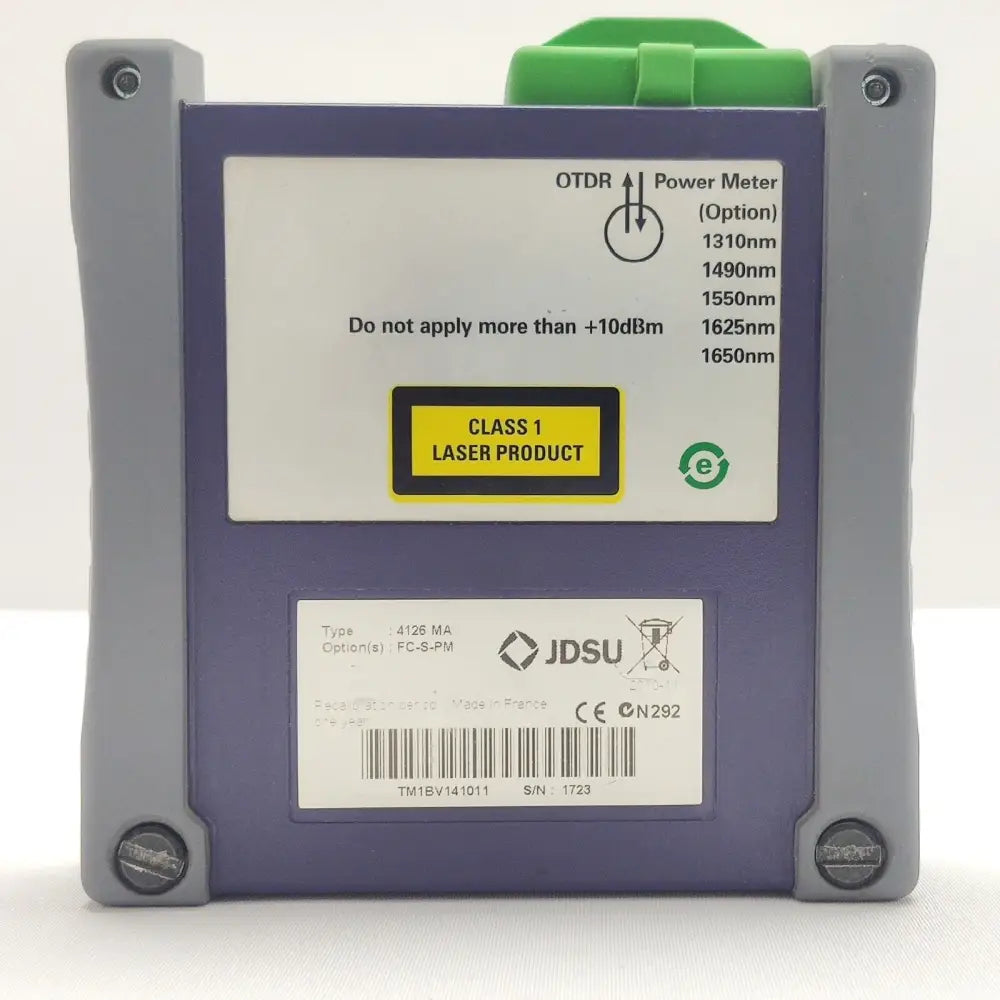

The Viavi (JDSU) 4126 MA FC-S-PM is a singlemode OTDR module featuring a built-in power meter and source, with Fiber Complete software. It operates at 1310/1550 nm and is suited to metro access, FTTH, and short/medium-haul qualification testing, including FTTH networks up to 1x32 splitter configurations. Key specifications include:

• Wavelengths: 1310 / 1550 nm
• Dynamic Range: 40/38 dB

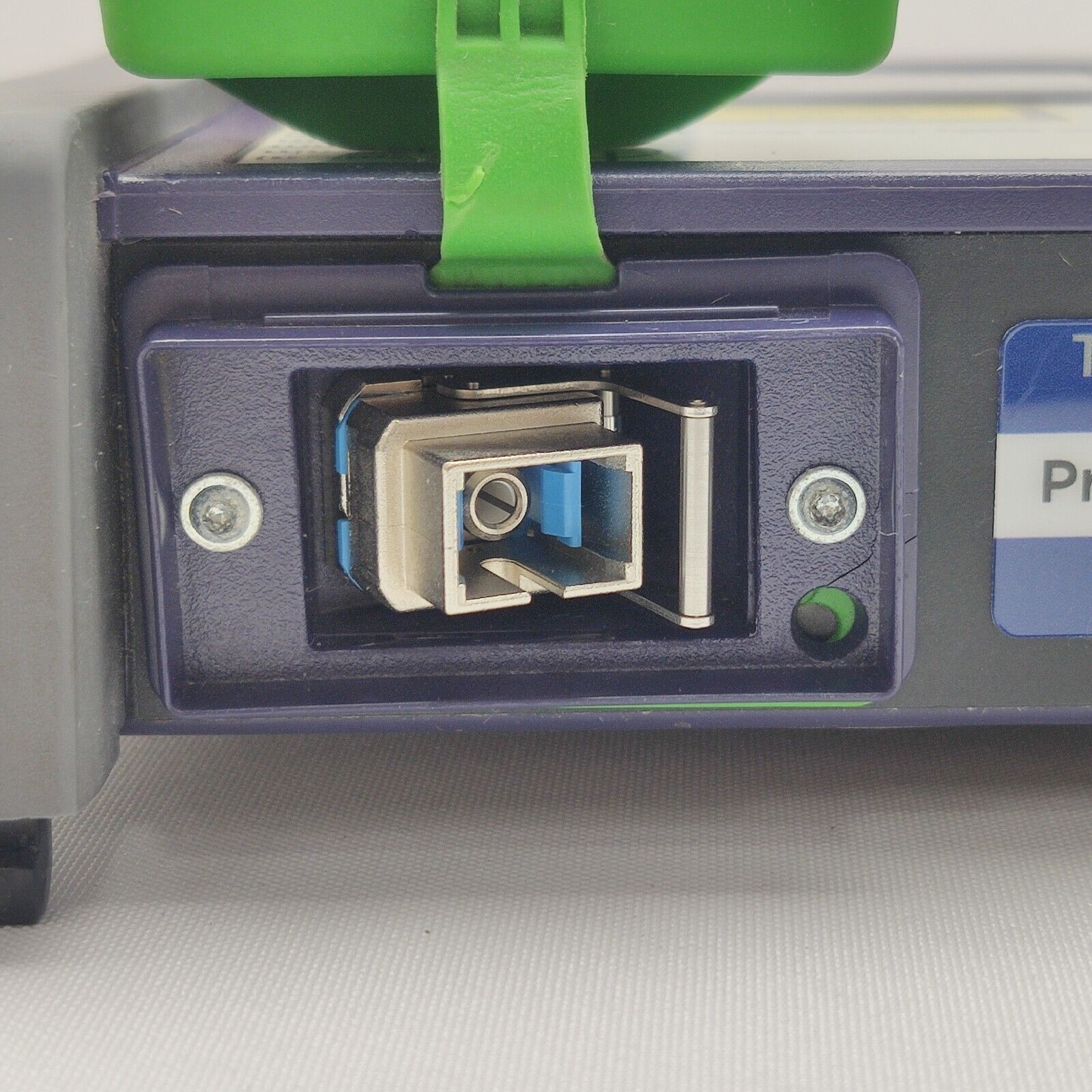

• Connector: APC-SC
• Event Dead Zone: 0.9 m
• Attenuation Dead Zone: 4 m
• Range: 260 km
• Network Type: FTTH / Access / Metro
• Applications: Short/medium-haul qualification, FTTH test up to 1x32 splitter
• Built-in Power Meter & Source
• Fiber Complete software included

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

The Viavi (formerly JDSU) 4126 MA is a metro access singlemode OTDR module designed for use with compatible Viavi MTS/T-BERD modular test platforms. It delivers high dynamic range performance at both 1310 and 1550 nm, making it well suited to FTTH qualification, metro access network characterisation, and short-to-medium-haul fibre testing. The integrated power meter and source (FC-S-PM variant) allows full loss test set functionality without additional modules, and the included Fiber Complete software provides automated pass/fail analysis and comprehensive reporting.

Key Features:
• 40/38 dB dynamic range at 1310/1550 nm
• Built-in optical power meter and source for integrated loss measurement
• 0.9 m event dead zone for precise short-range fault location
• Supports FTTH/access/metro network architectures
• FTTH testing up to 1x32 passive splitter
• APC-SC connector interface
• Fiber Complete software for automated analysis
• Field-replaceable module compatible with Viavi MTS/T-BERD platforms

Specifications:
Wavelengths: 1310 / 1550 nm
Dynamic Range: 40 / 38 dB
Event Dead Zone: 0.9 m
Attenuation Dead Zone: 4 m
Maximum Range: 260 km
Connector: APC-SC
Network Type: FTTH / Access / Metro
Applications: Short/medium-haul qualification, FTTH up to 1x32 splitter
