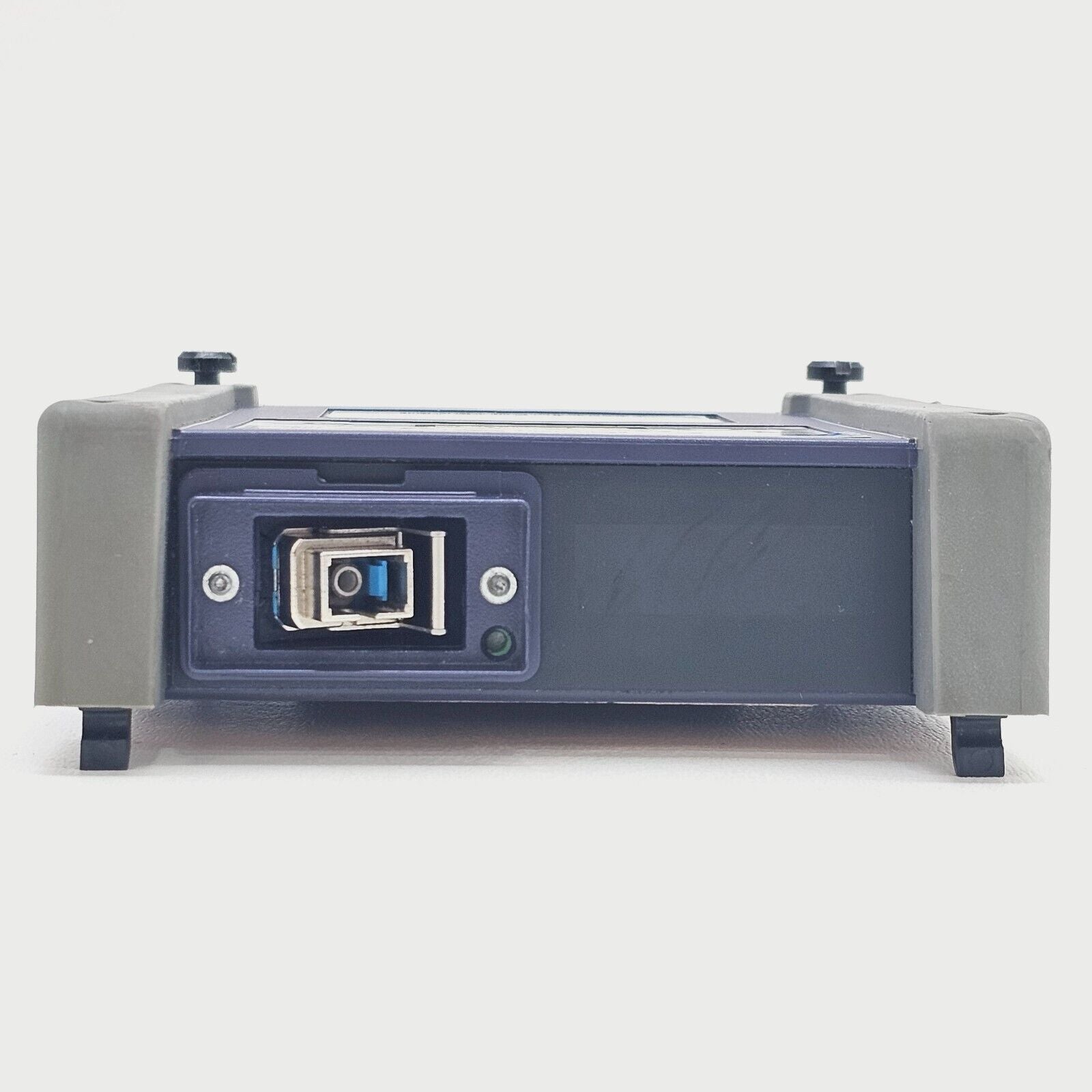

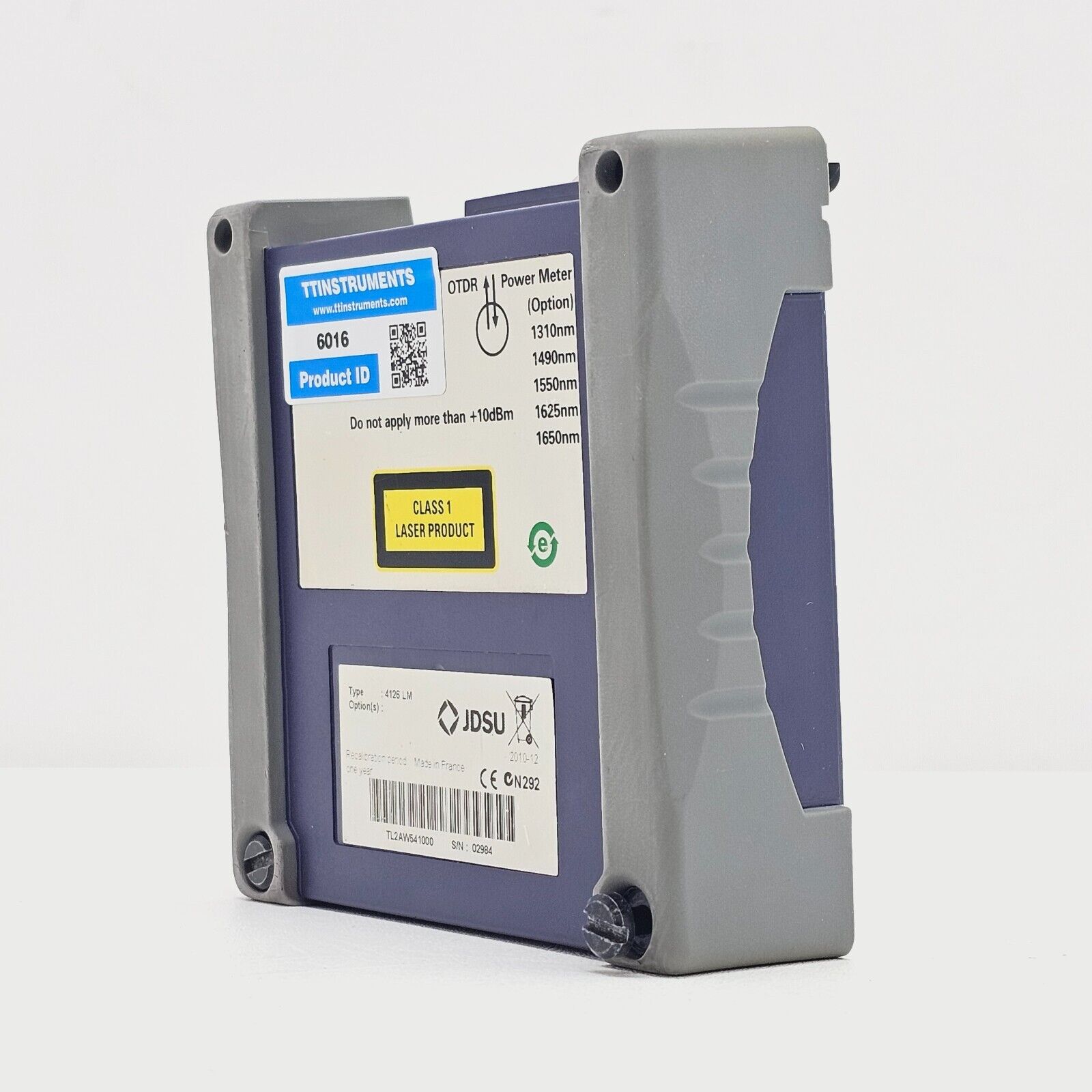

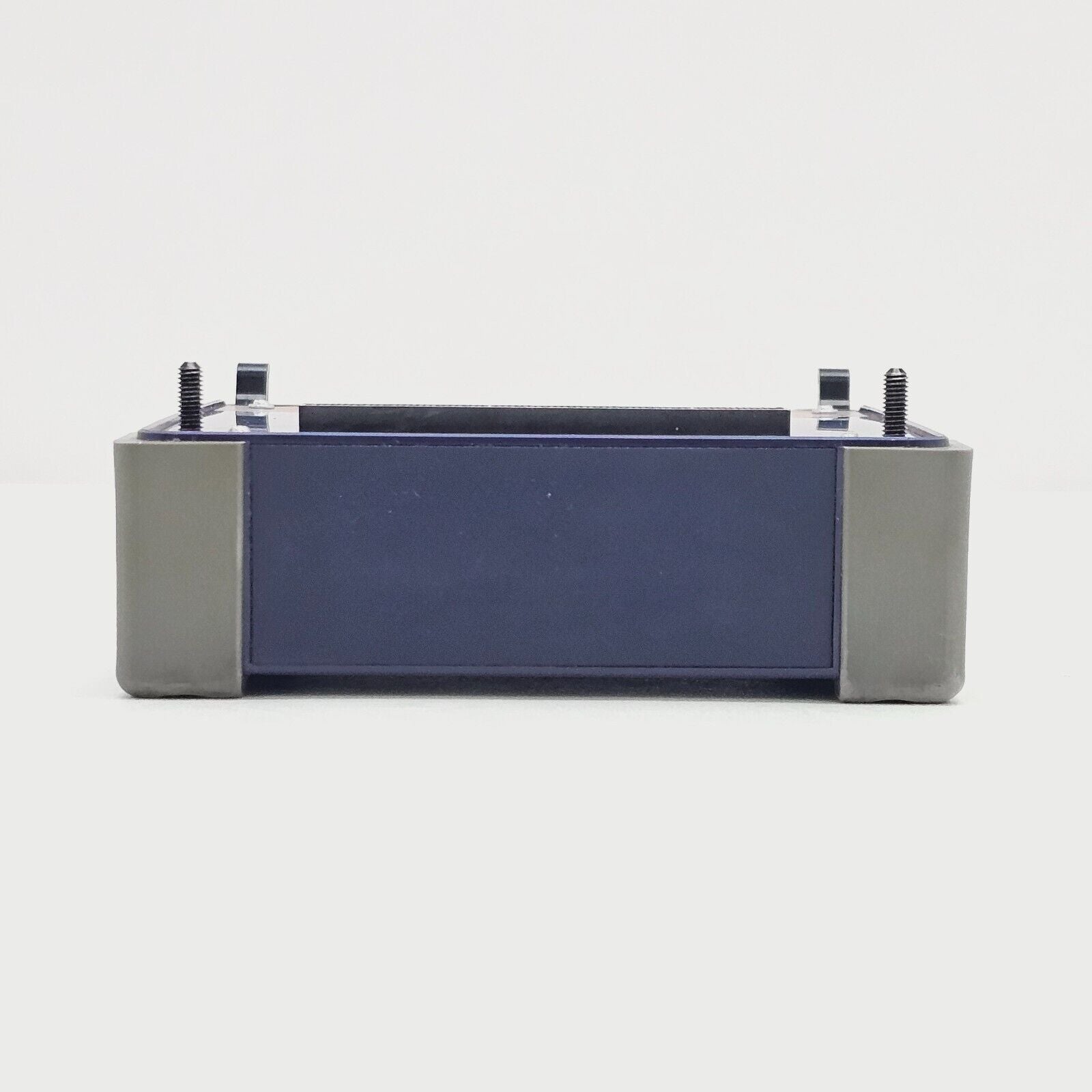

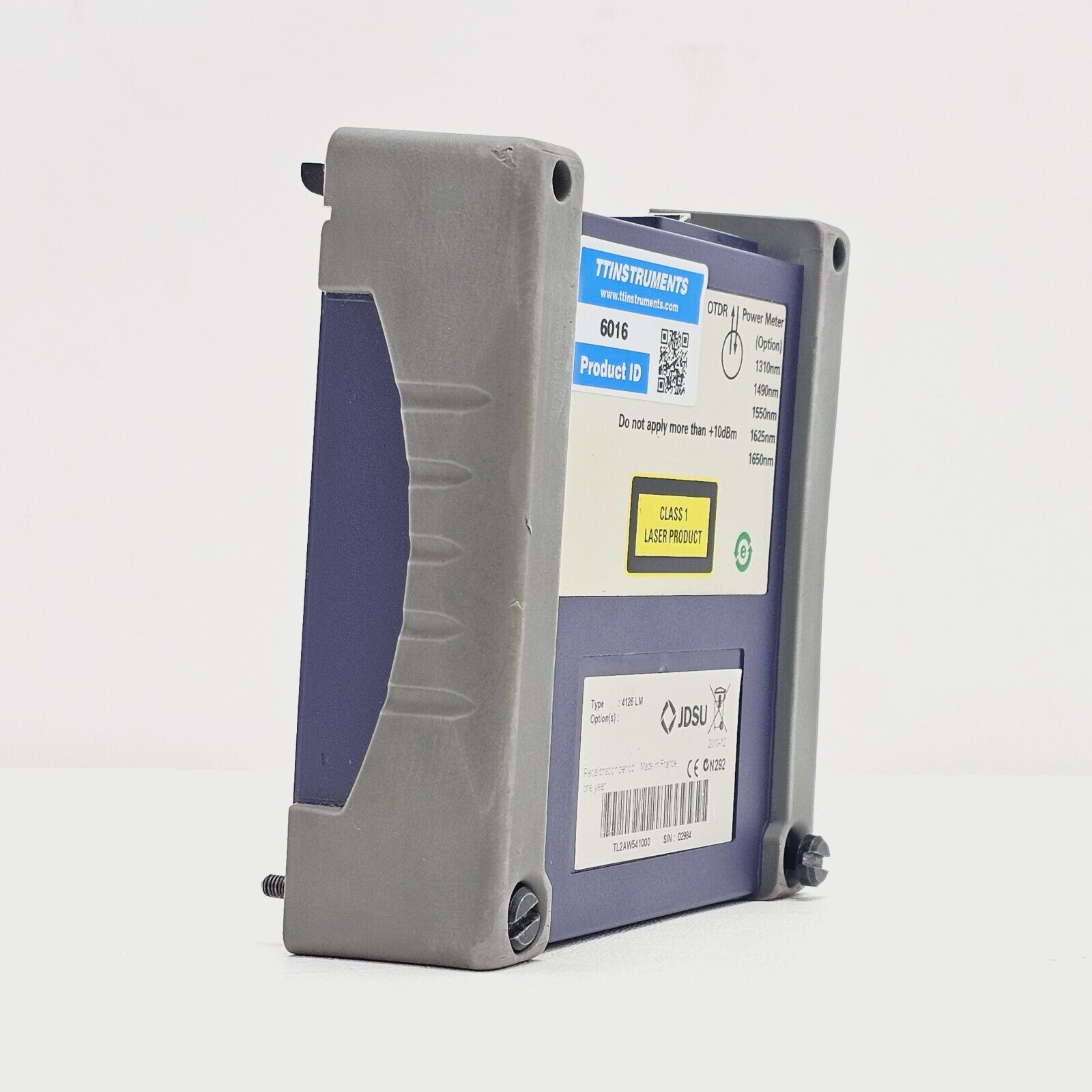

Viavi JDSU 4126 LM SM OTDR Module 1310/1550 nm Last Mile 34/32 dB E4126LM

Condition: Used — supplied in working condition as pictured.

The Viavi JDSU 4126 LM is a singlemode OTDR module delivering 34/32 dB dynamic range at 1310/1550 nm, with an exceptionally short 1 m event dead zone and 4 m attenuation dead zone. It is purpose-built for last-mile and FTTx network qualification, supporting in-service testing at dedicated wavelengths (1625 or 1650 nm) and featuring automated bend detection.

Key specifications:
• Wavelengths: 1310/1550 nm
• Dynamic Range: 34/32 dB
• Connector: SC
• Event Dead Zone: 1 m
• Attenuation Dead Zone: 4 m

Included in the sale:
• Viavi JDSU 4126 LM OTDR module

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Viavi (formerly JDSU) 4126 LM is a last-mile singlemode OTDR module designed for use with compatible Viavi MTS/T-BERD modular platforms. It is optimised for FTTx distribution and drop cable verification, short-haul premises network construction, and point-to-point feeder fibre characterisation.

Key Features:
• 34/32 dB dynamic range at 1310/1550 nm
• High resolution and short dead zone for distribution fibre qualification
• Instantaneous traffic detection when connecting to live fibre
• First-to-market OTDR integrating a true Loss Test Set function
• In-service testing at dedicated wavelengths (1625 or 1650 nm)
• Automated bend detection
• Field-replaceable without tools
• Compatible with Triple-Play, xDSL, Copper, and PON power meter modules

Specifications:
Wavelengths: 1310 / 1550 nm
Dynamic Range: 34 / 32 dB
Event Dead Zone: 1 m
Attenuation Dead Zone: 4 m
Connector: SC
Fibre Type: Singlemode

Applications:
• Short-haul and premises network construction and maintenance
• Point-to-point (P2P) FTTx feeder fibre characterisation
• FTTx distribution and drop cable verification and continuity checking
