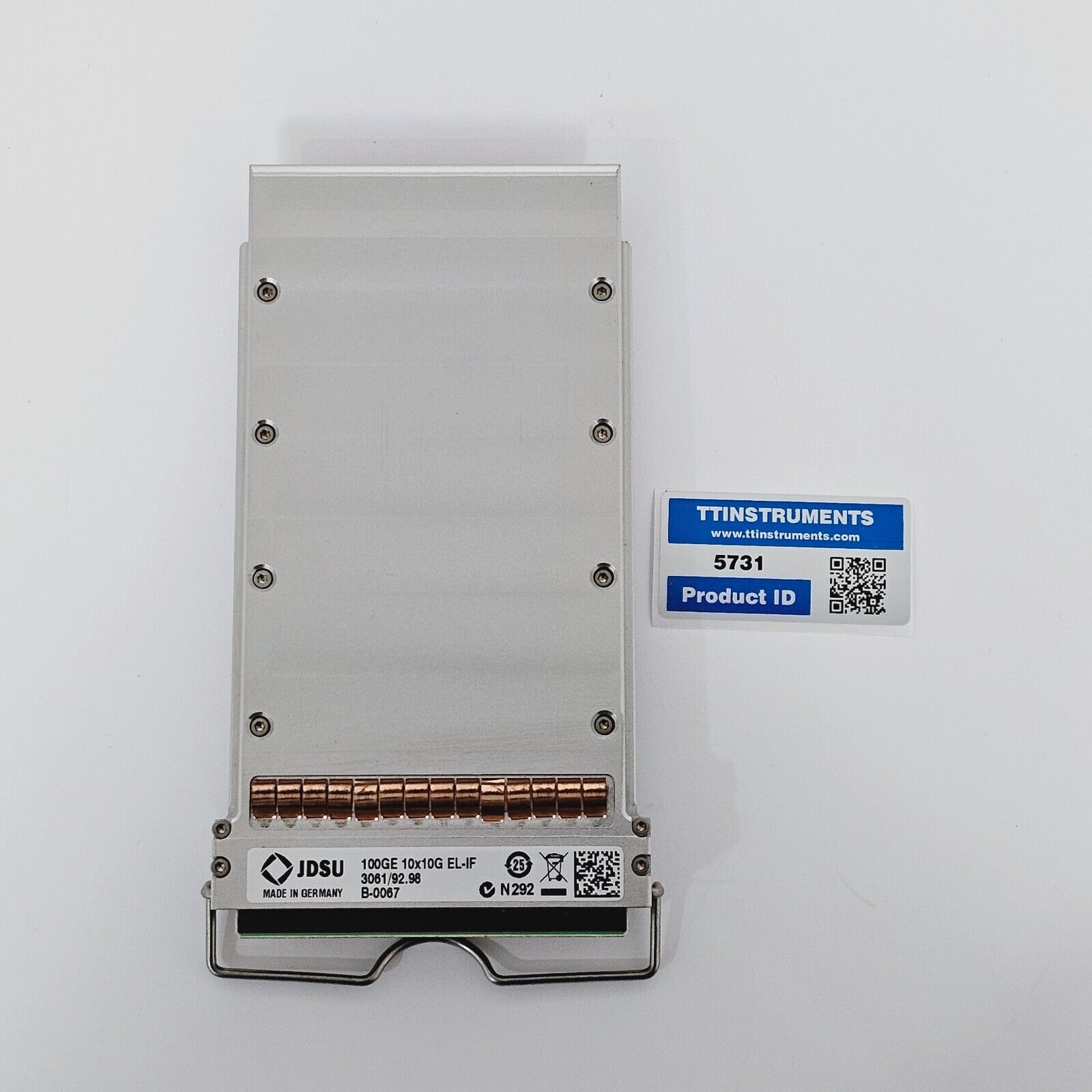

JDSU Viavi 100GE 10x10G Electrical CFP Interface EL-IF 3061/92.98 — top view with label and TTInstruments product ID tag

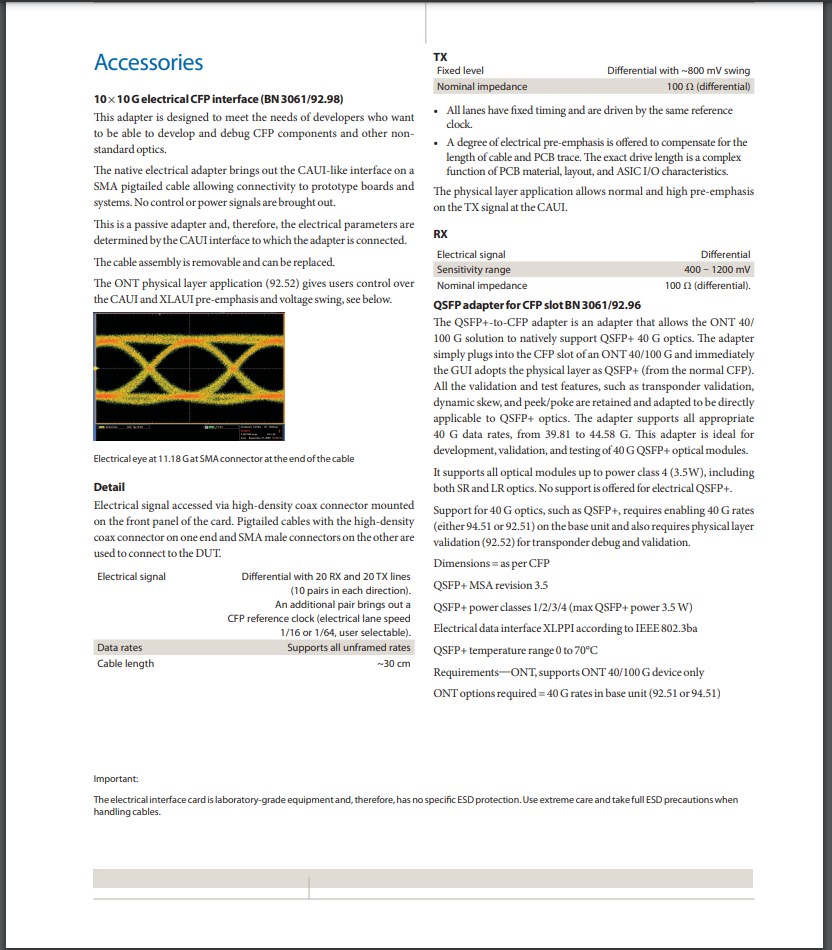

JDSU ONT 100GE 10x10G EL-IF BN 3061/92.98 manufacturer accessory datasheet page showing electrical specifications

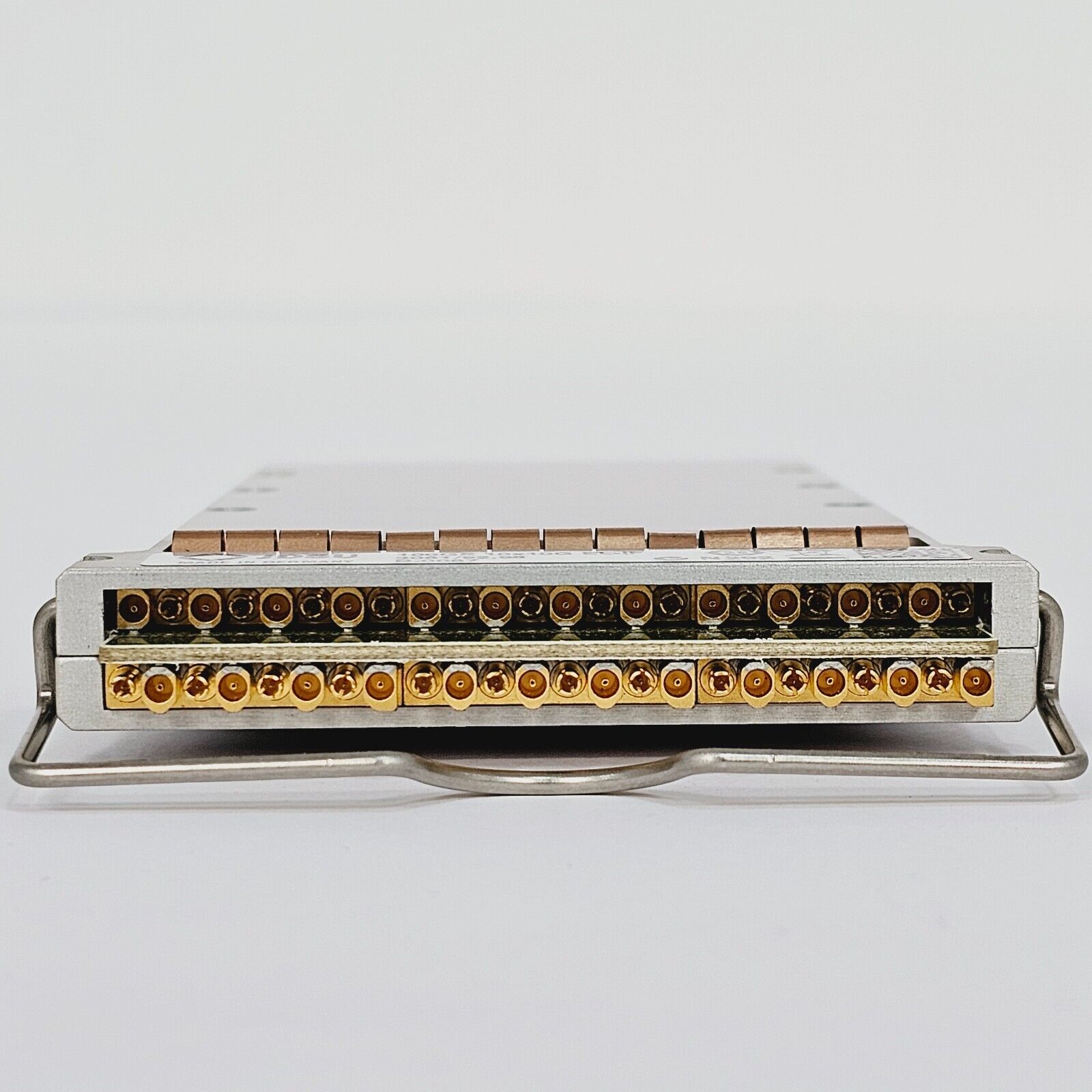

JDSU Viavi 100GE 10x10G EL-IF 3061/92.98 — front-end view showing dual rows of gold-pin high-density coaxial SMA connectors

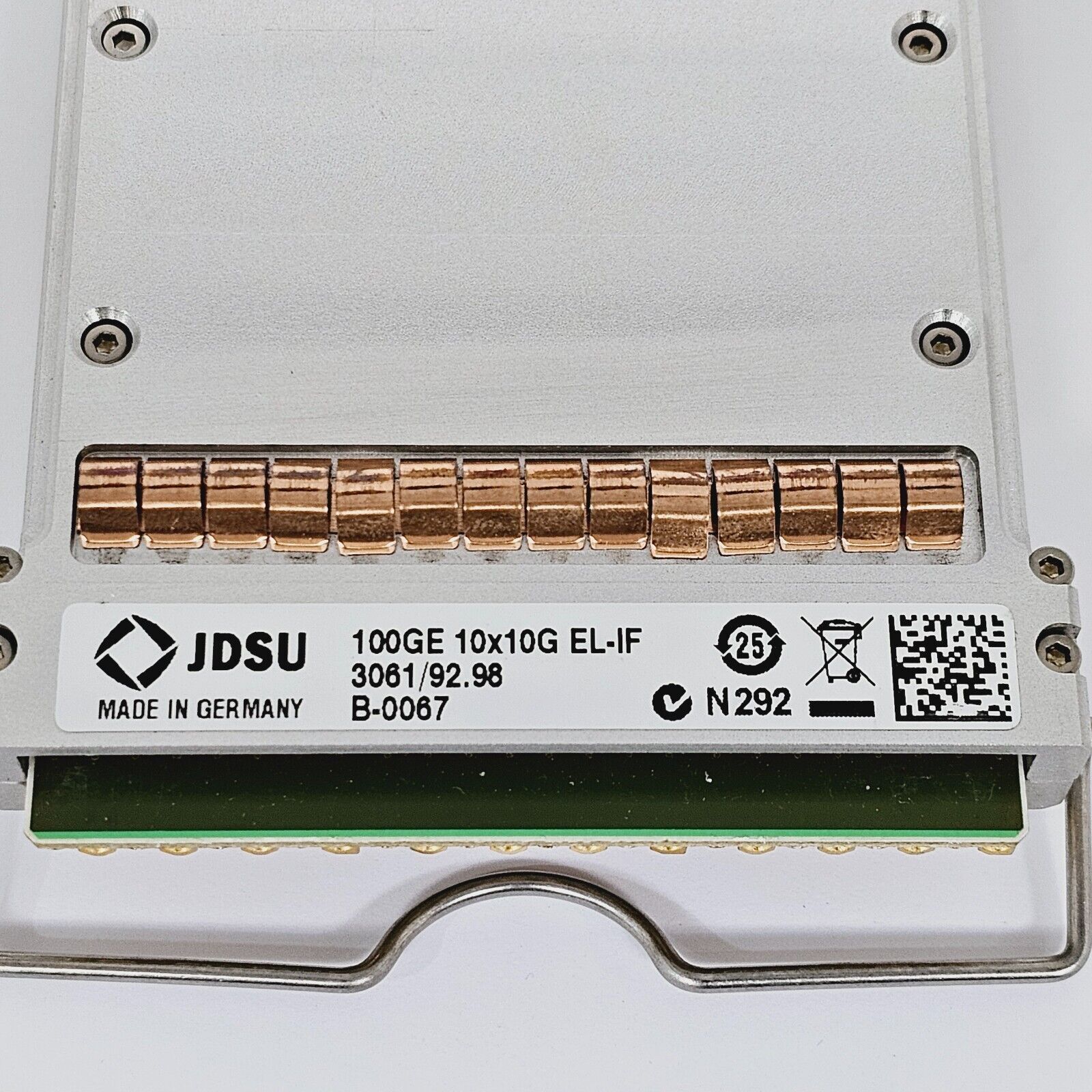

JDSU 100GE 10x10G EL-IF close-up of product label showing 3061/92.98, serial B-0067, Made in Germany, N292 mark

Tested

14 Day Money Back Guarantee

Great Value

Global Shipping

Viavi JDSU 100GE 10x10G Electrical CFP Interface EL-IF 3061/92.98

Name: Viavi JDSU 100GE 10x10G Electrical CFP Interface EL-IF 3061/92.98
Brand: Viavi JDSU
SKU: 5731 6E03 ER50
Price: 165.75 GBP
Availability: InStock

The JDSU (Viavi) 100GE 10x10G Electrical CFP Interface (BN 3061/92.98) is a passive electrical adapter for the ONT-500/600 platform, bringing out the CAUI-like interface via 20 high-density coaxial SMA-compatible connectors for 100GE device testing without optical modules.
• 10x10G CAUI electrical interface — 20 RX and 20 TX differential lanes for full 100GE electrical access
• Supports all unframed data rates — ideal for component development, debug, and signal integrity testing
• Made in Germany to laboratory-grade precision — passive design, CFP form factor, ~30 cm cable assembly

Manufacturer

Viavi JDSU

Model

3061/92.98

Condition

Used

In stock

SKU

5731 6E03

£165.75

Network Testers
Optical Transceivers

Make an Offer

Viavi JDSU 100GE 10x10G Electrical CFP Interface EL-IF 3061/92.98

£165.75

Condition: Used

The Viavi JDSU 100GE 10x10G Electrical CFP Interface EL-IF (BN 3061/92.98, serial B-0067) is a passive CFP-form-factor electrical adapter manufactured in Germany. It plugs into the CFP slot of a compatible ONT-500 or ONT-600 platform and exposes the 100GE CAUI-like electrical interface via a high-density coaxial connector array, enabling direct electrical access to the device under test (DUT) without requiring optical CFP modules. The unit features a removable cable assembly.

Included in the sale:
• JDSU 100GE 10x10G EL-IF adapter (BN 3061/92.98, serial B-0067)

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

Product Overview

Condition: Used

Included in the sale:
• JDSU 100GE 10x10G EL-IF adapter (BN 3061/92.98, serial B-0067)

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

Manufacturer's Description

The JDSU (now Viavi Solutions) 100GE 10x10G Electrical CFP Interface (BN 3061/92.98) is an accessory adapter designed for use with the JDSU ONT-500 and ONT-600 40/100G CFP-based test module platforms. It is intended for developers who need to develop and debug CFP components and other non-standard optics without using optical modules.

This native electrical adapter brings out the CAUI-like interface on a high-density coaxial pigtailed cable, allowing direct connectivity to prototype boards and systems. The adapter is passive — no control or power signals are brought out — and therefore its electrical parameters are determined by the CAUI interface of the ONT module to which it is connected. The cable assembly is removable and can be replaced.

The ONT physical layer application (option 92.52) provides users control over the CAUI and XLAUI pre-emphasis and voltage swing settings. ESD precautions must be observed at all times as this is laboratory-grade equipment with no built-in ESD protection.

Electrical Signal (TX): Differential with ~800 mV swing
TX Nominal Impedance: 100 Ohm (differential)
Electrical Signal (RX): Differential
RX Sensitivity Range: 400–1200 mV
RX Nominal Impedance: 100 Ohm (differential)
Data Interface: 20 RX and 20 TX differential lines (10 pairs each direction)
Reference Clock Output: 1 additional pair (electrical lane speed 1/16 or 1/64, user selectable)
Data Rates: Supports all unframed rates
Cable Length: Approximately 30 cm
Form Factor: CFP
Origin: Made in Germany
Order Number: BN 3061/92.98
Compatibility: JDSU ONT-500 / ONT-600 40/100G CFP-based test platforms
