Condition: Used

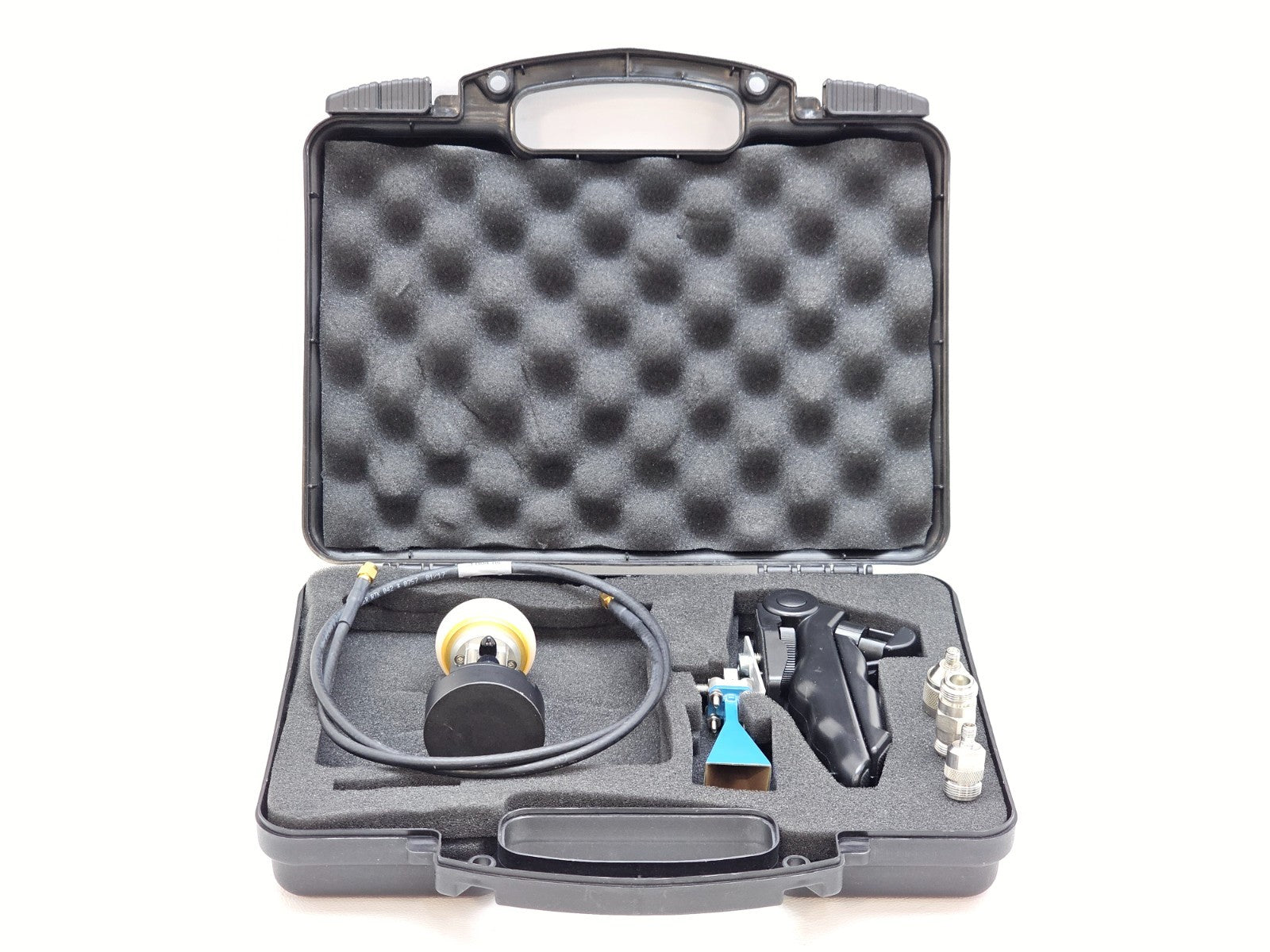

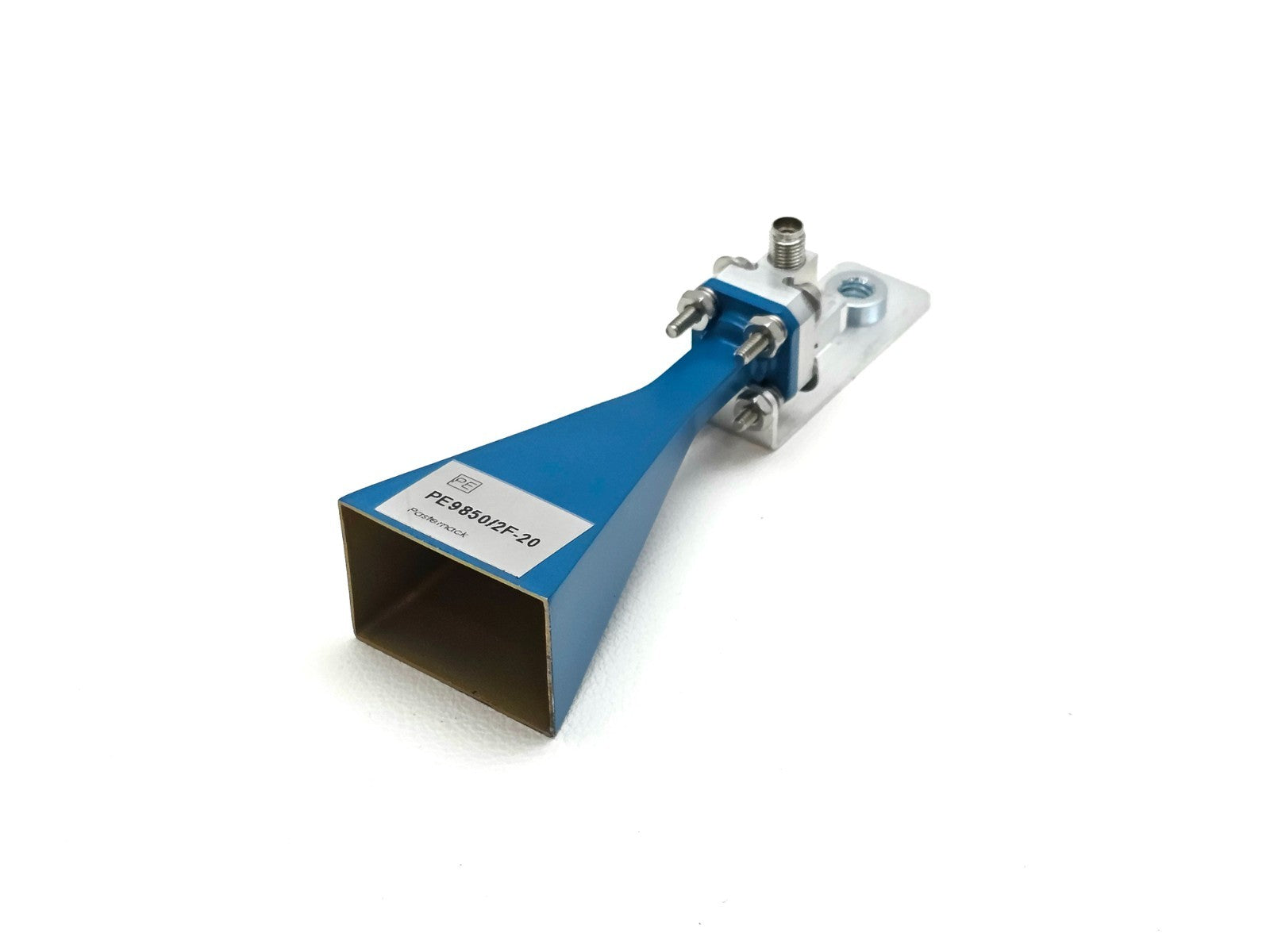

The Viavi G700050370 RF Directional Horn Antenna Kit is designed for use with CellAdvisor 5G Analyzers. The kit includes a 26.5 to 40 GHz horn antenna, a tripod handle, a 40 GHz cable, and a hard carrying case.

• For use with CellAdvisor 5G Analyzers
• Frequency Range: 26.5 to 40 GHz
• Connector: K jack (female)
• Polarization: Linear
• Gain: 20 dBi
• 3 dB Beam Width: 16.7° (E-Plane) / 18.3° (H-Plane)
• VSWR: ≤ 1.25:1
• Impedance: 50 Ω nominal
• Dimensions: 93.73 x 36.83 x 27.94 mm (3.69 x 1.45 x 1.10 in.)

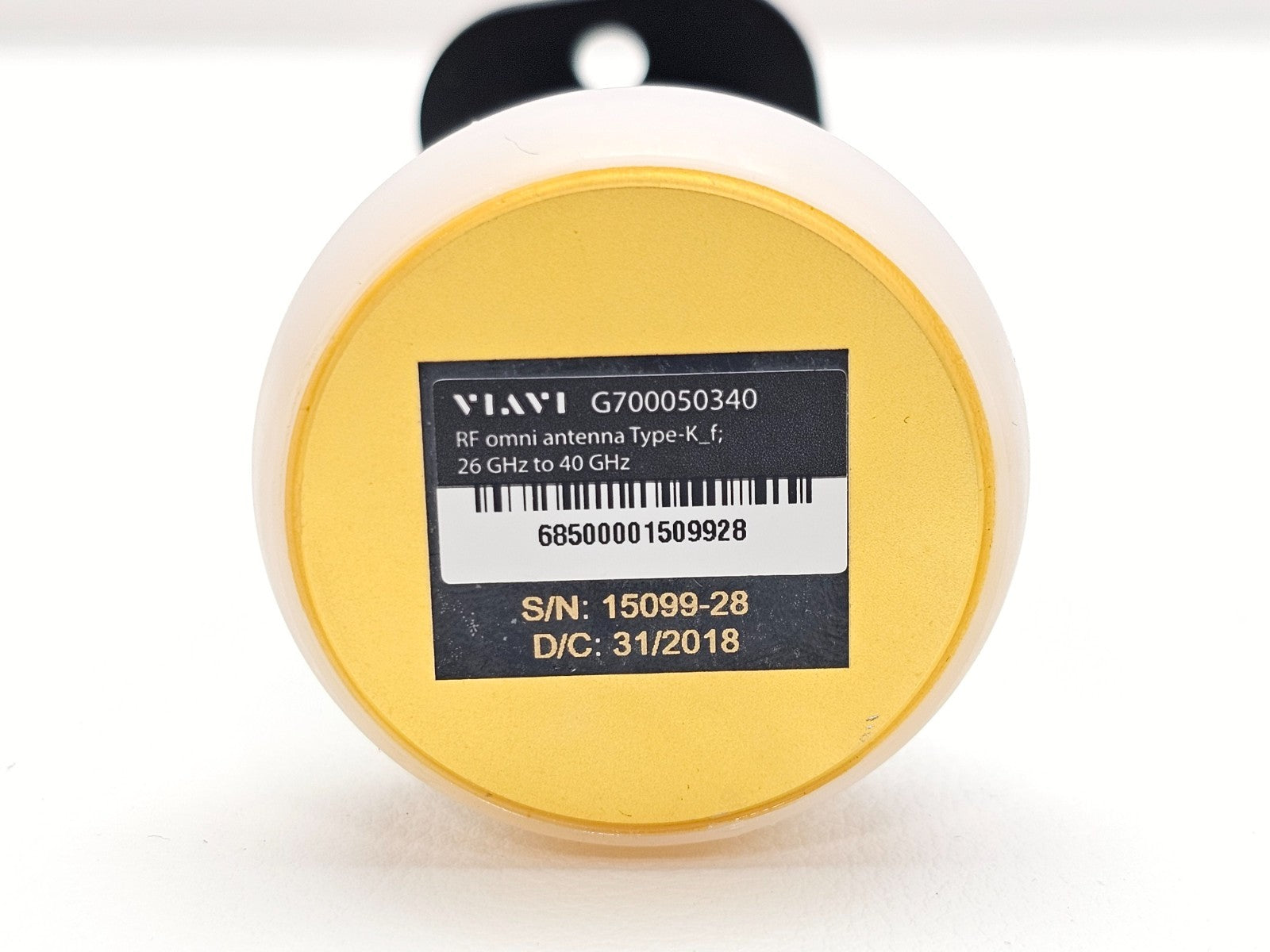

Viavi G700050340

• For use with CellAdvisor 5G Analyzers
• Frequency Range: 26,500 to 40,000 MHz
• Connector: K jack (female)
• Gain: 3 dBi typical
• Azimuth Gain Variation: ± 1 dB
• Azimuth Beam Width: 360°
• 3 dB Vertical Beam Width: 45°
• Return Loss: 8 dB
• Maximum Power: 200 W
• Operating Temperature: -40 to +85°C
• Dimensions: 52 x 52 x 84.3 mm (2.05 x 2.05 x 3.32 in.)
• Weight: 200 g (7.05 oz)
• Radome Material: HDPE
