Condition: Used

Excellent condition — may be new. Comes in original VIAVI retail box with label confirming VIAVI PN: E98LGX1BP162SA, Component PN: MWDMG16150JDS19G, and S/N: D5928584. A manufacturer's Final Inspection Report (dated 08/23/2020) is included, confirming measured performance data across all channels with SC/APC connectors.

Included in the sale:

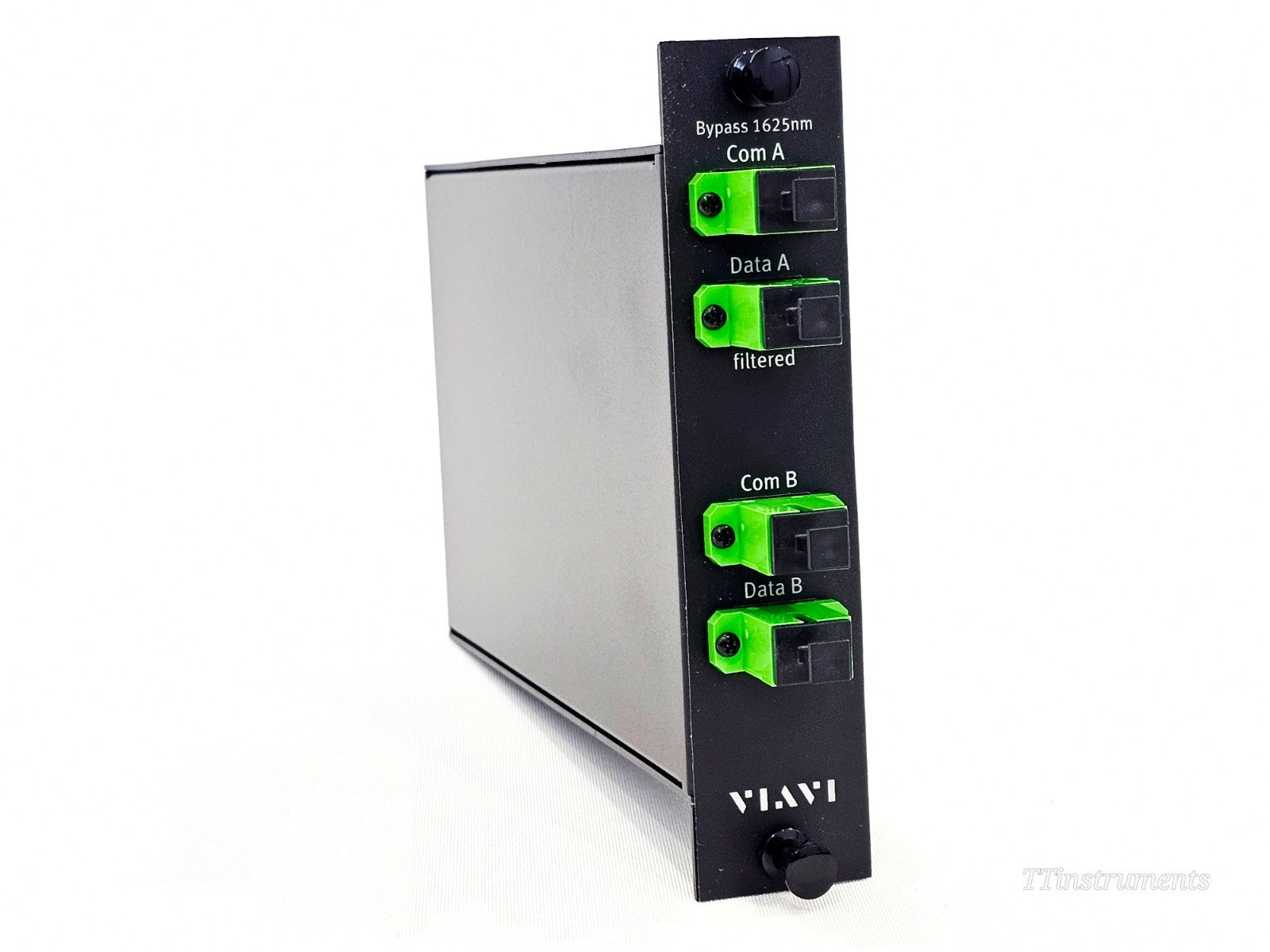

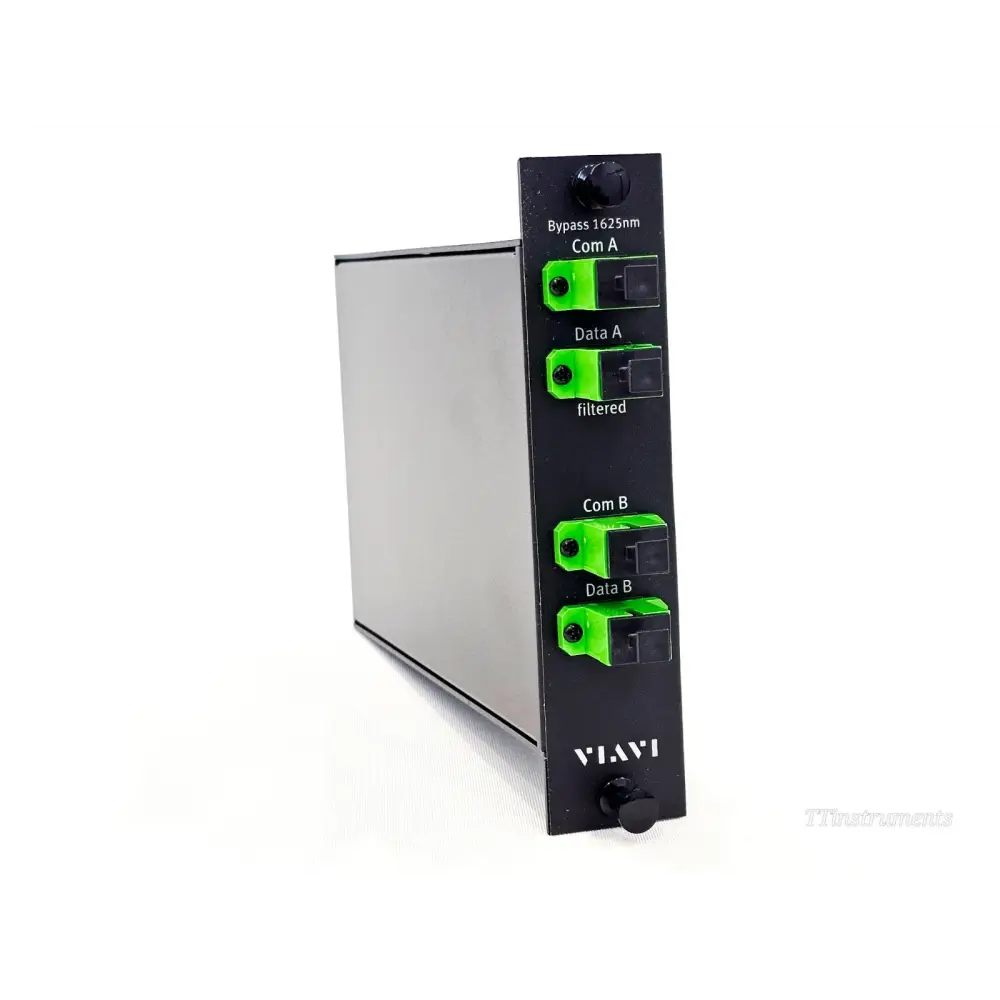

• VIAVI E98LGX1BP162SA LGX Box with one 1625 nm bypass module (SC/APC)
• Original VIAVI retail/shipping box
• VIAVI Final Inspection Report

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

VIAVI Passive Component Modules — For In-Service Fibre Monitoring

The VIAVI E98LGX1BP162SA is part of VIAVI's Passive Component Modules range, designed for in-service fibre monitoring with ONMSi, OTU-8000, and OTU-5000 systems. These passive components enable testing of fibres bearing live traffic using an OTDR by inserting an out-of-band wavelength at 1625 nm.

The 1625 nm bypass function allows the OTDR signal to be extended to an adjacent fibre span when the OTDR measurement range covers more than one span. This avoids the need to deploy an additional Optical Test Unit (OTU-8000 or OTU-5000), reducing infrastructure cost and complexity.

The module is housed in a standard LGX form factor, fitting into VIAVI's compatible 1RU, 2RU, or 4RU rack-mount shelves. One LGX mounting plate can house up to 3 LGX boxes, available for 19", 21", or 23" racks.

Key Features:
• Enables in-service OTDR monitoring without interrupting live data traffic
• Low insertion loss and wide, flat passband
• Exceptional reliability and environmental stability
• Compatible with data traffic in C and L bands
• SC/APC connectors
• Tool-free LGX installation in minutes
• Available for use with 19", 21", and 23" rack systems

Applications:
• Remote fibre test systems (OTU-8000, OTU-5000, ONMSi)
• Fibre tapping detection
• In-service OTDR span extension

Passive Component Specifications (1625 nm Bypass, Data Wavelength Range: 1260–1580 nm):
Bypass Insertion Loss (Side A): 1.5 dB
Bypass Insertion Loss (Side B): 1.1 dB
Bypass Isolation at 1625 nm (Side A): 50 dB
Bypass Isolation at 1625 nm (Side B): 15 dB
OTDR Wavelength (Bypass): 1625 nm
Data Wavelength Range: 1260–1580 nm
Connector Type: SC/APC
Form Factor: LGX
Housing: 1 Bypass per LGX box
Operating Temperature: -5 to +70 °C
Compliance: RoHS
Country of Origin: China

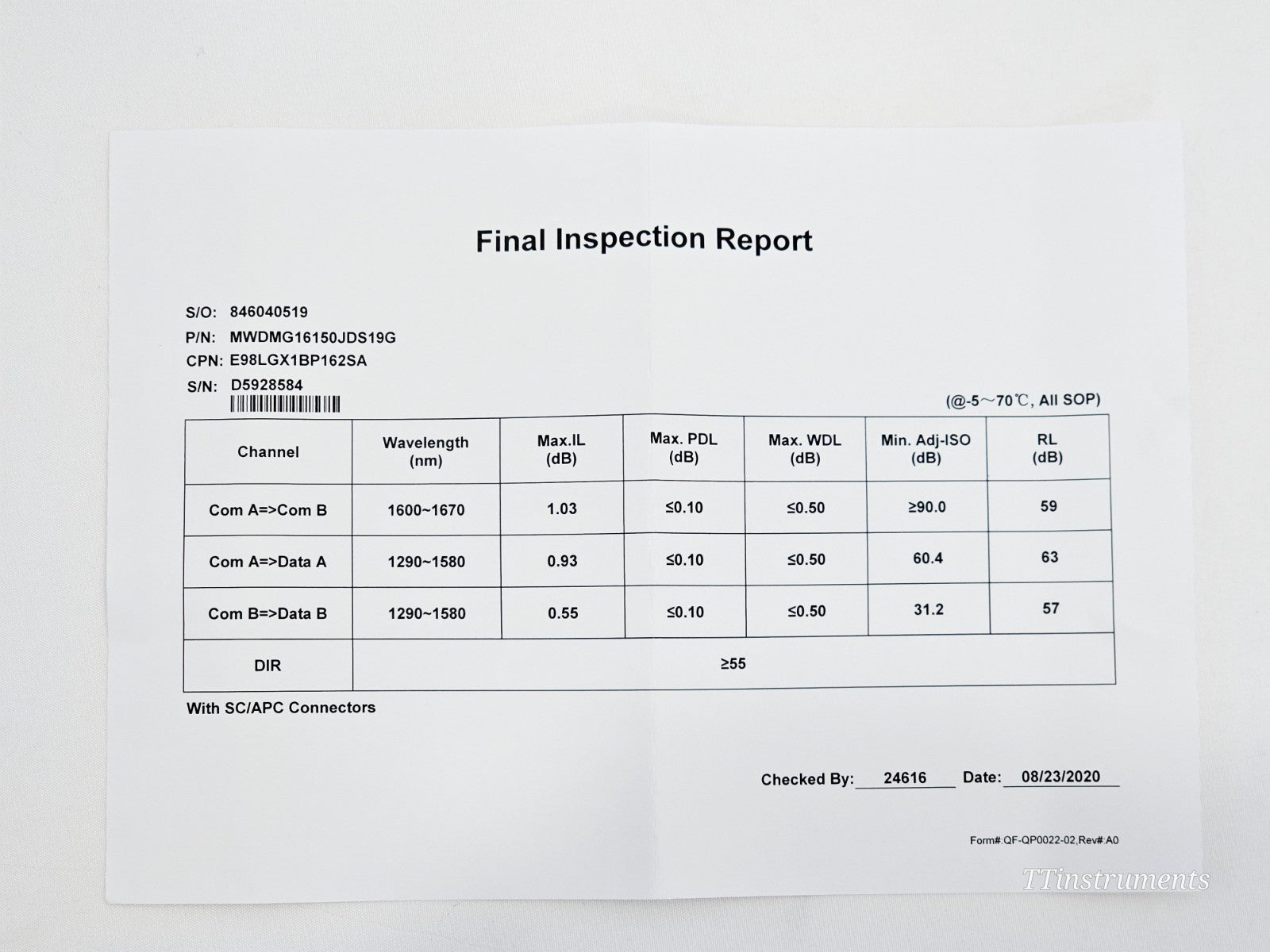

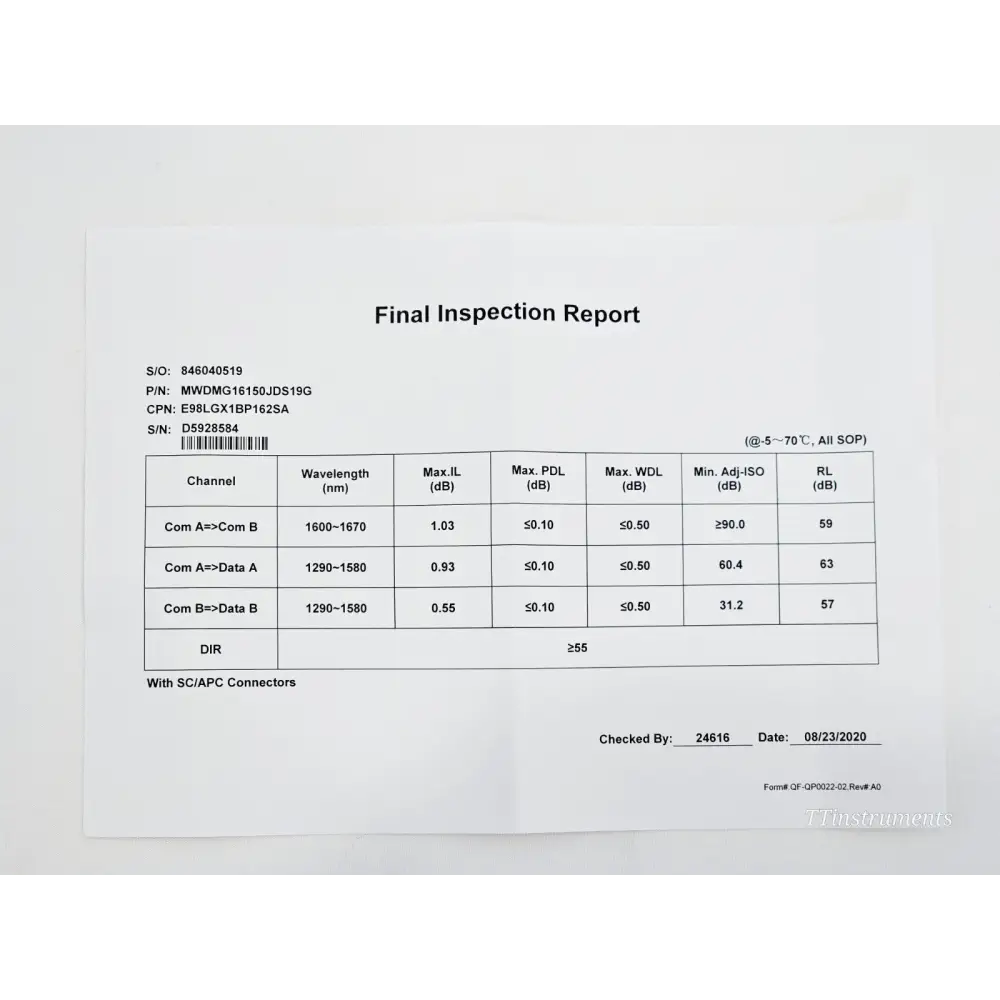

Measured Performance (S/N D5928584 — Final Inspection Report, 08/23/2020):
Com A => Com B (1600–1670 nm): Max IL 1.03 dB, RL 59 dB, Min Adj-ISO ≥90.0 dB
Com A => Data A (1290–1580 nm): Max IL 0.93 dB, RL 63 dB, Min Adj-ISO 60.4 dB
Com B => Data B (1290–1580 nm): Max IL 0.55 dB, RL 57 dB, Min Adj-ISO 31.2 dB
Directivity (DIR): ≥55 dB
Max PDL: ≤0.10 dB (all channels)
Max WDL: ≤0.50 dB (all channels)
