Condition: Used

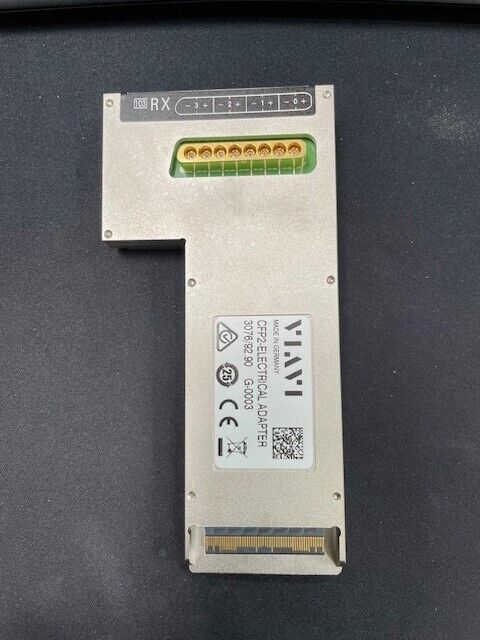

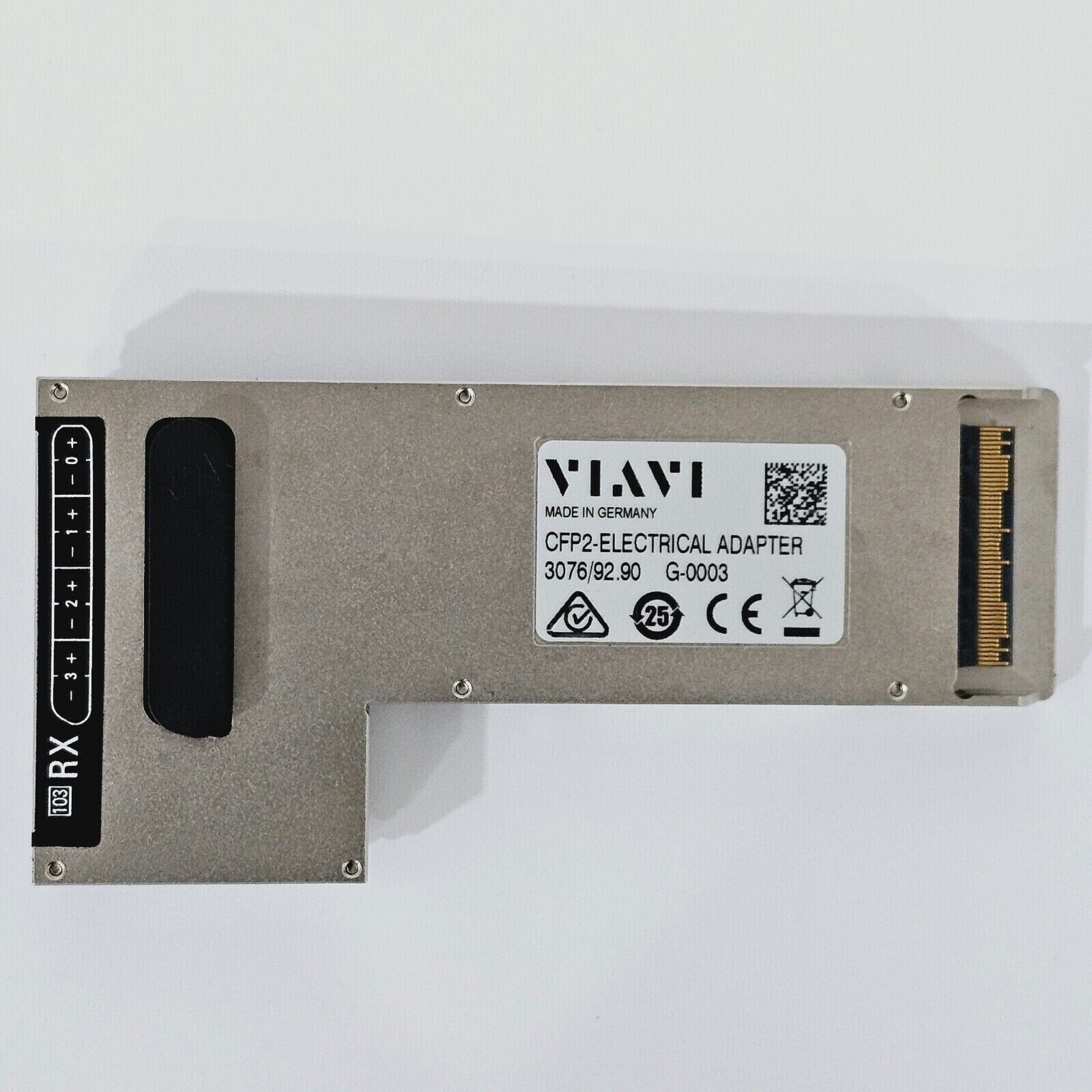

The Viavi CFP2 4x25G Electrical Adapter (BN 3076/92.90) is a high-performance active CFP2 electrical adapter designed to work with the ONT CFP2 module to test external devices such as ICs and modules based on 25/28G I/O. It provides full electrical access to the 4x25G interface and supports wideband jitter insertion, recovered clock output, dynamic skew insertion, and low-band jitter injection. Wideband jitter injection is supported on one TX lane using an external modulation signal, with a jitter modulation range of 30 kHz to 1 GHz and 2 UIpp maximum amplitude. Compatible with Port 1 only of ONT CFP2 Phy modules.

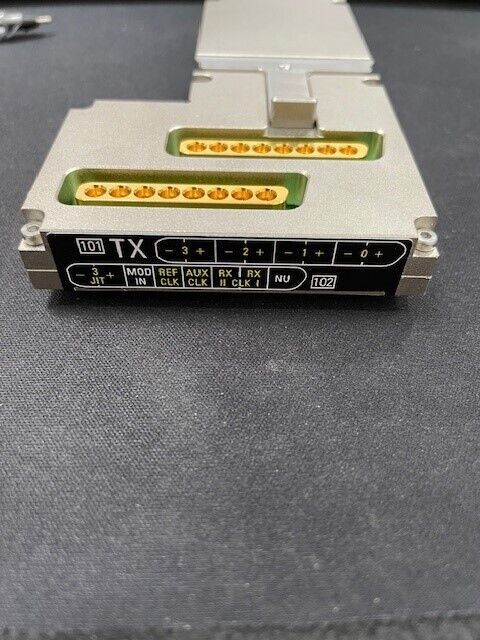

Electrical Connectors — three Huber+Suhner MXP series 8x1 cable assemblies:
• Connector 1: RX CAUI4 (4 lanes, differential)
• Connector 2: TX CAUI4 (4 lanes, differential)
• Connector 3: Auxiliary connector with jitter injection input, reference CDR Out, and TX CAUI4 (lane 3) with added jitter

Included in the sale:
• Viavi CFP2 4x25G Electrical Adapter (BN 3076/92.90)

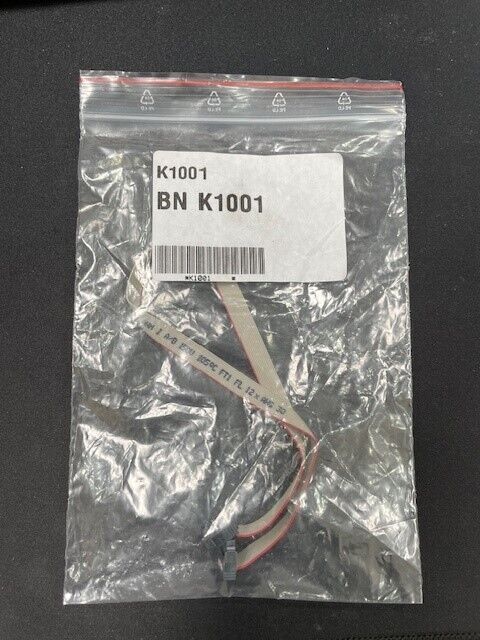

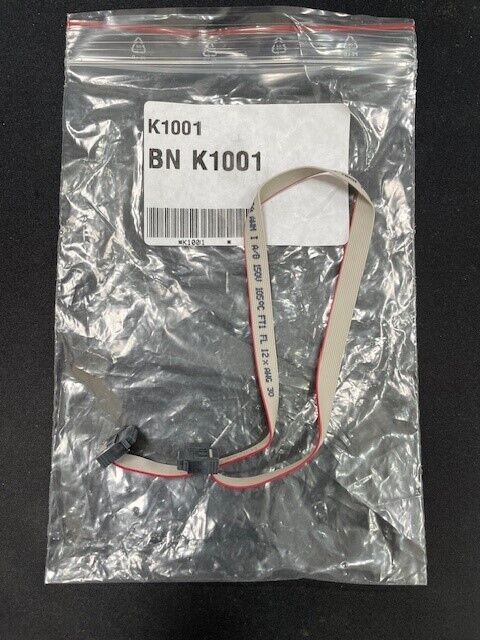

• K1001 Cable for External CFP2 MDIO Control (for transferring MDIO signals to external eval board)
• 4x K1002 8-coax cable assemblies

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Viavi Solutions CFP2 4x25G Electrical Adapter (part number BN 3076/92.90) is an active adapter accessory designed for use with Viavi ONT (Optical Network Tester) CFP2 physical layer test modules. It enables engineers to test external devices — including ASICs, ICs, and optical modules — operating at 25G or 28G per lane electrical interfaces without requiring a pluggable optical transceiver.

The adapter provides direct electrical access to the 4x25G (CAUI-4) interface, making it suitable for physical layer characterisation, compliance testing, and development validation of high-speed SerDes interfaces. It supports wideband jitter injection on a TX lane using an external modulation signal, extending the jitter analysis capabilities of the ONT platform into the gigahertz range.

Key Specifications:
Interface: 4x25G electrical (CAUI-4)
Jitter Modulation Range: 30 kHz – 1 GHz
Maximum Jitter Amplitude: 2 UIpp
Connectors: Three Huber+Suhner MXP series 8x1 cable assemblies
Connector 1: RX CAUI4 — 4 lanes, differential
Connector 2: TX CAUI4 — 4 lanes, differential
Connector 3: Auxiliary — jitter injection input, reference CDR output, TX CAUI4 lane 3 with added jitter
Compatibility: Port 1 only of ONT CFP2 Phy modules
MDIO Access: GUI access to external eval-board MDIO interface via optional K1001 cable
Features: Wideband jitter injection, recovered clock output, dynamic skew insertion, low-band jitter injection

Please refer to the Viavi Solutions website for full product documentation and compatibility information.
