Condition: Used — in good condition.

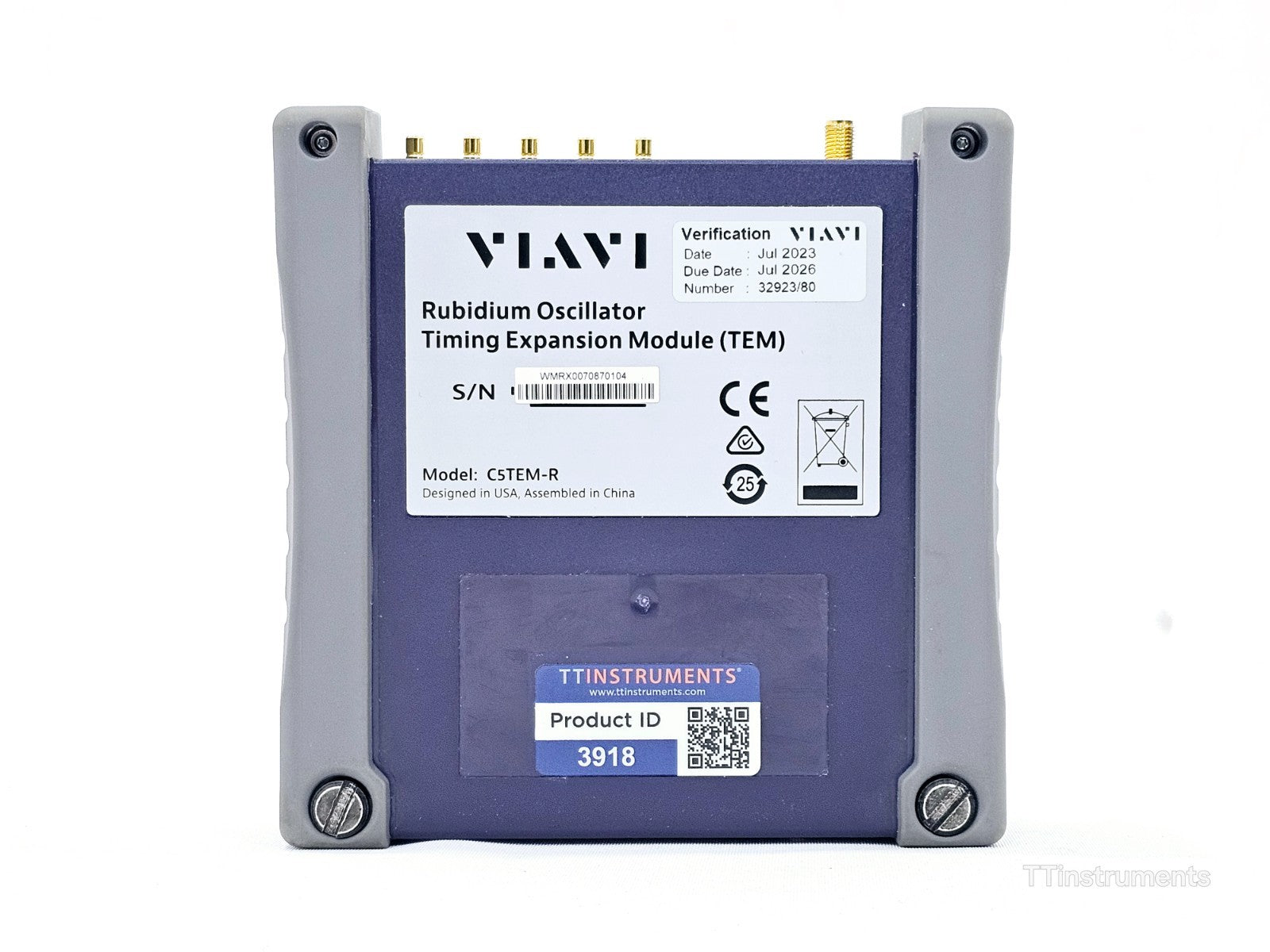

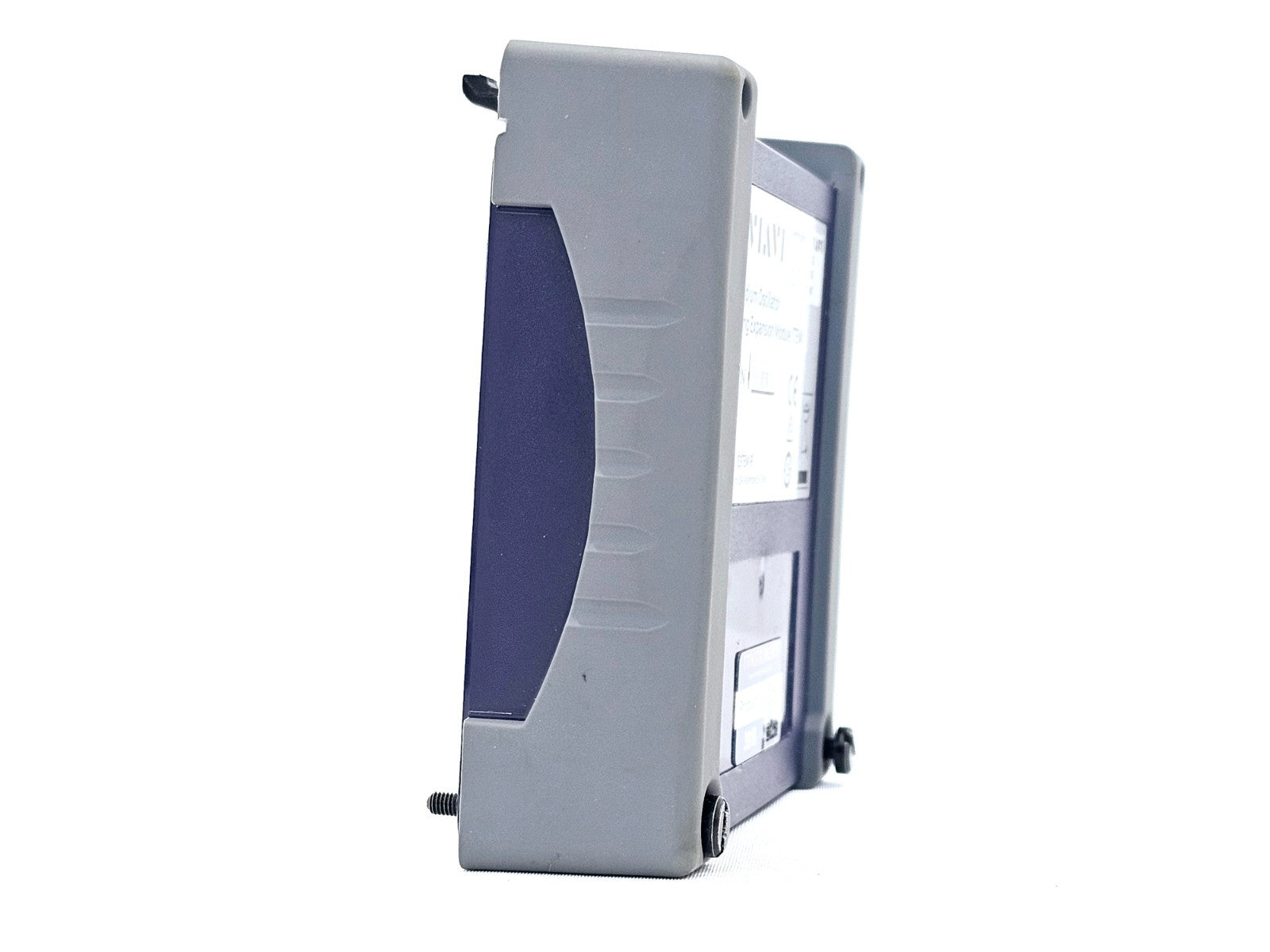

The Viavi C5TEM-R is a Rubidium Oscillator Timing Expansion Module (TEM) for use with compatible mainframes such as the Viavi T-BERD/MTS-5800 V2. It integrates a GNSS antenna and a miniature atomic clock (MAC) to deliver nanosecond-accurate timing and synchronisation measurements in the field, including during holdover when no satellite signal is available. Please note that only the module is supplied — a compatible mainframe is required for operation and is not included.

What is included in the sale:
• Viavi C5TEM-R Rubidium Oscillator Timing Expansion Module (TEM) only

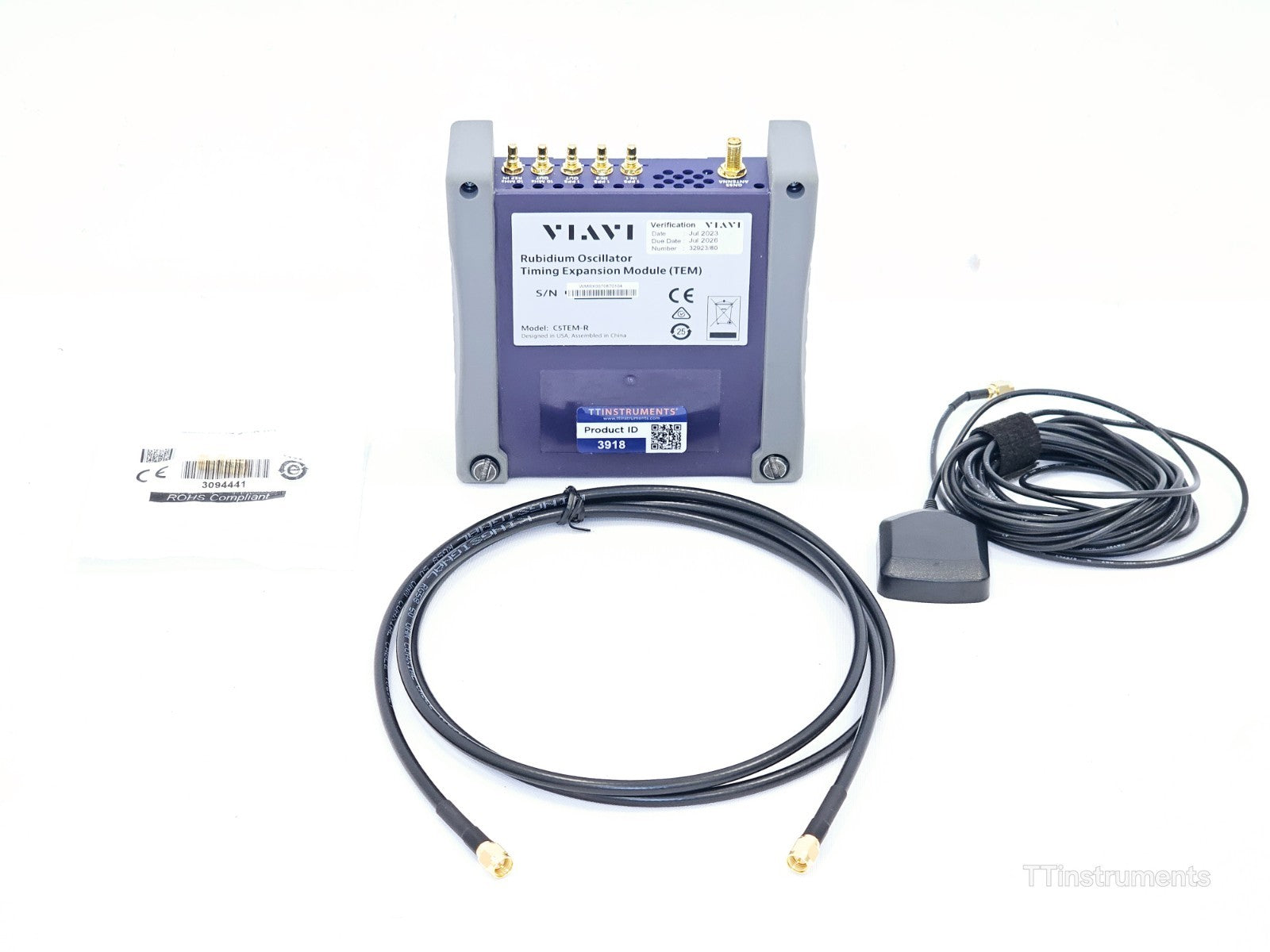

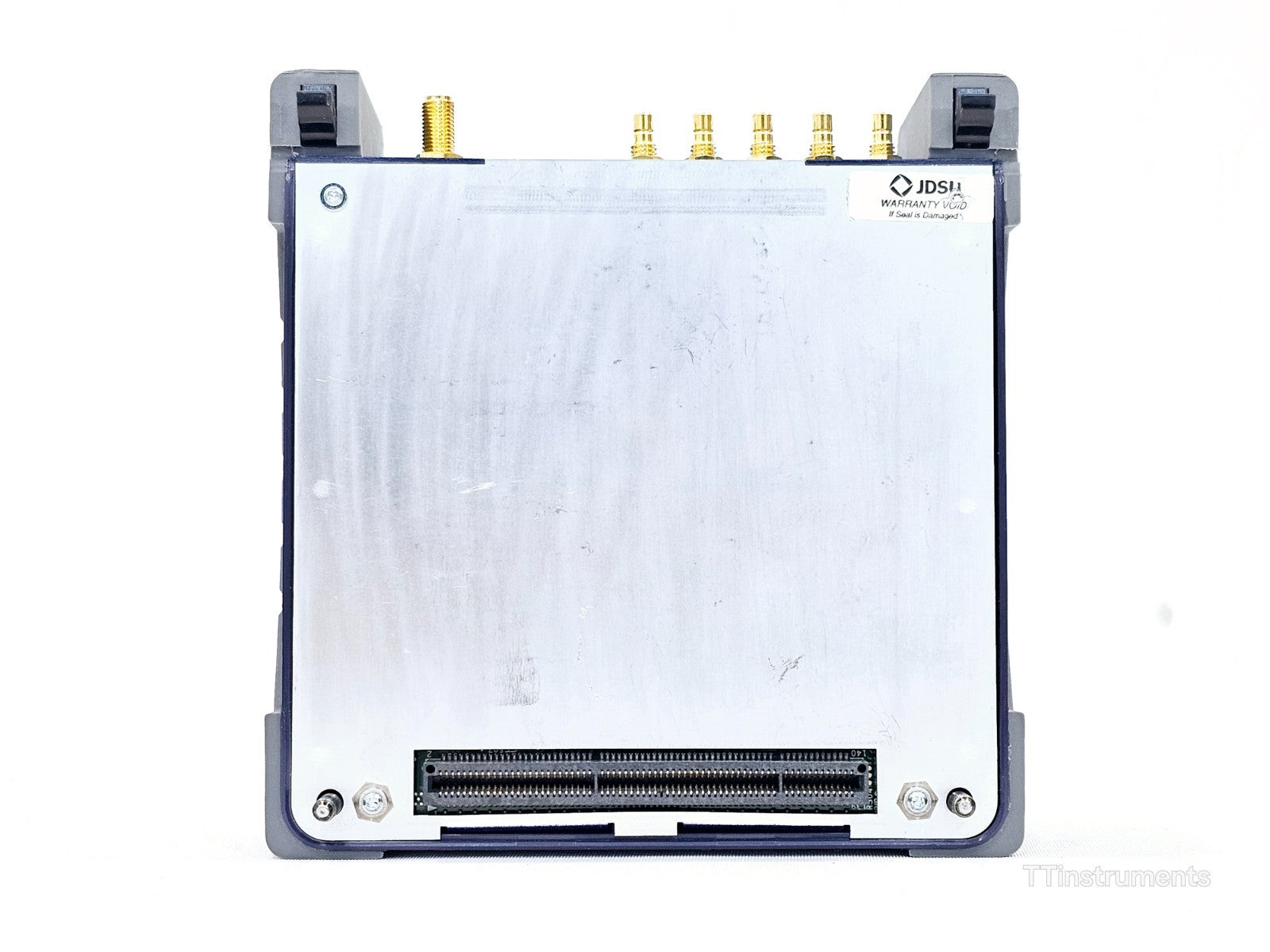

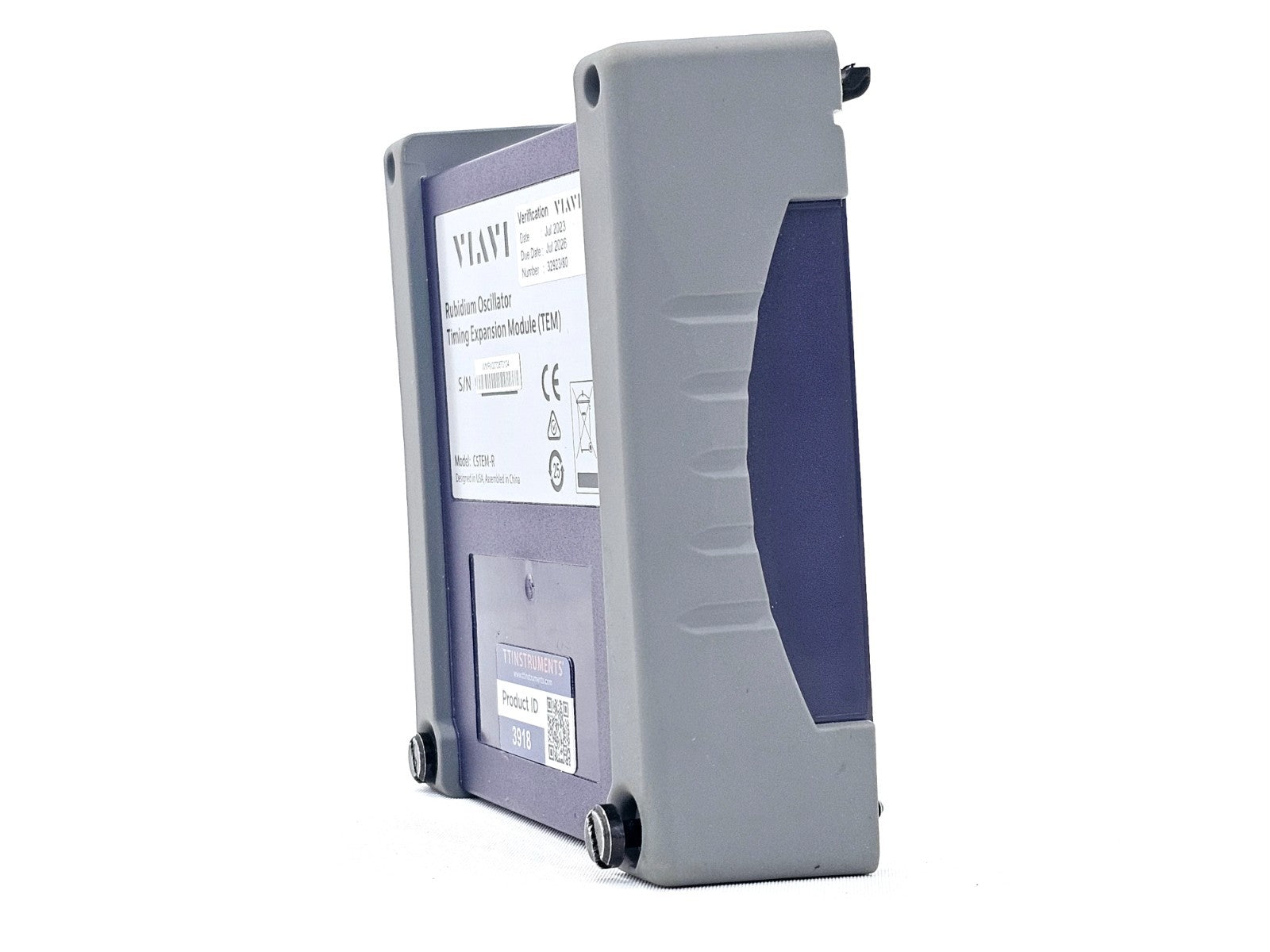

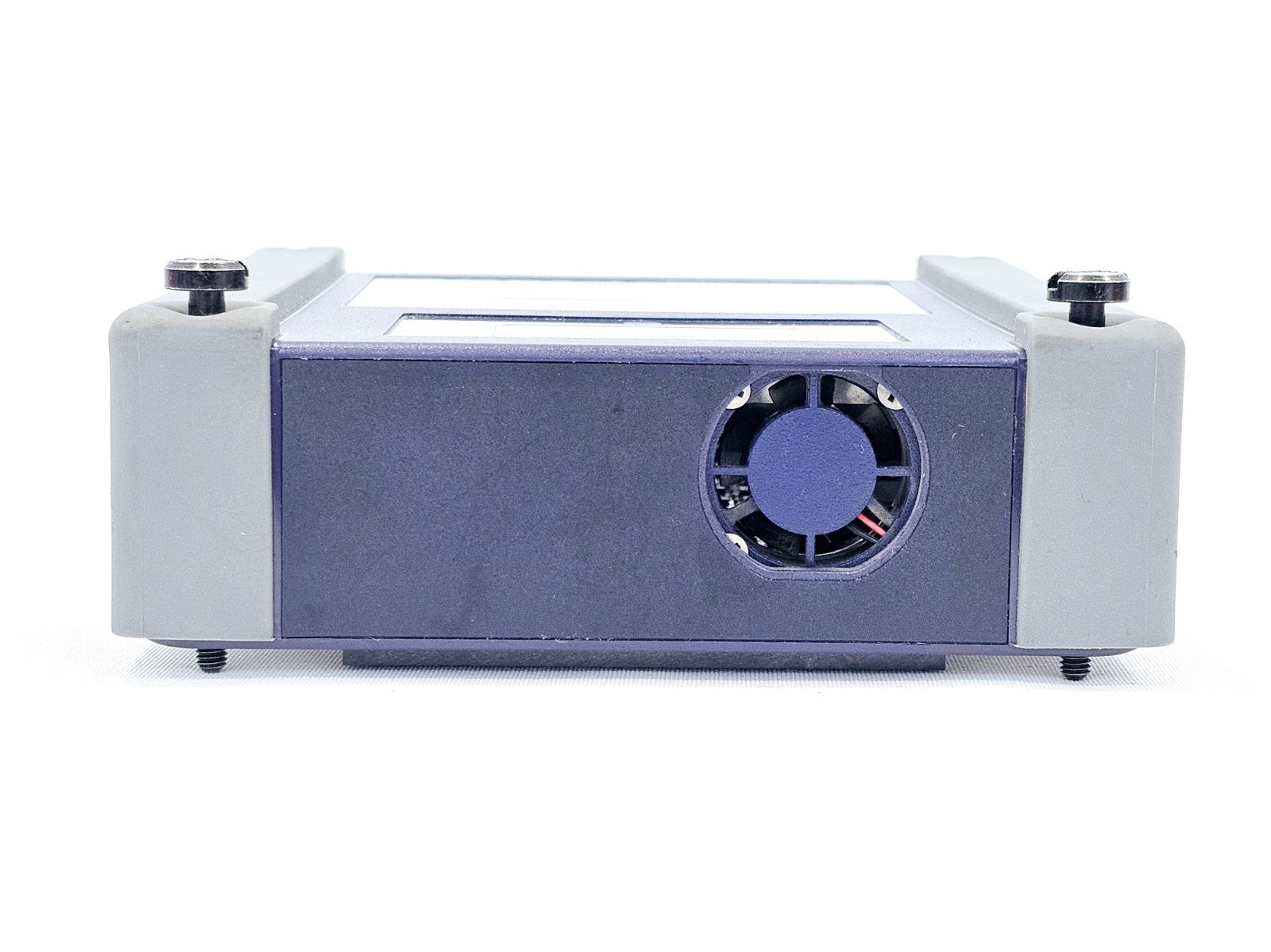

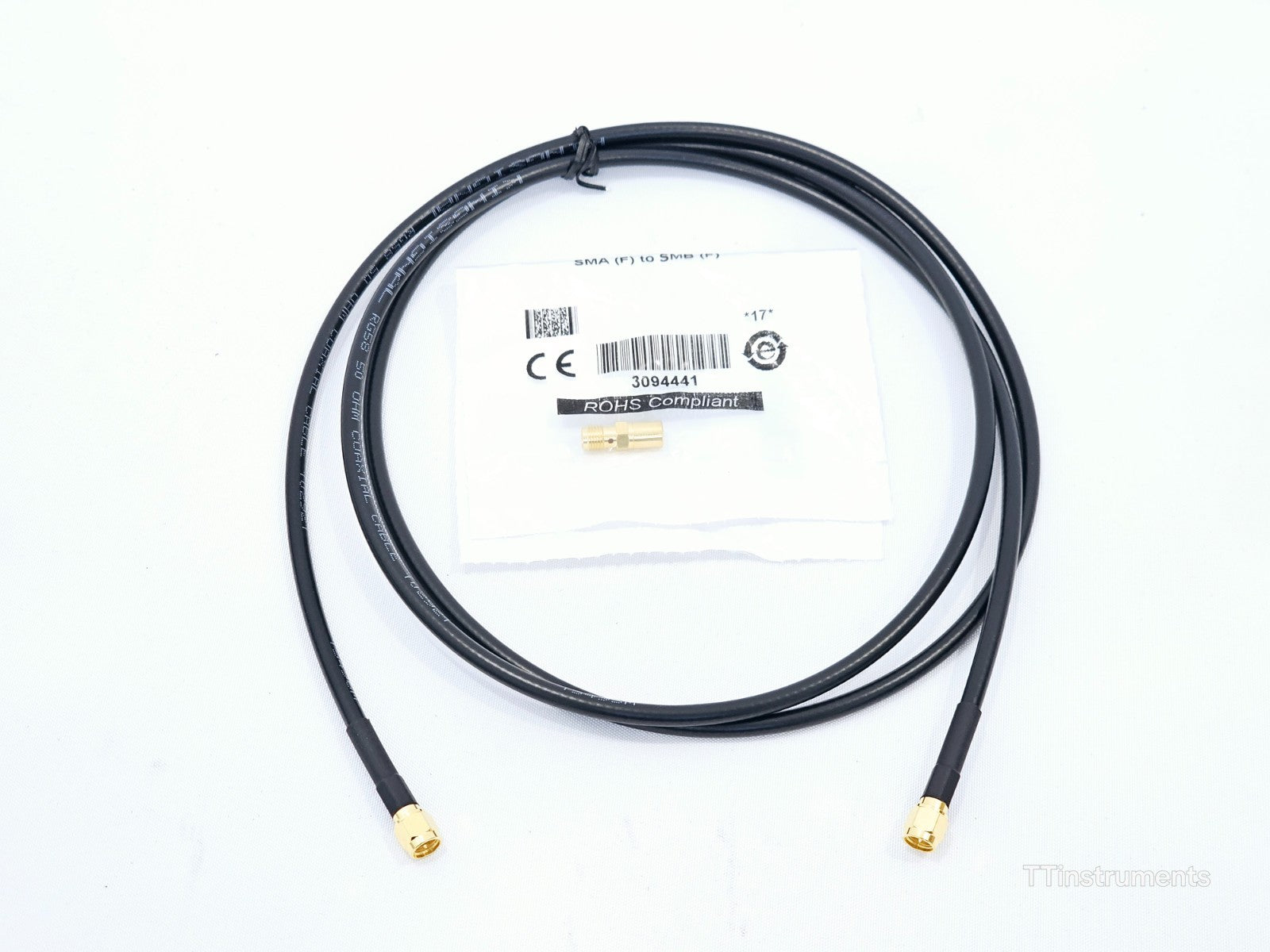

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Viavi C5TEM-R Timing Expansion Module (TEM) is a field-optimised accessory designed for use with the T-BERD/MTS-5800 platform. It incorporates a GNSS antenna and a miniature atomic clock (MAC) based on a Rubidium oscillator, providing nanosecond-accurate timing and synchronisation measurements even when operating in holdover mode without a satellite signal.

With a T-BERD/MTS-5800 and the C5TEM-R, engineers can:
• Perform one-way delay measurements to identify asymmetric network delays
• Precisely measure PTP one-way delay, constant time error (cTE), dynamic time error (dTE) using wander analysis with ITU masks and maximum time error max |TE|
• Measure Floor Packet Percentile (FPP) of Sync PDV packets to ensure PTP PDV is within limits for frequency recovery
• Qualify GNSS antenna installations by evaluating satellite signal strength and viewing a 360° sky plot instantly or over a 24-hour period
• Troubleshoot the accuracy of equipment 1 PPS output signals with 1 PPS wander analysis
• Measure T1 and E1 jitter and wander
• Measure PTP frequency accuracy using Floor Packet Percentile (FPP) analysis

Key Specifications:
Oscillator Type: Rubidium (miniature atomic clock — MAC)

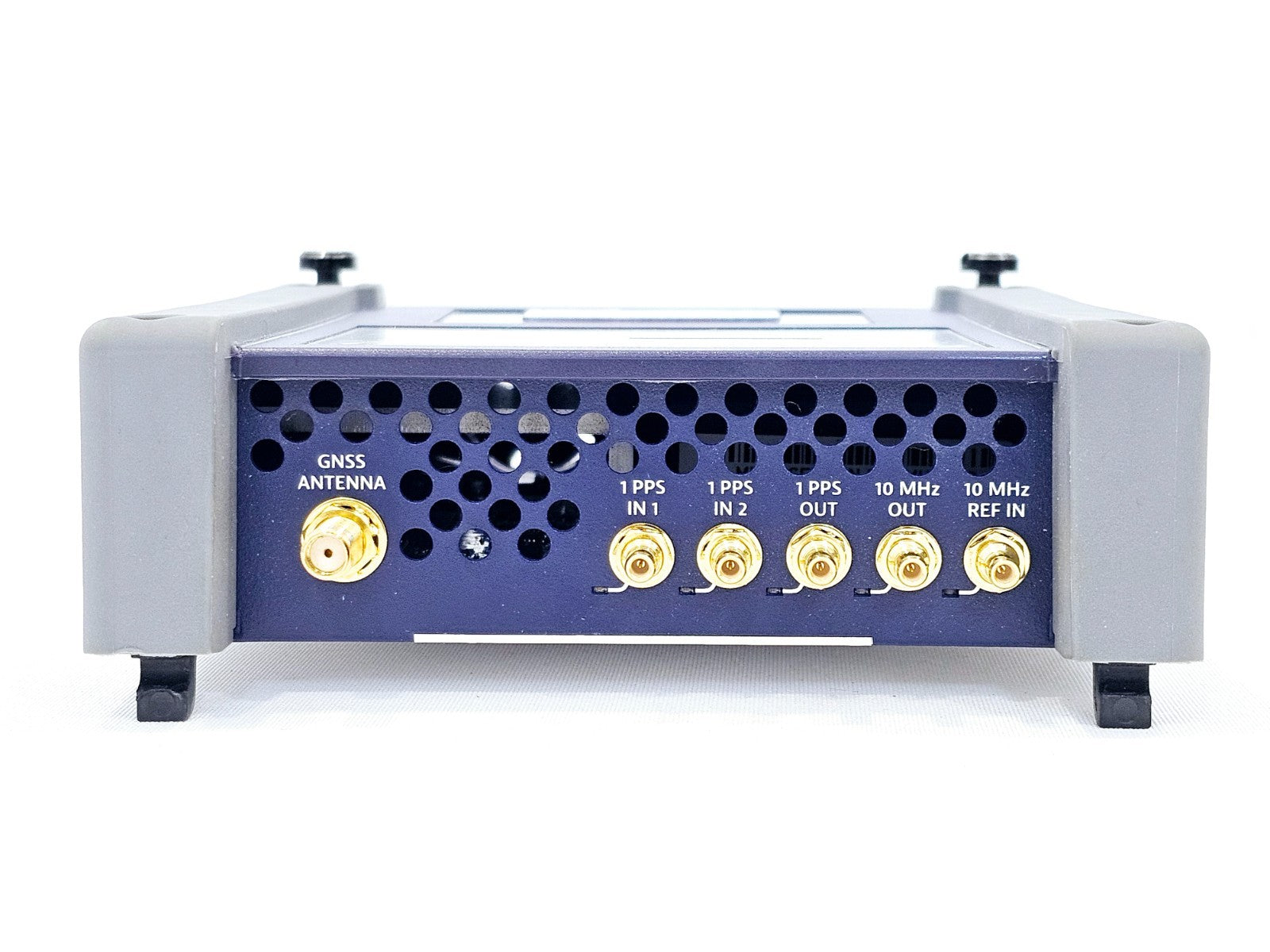

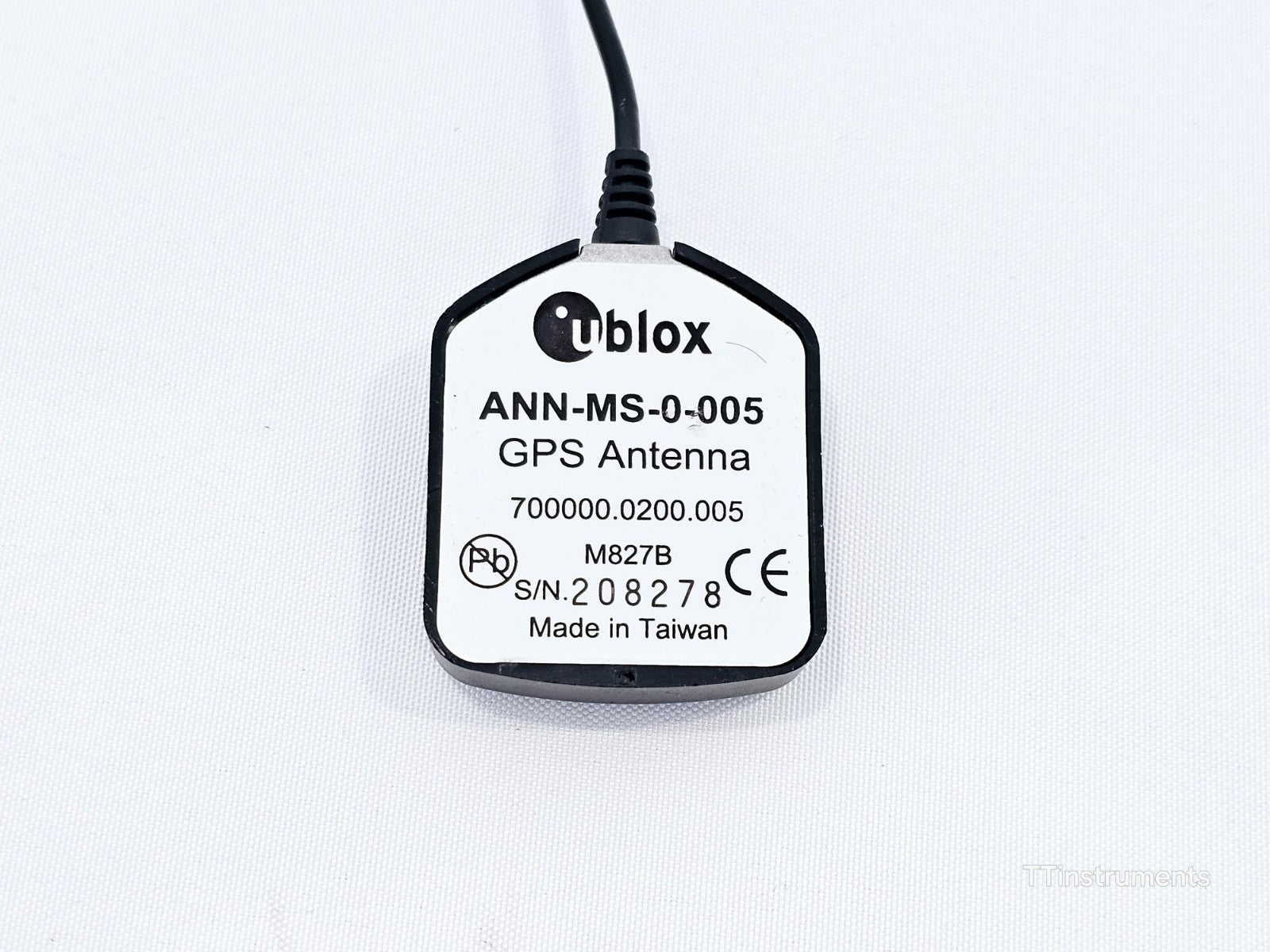

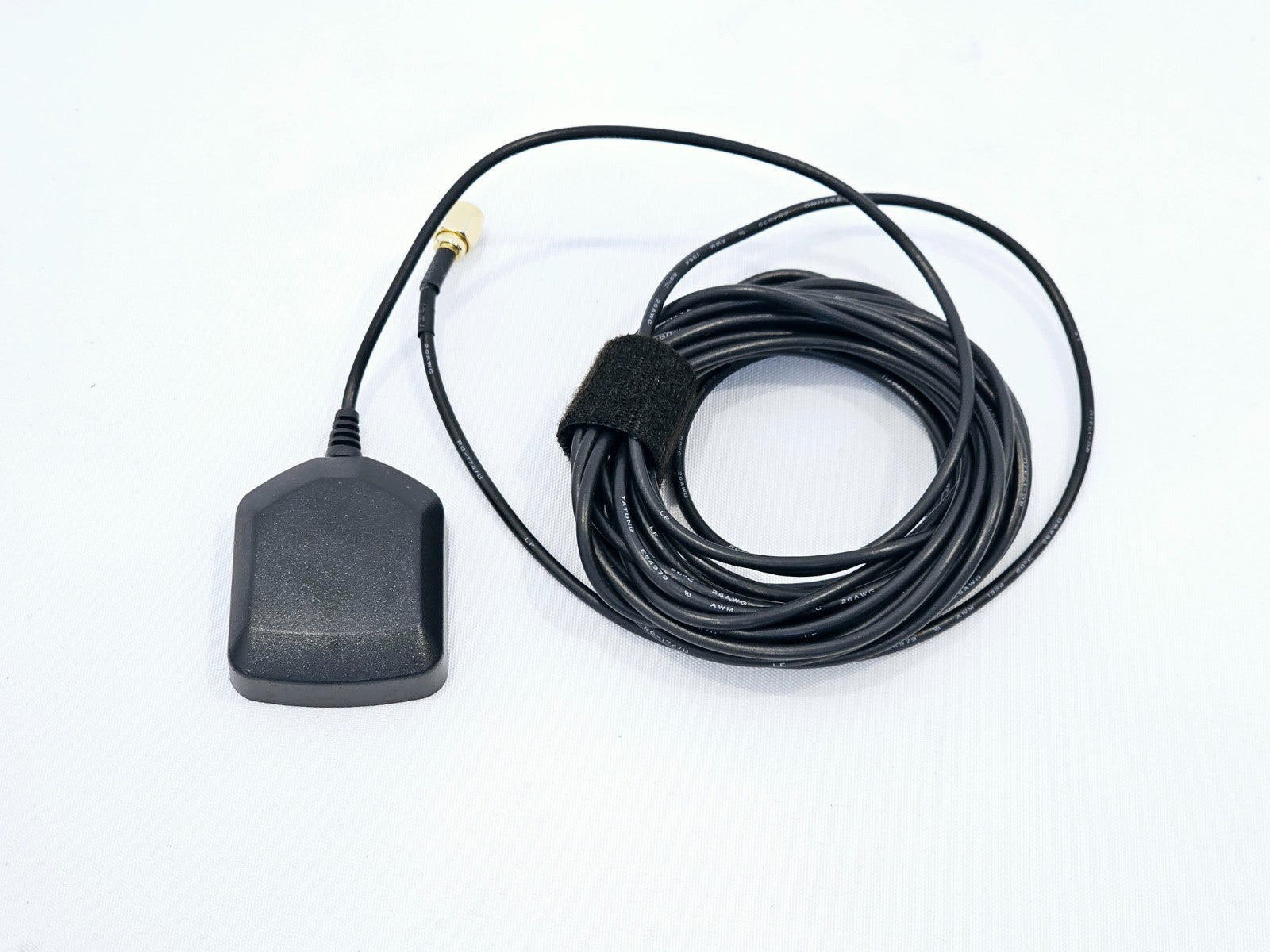

Timing Reference: GNSS (GPS/GNSS antenna input)
Holdover Capability: Yes — nanosecond-level accuracy maintained without satellite signal
Compatible Platform: Viavi T-BERD/MTS-5800 family
Measurement Standards: ITU-T G.8271, G.8273, G.8260 wander analysis masks
Delay Measurements: PTP one-way delay, cTE, dTE, max |TE|
Packet Delay Variation: FPP analysis of Sync PDV packets
Jitter & Wander: T1 and E1 jitter and wander measurement
1 PPS Analysis: 1 PPS wander analysis and accuracy troubleshooting
Sky Plot: 360° GNSS satellite sky plot, instantaneous or 24-hour logging
Form Factor: Expansion module — requires compatible T-BERD/MTS-5800 mainframe
