The images provided are of the actual item you will receive. Please review them carefully for cosmetic condition.

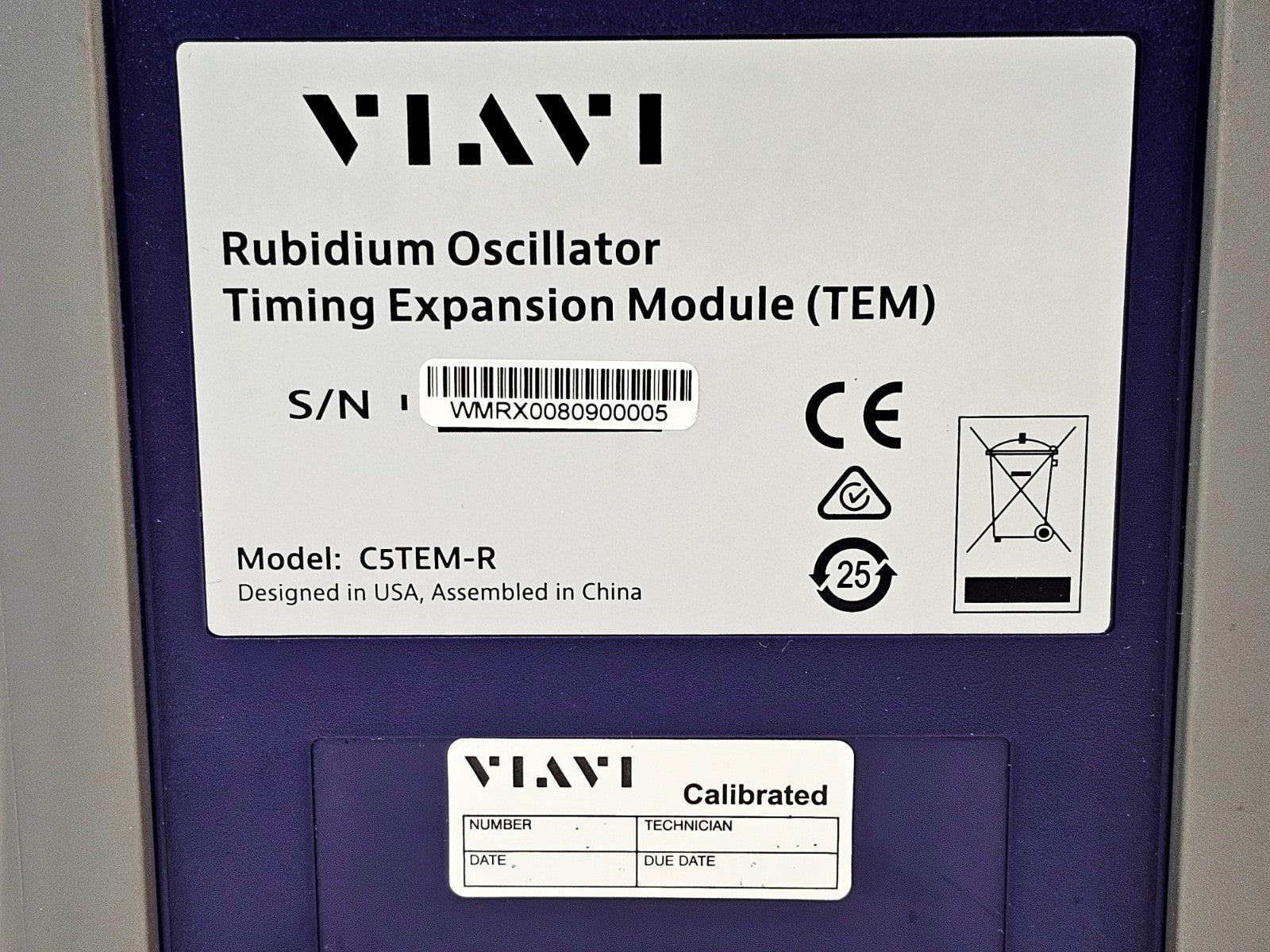

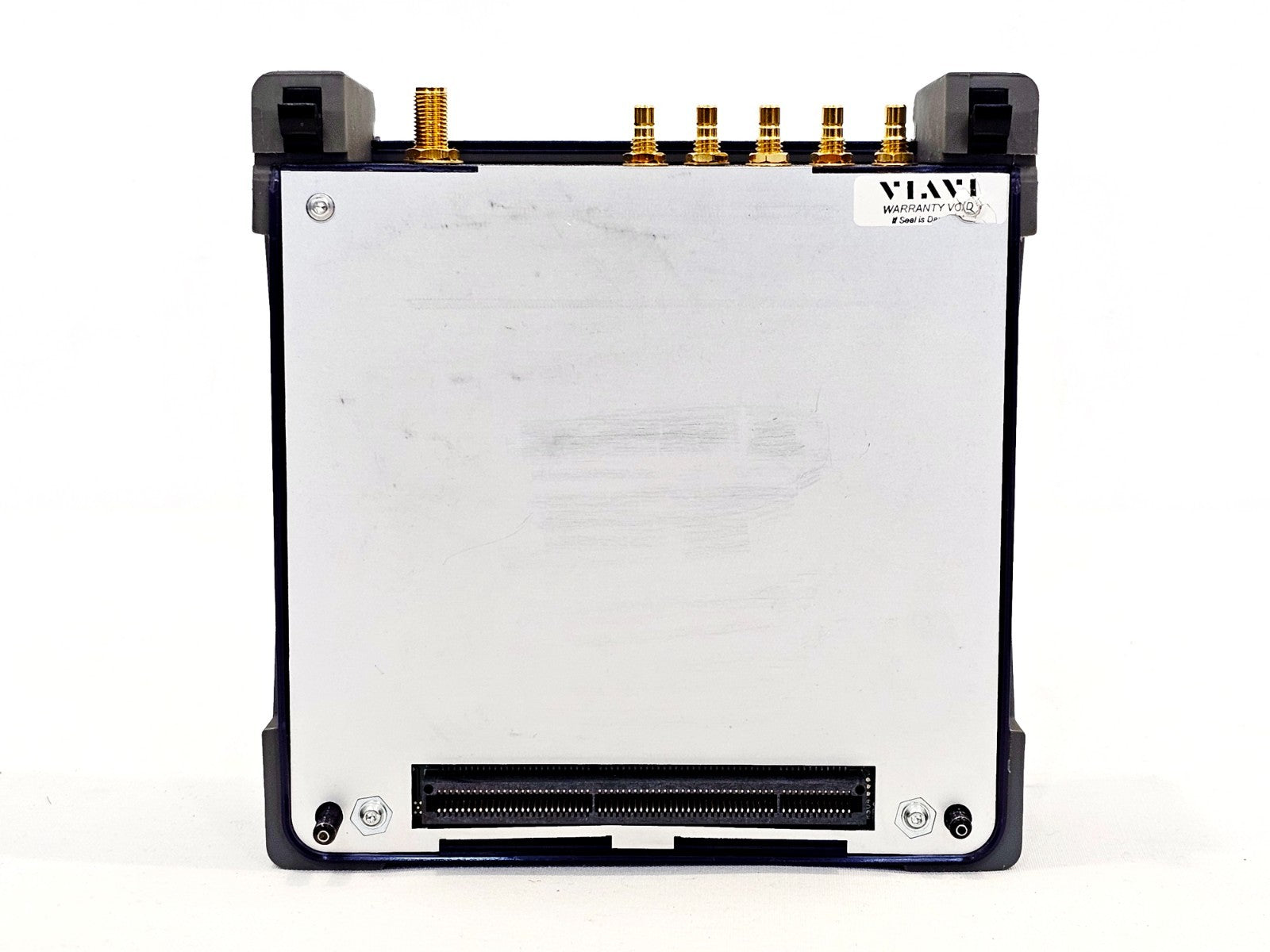

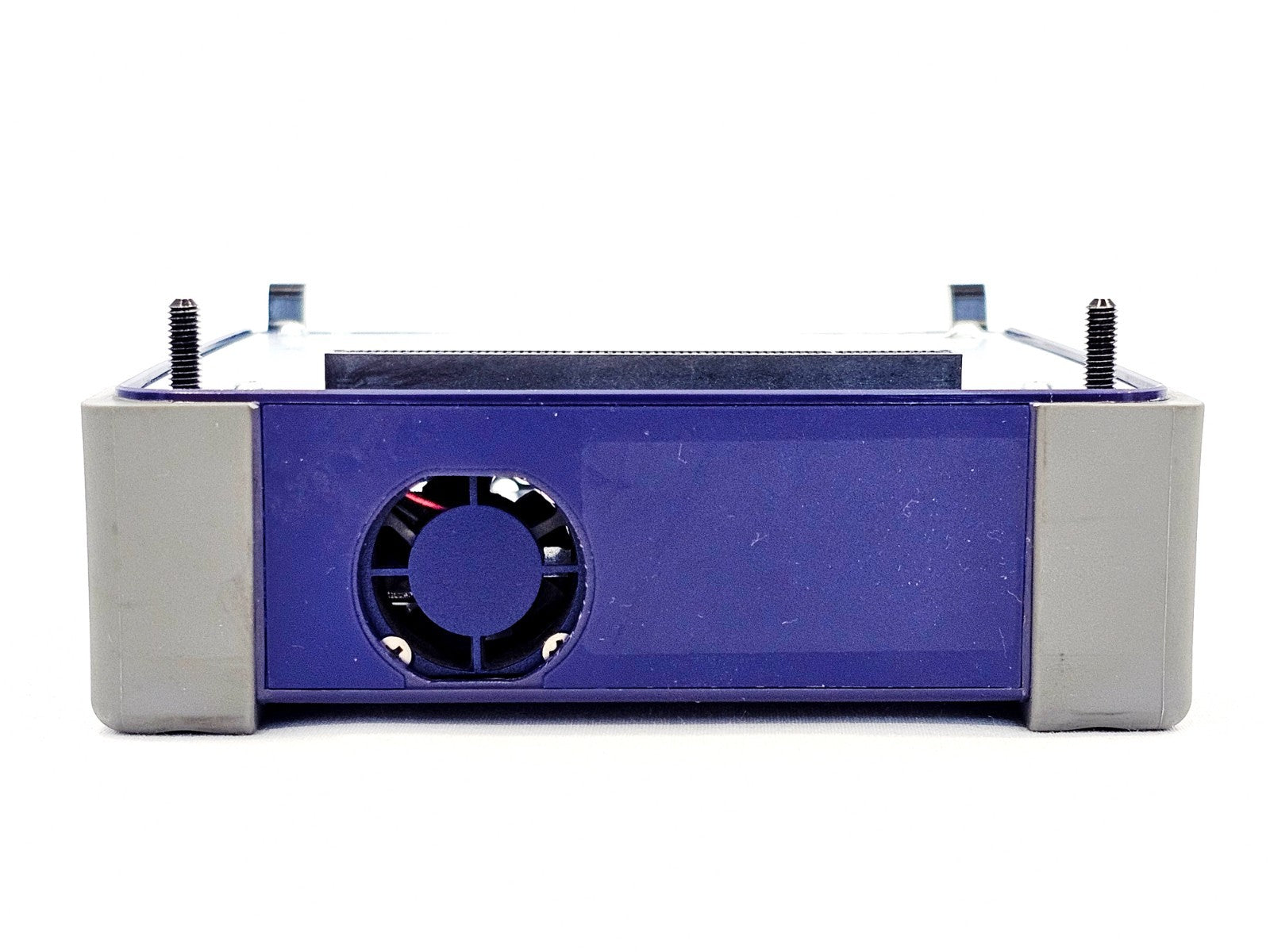

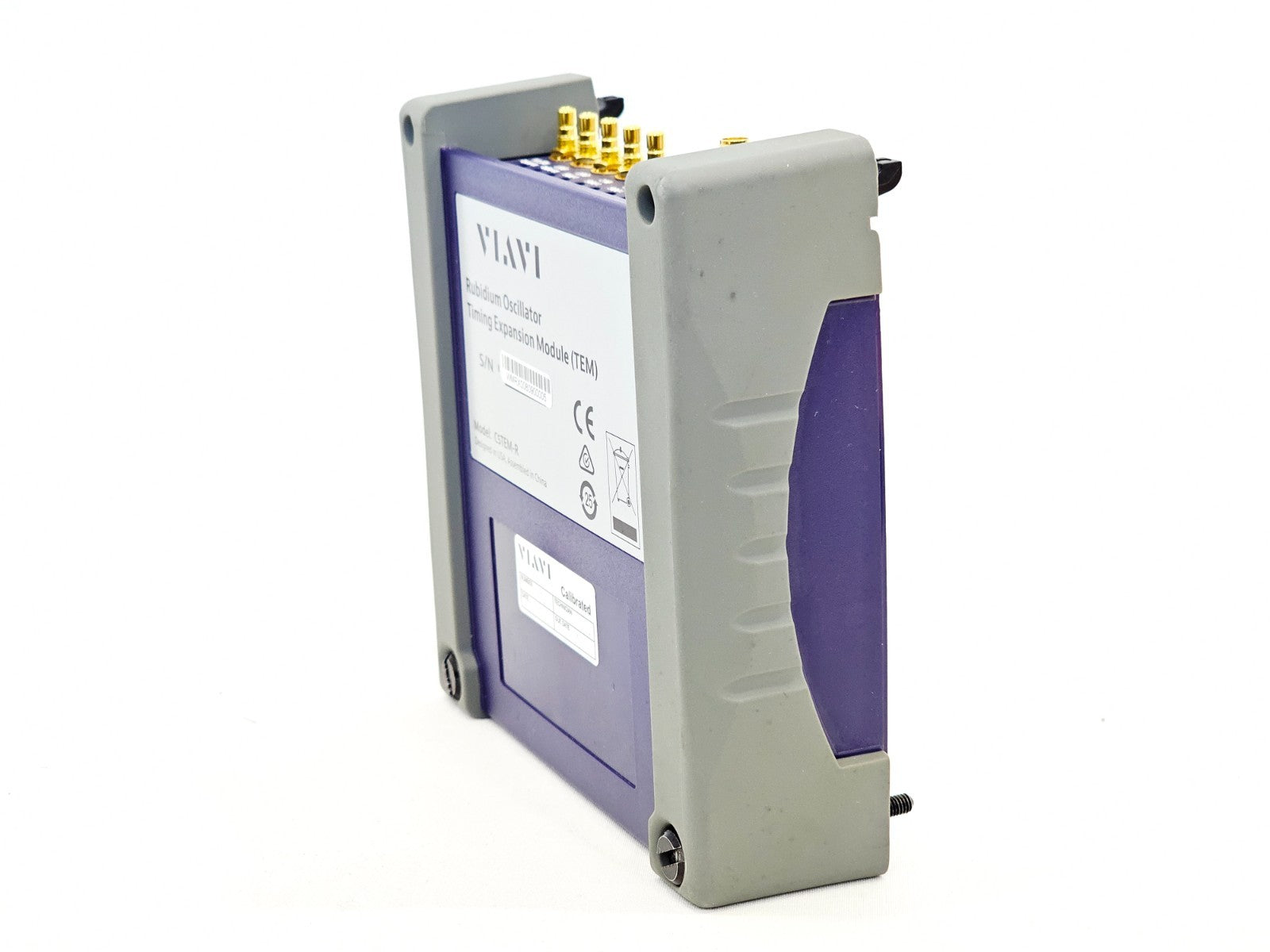

This VIAVI C5TEM-R Rubidium Oscillator Timing Expansion Module (TEM) is offered in used condition and is in excellent cosmetic shape. The unit has been tested and confirmed working.

This listing includes:
• VIAVI C5TEM-R Rubidium Oscillator Timing Expansion Module (TEM)
• GNSS patch antenna
• GNSS antenna cable
• SMA adapter

Please note: a VIAVI T-BERD/MTS-5800 mainframe is required to operate this module and is not included with this listing.

The VIAVI C5TEM-R is a field-optimised Timing Expansion Module for the T-BERD/MTS-5800 handheld network tester, designed for precise timing and synchronisation measurements in telecoms network deployment and maintenance.

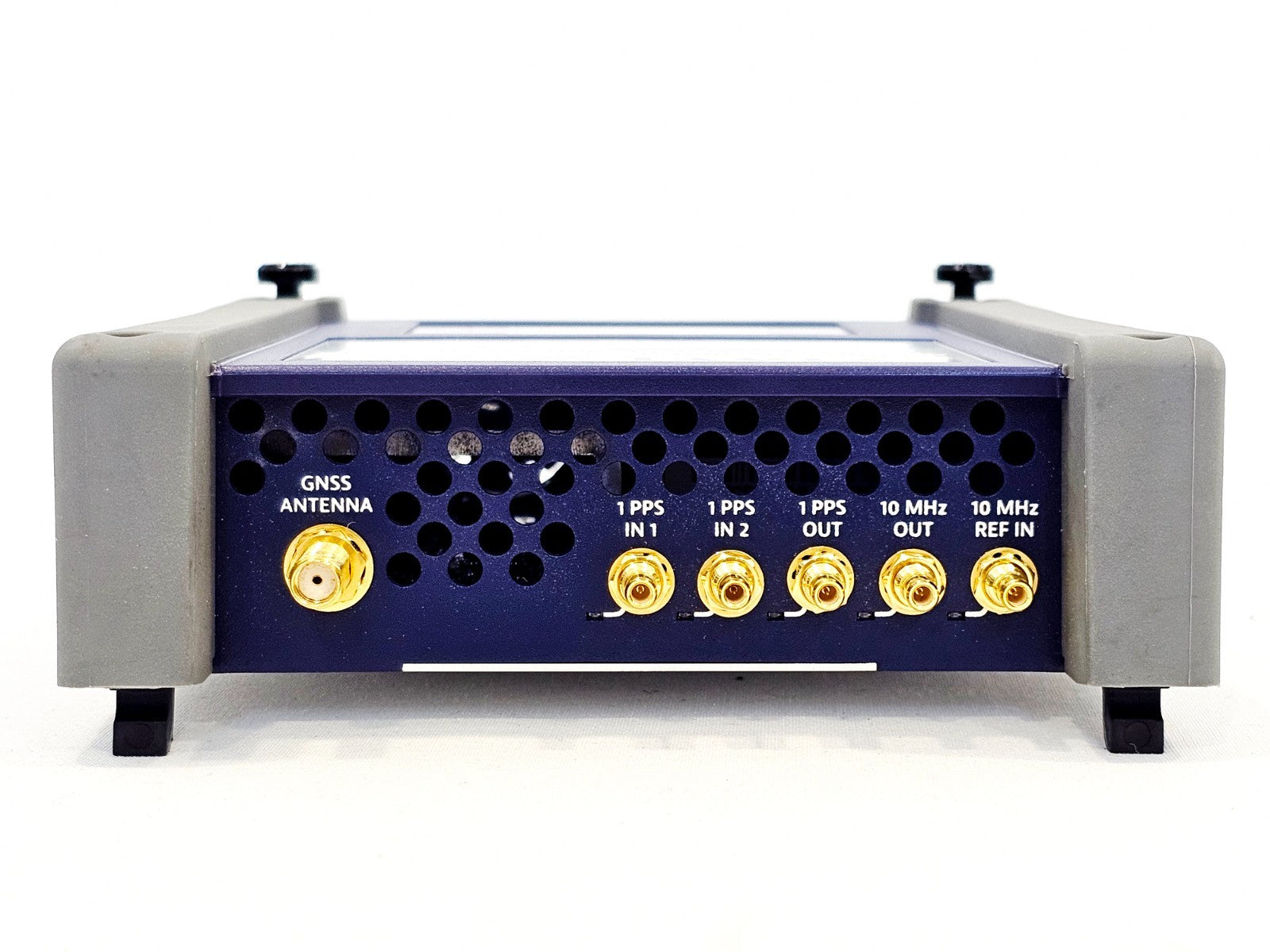

The C5TEM-R features a 72-channel multi-constellation GNSS receiver and a Rubidium-based miniature atomic clock (MAC) to deliver nanosecond-precise measurements even when operating in holdover without a satellite signal. It enables field engineers to verify PTP/IEEE 1588v2 boundary clock performance, measure PTP PDV, qualify GNSS antenna installations, and perform 1 PPS wander analysis against ITU-T MTIE and TDEV masks. The module attaches directly to the T-BERD/MTS-5800 mainframe and provides dual 1 PPS inputs, a 1 PPS output, a 10 MHz Rubidium-disciplined output, and a 10 MHz reference input — all via gold-plated SMA connectors.

Oscillator type: Rubidium Miniature Atomic Clock (MAC)
GNSS channels: 72-channel multi-constellation
Timing accuracy: Nanosecond-precise (GNSS-locked and holdover)
Minimum holdover: <7 µs over 24 hours (full temperature range)
Oscillator stability: Minimum 1.5×10⁻¹¹ over 2 hours
Phase noise @ 1 Hz: <−70 dBc/Hz
Phase noise @ 10 Hz: <−87 dBc/Hz
Phase noise @ 100 Hz: <−114 dBc/Hz
Phase noise @ 1 kHz: <−130 dBc/Hz
RF connectors: SMA (all ports)
Compatible platform: VIAVI T-BERD/MTS-5800

VIAVI C5TEM-R datasheet: Download PDF
