The images provided are of the actual item you will receive. Please review them carefully for cosmetic condition.

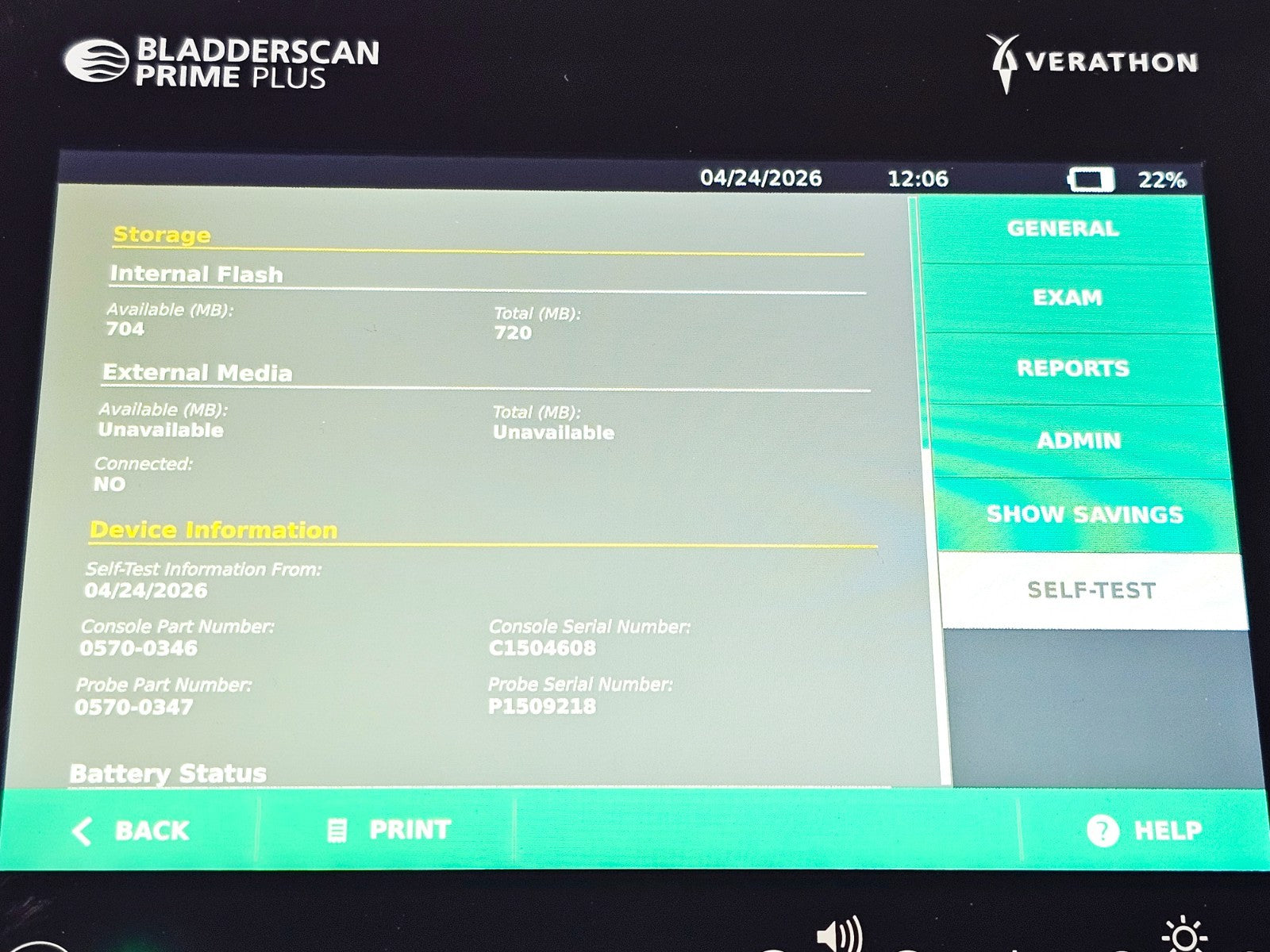

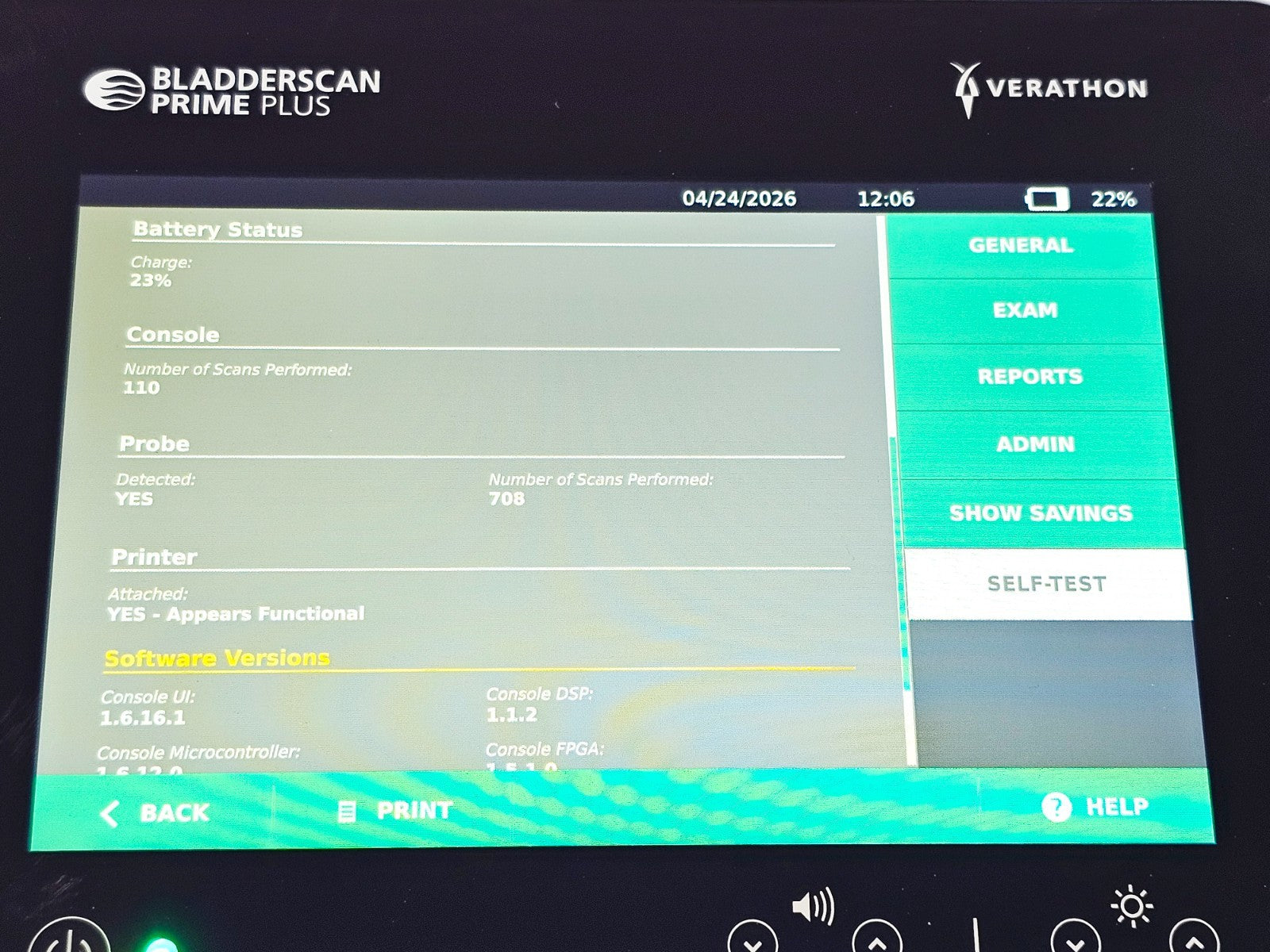

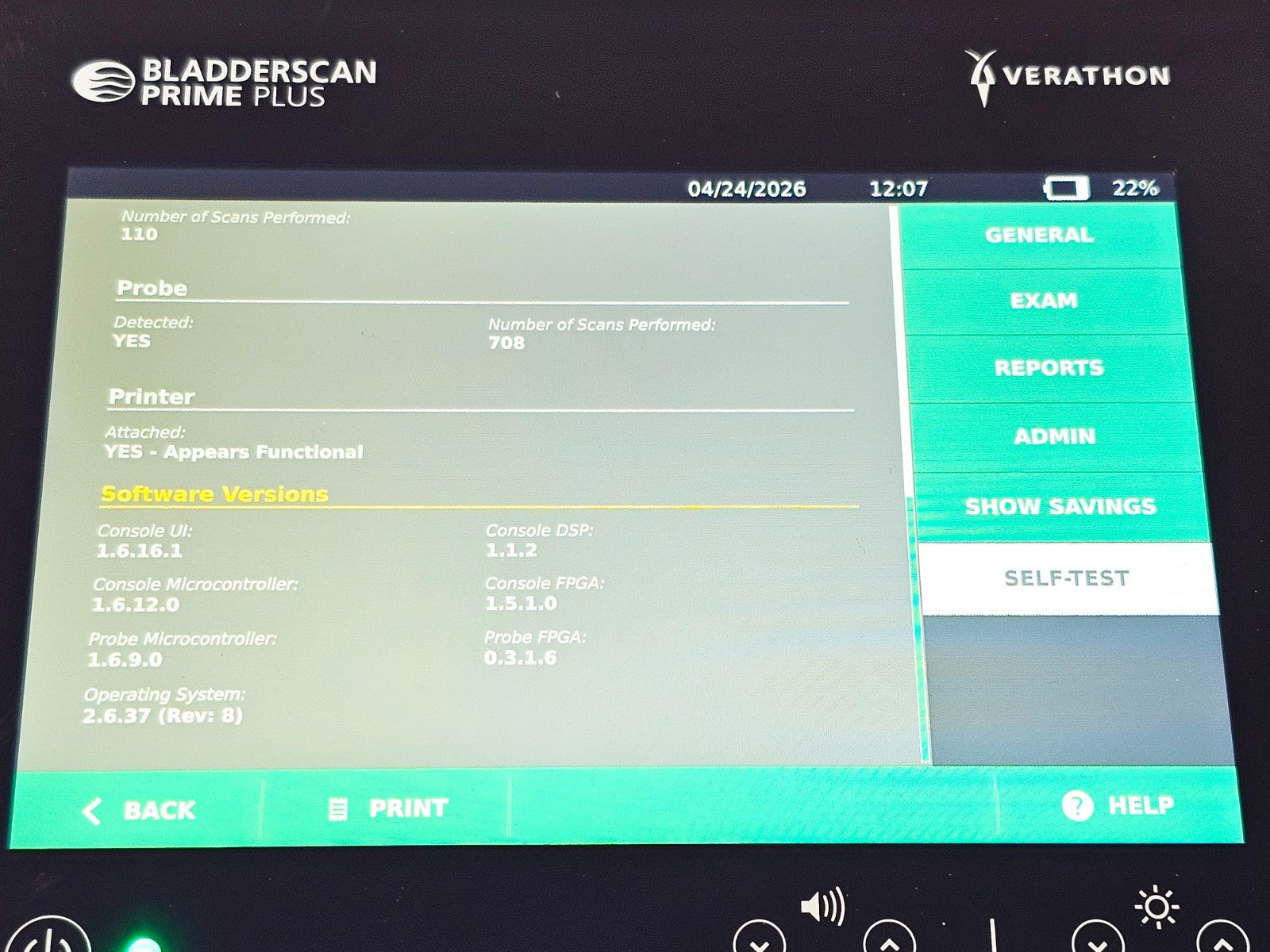

This Verathon BladderScan Prime Plus (REF 0570-0346) is in very good cosmetic condition and has been fully tested and confirmed working — all checks passed.

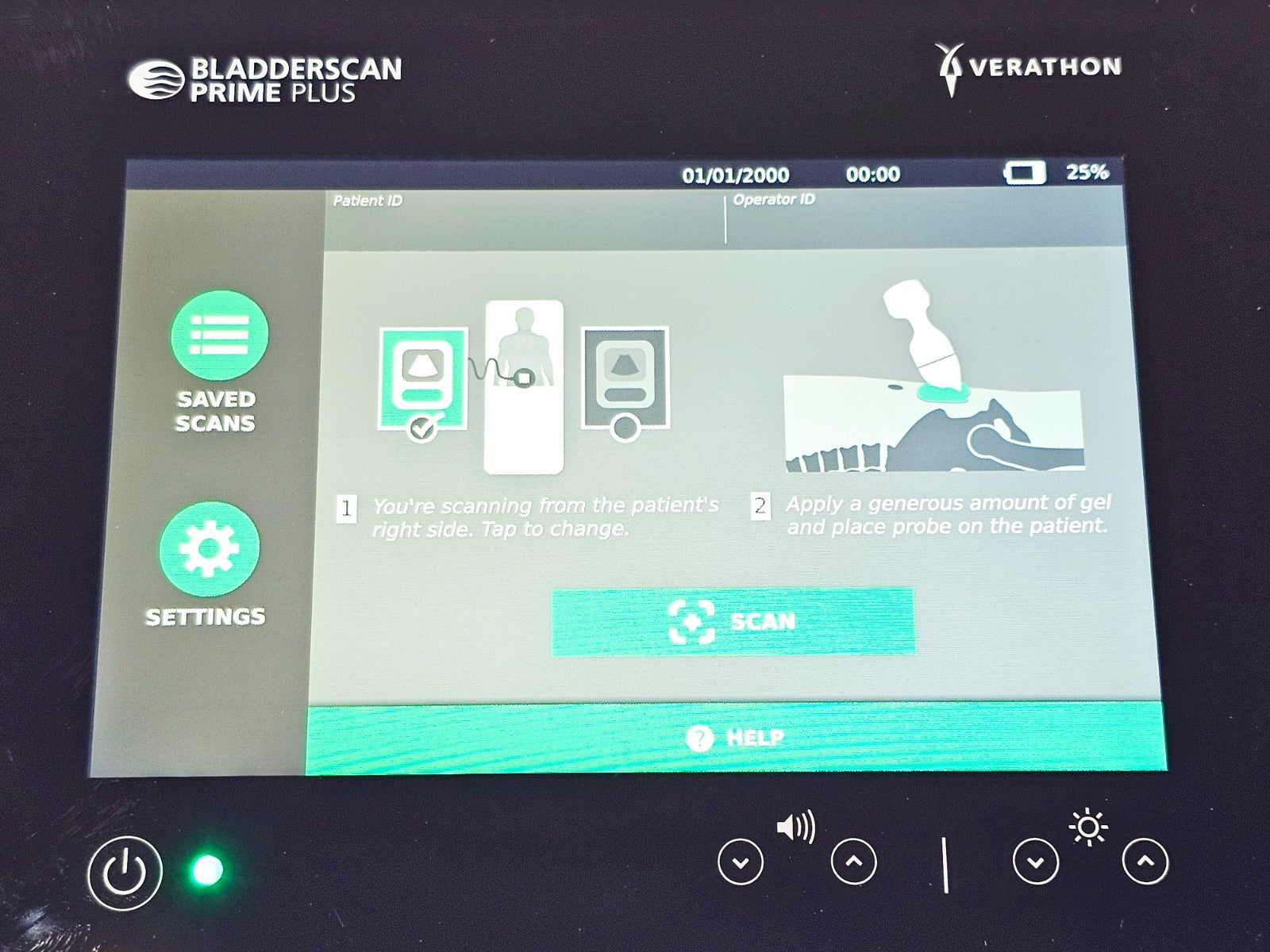

The system features ImageSense AI deep learning technology, which automatically calculates 3D bladder volume across all adult and paediatric patient types — including male, female, and small child scanning modes — with an accuracy of ±7.5% for volumes above 100 mL and ±7.5 mL for volumes below 100 mL. Guided scanning tools include pre and post-scan aim-assist, EdgeScan off-centre alerts, and a pioneering pubic bone interference indicator. The console features a 1280 x 800 colour LCD touchscreen with two USB ports and an SD card slot for data export. Stored exams can be recalled, printed, or transferred at any time.

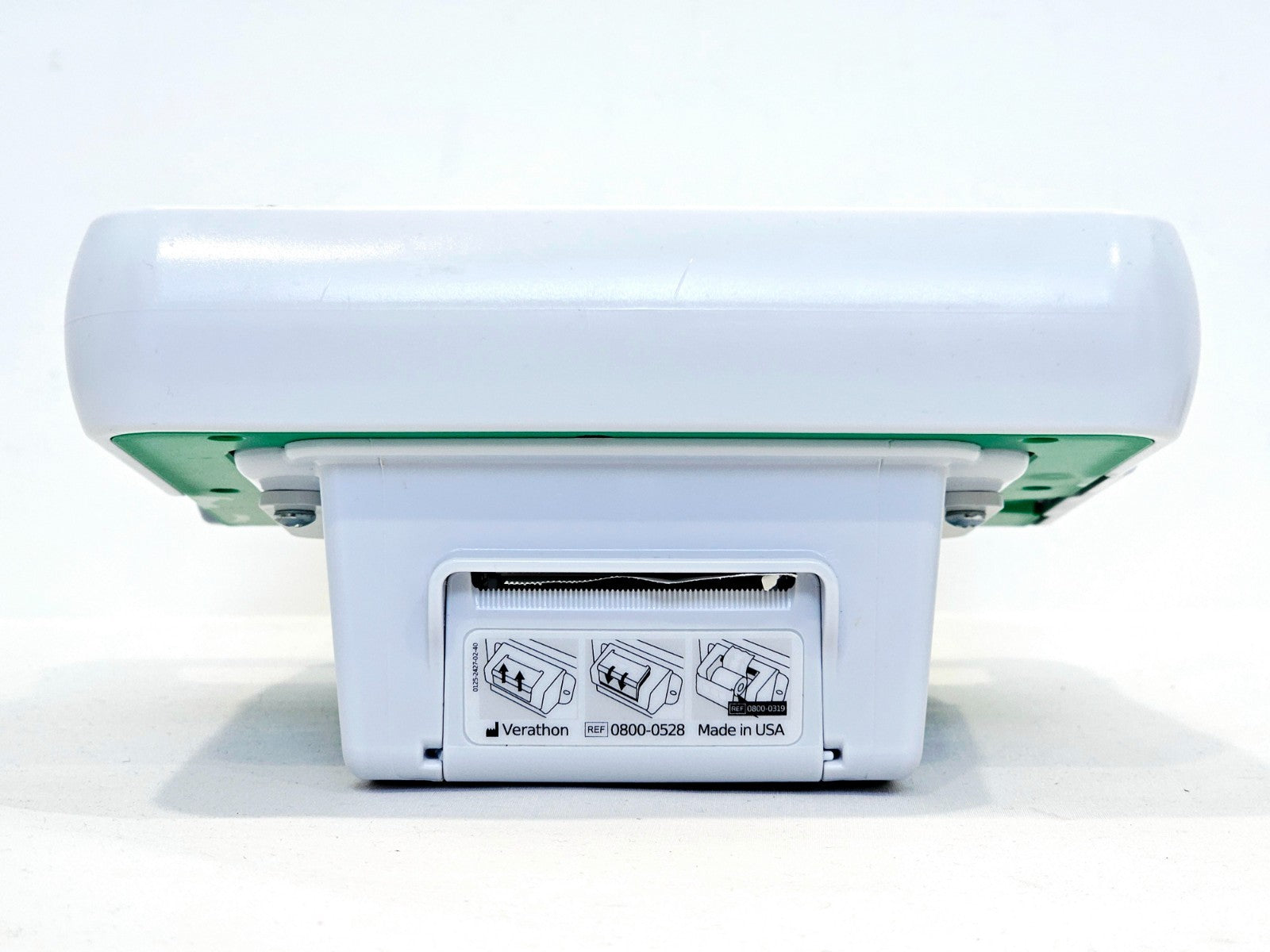

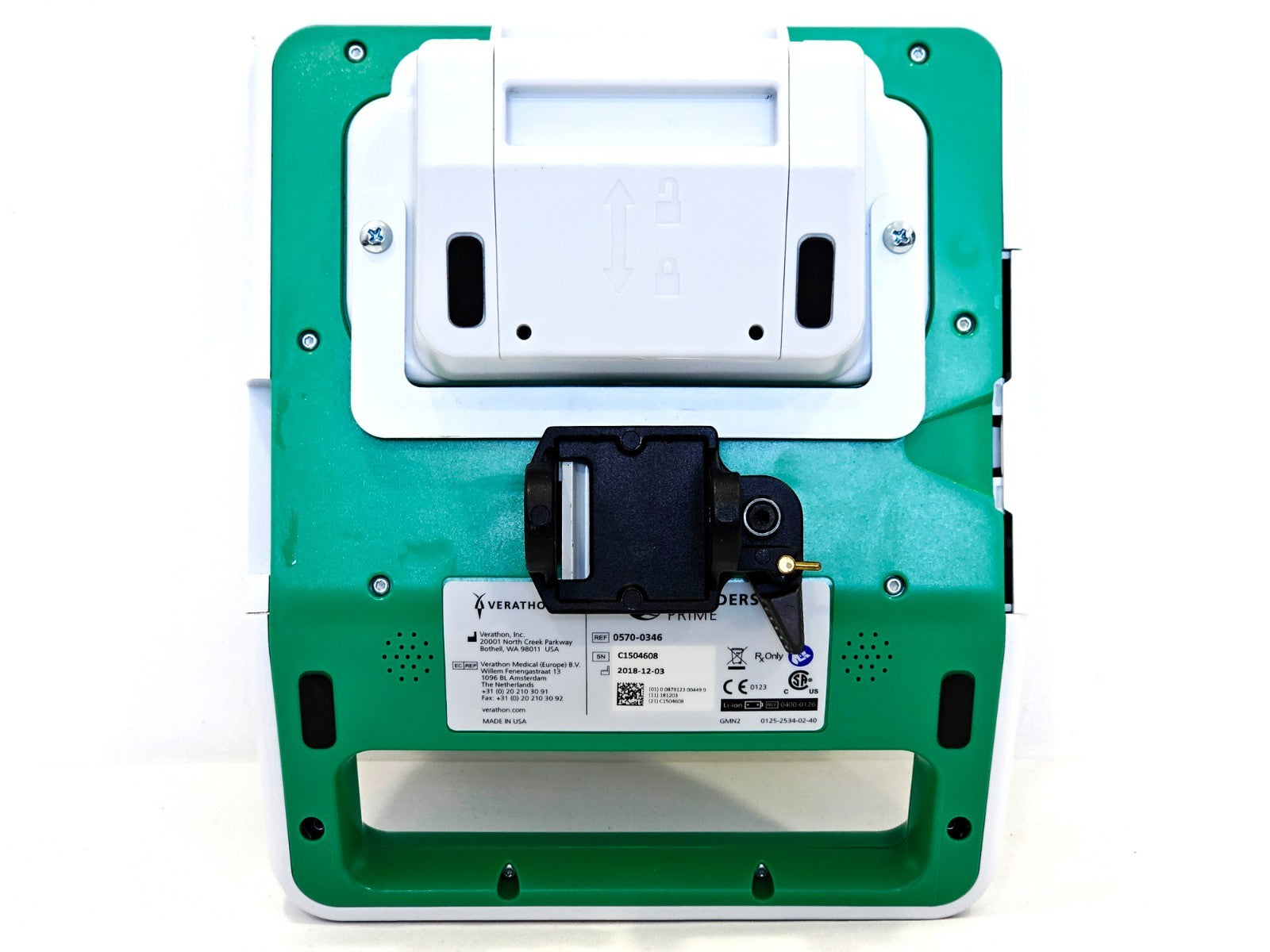

The unit is fitted with the integrated Verathon Printer Add-On (REF 0800-0528), enabling direct thermal printing of scan results at the point of care.

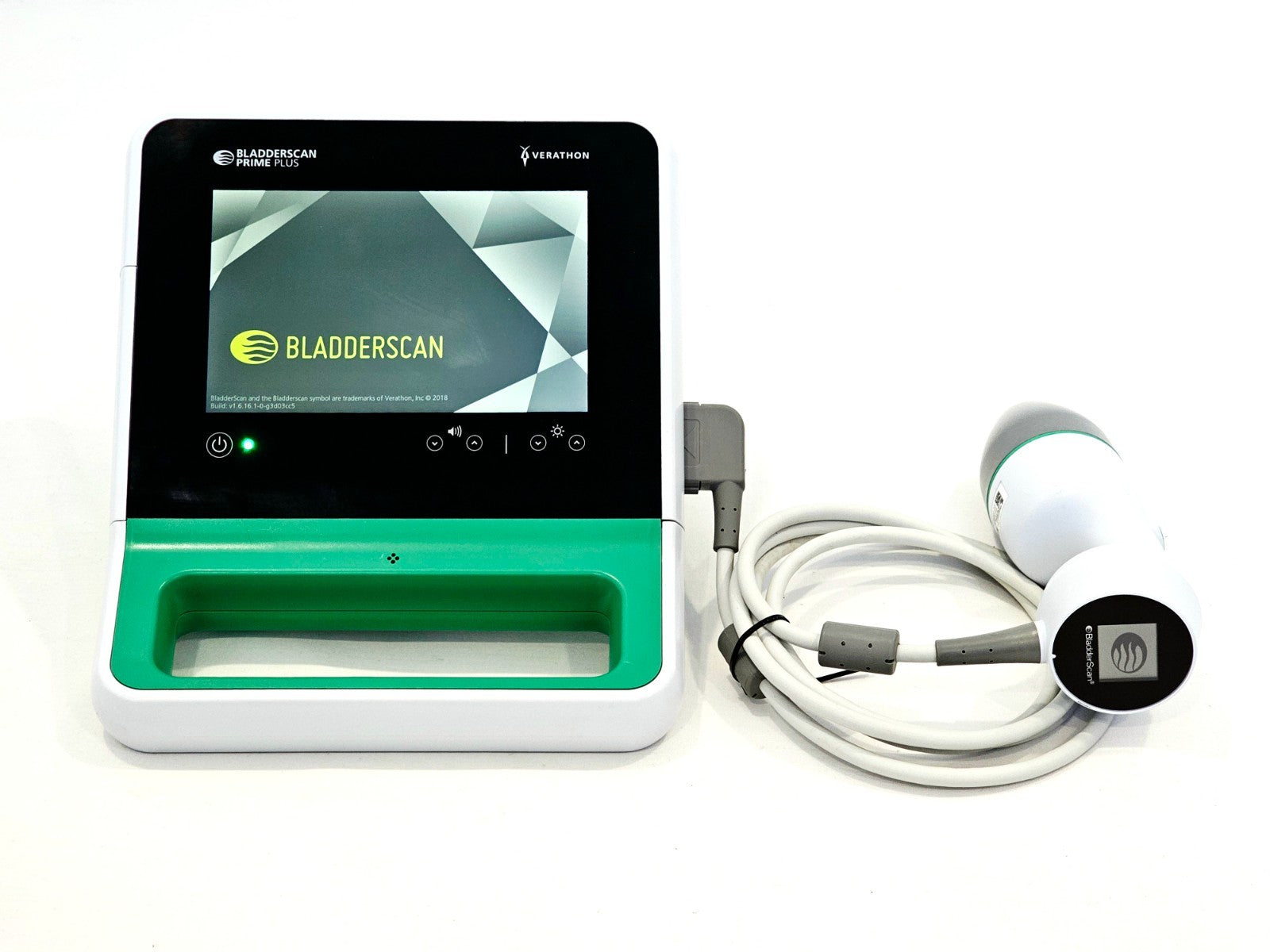

This sale includes:

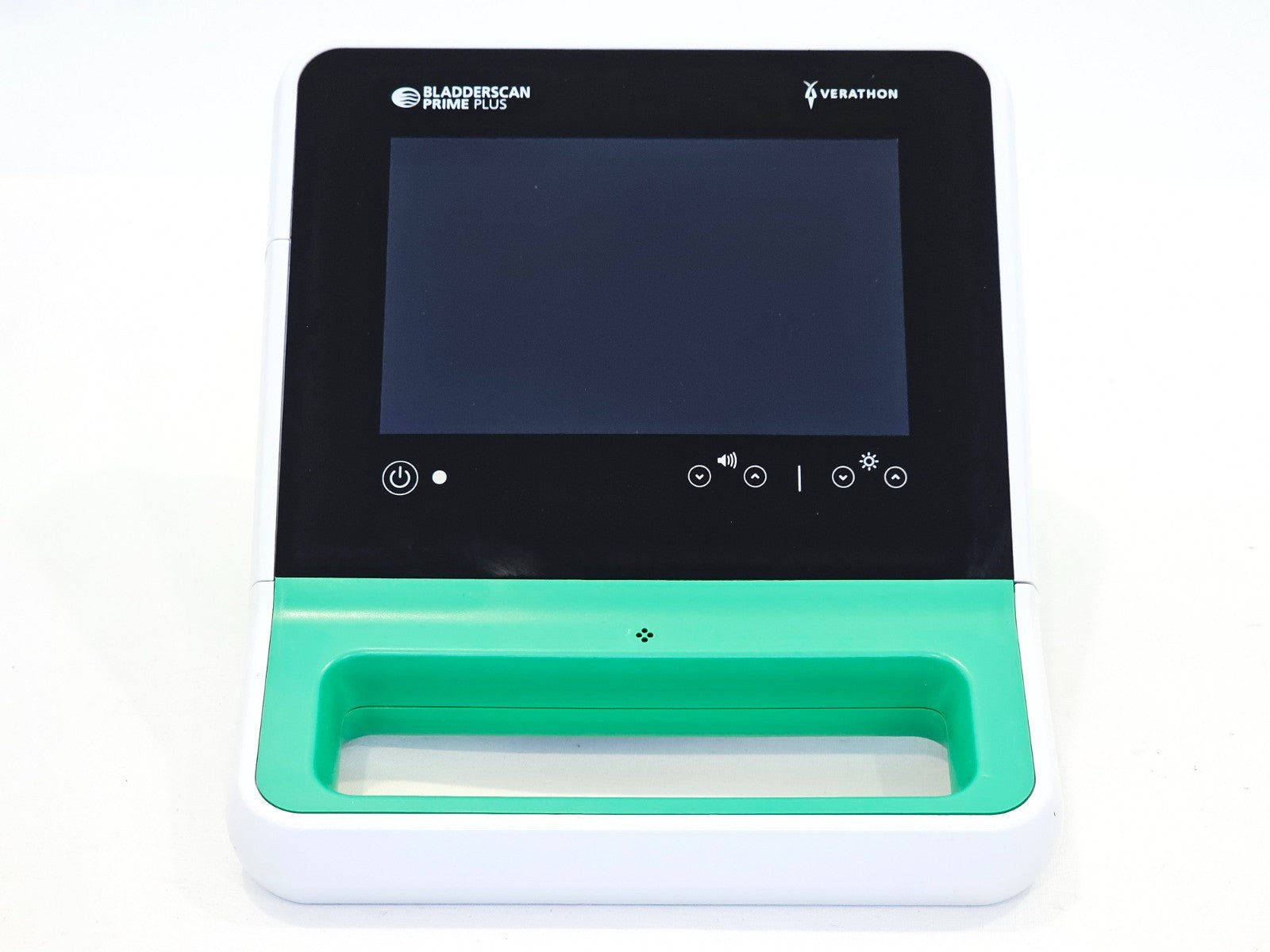

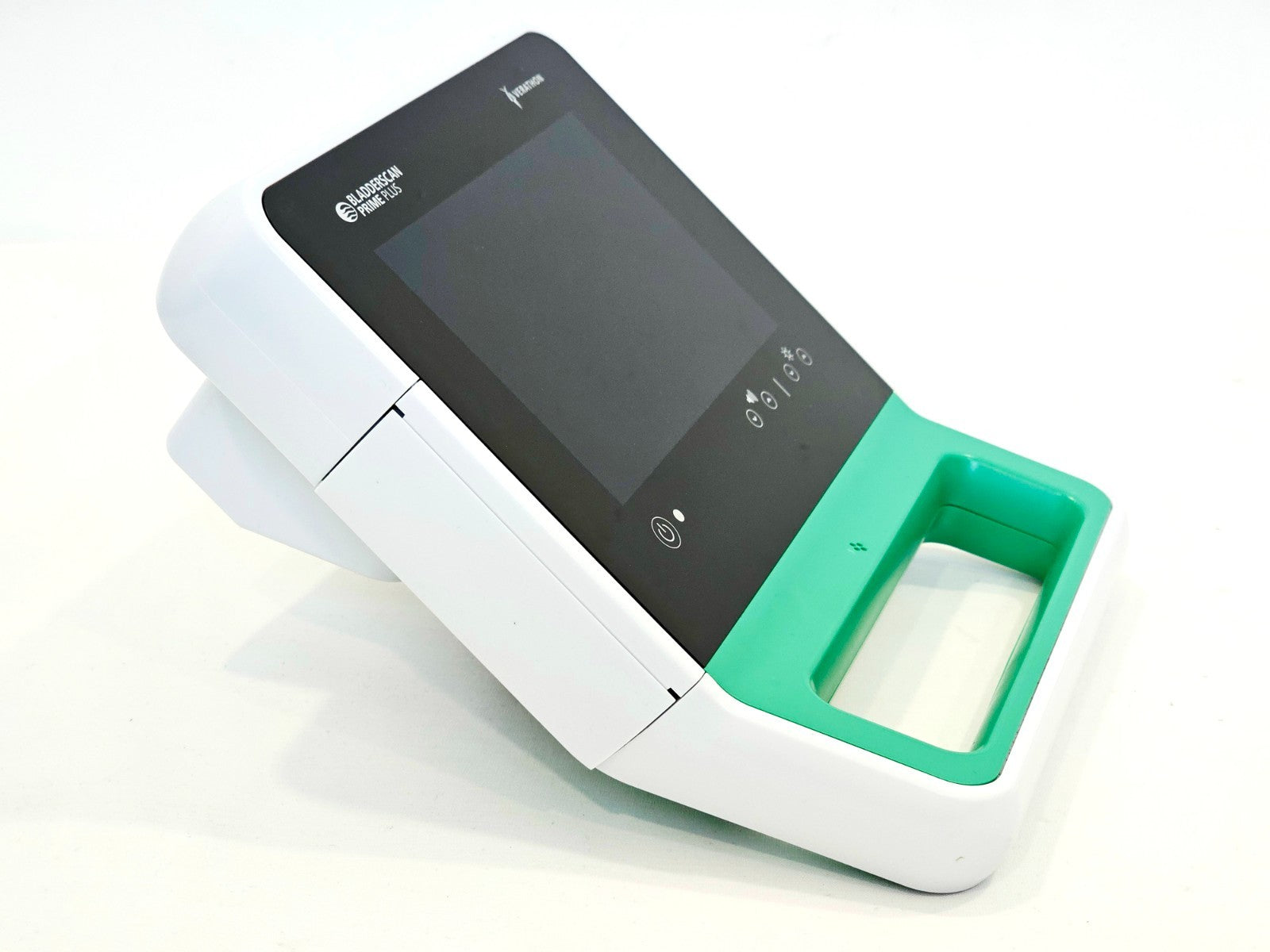

• Verathon BladderScan Prime Plus Console (REF 0570-0346)

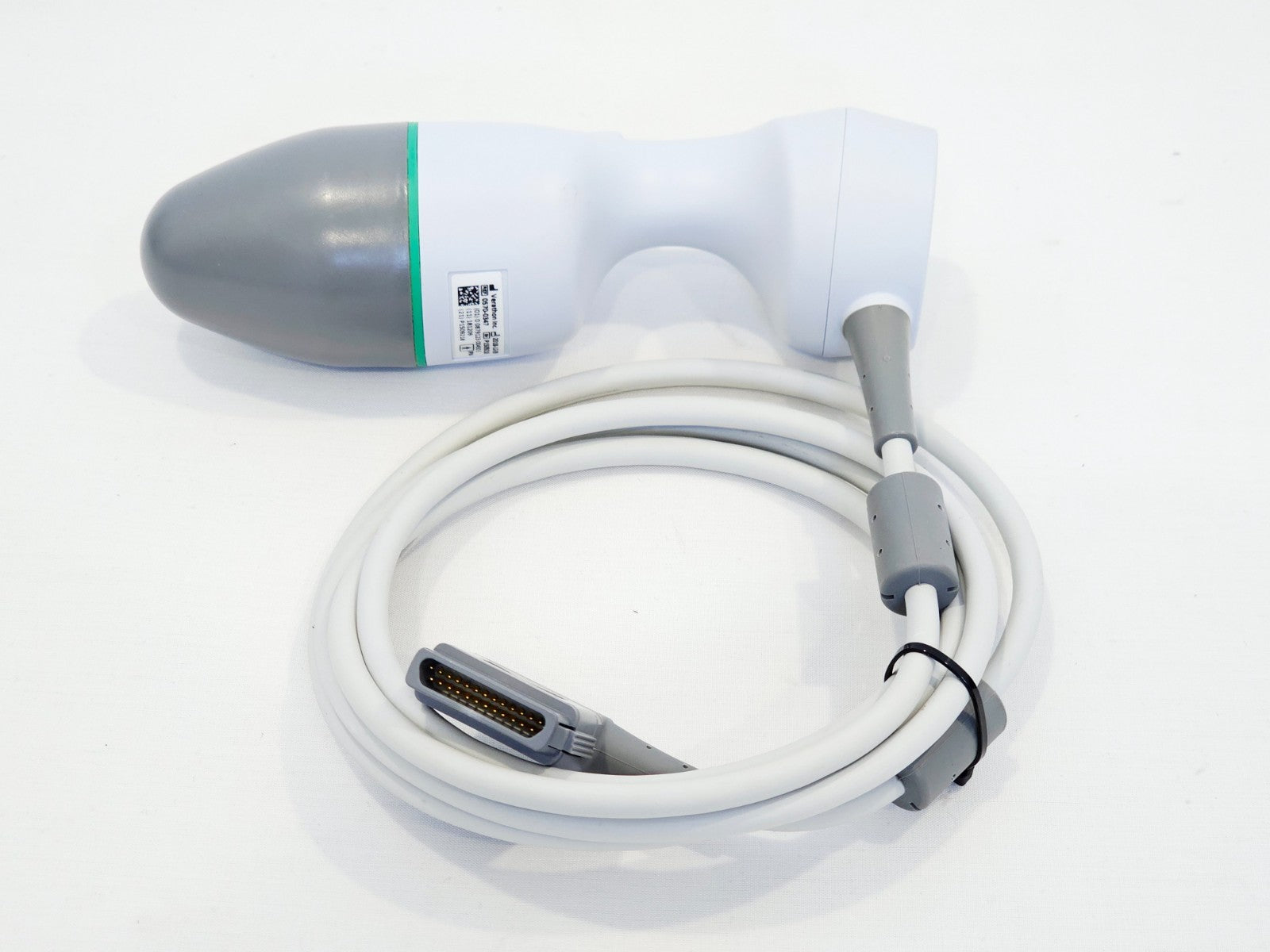

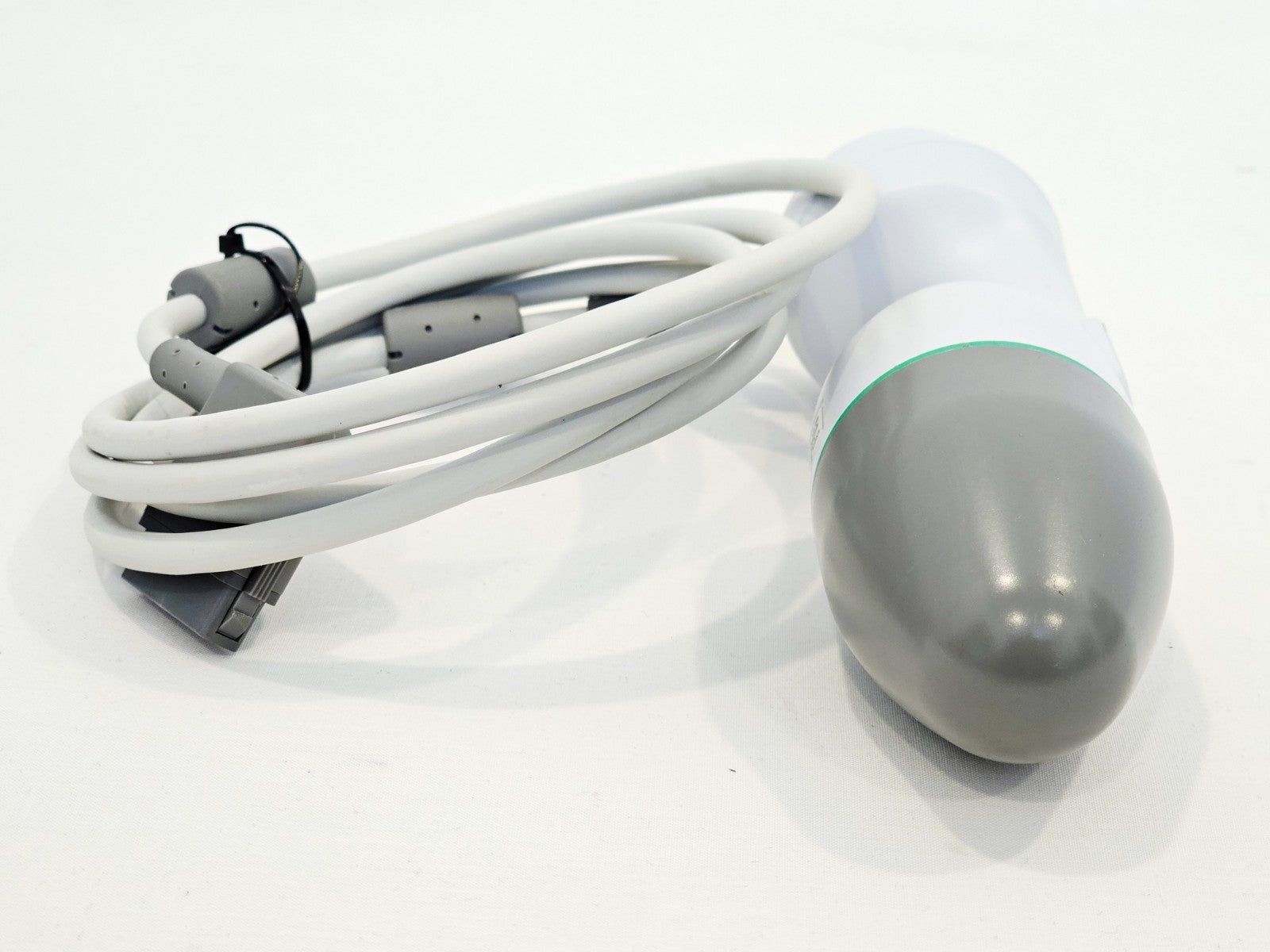

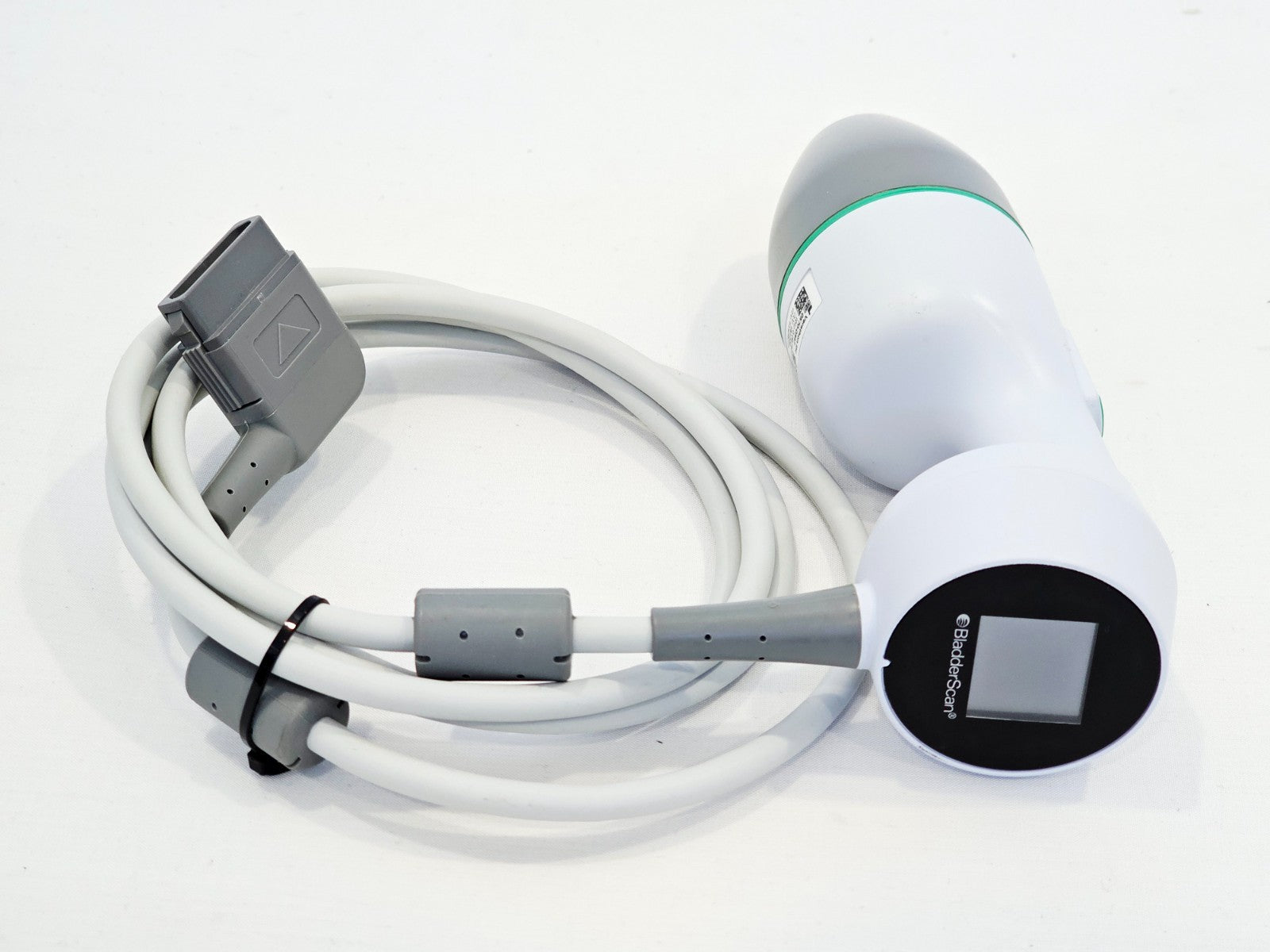

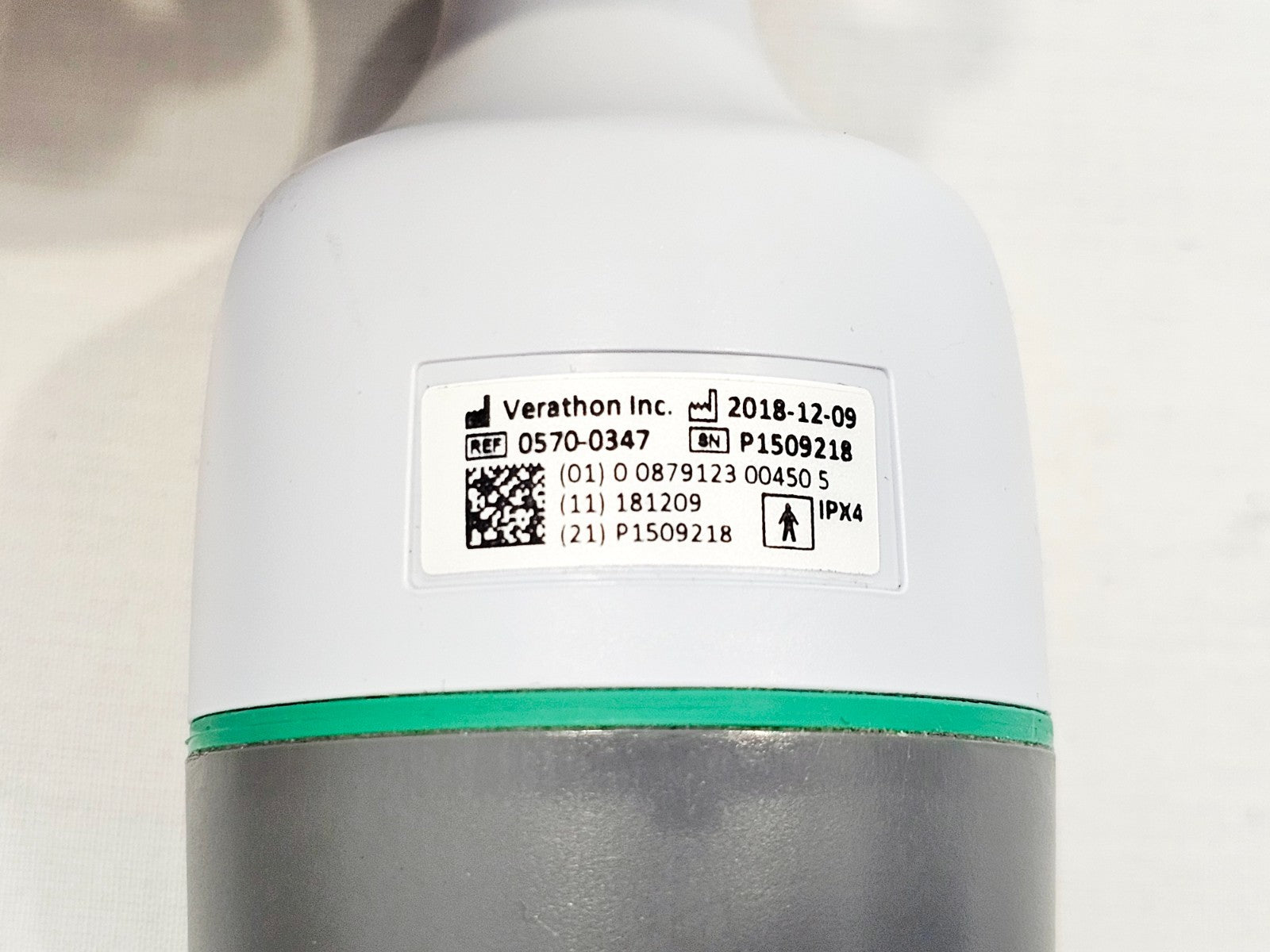

• Verathon Probe (REF 0570-0347)
• Verathon Thermal Printer Add-On (REF 0800-0528)

Please note: a battery charger is NOT included with this unit.

The BladderScan Prime Plus is Verathon's most accurate BladderScan instrument, designed for noninvasive measurement of urinary bladder volume in professional healthcare settings. Powered by ImageSense — a groundbreaking artificial intelligence algorithm harnessing real-world clinical data and deep learning technology — it delivers automatic 3D volume results in seconds across all adult and paediatric patient anatomies, with no sonographer required.

Key features and highlights:
- ImageSense AI deep learning automatically calculates 3D volume by analysing over 900 lines of scan data per scan across 12 planes
- Enhanced EdgeScan off-centre scan alerts and pioneering pubic bone interference indicator for optimised probe positioning

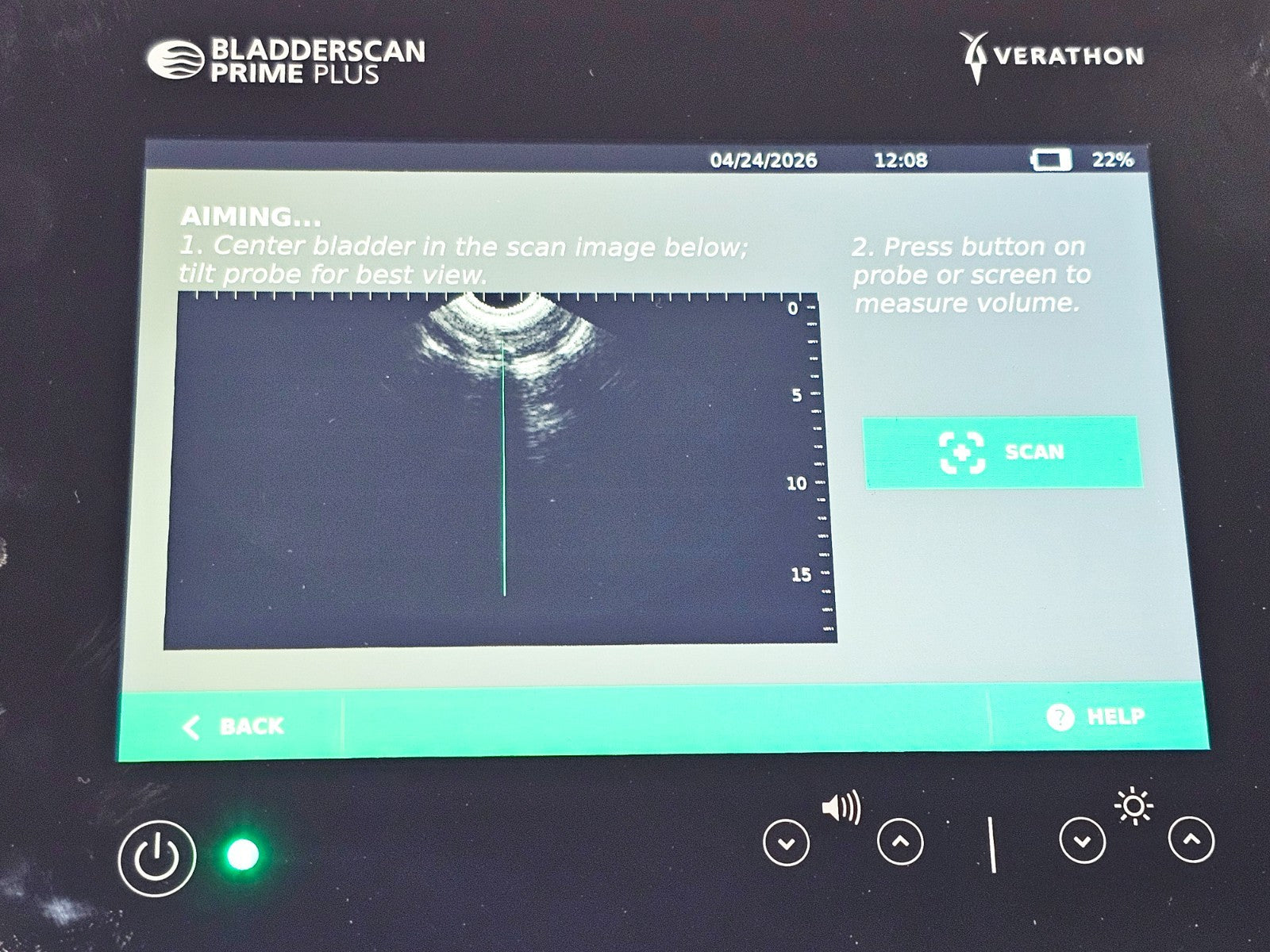

- Pre and post-scan aim-assist features provide real-time clinical guidance
- 12 B-mode slice review for post-scan image inspection
- Colour LCD touchscreen console (1280 x 800) displays bladder volume, directional aiming, and battery status
- Fully sealed probe design for infection control; supports a comprehensive list of approved hospital disinfectants
- USB and SD card connectivity for patient data export and storage
- Optional printer add-on enables immediate thermal printing of scan results
- Supports male, female, and small child scanning modes

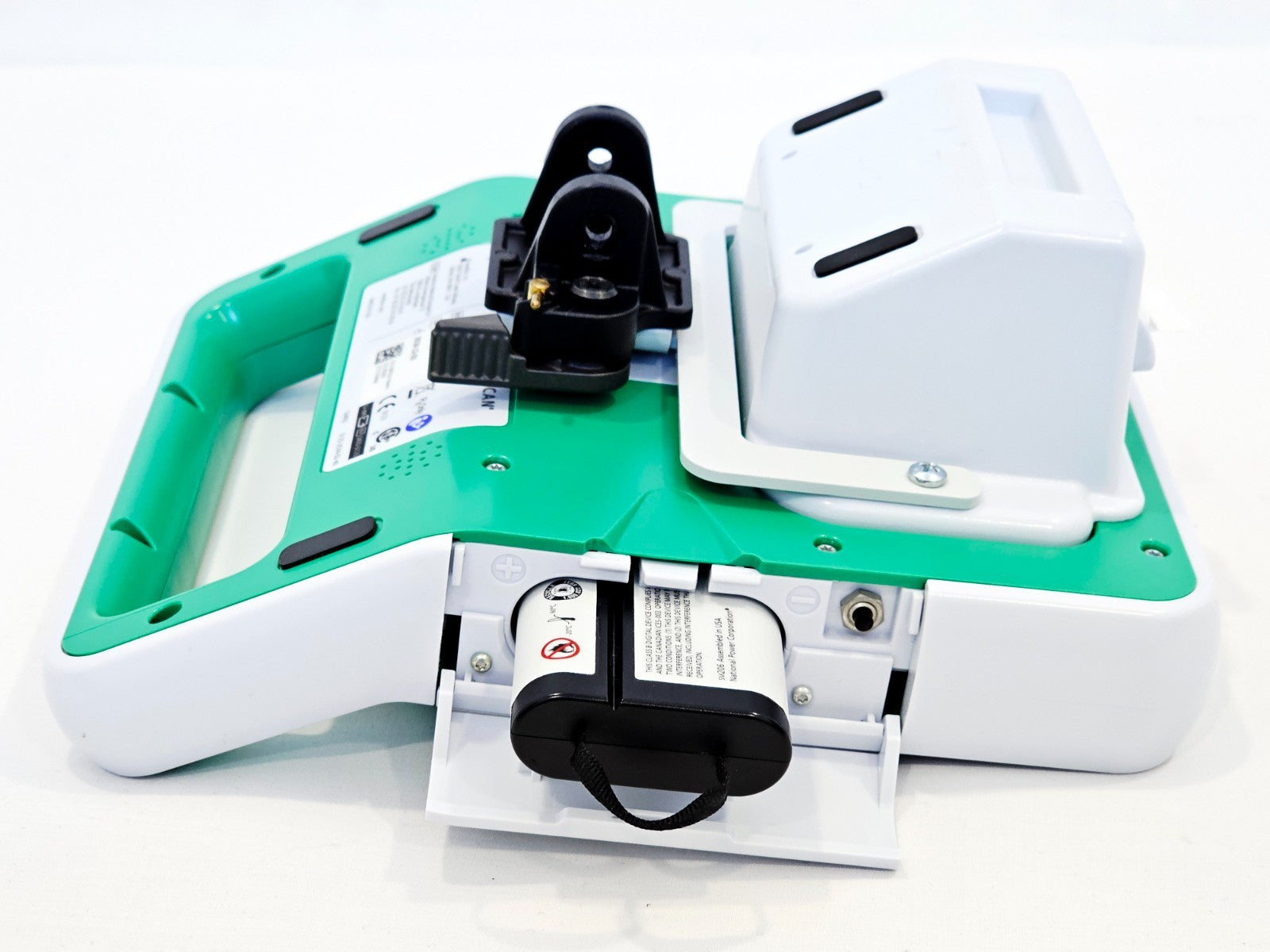

- Battery-powered with user-replaceable lithium-ion batteries

Measurement Range: 0 – 999 mL
Accuracy (>100 mL): ±7.5%
Accuracy (<100 mL): ±7.5 mL
Display: 1280 x 800 pixels colour LCD touchscreen
Console Weight: 1.77 kg (3.9 lbs)
Probe Weight: 0.58 kg (1.28 lbs)
Console Dimensions (H x W x D): 125 x 216 x 259 mm
Battery: Lithium-ion, 11.7 V DC
Probe IP Rating: IPX4

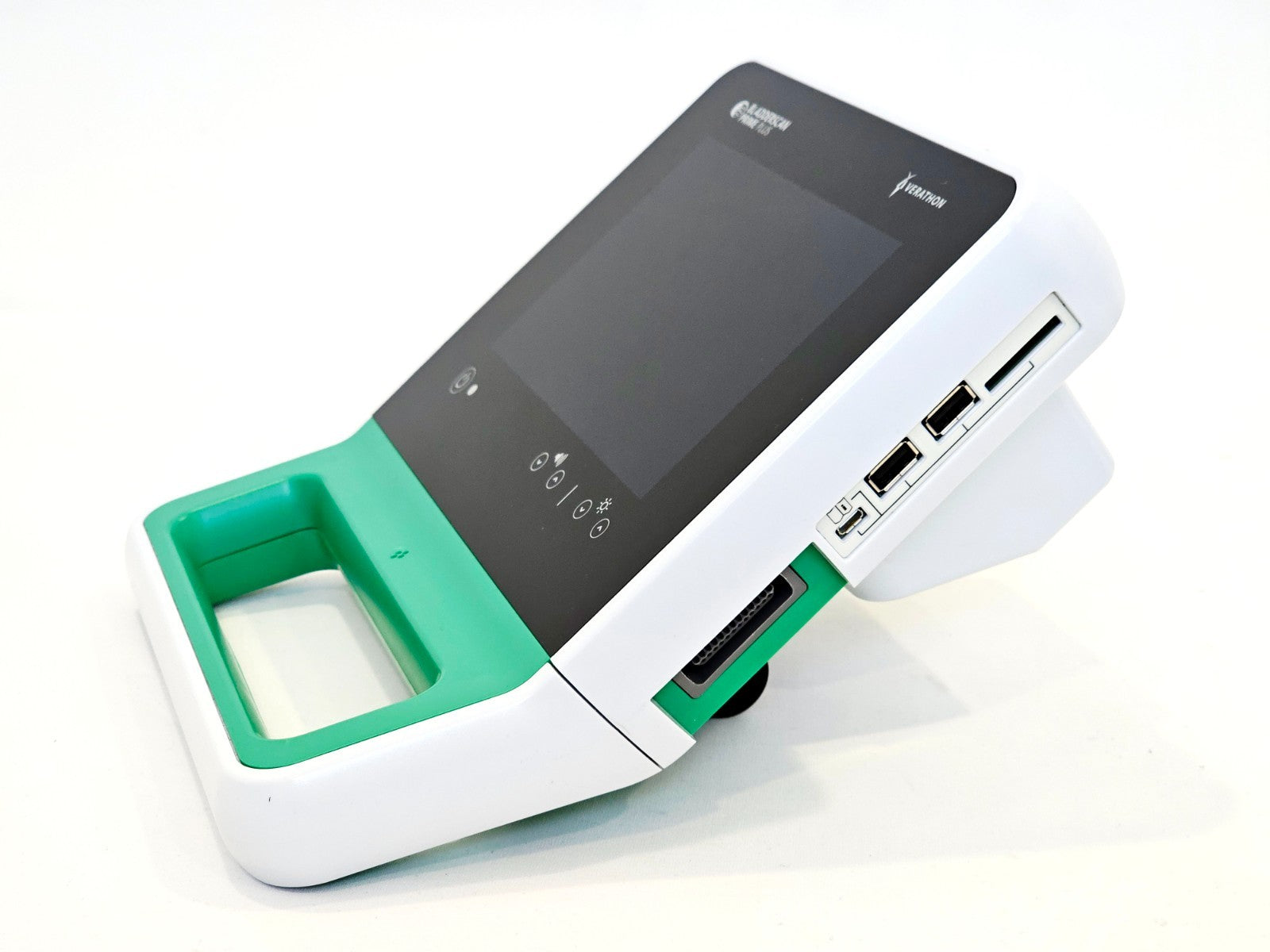

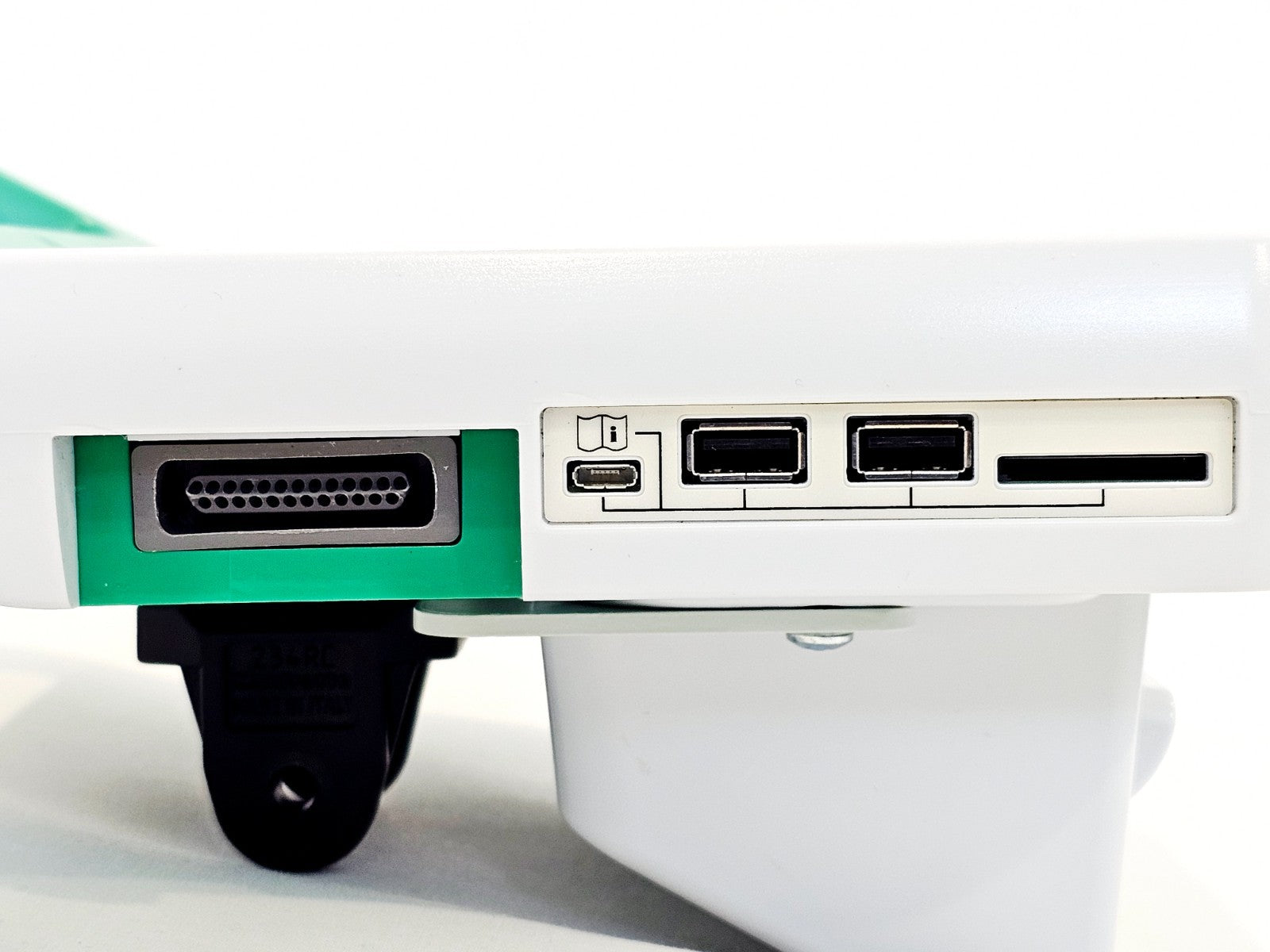

Connectivity: 2x USB-A, micro-USB, SD card slot

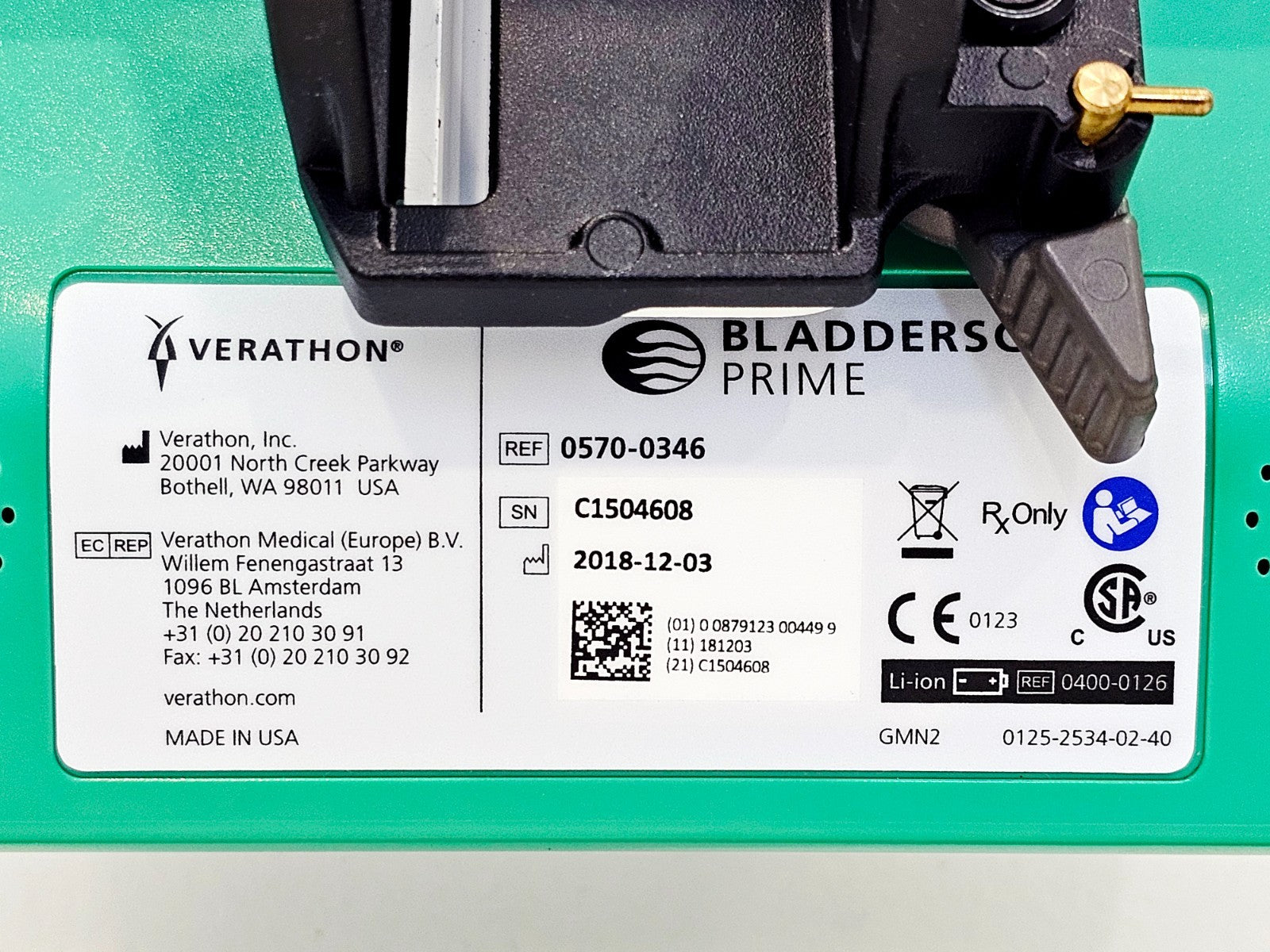

Regulatory: CE 0123, Rx Only
Country of Manufacture: USA

Verathon BladderScan datasheet: Download PDF
