Condition: Used

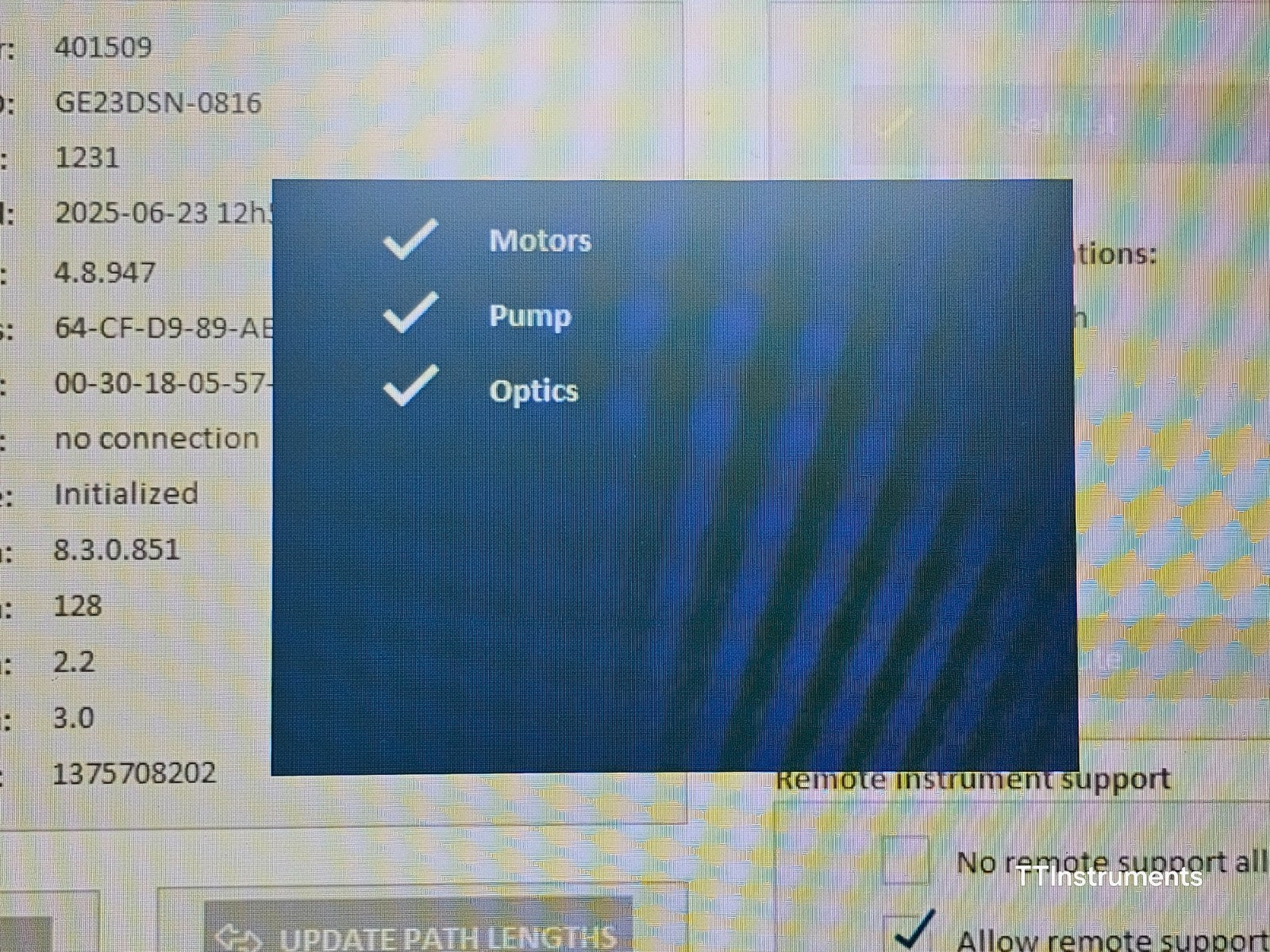

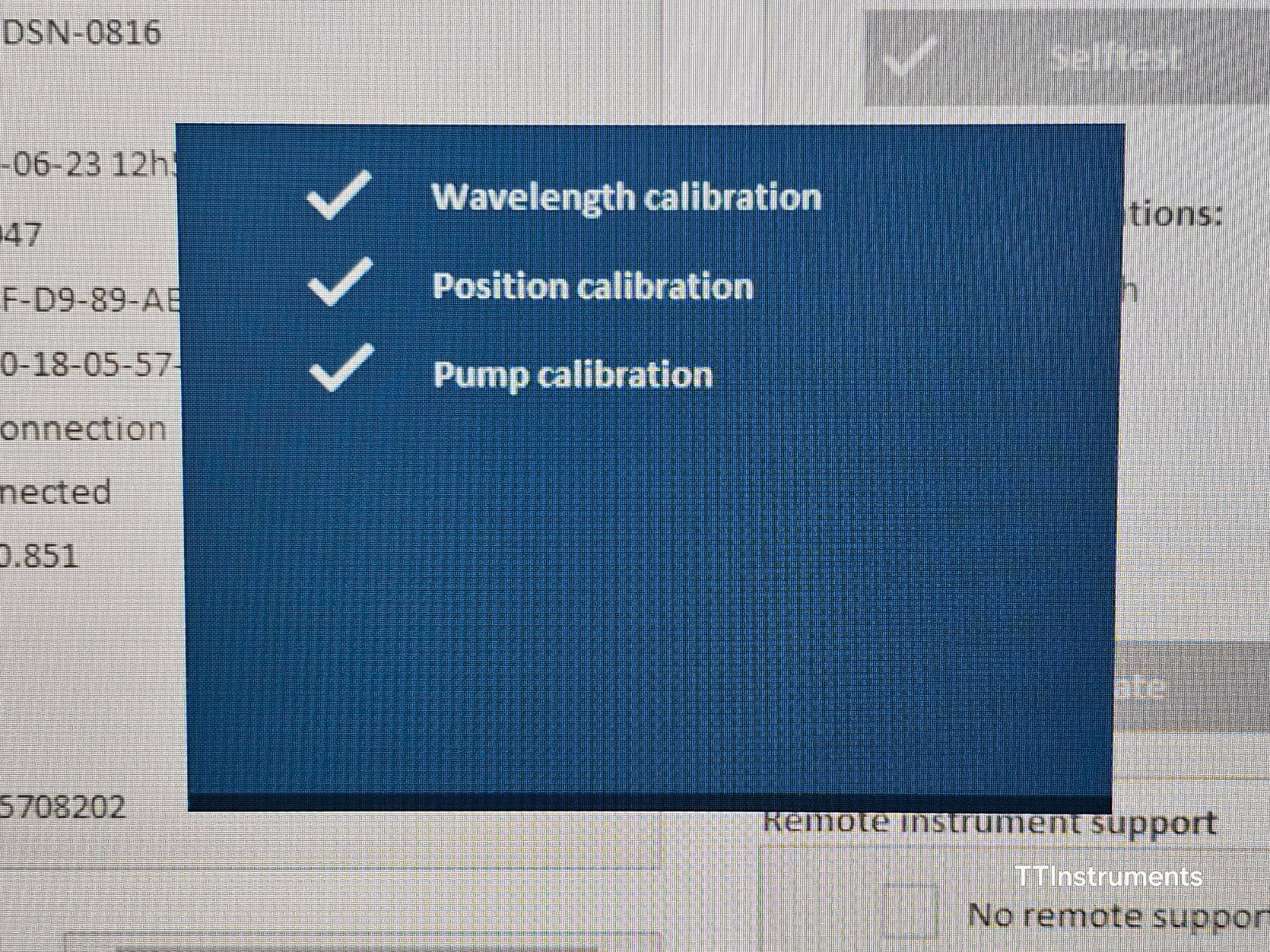

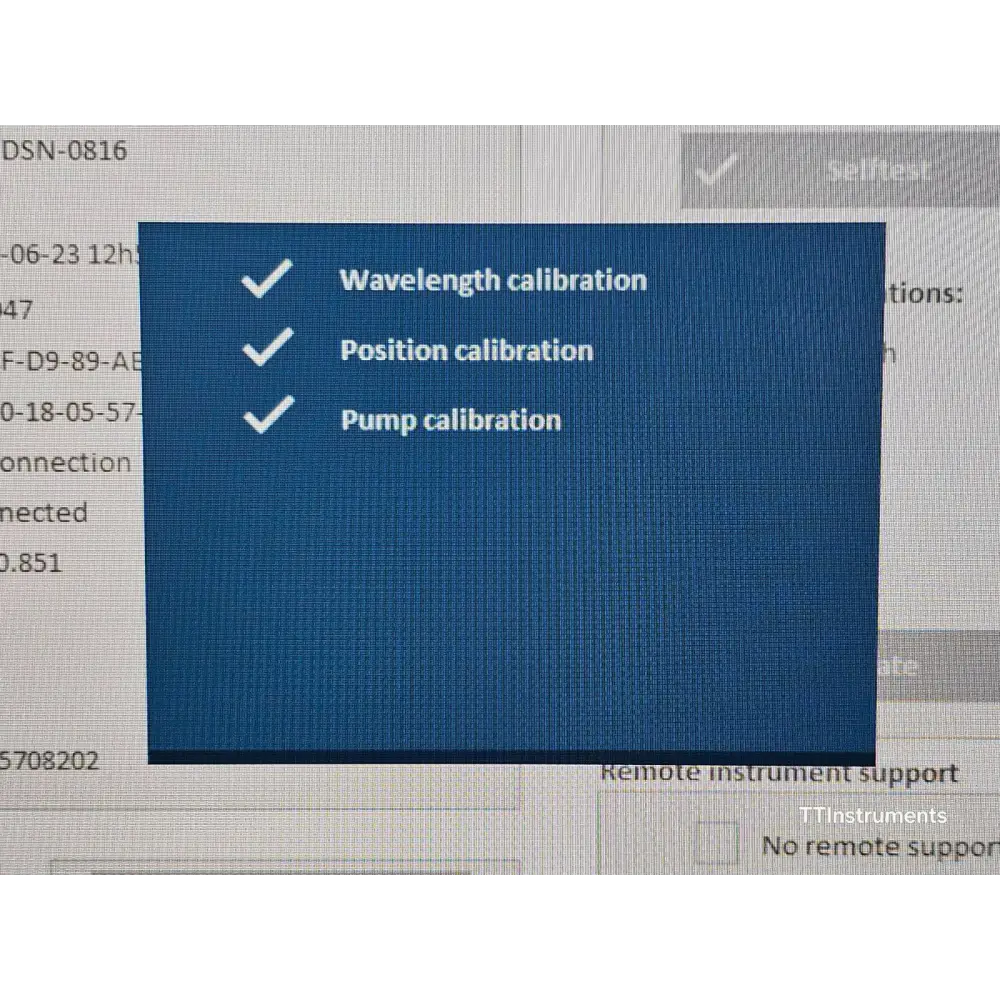

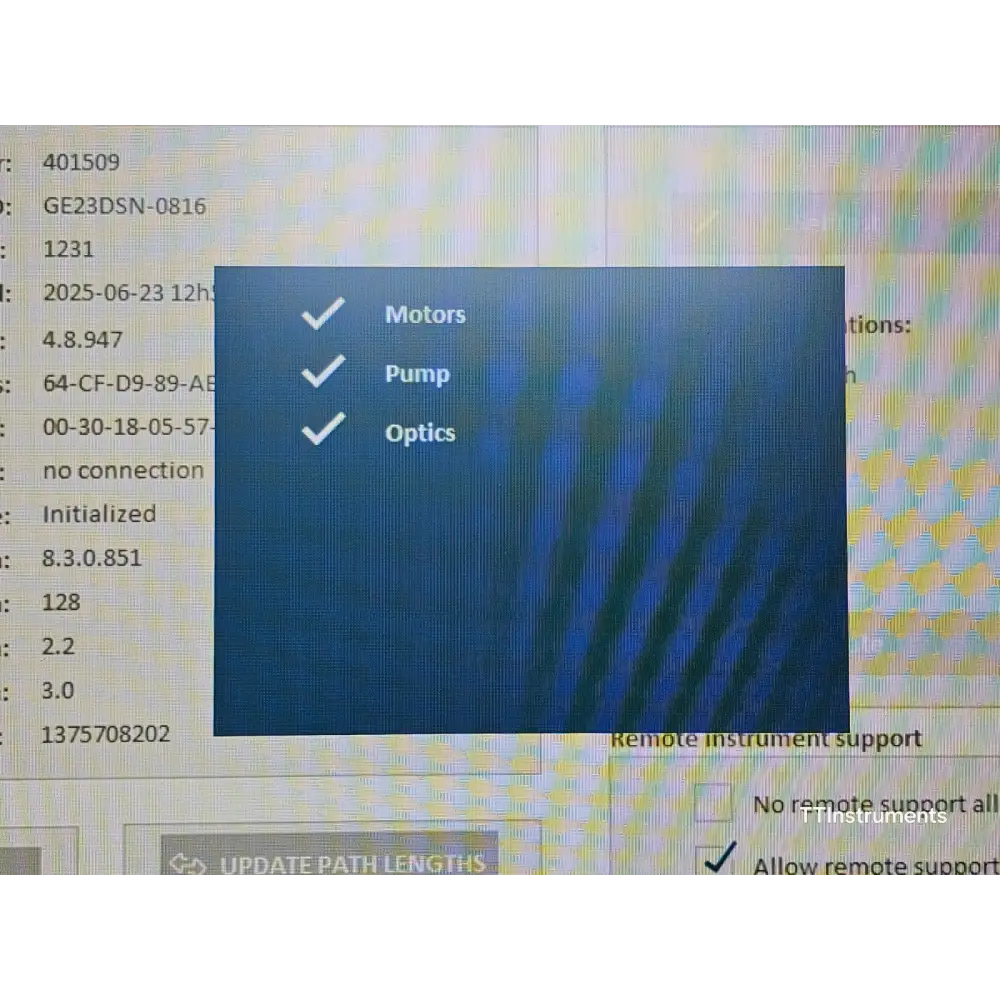

This Unchained Labs Lunatic UV/VIS Spectrophotometer has been tested and is fully functional. The unit is in excellent cosmetic and operational condition and has successfully passed all self-tests, including motors, pump, optics, wavelength, position, and calibration routines. Some minor cosmetic imperfections are present but do not affect performance.

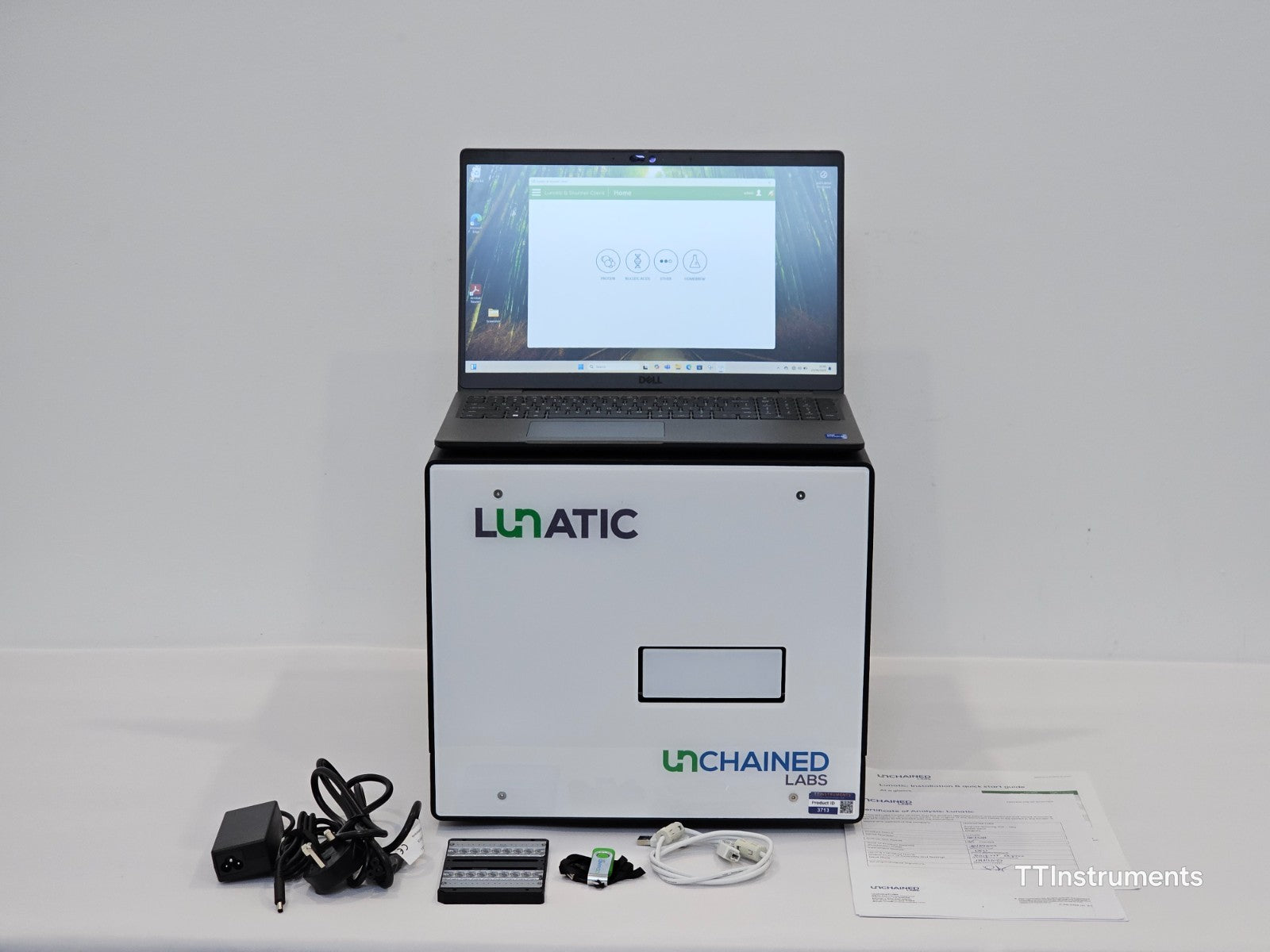

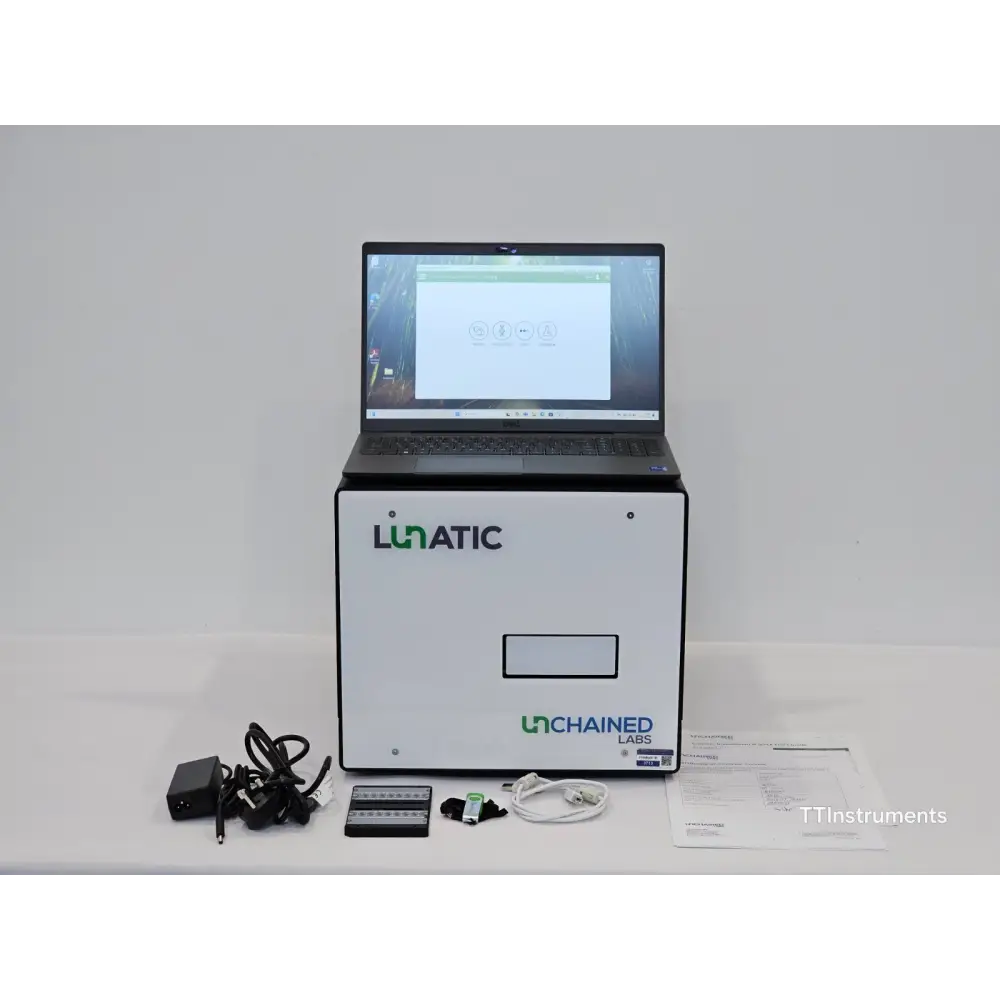

Included in the sale:

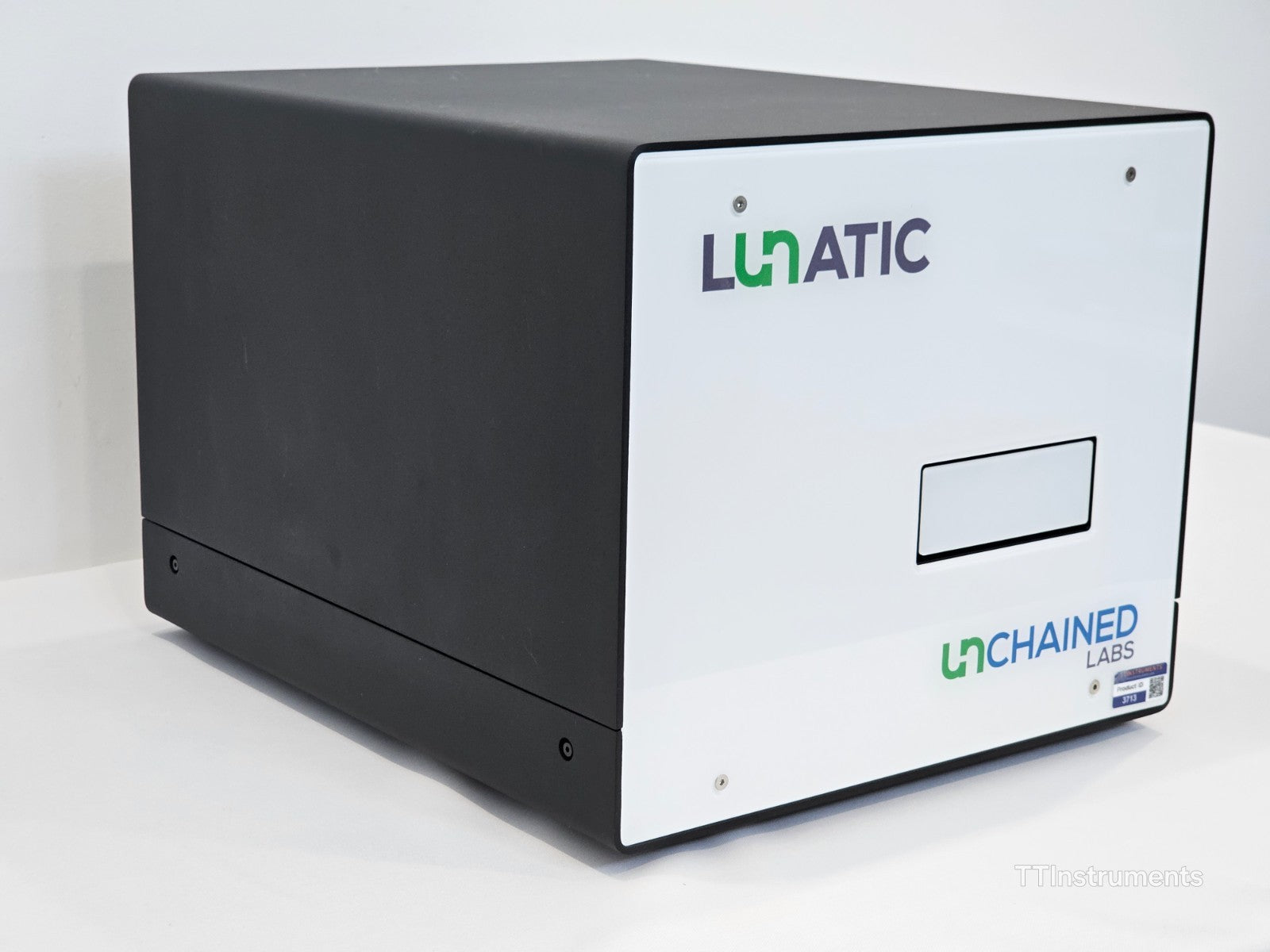

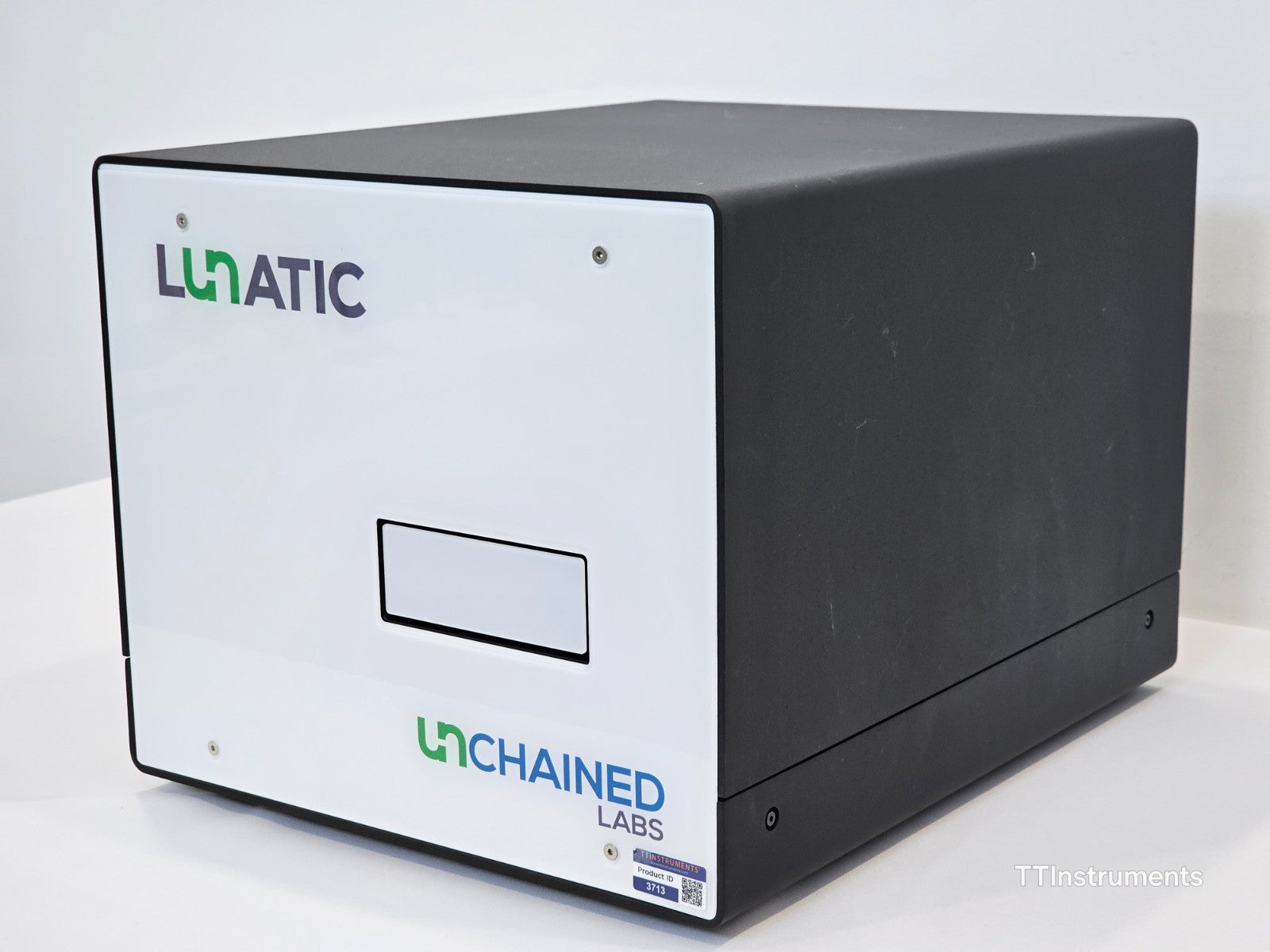

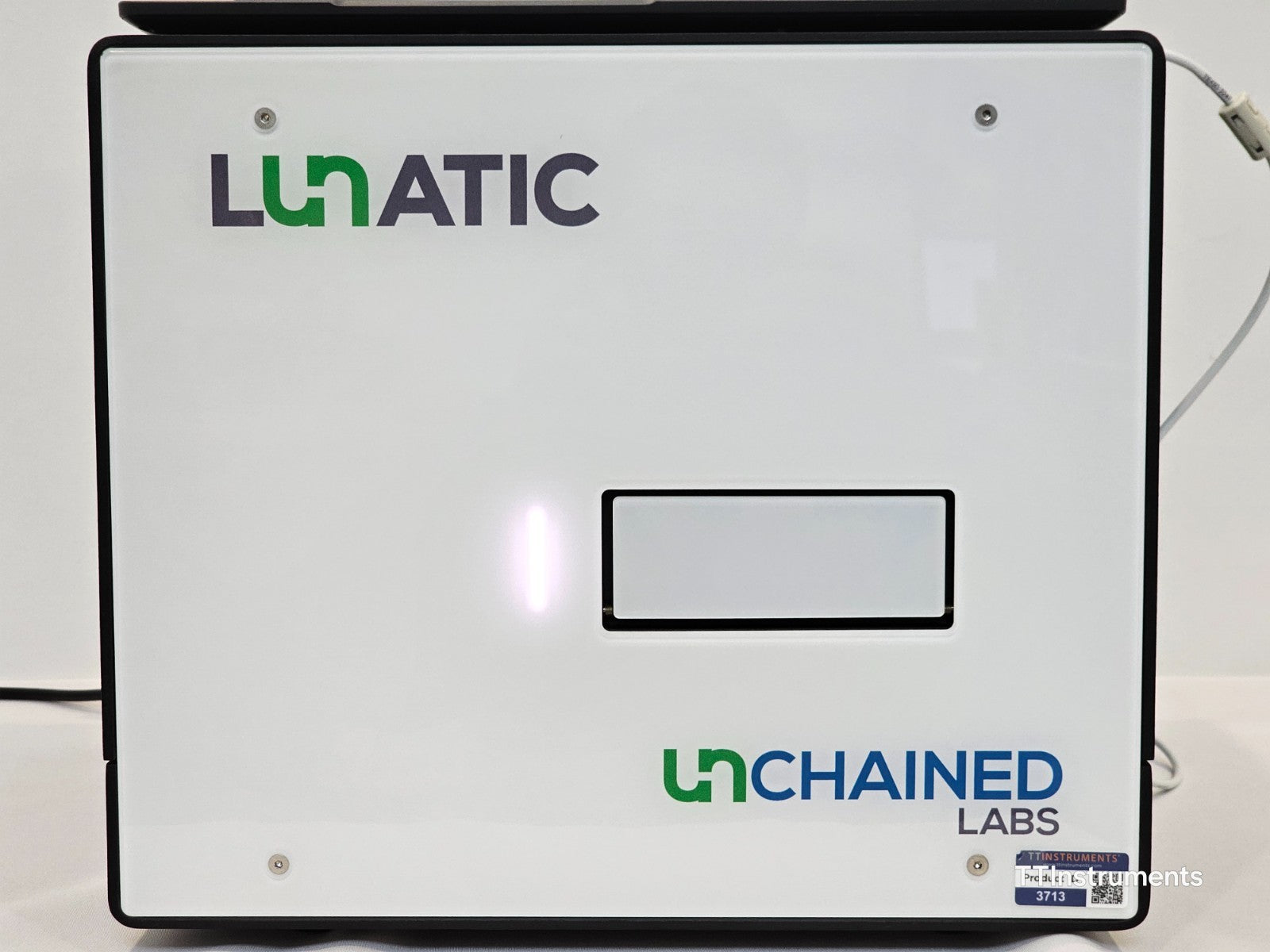

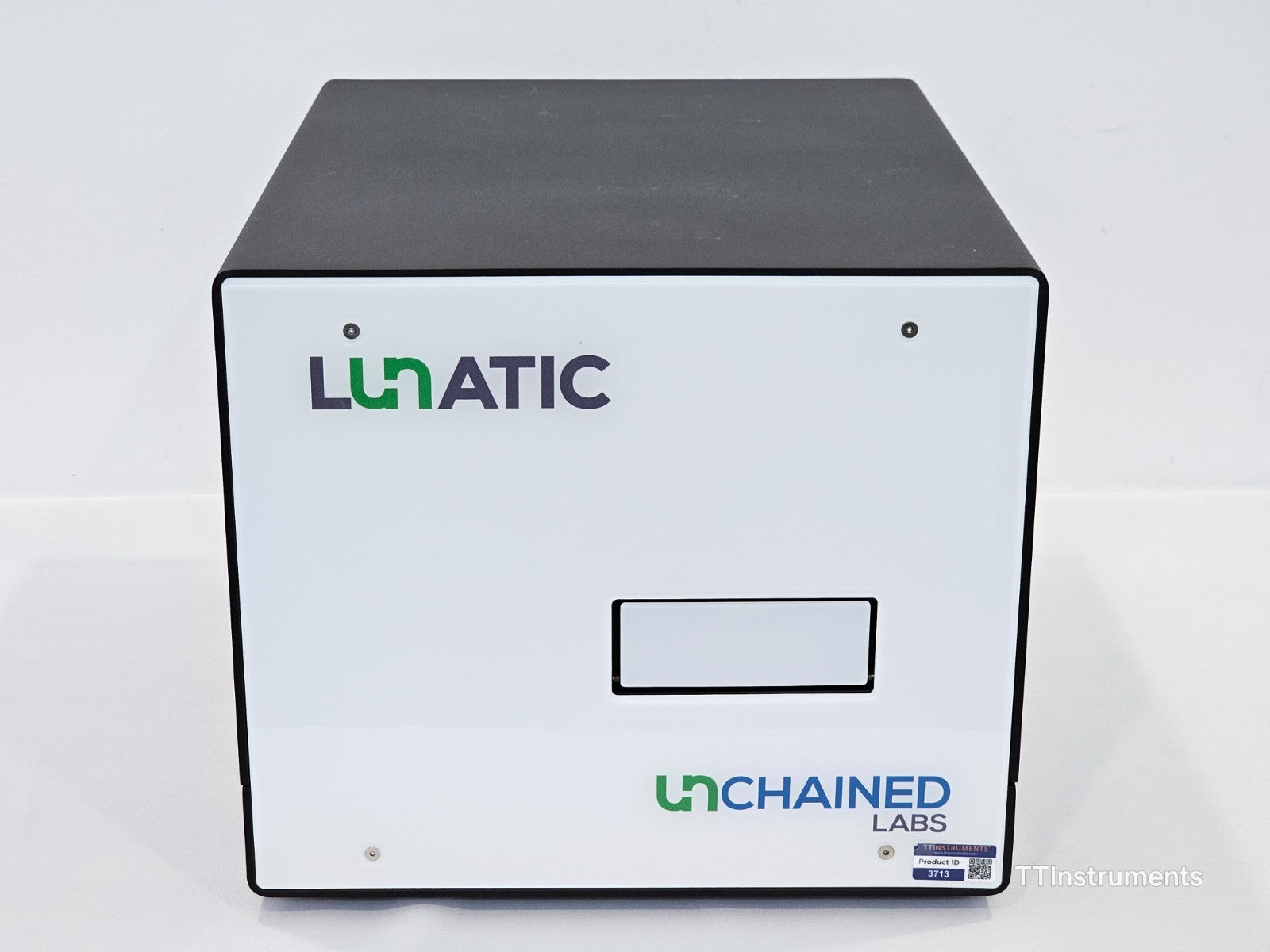

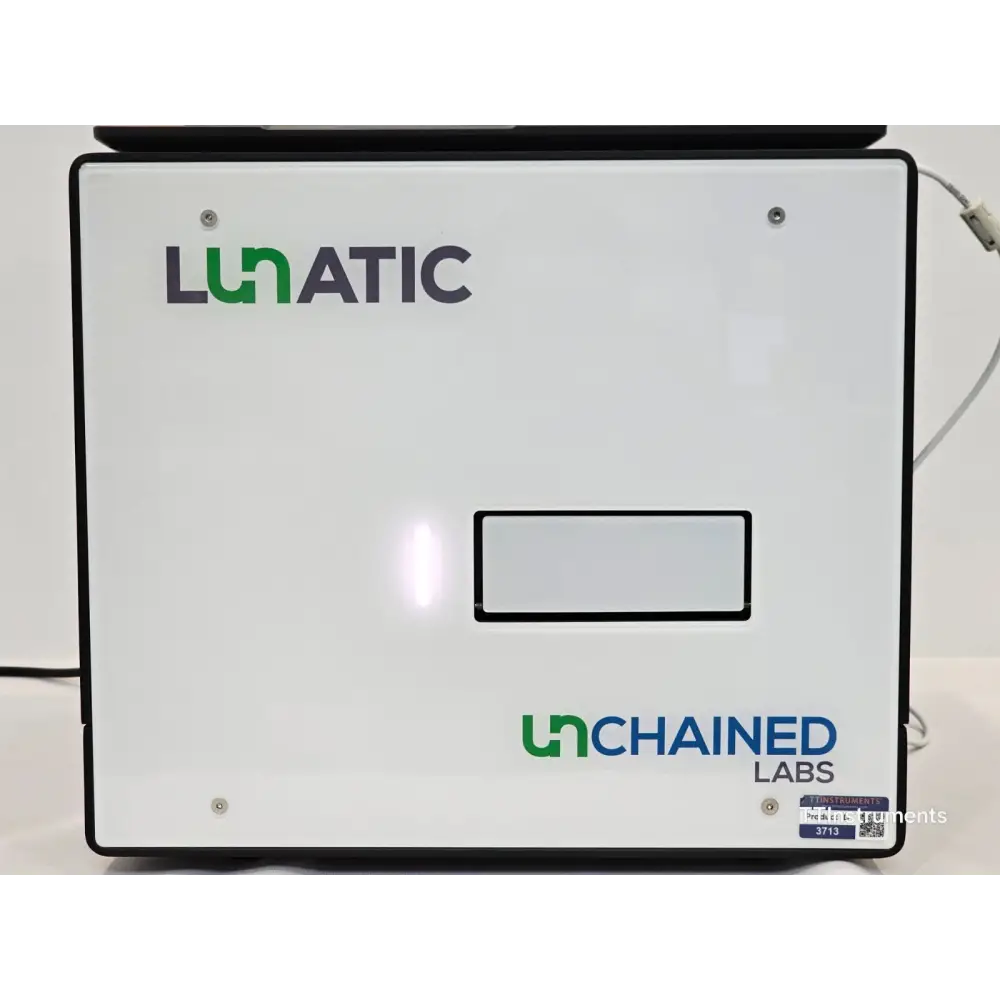

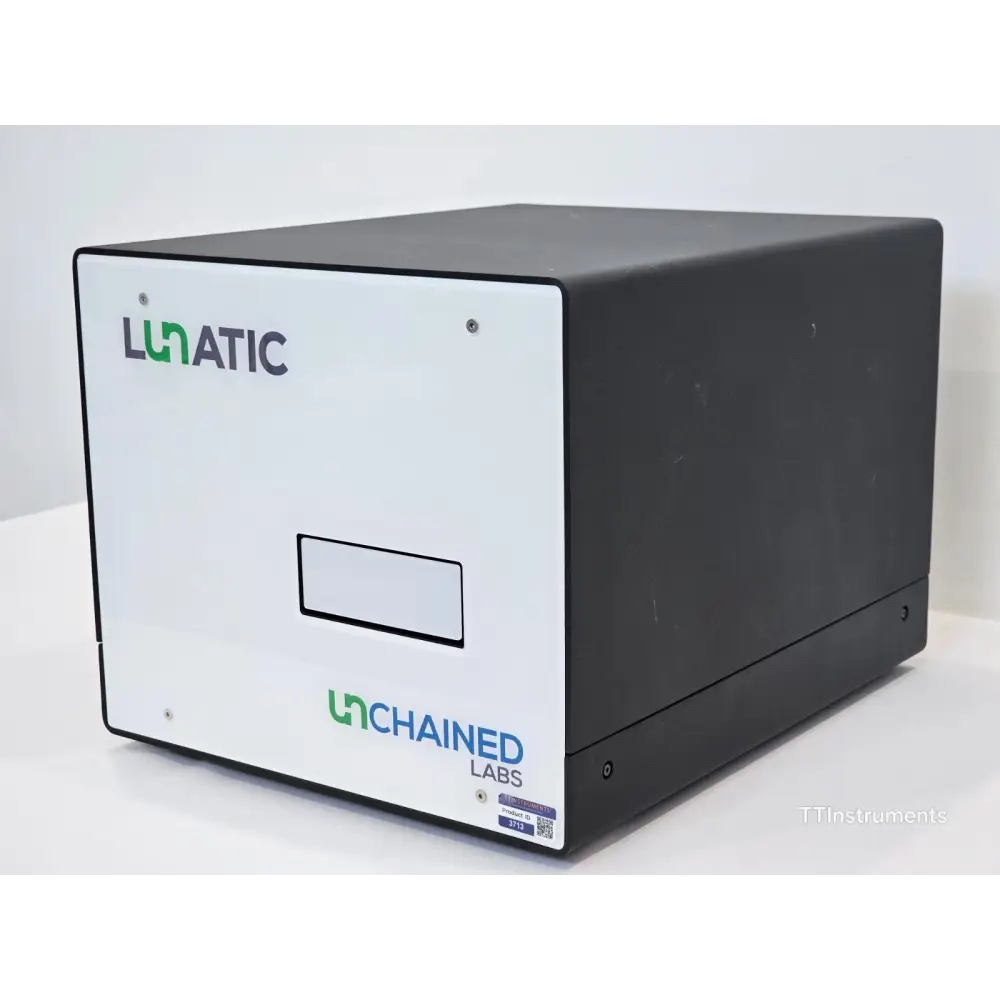

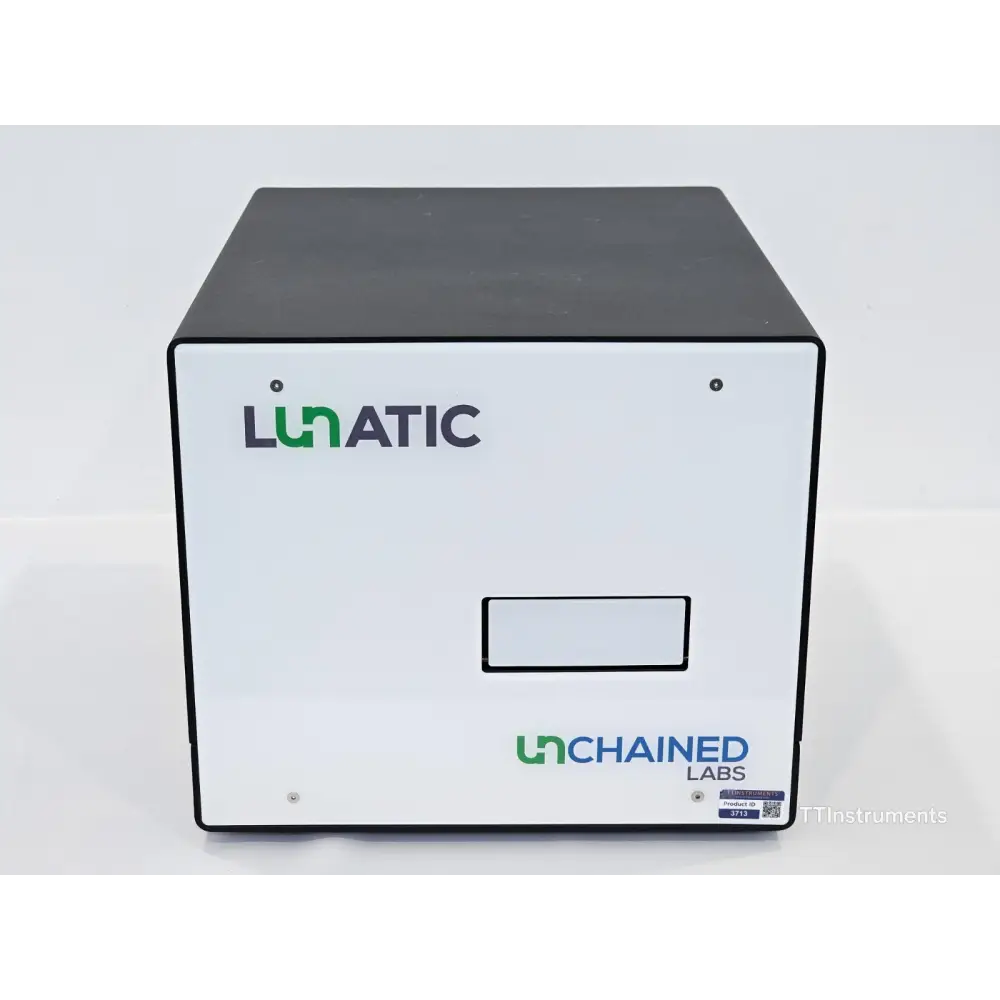

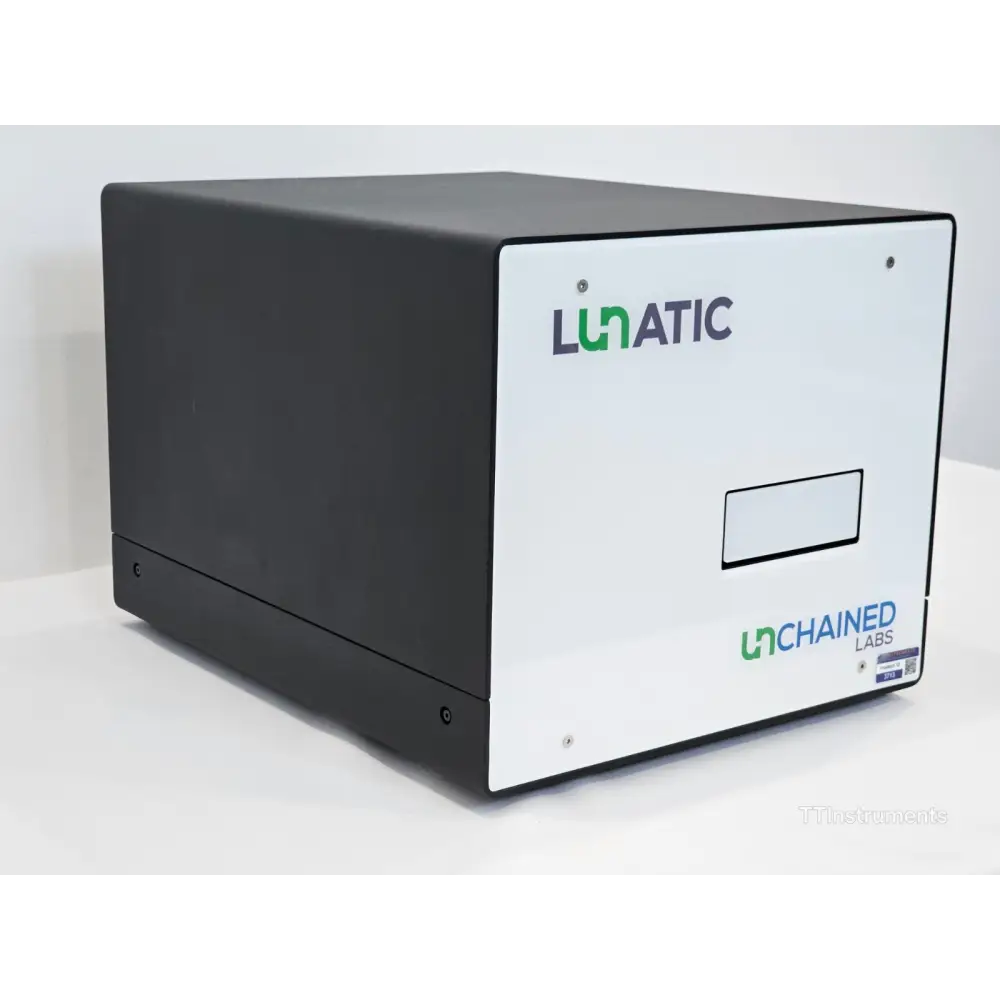

• Unchained Labs Lunatic UV/VIS Spectrophotometer (230–750 nm)

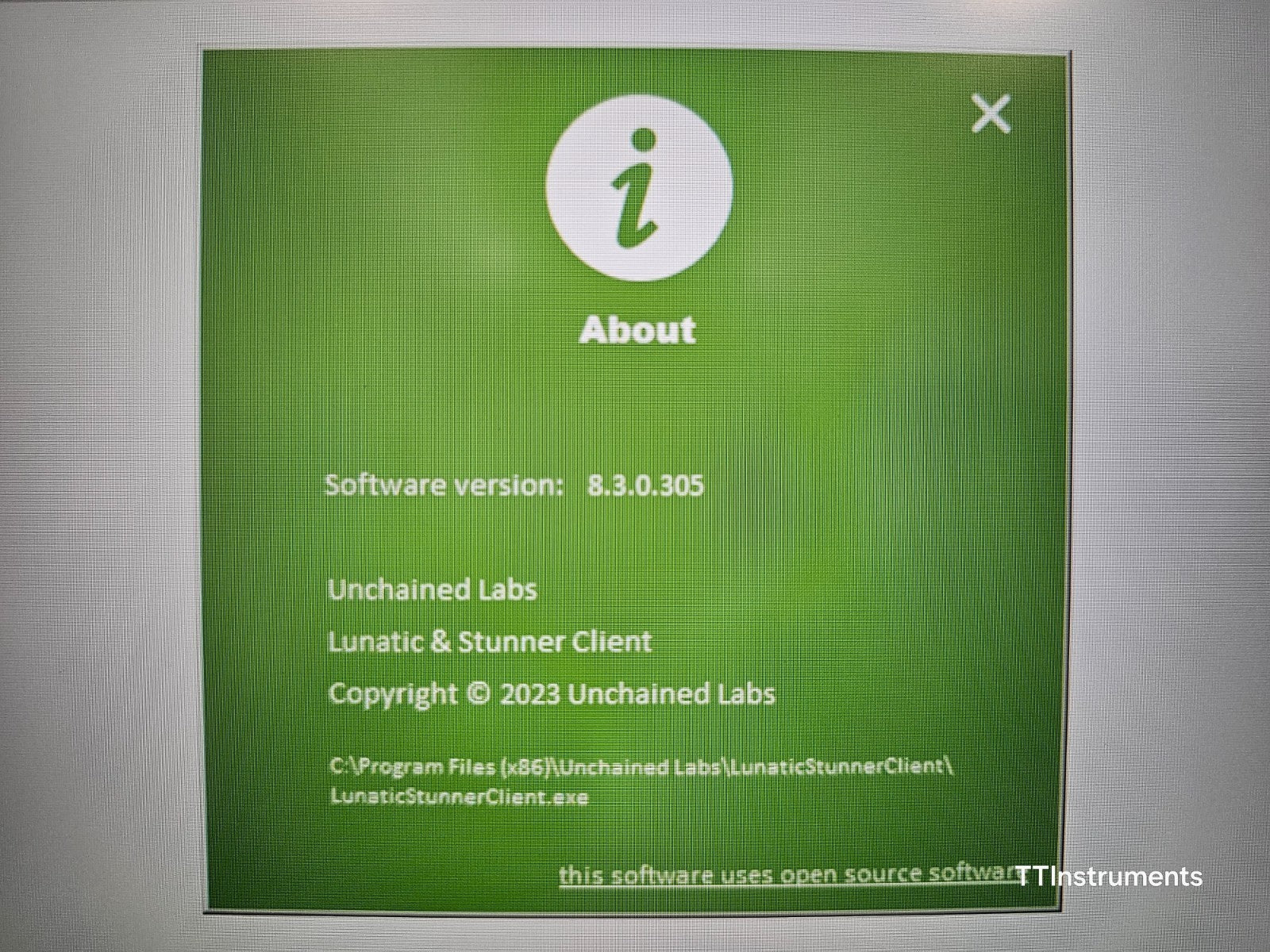

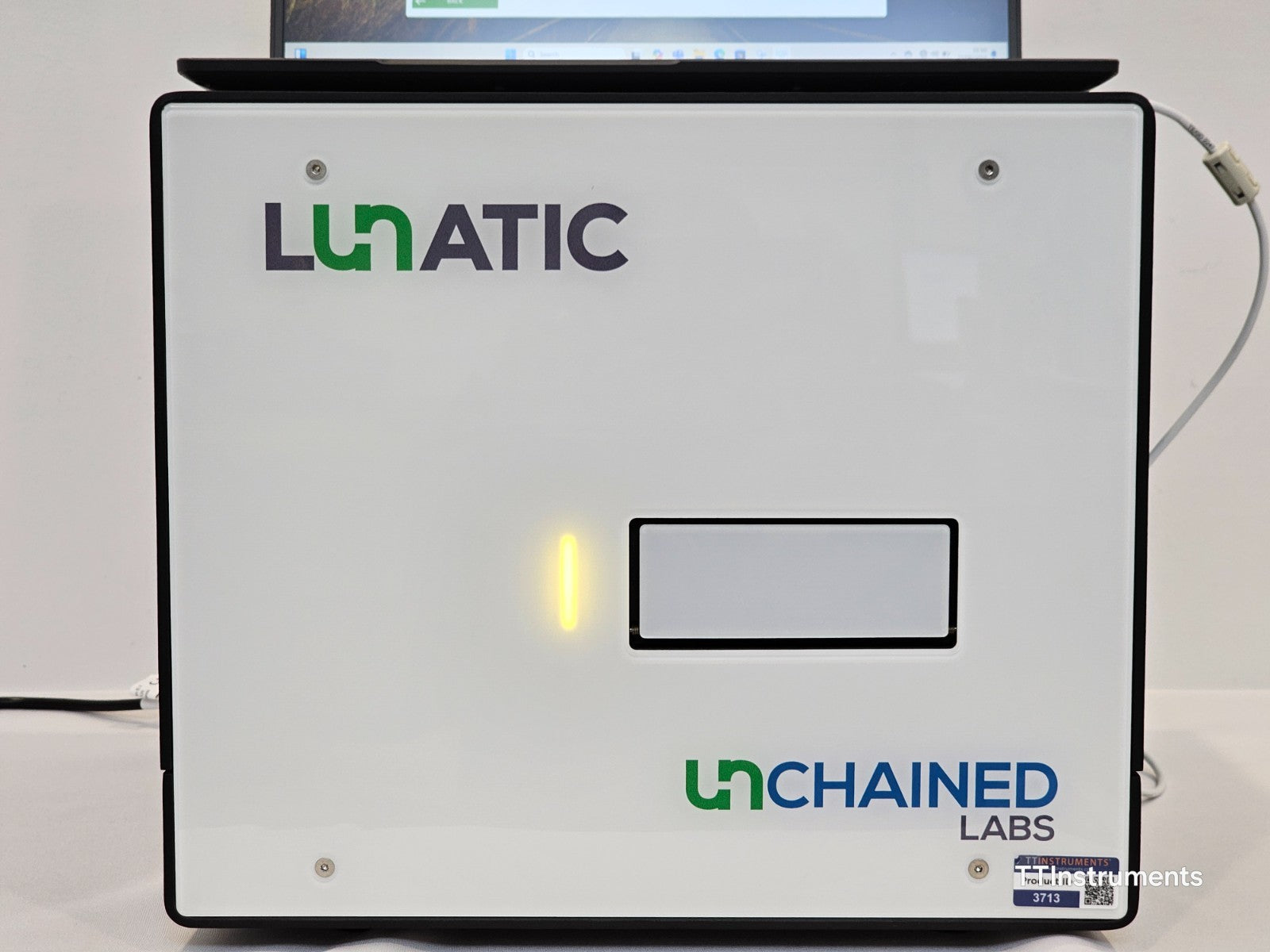

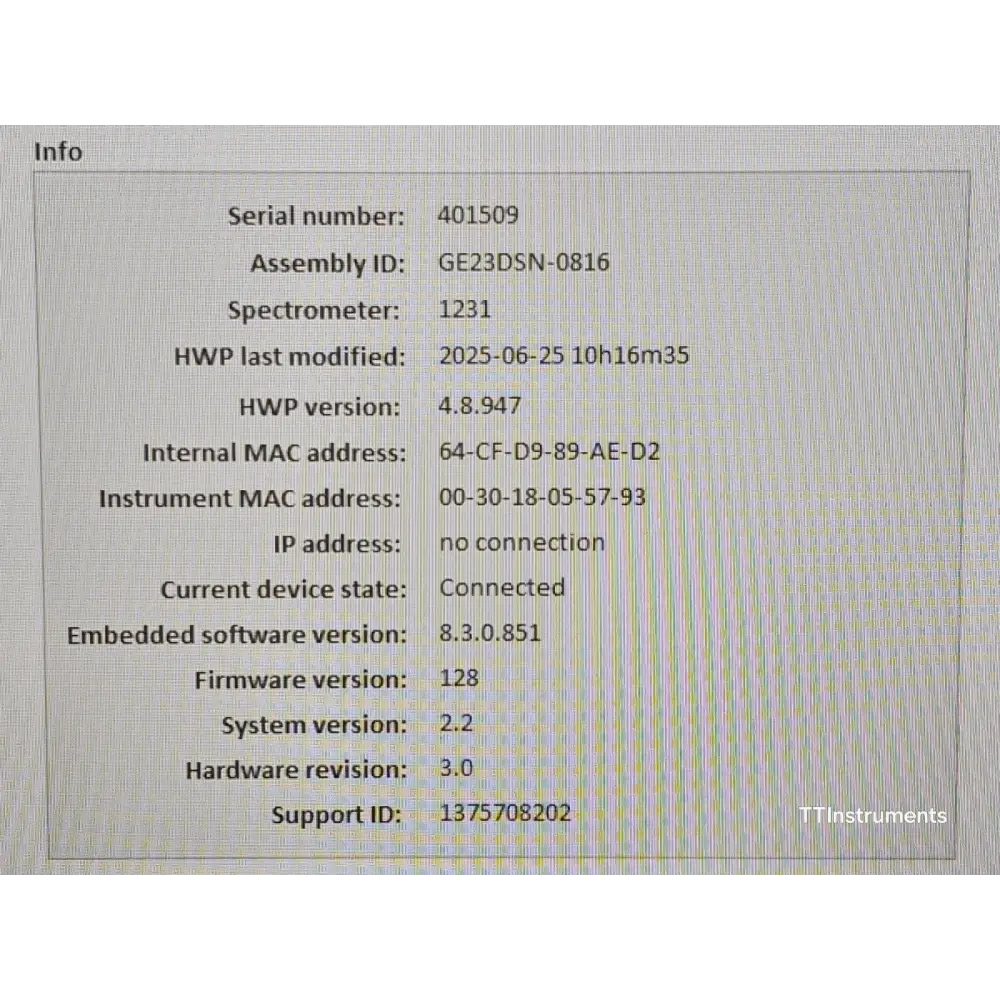

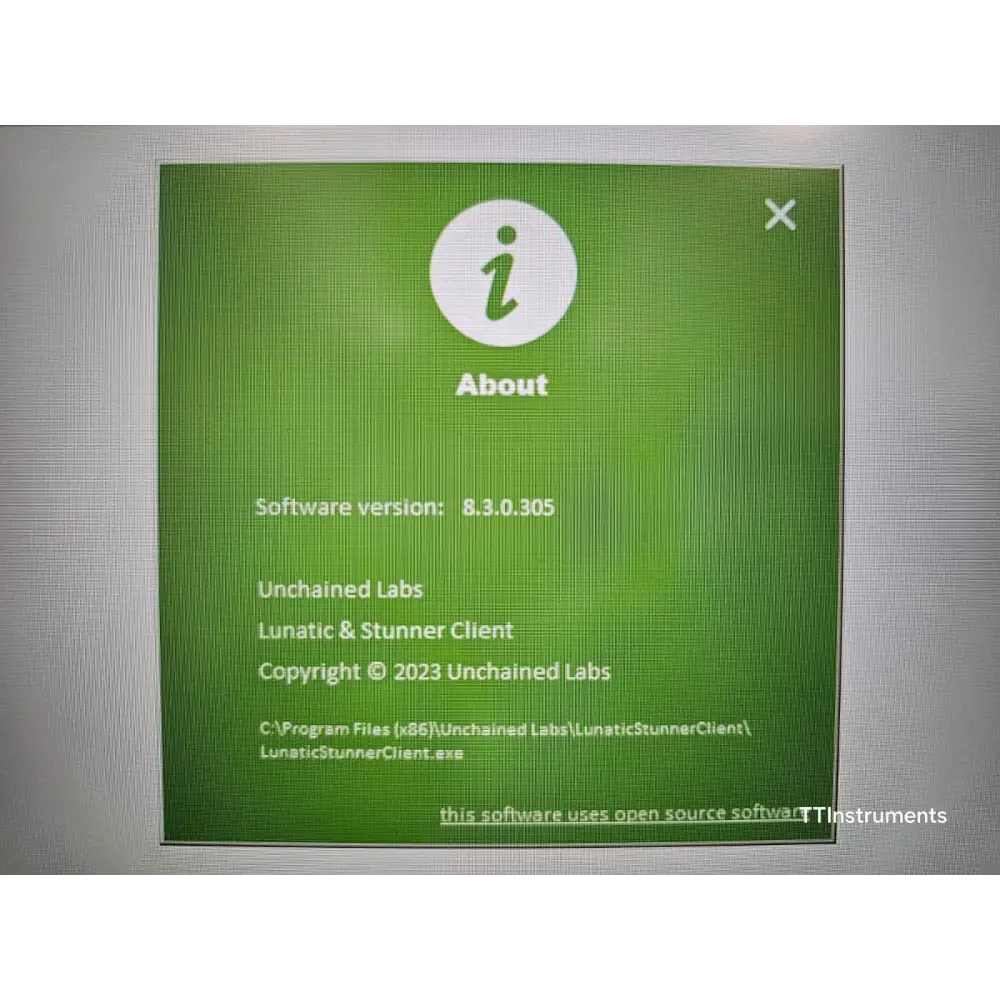

• Dedicated laptop with installed software (Client v8.3.0.305, Analysis v8.2.0.259)

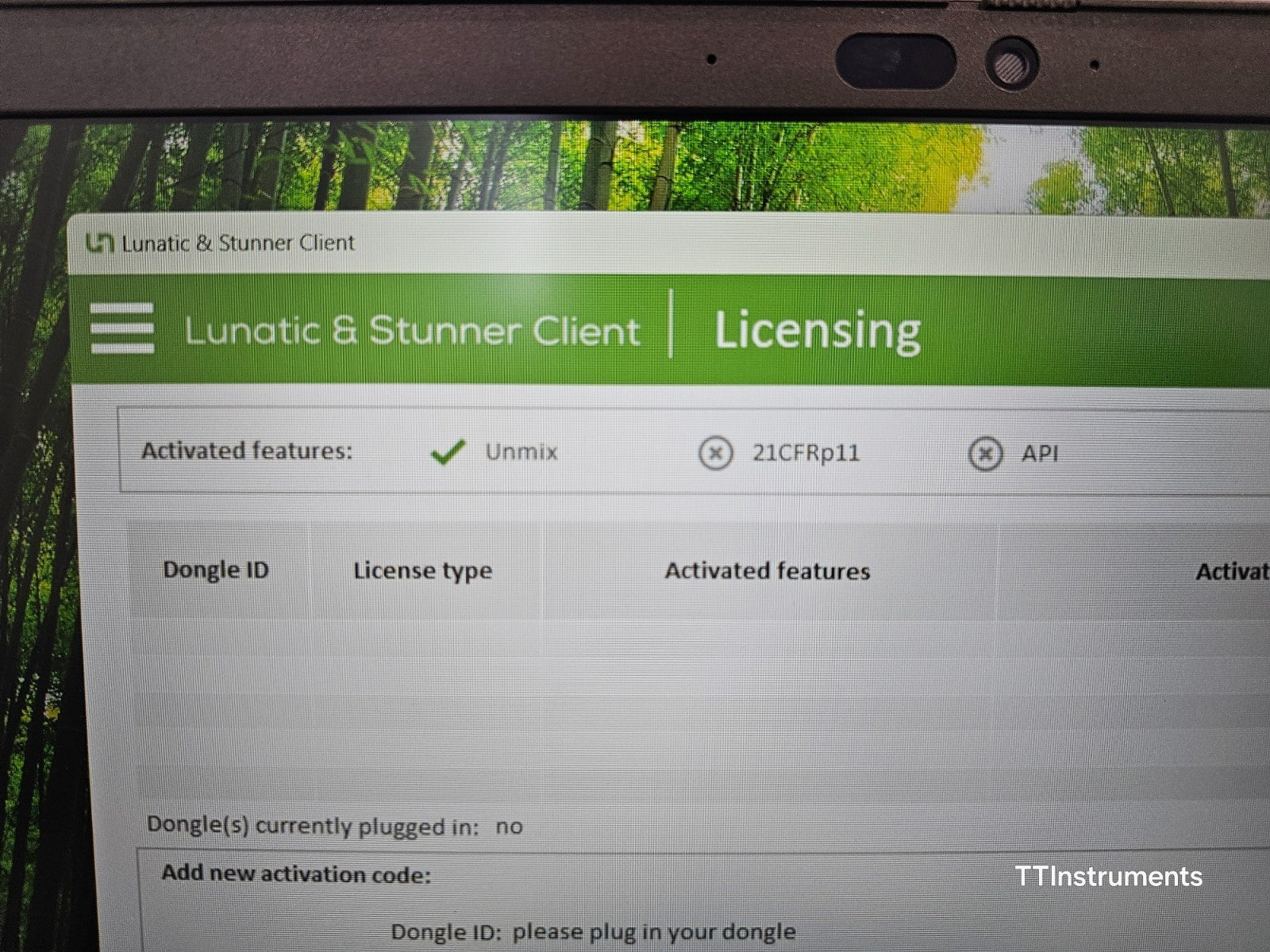

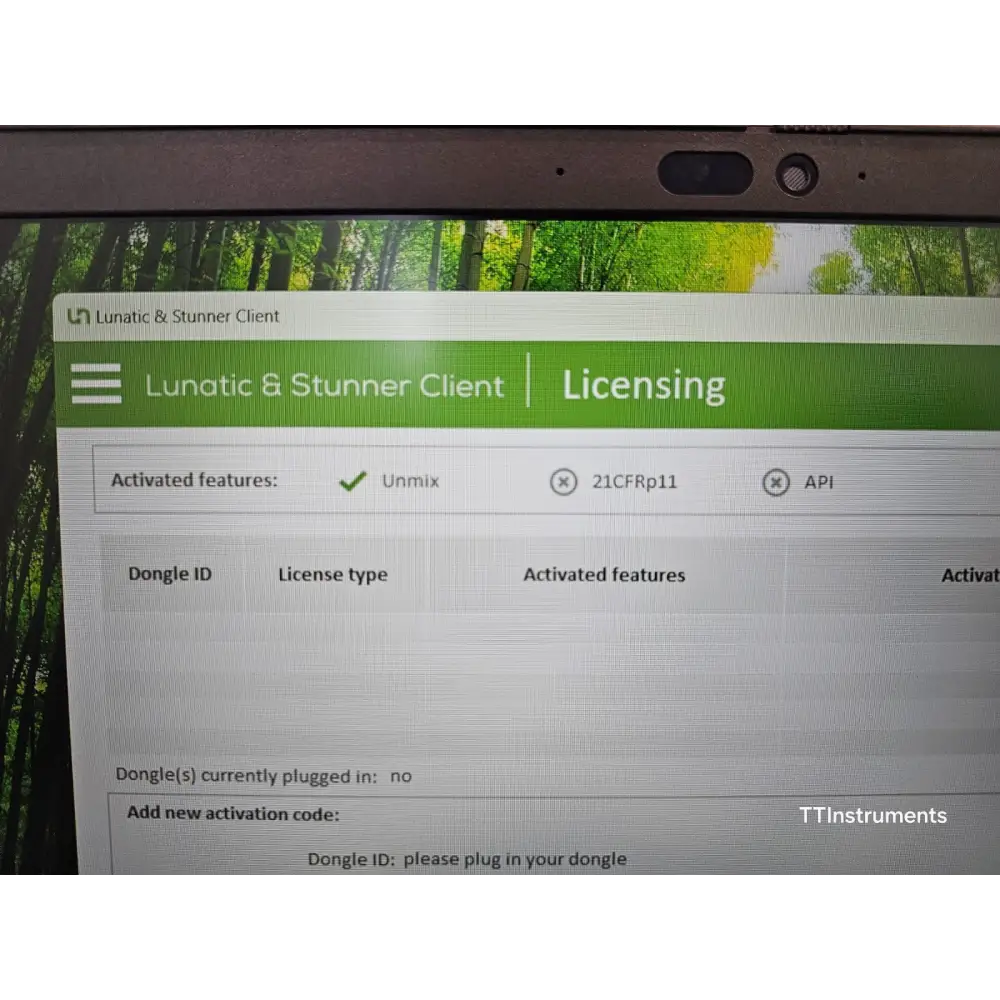

• Activated software option: Unmix (note: 21CFR Part 11 and API options are not activated)

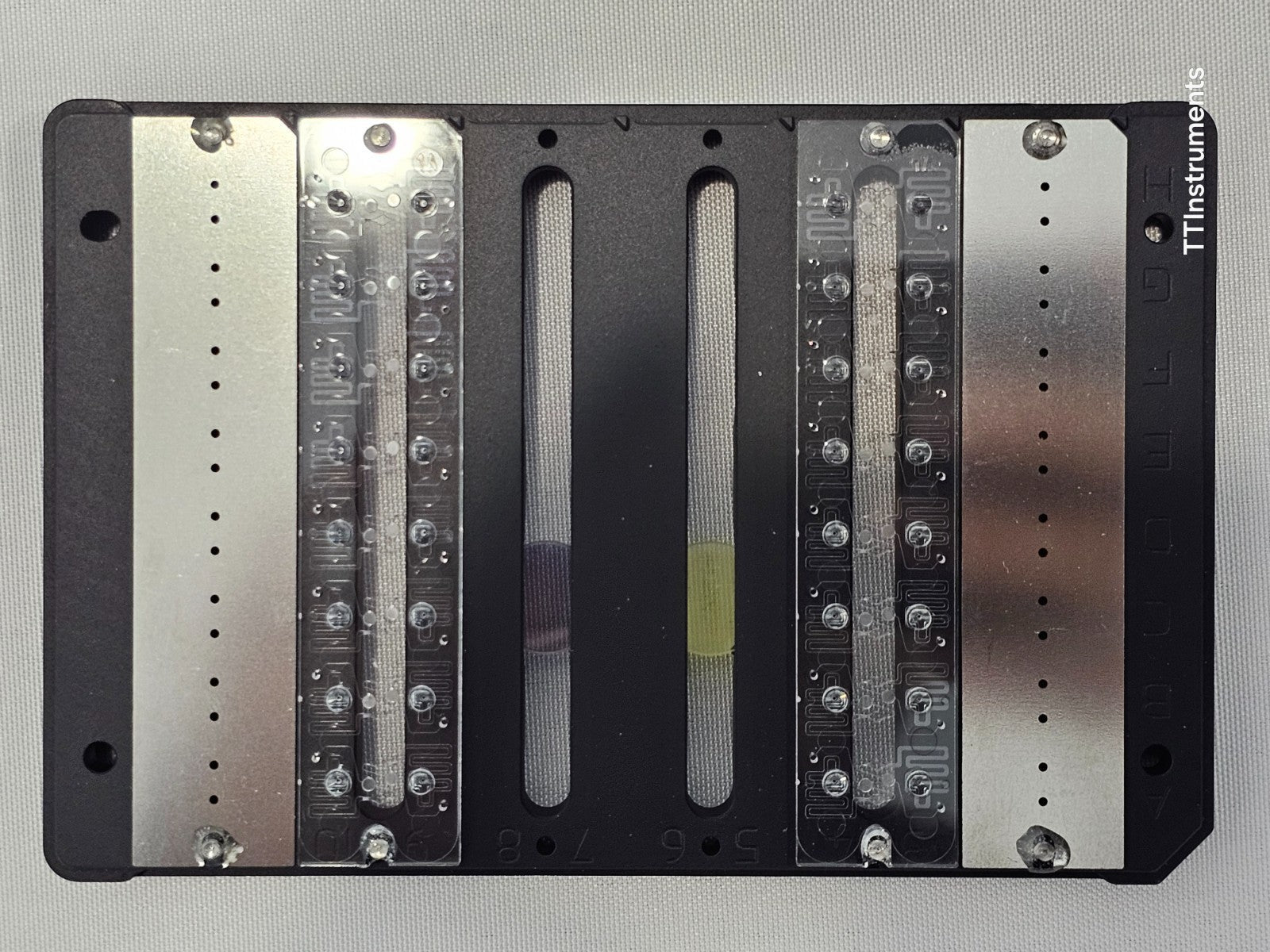

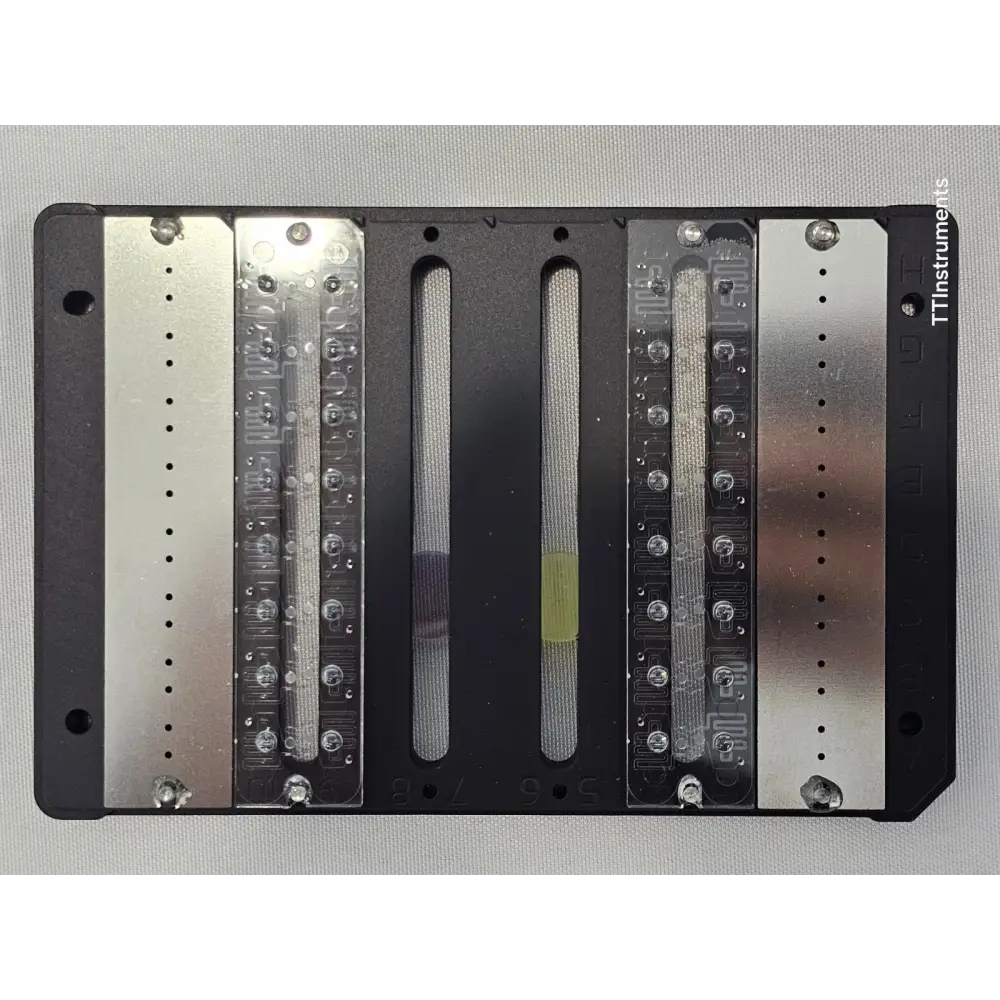

• Calibration plate

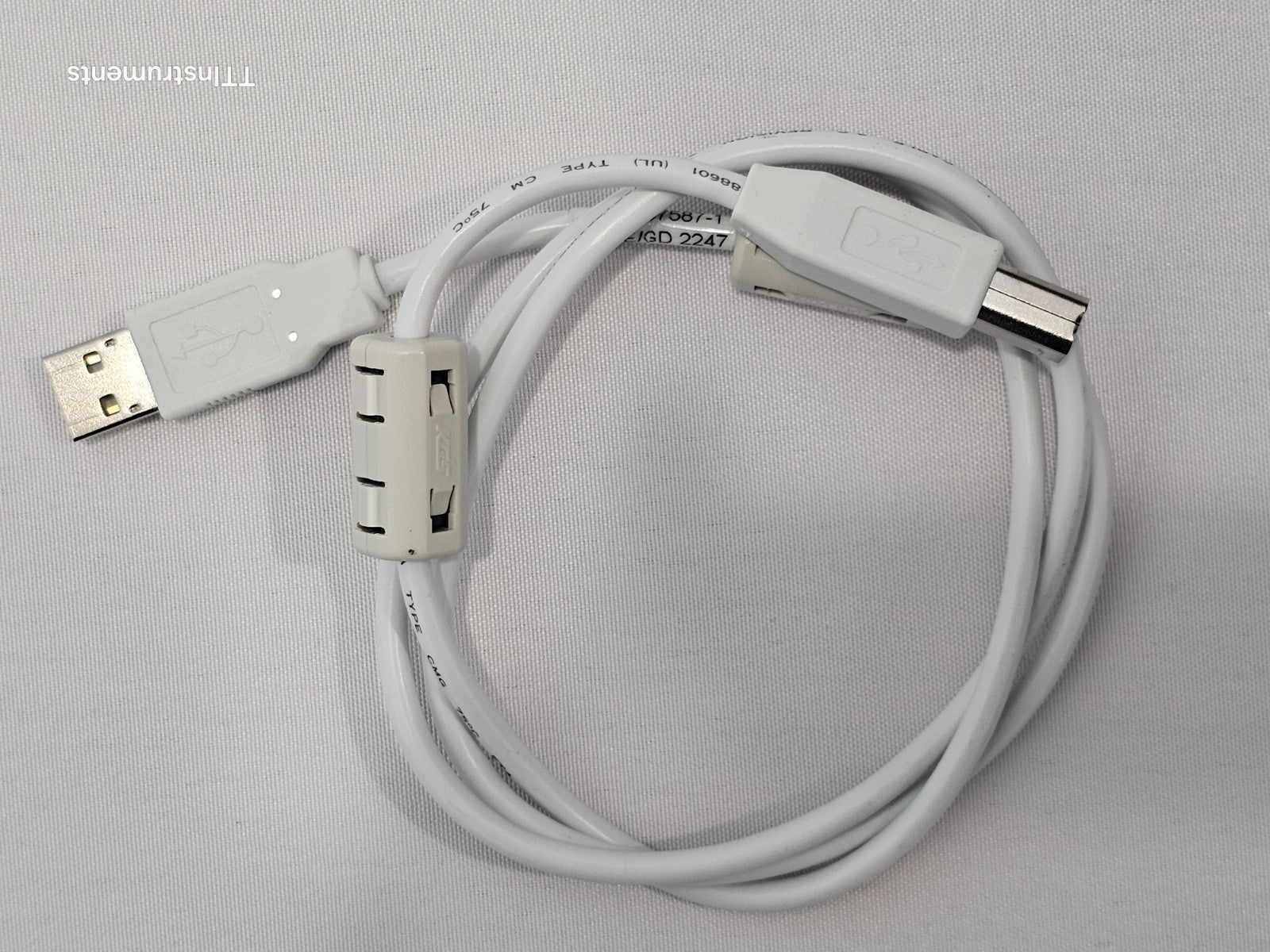

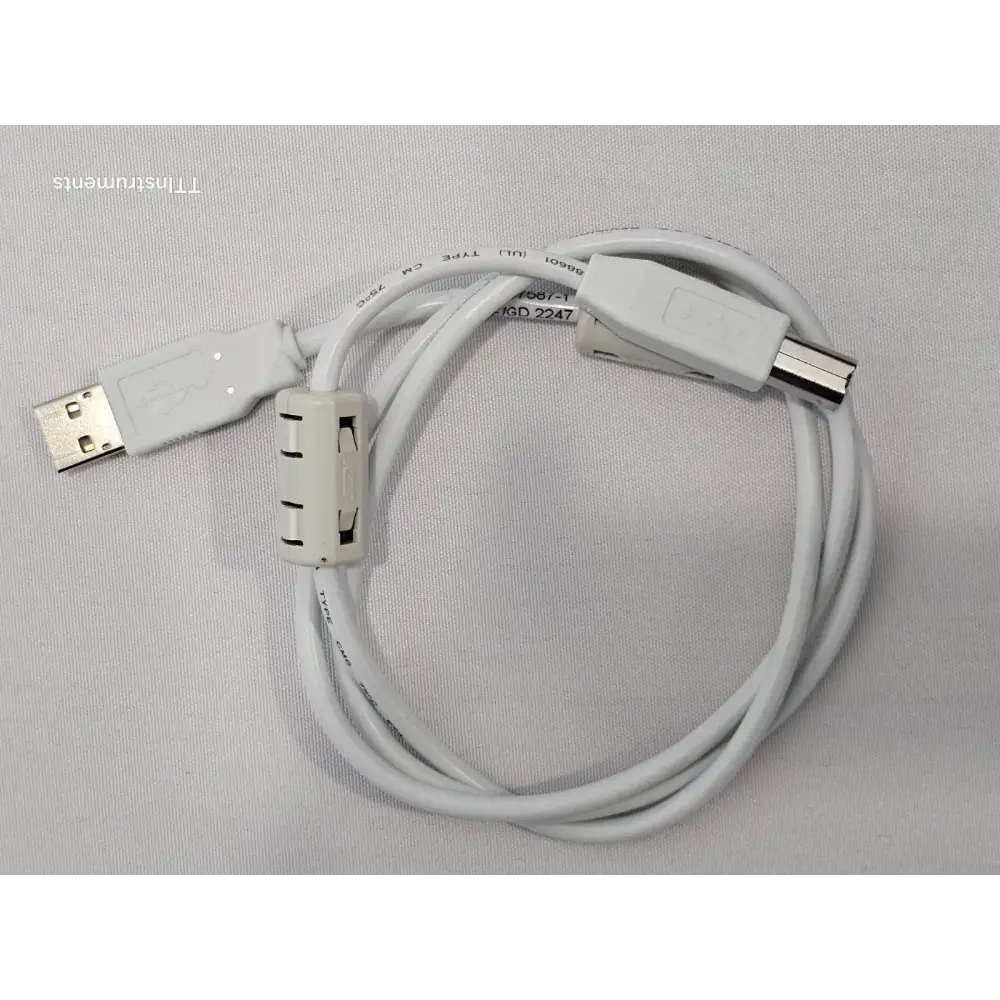

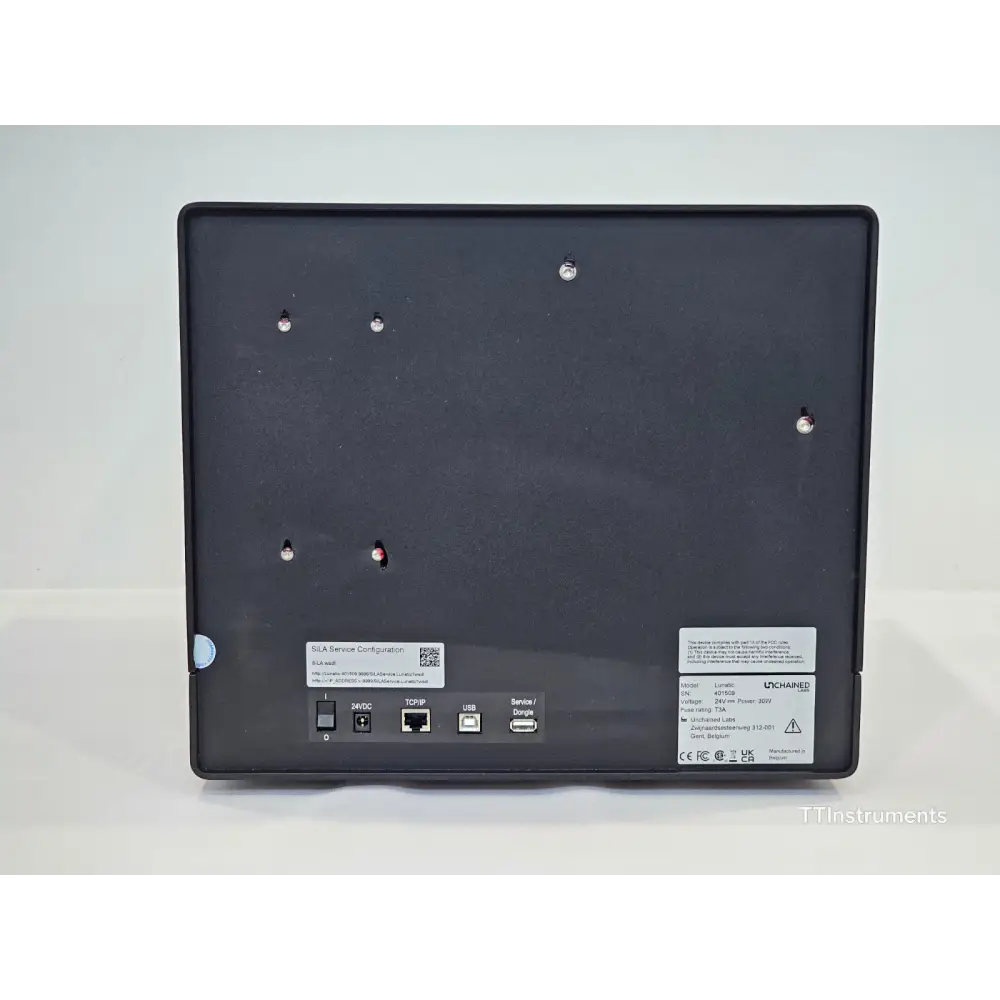

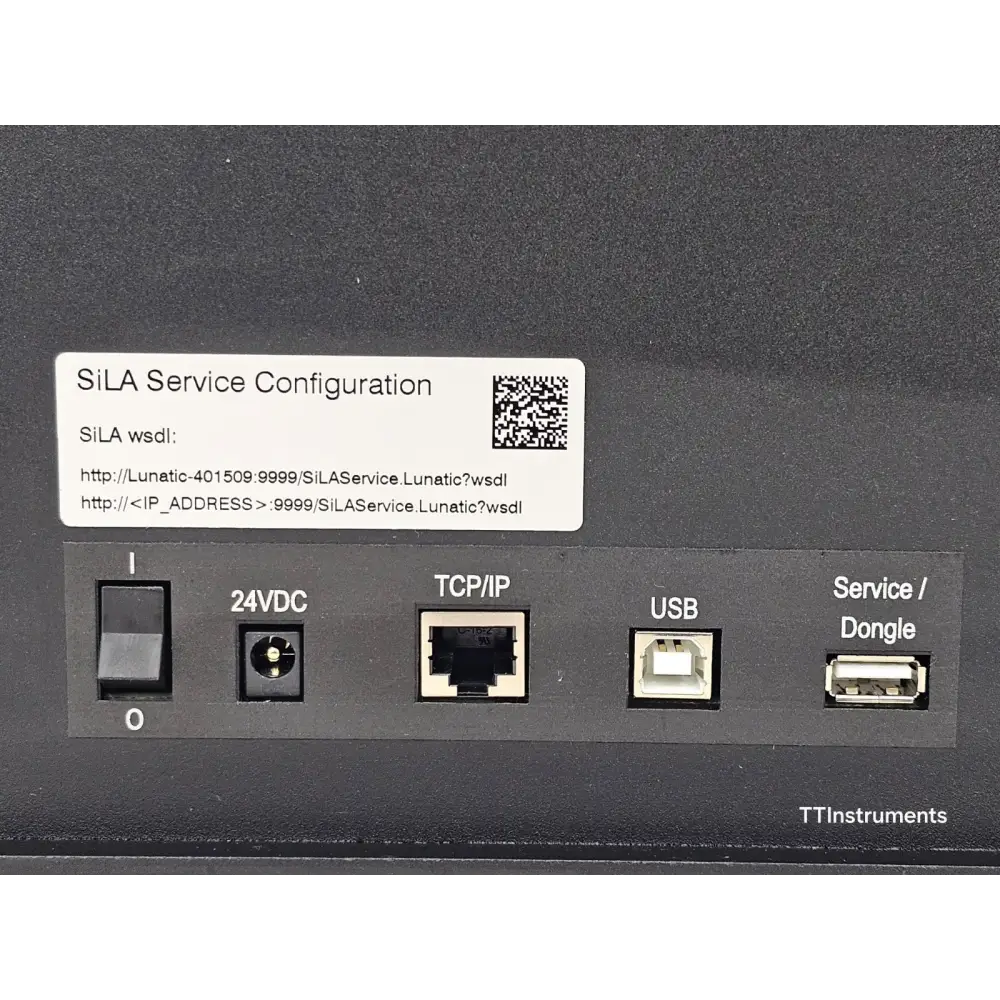

• USB interface cable

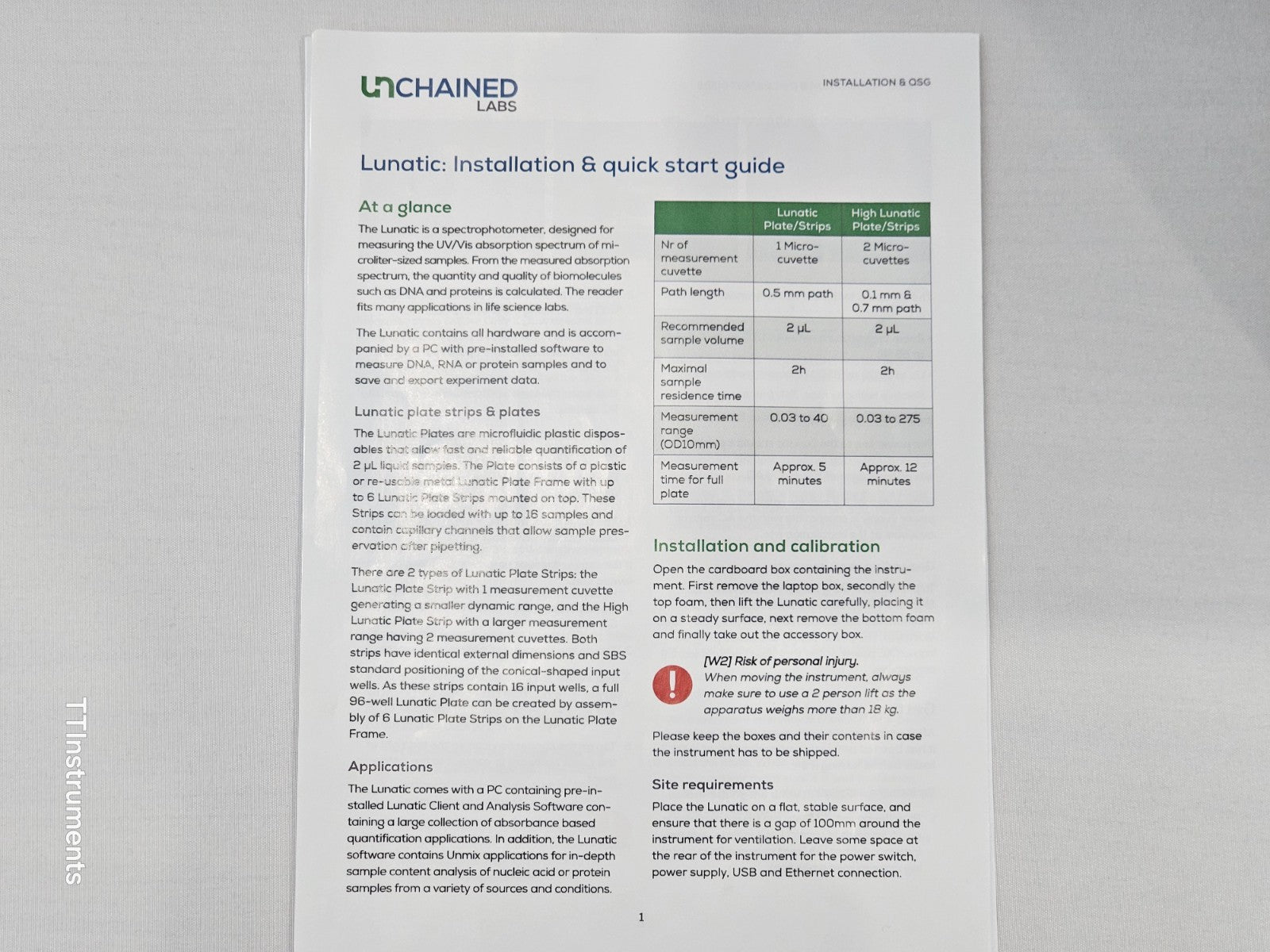

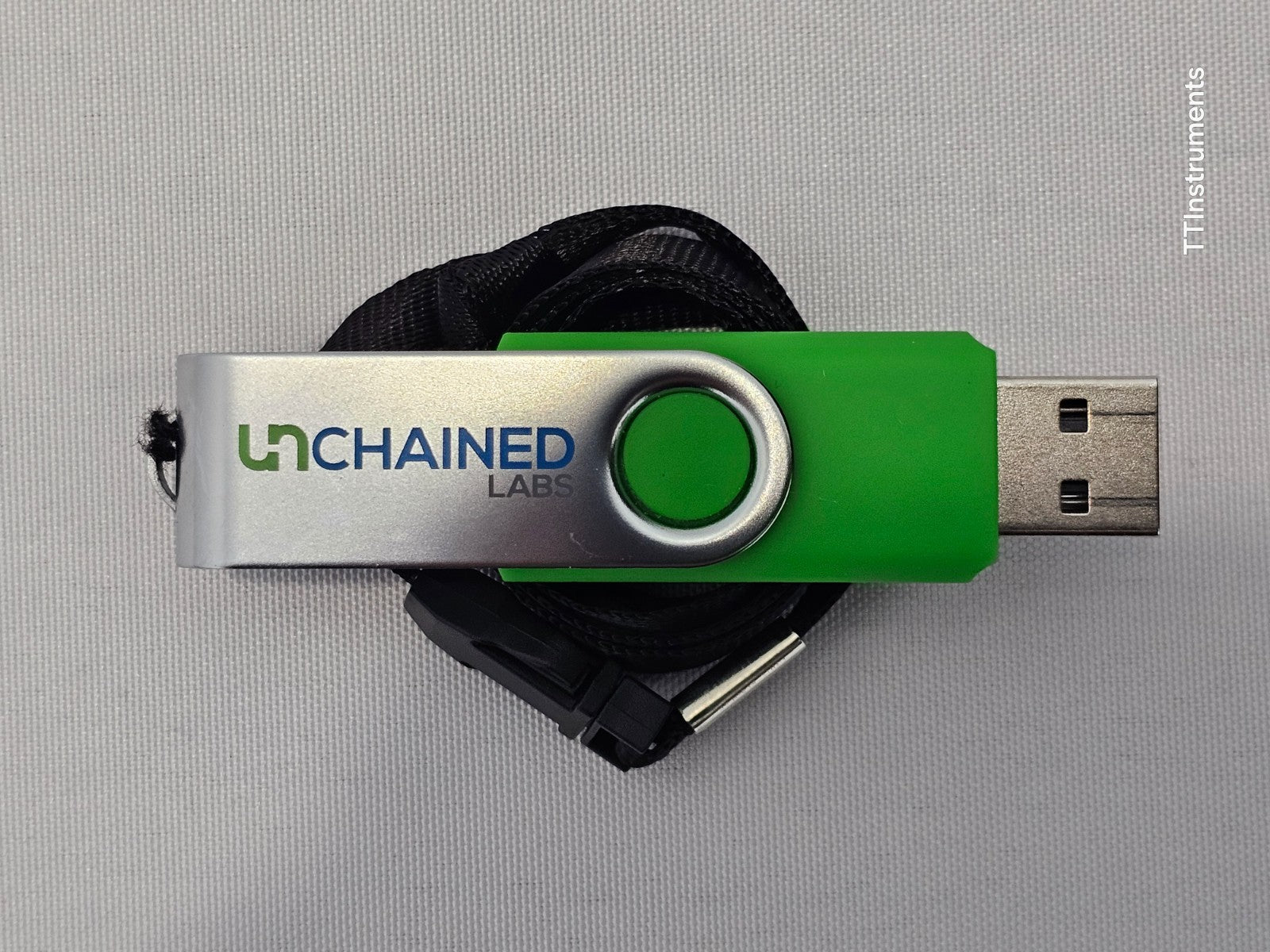

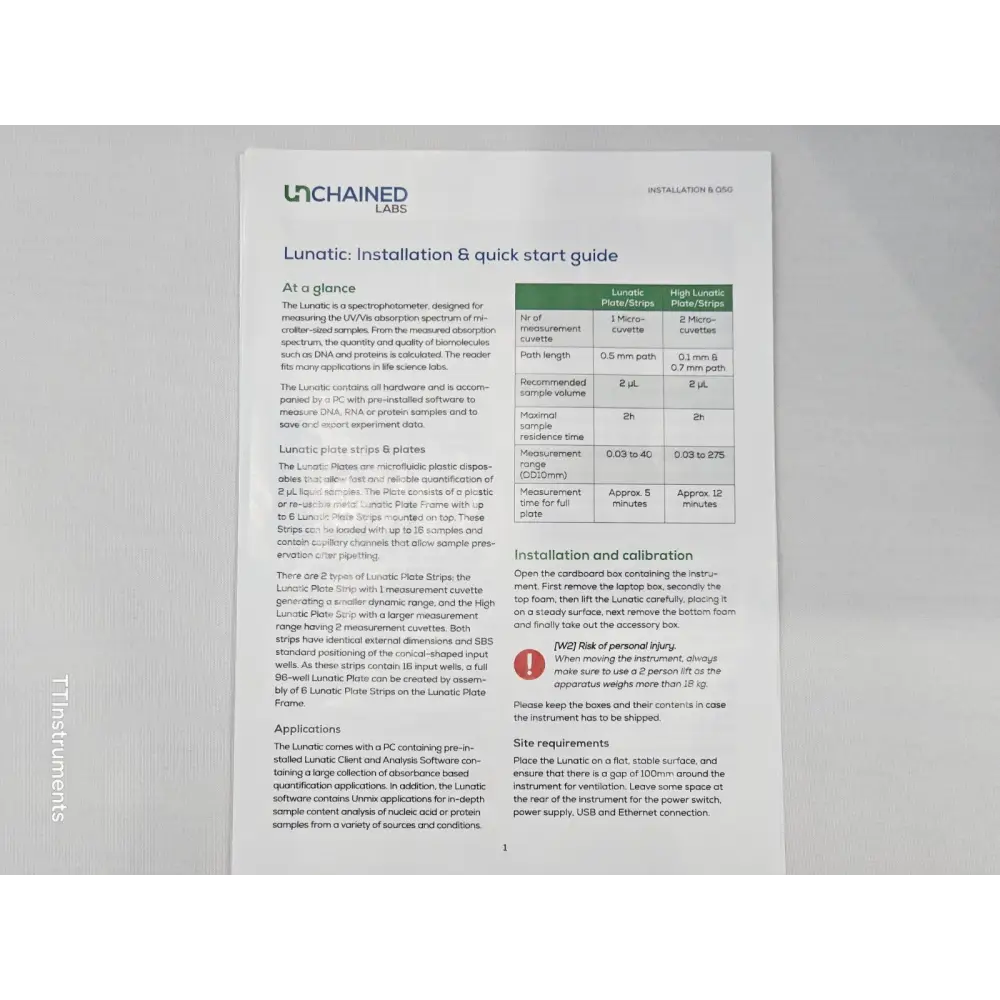

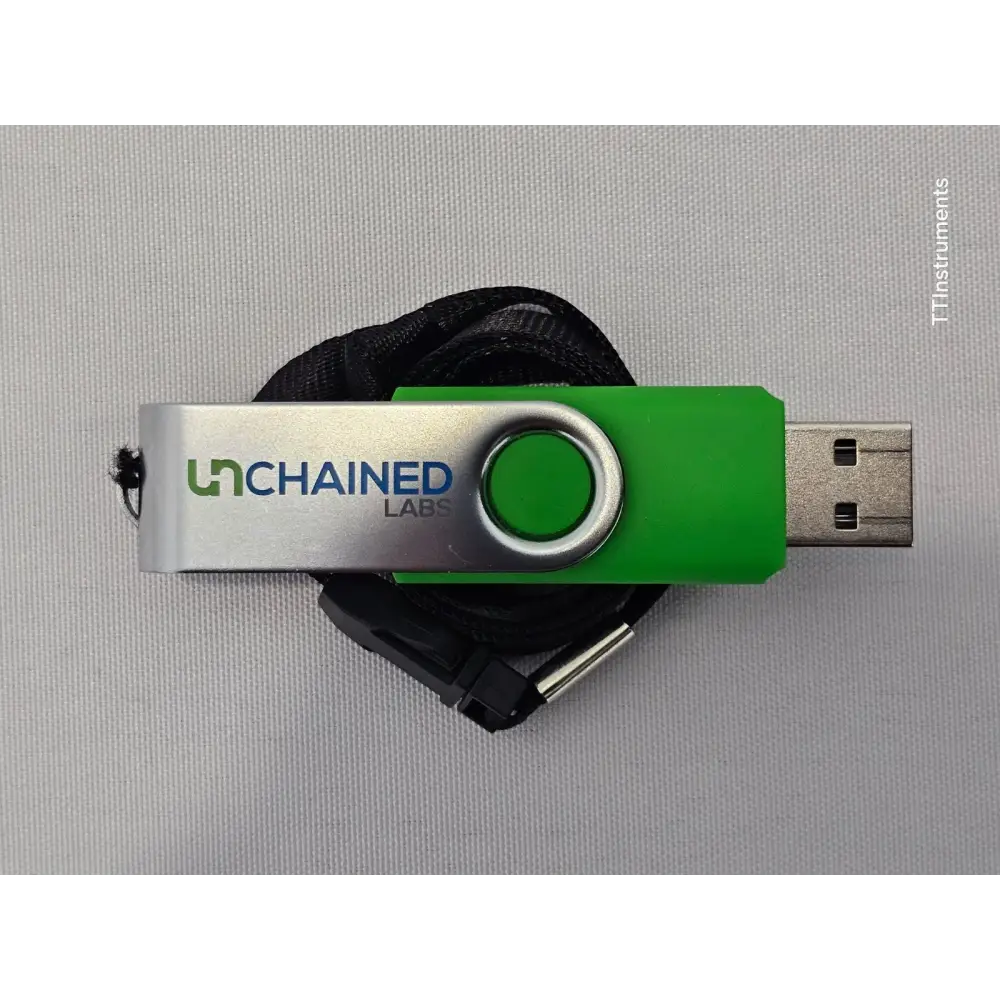

• USB flash drive with software and guides

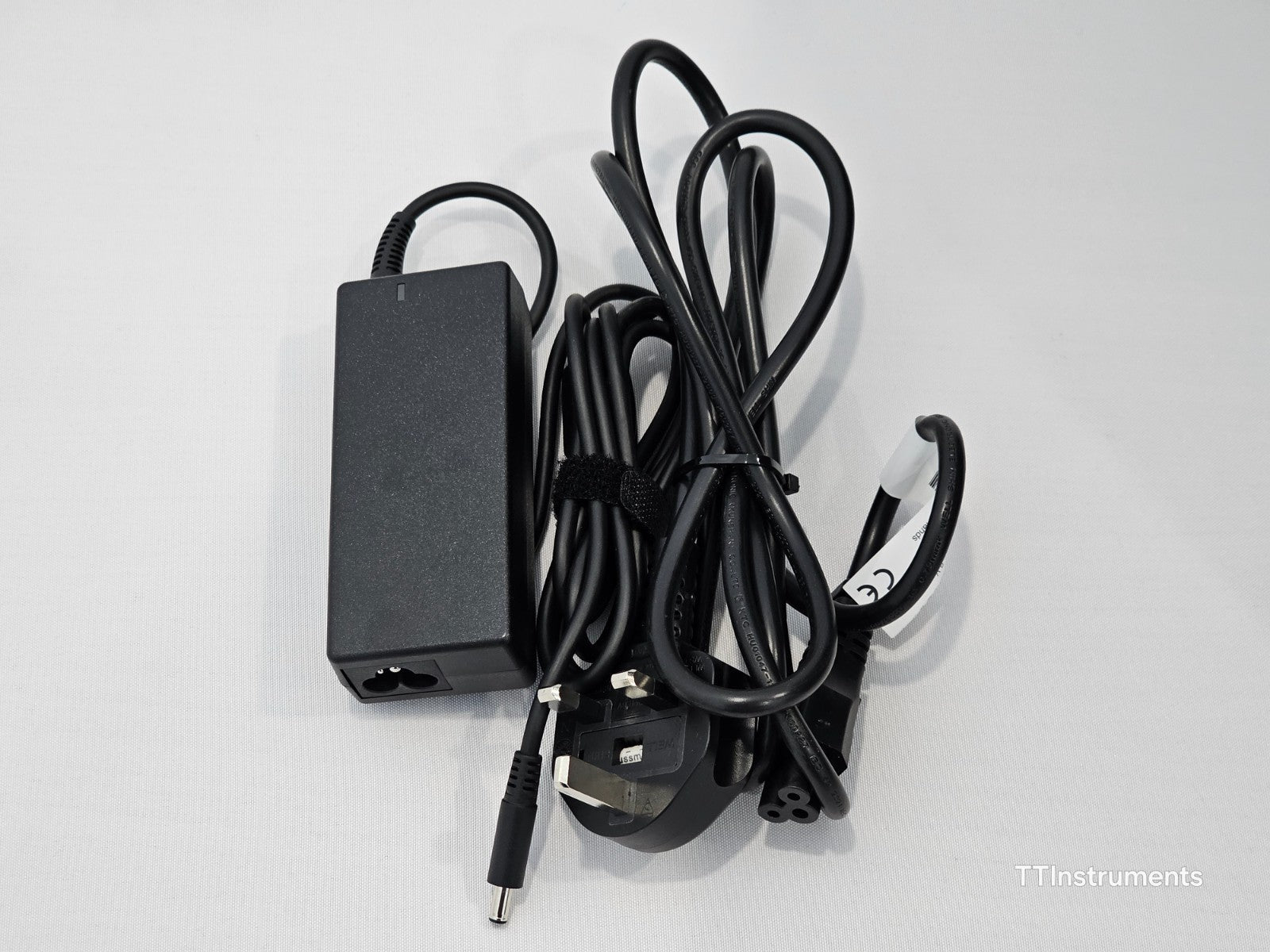

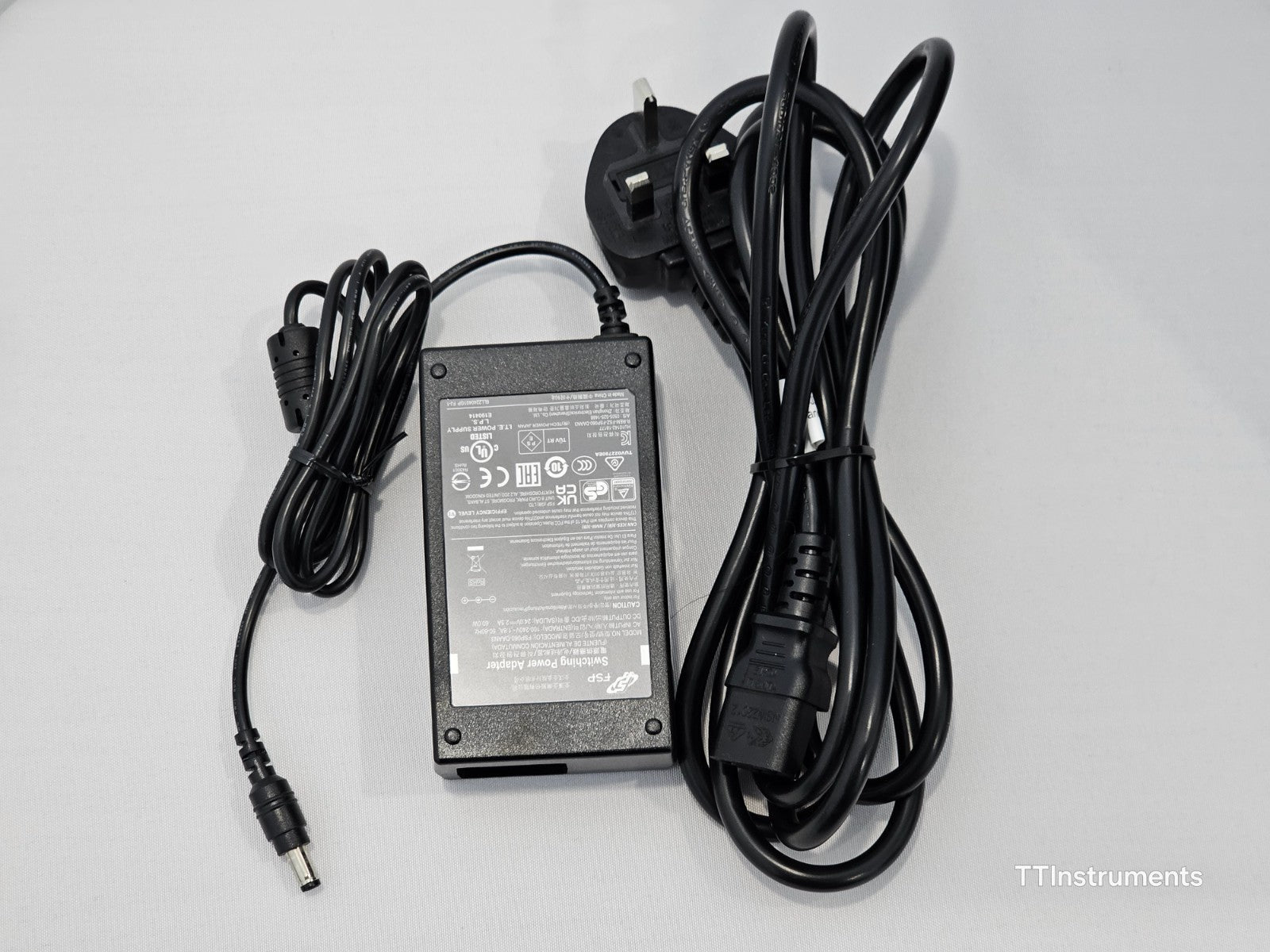

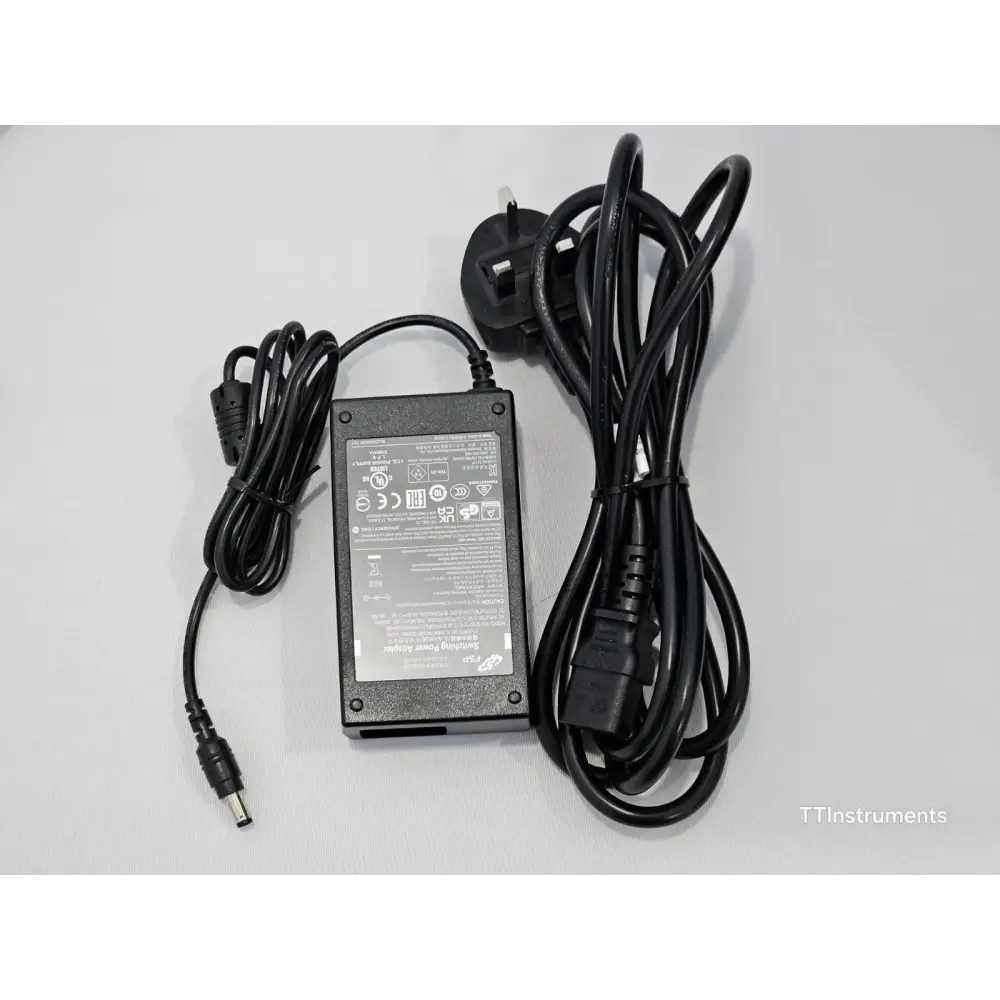

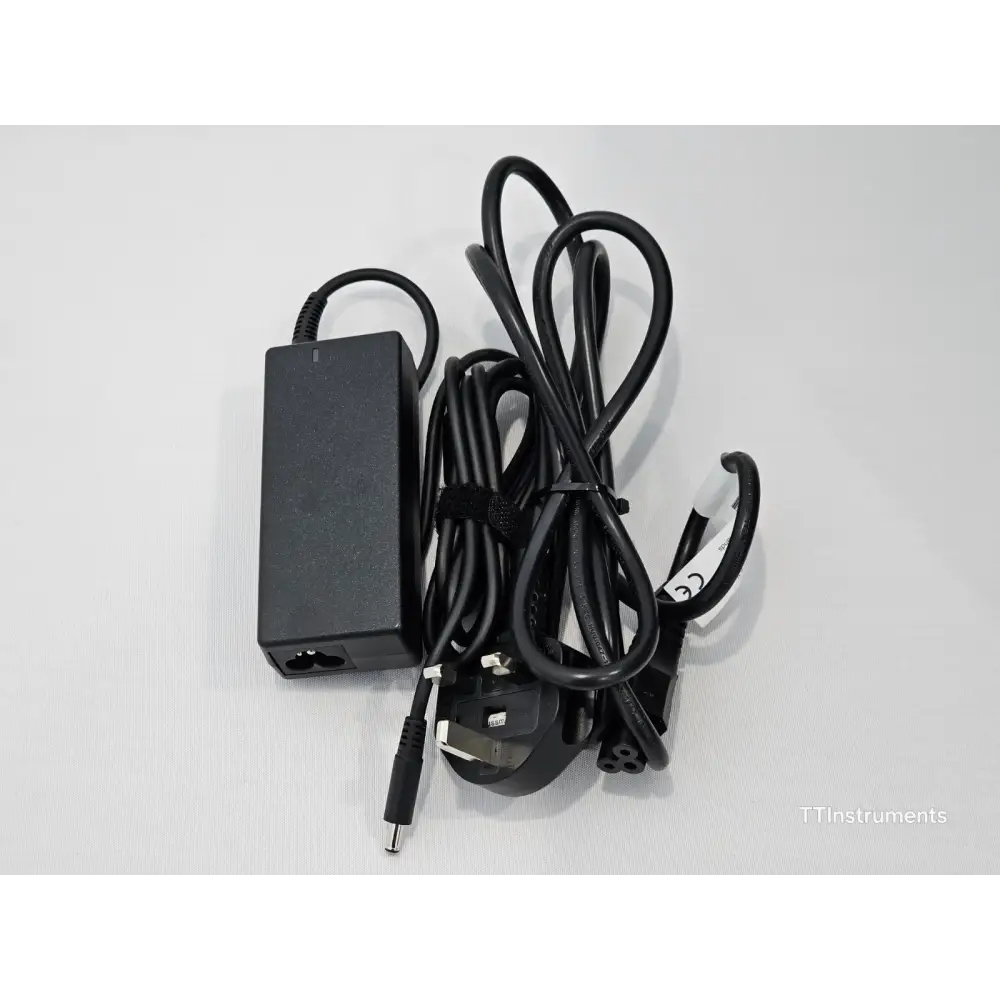

• Power supplies and cables

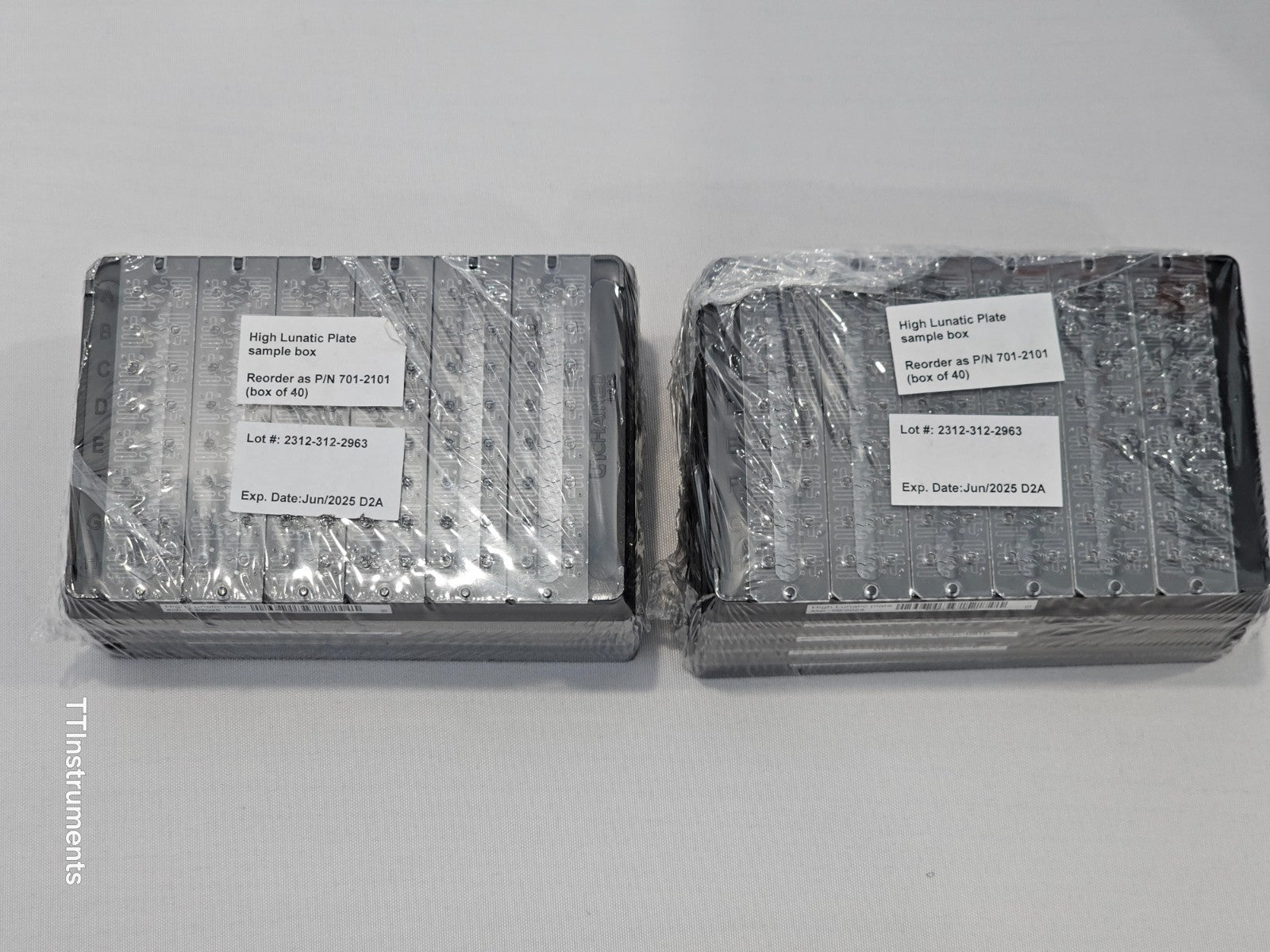

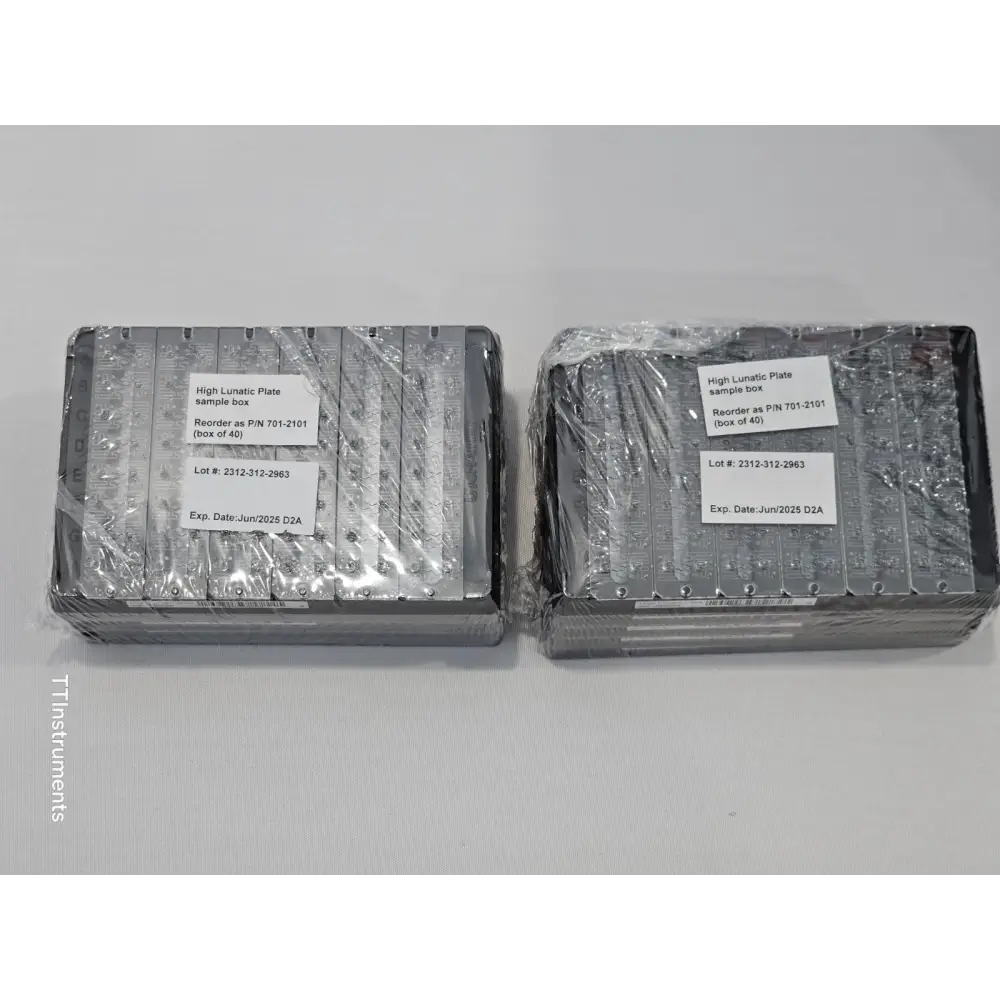

• 2x High Lunatic Plate sample box (2312-312-2963)

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Unchained Labs Lunatic is a state-of-the-art UV/Vis spectrophotometer designed for rapid and precise quantification of proteins and nucleic acids in life science research and regulated laboratory environments. Operating with just 2 µL sample volumes, it delivers up to 96 measurements in approximately 5 minutes — making it one of the fastest high-throughput UV/Vis platforms available.

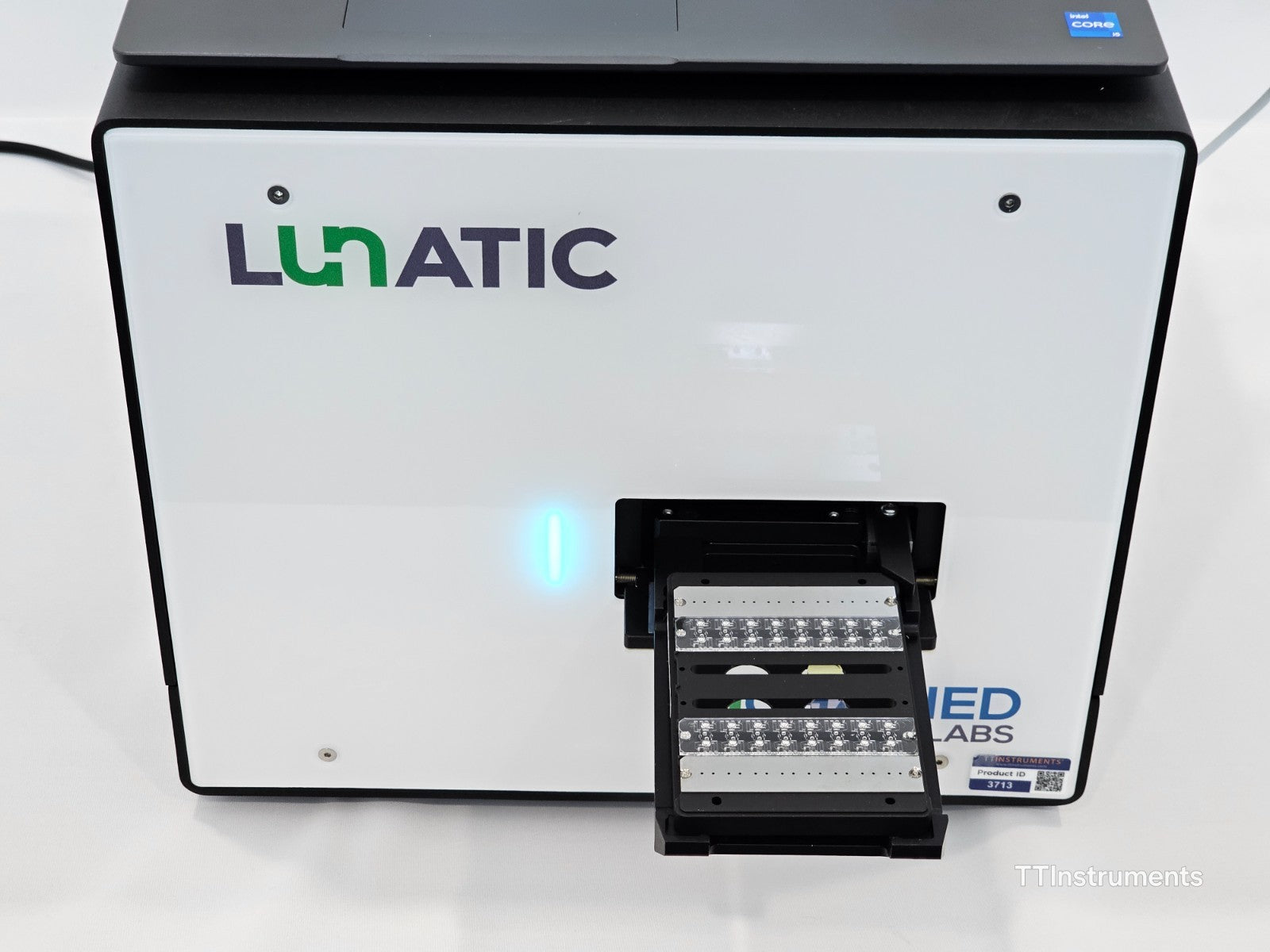

Unlike traditional spectrophotometers, the Lunatic uses fixed-path microcuvette microfluidics to eliminate the need for dilution, cleaning between samples, and concerns over evaporation or cross-contamination. The drop-load-read workflow simplifies operation for both manual and robotic sample handling, with native integration support for platforms including Benchling and Mosaic sample managers.

The Lunatic's xenon flash lamp light source, dual fixed pathlengths, and polychromatic detectors deliver industry-leading precision and accuracy in a single measurement step. Its software is fully enabled for 21 CFR Part 11 compliance, including audit trails, electronic signatures, electronic records, and user management — making it well-suited to GMP and other regulated lab environments.

Key Specifications:
Wavelength Range: 230–750 nm
Wavelength Accuracy: ±0.2 nm
Spectral Resolution: 2–2.5 nm (FWHM)
Absorbance Range: 0.03–275 OD (dynamic range, no dilution required)
Precision: ≤1%
Accuracy: ≤2%
Sample Volume: 2 µL
Throughput: Up to 96 samples in approximately 5–10 minutes
Light Source: Xenon flash lamp
Detector Type: Polychromatic
Pathlengths: Dual fixed pathlengths
Footprint: 37 cm × 46 cm × 33 cm
Weight: ~21 kg
Software: Client v8.x / Analysis v8.x; 21 CFR Part 11 capable

Datasheet
