Condition: Used

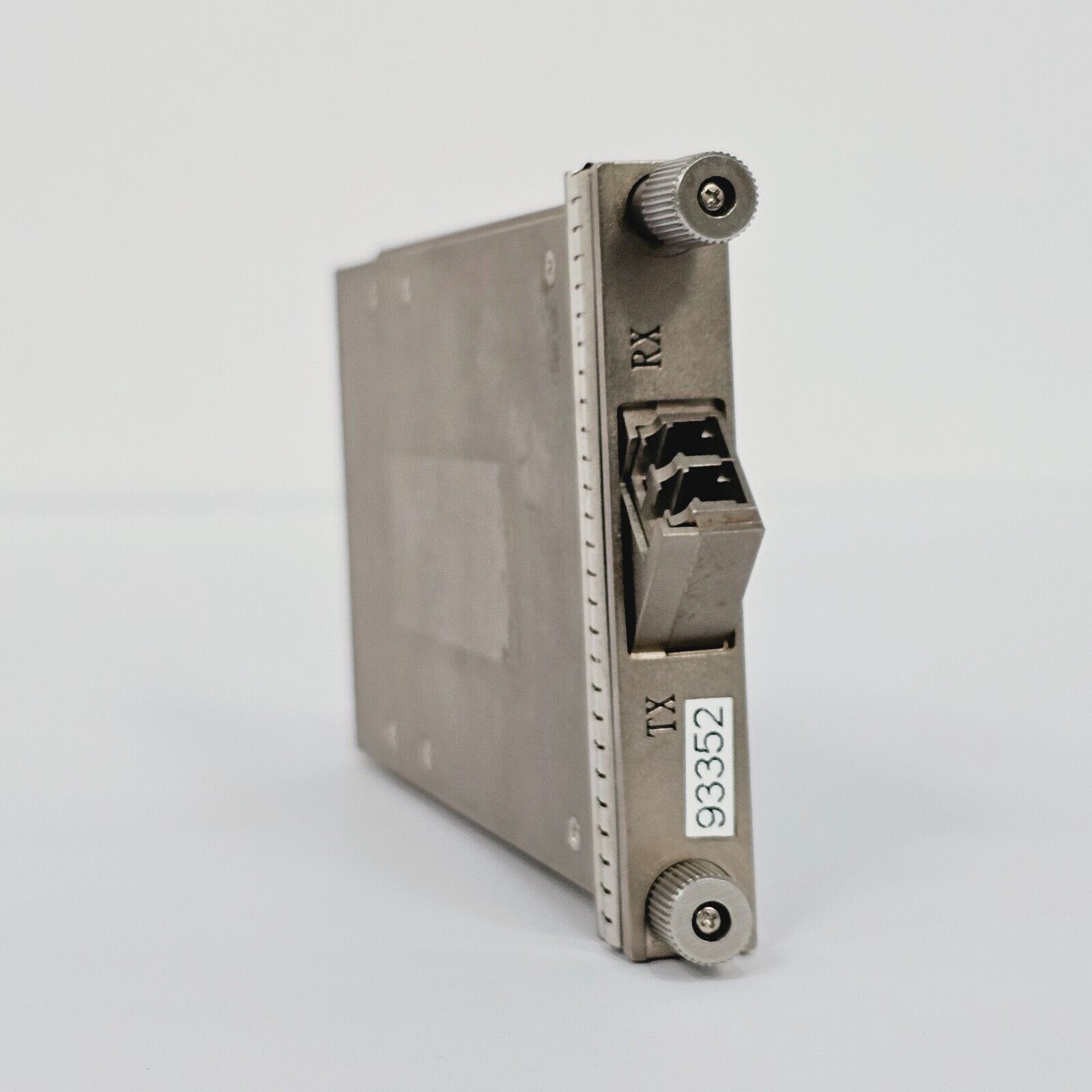

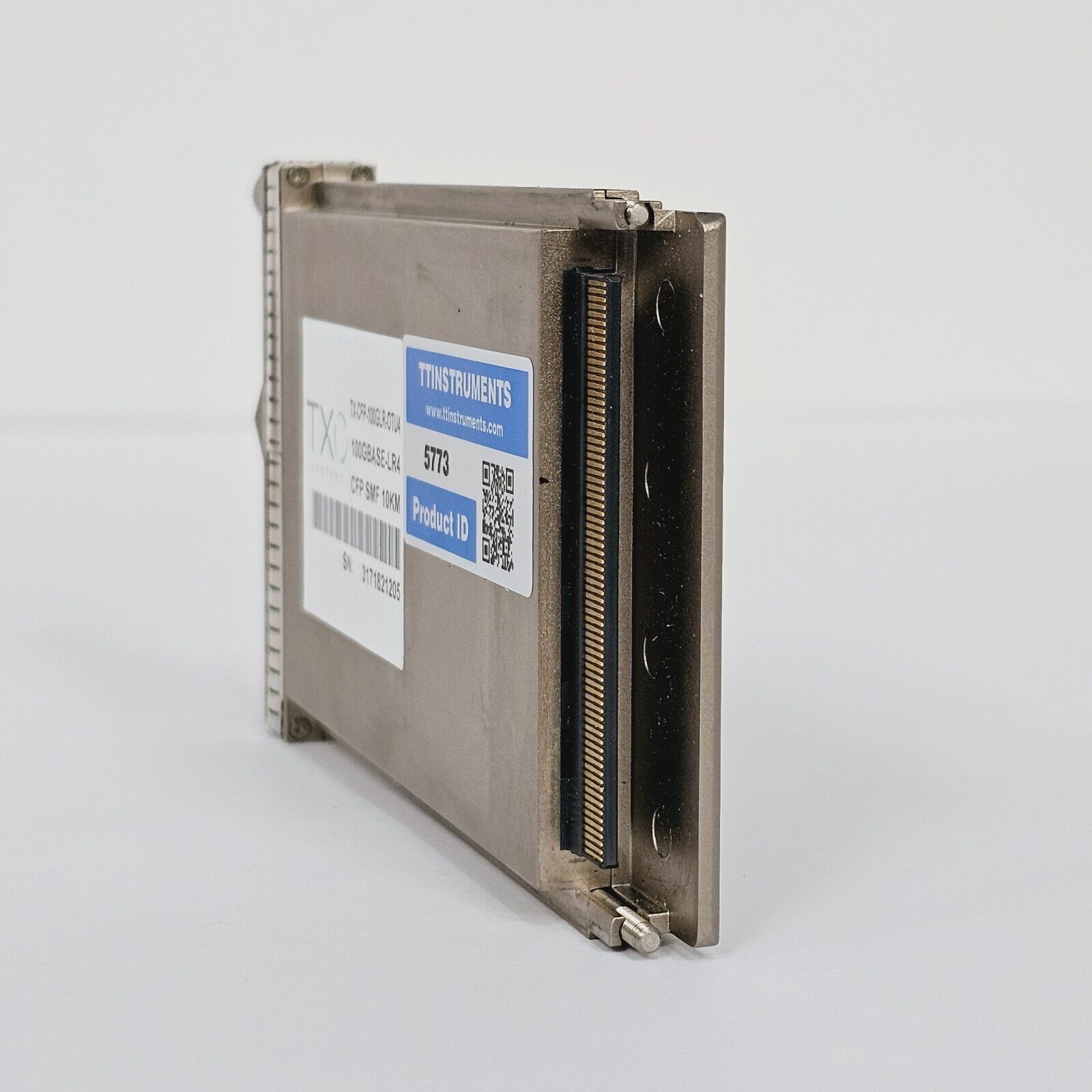

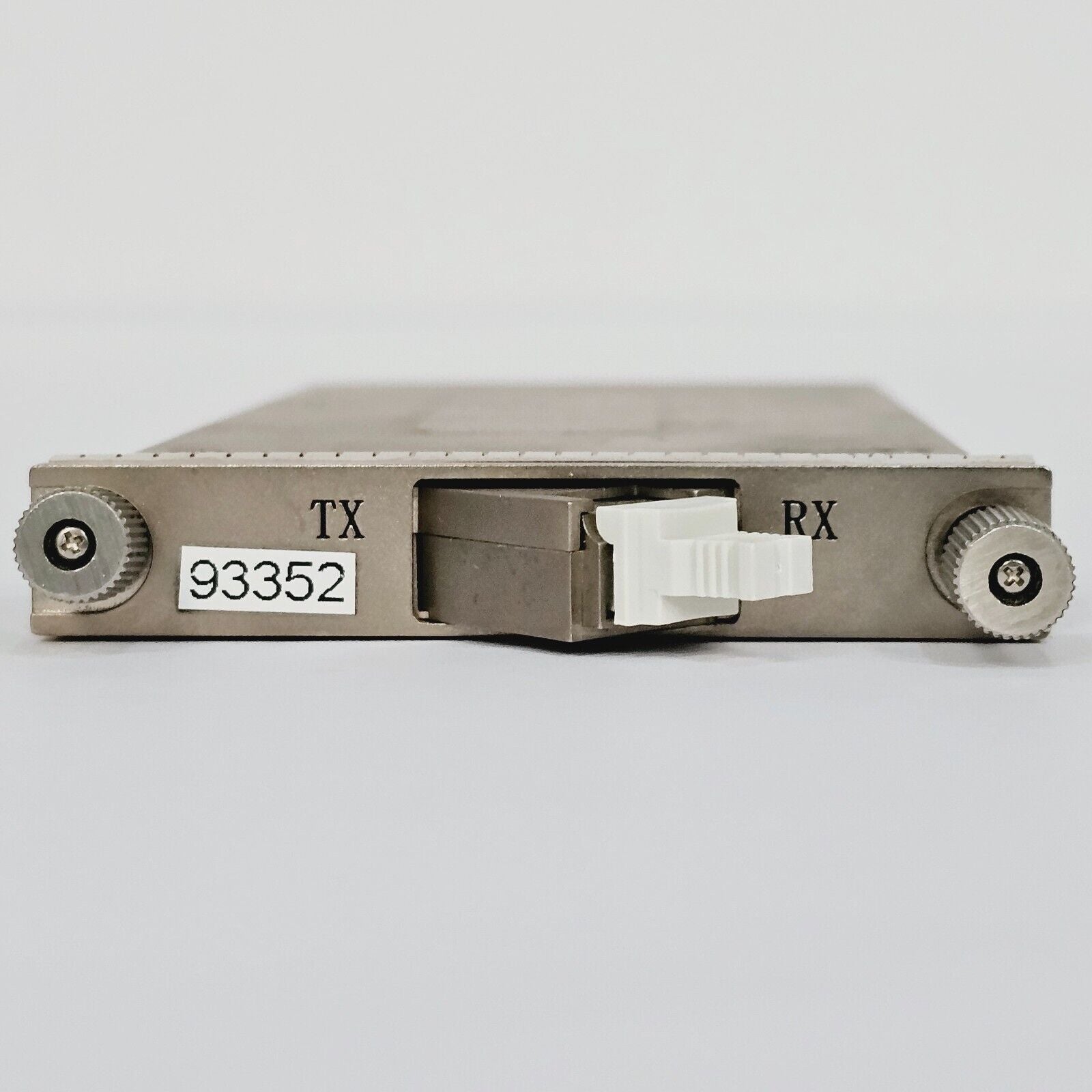

The TXO Systems TX-CFP-100GLR-OTU4 is a 100GBASE-LR4 CFP transceiver module supporting OTU4 framing for single-mode fibre transmission over distances up to 10km. TXO Systems is a specialist supplier of optical networking components widely used in telecommunications and data centre environments.

What is included in the sale:
• TXO Systems TX-CFP-100GLR-OTU4 CFP transceiver module

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The TXO Systems TX-CFP-100GLR-OTU4 is a 100GBASE-LR4 CFP (C Form-factor Pluggable) optical transceiver module designed for deployment in high-capacity optical transport and data centre interconnect applications. It supports OTU4 framing in compliance with ITU-T G.709, making it suitable for carrier-grade 100G wavelength division multiplexing (WDM) networks.

The module uses four wavelength lanes in the 1295–1310nm range (LAN-WDM) to achieve an aggregate 100Gbps data rate over standard single-mode fibre with a reach of up to 10km.

Form Factor: CFP (C Form-factor Pluggable)
Data Rate: 100Gbps (100GBASE-LR4)
Fibre Type: Single-Mode Fibre (SMF)
Maximum Reach: 10km
Wavelength: LAN-WDM (4 x ~1295–1310nm lanes)
Protocol Support: OTU4 (ITU-T G.709)
Connector Type: Duplex LC
Compliance: IEEE 802.3ba, ITU-T G.709

Please refer to the TXO Systems website for full and current specifications.
