Condition: Used

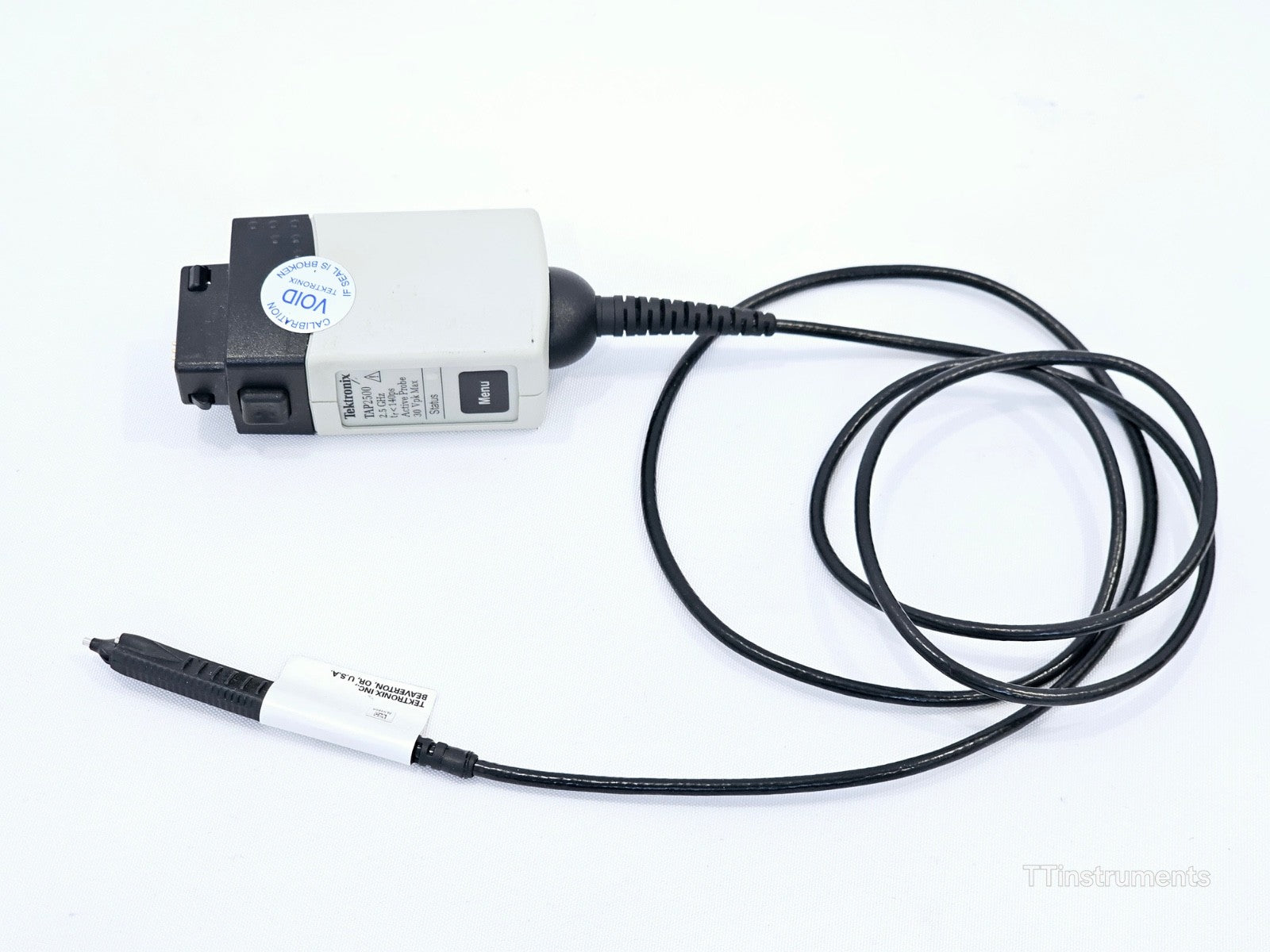

The Tektronix TAP2500 is a 2.5 GHz active FET probe featuring the TekVPI interface for seamless integration with compatible Tektronix oscilloscopes. It offers 10:1 attenuation, ≤0.8 pF input capacitance, and a dynamic input range of –4 V to +4 V with a DC offset range of –10 V to +10 V, enabling high-fidelity signal capture with minimal circuit loading.

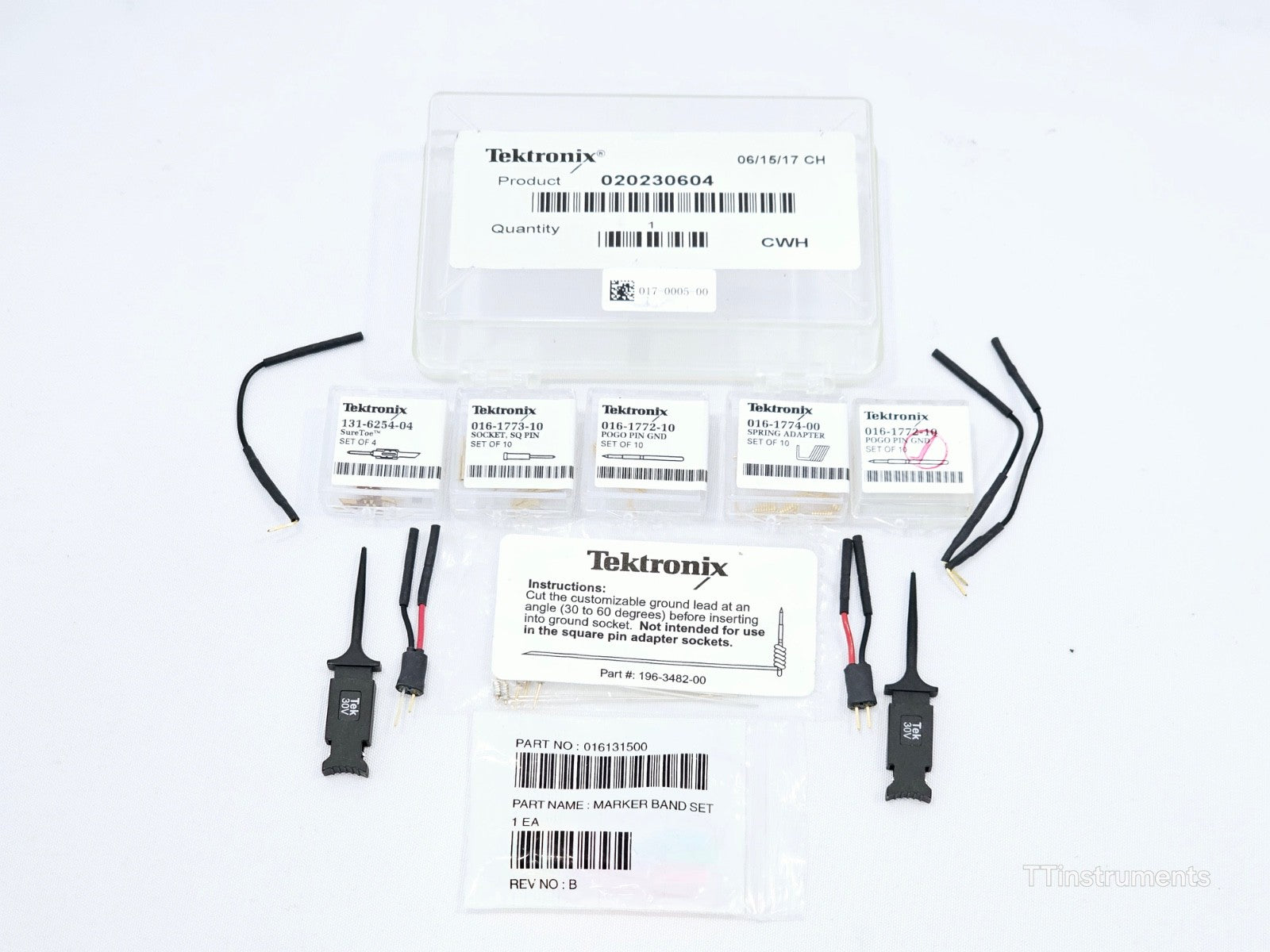

Included in the sale:
• Tektronix TAP2500 active probe (TekVPI)

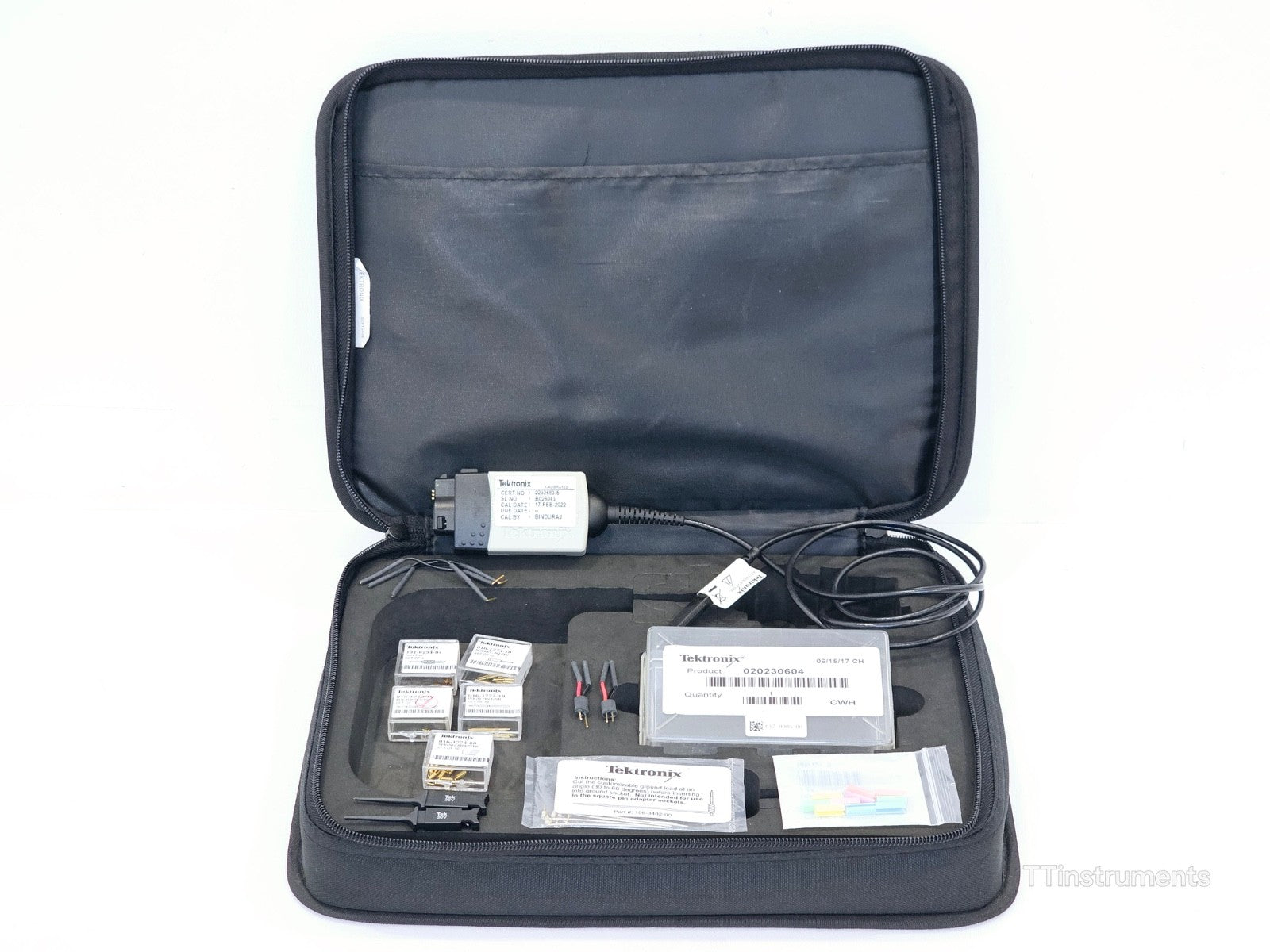

• Carrying case
• Plastic accessory case
• Y-lead adapters
• Marker band set (016-1315-00)
• Customisable ground leads (196-3482-00)
• SureToe Adapter (131-6254-04)
• Square Pin Socket (016-1773-10)
• Pogo Pin Ground (016-1772-10)
• Adapter (016-1774-00)

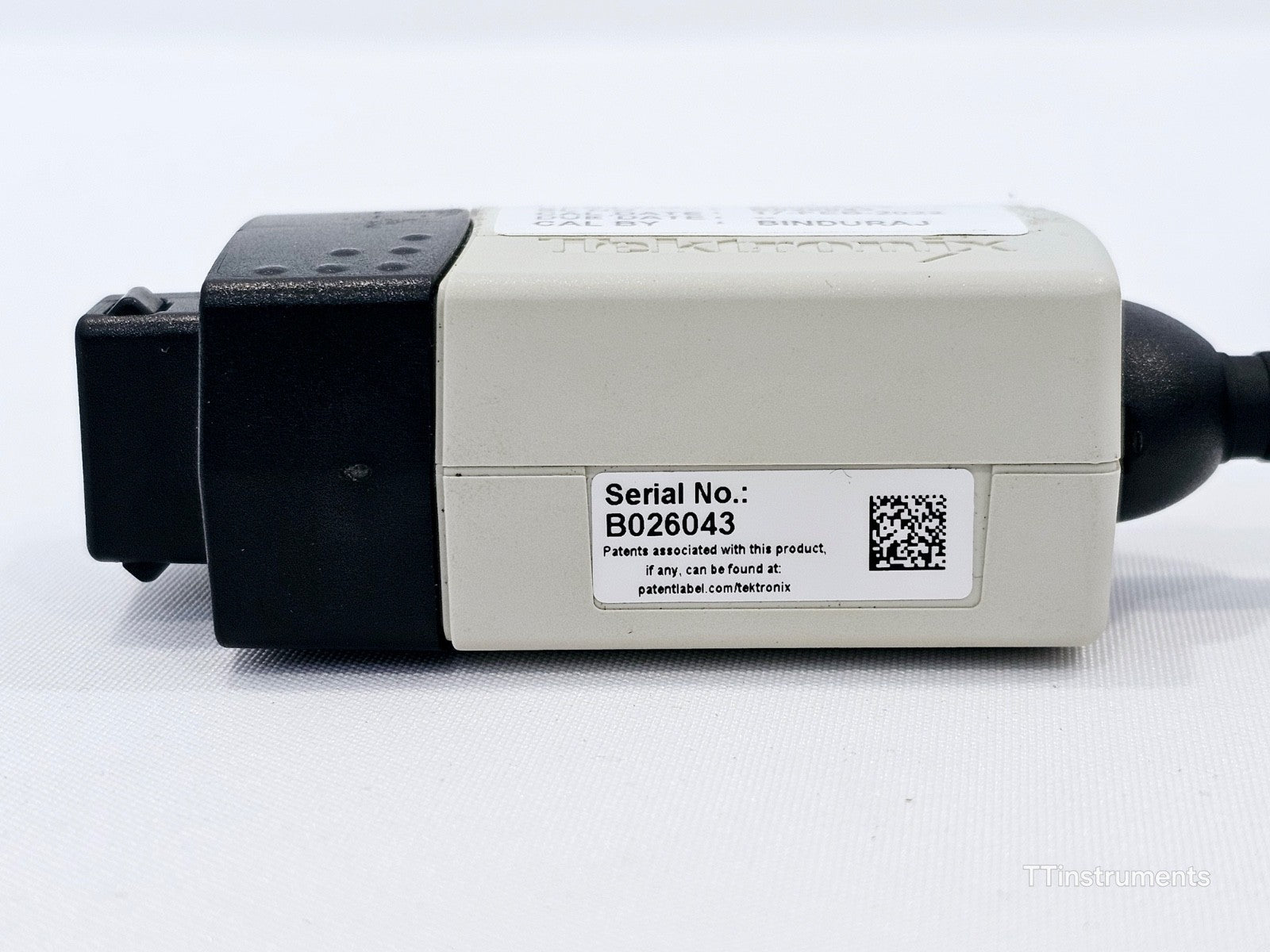

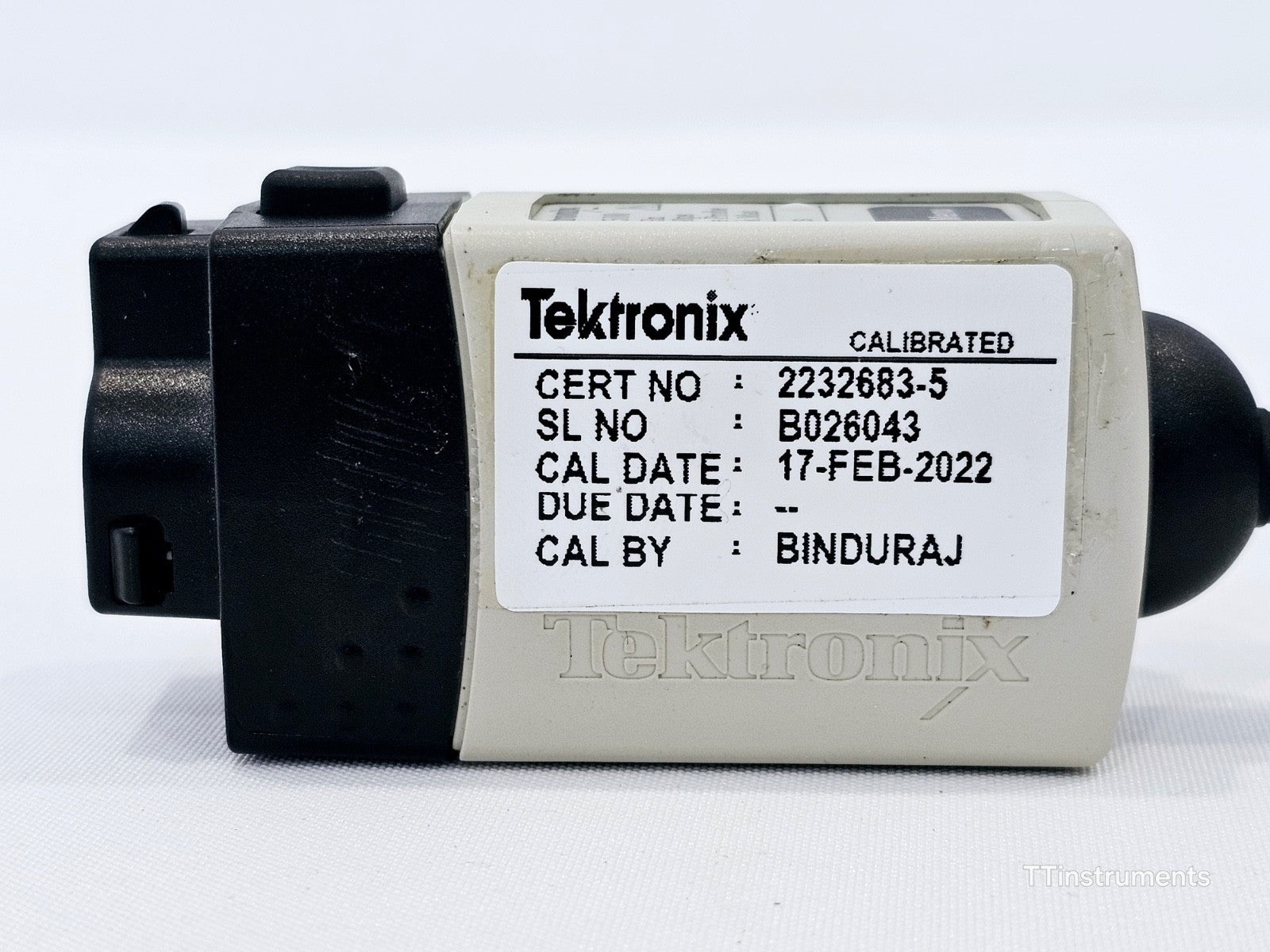

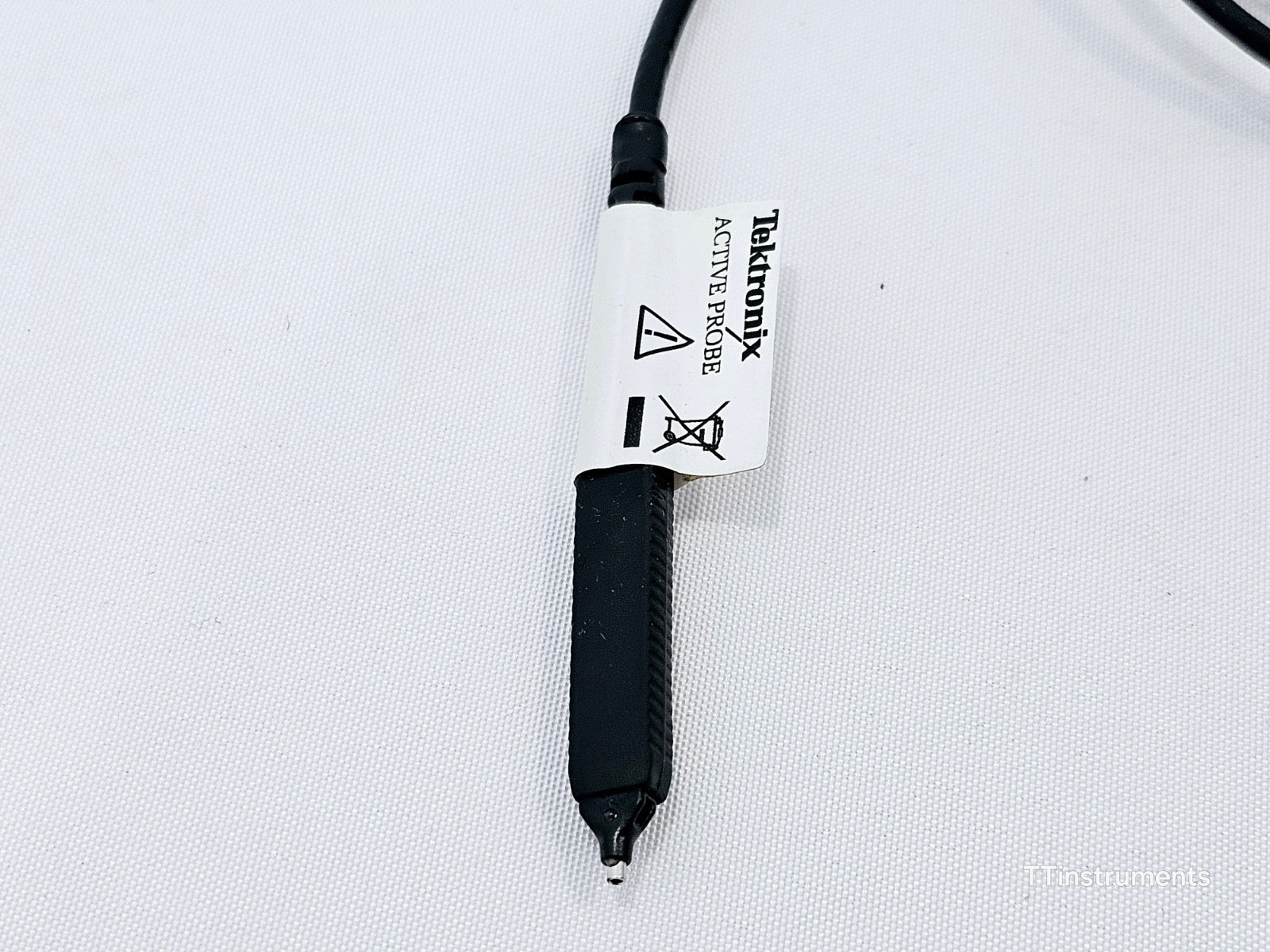

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

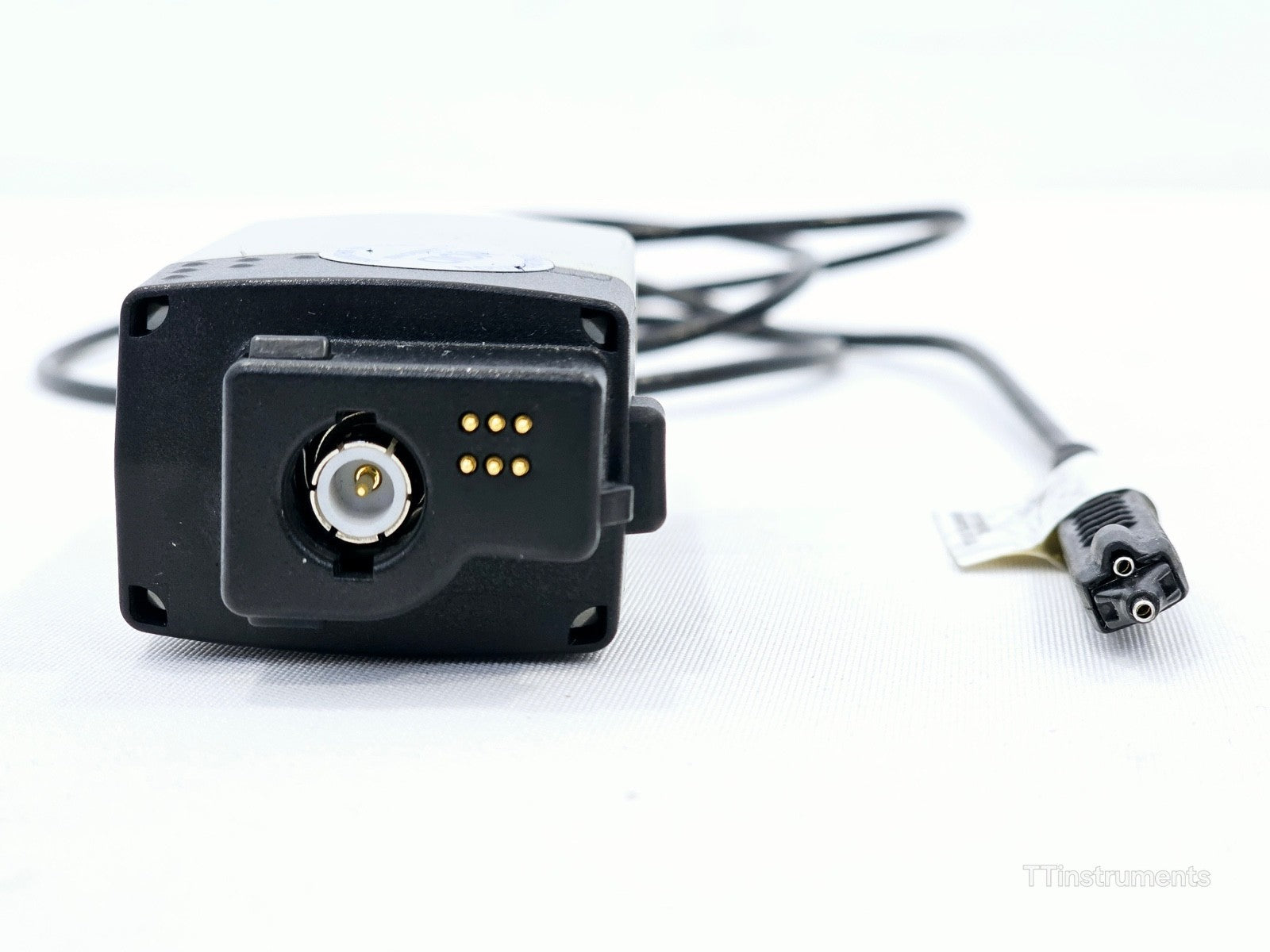

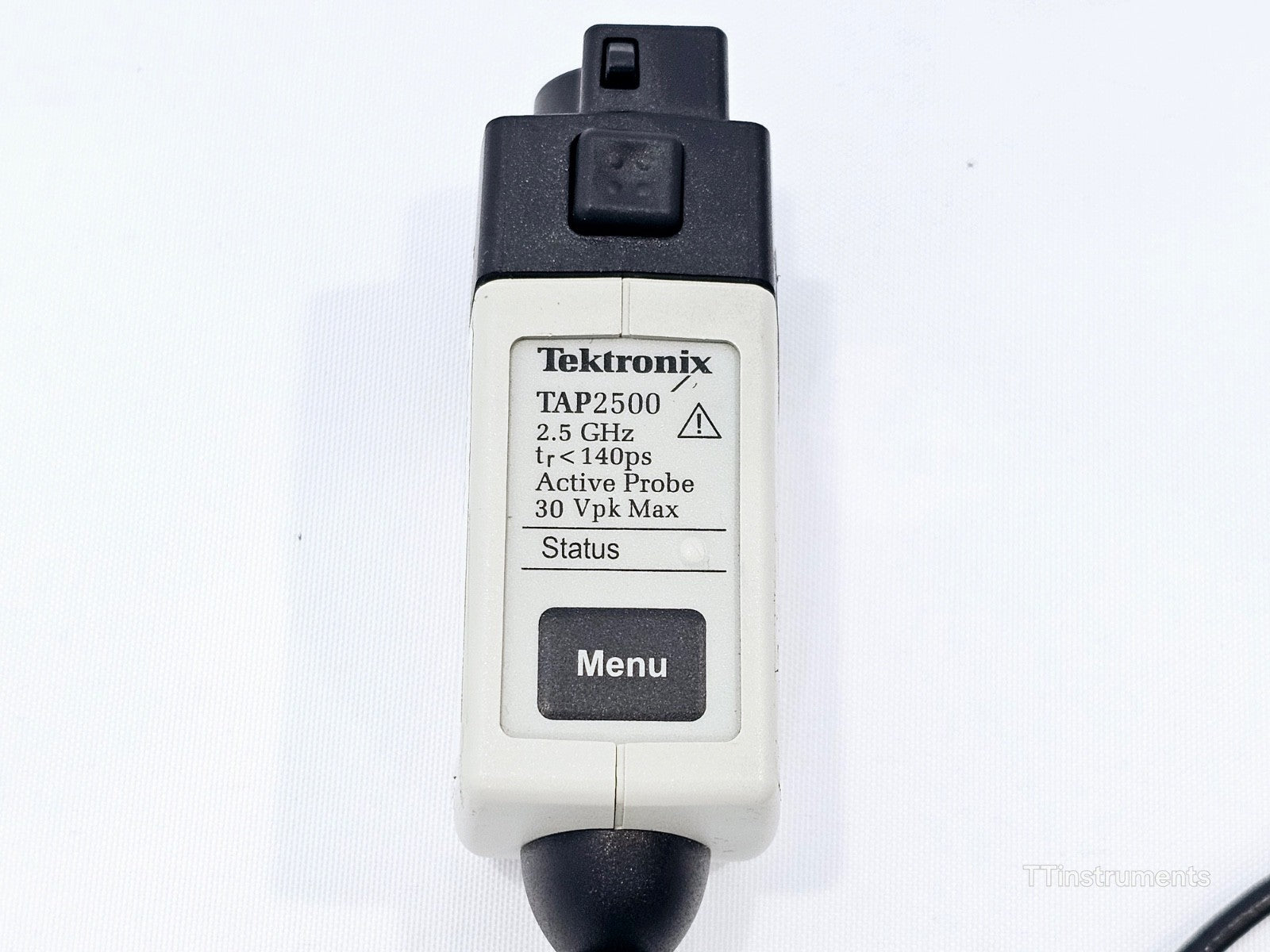

The Tektronix TAP2500 is a 2.5 GHz single-ended active FET probe designed for use with Tektronix oscilloscopes equipped with the TekVPI (Versatile Probe Interface) interface. The TekVPI connection allows the oscilloscope to automatically recognise the probe, apply correct scaling, and provide power directly through the interface — eliminating the need for an external power source.

The TAP2500 is suited to high-speed digital design, embedded systems debug, and RF/analogue circuit characterisation where signal fidelity and minimal loading are critical.

Bandwidth: 2.5 GHz
Rise Time: 140 ps
Attenuation Ratio: 10:1
Input Capacitance: ≤0.8 pF
Input Resistance: 40 kΩ
Input Dynamic Range: –4 V to +4 V
DC Offset Range: –10 V to +10 V
Maximum Non-Destructive Input: ±30 V (DC + peak AC)
Interface: TekVPI
Probe Type: Single-ended active FET
Compatibility: Tektronix TekVPI-equipped oscilloscopes (e.g. MSO/DPO5000, MSO/DPO70000 series and others)
