The Tektronix P76TA is a coaxial adapter probe tip assembly designed for the P7600 Series probe amplifiers, enabling compatibility with existing Tektronix P7500 probe tips. The probe and oscilloscope system supports up to 30 GHz of bandwidth when this adapter is paired with the P75PST Performance Solder Tip. Coaxial adapters allow the probe to act as a differential input channel for the oscilloscope, effectively doubling the number of differential signals a single oscilloscope can measure simultaneously.

The P7600 Series probe amplifiers feature a 50 Ω input. When combined with a P7500 probe tip, the probe operates as a passive Z0 style probe with 450 Ω of differential input impedance. Unlike typical Z0 probes that can present a significant DC load to the device under test, the P7600 Series minimises DC loading through termination voltage adjustment.

Included in the sale:
• P76TA Coaxial Adapter Probe Tip Assembly

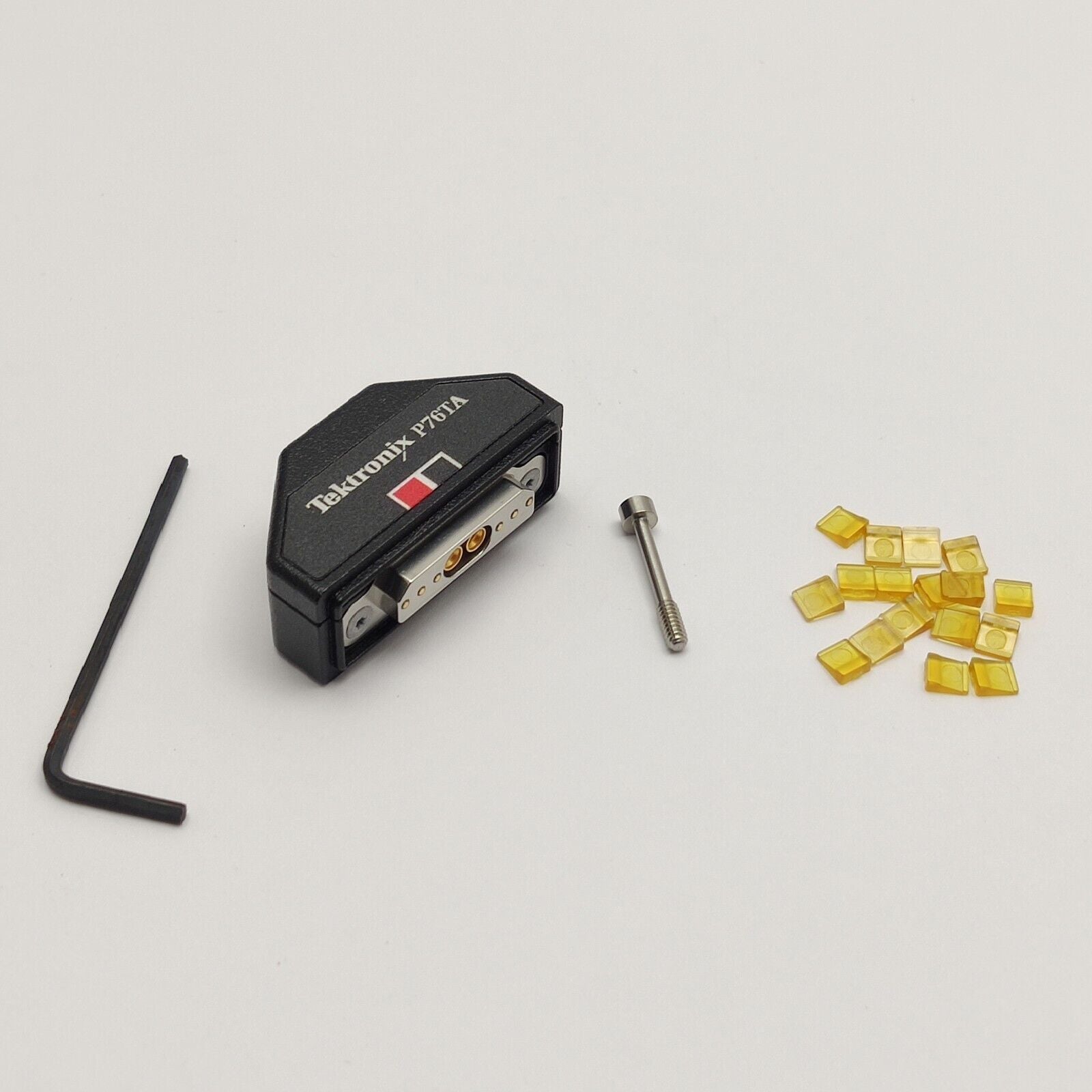

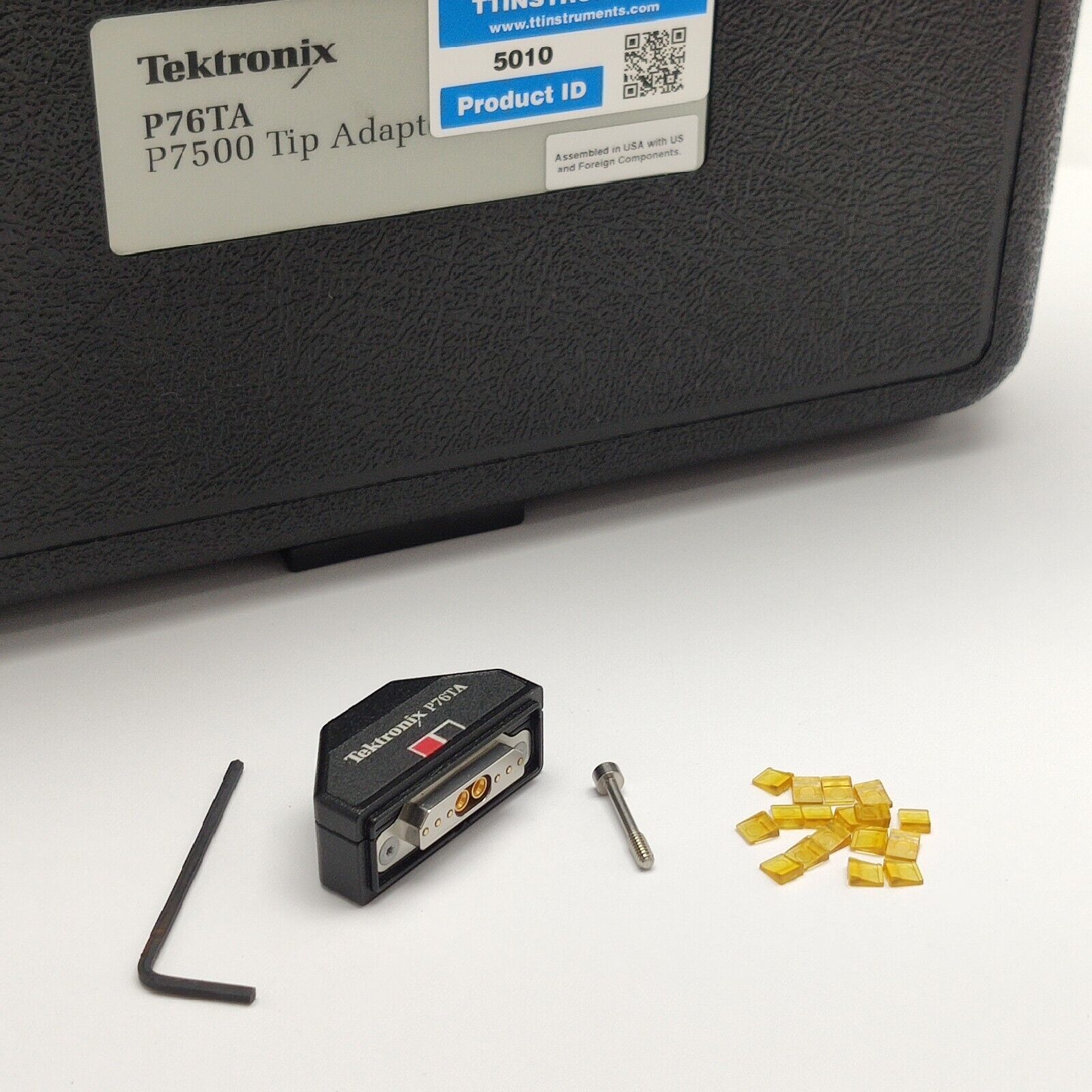

• Accessories (as shown)

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Tektronix P76TA is a coaxial adapter probe tip assembly designed for use with the P7600 Series differential probe amplifiers, specifically enabling the P7630 probe to utilise existing Tektronix P7500 Series probe tips. It is an essential accessory for engineers requiring high-bandwidth differential signal acquisition in demanding measurement environments.

Key Specifications:
Bandwidth: 30 GHz (when used with P75PST Performance Solder Tip)
Compatible Probe Series: P7600 Series (e.g. P7630)
Compatible Tip Series: P7500 Series
Probe Input Impedance: 50 Ω (P7600 Series amplifier)
Differential Input Impedance (Z0 mode): 450 Ω
Probe Type (when configured): Passive Z0 style differential probe
DC Loading Mitigation: Termination voltage adjustment

The P76TA enables coaxial adapter functionality, allowing the probe to behave as a differential input channel for the oscilloscope. This effectively doubles the number of differential signals a single oscilloscope can measure simultaneously, making it a valuable tool for high-speed digital and RF signal integrity measurements.
