Please note that we have multiple units of this item in stock. The item you receive may differ slightly in cosmetic appearance from the one shown, but will be in a similar overall condition.

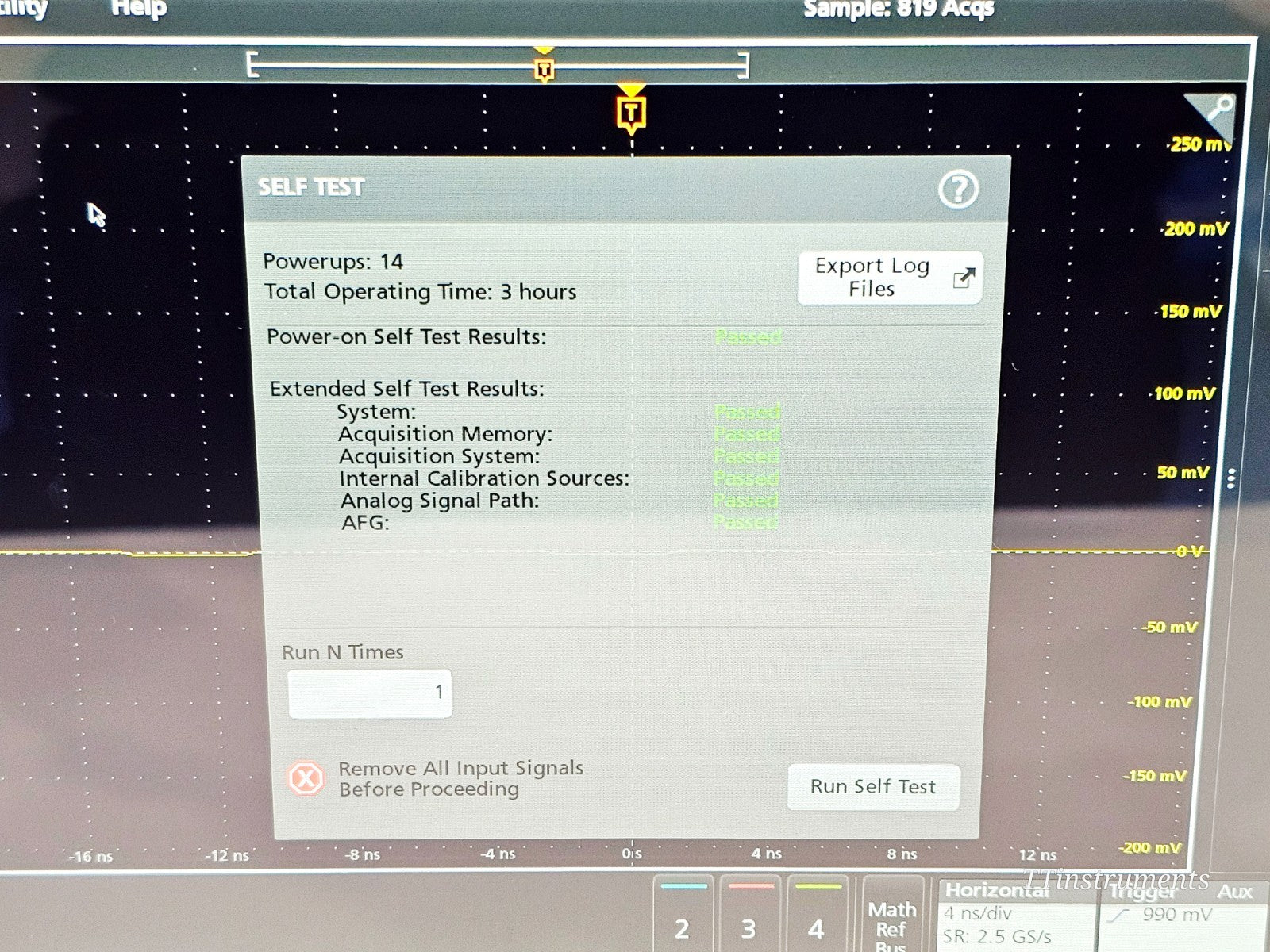

This Tektronix MSO24 is in like-new condition with just 3 hours of total operating time recorded. The unit has passed all power-on and extended self-tests including System, Acquisition Memory, Acquisition System, Internal Calibration Sources, Analog Signal Path, and AFG.

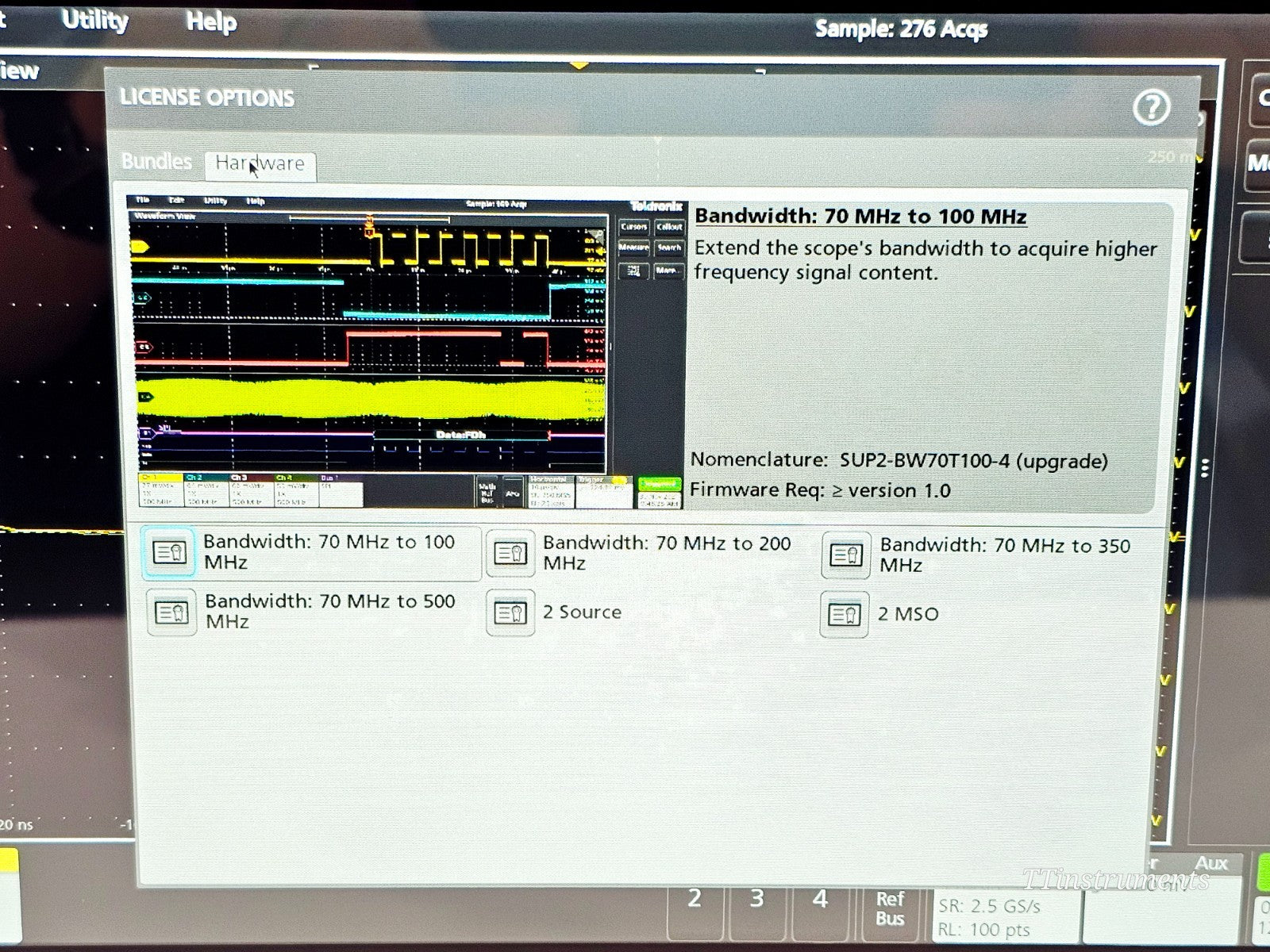

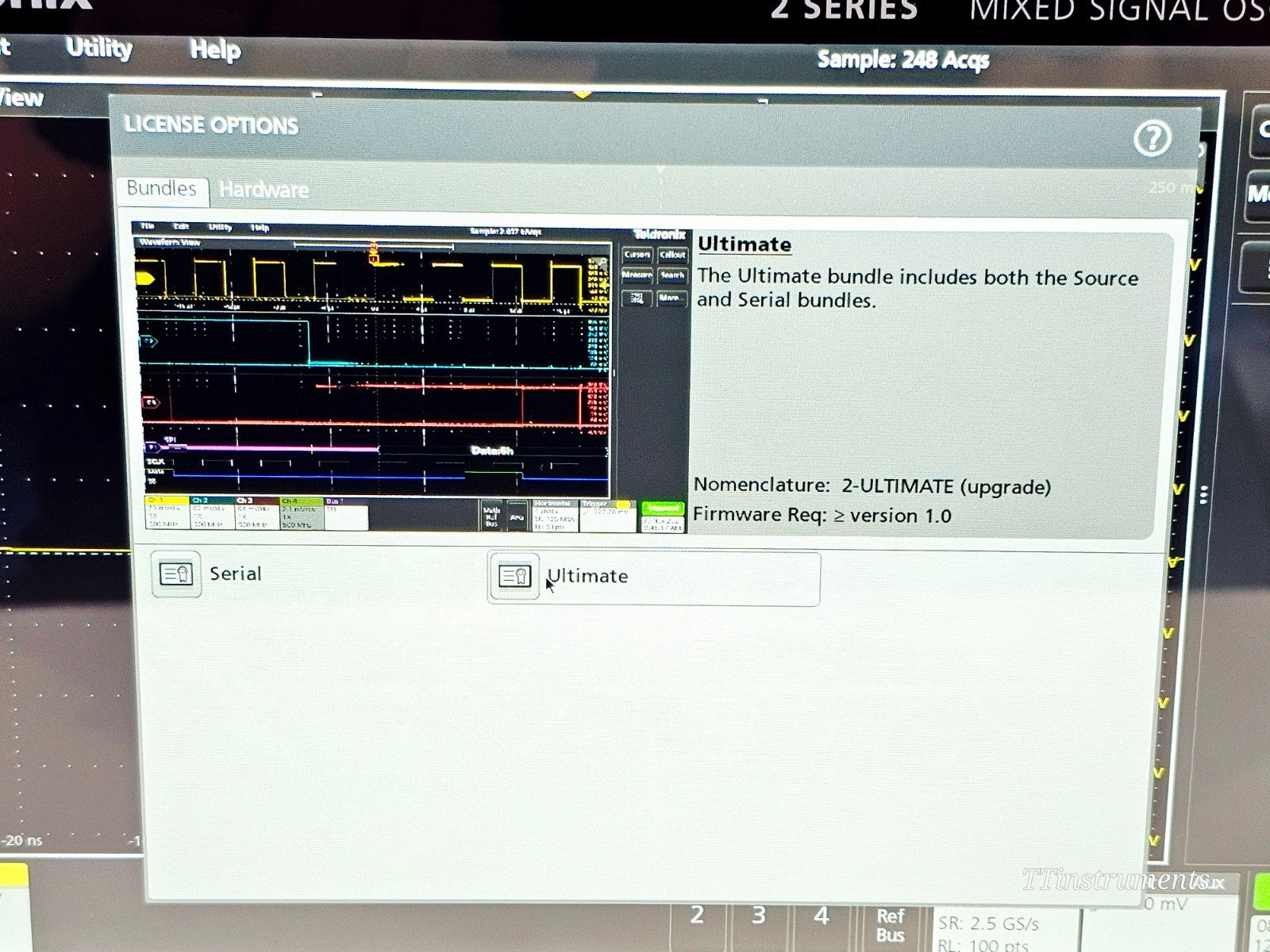

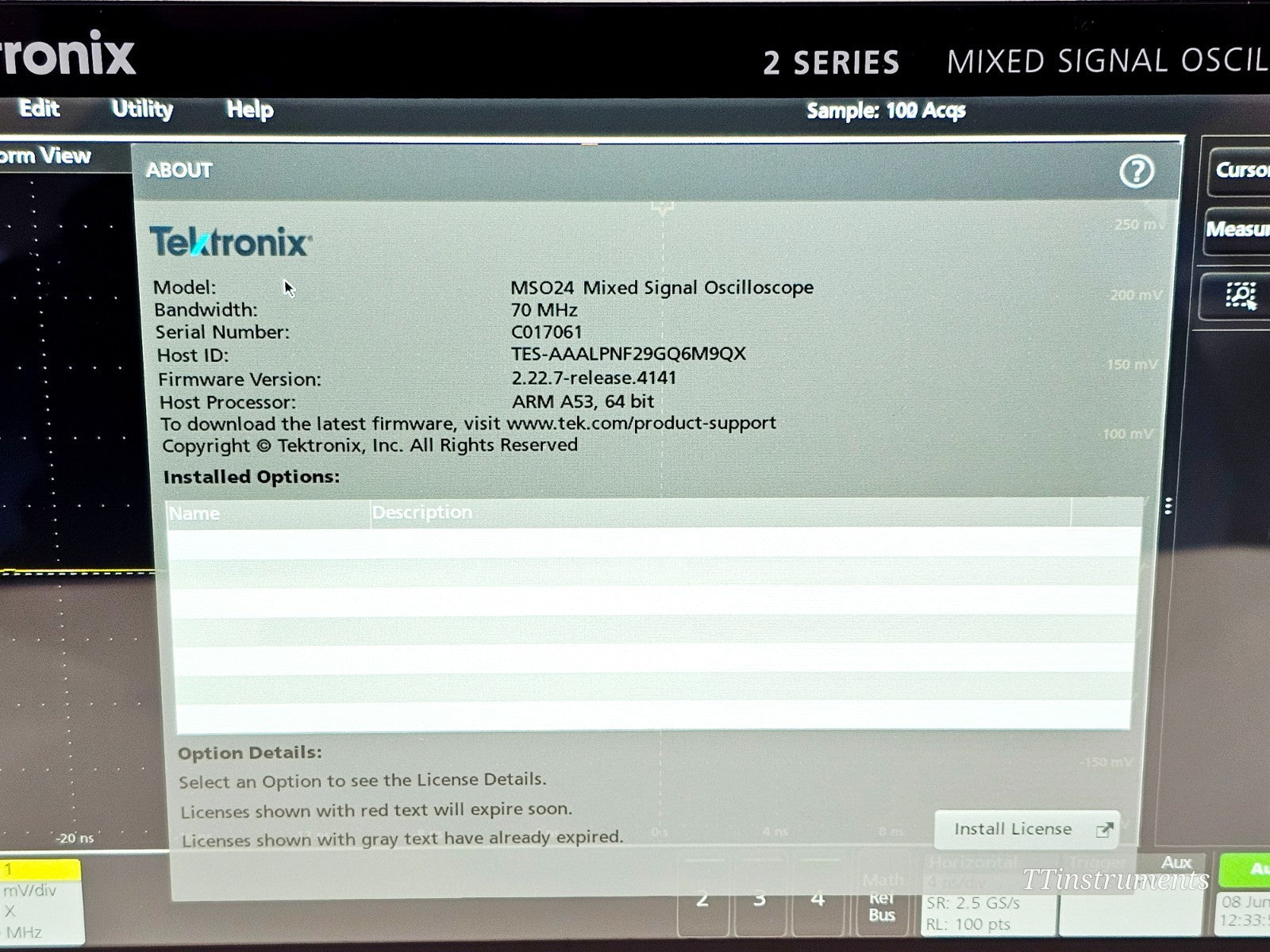

No software licence options are currently installed. The bandwidth is set to 70 MHz and can be field-upgraded via licence to 100, 200, 350, or 500 MHz without returning the unit to the factory.

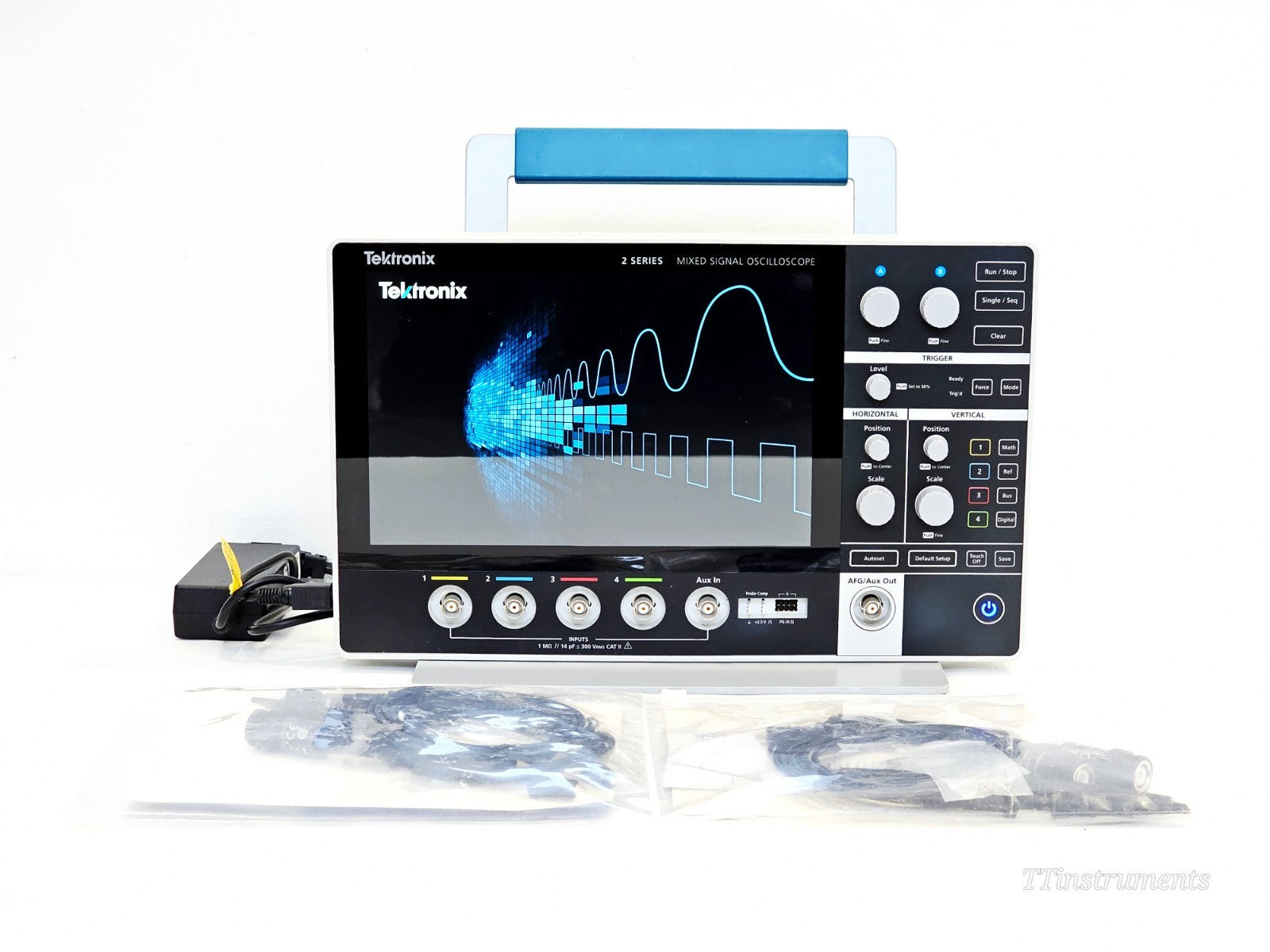

The unit is supplied with:

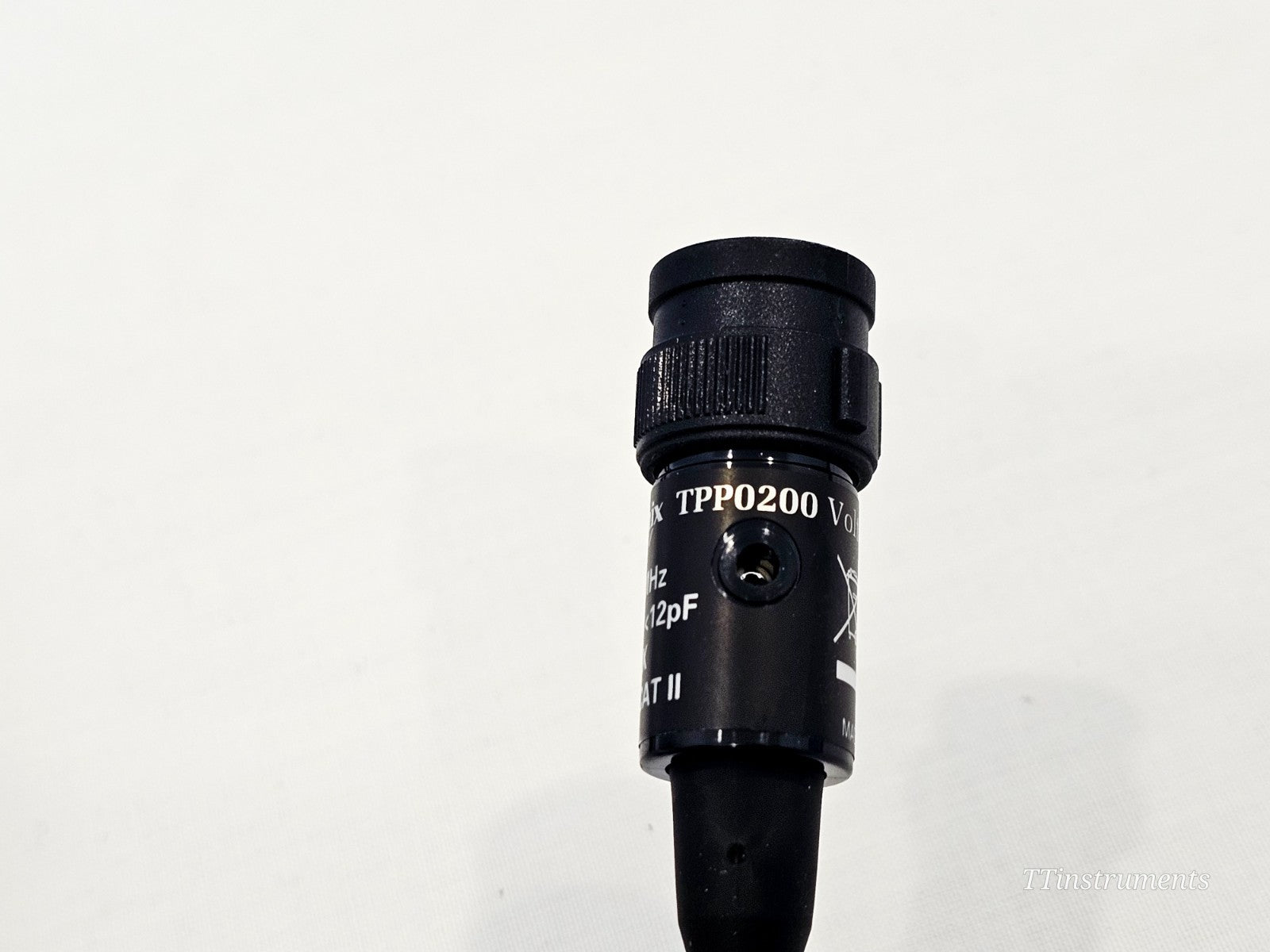

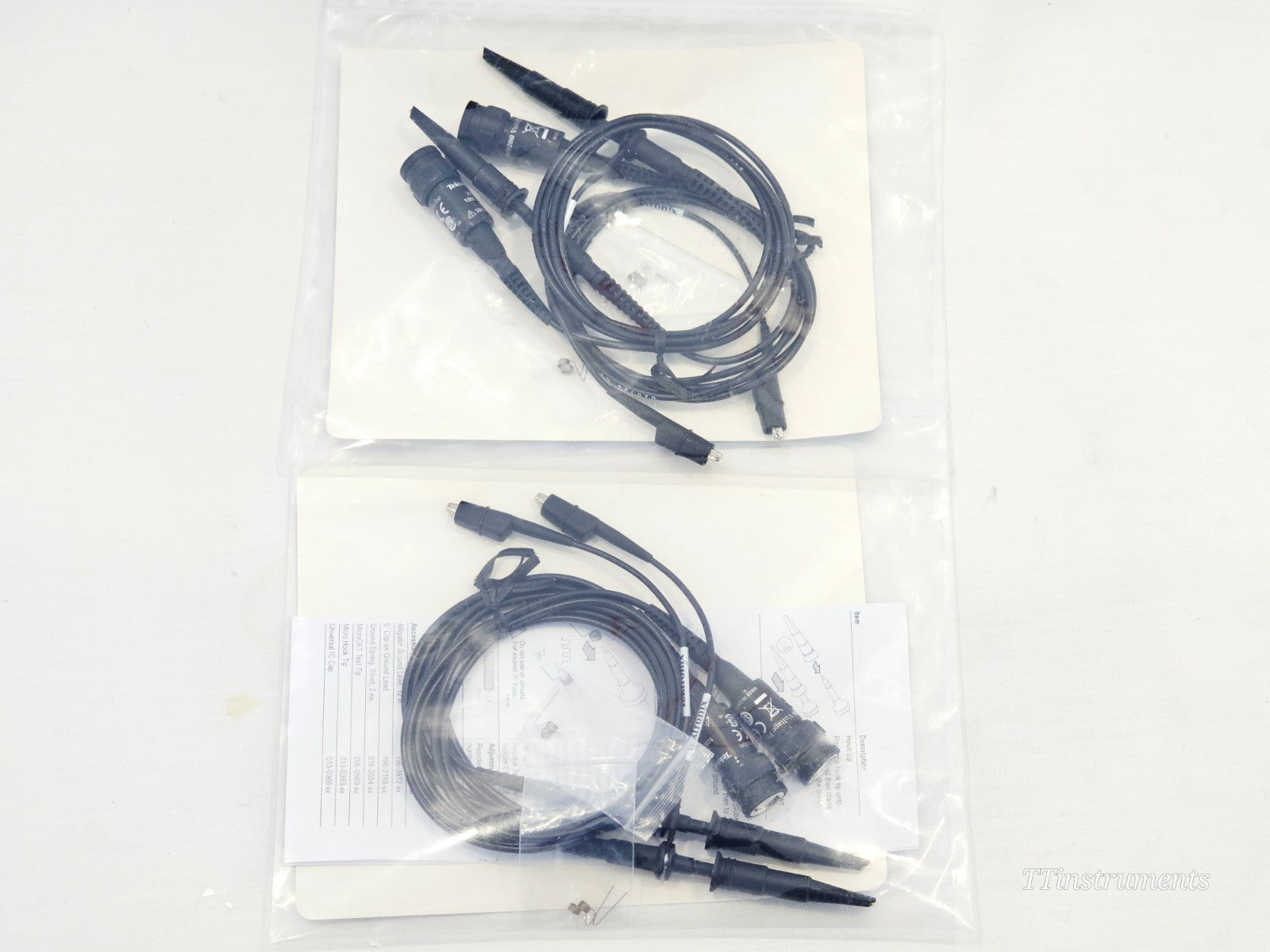

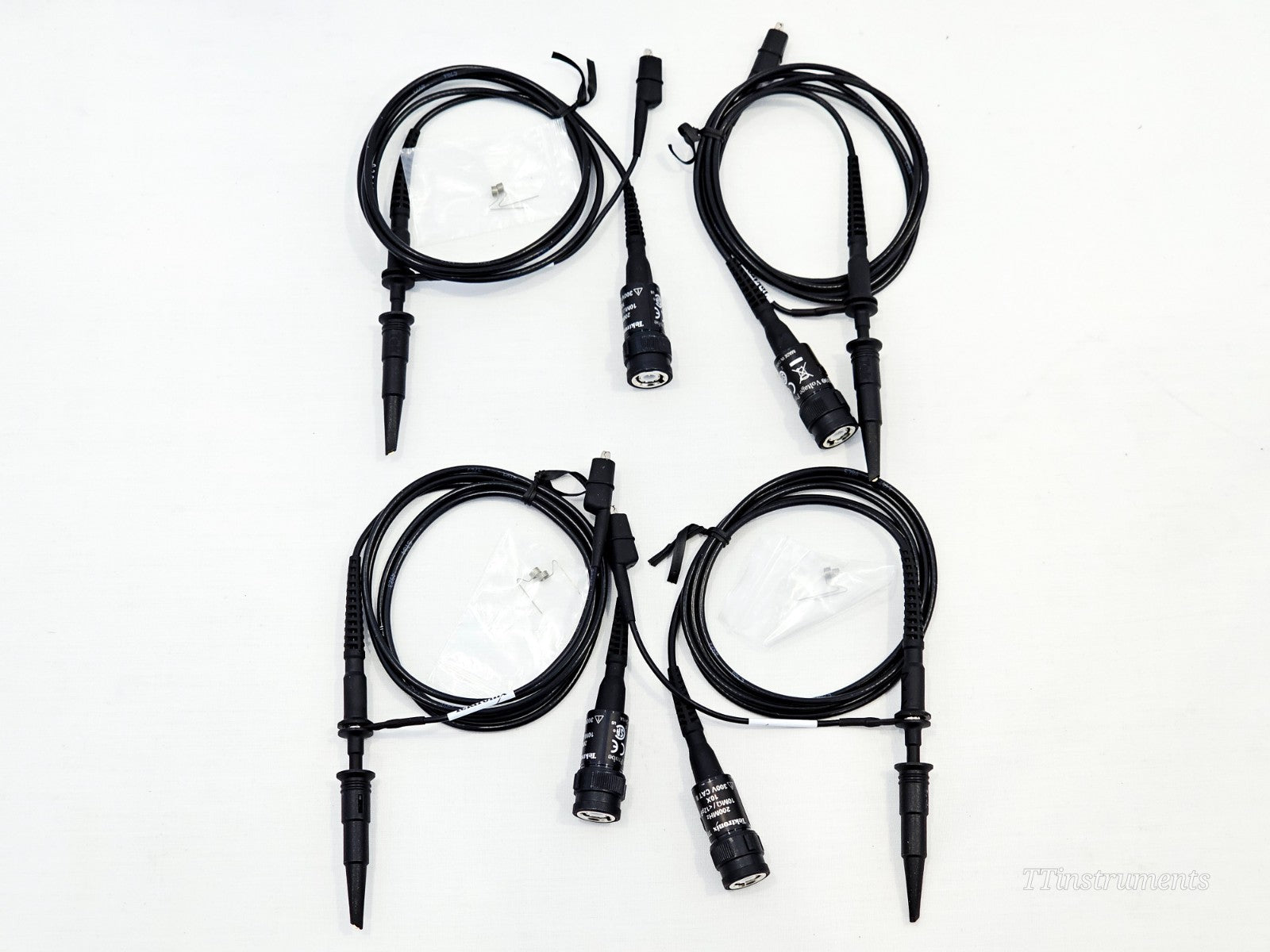

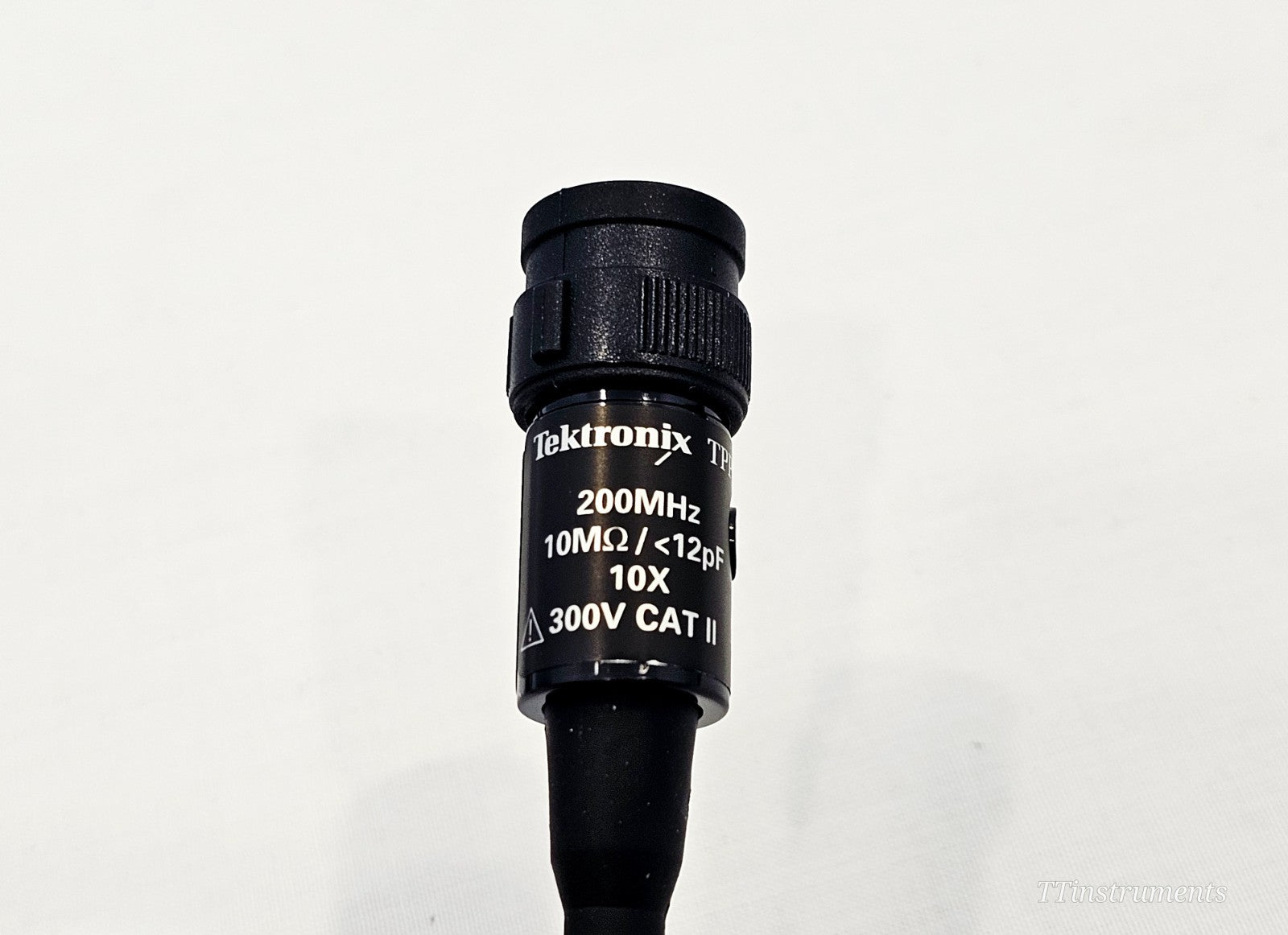

• 4x Tektronix TPP0200 200 MHz 10x passive probes

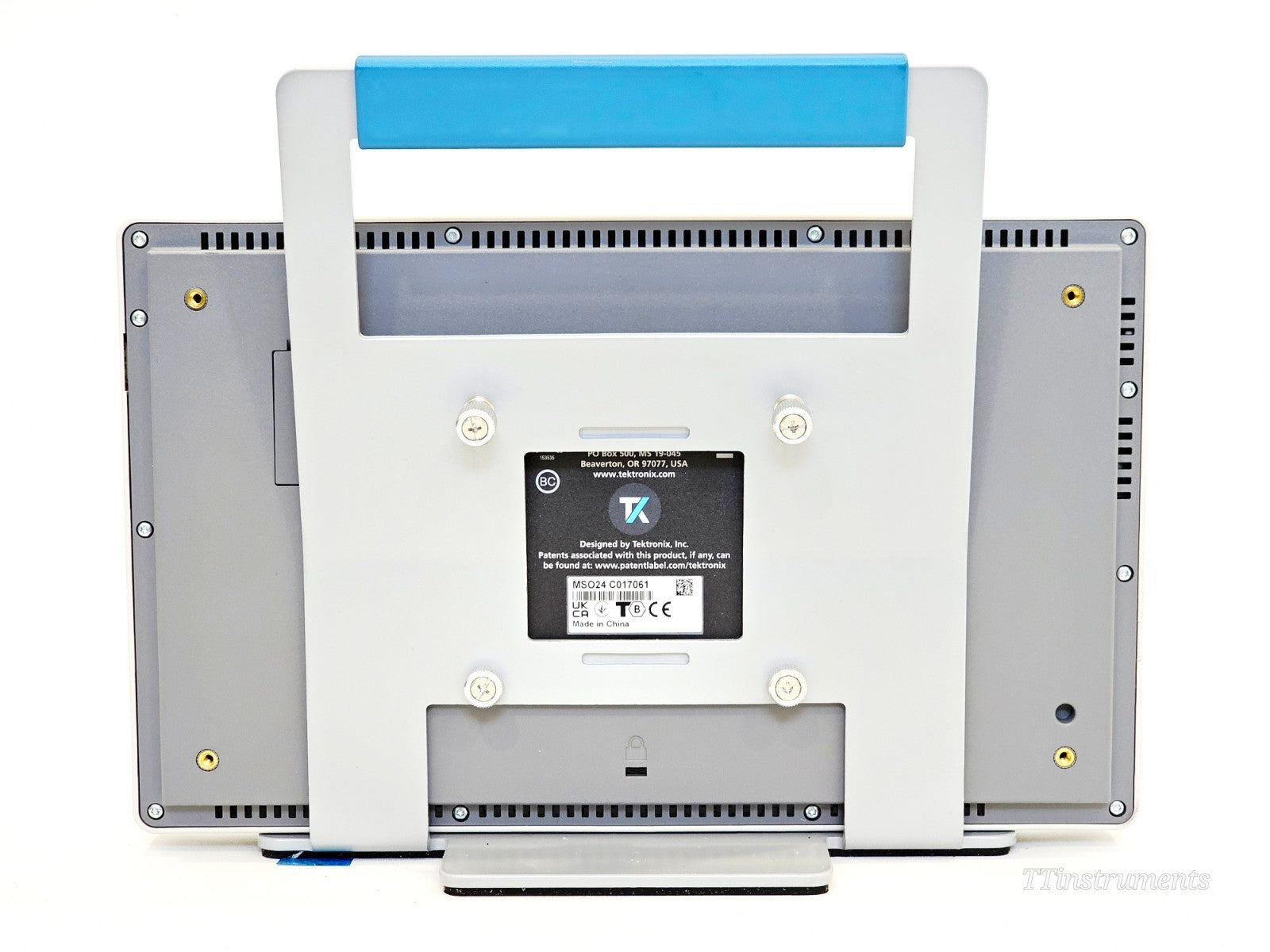

• Instrument stand
• External AC/DC power supply

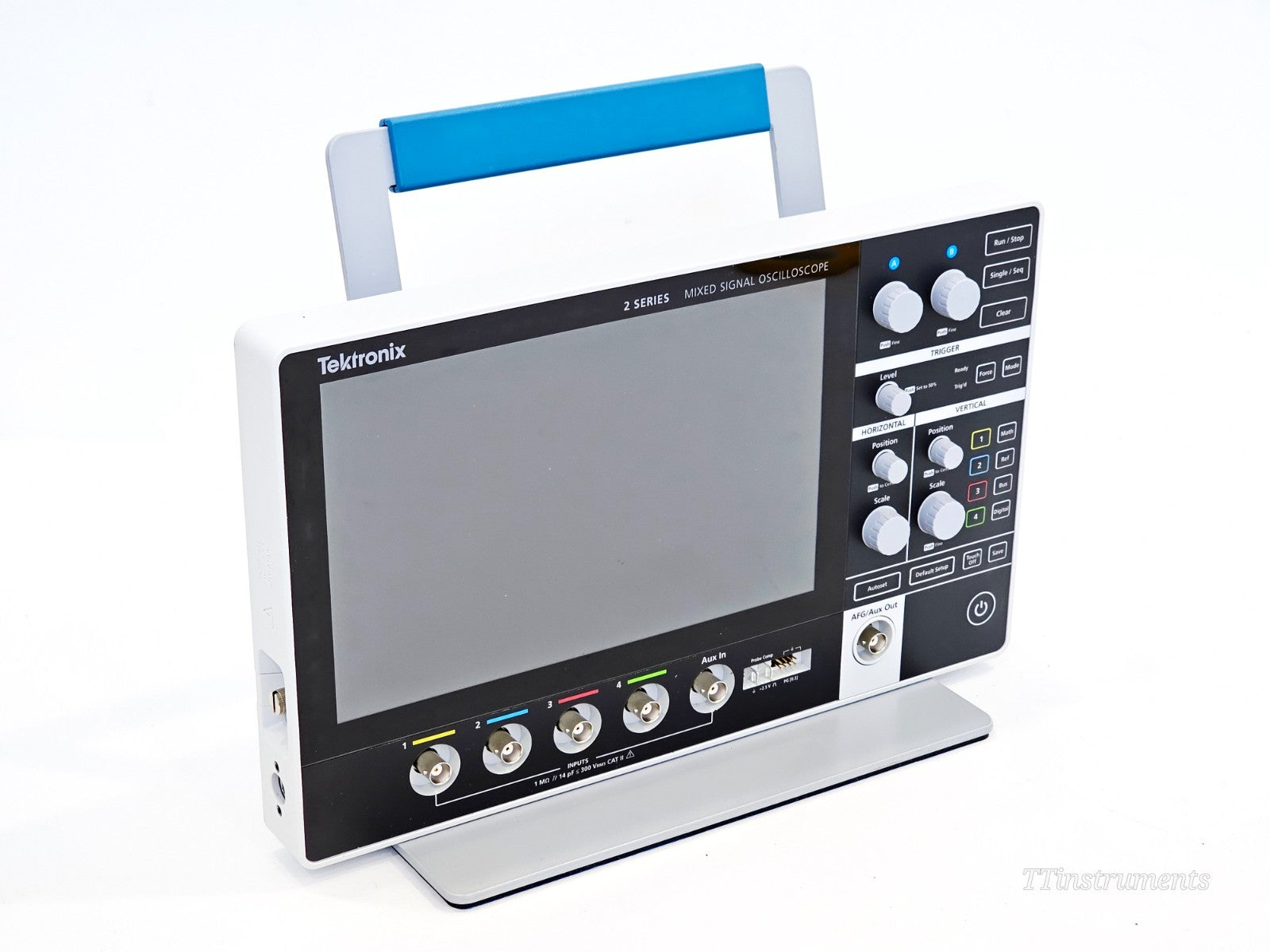

The Tektronix MSO24 is a 4-channel mixed signal oscilloscope from the 2 Series MSO family, designed for electronic debug and test in the lab or field. Its compact form factor of approximately 1.5 inches thick, combined with a 10.1-inch capacitive multi-touch touchscreen, brings the award-winning Tektronix next-generation oscilloscope user interface to an ultra-portable instrument.

The 2 Series MSO delivers the same shared user interface and programmatic command set as the higher-end 3, 4, 5, and 6 Series Tektronix oscilloscopes, making it straightforward to move between instruments without relearning the interface or rewriting test scripts. Field-upgradable bandwidth via software licence means the instrument can grow with your needs without any factory return.

Key highlights:
- 10.1-inch capacitive multi-touch TFT colour display with intuitive touch, drag, pinch-and-zoom interaction
- Bandwidth field-upgradable from 70 MHz up to 500 MHz via licence
- Up to 2.5 GS/s sample rate (half-channel interleaved) and 10 Mpts record length per channel
- Optional 16 digital MSO channels (2-MSO hardware option)
- Optional 50 MHz arbitrary function generator and 4-bit digital pattern generator (2-SOURCE option)

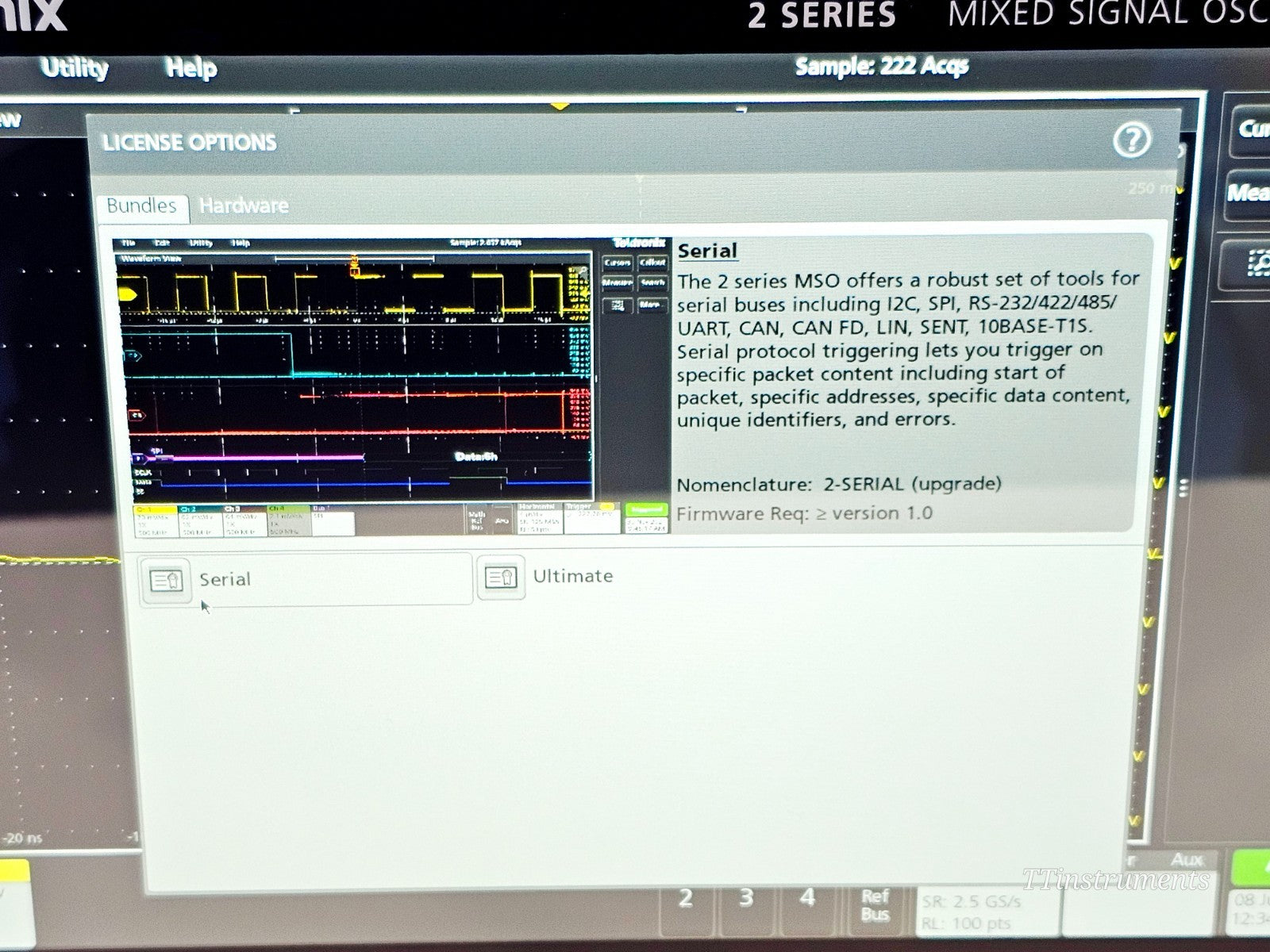

- Optional serial protocol decode and triggering: I2C, SPI, RS-232/422/485/UART, CAN, CAN FD, LIN, SENT (2-SERIAL option)
- LAN, USB Host, and USB Device connectivity; remote control via VNC
- Compatible with TekDrive cloud storage and TekScope offline PC analysis software

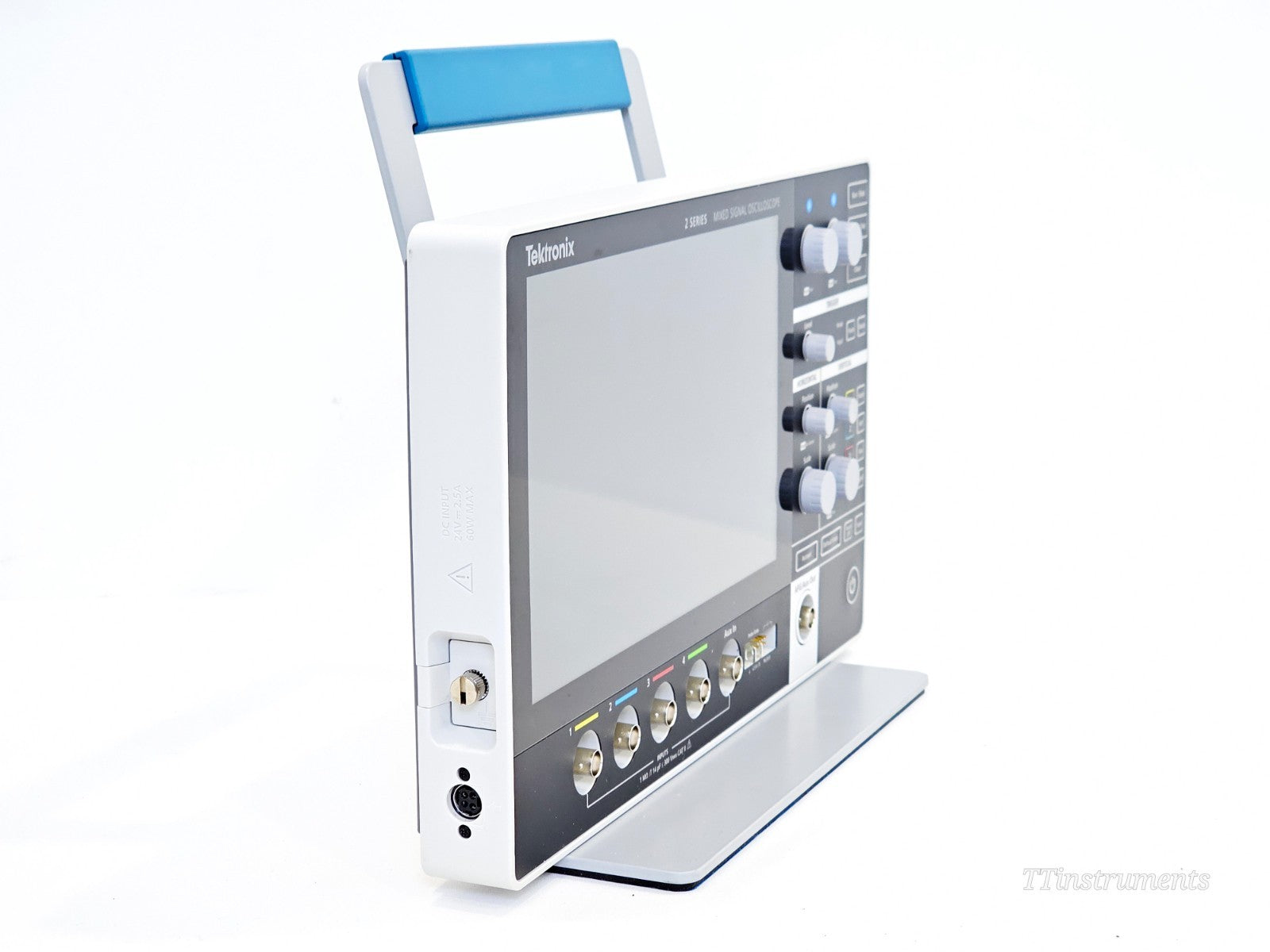

- Hardware Kensington lock slot for security
- Optional battery pack for field use (up to 8 hours typical with dual batteries)

Bandwidth: 70 MHz (standard; upgradable to 100/200/350/500 MHz)
Analogue Channels: 4
Sample Rate: Up to 2.5 GS/s (2-channel); 1.25 GS/s (all 4 channels)
Record Length: 10 Mpts per channel
Vertical Resolution: 8 bit
Display: 10.1-inch TFT capacitive multi-touch colour touchscreen
Input Impedance: 1 MΩ // 14 pF
Max Input Voltage: 300 V RMS CAT II

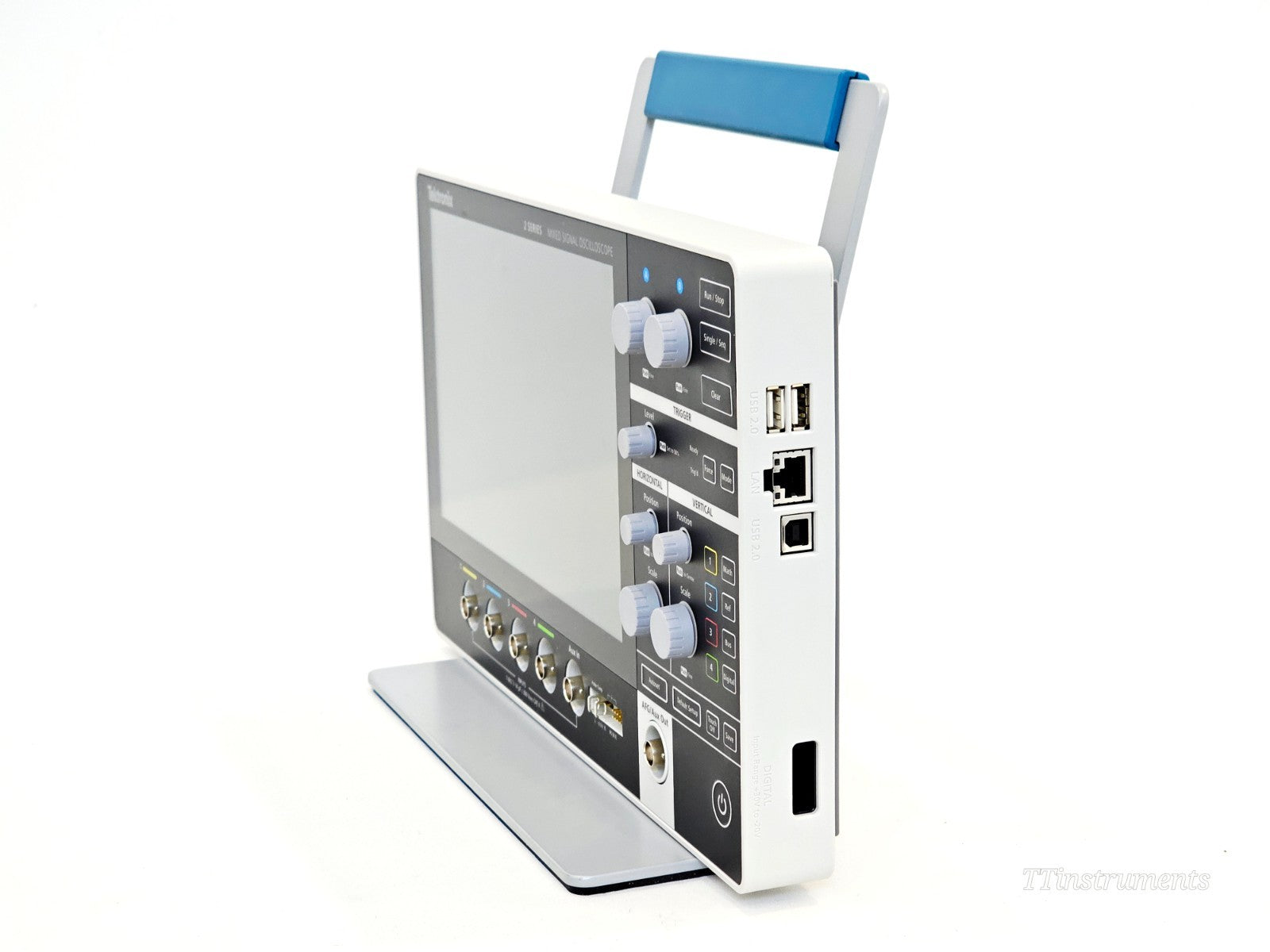

Connectivity: 2x USB 2.0 Host, 1x USB 2.0 Device, LAN 10/100 Base-T Ethernet
Form Factor: ~1.5 inches thick

Tektronix MSO24 datasheet: Download PDF
