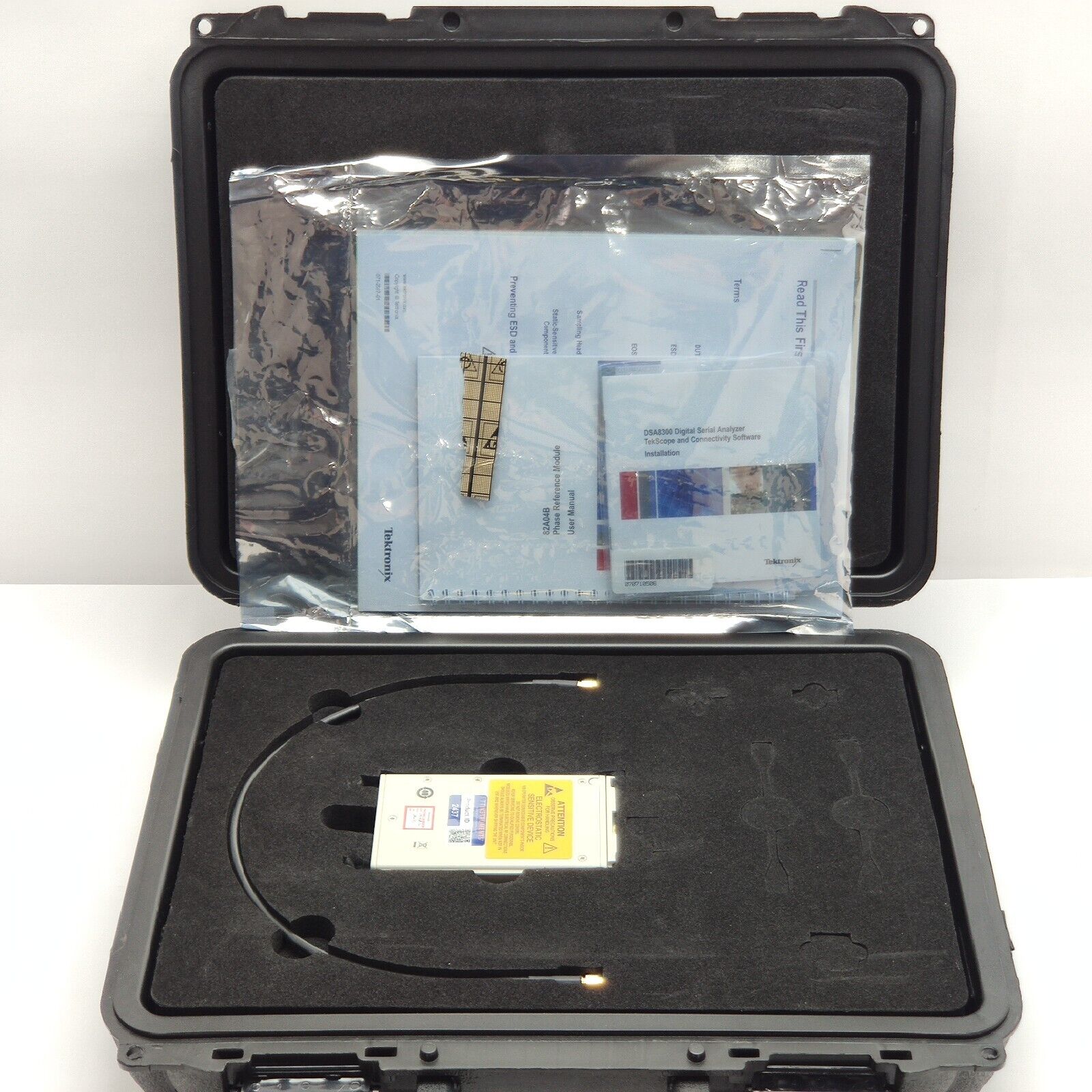

Tektronix 82A04B Phase Reference Module for the DSA8300 Sampling Oscilloscope
Model: 82A04B
Condition: Used
In stock: 1
SKU: 2437 6D01
- Electronic T&M
- Oscilloscopes & Accessories
- Phase Reference Module
Choose options
Condition: Used

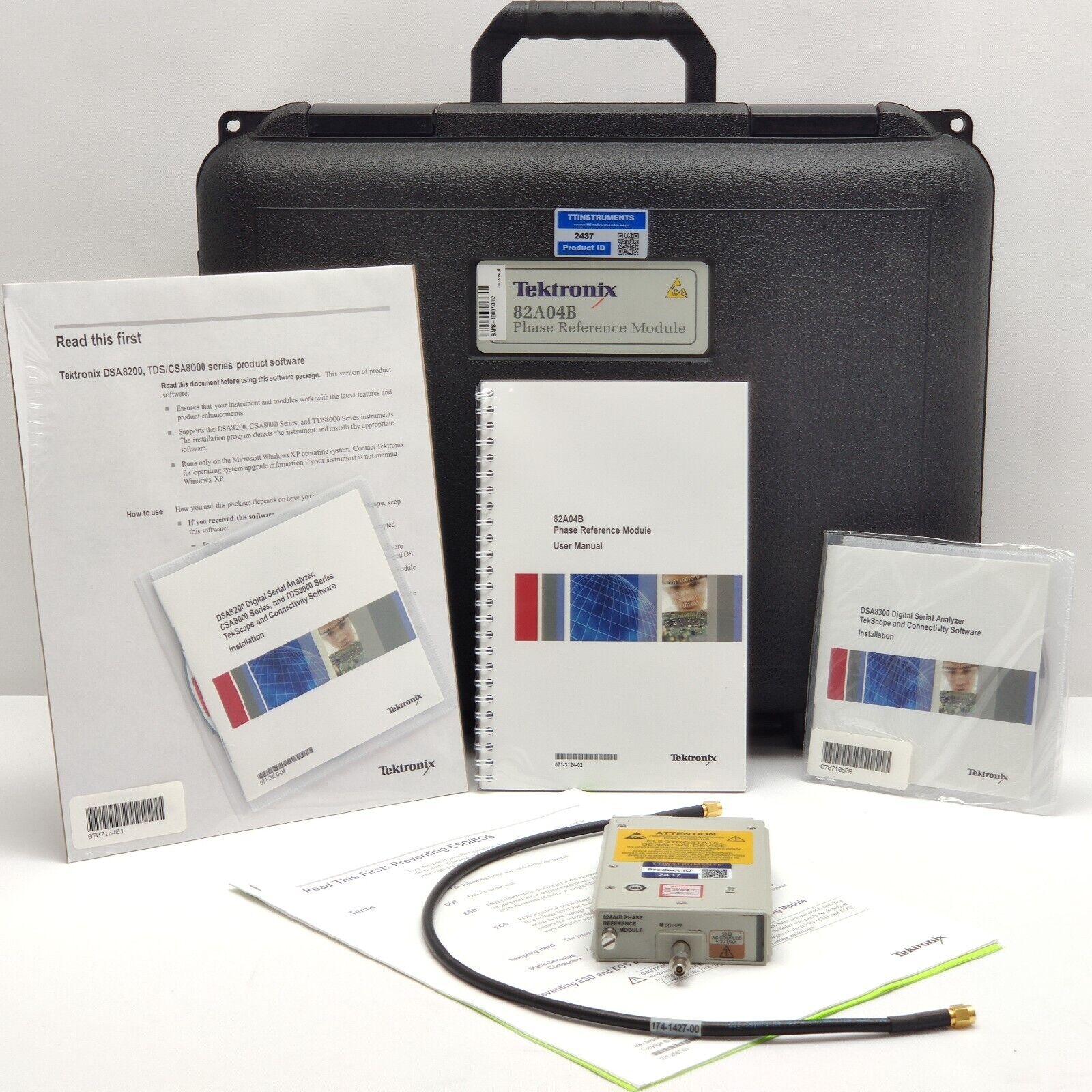

Supplied as pictured.
The Tektronix 82A04B-60G Phase Reference Module extends the capability of the DSA8300 Digital Serial Analyzer sampling oscilloscope by providing extremely low jitter/drift sample position information to the mainframe. This sample position information is based on the phase of a clock the user provides to the 82A04B input.
The Tektronix 82A04B-60G is also compatible with the DSA8200 and TDS/CSA8200 sampling oscilloscopes and can be utilized for a wide variety of design, verification, and manufacturing applications pertaining to IT, telecom, datacom components, and systems operating at 10 Gb/s or quicker.
Here is a comprehensive features list of the Tektronix 82A04B-60G:
Flexible operation:
Triggered
Untriggered (Free-running) Acquisition Without Trigger Signal
Support for enhanced acquisition modes (FrameScan-)
Small module implementation allows:
Acquisition on six other channels
Placement close to the DUT with module extender cable
Fast acquisition rate
Features & Benefits
Extremely Low Jitter <200 fsRMS (typical)
Flexible Operation
- Triggered
- Untriggered (Free-running) Acquisition Without Trigger Signal
Support for Enhanced Acquisition Modes (FrameScan®)
Wide and Continuous Frequency Range 2 GHz - 60 GHz
Small Module Implementation Allows:
Acquisition on Six Other Channels
Placement Close to the DUT with Module Extender Cable
- Fast Acquisition Rate
Applications
- Design, Verification, and Manufacturing of Telecom and Datacom Components and Systems Operating at 10 Gb/s and Faster
Extremely Low Jitter, Flexible Signal Acquisition Solution
The 82A04 Phase Reference Module extends the capability of the DSA8300*1 digital serial analyzer sampling oscilloscope mainframe by providing extremely low jitter/drift sample position information to the mainframe. This sample position information is based on the phase of a clock the user provides to the 82A04 input.
The benefits of using the sample position information based on a clock signal are two-fold – an extremely low jitter of <200 fsRMS (typical), and the possibility of a triggerless acquisition. The typical application is the acquisition and analysis of very high-speed optical and electrical signals in high-speed communication devices and systems and similar areas.
The 82A04 together with the DSA8300 implements the phase reference time-base functionality in a novel way, giving the user the freedom to select from time base and acquisition modes without compromises; any phase-reference frequency within the operating range is accommodated, and even the advanced features, such as FrameScan®, remain available. The separate DSP per acquisition slot architecture of the DSA8300 enables the acquisition rate in the Phase Reference mode to reach over 40 kS/s*2.
*1 Also compatible with DSA8200, TDS/CSA8200 sampling oscilloscopes.
*2 Typical performance, some settings will lower the throughput.
Modes of Operation
The operation of the phase reference is based on the acquisition of a clock synchronous to the signal under observation. This clock can be a user-supplied signal (e.g. a clock from a BERT), or the clock output of one of the DSA8300 clock recovery or optical modules. In addition, the user can also provide a traditional external trigger signal either to the Direct Trigger input, or to the Trigger Prescaler input of the mainframe.
Phase Ref Free-Run - With no external trigger to the DSA8300 mainframe needed, the 82A04 module can, together with the mainframe, create a time base based on the phase of the reference clock (effectively the time base of the instrument functions as a “Phase-base” instead). The signal displayed on the screen will therefore repeat after one period of the reference clock. All user controls remain enabled, even while the horizontal position has relative meaning only. The timing information presented by the oscilloscope is based solely on the phase reference clock frequency as entered by the user in the Input Freq field of the Phase Reference Setup dialog.
Phase Ref Triggered - When the DSA8300 mainframe is supplied with both the reference clock and a traditional external trigger, the mainframe triggers on the trigger signal, and uses the phase reference information from the 82A04 to minimize the jitter. Otherwise the acquisition process doesn’t change from traditional acquisition, the signal remains referenced to the trigger point.
Characterize - To operate properly in either the Phase Ref Triggered or the Phase Ref Free-Run modes the Phase Reference module has to first characterize the phase reference signal. The signal needs to be stable during the characterization and afterward. The instrument indicates when characterization is necessary.
Performance You Can Count On
Depend on Tektronix to provide you with performance you can count on. In addition to industry-leading service and support, this product comes backed by a one-year warranty as standard.
Shipping & Returns Policy
Shipping Policy
- Processing Time: Orders are typically processed and dispatched within 1 business day.
- Shipping Methods: We offer Expedited Shipping to all destinations using UPS/DHL/Fedex/Royal Mail and other reputable carriers.
- Shipping Times: Mainland UK: 1-2 Business Days / Mainland Europe and USA: 2-3 Business Days / Rest of the World 5-7 Business Days.
- Shipping Costs: These are calculated at checkout based on the shipping method, destination and package dimensions.
- CUSTOMS AND TAXES: It is YOUR responsibility to liaise with customs in your country and ensure your package is cleared and any taxes are paid.
- Shipping Destinations: We ship worldwide.
- Tracking: Once your order is shipped, we will provide you with a tracking number via email.
- Insurance: All shipments are insured. In case of damage, please contact us via email within 48 hours of receiving the product with photographic evidence, please also ensure a report is logged with the delivery driver.
Returns Policy
- Return Period: In the event of an item being recieved which is 'not as specified', you can return your purchase within 14 days of delivery.
- Condition of Items: Items must be returned unused and in their original packaging.
- Return Method: All returns must be notified in writing to hello@ttinstruments.com, the email should accompany the order number, date and reason for return and must be within 14 days of delivery.
- Restocking Fees: A restocking fee of up-to 20% is applicable for items returned for any reason other than 'not as specified'.
- Refund Method: Refunds are processed to the original method of payment within 5 business days of receiving the return.
- Exchanges: We do not offer exchanges. It will either be a replacement or a refund.
- Return Shipping Costs: Return shipping costs will be borne by the customer unless the item is 'not as specified', in this case we will arrange for the return by way of a prepaid shipping label.
Clearance
Products listed in this category consist of devices which are either untested or have been identified as faulty and therefore being sold for parts or repairs. You may use these as donor units or even attempt a repair. Due to the sheer volume of stock, some items may be left untested. The description will usually state whether the item is simply untested or if it is faulty.
All products sold under clearance are strictly sold ‘as seen’, returns are not accepted on such items.
Product Overview
Condition: Used
Supplied as pictured.
Manufacturer's Description
The Tektronix 82A04B-60G Phase Reference Module extends the capability of the DSA8300 Digital Serial Analyzer sampling oscilloscope by providing extremely low jitter/drift sample position information to the mainframe. This sample position information is based on the phase of a clock the user provides to the 82A04B input.
The Tektronix 82A04B-60G is also compatible with the DSA8200 and TDS/CSA8200 sampling oscilloscopes and can be utilized for a wide variety of design, verification, and manufacturing applications pertaining to IT, telecom, datacom components, and systems operating at 10 Gb/s or quicker.
Here is a comprehensive features list of the Tektronix 82A04B-60G:
Flexible operation:
Triggered
Untriggered (Free-running) Acquisition Without Trigger Signal
Support for enhanced acquisition modes (FrameScan-)
Small module implementation allows:
Acquisition on six other channels
Placement close to the DUT with module extender cable
Fast acquisition rate
Features & Benefits
Extremely Low Jitter <200 fsRMS (typical)
Flexible Operation
- Triggered
- Untriggered (Free-running) Acquisition Without Trigger Signal
Support for Enhanced Acquisition Modes (FrameScan®)
Wide and Continuous Frequency Range 2 GHz - 60 GHz
Small Module Implementation Allows:
Acquisition on Six Other Channels
Placement Close to the DUT with Module Extender Cable
- Fast Acquisition Rate
Applications
- Design, Verification, and Manufacturing of Telecom and Datacom Components and Systems Operating at 10 Gb/s and Faster
Extremely Low Jitter, Flexible Signal Acquisition Solution
The 82A04 Phase Reference Module extends the capability of the DSA8300*1 digital serial analyzer sampling oscilloscope mainframe by providing extremely low jitter/drift sample position information to the mainframe. This sample position information is based on the phase of a clock the user provides to the 82A04 input.
The benefits of using the sample position information based on a clock signal are two-fold – an extremely low jitter of <200 fsRMS (typical), and the possibility of a triggerless acquisition. The typical application is the acquisition and analysis of very high-speed optical and electrical signals in high-speed communication devices and systems and similar areas.
The 82A04 together with the DSA8300 implements the phase reference time-base functionality in a novel way, giving the user the freedom to select from time base and acquisition modes without compromises; any phase-reference frequency within the operating range is accommodated, and even the advanced features, such as FrameScan®, remain available. The separate DSP per acquisition slot architecture of the DSA8300 enables the acquisition rate in the Phase Reference mode to reach over 40 kS/s*2.
*1 Also compatible with DSA8200, TDS/CSA8200 sampling oscilloscopes.
*2 Typical performance, some settings will lower the throughput.
Modes of Operation
The operation of the phase reference is based on the acquisition of a clock synchronous to the signal under observation. This clock can be a user-supplied signal (e.g. a clock from a BERT), or the clock output of one of the DSA8300 clock recovery or optical modules. In addition, the user can also provide a traditional external trigger signal either to the Direct Trigger input, or to the Trigger Prescaler input of the mainframe.
Phase Ref Free-Run - With no external trigger to the DSA8300 mainframe needed, the 82A04 module can, together with the mainframe, create a time base based on the phase of the reference clock (effectively the time base of the instrument functions as a “Phase-base” instead). The signal displayed on the screen will therefore repeat after one period of the reference clock. All user controls remain enabled, even while the horizontal position has relative meaning only. The timing information presented by the oscilloscope is based solely on the phase reference clock frequency as entered by the user in the Input Freq field of the Phase Reference Setup dialog.
Phase Ref Triggered - When the DSA8300 mainframe is supplied with both the reference clock and a traditional external trigger, the mainframe triggers on the trigger signal, and uses the phase reference information from the 82A04 to minimize the jitter. Otherwise the acquisition process doesn’t change from traditional acquisition, the signal remains referenced to the trigger point.
Characterize - To operate properly in either the Phase Ref Triggered or the Phase Ref Free-Run modes the Phase Reference module has to first characterize the phase reference signal. The signal needs to be stable during the characterization and afterward. The instrument indicates when characterization is necessary.
Performance You Can Count On
Depend on Tektronix to provide you with performance you can count on. In addition to industry-leading service and support, this product comes backed by a one-year warranty as standard.
