Condition: Used

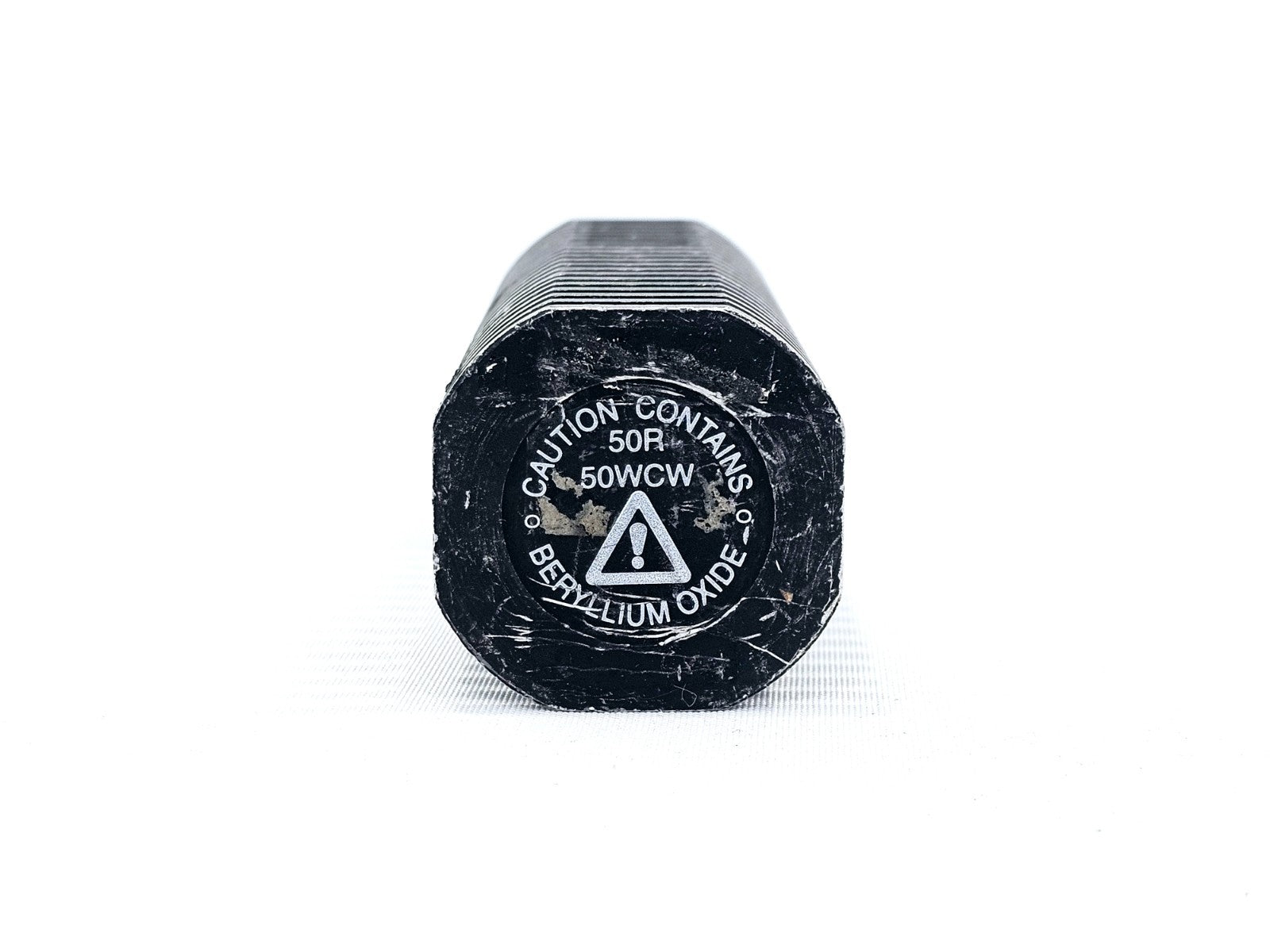

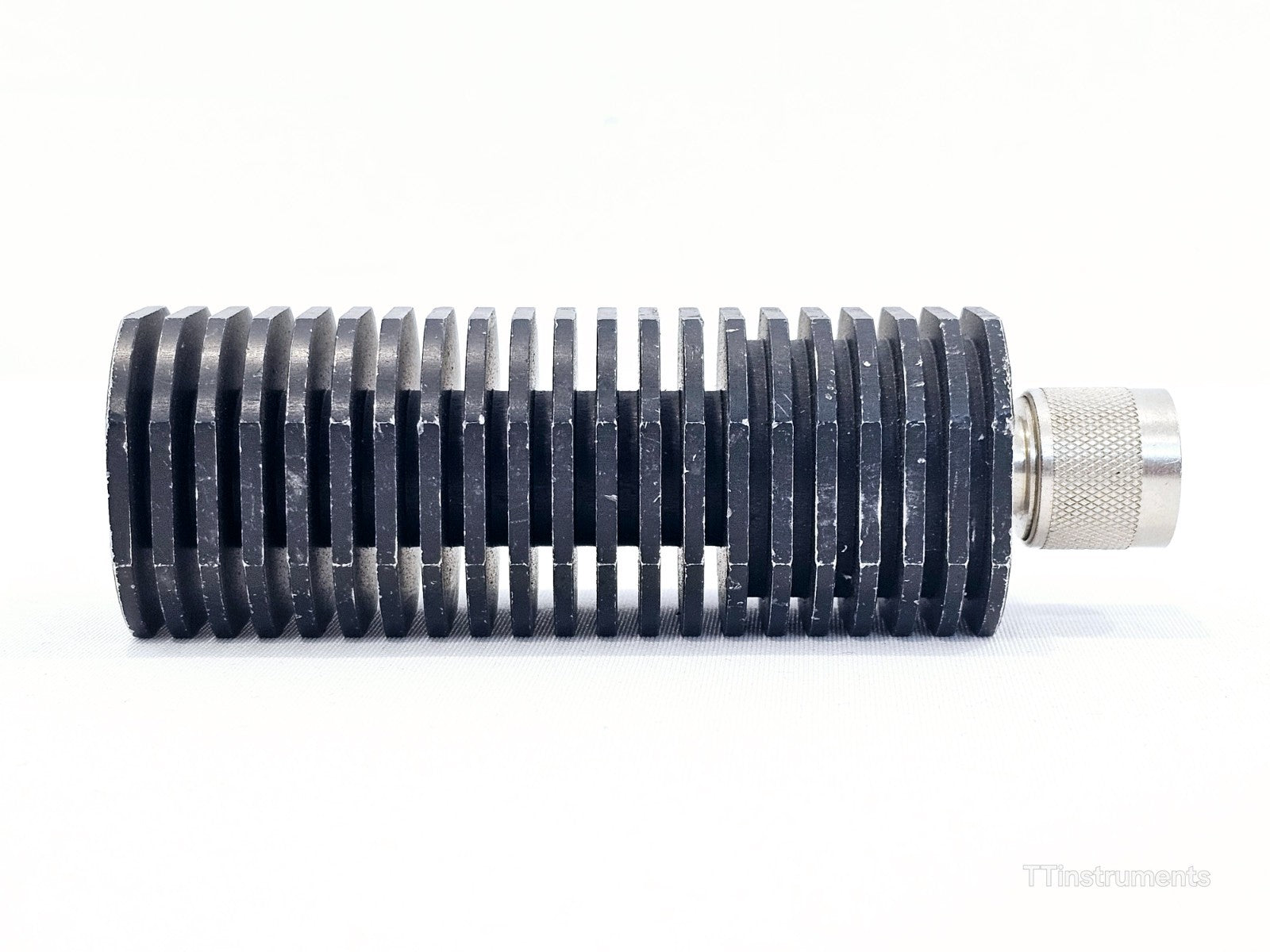

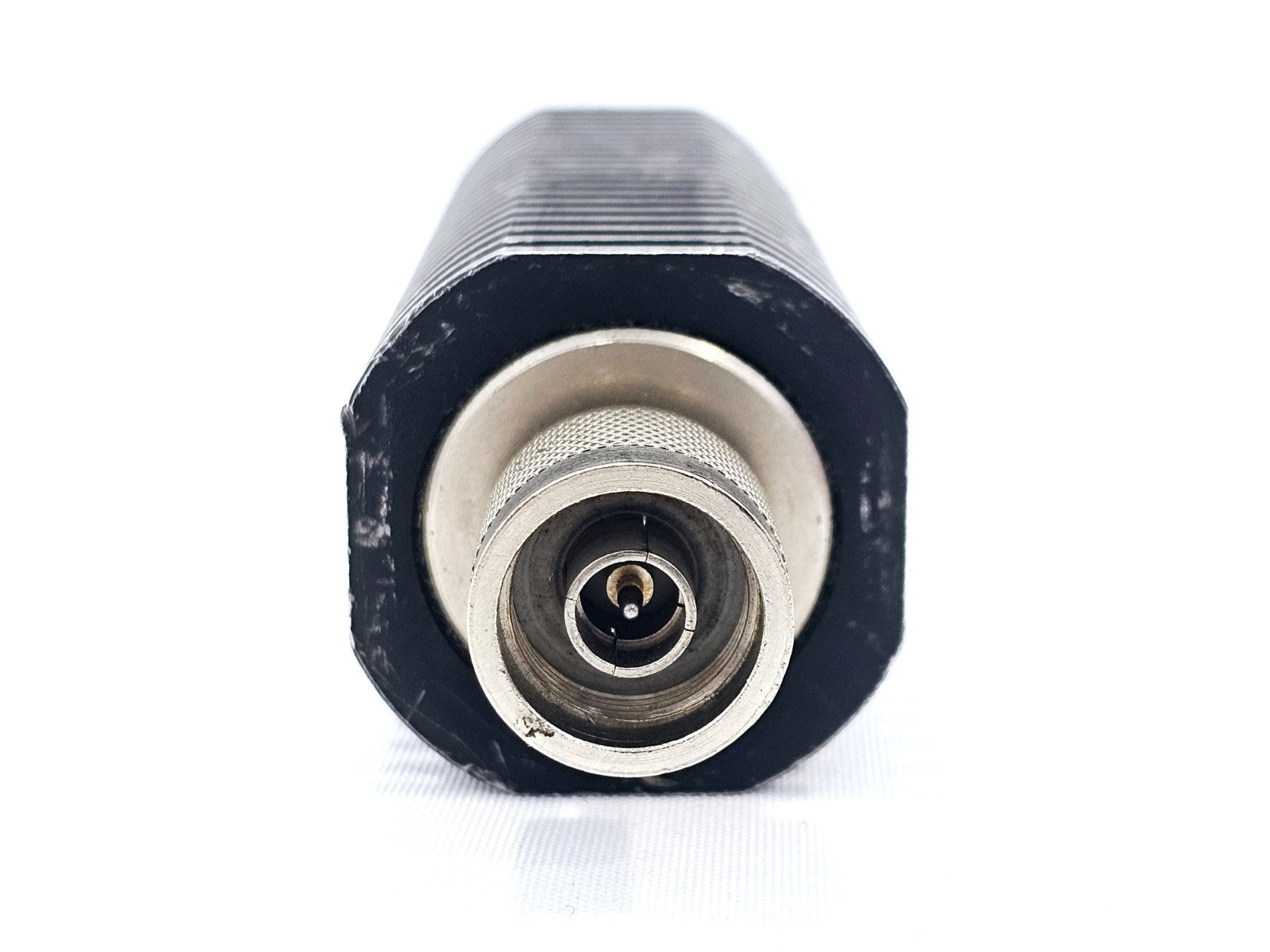

TE Connectivity 6329823-1 RF dummy load rated at 50W continuous power with a beryllium oxide resistor element, N-type plug connector, 50Ω impedance, VSWR of 1.2:1, and a maximum frequency of 2 GHz. The unit features an anodised aluminium finned heatsink body for air cooling. The end cap label clearly shows the "CAUTION CONTAINS BERYLLIUM OXIDE" warning.

Included in the sale:
• TE Connectivity 6329823-1 RF dummy load unit

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

⚠️ IMPORTANT SAFETY NOTICE: This product contains Beryllium Oxide (BeO), a toxic substance. It must not be cut open, drilled, ground, or incinerated. Handle with care and follow all relevant safety regulations.

The TE Connectivity 6329823-1 is an N-type plug, air-cooled RF dummy load designed for terminating 50Ω coaxial systems to allow testing and adjustment to be carried out safely and accurately. The load element uses a Beryllium Oxide (BeO) ceramic resistor, which provides excellent thermal conductivity for sustained high-power operation. The anodised aluminium finned heatsink body dissipates heat effectively during continuous use. These products must not be cut open or incinerated due to the toxic nature of Beryllium Oxide.

Key Specifications:
Manufacturer Part Number: 6329823-1
Type: RF Dummy Load / Coaxial Terminator
Connector Type: N-Type Plug (Male)
Impedance: 50Ω
Continuous Power Rating: 50W
Maximum Frequency: 2 GHz
Minimum Frequency: DC
VSWR: 1.2:1
Cooling Method: Air (finned aluminium heatsink body)
Resistor Element: Beryllium Oxide (BeO)
Applications: RF system testing, transmitter load termination, antenna system commissioning, production testing, and maintenance of 50Ω coaxial systems

Warning: Contains Beryllium Oxide — a toxic substance. Do not cut open, drill, grind, or incinerate. Comply with all applicable health and safety regulations when handling.
