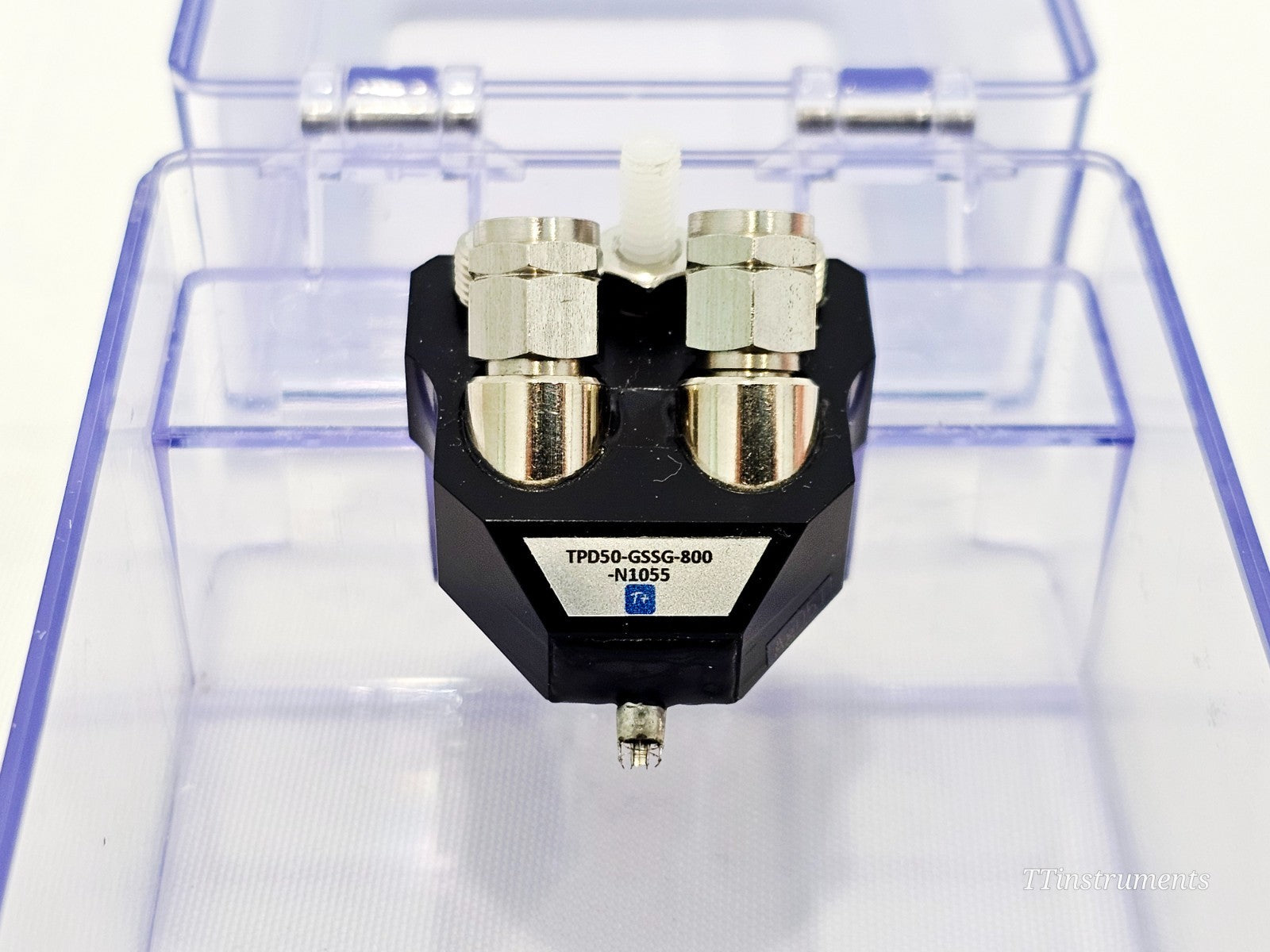

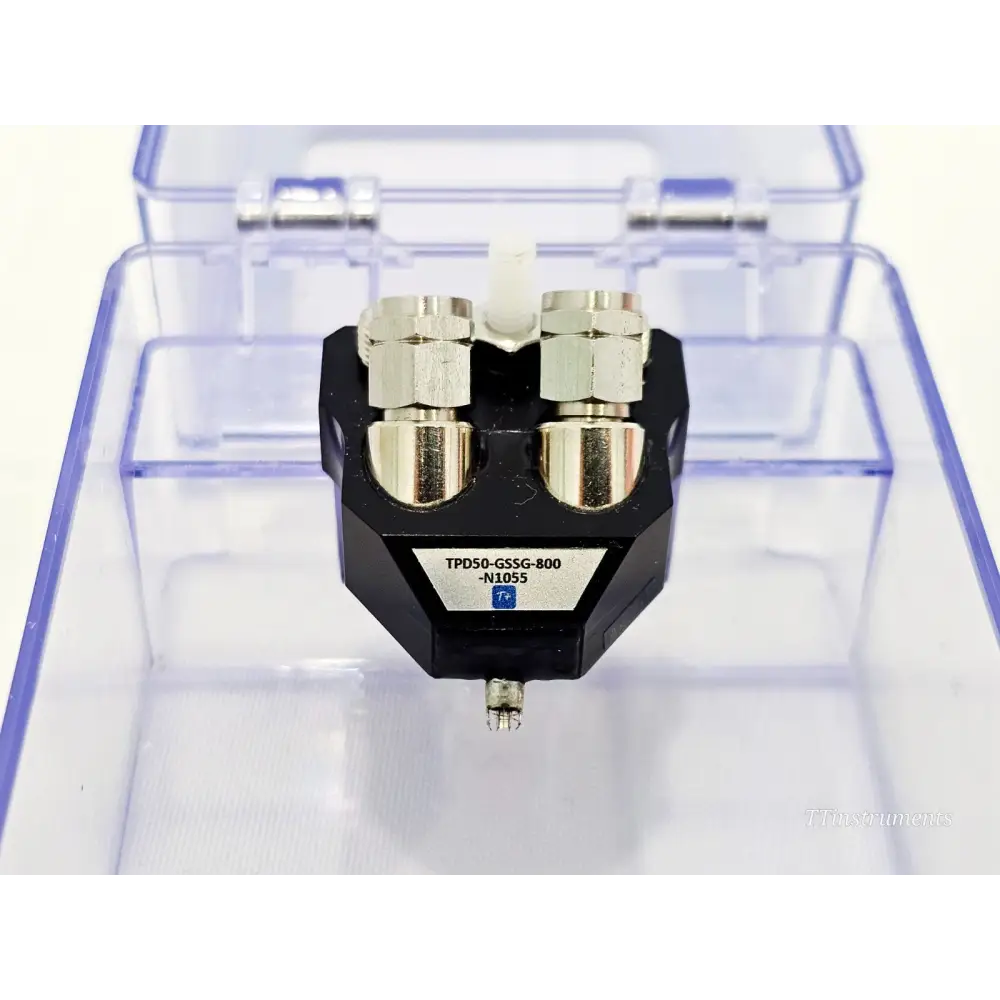

Close-up top view of T Plus TPD50-GSSG-800-N1055 probe head body showing model label and dual SMA connectors

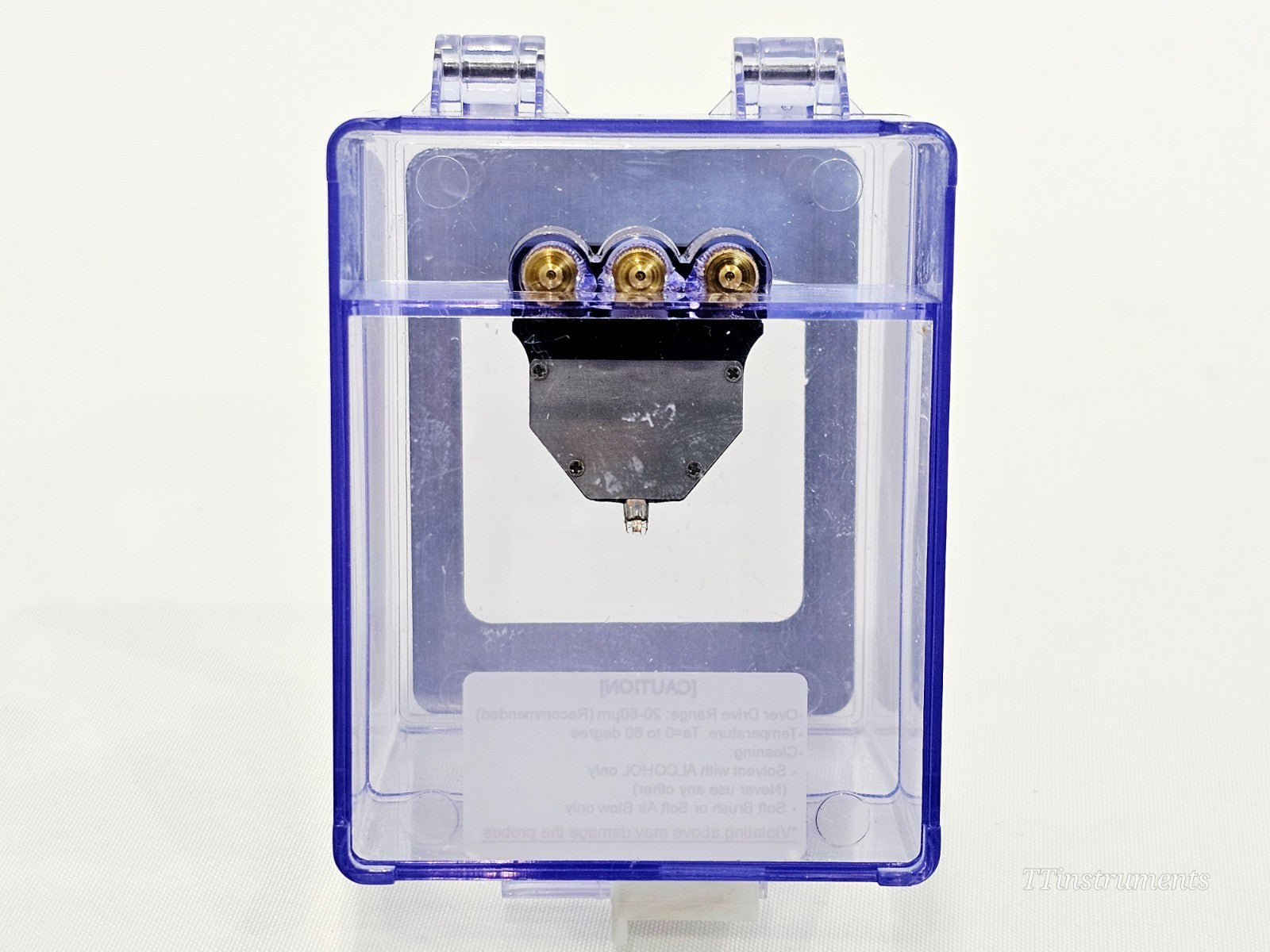

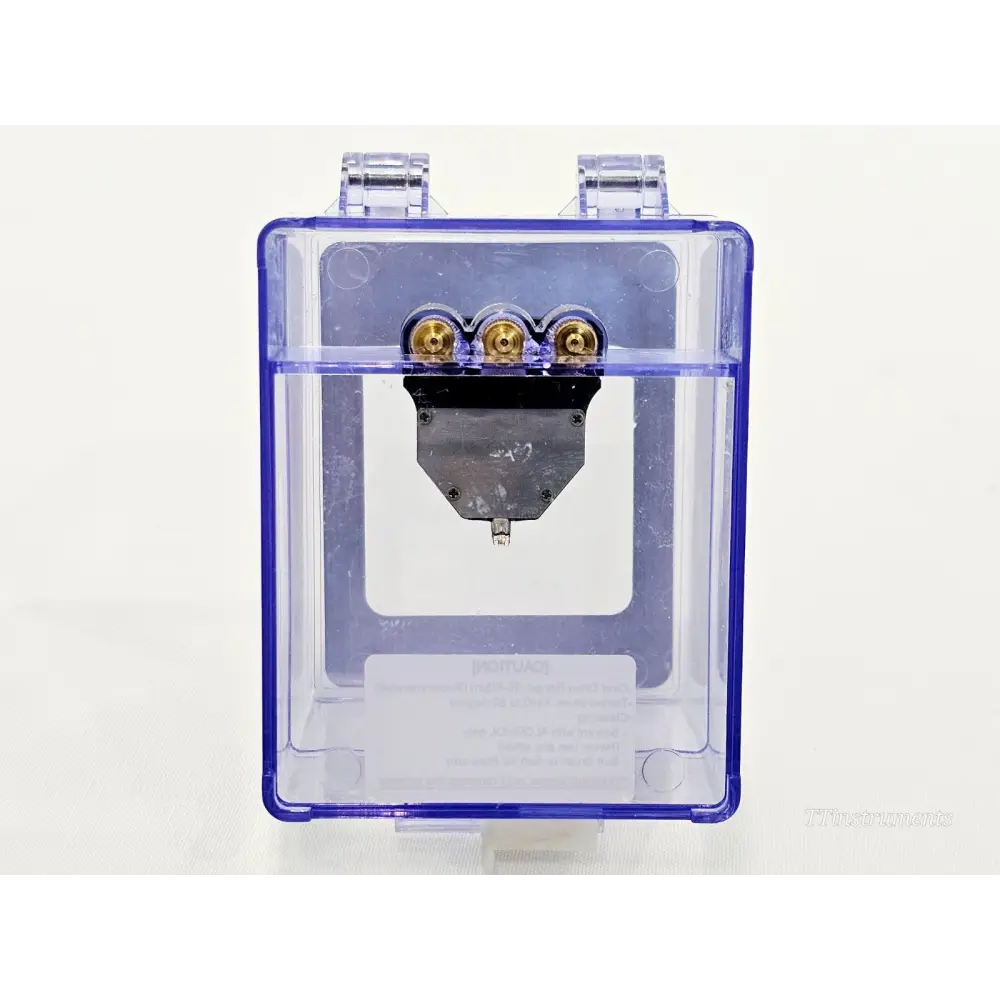

T Plus TPD50-GSSG-800-N1055 probe head rear view inside open case showing three gold-plated contact pads and black body

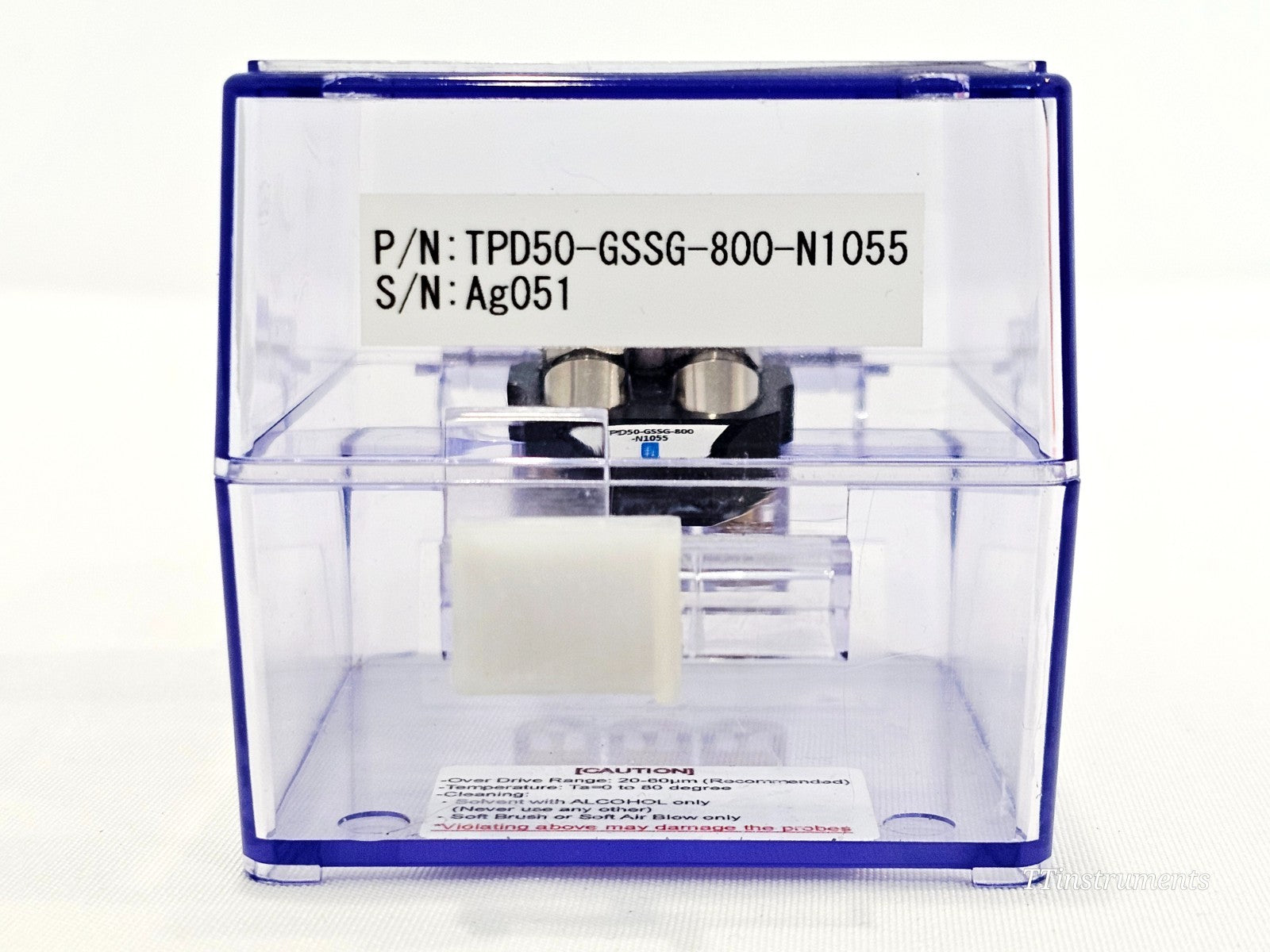

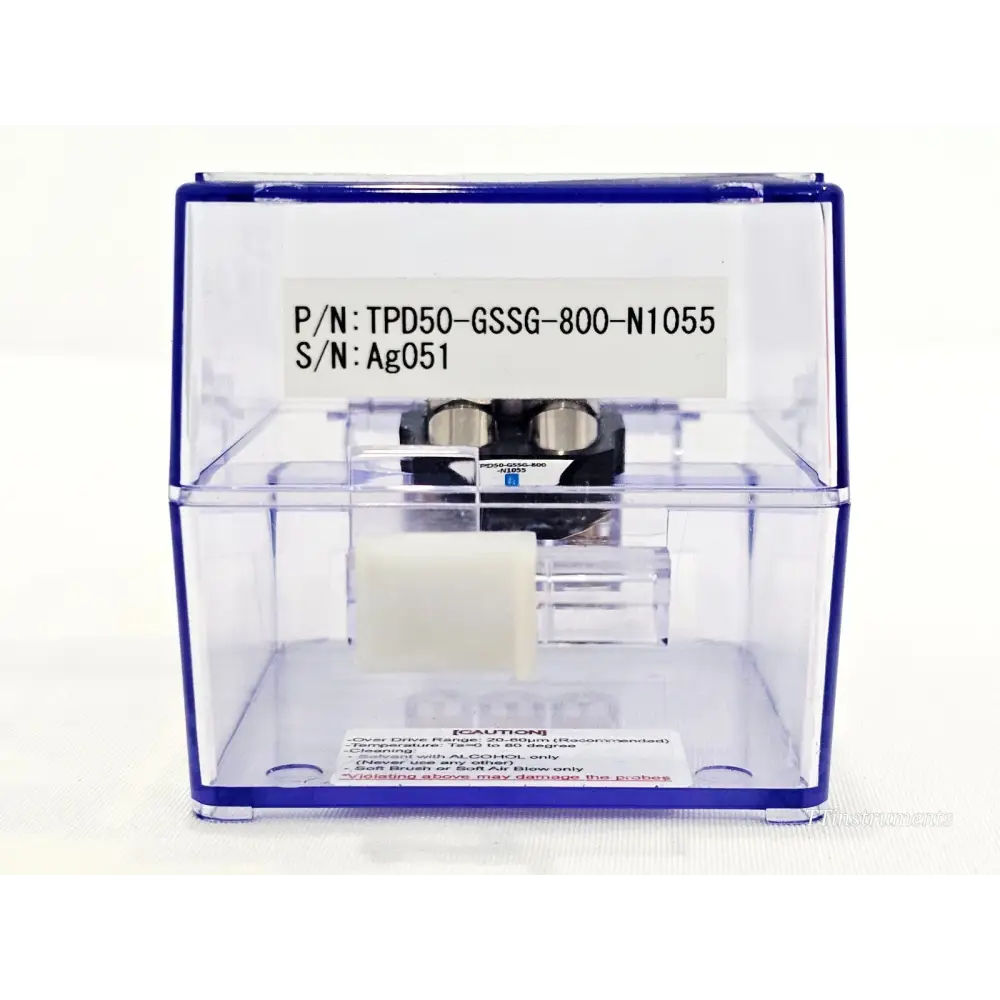

T Plus TPD50-GSSG-800-N1055 probe head in case, rear label showing P/N TPD50-GSSG-800-N1055 and S/N Ag051 with caution notice

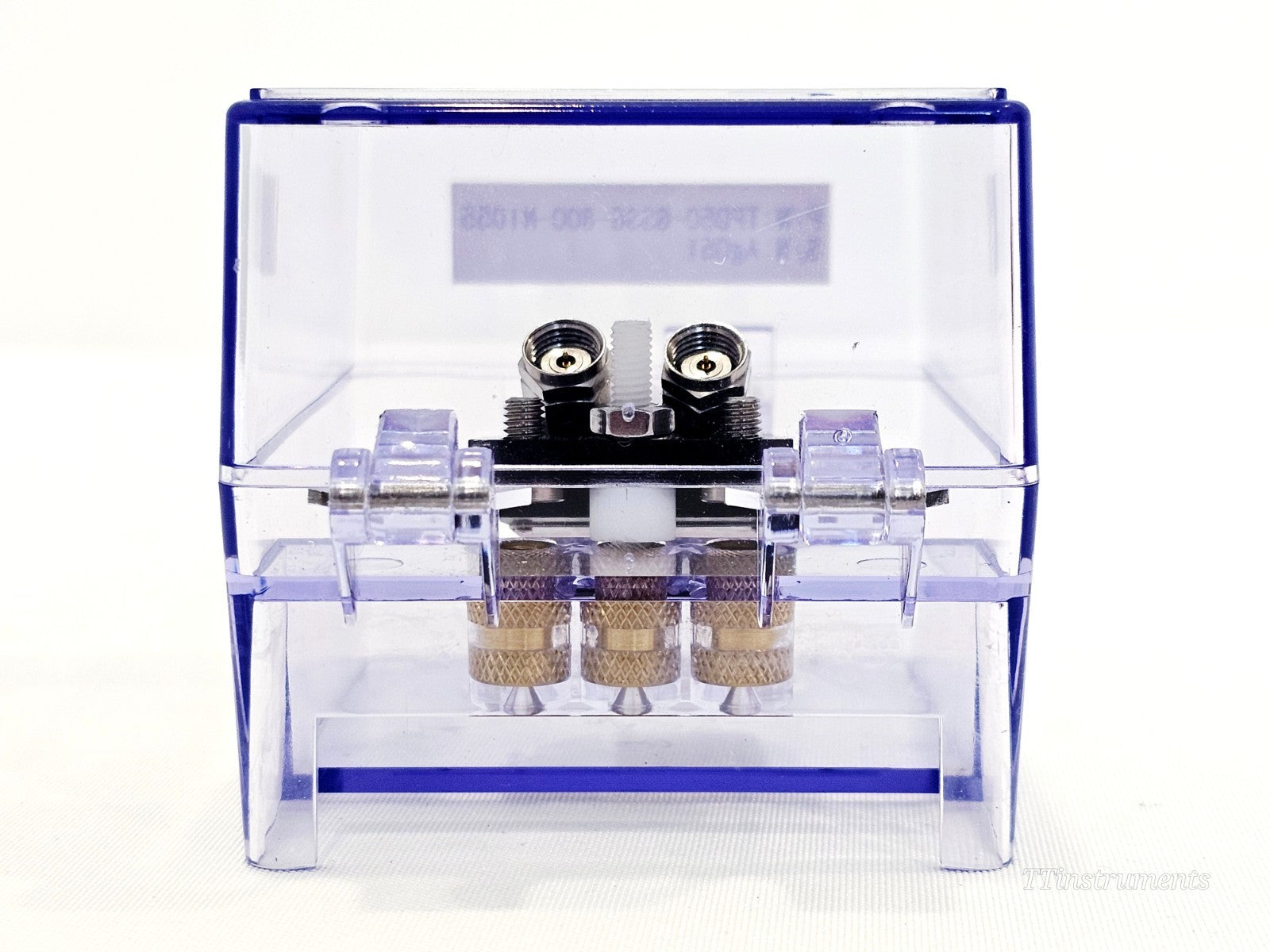

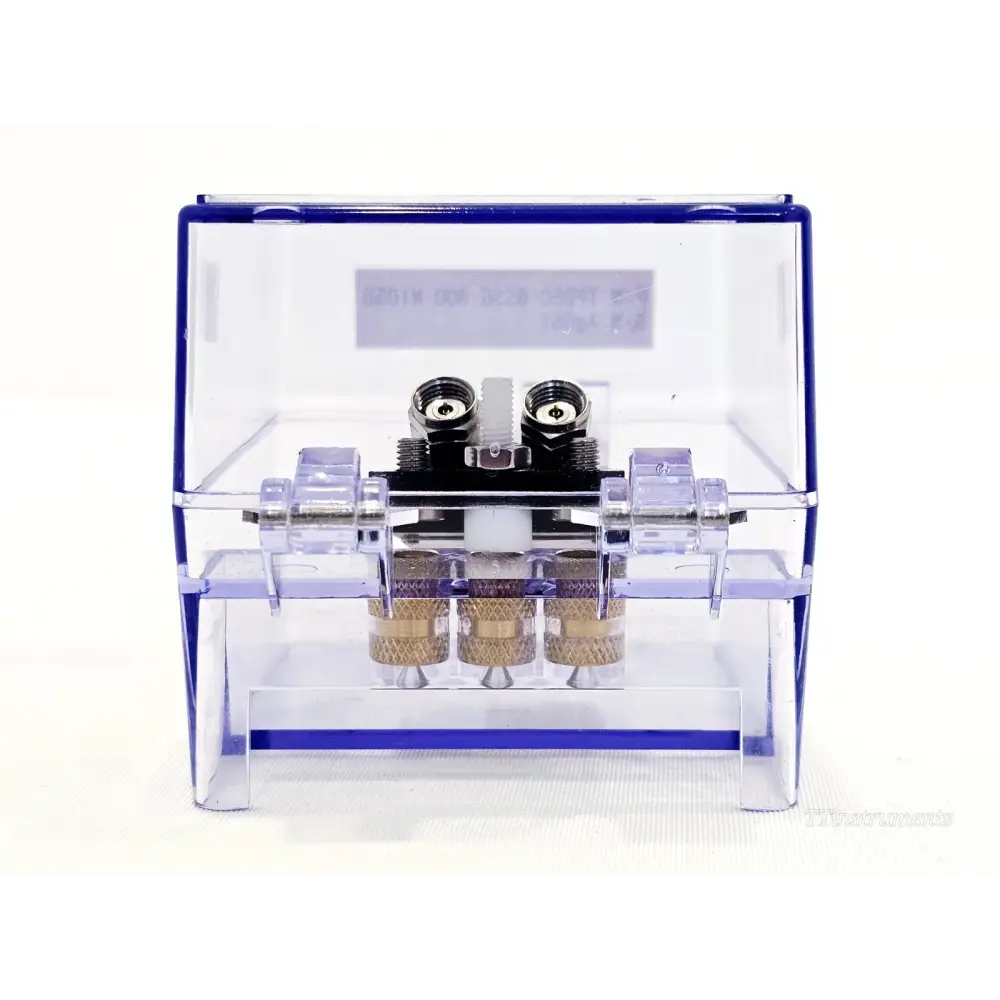

T Plus TPD50-GSSG-800-N1055 probe head front view in open case showing dual SMA ports and knurled brass mounting hardware

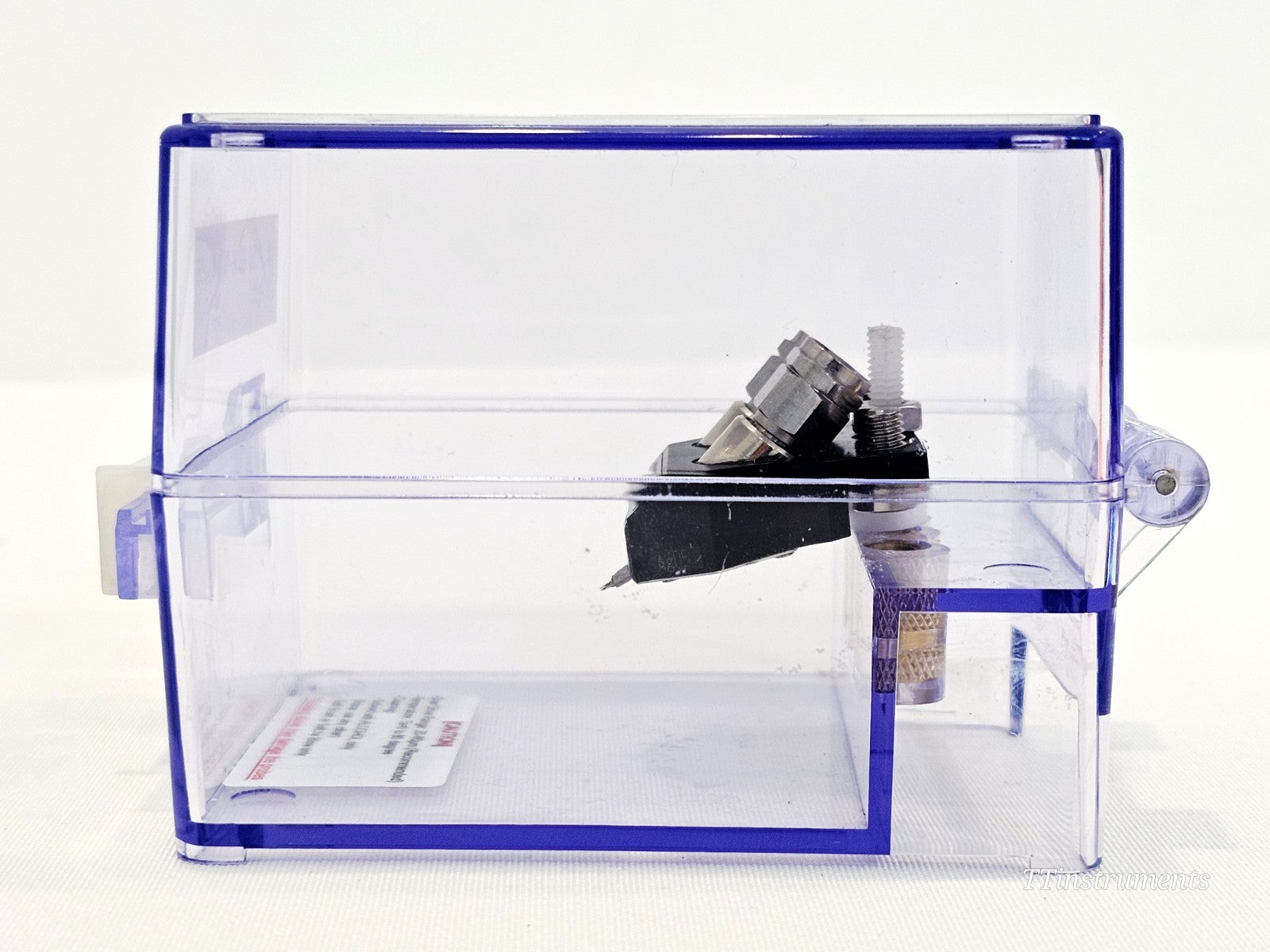

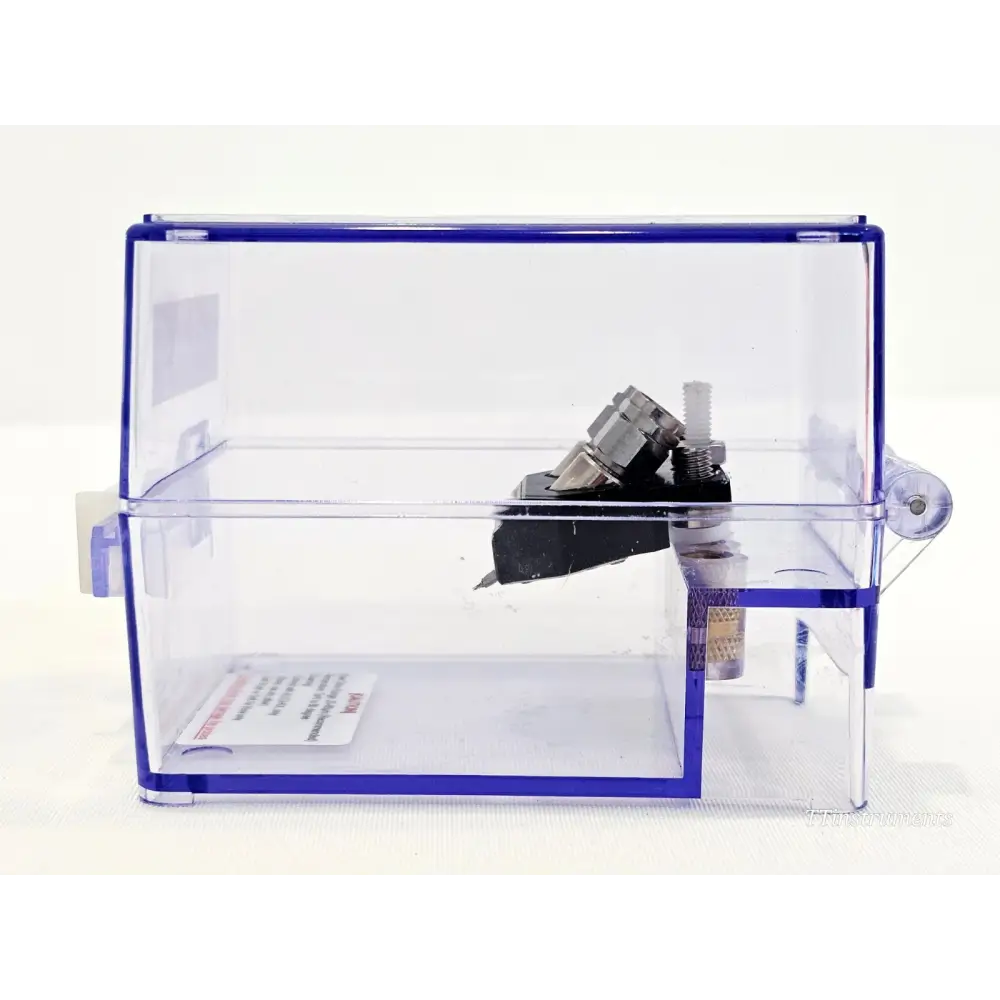

T Plus TPD50-GSSG-800-N1055 probe head side view in open case showing probe tip needle and SMA connector detail

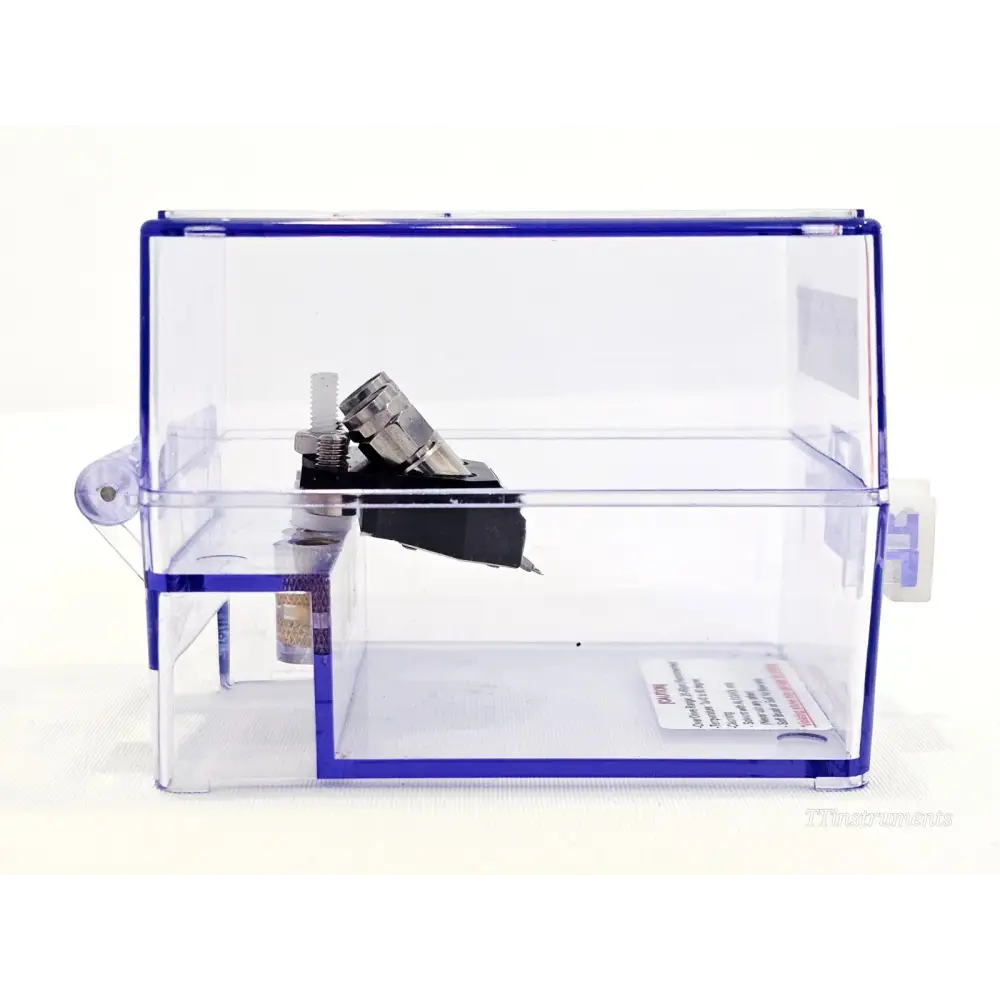

T Plus TPD50-GSSG-800-N1055 probe head opposite side view in case, showing probe needle tip angled downward and mounting screw

Tested

14 Day Money Back Guarantee

Great Value

Global Shipping

T Plus TPD50GSSG800N1055 Probe Head for Keysight N1055A

Name: T Plus TPD50GSSG800N1055 Probe Head for Keysight N1055A
Brand: T Plus
SKU: 7845 4E02 ER60
Price: 420.75 GBP
Availability: InStock

The T Plus TPD50-GSSG-800-N1055 is a GSSG-configuration differential RF probe head designed for use with the Keysight N1055A TDR remote sampling head, enabling on-wafer and PCB-level signal integrity measurements.
• GSSG differential configuration — ideal for differential signal and high-speed data transmission testing
• 800 µm pitch — suits a wide range of wafer and PCB pad layouts
• Made in Japan — precision-built, SMA-connectorised probe head in protective storage case

Manufacturer

T Plus

Model

TPD50-GSSG-800-N1055

Condition

Used

In stock

SKU

7845 4E02

£420.75

Detectors Meters & Counters
RF & Microwave

Make an Offer

T Plus TPD50GSSG800N1055 Probe Head for Keysight N1055A

£420.75

Condition: Used

The T Plus TPD50-GSSG-800-N1055 is a 50 Ω GSSG differential RF probe head with an 800 µm pitch, specifically designed to interface with the Keysight N1055A TDR/TDT remote sampling head for on-wafer and PCB signal integrity measurements. Part number TPD50-GSSG-800-N1055, serial number Ag051. The caution label on the case specifies an over-drive range of 20–60 µm (recommended), an operating temperature of Ts=0 to 80°C, and cleaning with alcohol only using a soft brush or soft air blow.

Included in the sale:
• 1x T Plus TPD50-GSSG-800-N1055 Probe Head
• 1x Protective clear plastic storage/transport case (T Plus Co. Ltd. branded)

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

Product Overview

Condition: Used

Included in the sale:
• 1x T Plus TPD50-GSSG-800-N1055 Probe Head
• 1x Protective clear plastic storage/transport case (T Plus Co. Ltd. branded)

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

Manufacturer's Description

T Plus Co. Ltd. is a Japanese manufacturer of microwave measurement solution products, including probe heads, RF probe cards, RF test fixtures, and probe stations for wafer and PCB applications.

The TPD50-GSSG-800-N1055 is a dual RF probe head from the T Plus TPD50 series, specifically configured for use with the Keysight N1055A 35/50 GHz TDR/TDT remote sampling head module. It features a GSSG (Ground-Signal-Signal-Ground) coplanar configuration for differential signal measurement, with a 800 µm probe pitch and 50 Ω impedance. The probe head is manufactured in Japan and supplied in a dedicated protective plastic case.

The GSSG configuration provides a ground-signal-signal-ground contact arrangement, making it well suited for differential signal testing, high-speed serial data characterisation, and balanced circuit analysis on wafer or PCB substrates.

Key Features:
• Configuration: GSSG (Ground-Signal-Signal-Ground) differential
• Impedance: 50 Ω
• Pitch: 800 µm
• Compatible instrument: Keysight N1055A TDR/TDT Remote Sampling Head
• Over Drive Range: 20–60 µm (recommended)
• Operating Temperature: 0°C to 80°C
• Cleaning: Alcohol only (soft brush or soft air blow)
• Connector type: SMA (female)
• Country of manufacture: Japan

T Plus probe heads offer low insertion loss and return loss performance, and are available in RF air coplanar and custom cantilever probe configurations across a range of pitches and frequency ranges up to 67 GHz. The TPD50 series probe heads are designed to mount directly onto compatible Keysight N1055A TDR remote heads for accurate on-wafer TDR/TDT and S-parameter measurements.

Please refer to the T Plus Co. Ltd. manufacturer website (https://tplus-co.com) for full and current product specifications.

Resources

T Plus TPD50A Dual RF Probe Head product datasheet (PDF): Download PDF
