Sumitomo Type-201e-VS Fusion Splicer 201e VS + FHS-025 Holders
Model: Type-201e-VS
Condition: Used
In stock: 0
SKU: 4000 +ARC
- Fiber Optics
- Fusion Splicers
- Splicing
Choose options
Condition: Used — ARC count varies but will be above 4000. These units show a level of wear and tear consistent with their age and usage. Multiple units are available; the cosmetic condition and ARC count of each may vary. If you require a unit with lower usage, please refer to our other listings where ARC counts are below 1000.
Included in the sale:

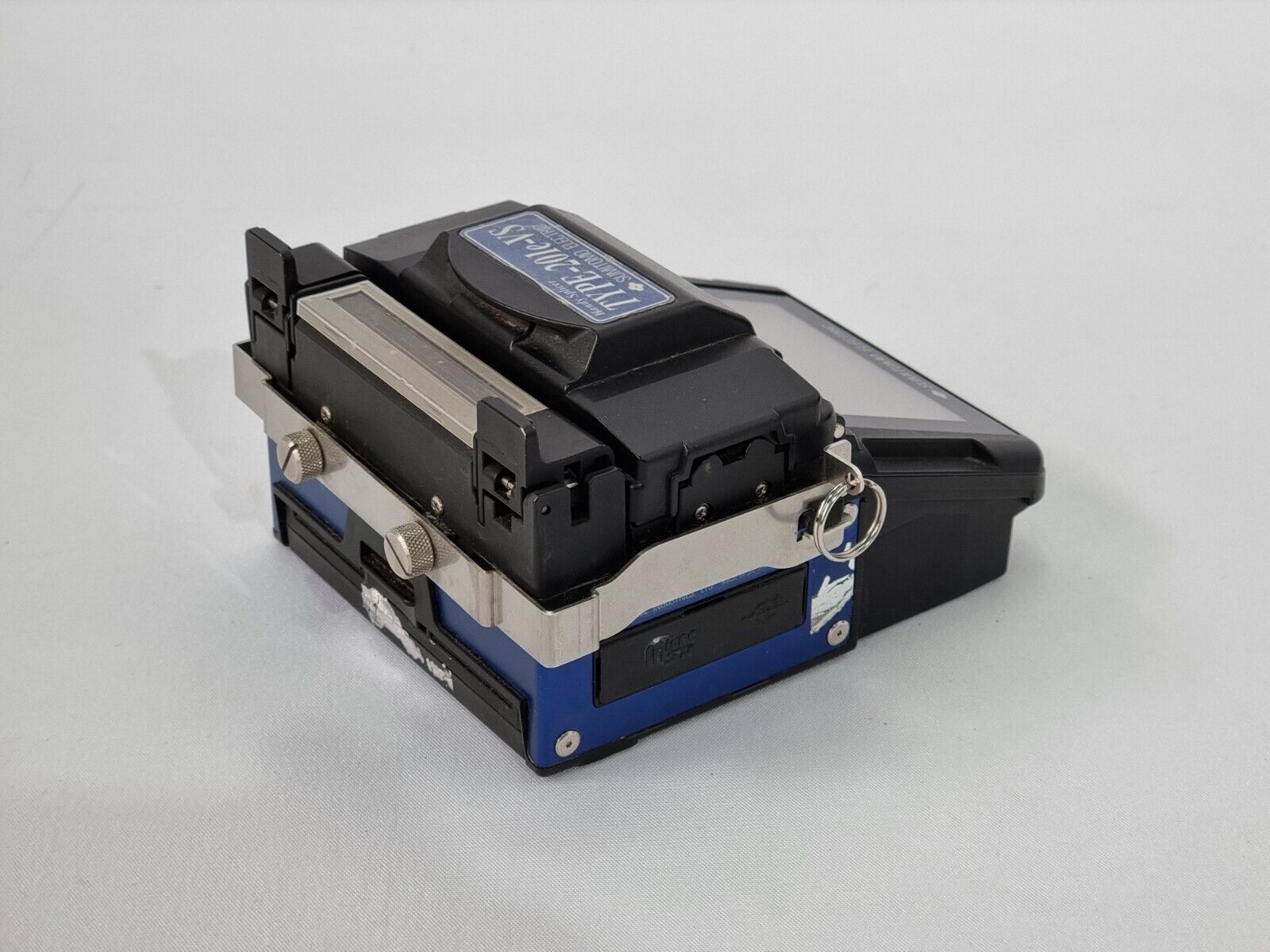

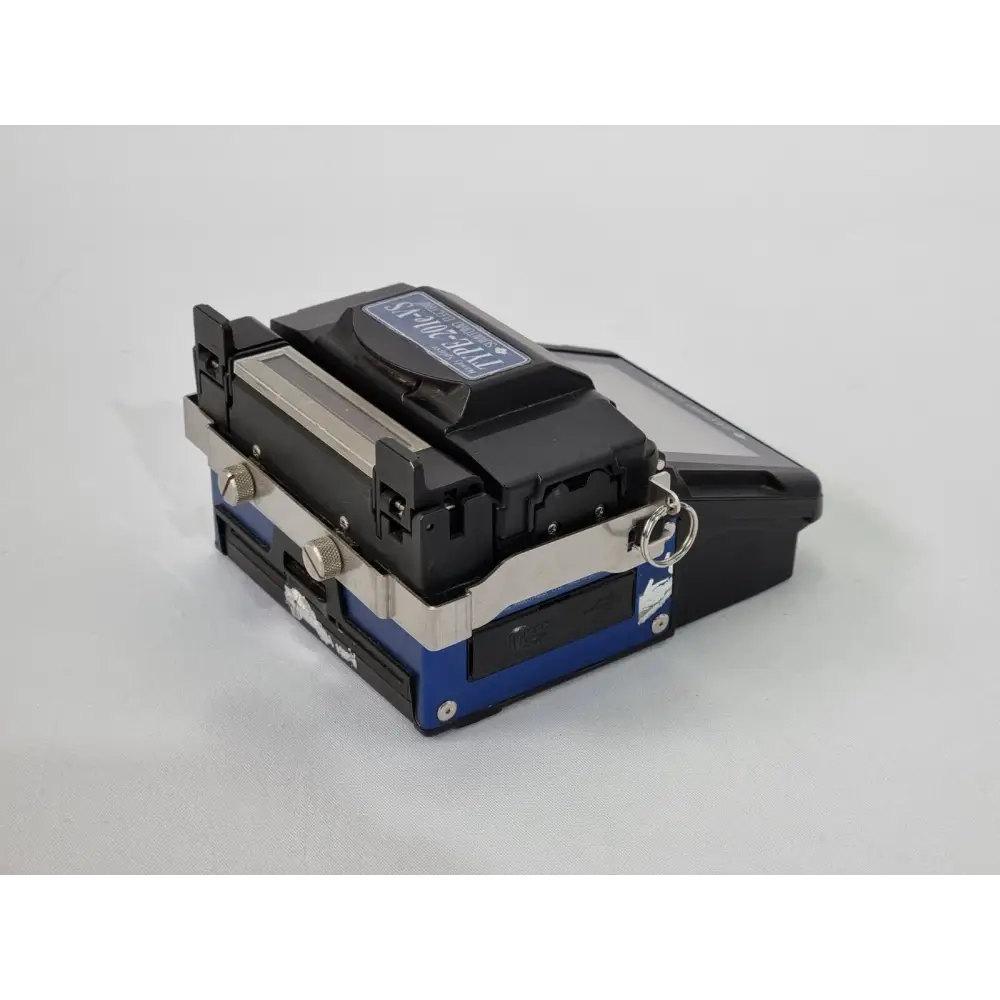

• Sumitomo Type-201e-VS Fixed V-groove Fusion Splicer (ARC count above 4000)
• Electrodes (installed)

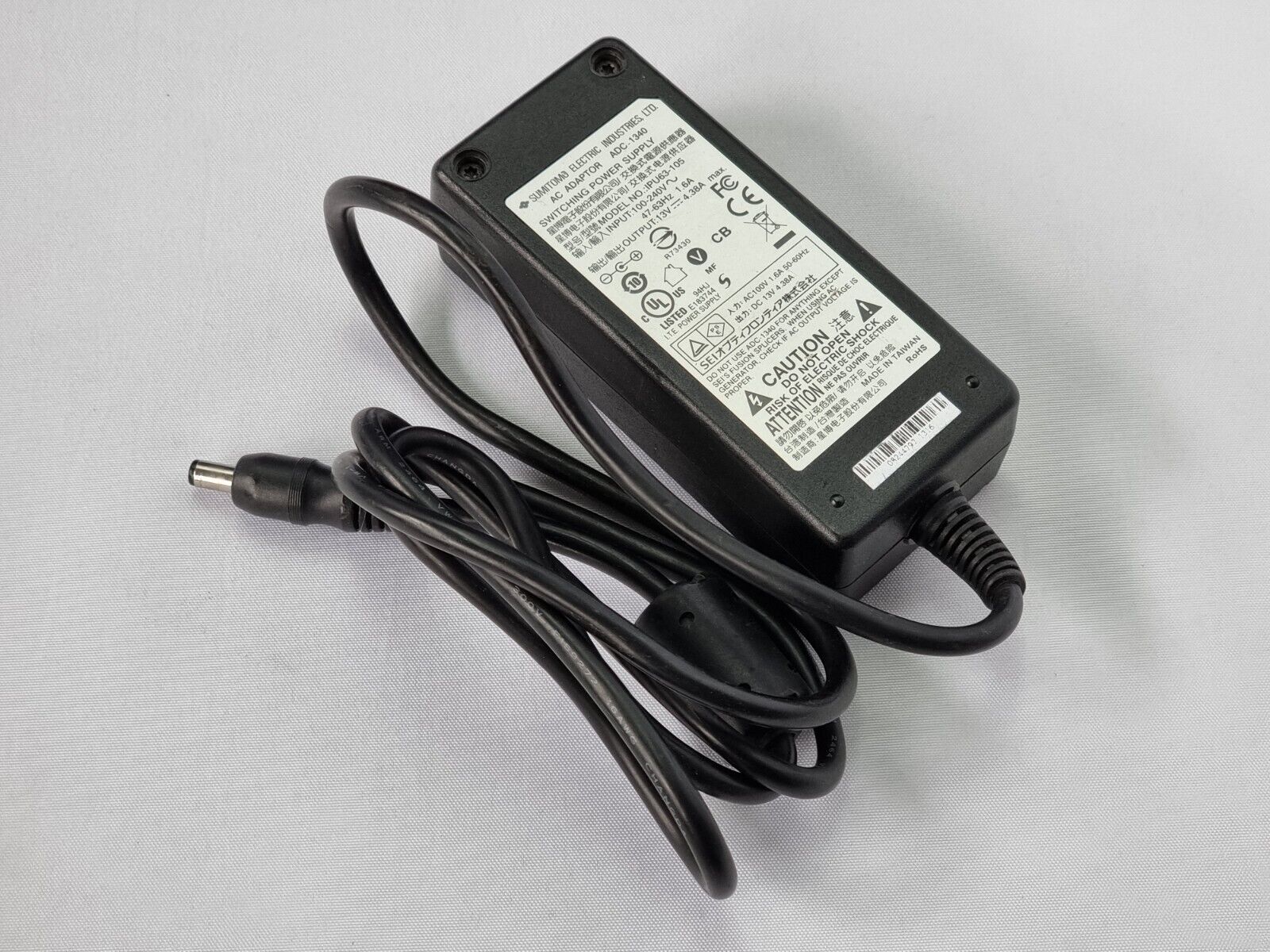

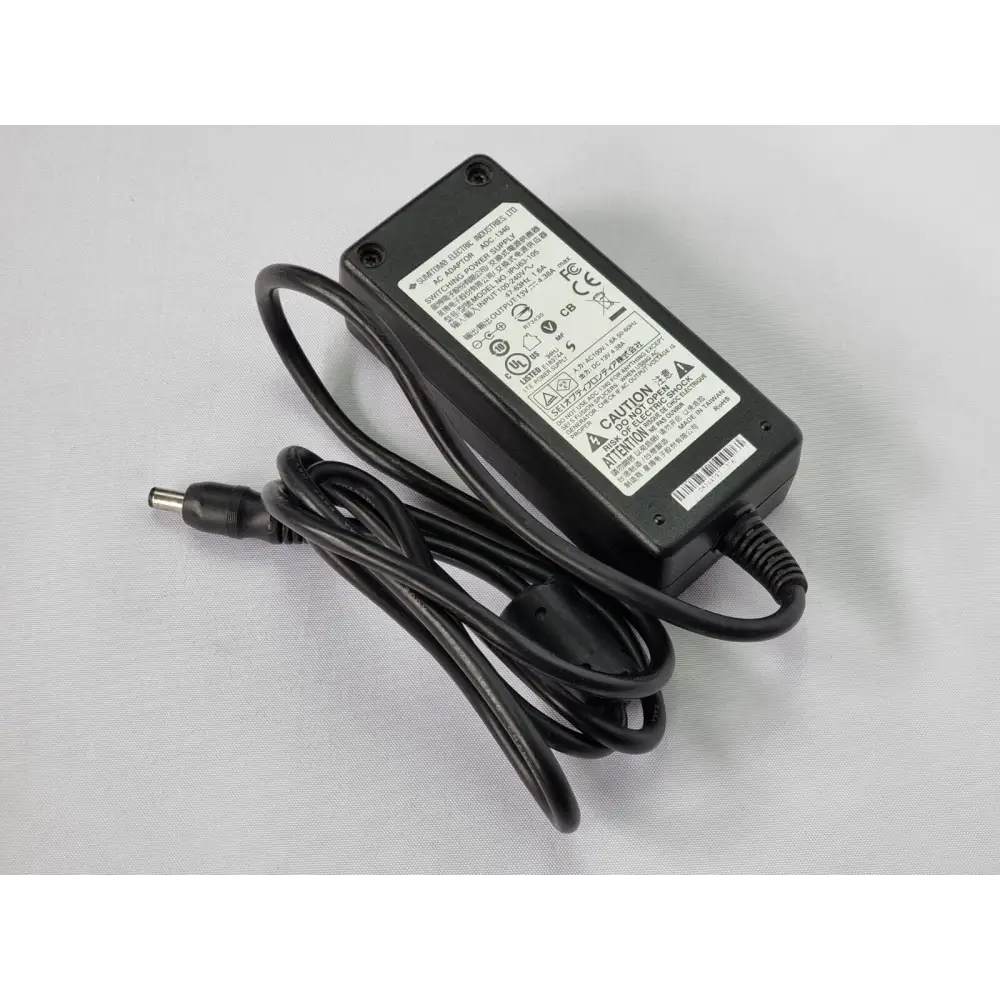

• AC Adapter/Charger ADC-1340
• FHS-025 Fibre Holders
Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.
The Sumitomo Type-201e-VS is a fixed V-groove fusion splicer from Sumitomo Electric, one of the world's leading manufacturers of fibre optic splicing equipment. Designed for splicing single-mode and multimode optical fibres, the Type-201e-VS offers a compact, field-ready form factor ideal for installation and maintenance applications.
The fixed V-groove design ensures consistent fibre placement and reliable splice performance without the need for active core alignment, making it a cost-effective solution for fibre optic network deployment.
The unit is compatible with FHS-025 fibre holders, which are precision accessories designed to securely clamp 250μm coated optical fibres during the splicing process, ensuring accurate alignment and repeatability.
Key Specifications:
Splicer Type: Fixed V-groove fusion splicer
Alignment Method: Fixed V-groove (passive alignment)
Fibre Compatibility: Single-mode and multimode optical fibre
Coating Diameter: 250μm (with FHS-025 holders)
Splice Loss (Typical): 0.02 dB (SM), 0.01 dB (MM)
Splice Time: Approximately 9 seconds
Heating Time: Approximately 35 seconds
Tension Test: Standard pull test built in
Display: Colour LCD monitor
Power Supply: AC adapter (ADC-1340) or battery
Dimensions: Compact portable design
Manufacturer: Sumitomo Electric Industries, Japan
Please refer to the Sumitomo Electric manufacturer website for full and current specifications.
Product Overview
Condition: Used — ARC count varies but will be above 4000. These units show a level of wear and tear consistent with their age and usage. Multiple units are available; the cosmetic condition and ARC count of each may vary. If you require a unit with lower usage, please refer to our other listings where ARC counts are below 1000.
Included in the sale:
• Sumitomo Type-201e-VS Fixed V-groove Fusion Splicer (ARC count above 4000)
• Electrodes (installed)
• AC Adapter/Charger ADC-1340
• FHS-025 Fibre Holders
Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.
Manufacturer's Description
The Sumitomo Type-201e-VS is a fixed V-groove fusion splicer from Sumitomo Electric, one of the world's leading manufacturers of fibre optic splicing equipment. Designed for splicing single-mode and multimode optical fibres, the Type-201e-VS offers a compact, field-ready form factor ideal for installation and maintenance applications.
The fixed V-groove design ensures consistent fibre placement and reliable splice performance without the need for active core alignment, making it a cost-effective solution for fibre optic network deployment.
The unit is compatible with FHS-025 fibre holders, which are precision accessories designed to securely clamp 250μm coated optical fibres during the splicing process, ensuring accurate alignment and repeatability.
Key Specifications:
Splicer Type: Fixed V-groove fusion splicer
Alignment Method: Fixed V-groove (passive alignment)
Fibre Compatibility: Single-mode and multimode optical fibre
Coating Diameter: 250μm (with FHS-025 holders)
Splice Loss (Typical): 0.02 dB (SM), 0.01 dB (MM)
Splice Time: Approximately 9 seconds
Heating Time: Approximately 35 seconds
Tension Test: Standard pull test built in
Display: Colour LCD monitor
Power Supply: AC adapter (ADC-1340) or battery
Dimensions: Compact portable design
Manufacturer: Sumitomo Electric Industries, Japan
Please refer to the Sumitomo Electric manufacturer website for full and current specifications.
