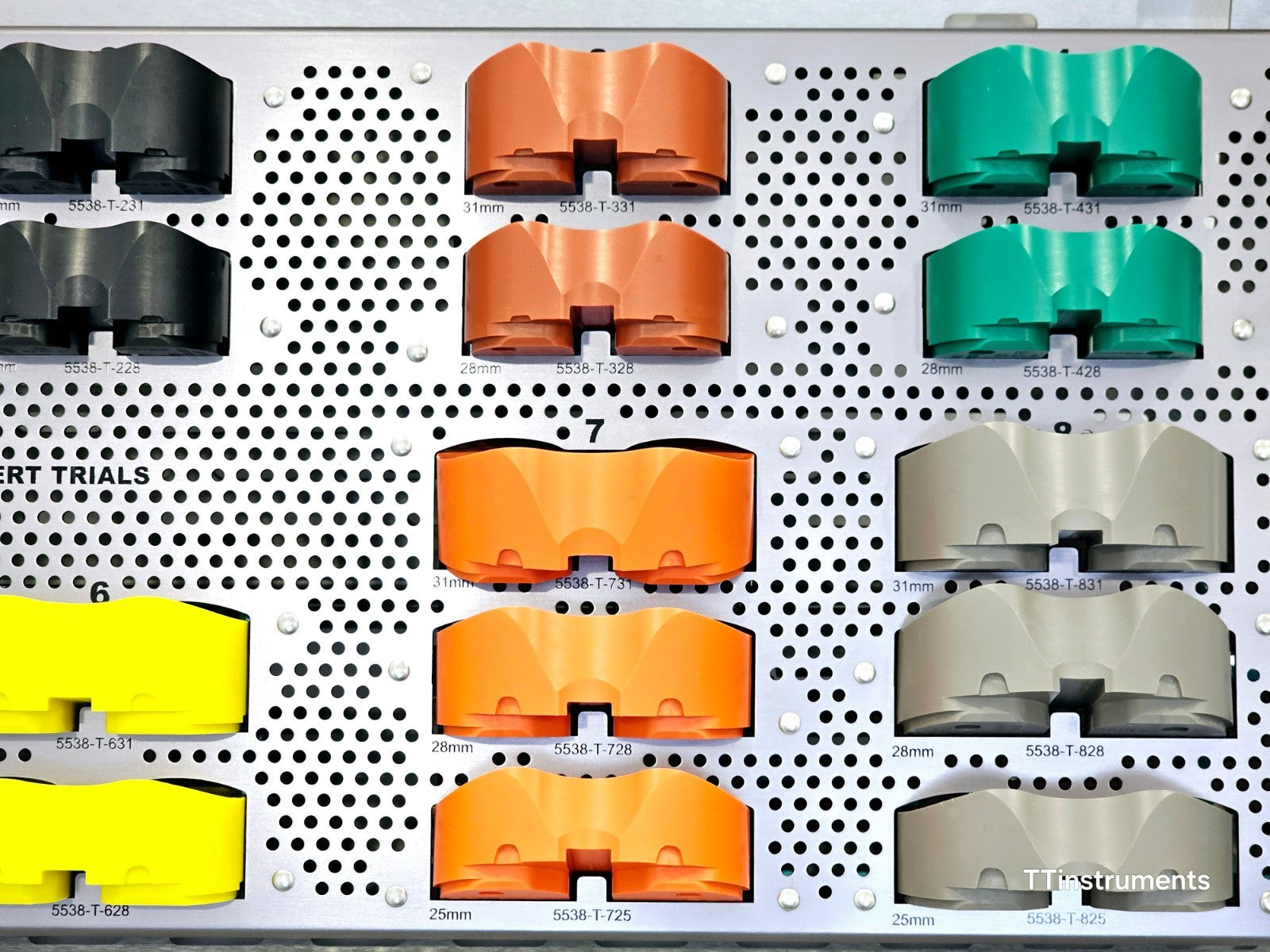

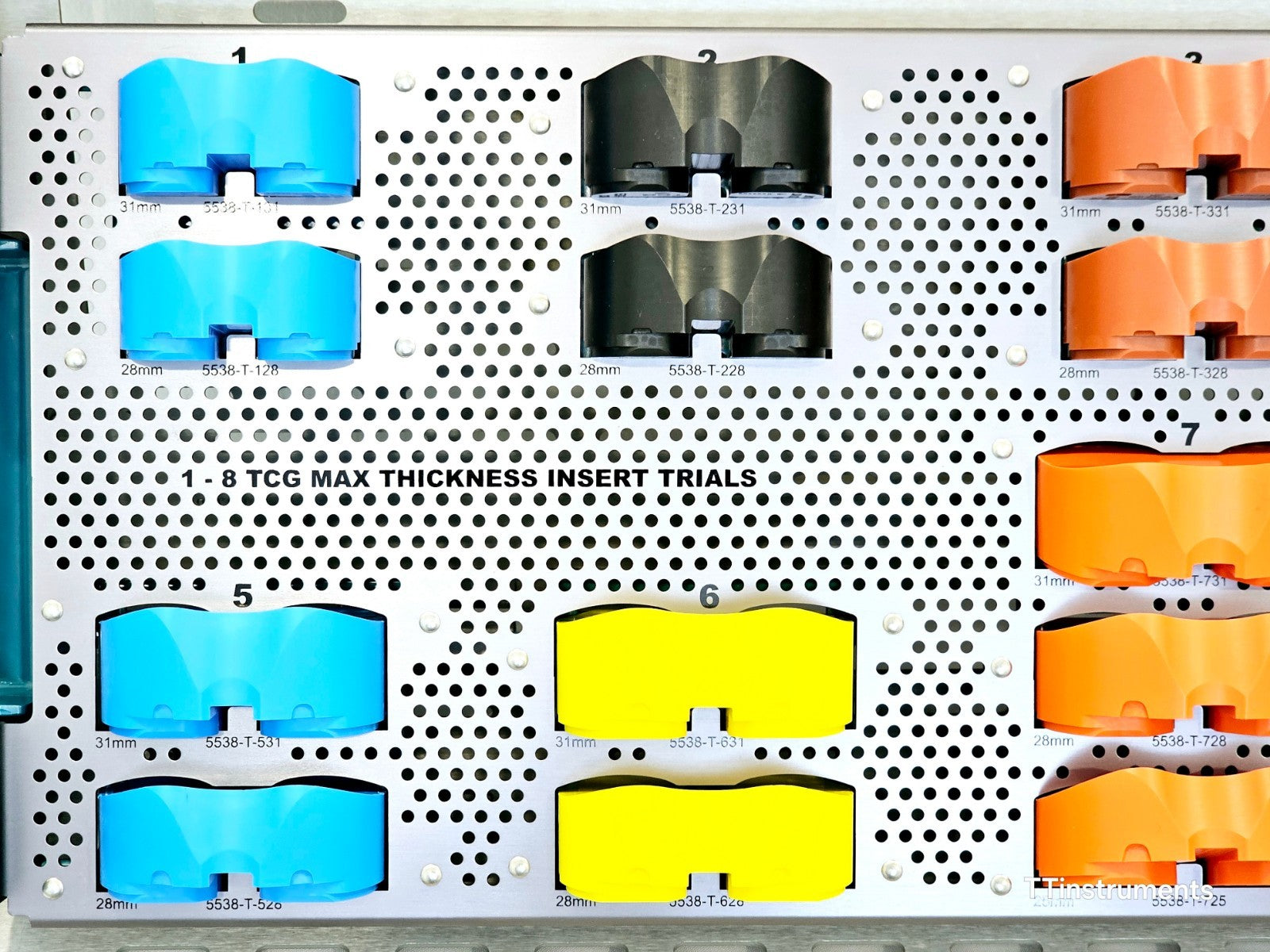

Stryker Triathlon 1-8 TCG Trial Cutting Guide Max Thickness Insert Set – Used Condition: Used Included in this sale: 5538-T-431 – Triathlon TCG Insert #4 – 31 mm 5538-T-428 – Triathlon TCG Insert #4 – 28 mm 5538-T-831 – Triathlon TCG Insert #8 – 31 mm 5538-T-828 – Triathlon TCG Insert #8 – 28 mm 5538-T-825 – Triathlon TCG Insert #8 – 25 mm 5538-T-331 – Triathlon TCG Insert #3 – 31 mm 5538-T-328 – Triathlon TCG Insert #3 – 28 mm 5538-T-731 – Triathlon TCG Insert #7 – 31 mm 5538-T-728 – Triathlon TCG Insert #7 – 28 mm 5538-T-725 – Triathlon TCG Insert #7 – 25 mm 5538-T-231 – Triathlon TCG Insert #2 – 31 mm 5538-T-228 – Triathlon TCG Insert #2 – 28 mm 5538-T-631 – Triathlon TCG Insert #6 – 31 mm 5538-T-628 – Triathlon TCG Insert #6 – 28 mm 5538-T-131 – Triathlon TCG Insert #1 – 31 mm 5538-T-128 – Triathlon TCG Insert #1 – 28 mm 5538-T-531 – Triathlon TCG Insert #5 – 31 mm 5538-T-528 – Triathlon TCG Insert #5 – 28 mm The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, do not bid on this item unless you are an authorized purchaser. If the item is subject to FDA regulation, the seller will verify your status as an authorized purchaser before shipping. Buyer Responsibility Any commissioning, calibration, certification, and validation required before clinical use is the buyer's responsibility. Disclaimer Regardless of the origin of the equipment or any identification appearing upon it, the equipment is not certified or recommended by the seller for any specific use. The purchaser agrees that the seller is not responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. By purchasing this equipment, the purchaser acknowledges and agrees to these terms.

The Stryker Triathlon Trial Cutting Guide (TCG) is a surgical instrument system designed for use in revision total knee arthroplasty (TKA) with the Stryker Triathlon Knee System. The TCG enables surgeons to perform a trial reduction and evaluate joint line restoration, gap balancing, and femoral rotation before committing to any bone cuts, reducing the risk of malalignment and revision-related complications.

The system allows the surgeon to fine-tune the joint line and gap balancing dynamically, and to visualise and perform augment cuts through the instrument prior to final resection. EPI (epicondylar) indicators can be used in extension and flexion to confirm alignment. Offset valgus adapters allow dynamic offsetting to restore posterior condylar offset and flexion gap symmetry.

The Triathlon TCG is compatible with the Triathlon TS Knee System for revision procedures and is used in conjunction with the Triathlon PS and TS trial components for final stability assessment following all femoral cuts.

Key Features:
Compatible Knee System: Stryker Triathlon (PS, TS, Revision)
Primary Indication: Revision Total Knee Arthroplasty (TKA)
Femoral Sizes Covered: 1, 2, 3, 4, 5, 6, 7, 8
TCG Insert Width Range: 25 mm, 28 mm, 31 mm
Valgus Adapter Options: Neutral, 2 mm, 4 mm, 6 mm, 8 mm offset

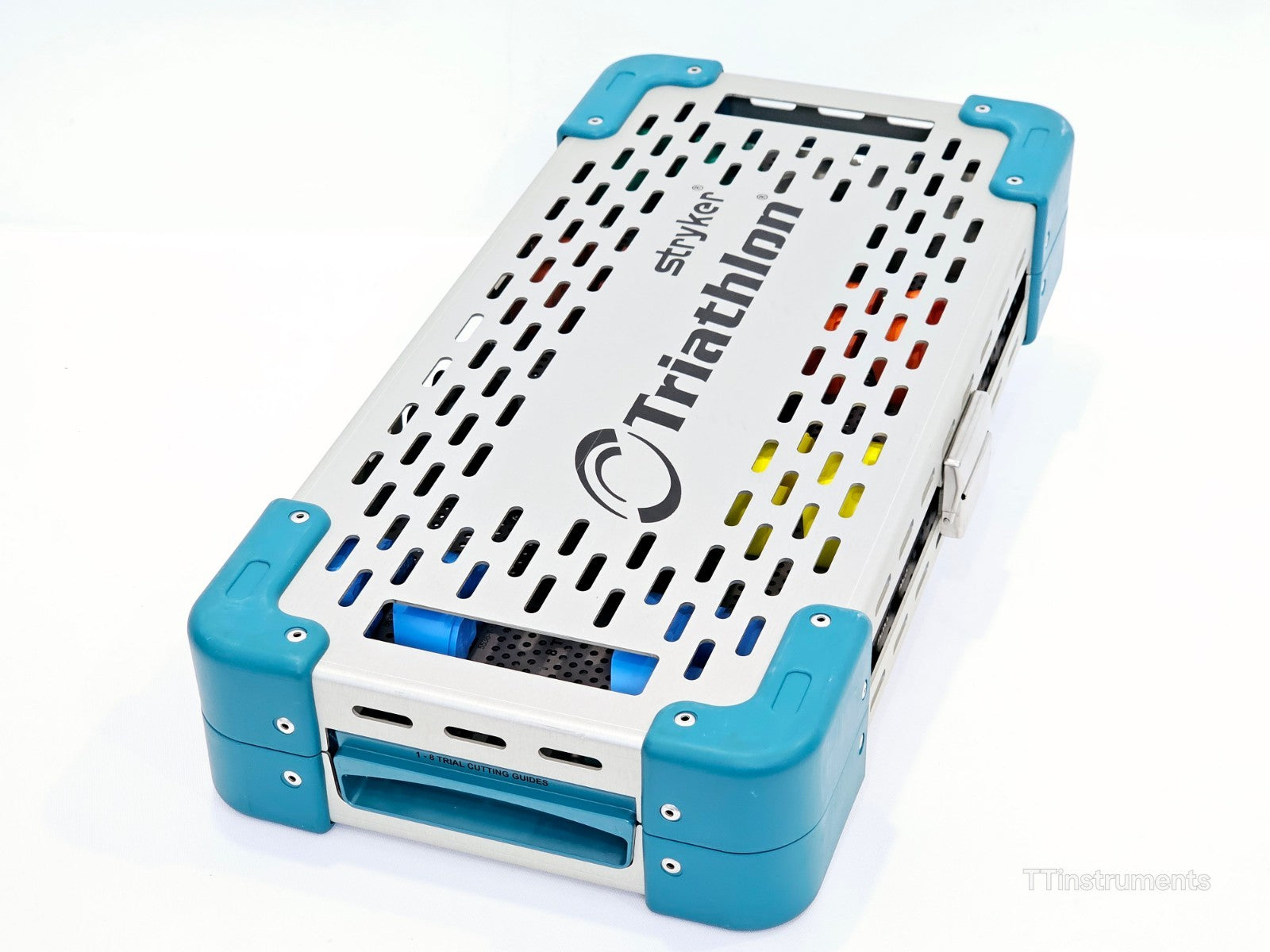

Instrument Sterilisation: Supplied in a labelled dual-tray sterilisation case
Regulatory Status: CE marked per Medical Device Regulation 2017/745 / Medical Device Directive 93/42/EEC
Manufacturer: Stryker (Howmedica Osteonics Corp.)

Indications (General TKA):
Painful, disabling joint disease of the knee resulting from degenerative or inflammatory joint disease, post-traumatic arthritis, or failed previous knee replacements where revision surgery is required.

Note: A surgeon must always rely on their own professional clinical judgement when deciding whether to use a particular product. Any commissioning, sterilisation, and validation required before clinical use is the responsibility of the purchaser.

Stryker Triathlon TCG Design Rationale — clinical background and instrument overview: Download PDF

Stryker Triathlon TS Knee System Surgical Protocol — full surgical technique including TCG workflow: Download PDF

Stryker Triathlon TCG Surgical Overview — step-by-step TCG procedure summary: Download PDF

Stryker Triathlon TS Knee System with TCG Surgical Protocol — revision knee TCG technique: Download PDF

Stryker Triathlon Knee System Surgical Protocol — primary knee system surgical technique compendium: Download PDF
