Stryker Recon Instrument Set – Used Condition: Used Included in the Sale 1806-3005 – Nail Holding Screw, Recon 1806-3010 – One Step Conical Reamer Ø13, Recon 1806-3026 – Solid Stepdrill for Lag Screw, Recon 1806-3040 – Drill Sleeve for Solid Stepdrill 1806-3041 – Tissue Protection Sleeve, Recon 1806-3045 – Screwdriver Shaft, Recon 1806-3047 – T2 Paddle Trocar, Recon Mode 1806-3048 – T2 Paddle Trocar, Antegrade Mode 1806-3050 – Lag Screw Gauge, Recon 1806-3057 – Screwdriver, Recon 1806-3060 – K-Wire Inserter 1806-3065 – Extraction Screwdriver 1806-3070 – Screwdriver Shaft, AO Ball Tip 1806-3101 – Knob for Target Device 1806-0292 – Screwdriver Shaft, 3.5 × 85 mm 702628 – T-Handle, AO Medium Coupling 1320-5375 – DTS Tray Calibration Stand Important Information The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. Do not bid unless you are an authorized purchaser. Your status will be verified if required. Buyer Responsibility Any commissioning, calibration, certification, and validation required before clinical use is the buyer's responsibility. Disclaimer The equipment is sold as-is. The purchaser agrees that the seller is not responsible or liable for any injuries, damages, or losses, whether incidental or consequential, associated with the equipment. By purchasing, the buyer acknowledges and agrees to these terms.

The Stryker T2 Recon Instrument Set is the dedicated surgical instrumentation set for use with the T2 Recon Nailing System, designed for the treatment of proximal femoral and diaphyseal femur fractures. The set is part of the broader T2 intramedullary nailing platform, which integrates core instruments shared across the complete T2 Nailing System to reduce inventory complexity.

The T2 Recon targeting device supports two proximal locking modes: Recon Mode, enabling placement of two 6.5 mm cannulated lag screws into the femoral head, and Antegrade Femoral Mode, enabling insertion of a single oblique proximal screw. Instruments dedicated to the Recon mode are colour-coded bronze for fast intraoperative identification and are number-coded to indicate their sequence of use during surgery.

Compatible Implant System: Stryker T2 Recon Intramedullary Nail (T2 Basic Long)
Nail Material: Type II anodised Titanium Alloy (Ti6Al4V)
Nail Diameters: 9, 11, 13, and 15 mm (left and right)
Nail Lengths: 280–480 mm in 20 mm increments
Proximal Nail Diameter: 13 mm (for 9 mm and 11 mm nails); 15 mm (for 13 mm and 15 mm nails)
Lateral Valgus Bend: 4°
Antecurvature Radius: R2000 mm
CCD Neck Angle: 125° (fixed) with 10° anteversion for proximal holes
Lag Screw Diameter (Recon Mode): 6.5 mm cannulated
Proximal Locking (Antegrade Mode): 5 mm fully threaded screw
Distal Locking: Static or dynamic; compatible with Distal Targeting System (DTS)
Entry Point: Tip of greater trochanter

Indications:
- Subtrochanteric fractures
- Intertrochanteric fractures
- Ipsilateral neck/shaft fractures
- Pathologic fractures and impending pathologic fractures
- Pseudarthrosis and correction osteotomy

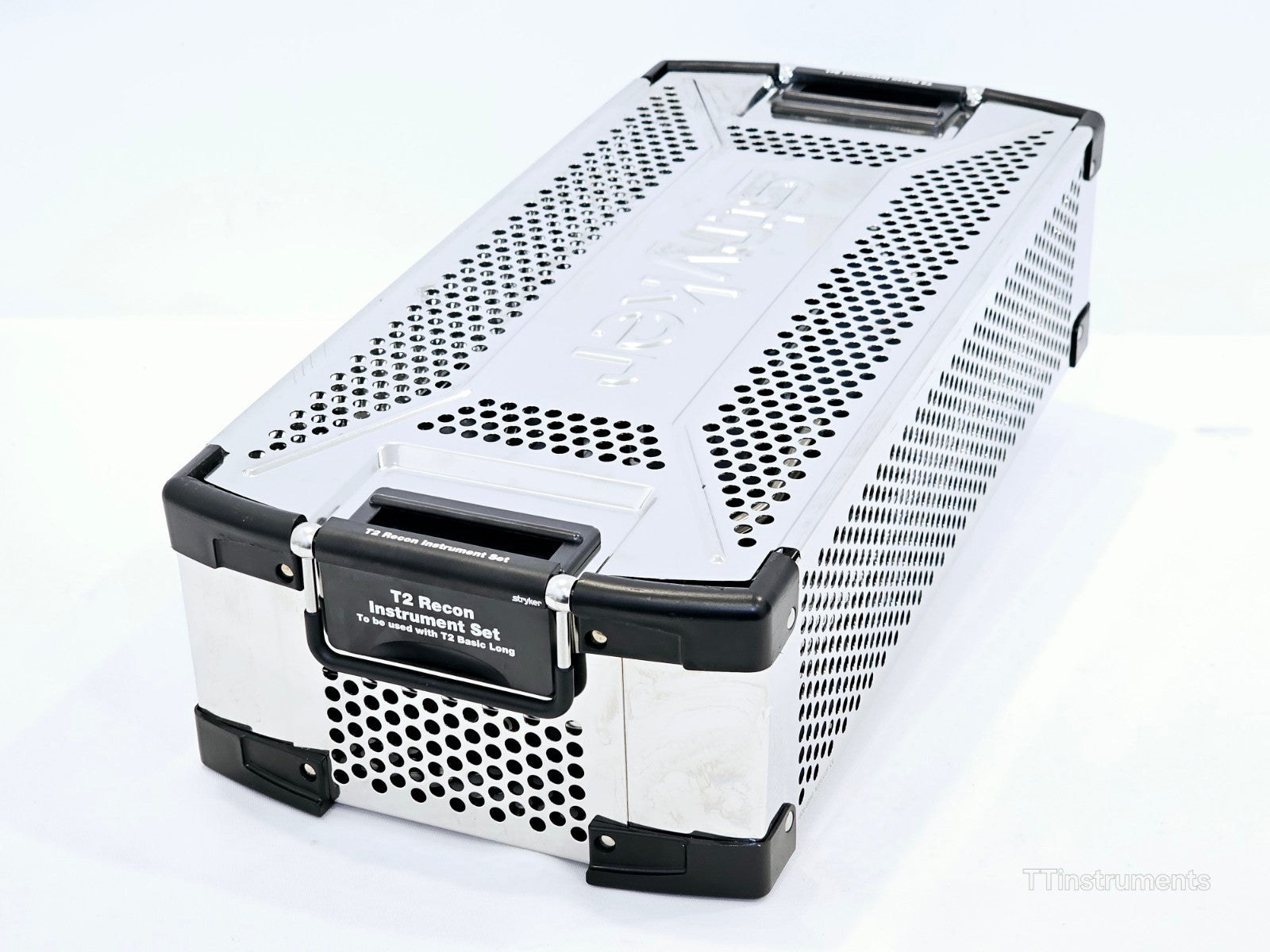

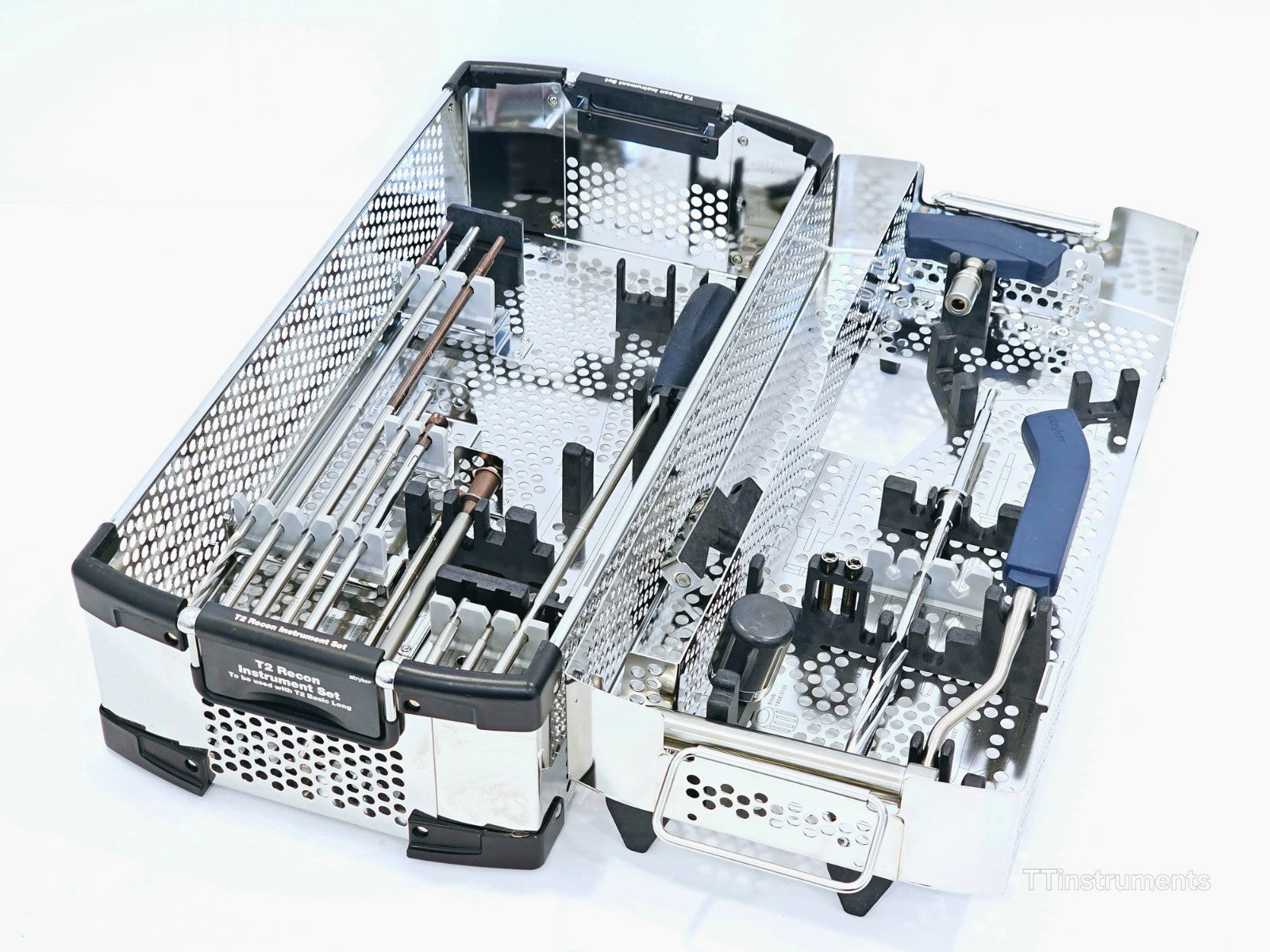

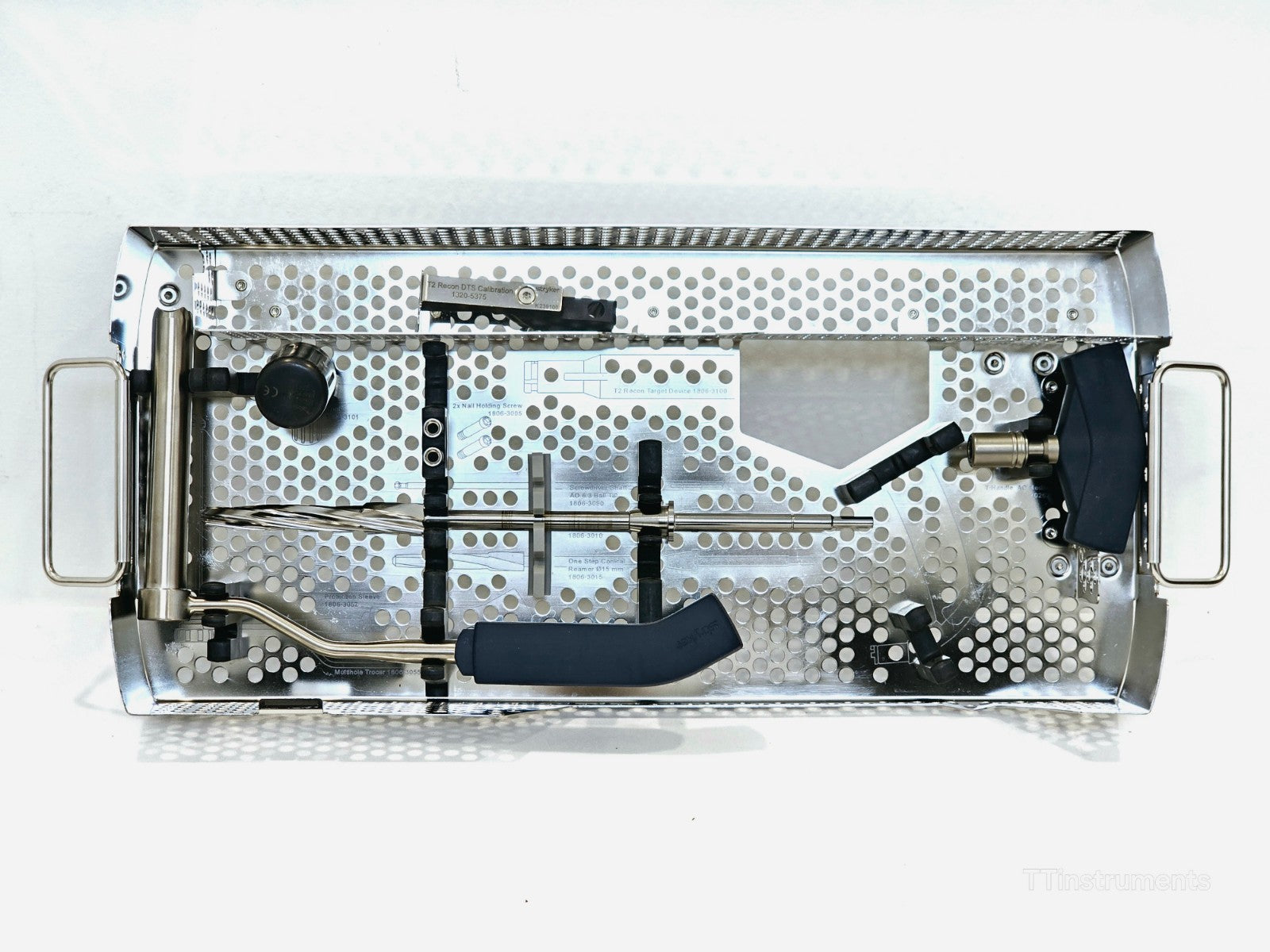

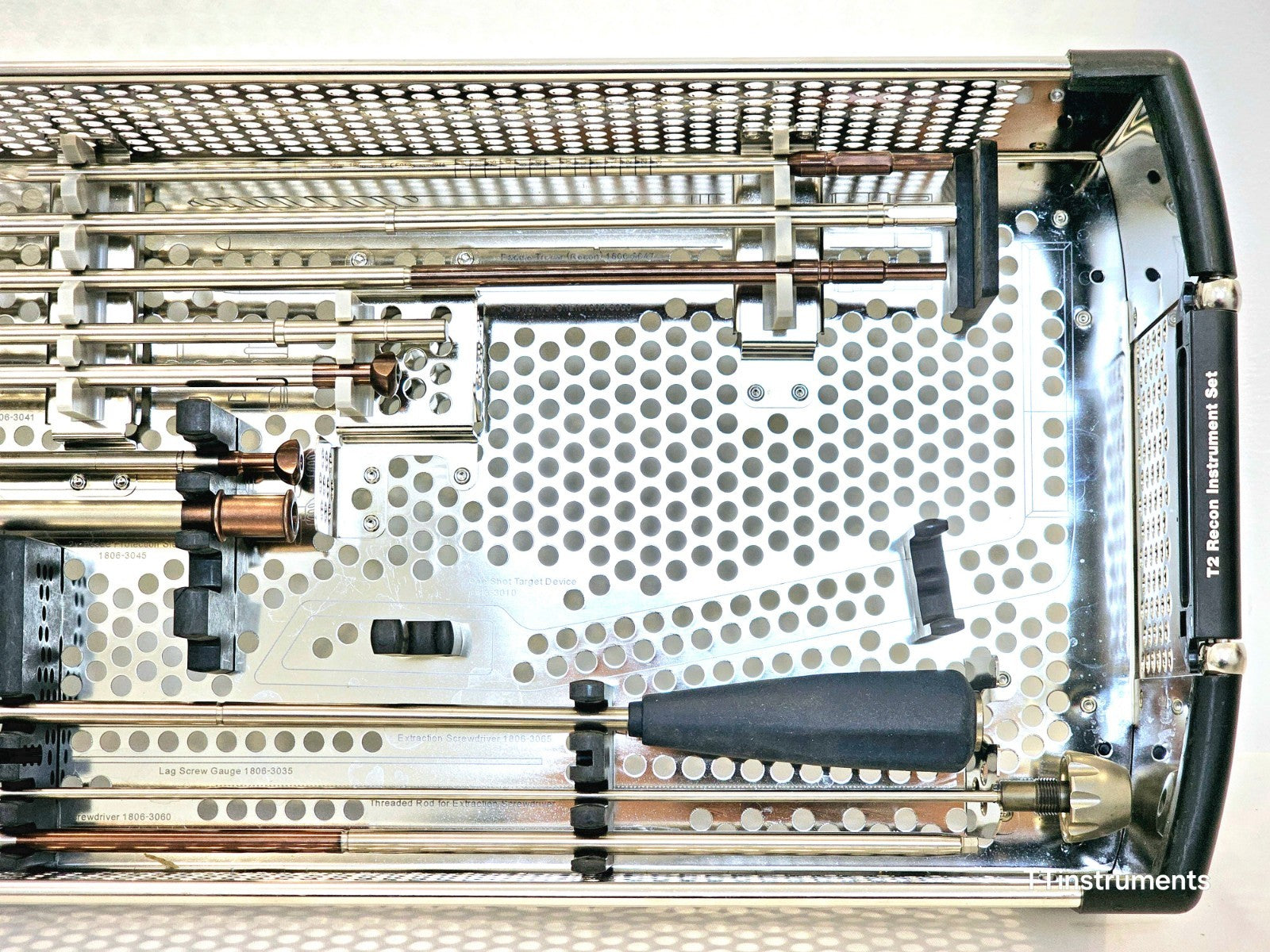

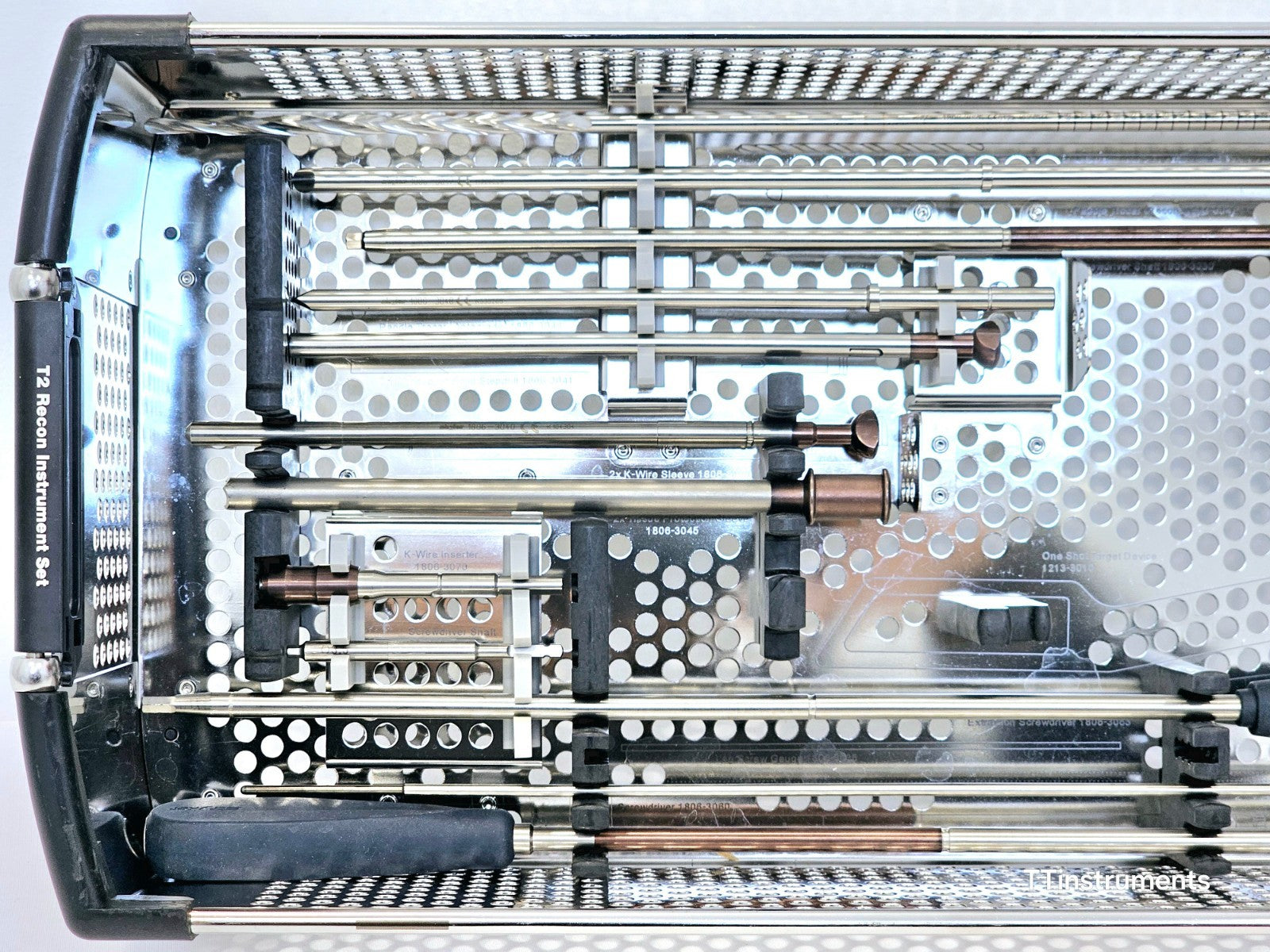

The instrument set is supplied in a perforated stainless steel sterilisation tray with labelled insert. The T2 instrument platform is designed for compatibility with future Stryker osteosynthesis nailing systems, reducing OR complexity and inventory requirements.

Stryker T2 Recon Nailing System operative technique — surgical procedure guide and instrument overview: Download PDF

Stryker T2 Recon Nailing System brochure — implant features, technical specifications and instrument platform overview: Download PDF

Stryker T2 Recon instrument tray layout — full tray content listing with catalogue numbers: Download PDF
