Stryker T2 Femur Instrument Set – Used Condition: Used Included in the Sale 1806-1008 – Nail Holding Forceps 1806-0400 – Connector for Target Device 1806-0255 – Screwdriver, Condyle Screw (Qty: 2) 1806-0311 – Trocar, Short 1806-1006 – Protection Sleeve for Drill Bit 1806-0165 – Rod Pusher (Qty: 2) 1806-0257 – Screwdriver Shaft, Ball Tip, Short 1806-0331 – Trocar, Long 1806-0232 – Screwdriver, AO Coupling, Short 1806-0015 – Guide Wire, Ø3 × 400 mm Important Information The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. Do not bid on this item unless you are an authorized purchaser. If subject to FDA regulation, your status will be verified before shipping. Buyer Responsibility Any commissioning, calibration, certification, and validation required before clinical use is the buyer's responsibility. Disclaimer Regardless of the origin of the equipment or any identification appearing upon it, the equipment is not certified or recommended for any specific use. The purchaser agrees that the seller is not responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. By purchasing this equipment, the purchaser acknowledges and agrees to these terms.

Manufacturer: Stryker Trauma GmbH, Prof.-Küntscher-Str. 1-5, 24232 Schönkirchen, Germany

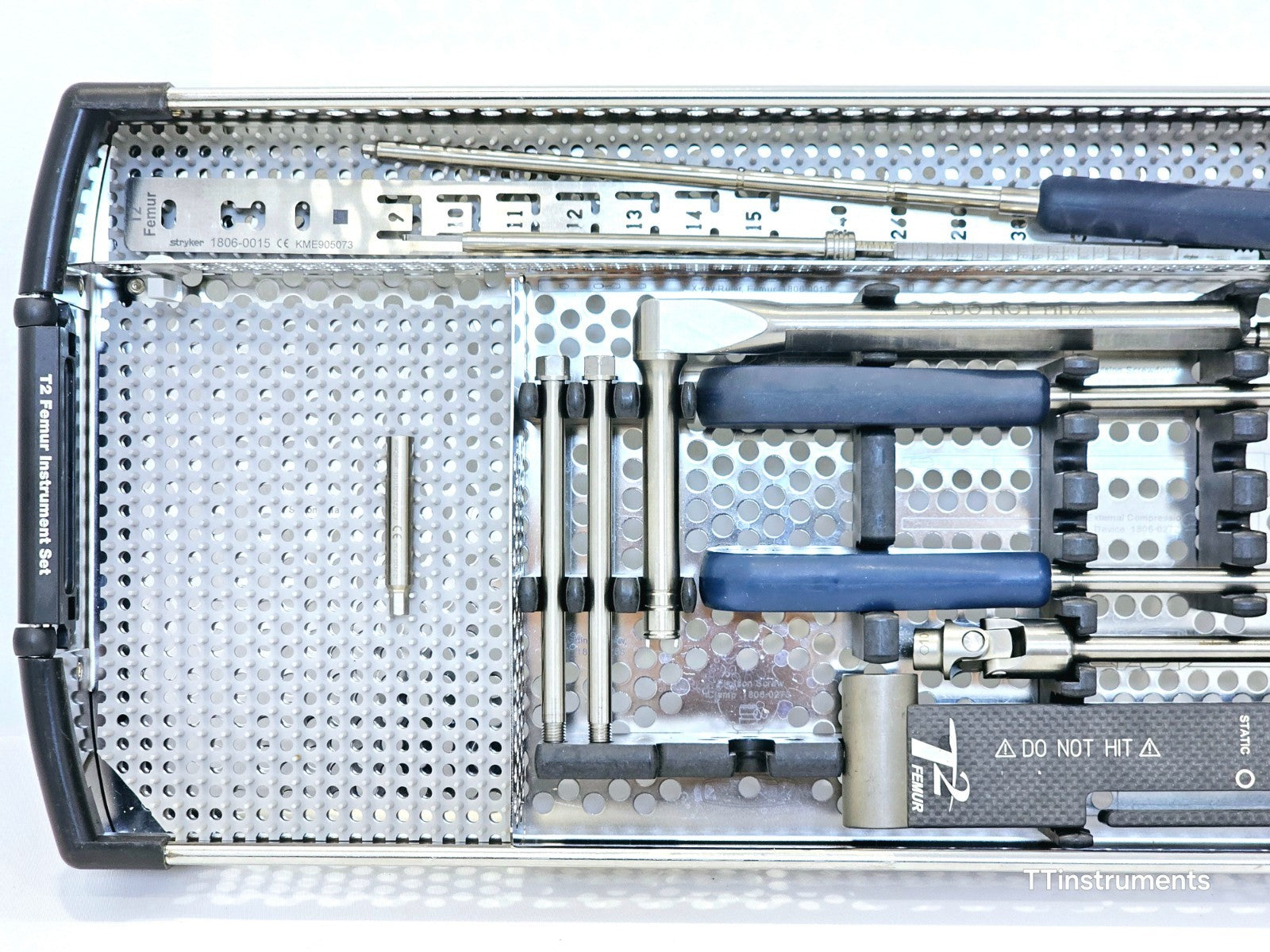

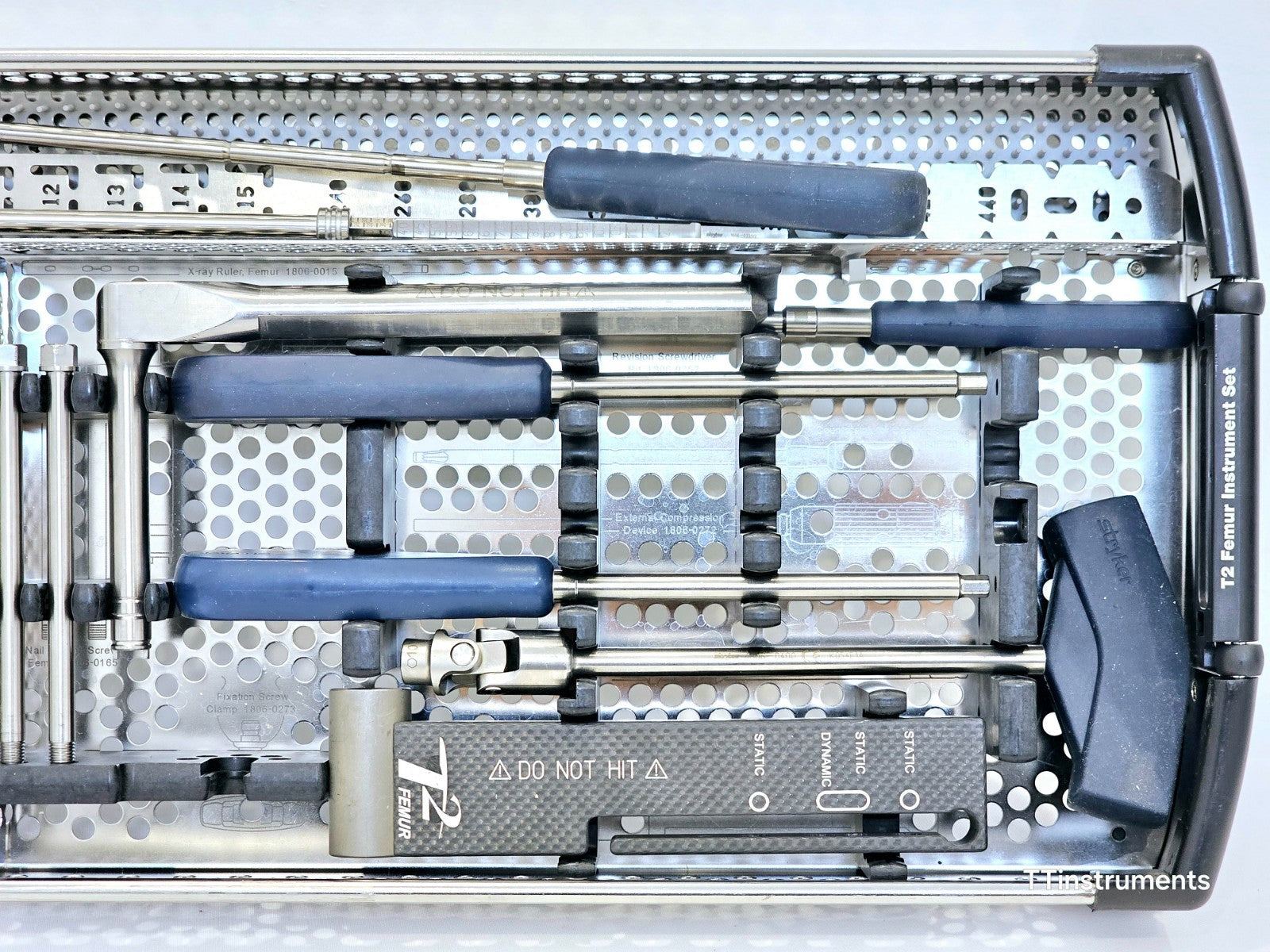

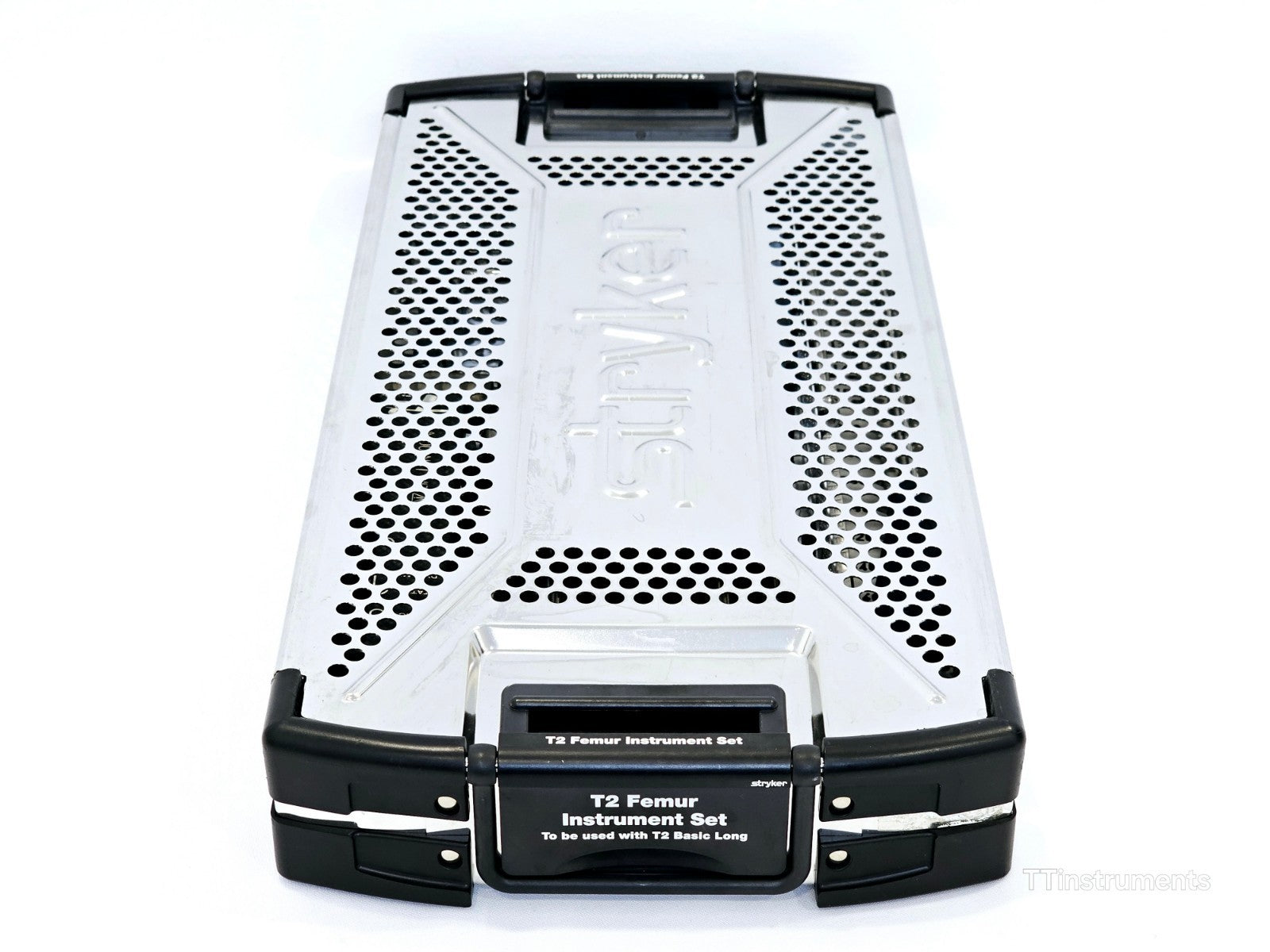

The Stryker T2 Femur Instrument Set is the dedicated surgical instrument tray for use with the T2 Femoral Intramedullary Nailing System (Basic Long configuration). The T2 instrument platform was developed to provide a common, streamlined instrument system across the Stryker T2 nailing family — covering femur, tibia, and humerus applications — reducing complexity and OR inventory requirements.

The instrument platform features ergonomically styled targeting devices and advanced precision and usability. The carbon-fibre target device supports both static and dynamic distal locking modes, and the "DO NOT HIT" warning on the target device is a key safety feature to prevent nail damage during screw insertion. The set supports guided locking via the target device as well as freehand distal locking techniques.

Intended Use:
The IMN Instruments System is intended to enable the implantation and extraction of intramedullary nail and screw in femoral fracture fixation procedures.

Indications:
The T2 Femoral Nailing System is indicated for the treatment of femoral shaft fractures, including diaphyseal and selected metaphyseal fractures, using intramedullary fixation techniques. Static and dynamic locking options provide flexibility depending on fracture type and bone quality.

Key Instrument Features:
Target Device Locking Modes: Static, Dynamic
Guide Wire Diameter: Ø3 mm
X-ray Ruler Reference: 1806-0015 (Femur)
External Compression Device: Ref 1806-0273
Screwdriver Coupling: AO standard
Sterilisation Method: Autoclave compatible (perforated sterilisation container)
Material: Stainless steel instruments; carbon-fibre target device
Compatibility: T2 Basic Long intramedullary nail system
Regulatory Status: CE marked in accordance with applicable EU directives and regulations

Note: This instrument set does not include implants (nails or screws). Implants must be ordered separately. All instruments must be cleaned and sterilised before use. Refer to the Stryker T2 Femoral Nailing System Operative Technique for full surgical instructions.

T2 Femoral Nailing System operative technique — full surgical procedure guide (third-party hosted): Download PDF

T2 GTN Greater Trochanter Entry Femoral Nailing System operative technique — Stryker official PDF: Download PDF

T2 Alpha Femur Antegrade GT/PF Nailing System operative technique — Stryker official PDF: Download PDF

T2 Alpha Femur Retrograde Nailing System operative technique — Stryker official PDF: Download PDF

T2 Alpha comprehensive instrumentation sell sheet — platform overview brochure PDF: Download PDF
