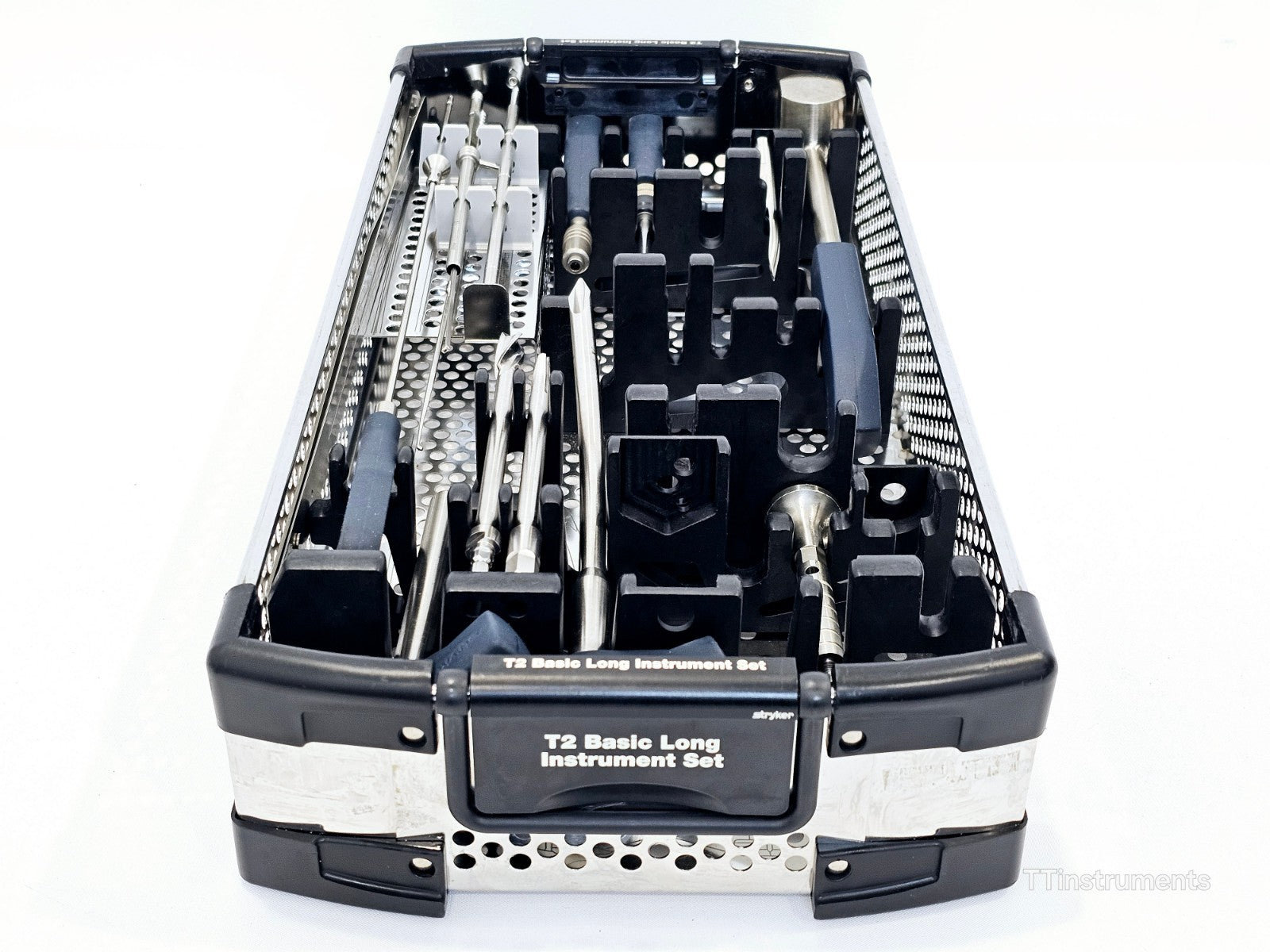

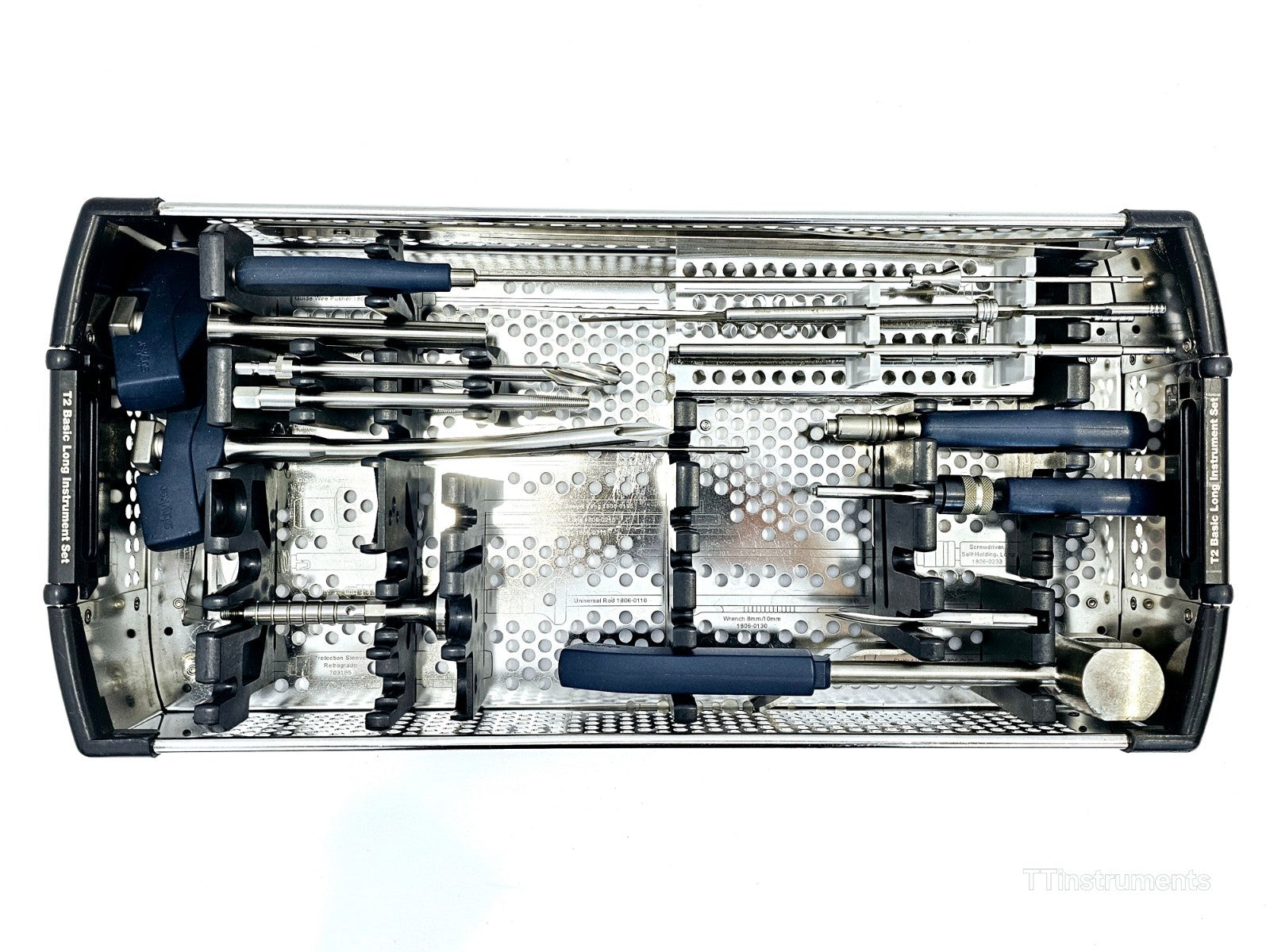

Condition: Used Stryker T2 Basic Long Instrument Set

Only components shown in images or listed in the description are included; set may be incomplete.
Included in the sale:

1806-0170 – Slotted Hammer

1806-0125 – Reduction Spoon, 9 mm

1806-0365 – Screw Scale, Long

1806-0203 – Screwdriver, Self-Holding, Extra Short (hex 3.5)

702429 – Elastosil Teardrop Handle, AO Coupling

1806-0227 – Screwdriver Shaft AO, Long (hex 3.5)

1806-0268 – Screwdriver Shaft, Compression (hex 3.5)

1806-0331 – Screw Gauge (20–120 mm)

1806-0325 – Screw Gauge, Long (20–120 mm)

1806-0271 – Guide Wire Pusher

1806-0022 – Guide Wire Ruler

1806-2014 – Rigid Reamer Ø 12 mm

1806-0350 – Extraction Rod, Conical (Ø 8 mm)

1806-0135 – Insertion Wrench 10 mm

1806-0041 – Awl, Curved 9 mm

1806-0032 – Awl Plug

1806-0150 – Strike Plate

The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, do not bid on this item unless you are an authorized purchaser. If the item is subject to FDA regulation, I will verify your status as an authorized purchaser of this item before shipping of the item.

Buyer responsibility: Any commissioning, calibration, certification and validation required before clinical use is the buyer?s responsibility.

Disclaimer: Regardless of the origin of the equipment or any identification appearing upon it, the equipment is not certified or recommended by us for any specific use. The purchaser agrees that the seller is not responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. By purchasing this equipment, the purchaser acknowledges and agrees to these terms.

The Stryker T2 Nailing System is a comprehensive intramedullary nailing platform designed for the internal fixation of long bone fractures, including tibial and femoral applications. The T2 system represents Stryker's development of the original intramedullary nail principles, bringing together the capabilities of separate nailing systems into a single integrated surgical resource.

The T2 Basic Long Instrument Set contains the fundamental reusable surgical instruments required to perform T2 nail implantation and extraction procedures. The long-format instruments are designed for use with the extended approach required in long bone nailing, providing appropriate reach and control during surgery.

System Overview:
System Type: Intramedullary Nailing System — reusable instrument set
Compatible Systems: T2 Tibial Nailing System, T2 Femoral Nailing System
Instrument Standard: AO coupling interface compatible
Screwdriver Interface: Hex 3.5 mm
Screw Gauge Range: 20–120 mm
Reamer Diameter (included): Ø 12 mm rigid reamer
Extraction Rod Diameter: Ø 8 mm conical
Awl Configuration: Curved 9 mm
Insertion Wrench Size: 10 mm
Tray Type: Stryker perforated stainless steel sterilisation tray with polymer frame and instrument template
Sterilisation: Compatible with standard steam sterilisation protocols; all instruments must be cleaned and sterilised before use

Indications for Use:
The IMN Instruments System is intended to enable the implantation and extraction of intramedullary nail and screw. The T2 system supports static locking, dynamic locking, apposition/compression locking, and advanced locking modes depending on fracture type and nail selection.

Key Instrument Functions:
Slotted Hammer / Strike Plate: For nail seating and advancement
Guide Wire Ruler and Pusher: For accurate guide wire placement and measurement
Screw Gauges (standard and long): For intraoperative screw length measurement (20–120 mm range)
Screwdriver Shafts (AO long, compression, self-holding): For proximal and distal screw insertion
Elastosil Teardrop Handle: AO coupling handle providing ergonomic control
Rigid Reamer Ø 12 mm: For reamed technique nail preparation
Curved Awl 9 mm: For medullary canal entry
Extraction Rod Conical Ø 8 mm: For nail removal procedures
Insertion Wrench 10 mm: For end cap and screw insertion

For full ordering information and operative technique guidance, refer to the Stryker T2 Tibial Nailing System Operative Technique documentation.

T2 Tibial Nailing System Operative Technique — full surgical technique guide including instrument ordering information: Download PDF

T2 Alpha Tibia Nailing System Operative Technique — updated surgical technique and instrumentation guide: Download PDF

T2 Alpha Nailing System — comprehensive instrument platform sell sheet: Download PDF

T2 Alpha Tibia Nailing System — system components and implant ordering information: Download PDF

T2 Femoral Nailing System Operative Technique — retrograde and antegrade surgical technique guide: Download PDF
