Condition: Used

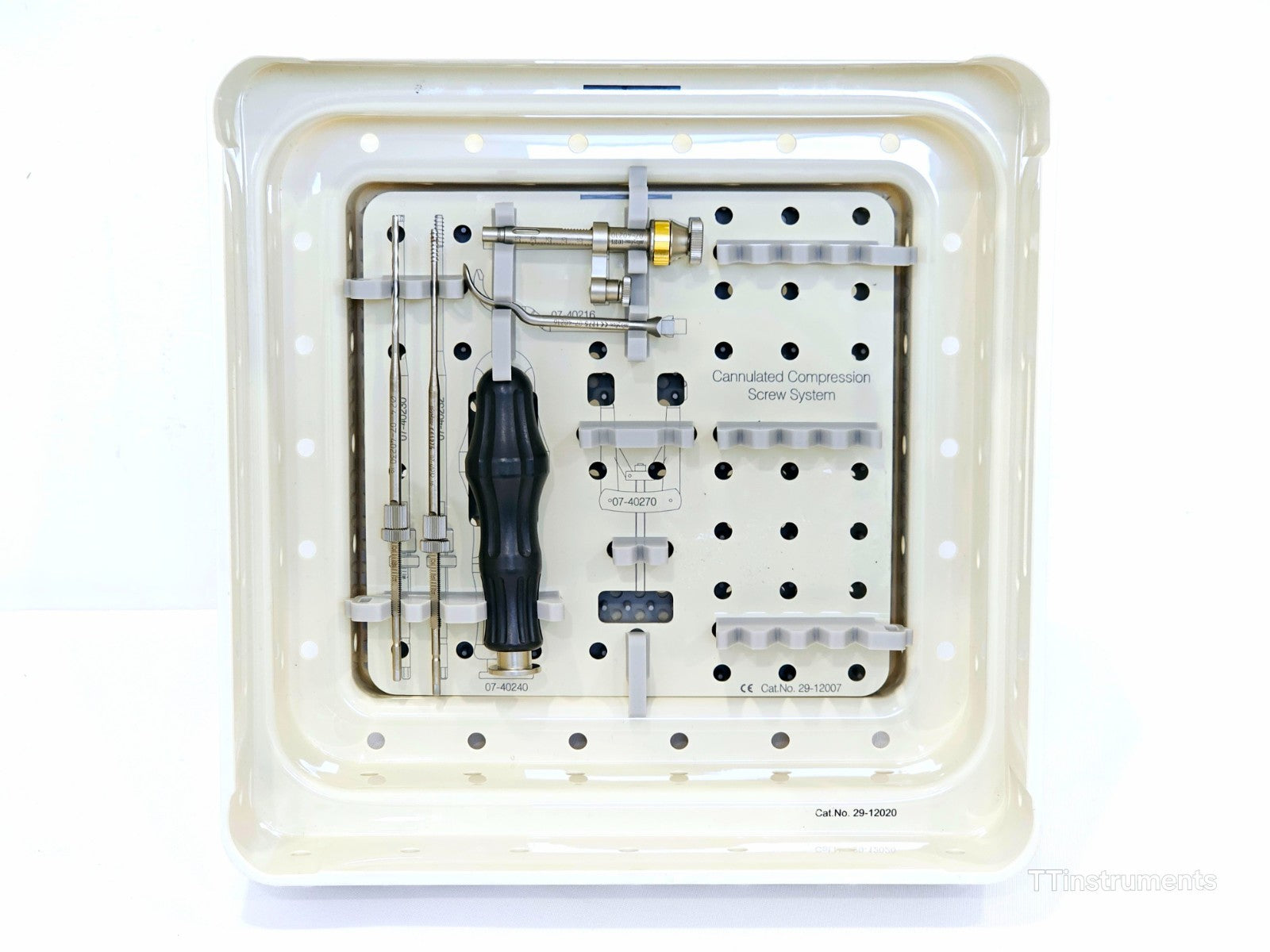

Stryker Surgical Leibinger TwinFix 3.2mm Cannulated Compression System 29-12021 07-40211 – Cannulated Drill Bit / Guide
07-40215 – Reamer / Tap Instrument
07-40250 – Collared Guide / Alignment Tool
07-40245 – Screw Driver / Handle
07-40220 – Depth Gauge / Measuring Device
07-40210 – Cannulated Compression Screw Inserter
07-40216 – Guide Pin / Wire
07-40230 – Cannulated Screw Guide Block
07-40232 – Measurement Block / Drill Stop
07-40240 – Cannulated Compression Screw Compression Tool The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, do not bid on this item unless you are an authorized purchaser. If the item is subject to FDA regulation, I will verify your status as an authorized purchaser of this item before shipping of the item. Buyer responsibility:
Any commissioning, calibration, certification and validation required before clinical use is the buyer's responsibility. Disclaimer:
Regardless of the origin of the equipment or any identification appearing upon it, the equipment is not certified or recommended by us for any specific use. The purchaser agrees that the seller is not responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. By purchasing this equipment, the purchaser acknowledges and agrees to these terms.

Manufacturer: Stryker (Leibinger division)
Product Name: TwinFix 3.2mm Cannulated Compression Screw System
Catalogue Number: 29-12021

Product Description:
The TwinFix Interfragmentary Compression Screw System is a Leibinger solution for hand surgery, designed for percutaneous and open fixation of small bone fractures. The system features independent function of the proximal and distal screw threads to allow highly controlled, in-situ dynamic adjustable interfragmentary compression. The dual-component screw design allows the trailing end of the screw to be turned independently of the leading part after initial insertion, thereby generating additional and controlled compression across the fracture site.

The TwinFix screw requires a special screwdriver with two concentric hexagonal heads and a clutch mechanism to actuate the independent thread function. The system is primarily indicated for fixation of scaphoid fractures, metatarsal fractures, and osteotomies of the forefoot.

Key Features:
- Independent proximal and distal thread function for highly controlled interfragmentary compression
- Cannulated design allows over-the-wire percutaneous placement using a 1.0mm K-wire guide
- Dual-component screw: trailing thread 4.2mm OD, leading thread 3.2mm OD
- Headless design allows full burial beneath the cortical bone surface
- Suitable for percutaneous (minimally invasive) and open surgical approaches
- Compatible with fluoroscopic guidance during placement
- Sterilisable instrumentation organised in a Profyle MODULAR container system

Screw Specifications:
Screw Diameter (leading thread): 3.2mm
Screw Diameter (trailing thread): 4.2mm OD
Available Lengths: 14mm, 16mm, 18mm, 20mm, 21mm, 22mm, 23mm, 24mm, 25mm, 26mm, 27mm, 28mm, 30mm, 32mm, 34mm
Guide Wire Diameter: 1.0mm
Cannulated Drill Size: 2.4mm (with depth stop)
Design Type: Headless, cannulated, dual-thread interfragmentary compression screw

Primary Indications:
- Scaphoid fracture fixation (acute and delayed union)
- Metatarsal fractures
- Forefoot osteotomies
- Small bone interfragmentary compression fixation

Instrumentation Included in System:
- Drill and screw guide sleeve
- Drill guide for 1mm K-wires
- Cannulated screwdriver handle
- Cannulated drill 2.4mm with depth stop
- Cannulated tap
- Cannulated screwdriver blade
- Depth measuring gauge
- Target device for compression screw (open approach)
- Scaphoid target bow

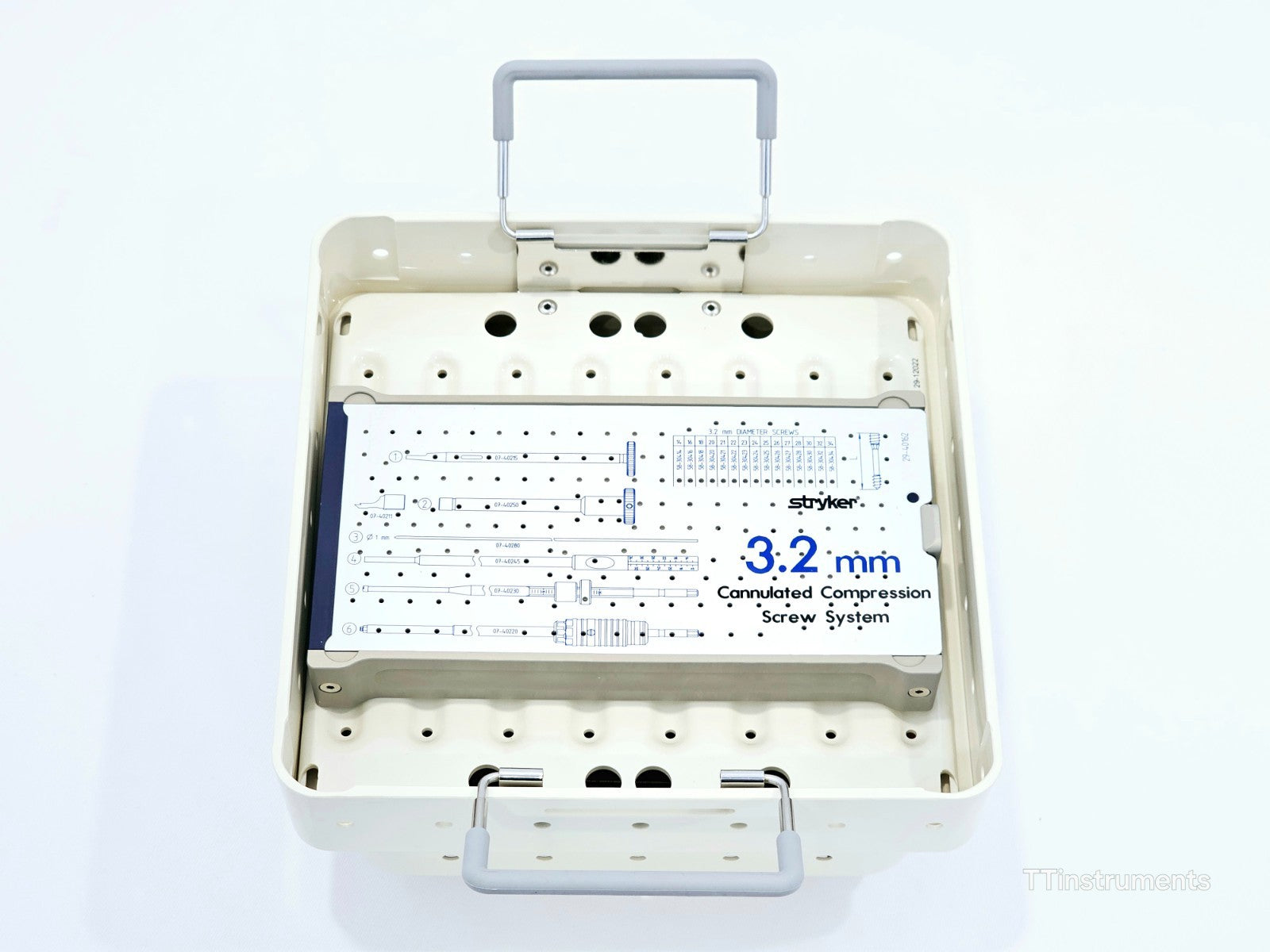

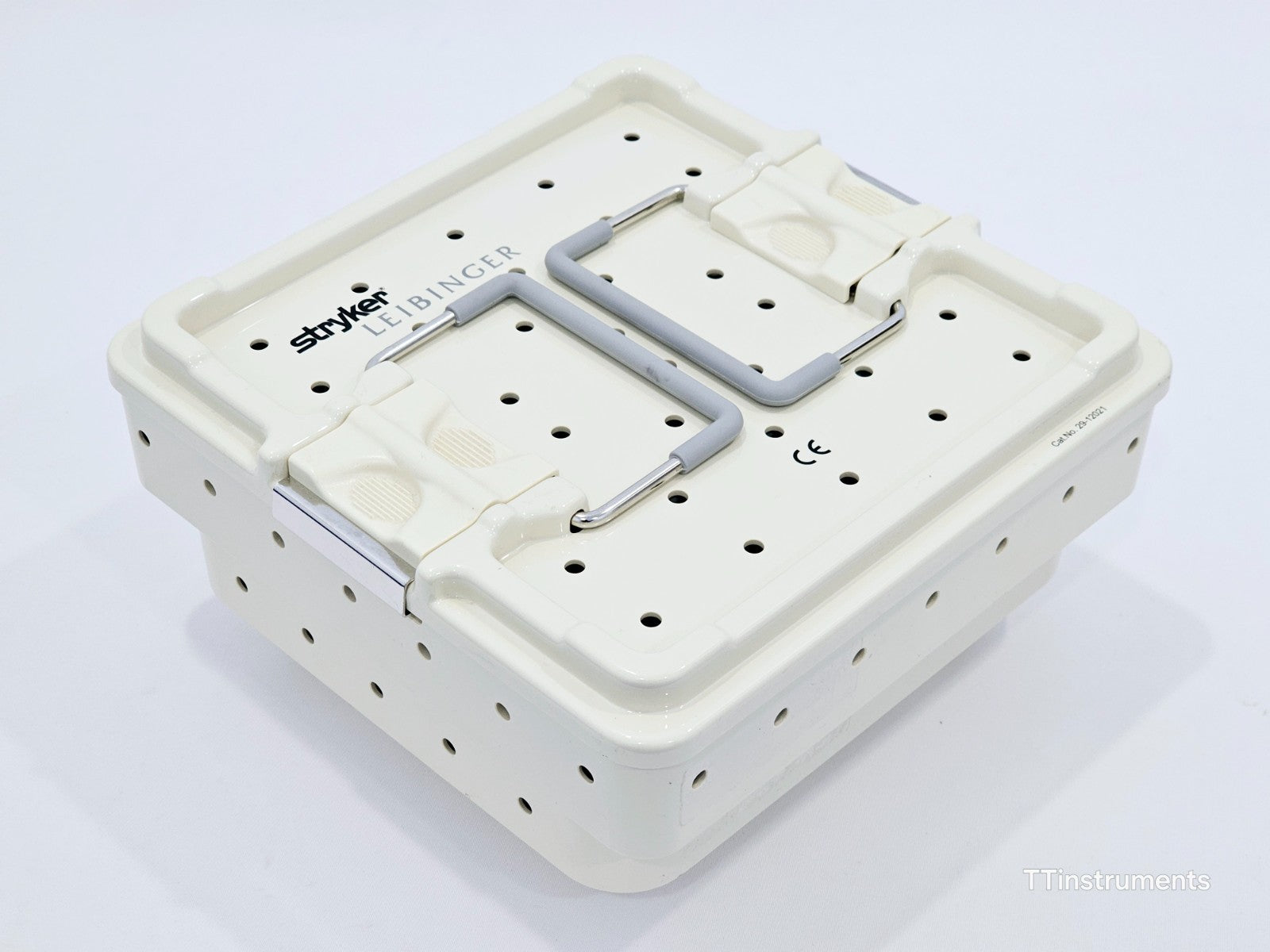

- Profyle MODULAR sterilising container

Manufacturer: Stryker Leibinger GmbH & Co. KG, Bötzinger Strasse, Freiburg, Germany
Regulatory: CE marked medical device

Note: This instrument set is intended for use by qualified surgical professionals only. Always refer to the package insert, product label, and instructions for use before using any Stryker product. Any commissioning, sterilisation, calibration, and validation required before clinical use is the responsibility of the purchasing institution.

TwinFix Cannulated Compression Screw — Leibinger Solutions for Hand Surgery procedural guide (PDF): Download PDF

Stryker TwinFix Surgical Technique Guide — hosted via ResearchGate (PDF): Download PDF
