Condition: Used Stryker Starting Instrument Tray 6278-9-900 Included Components: 6278-1-150 starting reamer 6278-9-090 trial handle / inserter 1101-2100 universal T-handle 6278-5-200 starter awl 200 mm 6278-5-250 starter awl 250 mm 6278-5-300 starter awl 300 mm 1120-1000 slap hammer Important Regulatory Notice
The sale of this item may be subject to regulation by the U.S. Food and Drug Administration (FDA) and state and local regulatory agencies.
Do not bid or purchase unless you are an authorized purchaser. Verification of authorized status may be required prior to shipping.
Buyer Responsibility
Any commissioning, calibration, certification, and validation required prior to clinical use is the sole responsibility of the buyer.
Disclaimer
Regardless of the origin of the equipment or any identification appearing upon it, this equipment is not certified or recommended by the seller for any specific use.
The purchaser agrees that the seller shall not be responsible or liable for any injuries or damages, whether incidental or consequential, associated with the use of this equipment.
By purchasing this item, the buyer acknowledges and agrees to these terms.

Manufacturer: Stryker Orthopaedics
Product Name: Restoration Modular Revision Hip System — Starting Instrument Tray
Catalogue Number: 6278-9-900
System: Restoration Modular Revision Hip System

Product Description:
The Stryker Restoration Modular Revision Hip System is a comprehensive revision total hip arthroplasty (THA) platform designed to allow surgeons to independently achieve solid femoral fixation and restore hip biomechanics using a straightforward set of instrumentation. Launched in 2003, the system has been used in over 181,000 constructs implanted globally, providing solutions for femoral Type 1 through Type 4 revisions.

The Starting Instrument Tray (6278-9-900) contains the instruments required for the initial stages of femoral preparation during revision THA surgery. These starting instruments facilitate neck resection, femoral canal entry via the box osteotome, and initial canal preparation using the starter awls and reamer prior to sequential distal reaming. The tray is an essential first step in the Restoration Modular surgical protocol.

The system takes advantage of long clinical experience with distally fixed implants, while using modern technology to enhance proximal load transfer to the femur. By mating a selected proximal body with a selected distal stem, the system provides a femoral prosthesis that minimises proximal-distal mismatching. A choice of distal stem options addresses fixation and stability, while proximal body geometries allow for adjustments to anteversion, height, and offset.

Key Features:
System: Restoration Modular Revision Hip System
Indication: Revision total hip arthroplasty (THA), femoral Type 1–Type 4
Instrument Material: Surgical-grade stainless steel
Sterilisation: Fully autoclavable; validated with Aesculap SterilContainer System and CSR wrap
Compatibility: Compatible with all Restoration Modular proximal body and distal stem options (Conical, Milled, Fluted, Plasma, Cone Body)
Tray Reference: 6278-9-900
CE Marked: Yes (as indicated on tray)
Reuse: Reusable instruments; refer to LSTPI-B for cleaning, sterilisation, inspection, and maintenance

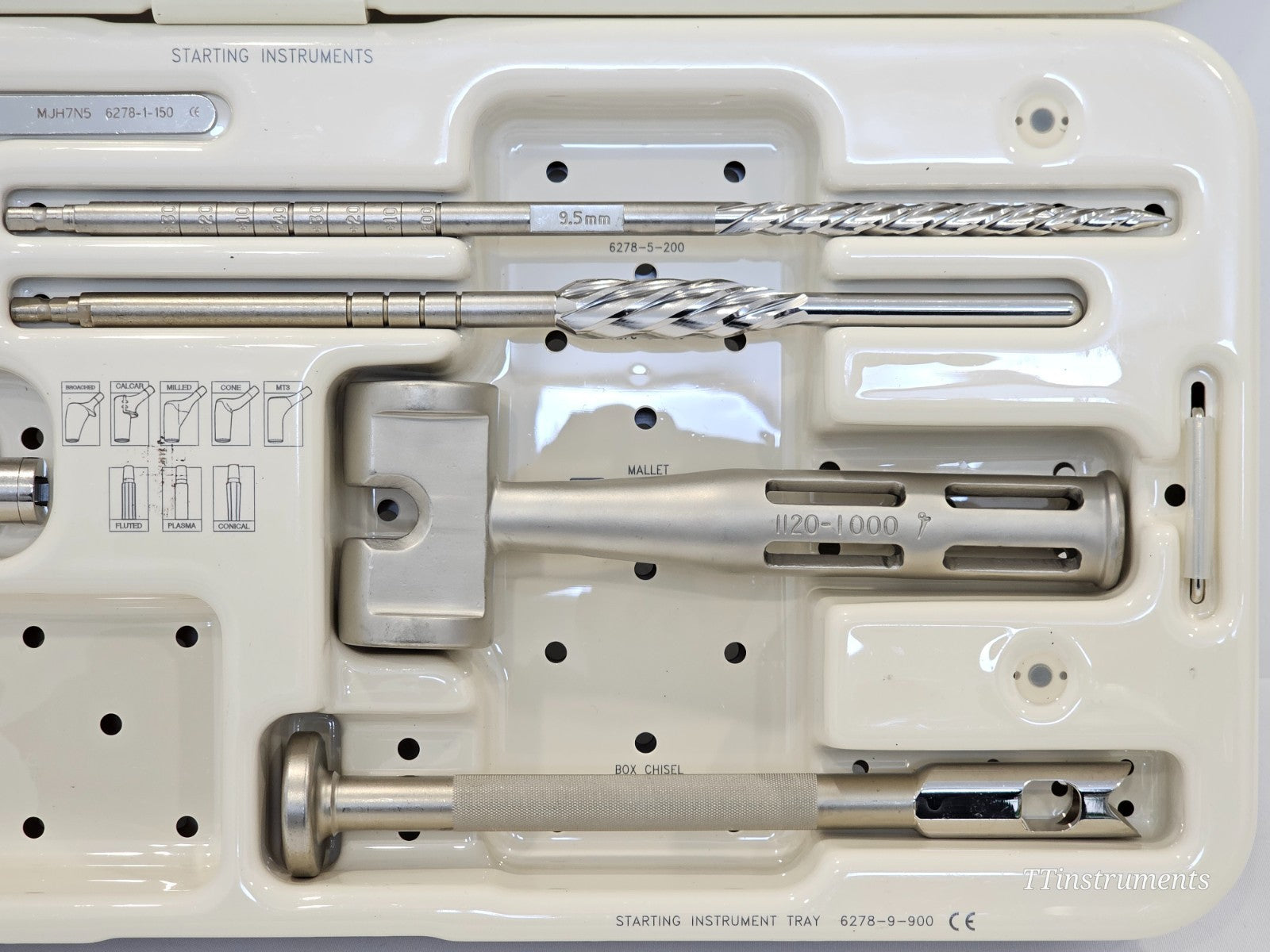

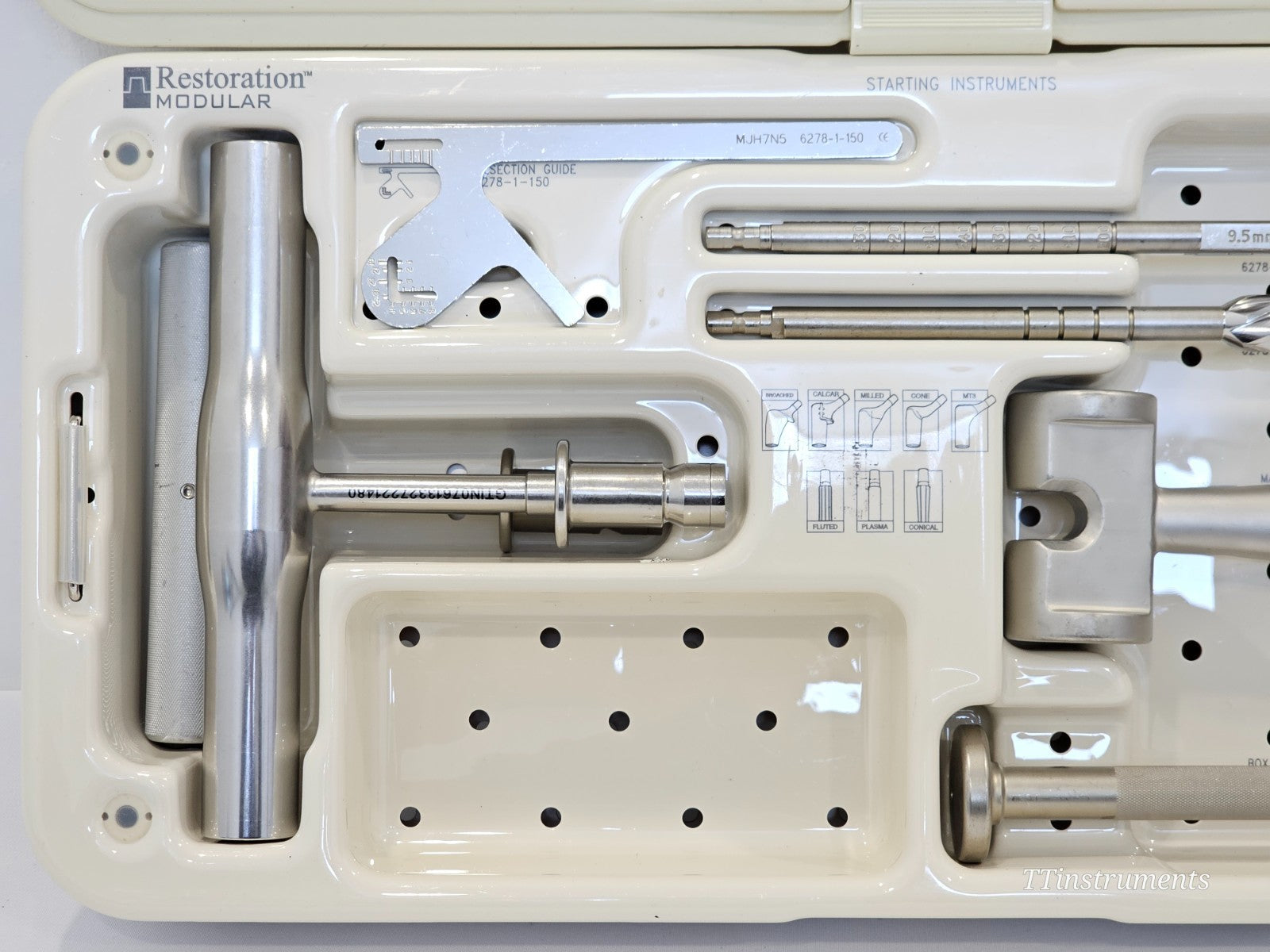

Instrument Contents (Tray 6278-9-900):
Neck Resection Guide: 6278-1-150
Trial Handle / Large T-Handle: 6278-9-090
Universal T-Handle: 1101-2100
Starter Awl 200 mm: 6278-5-200
Starter Awl 250 mm: 6278-5-250
Starter Awl 300 mm: 6278-5-300
Slap Hammer: 1120-1000
Box Chisel and Mallet: included in tray

Note: Any commissioning, validation, and verification required prior to clinical use is the sole responsibility of the buyer. Always refer to the Stryker surgical protocol and package insert before use.

Restoration Modular Revision Hip System — full surgical protocol (RMOD-SP-15): Download PDF

Restoration Modular Revision Hip System — surgical protocol including starting instruments guidance: Download PDF

Restoration Modular Revision Hip System — product guide and overview (RMOD-PG-2): Download PDF

Stryker instrument sterilisation reference guide — reusable instrument tray cleaning and sterilisation parameters (LSTPI-B): Download PDF
