Condition: Used (Like New) Stryker 1806-9051 Opening Insert Tray Included Components: 48920018 osteotome handle 48920017 osteotome handle variant 48920008 straight osteotome 48920007 straight osteotome 48920013 straight osteotome 48920010 curved osteotome 48920012 curved osteotome 48920011 curved osteotome 48920009 offset osteotome 48920014 offset osteotome 48920015 offset osteotome 48920004 wide osteotome 48920016 wide osteotome 48920003 osteotome blade 30 mm 48920002 osteotome blade 20 mm 48920001 osteotome blade 15 mm Regulatory Notice
The sale of this item may be subject to regulation by the U.S. Food and Drug Administration (FDA) and state and local regulatory agencies.
Do not bid or purchase unless you are an authorized purchaser. Verification of authorized status may be required prior to shipping.
Buyer Responsibility
Any commissioning, calibration, certification, and validation required prior to clinical use is the sole responsibility of the buyer.
Disclaimer
Regardless of the origin of the equipment or any identification appearing upon it, this equipment is not certified or recommended by the seller for any specific use.
The purchaser agrees that the seller shall not be responsible or liable for any injuries or damages, whether incidental or consequential, associated with the use of this equipment.
By purchasing this item, the buyer acknowledges and agrees to these terms.

The Stryker Spine Osteotomy Instrument Set (Ref. 48920020) is a comprehensive set of surgical instruments designed for use in Pedicle Subtraction Osteotomy (PSO) and Vertebral Column Resection (VCR) spinal procedures. These techniques provide surgeons with powerful methods for correcting fixed sagittal spinal deformity. The set was designed to assist in these technically challenging and highly complex procedures.

The instruments within the set are manual medical tools intended solely for use as outlined in the Stryker Spine Osteotomy Instrument Set PSO/VCR Surgical Technique. Instruments are manufactured from stainless steel and medical-grade silicone and do not contain any latex components. They are non-implantable and are supplied non-sterile in the instrument container.

Key Features:

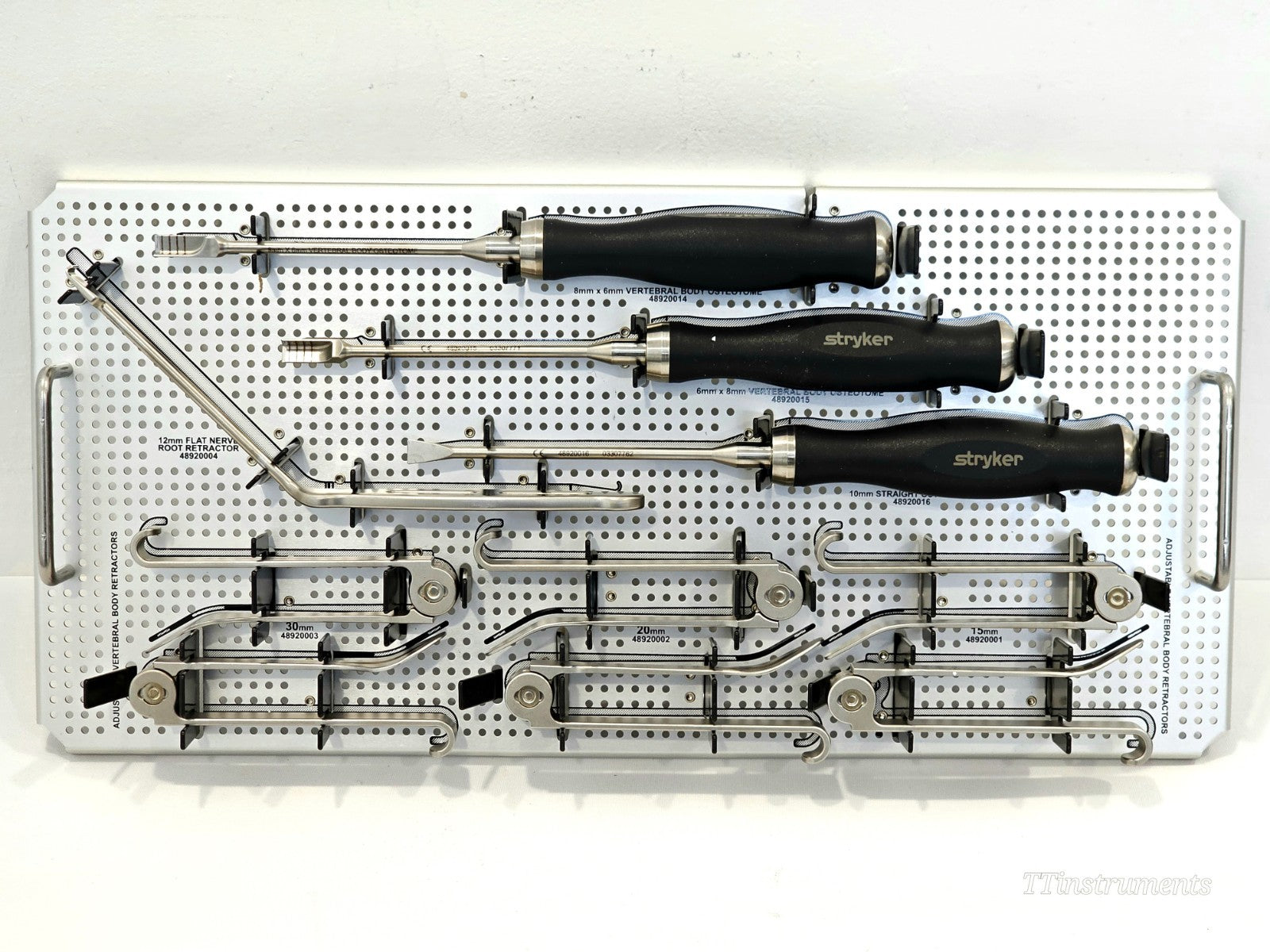

• Adjustable vertebral body retractors designed to wrap around the anterior aspect of the vertebral body, anchoring along the body to allow maximal exposure during osteotomy

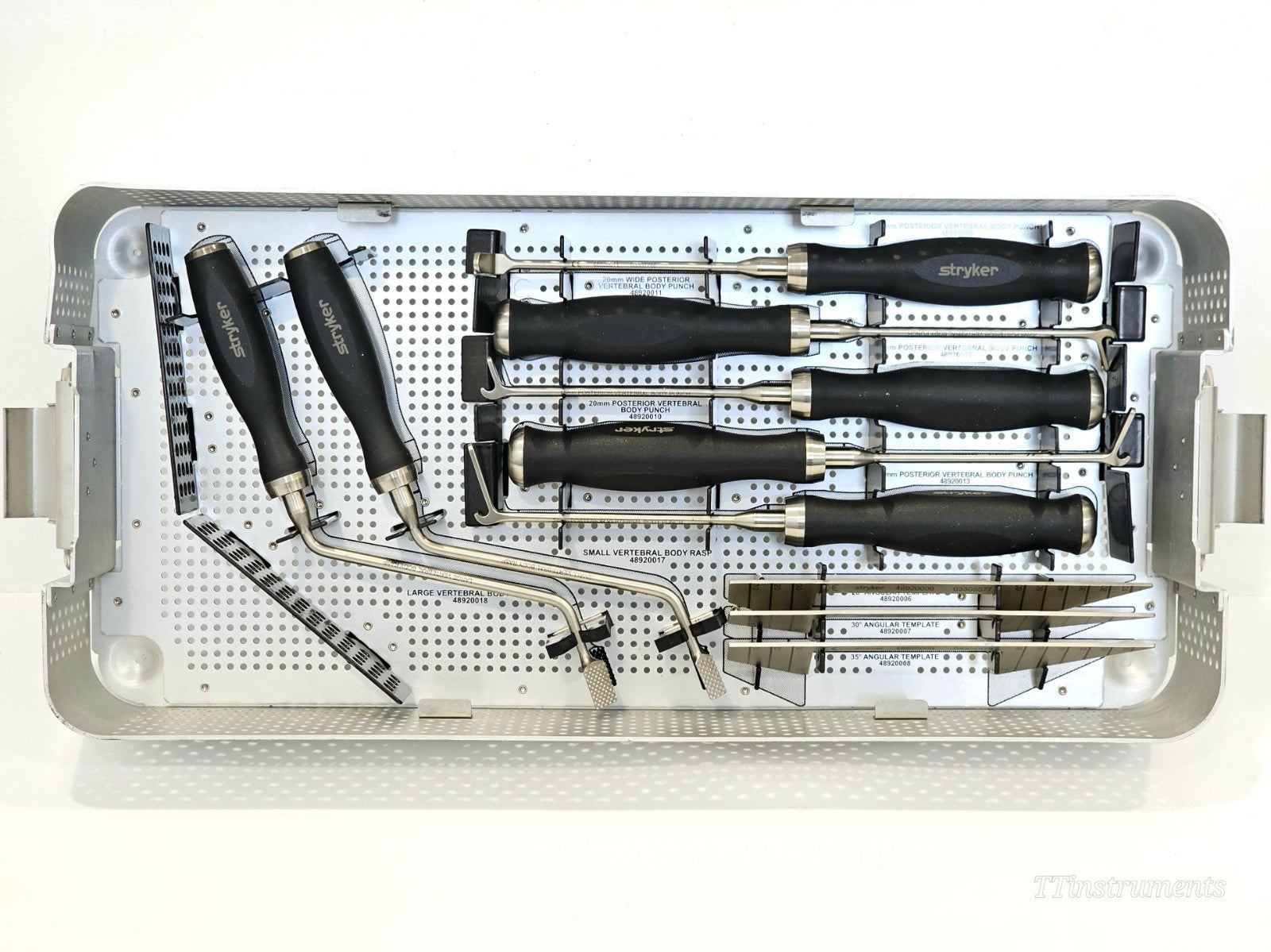

• Wide range of posterior vertebral body punches for efficient bony element removal
• Vertebral body osteotomes and rasps in multiple sizes for precise bone resection
• Angular templates (30° and 35°) to assist in preoperative and intraoperative planning
• Flat nerve root retractor for nerve protection during the procedure
• All instruments organised and labelled within a dedicated Stryker sterilisation tray

Instrument Materials: Stainless steel and medical-grade silicone
Latex Content: None
Sterility: Supplied non-sterile — must be cleaned and sterilised before use
Reusability: Reusable (unless labelled as single-use) after decontamination, cleaning, and sterilisation
Container Reference: 11247-001
Set Reference: 48920020
Regulatory: CE marked; US Federal law restricts sale to or on the order of a licensed physician
Manufacturer: Stryker Spine / Avalign Technologies

Indications for Use:
PSO/VCR — Pedicle Subtraction Osteotomy and Vertebral Column Resection for correction of fixed sagittal spinal deformity, including rigid multiplanar deformity, fixed coronal imbalance, and sharp angular deformities.

Note: For full specifications and surgical technique, refer to the Stryker Spine Osteotomy Instrument Set PSO/VCR Surgical Technique documentation available from Stryker Spine or an authorised distributor.

Stryker Spine Osteotomy Set instrumentation instructions for use (IFU) — Rev B, issued by Avalign Technologies: Download PDF

Stryker Spine instrumentation reprocessing guide — cleaning and sterilisation instructions: Download PDF
