Condition: Used Stryker/Scorpio Miscellaneous Instruments 8000-2011 Included Components: 3168-0000 miscellaneous alignment instrument 3179-0000 tibial/femoral positioning tool 7650-1138 Scorpio instrument handle 6633-7-605 resection guide component 3763-1000 modular coupling adapter 8000-8080 Scorpio miscellaneous instrument tray insert Important Regulatory Notice
The sale of this item may be subject to regulation by the U.S. Food and Drug Administration (FDA) and state and local regulatory agencies.
Do not bid or purchase unless you are an authorized purchaser. Verification of authorized status may be required prior to shipping.
Buyer Responsibility
Any commissioning, calibration, certification, and validation required prior to clinical use is the sole responsibility of the buyer.
Disclaimer
Regardless of the origin of the equipment or any identification appearing upon it, this equipment is not certified or recommended by the seller for any specific use.
The purchaser agrees that the seller shall not be responsible or liable for any injuries or damages, whether incidental or consequential, associated with the use of this equipment.
By purchasing this item, the buyer acknowledges and agrees to these terms.

The Stryker Scorpio Xcelerate Miscellaneous Instruments Set (Ref: 8000-2011) is part of the Xcelerate instrumentation system designed by Stryker Orthopaedics for use with the Scorpio Single Radius Total Knee Arthroplasty system. The Xcelerate system was developed to provide a universal surgical technique compatible with both Duracon and Scorpio knee systems, combining user-friendly design with high intra-operative accuracy.

The Scorpio knee system, first introduced by Stryker Orthopaedics in 1996, is based on a single femoral radius design intended to address mid-flexion instability and improve extensor mechanism function. The single radius of curvature of the femoral component allows for a larger contact area, better extensor mechanism function, mid-flexion stability, and improved rotational allowance. The patented Deltafit keel is designed to reach dense cancellous bone to enhance fixation and improve stability, distributing load over a wide region to increase load-carrying ability.

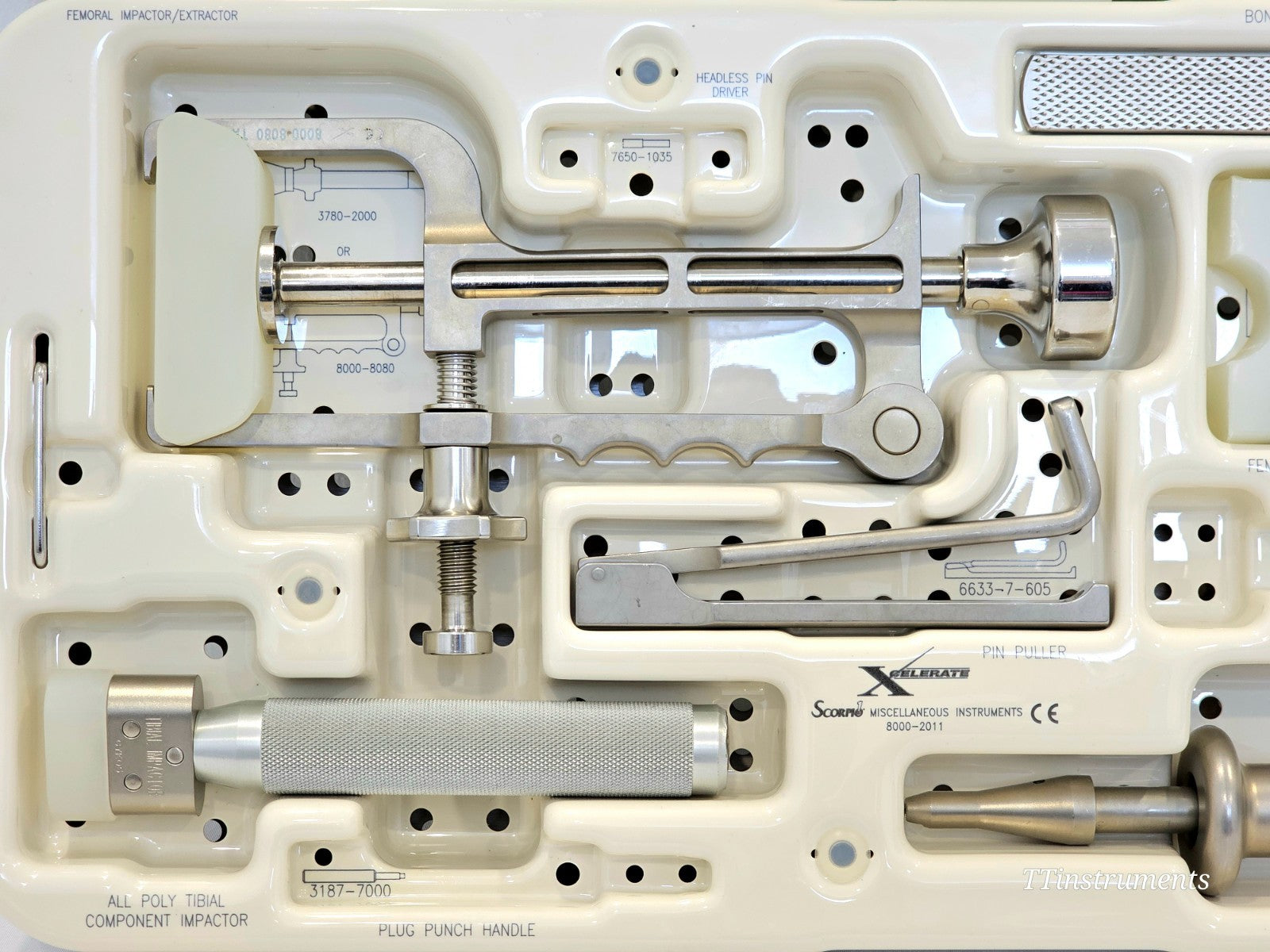

The miscellaneous instruments tray supports key intra-operative steps including femoral impaction and extraction, tibial preparation, plug punching, pin insertion and removal, and component implantation. All instruments are non-sterile, reusable surgical tools intended for use by trained orthopaedic surgeons only, and must be cleaned, inspected, and sterilised prior to clinical use.

Product Name: Stryker Scorpio Xcelerate Miscellaneous Instruments
Catalogue Number: 8000-2011
Manufacturer: Stryker Orthopaedics (Howmedica Osteonics Corp.), Mahwah, NJ, USA
System Compatibility: Scorpio Single Radius TKA system (PS and CR variants); Scorpio NRG; Scorpio Plus
Instrument Type: Reusable, non-sterile orthopaedic surgical instruments
Regulatory Marking: CE marked per Medical Device Directive 93/42/EEC

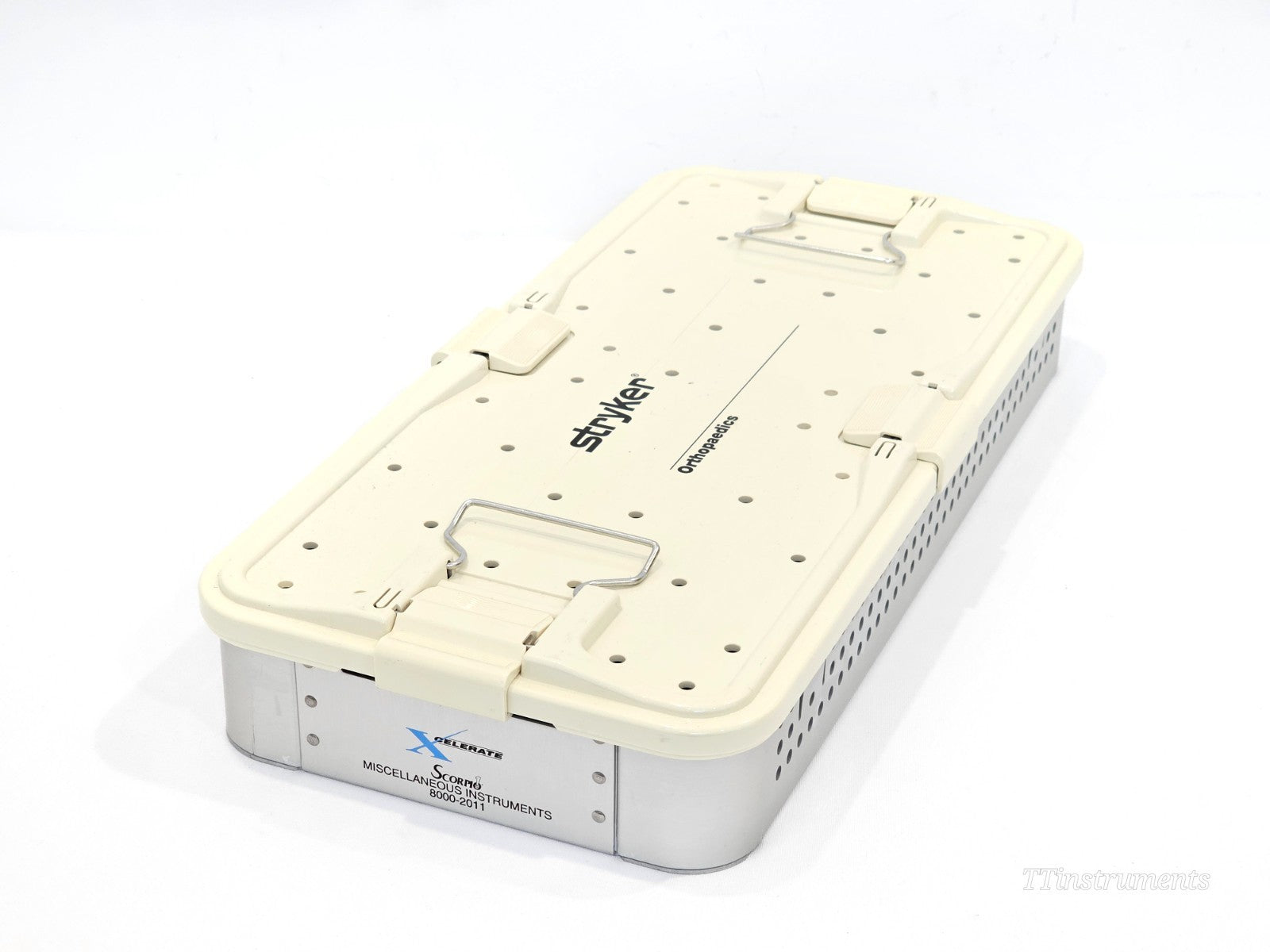

Sterilisation: Autoclave-compatible sterilisation tray included
Intended Use: Total knee arthroplasty — femoral and tibial preparation, component impaction and extraction
For Use By: Trained orthopaedic surgeons in clinical/theatre settings only

Scorpio NRG CR & PS Single Radius Primary Knee System Surgical Protocol (AR) — Xcelerate instrumentation technique: Download PDF

Scorpio NRG CR & PS Single Radius Primary Knee System Surgical Protocol (PR) — Xcelerate instrumentation technique: Download PDF

Xcelerate Instrumentation Patella Reaming Surgical Protocol — for Scorpio and Duracon systems: Download PDF

Scorpio TS Single Axis Revision Knee System Surgical Protocol — Stryker Orthopaedics: Download PDF
