Condition: Used Stryker Omega 3 System Hip Fracture Applications Basic Instrument Case Included Components: 702969 Locking Insert Forceps 702674 Holding Pin 702672 Supracondylar Guide 702768 Locking Insert Extractor 702430 Medium T-Handle 702751 Screwdriver (AO/Large Handle) 702754 Screwdriver Bit T20 702748 Screwdriver T20 702884 Calibrated Drill Bit Ø4.3 mm 702743 Hook 702708 Drill Sleeve 702763 Locking Insert Inserter 704205 95° Supracondylar Jig 700359 Depth Gauge Regulatory Notice
The sale of this item may be subject to regulation by the U.S. Food and Drug Administration (FDA) and state and local regulatory agencies.
Do not bid or purchase unless you are an authorized purchaser. Verification of authorized status may be required prior to shipping.
Buyer Responsibility
Any commissioning, calibration, certification, and validation required prior to clinical use is the sole responsibility of the buyer.
Disclaimer
Regardless of the origin of the equipment or any identification appearing upon it, this equipment is not certified or recommended by the seller for any specific use.
The purchaser agrees that the seller shall not be responsible or liable for any injuries or damages, whether incidental or consequential, associated with the use of this equipment.
By purchasing this item, the buyer acknowledges and agrees to these terms.

The Stryker Omega 3 Compression Hip Screw System is a modular orthopaedic implant and instrument system designed for the treatment of hip fractures, primarily intertrochanteric and proximal femoral fractures. Manufactured by Stryker Osteosynthesis (Stryker Trauma AG, Selzach, Switzerland), the system combines slimline hip plates with a choice of cephalic implants and dedicated state-of-the-art instrumentation.

The Basic Instrument Case (REF 902100) provides the core set of instruments required to apply the Omega 3 locking inserts and locking screws to the hip plate, and to perform standard lag screw fixation procedures.

System Overview:
Manufacturer: Stryker Osteosynthesis (Stryker Trauma AG)
Indication: Intertrochanteric fractures, subtrochanteric fractures, intracapsular and basal neck fractures
Fixation Type: Compression Hip Screw (sliding/dynamic hip screw)
Case Reference: 902100

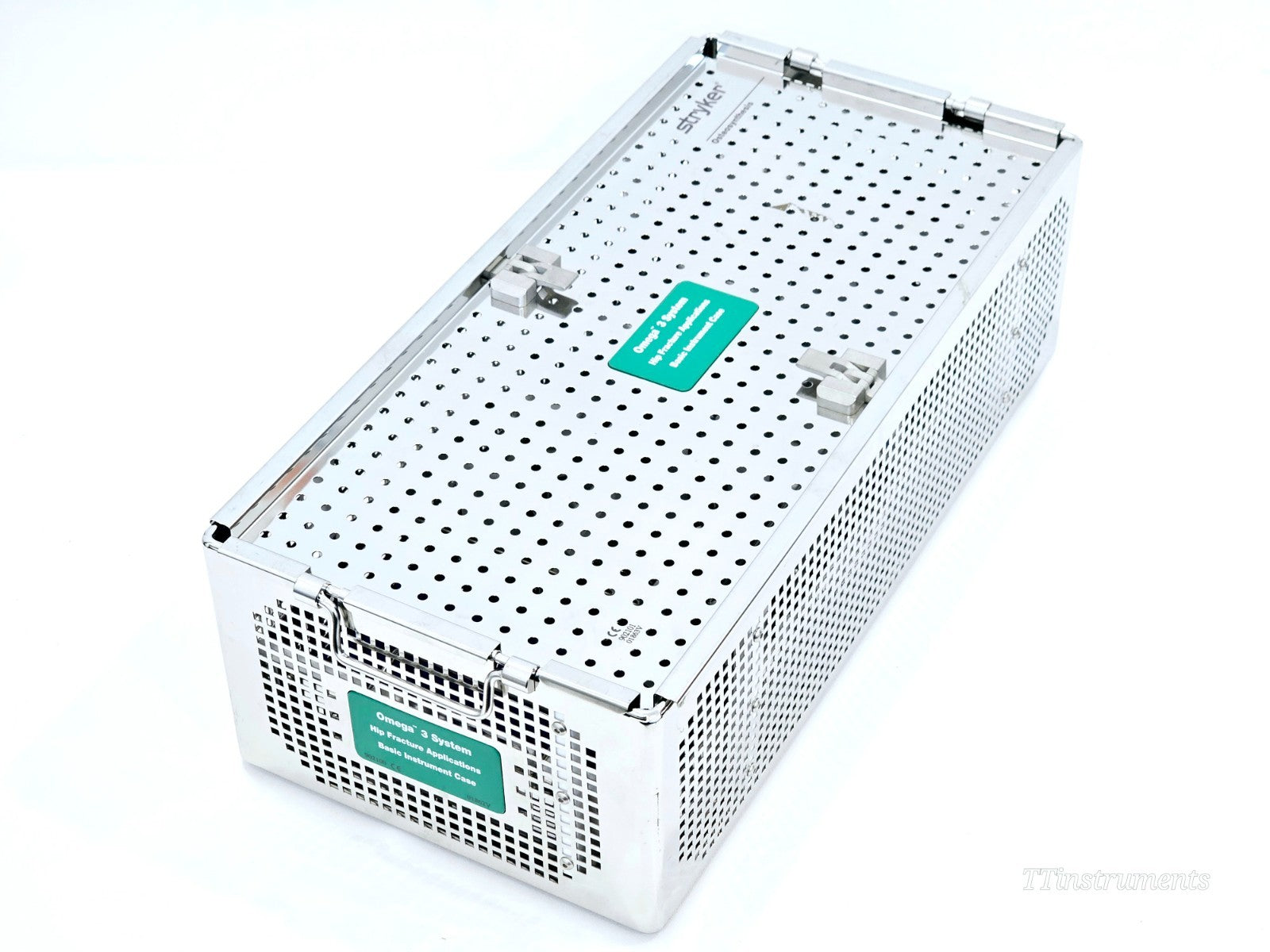

Case Type: Stainless steel perforated sterilisation case with lid (REF 902101)

Key System Features:
Hip Plate Barrel Options: Standard Barrel (38 mm) and Short Barrel (25 mm)
Compatible Screw Types: Ø4.5 mm Cortical Screws, Ø6.5 mm Cancellous Screws, Ø6.5 mm Asnis III Cannulated Screws, Ø5.0 mm Locking Inserts and Locking Screws
Locking Insert Diameter: 5.0 mm
Calibrated Drill Bit Diameter: 4.3 mm
Guide Pin Diameter: 2.8 mm
Minimally Invasive Option: Procedure can be performed through a 4–6 cm skin incision
Angle Options: Multiple neck-shaft angles available across the hip plate range
Plate Design: Tapered, low-profile, bi-directional shaft holes for angular stability

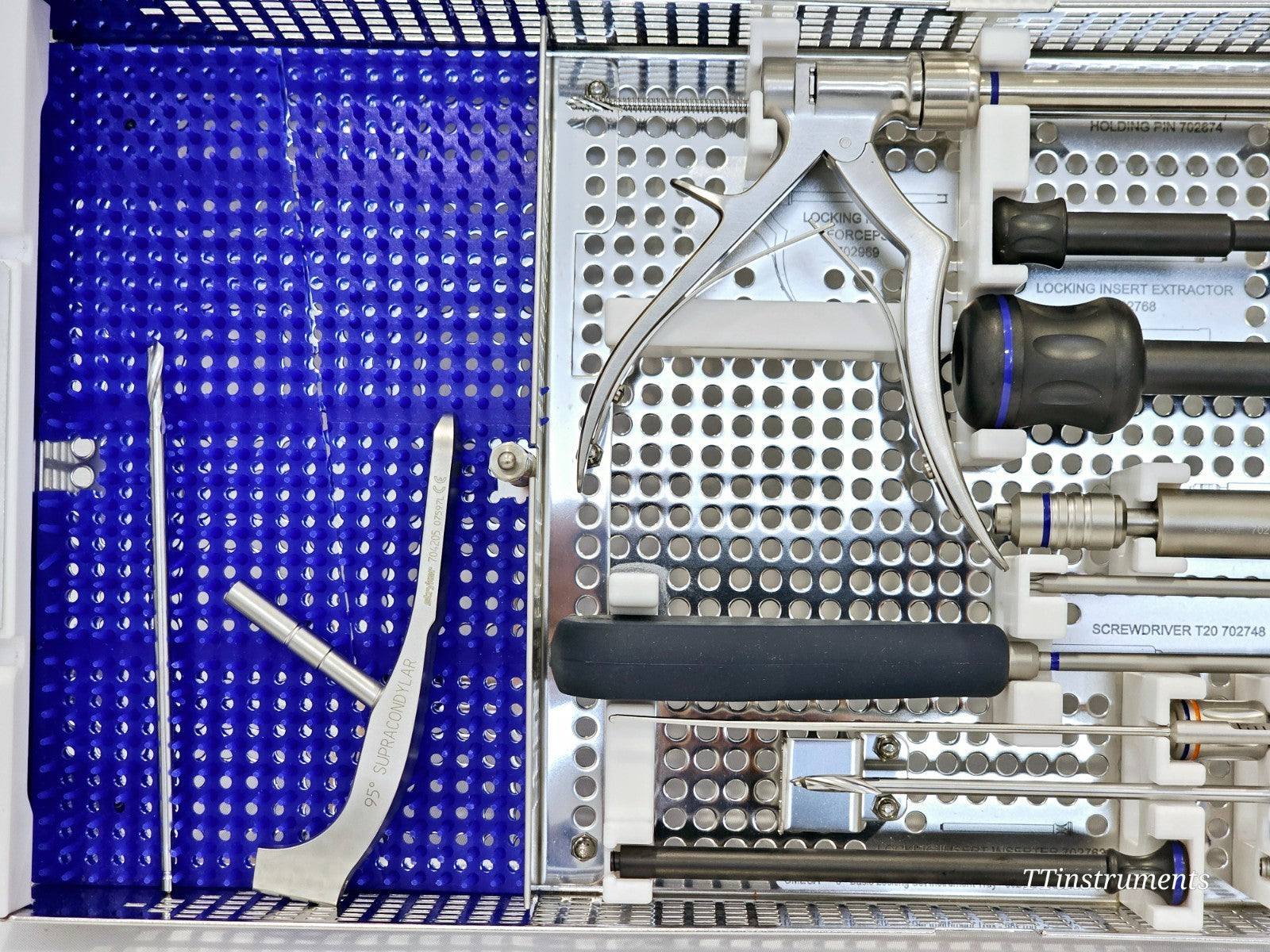

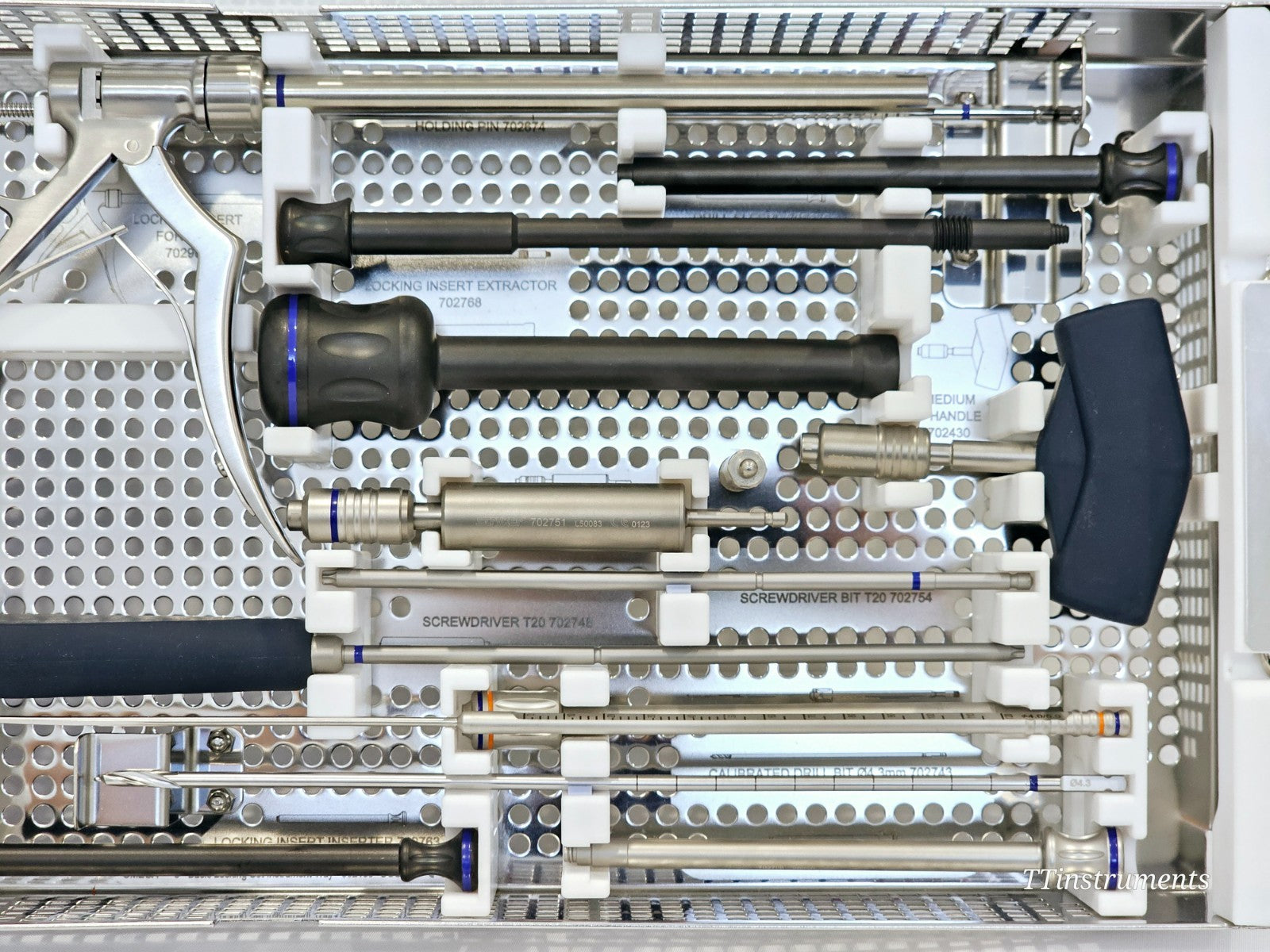

Instrumentation includes locking insert forceps, locking insert inserter, locking insert extractor, holding pin, supracondylar guide (95°), medium T-handle, screwdrivers (T20 and AO/large handle), calibrated drill bit, drill sleeve, depth gauge, and hook — all organised within a perforated stainless steel sterilisation case with blue instrument tray.

Sterilisation: Compatible with standard hospital sterilisation processes (autoclave). Case designed to allow steam penetration during sterilisation.
Regulatory Status: CE marked medical device.

Stryker Omega 3 System Operative Technique — Compression Hip Screw, Axially Stable Locking Option (Cambridge Orthopaedics mirror): Download PDF

Stryker Omega 3 System Operative Technique — Trochanteric Stabilizing Plate (Cambridge Orthopaedics mirror): Download PDF

Stryker Omega 3 System Operative Technique — Hip Fracture, Twin Hook and Axially Stable Locking Option (drmendi mirror): Download PDF
