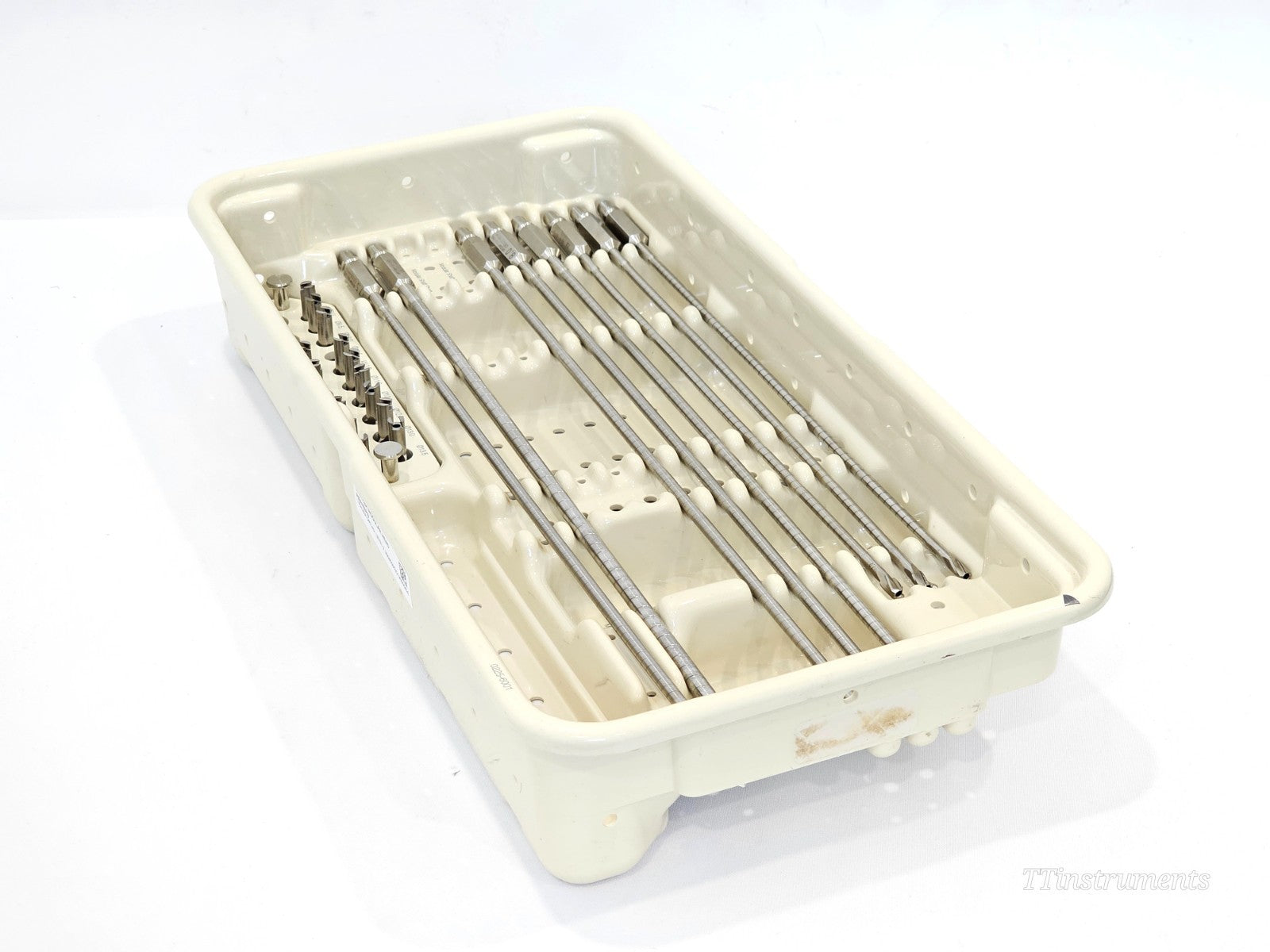

Condition: Used Stryker Modular Head Reamers Instruments Tray Included in the Sale 0225-5060 – Modular Head Reamer 60 mm 0225-5065 – Modular Head Reamer 65 mm 0225-5070 – Modular Head Reamer 70 mm 0225-6085 – Modular Head Reamer 85 mm 0225-6090 – Modular Head Reamer 90 mm 0225-6075 – Modular Head Reamer 75 mm 0226-3000/K – Reamer Handle / Drive Shaft Important Regulatory Notice
The sale of this item may be subject to regulation by the U.S. Food and Drug Administration (FDA) and state and local regulatory agencies.
If applicable, do not purchase this item unless you are an authorised purchaser. Verification may be required prior to dispatch.
Buyer Responsibility
Any commissioning, calibration, certification, and validation required prior to clinical use is the sole responsibility of the buyer.
Disclaimer
Regardless of the origin of the equipment or any identification appearing upon it, this equipment is not certified or recommended by the seller for any specific use.
The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated with the use of this equipment.
By purchasing this item, the buyer acknowledges and agrees to these terms.

Stryker Bixcut Intramedullary (IM) Reamer System — Manufacturer Description

The Stryker Bixcut IM Reamer System is an orthopaedic surgical instrument set designed for intramedullary canal preparation prior to nail fixation in trauma surgery. The Bixcut design was developed specifically to reduce intramedullary reaming pressure, minimising the risk of fat embolism and improving patient outcomes during long bone nailing procedures.

The system features a modular architecture, allowing surgeons to combine interchangeable reamer heads with flexible reamer shafts. It is compatible with multiple Stryker nailing systems including the T2, S2, Gamma3, and PHN nail systems.

Key Features:
• Reduced number of reamer blades and shortened reamer head length to minimise intramedullary pressure
• Large clearance rate for effective removal of reaming debris
• Double-wound flexible shaft designed to transmit torque effectively and with high reliability
• Available in sterile disposable shaft configurations
• Modular system allows fixed head or interchangeable head configurations to match surgeon preference
• Compatible with Modified Trinkle and AO shaft fittings

Technical Specifications:

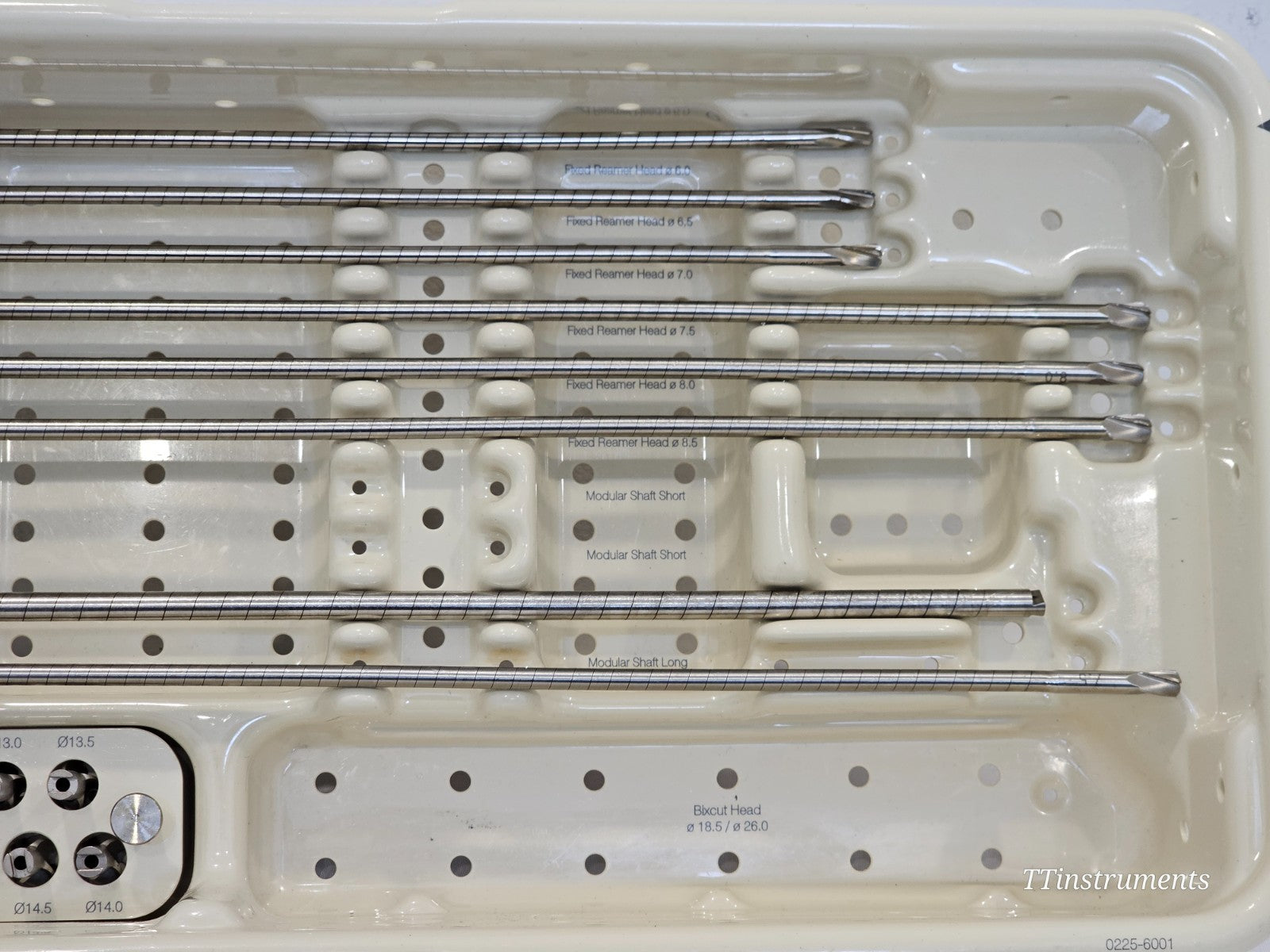

System Name: Bixcut IM Reamer System
Manufacturer: Stryker Trauma GmbH (Stryker Howmedica Osteonics)
Fixed Reamer Head Diameters: Ø6.0mm, Ø6.5mm, Ø7.0mm, Ø7.5mm, Ø8.0mm, Ø8.5mm (shaft length 400mm)

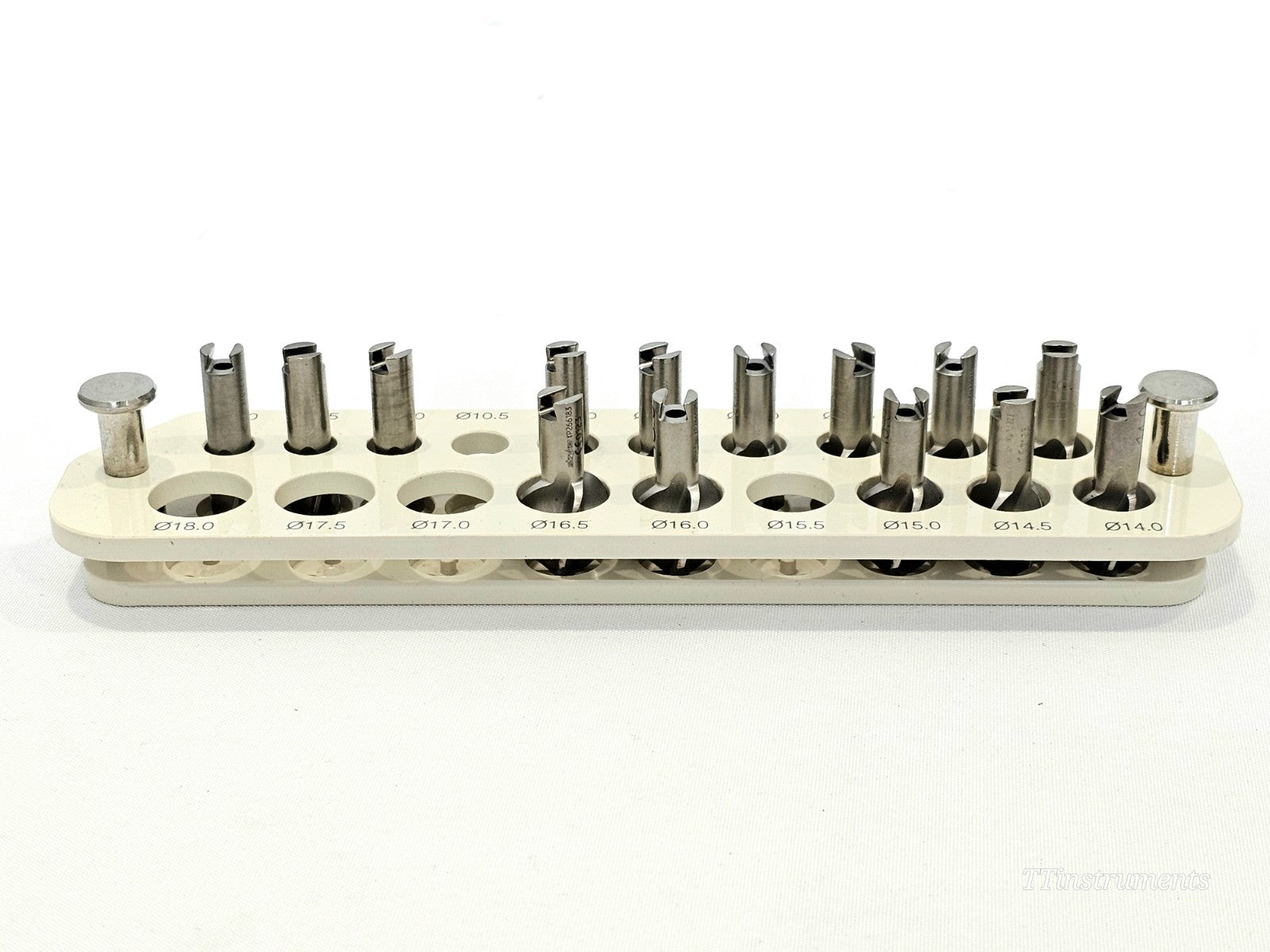

Modular Reamer Head Diameters: Ø9.0mm to Ø18.0mm in 0.5mm increments (shaft length 480mm)
Fixed Head REF Range: 0225-5060 (Ø6.0mm) to 0225-6090 (Ø8.5mm)
Modular Head REF Range: 0225-6095 (Ø9.5mm) to 0225-8180 (Ø18.0mm)
Shaft Types: Modular Shaft Short, Modular Shaft Long; Modified Trinkle and AO fittings
Bixcut Head: Ø18.5/Ø26.0mm (REF 0225-6001 tray)
Sterilisation Container REF: 0225-6001
Material: Stainless Steel
Indications: Intramedullary canal preparation for femoral, tibial, and humeral nailing in orthopaedic trauma surgery
Contraindications: Not intended for spinal use

For full prescribing information, indications, contraindications, warnings, and precautions, please refer to the Stryker Bixcut IM Reamer System Instructions for Use.
