Condition: Used Stryker / K2M Core Instruments Tray 1381 Included in the Sale 101-90015 – Universal Handle (x4) k2-01-2570-01 – Reduction Instrument 801-90031 – Counter-Torque Device 801-90026 – Rod Holder 801-90004 – Set-Screw Driver 101-90001 – T-Handle 101-90309 – Compressor 101-90214 – Distractor 101-90197 – Rod Pusher 6201-90010 – Torque-Limiting Handle 6201-90014 – Screwdriver Shaft 6201-90017 – Screwdriver Shaft (Long) 6201-90016 – Screwdriver Shaft (Short) 6201-90012 – Reduction Handle 6201-90018 – Rod Persuader Important Regulatory Notice
The sale of this item may be subject to regulation by the U.S. Food and Drug Administration (FDA) and state and local regulatory agencies.
If applicable, do not purchase this item unless you are an authorised purchaser. Verification may be required prior to dispatch.
Buyer Responsibility
Any commissioning, calibration, certification, and validation required prior to clinical use is the sole responsibility of the buyer.
Disclaimer
Regardless of the origin of the equipment or any identification appearing upon it, this equipment is not certified or recommended by the seller for any specific use.
The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated with the use of this equipment.
By purchasing this item, the buyer acknowledges and agrees to these terms.

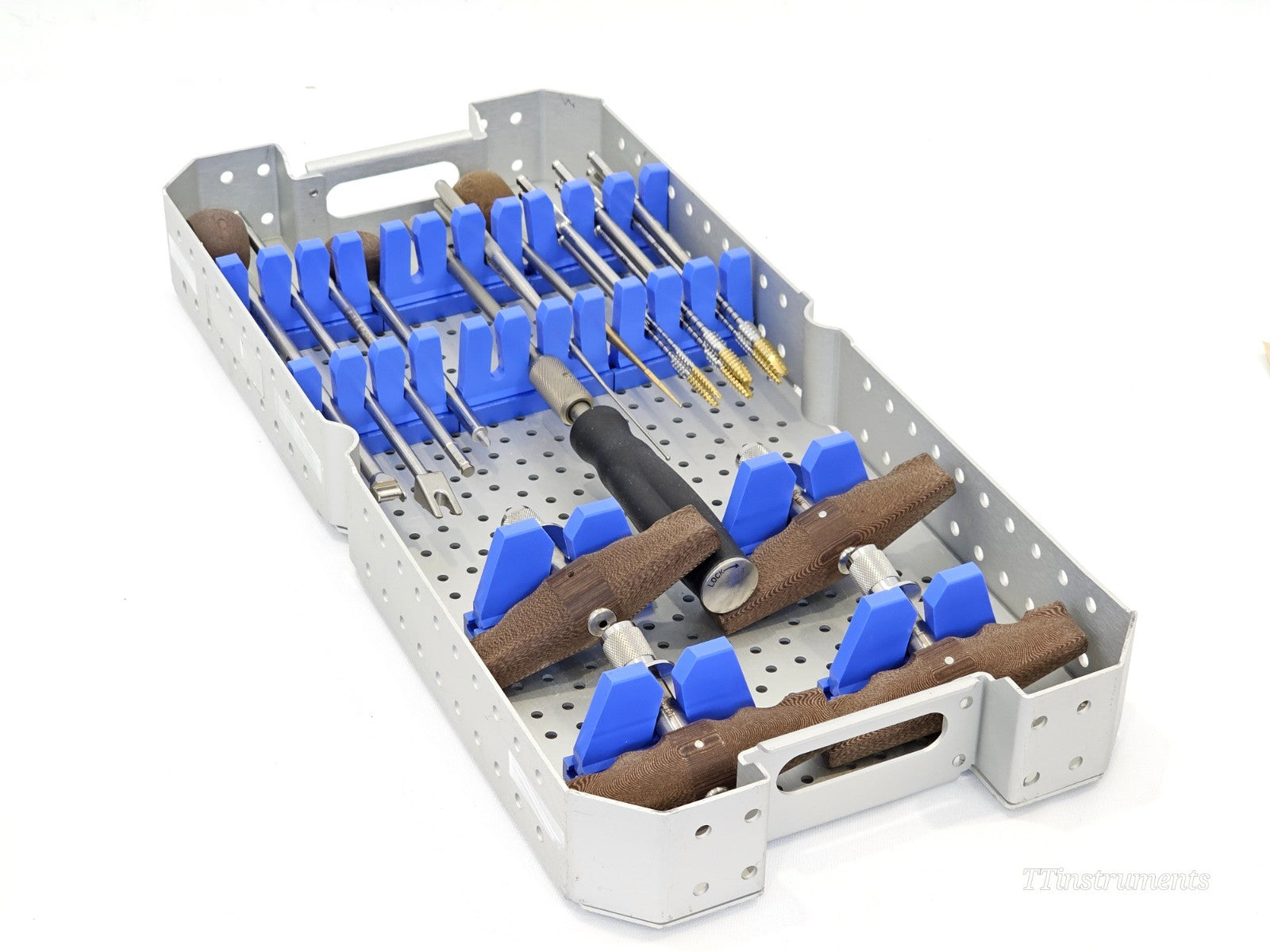

The Stryker / K2M Core Instruments Tray 1381 is a curated set of reusable surgical instruments developed by K2M (now part of Stryker following the 2018 acquisition) for use in open spinal fixation procedures. These instruments are designed to support the full intraoperative workflow of pedicle screw-based spinal fusion surgery, including screw site preparation, rod insertion, reduction, compression, distraction, and final torque-limited locking.

K2M was founded in 2004 and became a global leader in complex spine and minimally invasive solutions before being acquired by Stryker Corporation for approximately $1.4 billion in late 2018. The K2M product portfolio — now marketed under the Stryker brand — is focused on treating complex spinal pathologies including scoliosis, kyphosis, spondylolisthesis, degenerative disc disease, and vertebral fractures.

These instruments are intended solely for use by qualified physicians fully familiar with the required surgical technique. They are designed for reuse following appropriate decontamination, cleaning, and sterilisation per the manufacturer's Instructions for Use.

Key Instrument Functions:

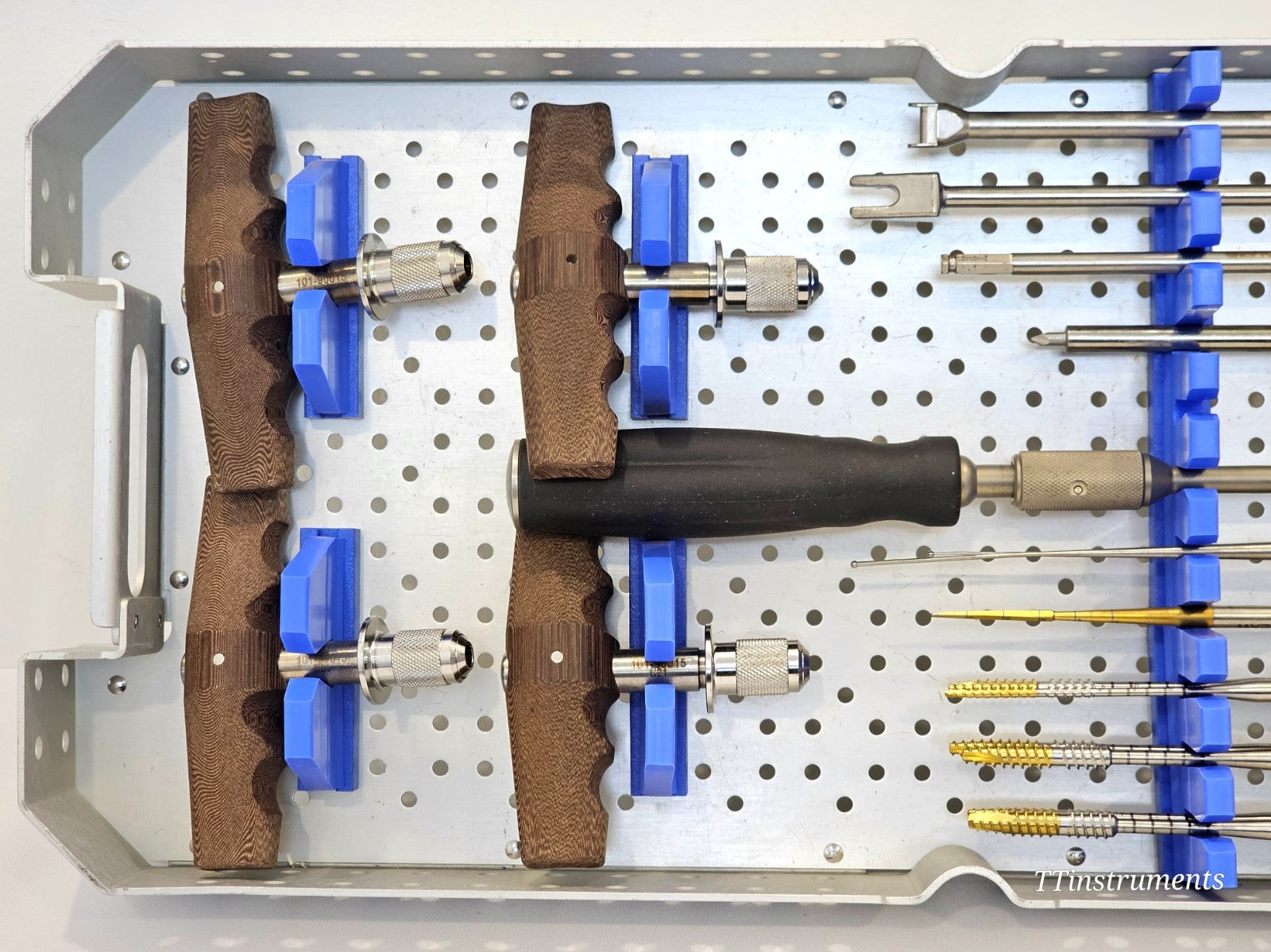

Universal Handle (101-90015): Modular handle compatible with multiple instrument shafts for screw driving and instrument manipulation
T-Handle (101-90001): Provides rotational control during screw insertion
Torque-Limiting Handle (6201-90010): Prevents over-torquing of set screws during final locking
Screwdriver Shafts — Standard / Long / Short (6201-90014 / 6201-90017 / 6201-90016): Interchangeable shafts for set screw insertion at varying depths
Reduction Instrument (k2-01-2570-01): Facilitates spinal rod reduction into screw heads
Reduction Handle (6201-90012): Provides controlled force application during rod reduction manoeuvres
Rod Persuader (6201-90018): Assists in seating the spinal rod into polyaxial screw heads
Rod Holder (801-90026): Secures the rod during insertion and manipulation
Counter-Torque Device (801-90031): Prevents unintended rotation of the screw head during final tightening
Set-Screw Driver (801-90004): Dedicated driver for inserting and tightening set screws
Compressor (101-90309): Applies controlled compression between adjacent vertebral levels
Distractor (101-90214): Applies controlled distraction between adjacent vertebral levels
Rod Pusher (101-90197): Assists in guiding and seating the rod within screw tulips

Sterilisation: Instruments may be resterilised using validated steam (autoclave) sterilisation methods in accordance with AAMI TIR 12 and AAMI ST-79 standards. Tray configurations should be double wrapped or used with a compatible rigid sterilisation container system.

Material: Surgical-grade stainless steel (non-implantable grade)
Compatibility: Designed for use exclusively with K2M / Stryker spinal implant systems
Regulatory Status: For sale by or on the order of a licensed physician. Subject to applicable national and regional medical device regulations.

Note: These instruments must not be used to fit components from other manufacturers. For full surgical technique guidance, contact Stryker Spine or an authorised distributor.
