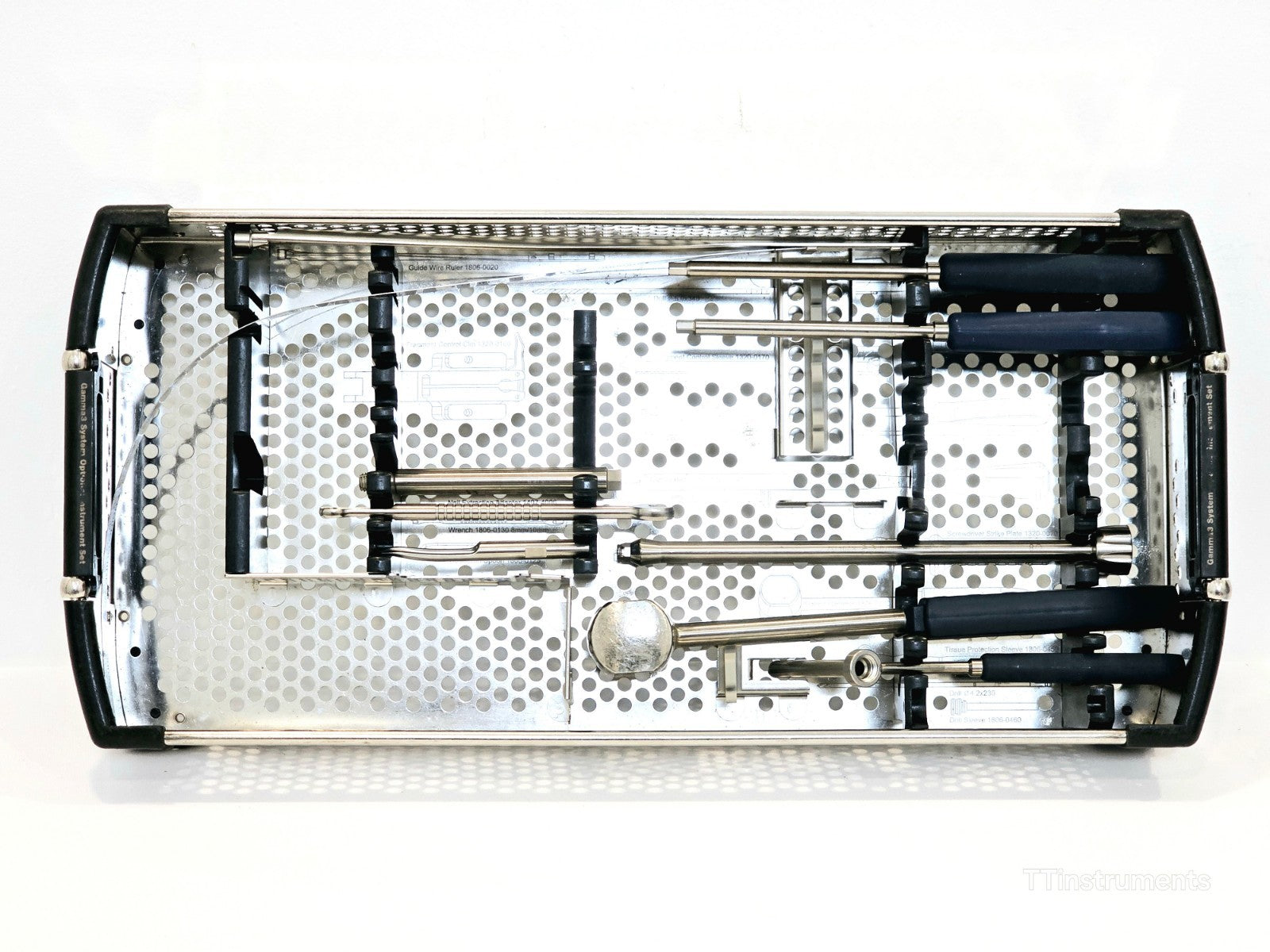

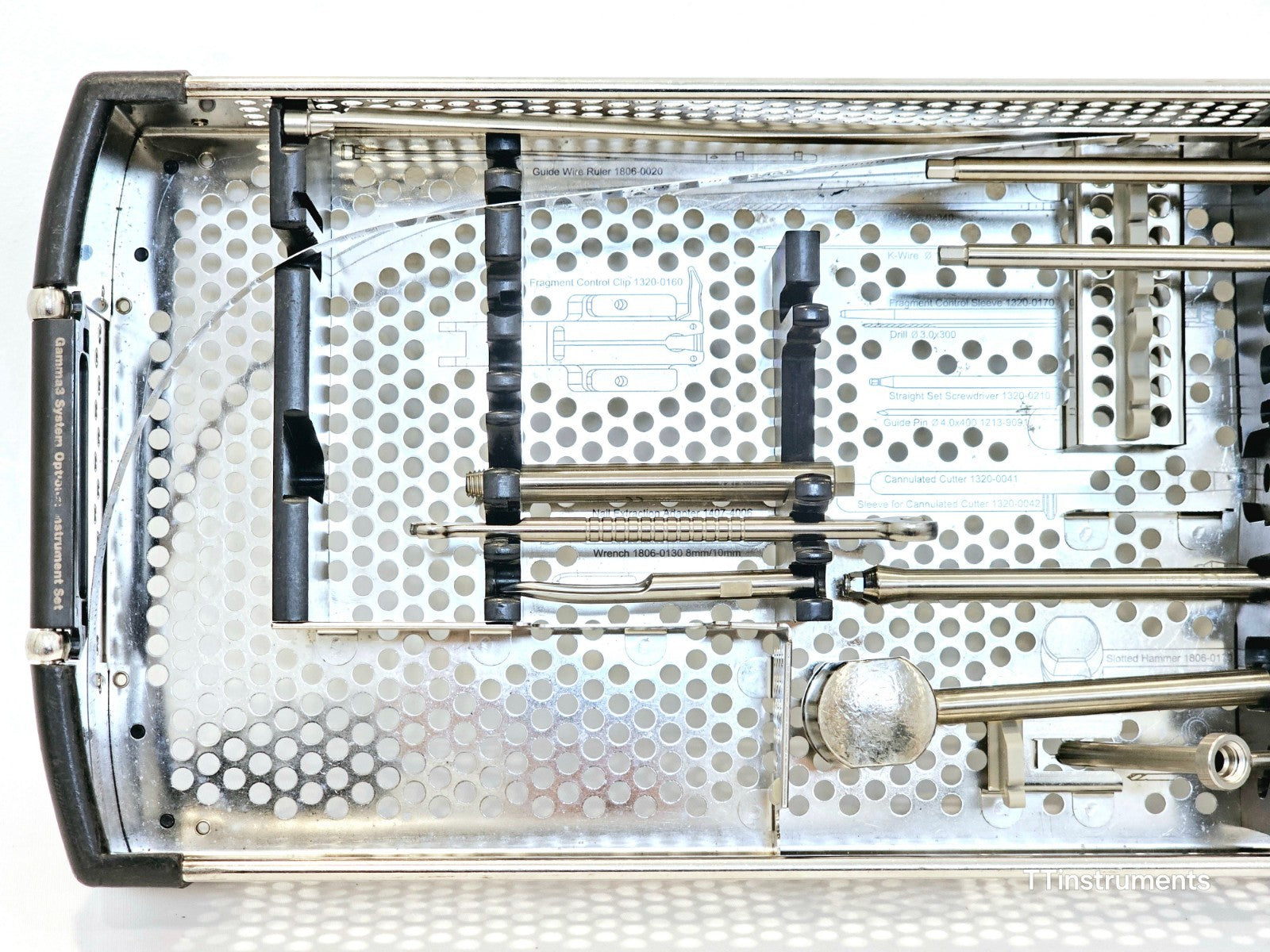

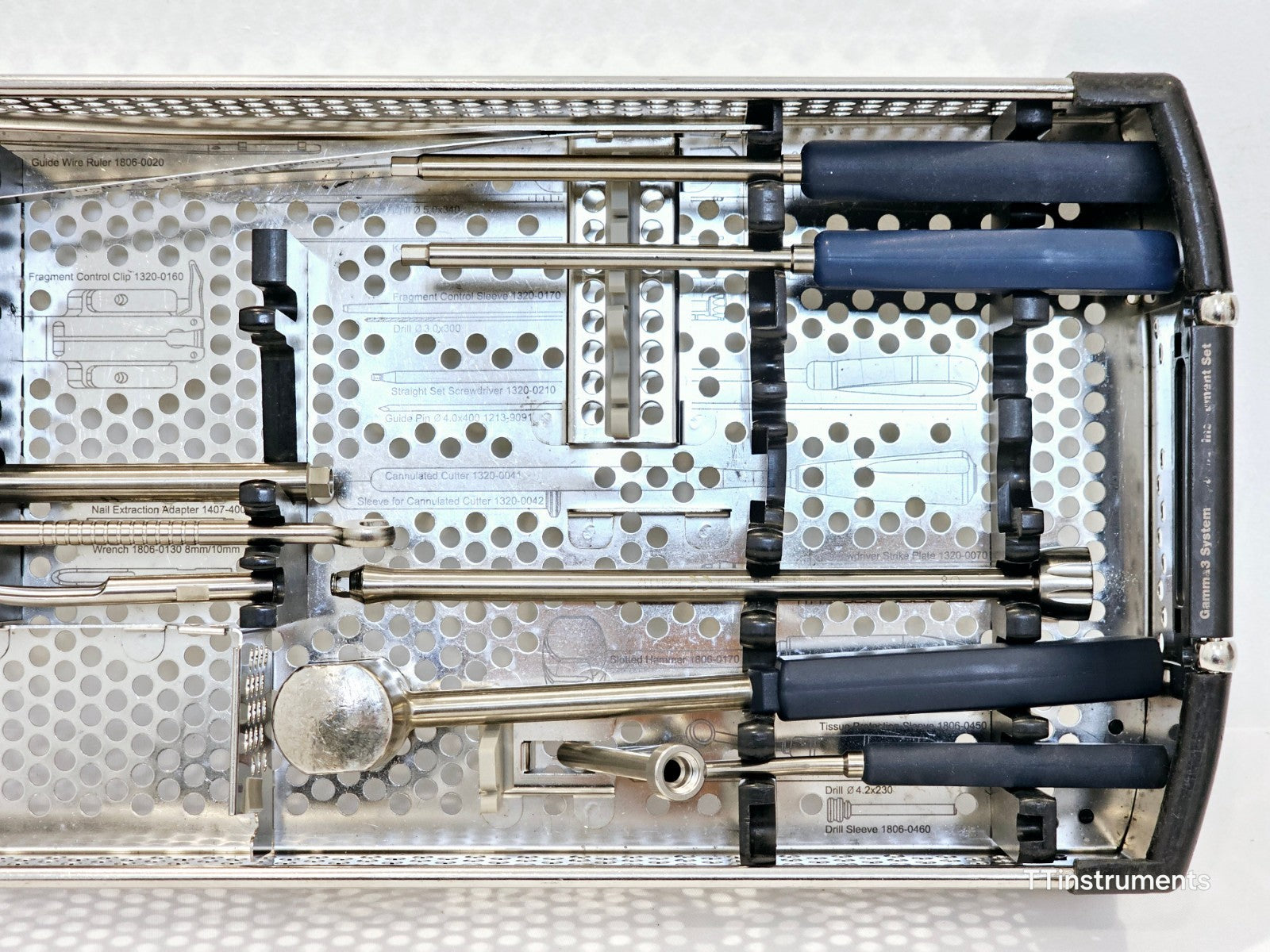

Condition: Used Stryker Gamma 3 System Optional Instrument Set Included in the sale: 1806-0450 – Long Freehand Tissue Protection Sleeve 1806-0170 – Slotted Hammer 1320-0070 – Strike Plate 1806-0255 – Screwdriver, Condyle Screw (Qty: 2) 1806-0125 – Reduction Spoon 1806-0130 – Bone Hook 1407-4006 – Insertion Handle, Gamma3 System 1806-0020 – Guide Wire Ruler The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, do not bid on this item unless you are an authorized purchaser. If the item is subject to FDA regulation, I will verify your status as an authorized purchaser of this item before shipping of the item. Buyer responsibility: Any commissioning, calibration, certification and validation required before clinical use is the buyer?s responsibility. Disclaimer: Regardless of the origin of the equipment or any identification appearing upon it, the equipment is not certified or recommended by us for any specific use. The purchaser agrees that the seller is not responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. By purchasing this equipment, the purchaser acknowledges and agrees to these terms.

The Stryker Gamma3 System is a third-generation intramedullary hip fracture nailing system developed from more than 20 years of Gamma Nail clinical experience. It is designed for the treatment of proximal femur fractures using a minimally invasive surgical technique, sharing the same instrument platform as the Stryker T2 and S2 intramedullary nail systems.

The Gamma3 Optional Instrument Set provides supplementary instruments that complement the Basic Instrument Set, supporting specific surgical steps such as fracture reduction, fragment control, nail extraction, and distal locking during Gamma3 nail procedures.

Indications:
Intertrochanteric fractures, pertrochanteric fractures, subtrochanteric fractures (Long Nail), nonunion and malunion of proximal femur

Nail System Key Specifications (Trochanteric Gamma3 Nail 180):
Nail Material: Titanium alloy with Type II anodized surface treatment (Ti-6Al-4V)
Nail Length: 180 mm (Trochanteric); 260–480 mm in 20 mm increments (Long Nail)
Proximal Diameter: 15.5 mm
Distal Diameter: 11 mm
Neck-Shaft Angles: 120°, 125°, 130°
Anteversion: 0°
Lag Screw Diameter: 10.5 mm
Lag Screw Core Diameter: 6.7 mm
Lag Screw Lengths: 70–130 mm in 5 mm increments
Distal Locking Screw Diameter: 5 mm
Distal Locking Screw Lengths: 25–120 mm
Distal Locking Screw Size: 8 mm x 17.5 mm
Instrument Platform: Shared with Stryker T2 and S2 IM Nail Systems

General Features:
- Designed to address stable and non-stable intertrochanteric fractures
- Cannulated nail for guide-wire-controlled insertion
- Minimally invasive approach with limited incision at the tip of the greater trochanter
- May reduce trauma to the patient through closed operating technique
- Instruments are easy to use, easy to clean, and sterilisation-compatible
- Optional instruments support fragment control, nail extraction, and reduction steps not covered by the basic set

Note: This product is a surgical instrument set. Any commissioning, cleaning, sterilisation, and validation required before clinical use is the responsibility of the purchasing institution. Always refer to the Stryker package insert and operative technique documentation before use.

Stryker Gamma3 Trochanteric Nail 180 — operative technique guide covering surgical steps, instrument use, and indications: Download PDF

Stryker Gamma3 Hip Fracture Nailing System — latest EU operative technique document (2025): Download PDF

Stryker Gamma3 Long Nails R1.5 — operative technique for long nail variant of the Gamma3 system: Download PDF

Stryker Gamma3 Plus Targeting System — operative technique covering optional instruments and targeting accessories: Download PDF

Stryker Gamma3 Trochanteric Nail 180 — manufacturer product brochure with full system specifications: Download PDF

Stryker Gamma3 RC Lag Screw — operative technique for optional RC lag screw accessory used with the Gamma3 system: Download PDF
