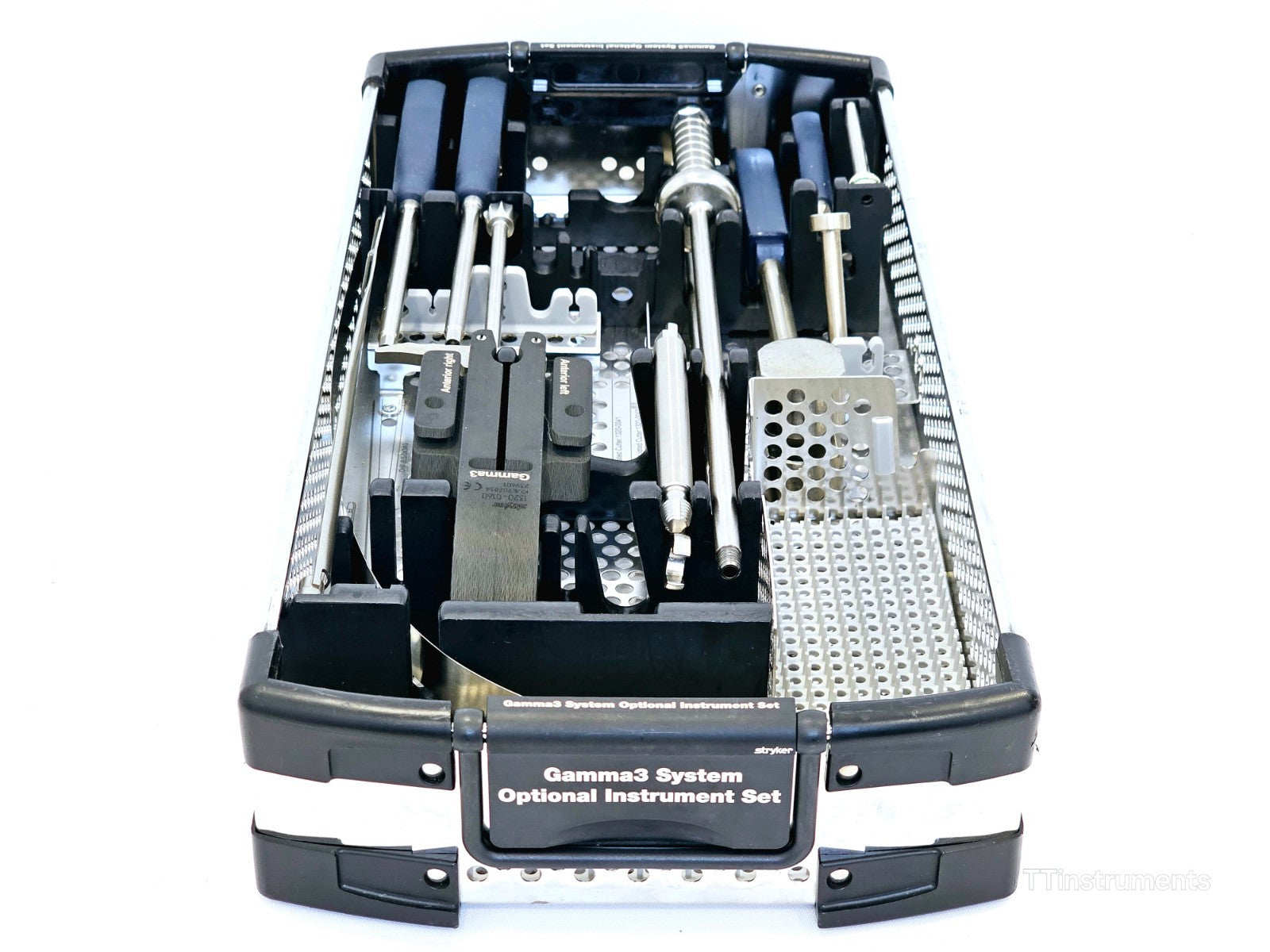

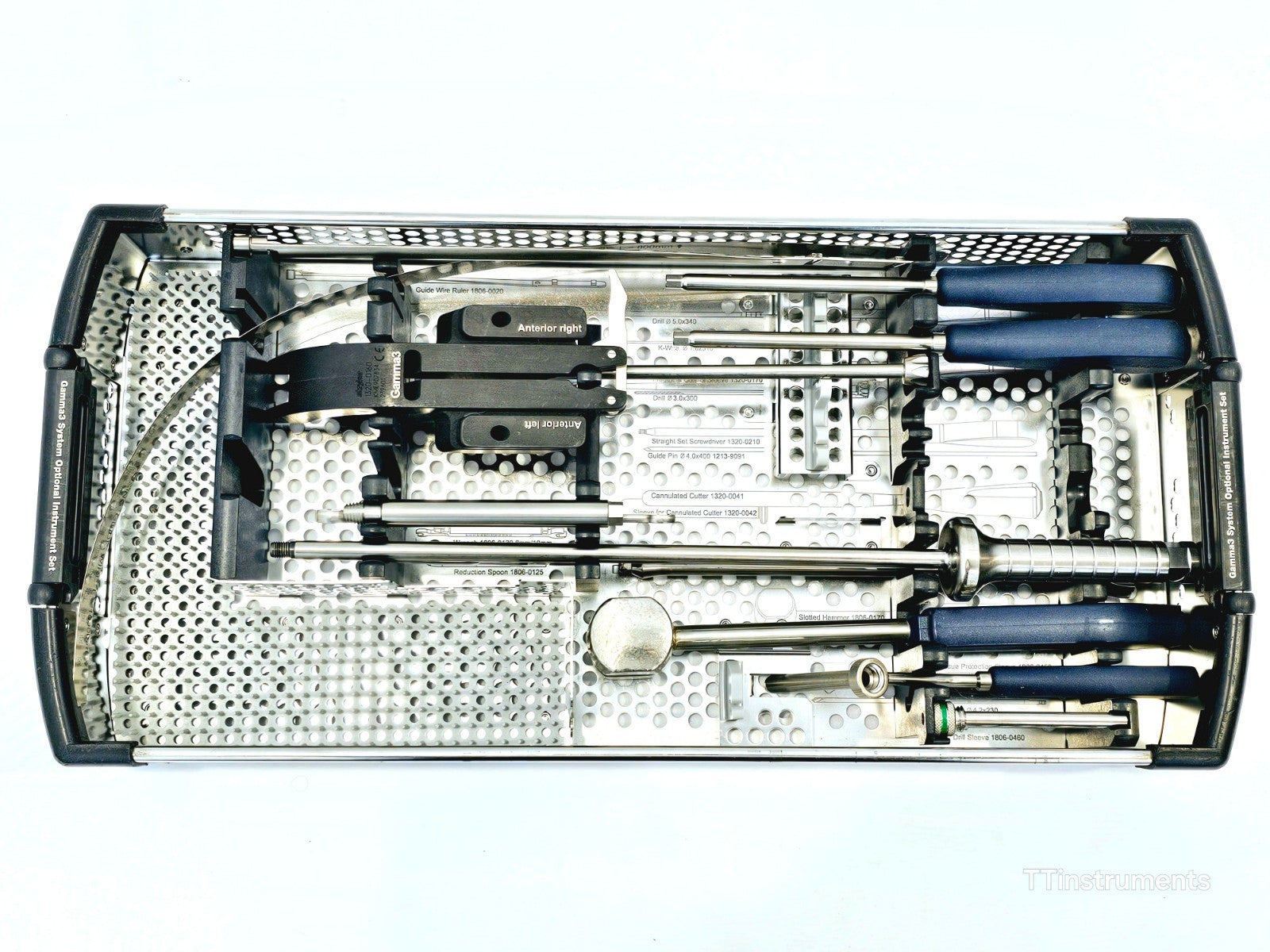

Condition: Used Stryker Gamma 3 System Optional Instrument Set

Only components shown in images or listed in the description are included; set may be incomplete.
Included in the sale:

1806-0460 – Tissue Protection Sleeve, Long

1806-0450 – Tissue Protection Sleeve, Standard

1806-0170 – Slotted Hammer

1806-0110 – Universal Rod

1320-0070 – Screwdriver Strike Plate

1806-0255 (2 pcs) – Screwdriver, Condyle Screw

1320-0170 – Fragment Control Sleeve

1806-0020 – Guide Wire Ruler

1320-0160 – Fragment Control Clip

1407-4006 – Nail Extraction Adapter

1806-0130 – Wrench 8 mm / 10 mm

1806-0125 – Reduction Spoon

The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, do not bid on this item unless you are an authorized purchaser. If the item is subject to FDA regulation, I will verify your status as an authorized purchaser of this item before shipping of the item.

Buyer responsibility: Any commissioning, calibration, certification and validation required before clinical use is the buyer?s responsibility.

Disclaimer: Regardless of the origin of the equipment or any identification appearing upon it, the equipment is not certified or recommended by us for any specific use. The purchaser agrees that the seller is not responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. By purchasing this equipment, the purchaser acknowledges and agrees to these terms.

The Stryker Gamma3 Hip Fracture Nailing System is a comprehensive intramedullary nailing system for the treatment of a wide range of proximal femur fractures as well as associated femoral shaft fractures. The system is the result of over 30 years of continuous innovation and clinical history.

The Gamma3 Optional Instrument Set provides supplementary surgical tools to support the full operative technique for Gamma3 short and long nail procedures. The instruments are designed to facilitate a minimally invasive surgical approach and are easy to use and easy to clean, sharing the same platform as the Stryker T2 and S2 intramedullary nails.

System Overview:
The Gamma3 System is intended to achieve functionally stable osteosyntheses and stabilisation of bones and bone fragments. The Gamma3 Locking Nails are available in three neck-shaft angles of 120°, 125°, and 130° to accommodate variations in femoral neck anatomy.

Indications:
- Intertrochanteric fractures
- Pertrochanteric fractures
- Subtrochanteric fractures
- Femoral shaft fractures
- Nonunion and malunion
- Pathological and impending pathological fractures

Key Technical Specifications (Gamma3 Nail System):
Nail Material: Titanium alloy (Ti-6Al-4V) with Type II anodization
Neck-Shaft Angles: 120°, 125°, 130°
Proximal Nail Diameter: 15.5 mm
Distal Nail Diameter: 11 mm
Nail Length (Short): 180 mm
Lag Screw Diameter: 10.5 mm
Lag Screw Lengths: 70–130 mm (in 5 mm increments)
Distal Locking Screw Diameter: 5 mm
Distal Locking Screw Lengths: 25–120 mm
Lag Screw Thread Diameter: 10.5 mm
Lag Screw Core Diameter: 6.7 mm
Surface Treatment: Anodized Type II (increased fatigue strength)

Key Features:
- Reduced proximal nail diameter to facilitate minimally invasive technique
- Radiolucent carbon fibre targeter compatible with short and long nails
- Four locking grooves allow for quarter-turn advancement of 0.8 mm for precise lag screw positioning
- Instruments share the same platform as the Stryker T2 and S2 intramedullary nail systems
- Compatible with the Gamma3 Distal Targeting System for guided distal locking on long nails

For full product information, refer to the Stryker Gamma3 operative technique documentation or contact your Stryker representative.

Stryker Gamma3 Hip Fracture Nailing System — Operative Technique (EU, 2025): Download PDF

Stryker Gamma3 Trochanteric Nail 180 — Operative Technique (Cambridge Orthopaedics): Download PDF

Stryker Gamma3 Long Nail R2.0 — Operative Technique (MSF): Download PDF

Stryker Gamma3 Plus Targeting System — Operative Technique: Download PDF

Stryker Gamma3 Distal Targeting System (Long Nail R1.5 / T2 Recon) — Operative Technique: Download PDF

Stryker Gamma3 RC Lag Screw — Operative Technique: Download PDF

Stryker Gamma3 S Trochanteric Nail 170 — Operative Technique: Download PDF
