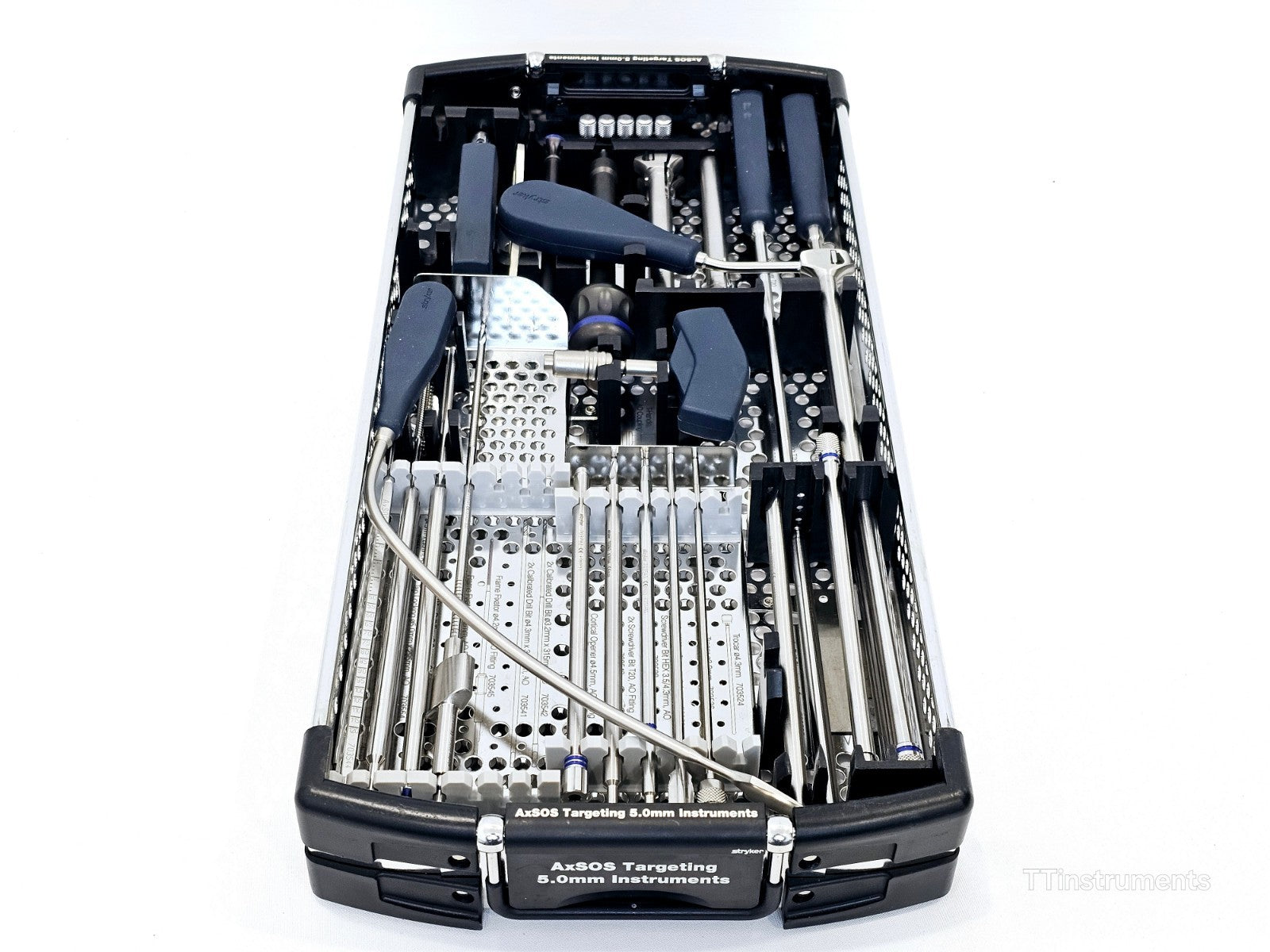

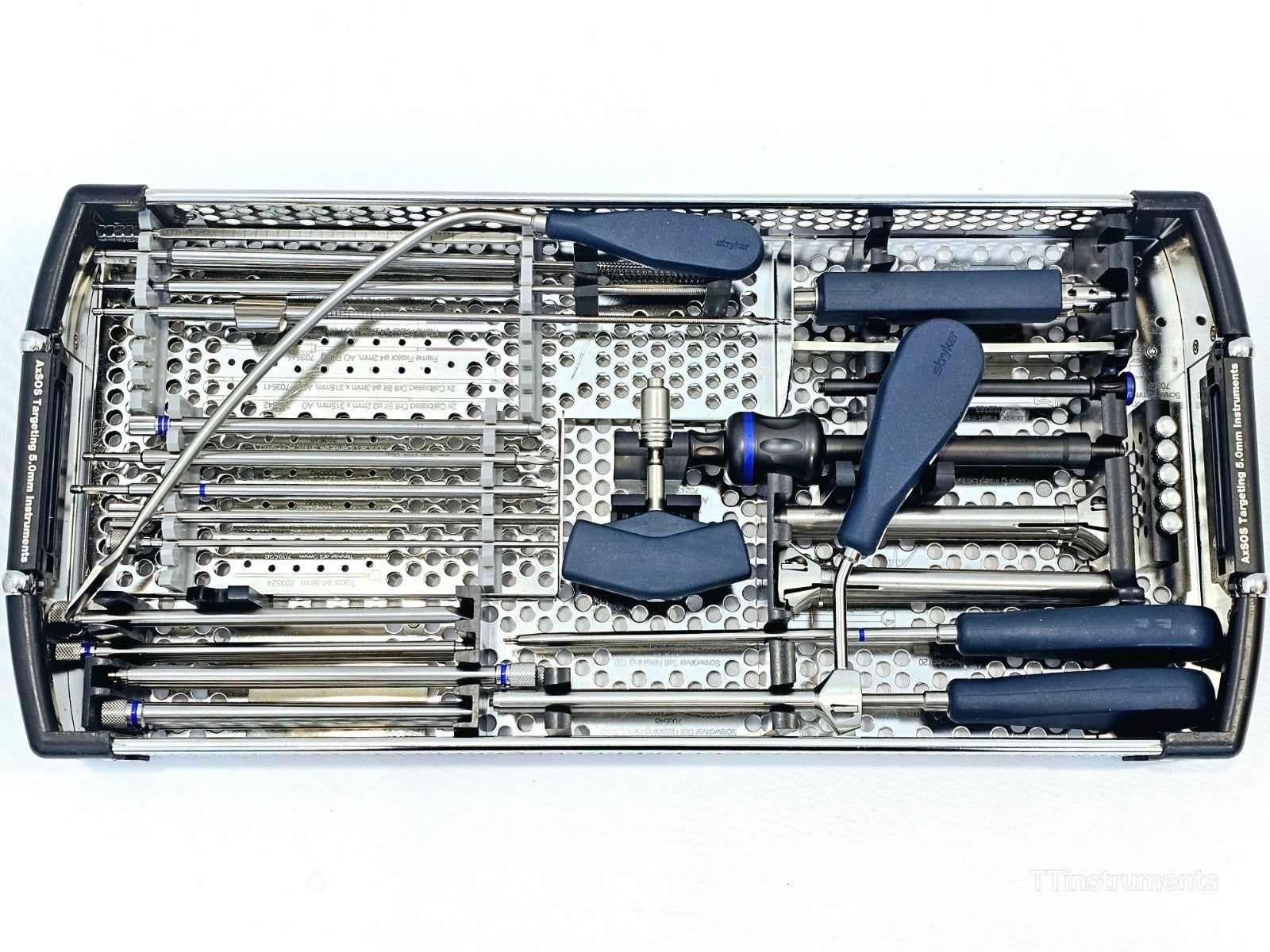

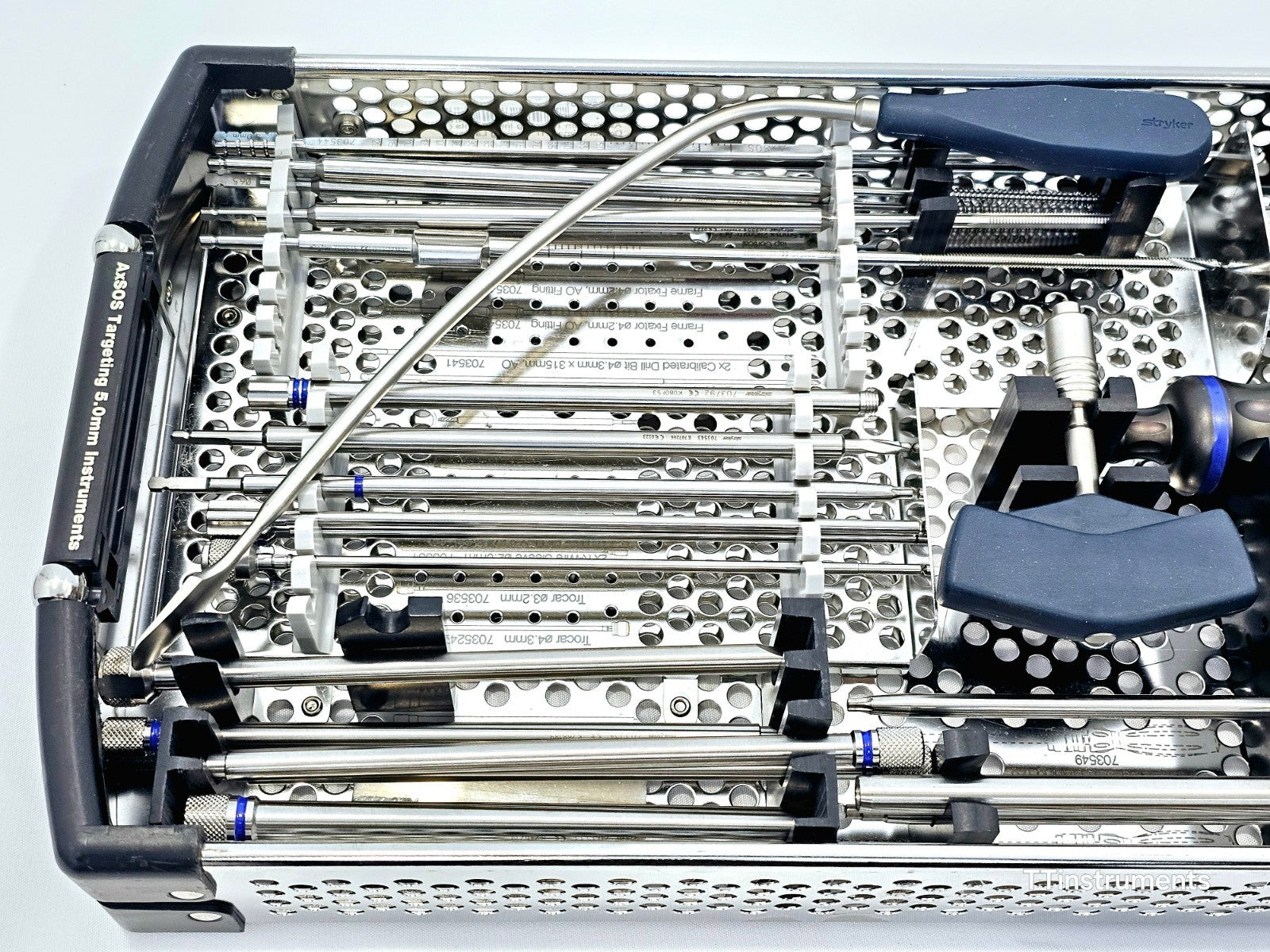

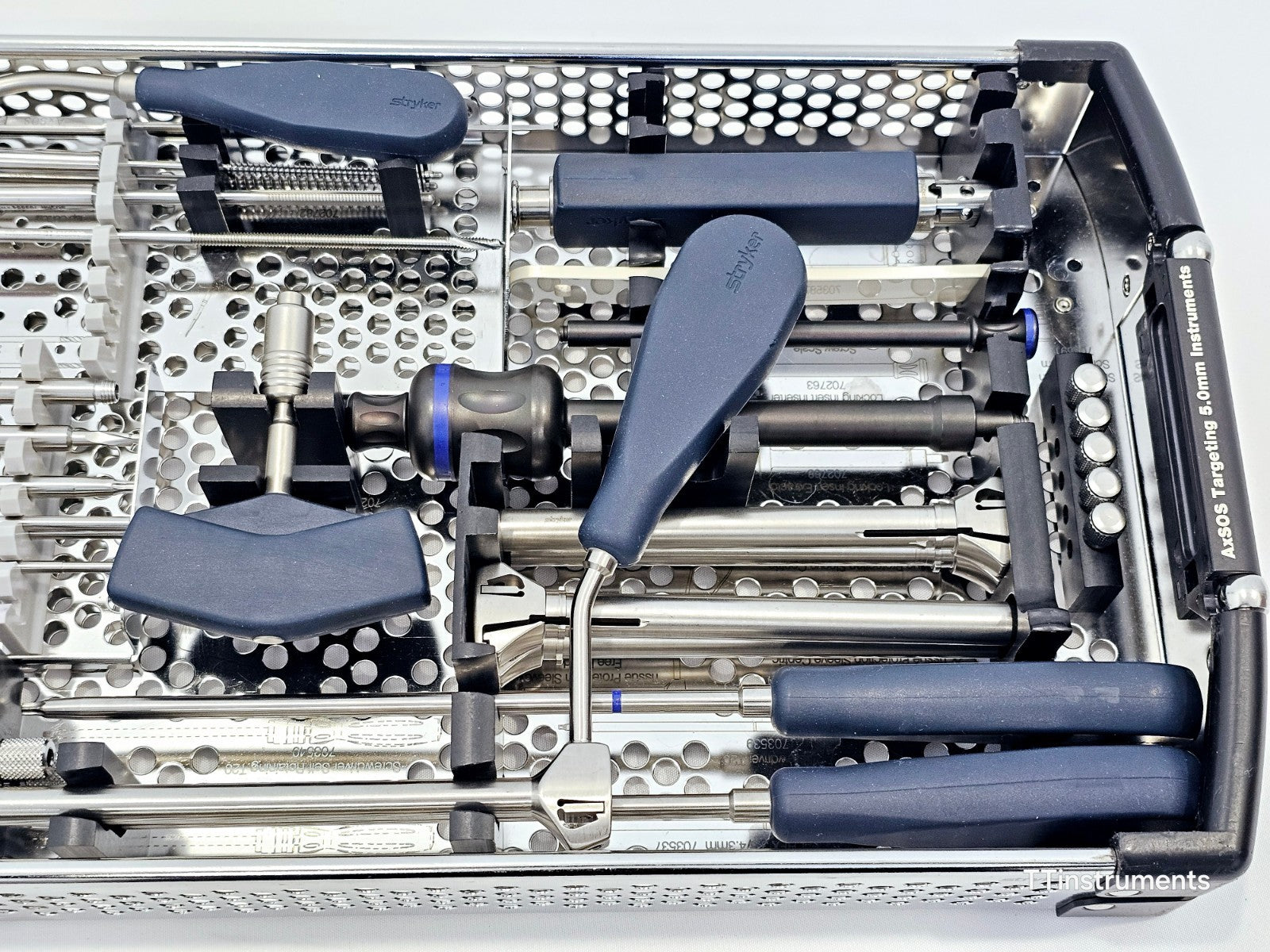

Stryker AxSOS Targeting 5.0mm Instruments Set – Used Condition: Used Included in the Sale 703546 – Tissue Protection Sleeve, Free Hand 703537 – Screwdriver, HEX 3.5/4.3 mm 703539 – Screwdriver, T20 703532 (4 pcs) – Tissue Protection Sleeve, Centric 702768 – Locking Insert Extractor 702763 – Locking Insert Inserter 703587 – Screw Scale 702978 – Plate Insertion Handle 703591 (5 pcs) – Sleeve Fixation Screw 702430 – T-Handle, AO Coupling 702782 – Soft Tissue Elevator 703533 (4 pcs) – Tissue Protection Sleeve, Aiming Block 703534 (4 pcs) – Drill Sleeve Ø4.3 mm 703525 – Trocar, Sharp Tip 703536 – Trocar, Ø3.2 mm 703531 (2 pcs) – K-Wire Sleeve, Ø2.0 mm 703540 – Screwdriver Bit, T20, AO Fitting 703543 – Cortical Opener, Ø4.5 mm, AO Fitting 703792 – Drill Sleeve Ø4.3 mm, Locking 703545 – Frame Fixator, Ø4.2 mm, AO Fitting 703554 – Tap, Locking Ø5.0 × 295 mm, AO 703551 – Tap, Cortical Ø4.5 × 295 mm, AO 703553 – Tap, Cancellous Ø6.5 × 295 mm, AO 703544 – Screw Measure Gauge Important Information The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. Do not bid on this item unless you are an authorized purchaser. If subject to FDA regulation, your status will be verified before shipping. Buyer Responsibility Any commissioning, calibration, certification, and validation required before clinical use is the buyer's responsibility. Disclaimer Regardless of the origin of the equipment or any identification appearing upon it, the equipment is not certified or recommended for any specific use. The purchaser agrees that the seller is not responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. By purchasing this equipment, the purchaser acknowledges and agrees to these terms.

The Stryker AxSOS Locking Plate System is designed for orthopaedic trauma surgery and is intended for long bone fracture fixation. The 5.0mm targeting instrument set provides all the necessary tools for both minimally invasive plate osteosynthesis (MIPO) and open reduction internal fixation (ORIF) surgical approaches using AxSOS 5.0mm anatomic locking plates.

The AxSOS system features a fixed-angle screw-to-plate interface providing angular stability, combined with anatomically shaped plates to accommodate the morphology of specific bone regions. The 5.0mm plate family is designed for use at diaphyseal and metaphyseal sites including the femur, tibia, and humerus, among others.

Manufacturer: Stryker
System: AxSOS Locking Plate System
Instrument Set Type: Targeting — 5.0mm
Indications: Diaphyseal, metaphyseal, epiphyseal, extra- and intra-articular fractures; non-unions and malunions; normal and osteopenic bone; osteotomies; periprosthetic fractures
Locking Screw Diameter: 5.0 mm
Tap Types: Cancellous Ø6.5 mm, Cortical Ø4.5 mm, Locking Ø5.0 mm
Tap Length: 295 mm (AO fitting)
Drill Sleeve Diameters: Ø4.3 mm (standard and locking variants)
Screwdriver Interfaces: HEX 3.5/4.3 mm; T20 torx drive
AO Fitting Compatibility: Compatible with standard AO power tools
Trocar Options: Sharp tip; Ø3.2 mm blunt
Sterilisation: Compatible with standard hospital sterilisation and reprocessing protocols
Material: Stainless steel surgical instruments
Intended Users: Orthopaedic trauma surgeons and theatre staff
Regulatory Status: CE marked (where applicable)

Note: The AxSOS Targeting 5.0mm Instruments Set is intended for use by trained orthopaedic surgeons only. Any commissioning, reprocessing, or validation required before clinical use is the responsibility of the purchasing institution.
