Condition: Used Stryker AxSOS Proximal Lateral Tibia Targeter Locking Plate System

Only components shown in images or listed in the description are included; set may be incomplete.

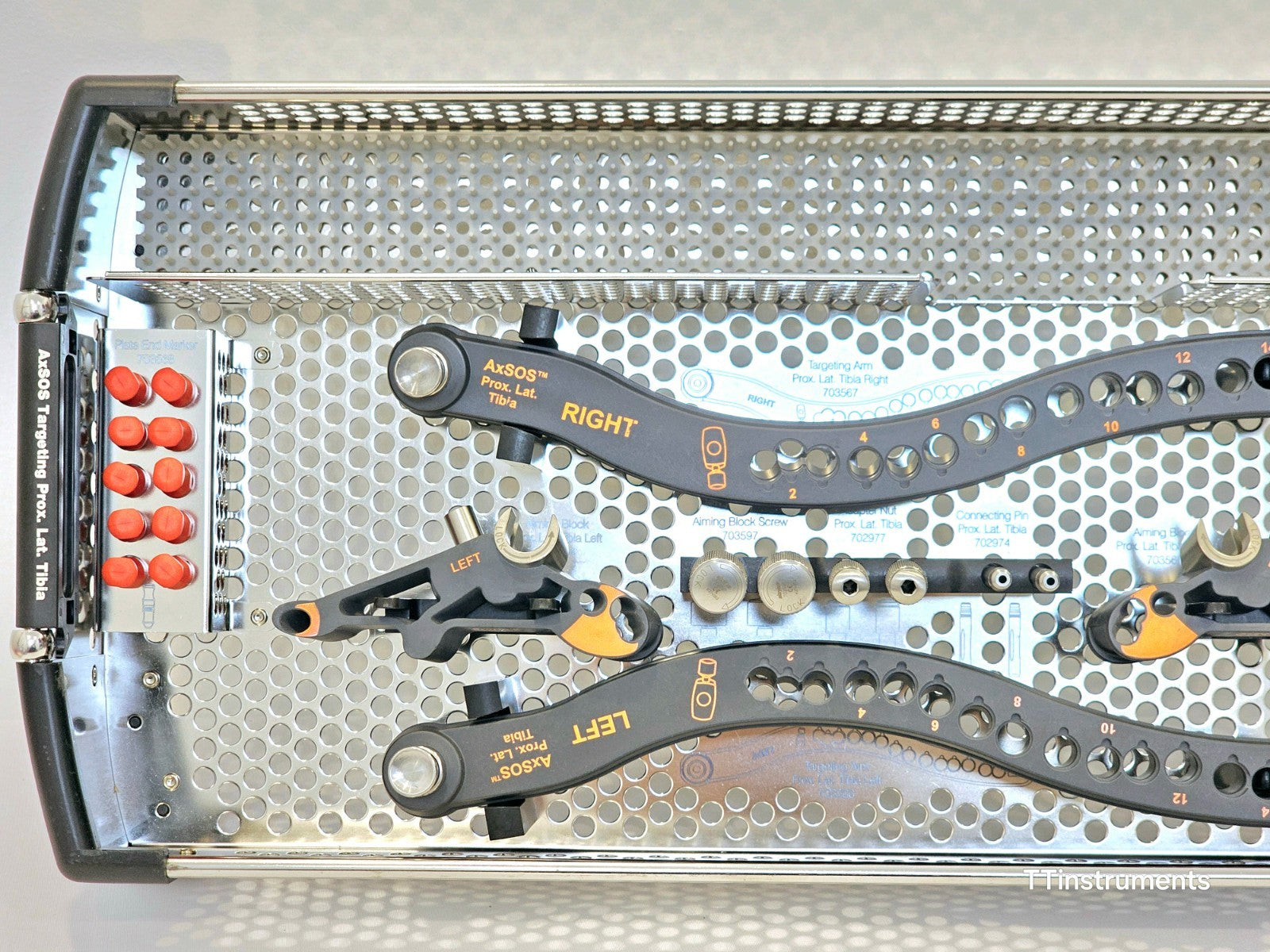

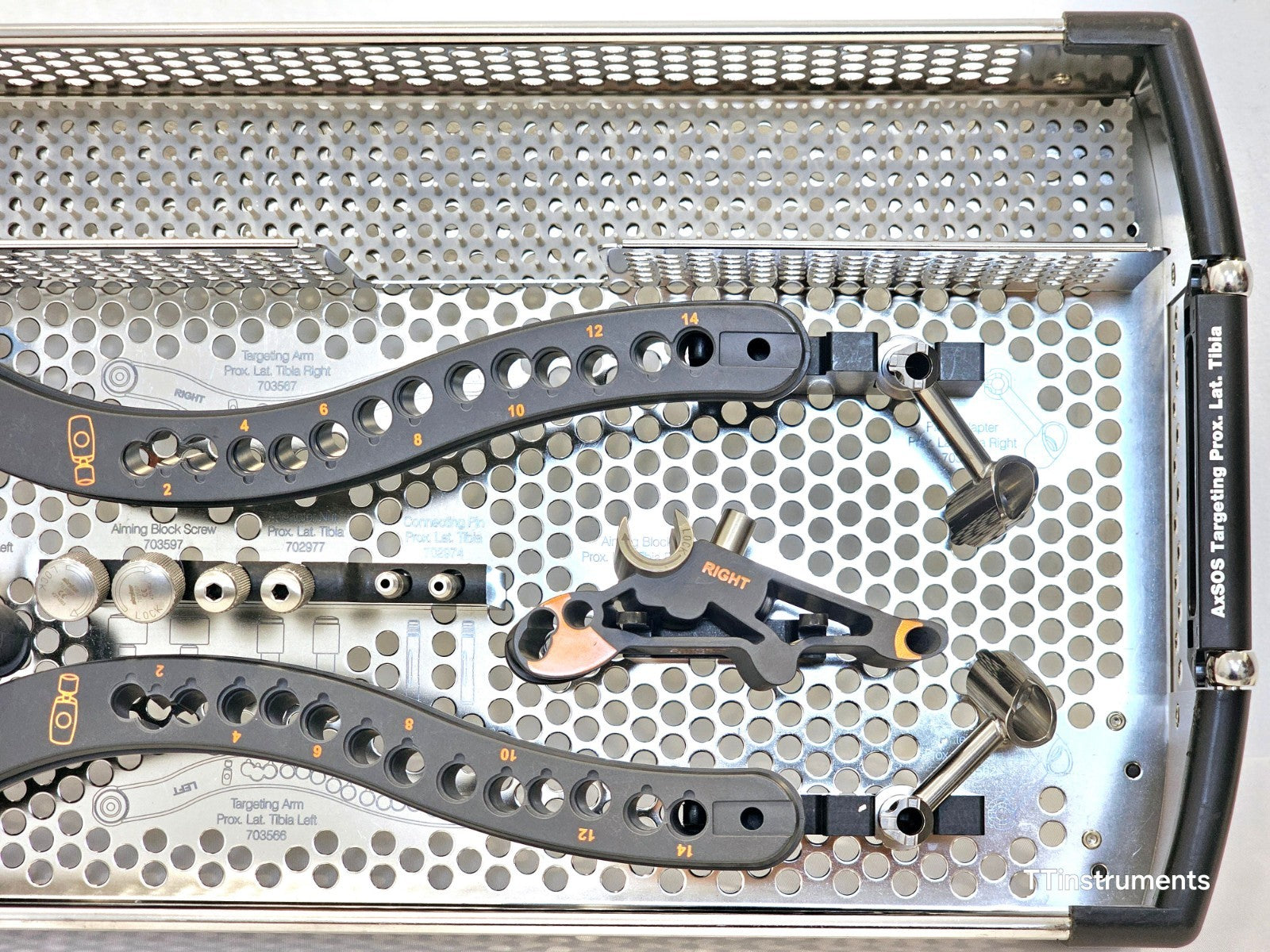

Included in the sale:

703566 – Targeting Arm, Left (Proximal Lateral Tibia)

703567 – Targeting Arm, Right (Proximal Lateral Tibia)

703564 – Aiming Block, Left

703565 – Aiming Block, Right

703597 (2 pcs) – Aiming Block Screw (Ø8.0 mm)

702977 (2 pcs) – Adaptor Nut

702974 (2 pcs) – Connecting Pin

703562 (Left) – Plate Adaptor, Left

703563 (Right) – Plate Adaptor, Right

703568 (10 pcs) – Plate End Marker

The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, do not bid on this item unless you are an authorized purchaser. If the item is subject to FDA regulation, I will verify your status as an authorized purchaser of this item before shipping of the item.

Buyer responsibility: Any commissioning, calibration, certification and validation required before clinical use is the buyer's responsibility.

Disclaimer: Regardless of the origin of the equipment or any identification appearing upon it, the equipment is not certified or recommended by us for any specific use. The purchaser agrees that the seller is not responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. By purchasing this equipment, the purchaser acknowledges and agrees to these terms.

The Stryker AxSOS Proximal Lateral Tibia Targeter Locking Plate System is the dedicated targeting instrumentation set for use with the Stryker AxSOS (and AxSOS 3 Titanium) Proximal Lateral Tibia Locking Plate System. The AxSOS system is a monoaxial locking plate system intended for long bone fracture fixation, allowing the use of both locking and non-locking screws in the metaphysis and the shaft.

The targeting instrumentation provides a systematic, reproducible method for guiding drill sleeves and screws into the correct locking hole trajectories of the proximal lateral tibia plate, reducing the need for repeated fluoroscopy passes and helping to streamline the surgical workflow.

Intended Use: Targeting instrumentation for the AxSOS Proximal Lateral Tibia Locking Plate System — for use in open reduction and internal fixation (ORIF) of proximal tibia fractures.

Indications:
Diaphyseal, metaphyseal, epiphyseal, extra- and intra-articular fractures
Non-unions and malunions
Normal and osteopenic bone
Osteotomies
Periprosthetic fractures of the proximal tibia

Key Features:
System Type: Monoaxial locking plate targeting instrumentation
Laterality: Bilateral — dedicated Left and Right components
Targeting Arms: Numbered 2–14 for indexed screw position selection
Aiming Block Screw Diameter: Ø8.0 mm
Compatibility: Designed for use with Stryker AxSOS Proximal Lateral Tibia Locking Plates
Surgical Approach: Lateral parapatellar, lateral curved (hockey stick) or straight approach to the proximal tibia
Patient Positioning: Supine with option to flex the knee; fluoroscopy in lateral and AP views required
MR Compatibility: AxSOS 3 Titanium implant system is MR Conditional

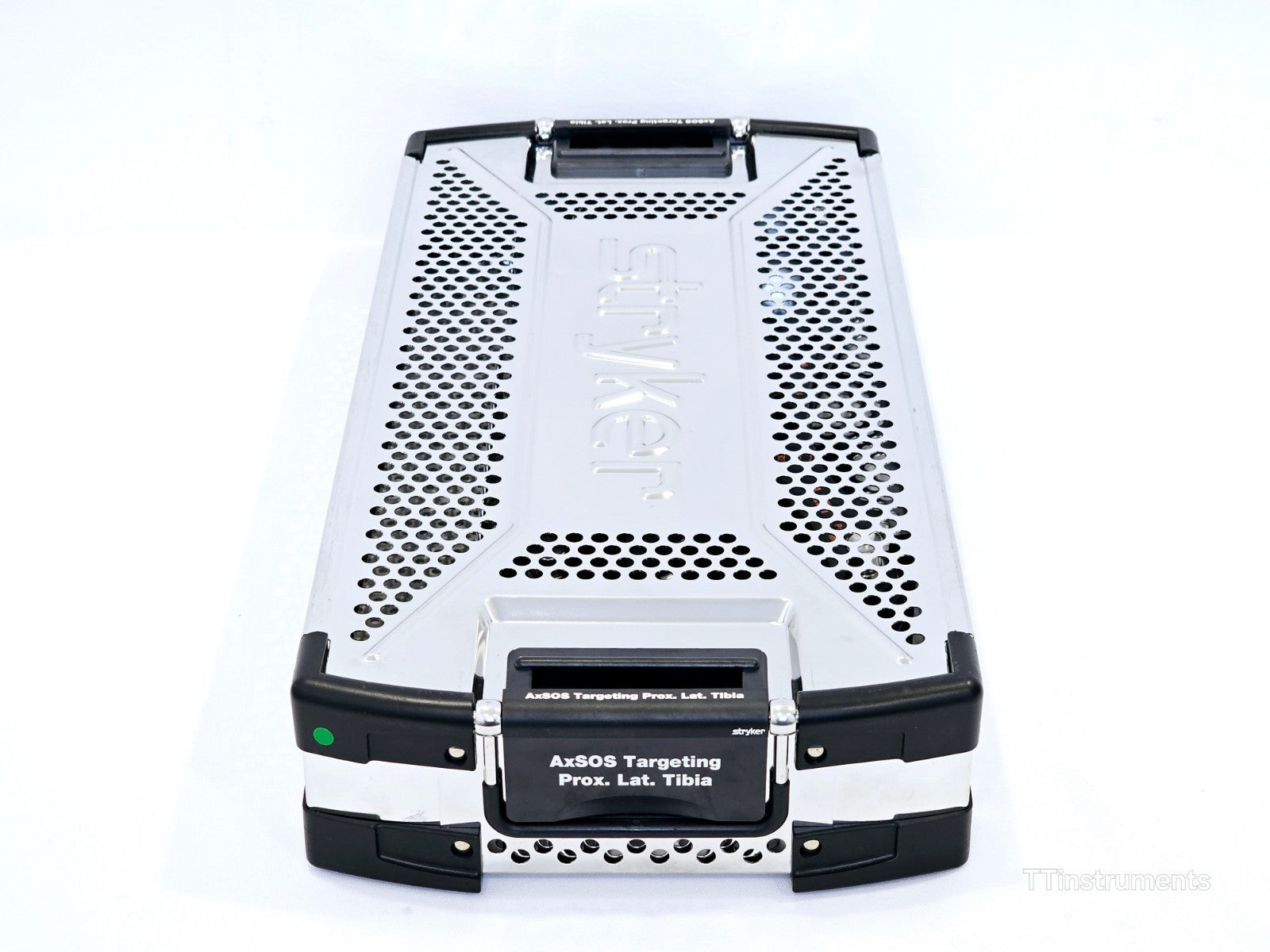

Sterilisation: Supplied in dedicated Stryker sterilisation tray; reusable instrumentation

Note: This listing is for the targeting instrumentation set only. Implants (plates and screws) are not included. Always refer to the Stryker AxSOS package insert and instructions for use before clinical use. For use by qualified healthcare professionals only.

AxSOS 3 Titanium Proximal Lateral Tibia Locking Plate System — operative technique with targeting instrumentation guide (EU): Download PDF

AxSOS 3 Titanium Tibia Locking Plate System — full operative technique covering proximal lateral, proximal medial, and distal tibia plates: Download PDF

AxSOS Proximal Lateral Tibia — original AxSOS system operative technique brochure: Download PDF

AxSOS 3 Titanium Proximal Lateral Tibia Locking Plate System — operative technique (third-party hosted mirror): Download PDF
