Condition: Used Included in the sale: Stryker AxSOS Distal Lateral Femur Targeter w/ Instrument Tray: 703527 – Aiming Block - Dist Lat Femur, Left (Qty: 1) 703529 – Targeting Arm - Dist Lat Femur, Left (Qty: 1) 703526 – Aiming Block - Dist Lat Femur, Right (Qty: 1) 703528 – Targeting Arm - Dist Lat Femur, Right (Qty: 1) 703521 – Connecting Pin - Dist Lat Femur (Qty: 2) 702977 – Adapter Nut (Qty: 2) 703597 – Aiming Block Screw - Ø8.0 mm (Qty: 2) 703523 – Plate Adapter Dist Lat Femur, Left (Qty: 1) 703522 – Plate Adapter Dist Lat Femur, Right (Qty: 1) 703530 – Plate End Marker (Qty: 10) 902912 – Instrument Tray, Dist Lat Femur Targeter (Qty: 1) The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, do not bid on this item unless you are an authorized purchaser. If the item is subject to FDA regulation, I will verify your status as an authorized purchaser of this item before shipping of the item. Buyer responsibility: Any commissioning, calibration, certification and validation required before clinical use is the buyer?s responsibility. Disclaimer: Regardless of the origin of the equipment or any identification appearing upon it, the equipment is not certified or recommended by us for any specific use. The purchaser agrees that the seller is not responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. By purchasing this equipment, the purchaser acknowledges and agrees to these terms.

The Stryker AxSOS Distal Lateral Femur Targeter is the dedicated targeting instrumentation set for use with the Stryker AxSOS Locking Plate System for the Distal Lateral Femur. The AxSOS Locking Plate System is designed to treat periarticular and intra-articular fractures of the distal femur, with system design based on clinical input from an international panel of experienced surgeons, literature data, and both practical and biomechanical testing.

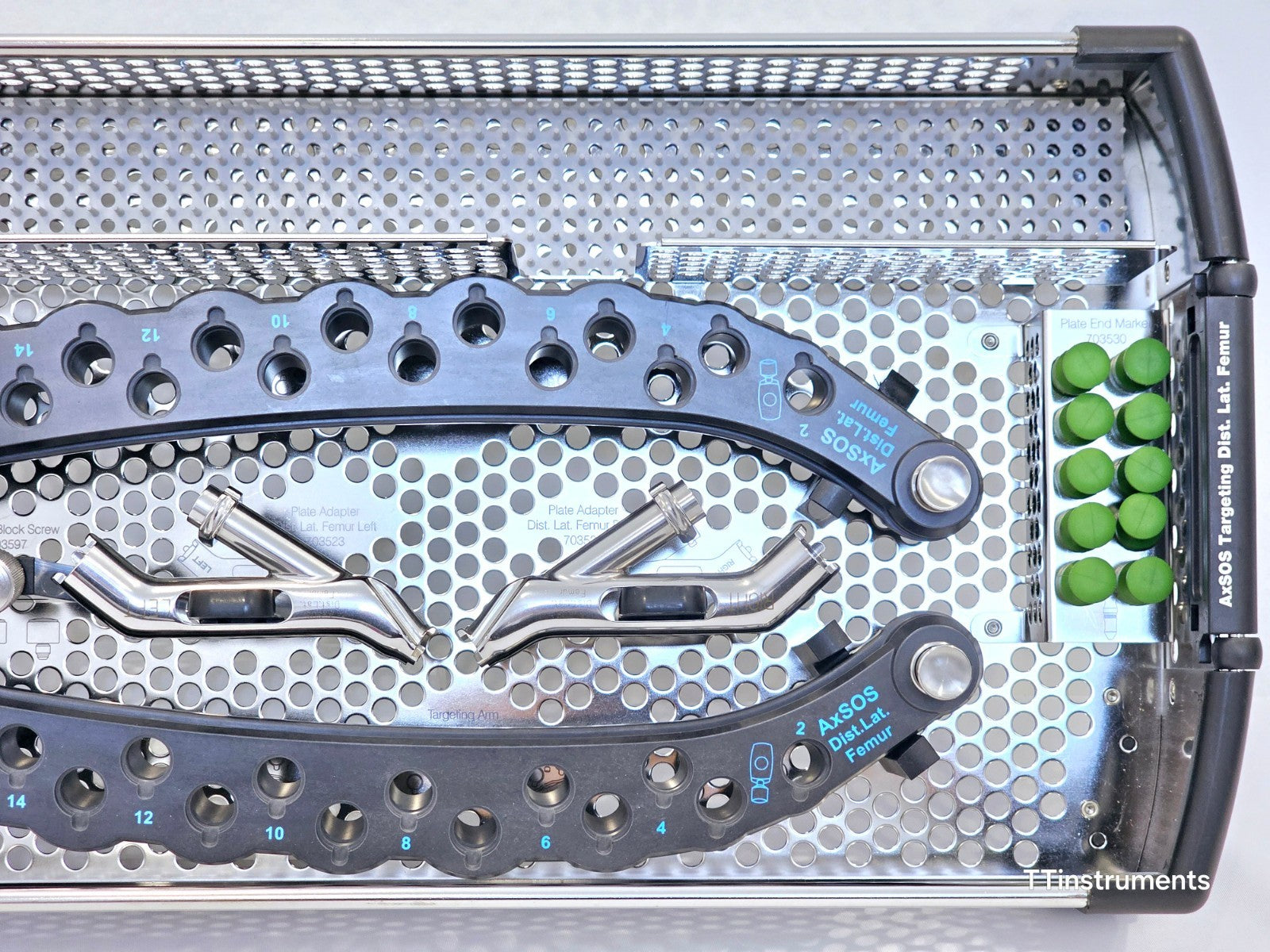

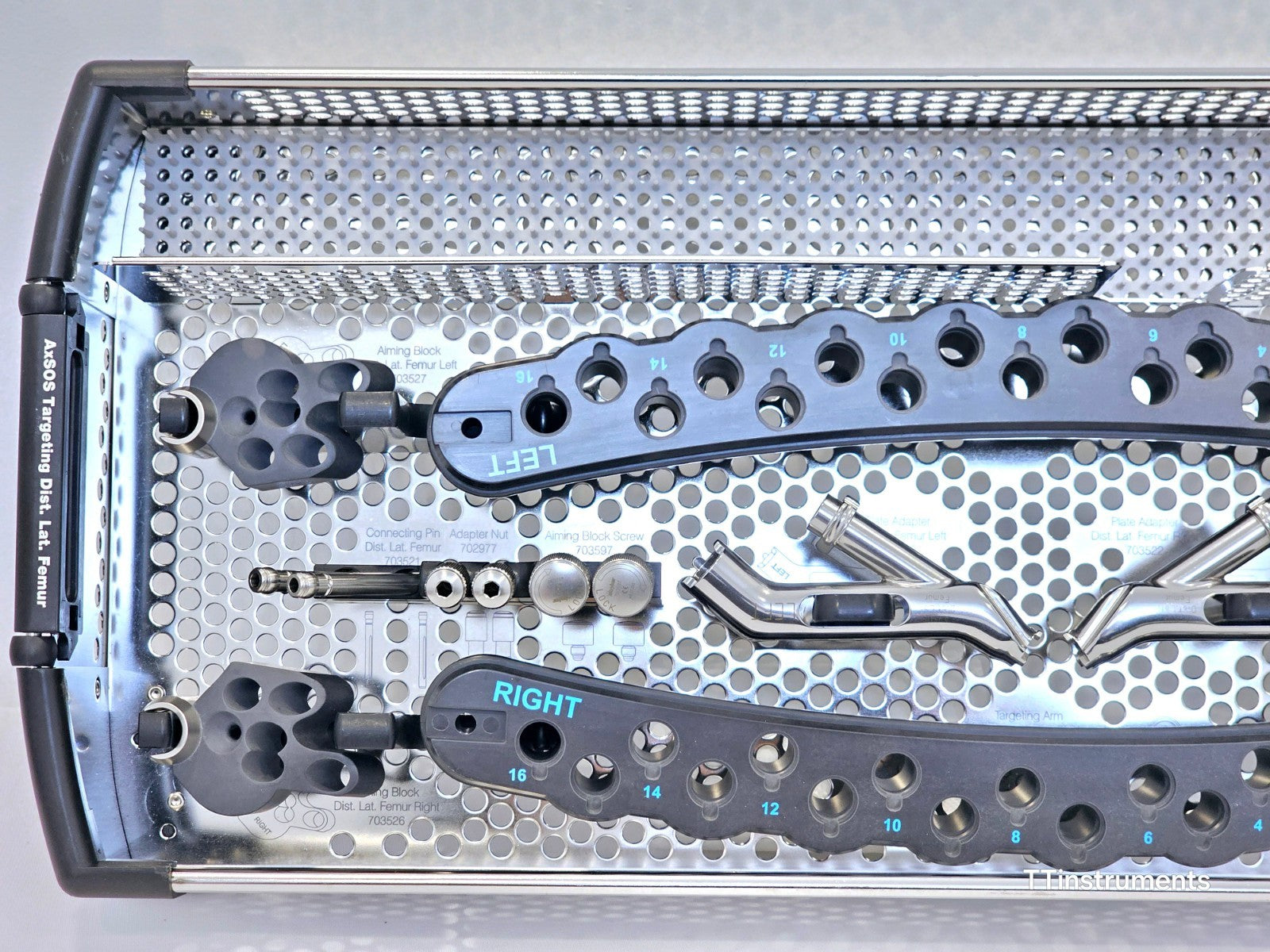

The targeting instrumentation is designed to enable accurate, minimally invasive placement of locking screws into the distal femoral plate during submuscular plate application. The bilateral aiming blocks (Left and Right) attach directly to the plate via the plate adapters, and the curved targeting arms guide drilling through numbered hole positions corresponding to plate screw holes. Connecting pins, adapter nuts, and aiming block screws allow secure assembly of the targeting construct intraoperatively. Plate end markers assist in fluoroscopic identification of the plate tip during insertion.

System: AxSOS Locking Plate System — Distal Lateral Femur
Manufacturer: Stryker Trauma & Extremities
Indicated Use: Periarticular and intra-articular fractures of the distal femur
Compatibility: For use with AxSOS and AxSOS 3 Titanium Distal Lateral Femur Locking Plates
Screw Size (Aiming Block Screw): Ø8.0mm
Side: Bilateral (Left and Right)
Surgical Approach: Standard lateral, modified lateral, or lateral parapatellar
Sterilisation: All non-sterile instruments must be cleaned and sterilised before use; multi-component instruments must be disassembled for cleaning
MR Status (AxSOS 3 Titanium System): MR Conditional

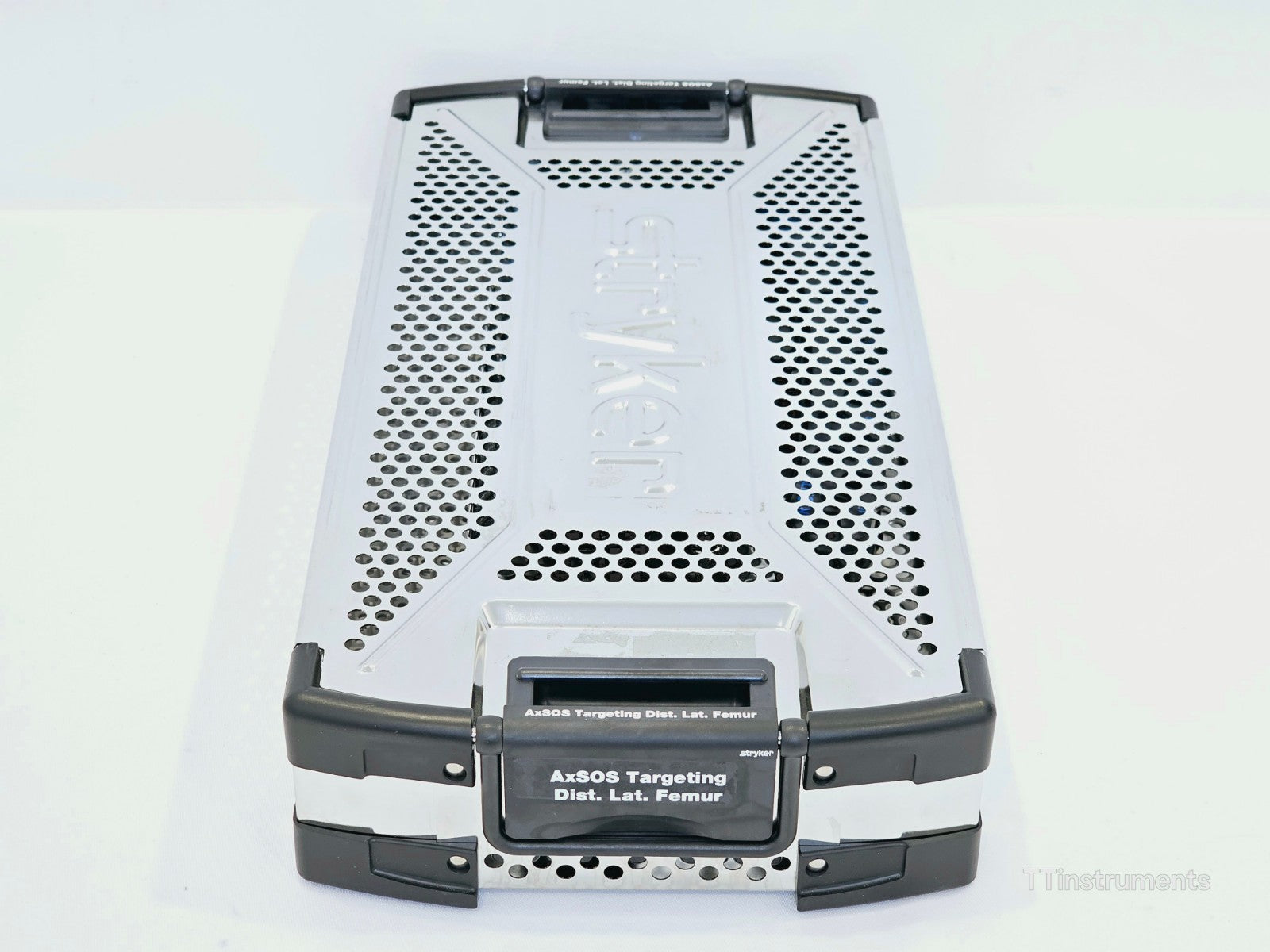

Tray Reference: 902912 — Instrument Tray, Dist Lat Femur Targeter

Key Instrument References:
703527 – Aiming Block, Dist Lat Femur Left
703526 – Aiming Block, Dist Lat Femur Right
703529 – Targeting Arm, Dist Lat Femur Left
703528 – Targeting Arm, Dist Lat Femur Right
703521 – Connecting Pin, Dist Lat Femur
702977 – Adapter Nut
703597 – Aiming Block Screw Ø8.0mm
703523 – Plate Adapter Dist Lat Femur Left
703522 – Plate Adapter Dist Lat Femur Right
703530 – Plate End Marker
