Condition: Used   Stryker 901664 SPS Basic Fragment Set Implant Case Screws Refer to images for cosmetic condition and included instruments
The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, do not bid on this item unless you are an authorized purchaser. If the item is subject to FDA regulation, I will verify your status as an authorized purchaser of this item before shipping of the item.
uyer responsibility: Any commissioning, calibration, certification and validation required before clinical use is the buyer's responsibility.
isclaimer: Regardless of the origin of the equipment or any identification appearing upon it, the equipment is not certified or recommended by us for any specific use. The purchaser agrees that the seller is not responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. By purchasing this equipment, the purchaser acknowledges and agrees to these terms.

The Stryker Plating System (SPS) Basic Fragment Set is a comprehensive orthopaedic fixation implant system designed for the treatment of fractures of the cortical and metaphyseal areas of long bones. The system provides a broad range of cortical and cancellous ISO screws to support multiple plate fixation functions including compression, neutralisation, buttressing, and bridging.

Screw Design:
All SPS screws feature a hexagonal head with a spherical underside. Cortical screws within the range are self-tapping, with three cutting flutes on the tip for cleaner cutting and to avoid compacting of bone chips. Specially designed grooves enhance insertion torque. The range of screw lengths has been expanded and modified to suit different anatomical regions. Screw heads can be almost completely countersunk into the specifically designed plate holes.

Material Standards:
All SPS implants are available in Stainless Steel (316LVM) or Titanium Alloy (Ti-6Al-4V), meeting ASTM F138 & F139/ISO 5832-1 and ASTM F136/ISO 5832-3 standards respectively.

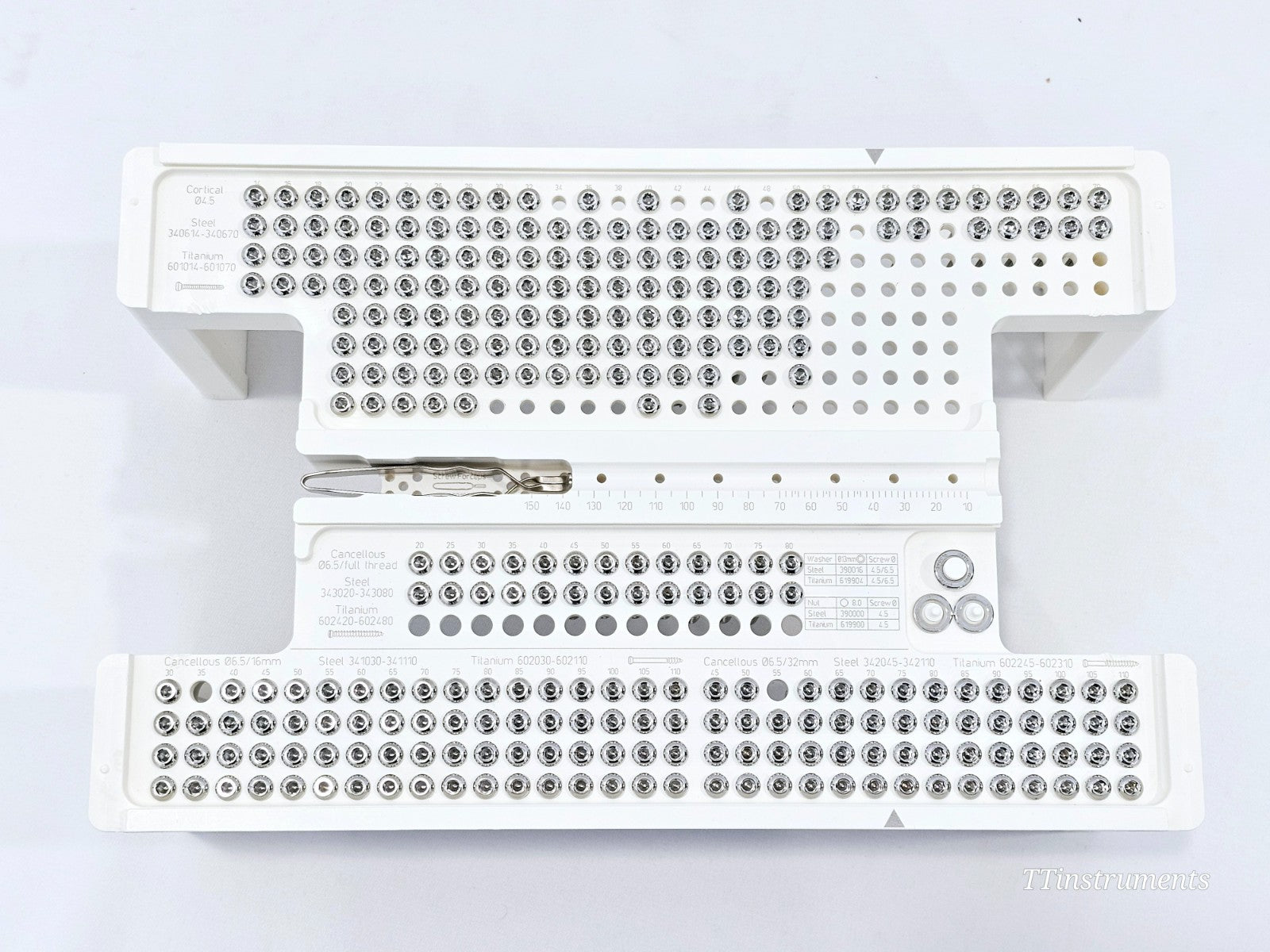

Screw Types Included (Basic Fragment Set):
Cortical Screw Diameter: Ø4.5mm
Cancellous Screw Diameter: Ø6.5mm (full thread and partial thread variants)
Partial Thread Options: 16mm and 32mm thread lengths
Materials: Stainless Steel and Titanium Alloy
Head Type: Hexagonal with spherical underside
Cortical Screw Type: Self-tapping

Indications:
Fracture fixation of the cortical and metaphyseal areas of long bones including the femur, tibia, humerus, and fibula. The system supports compression plating, neutralisation plating, buttress plating, and bridging osteosynthesis techniques.

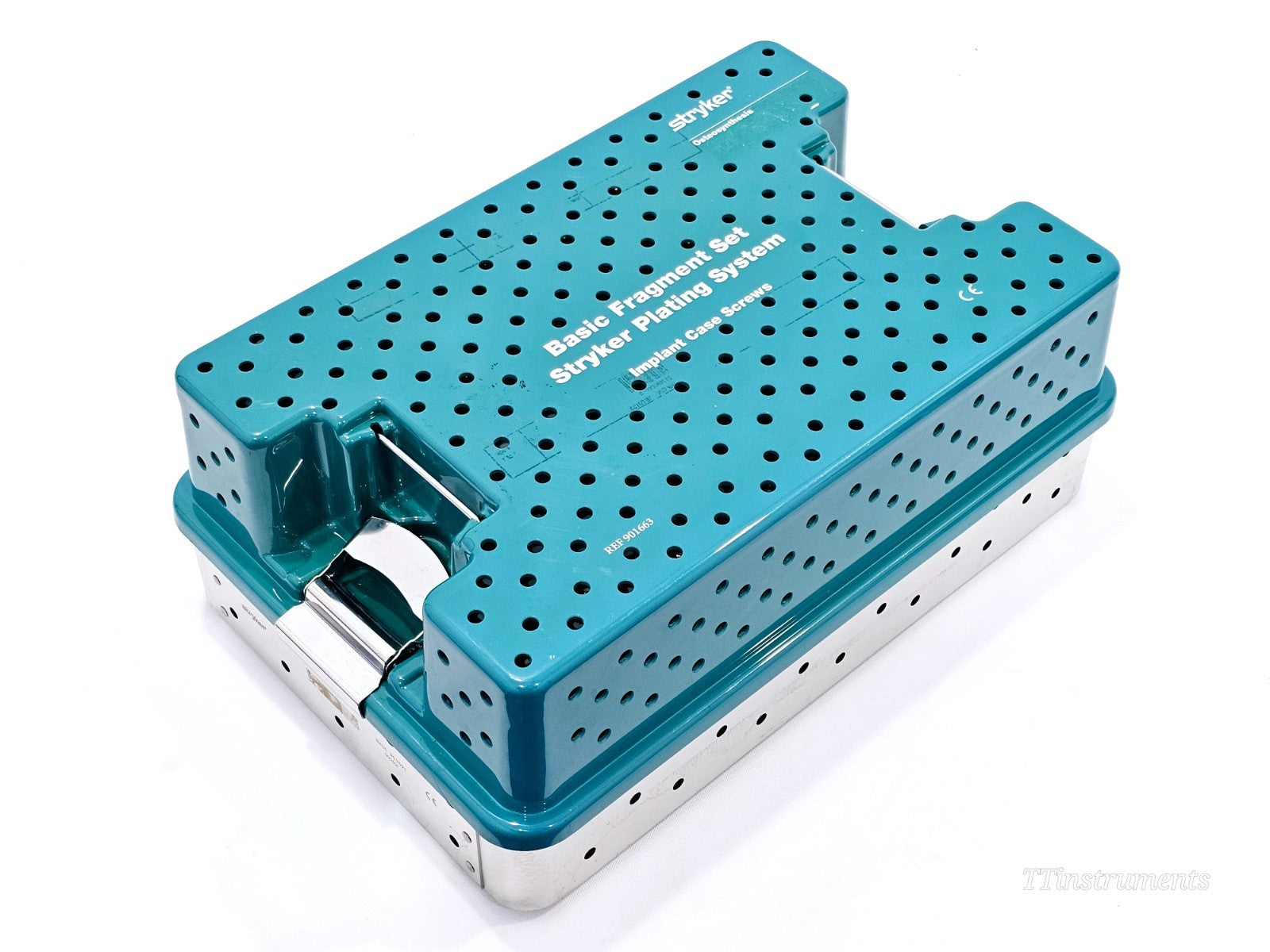

Sterilisation Container REF: 901663

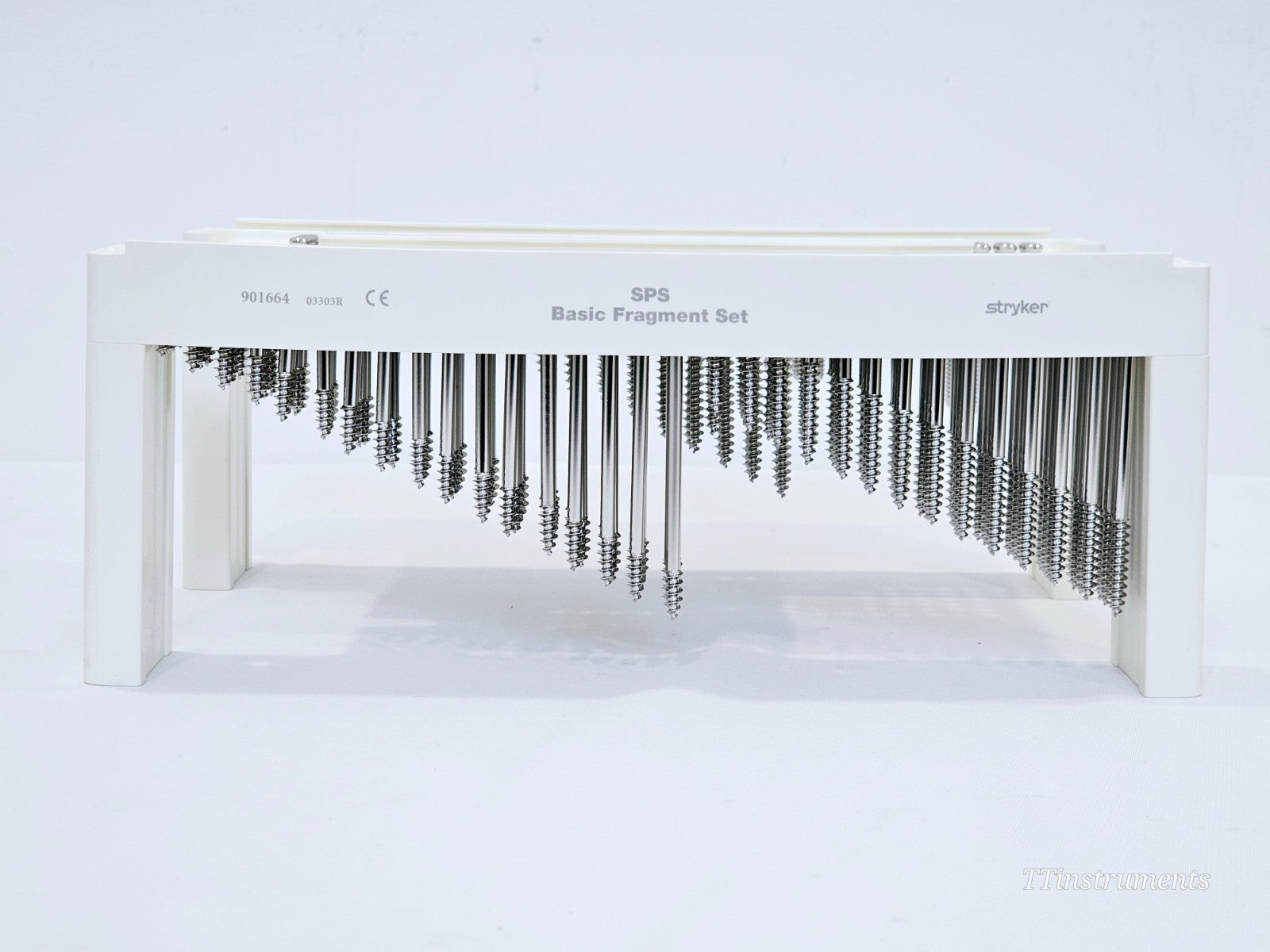

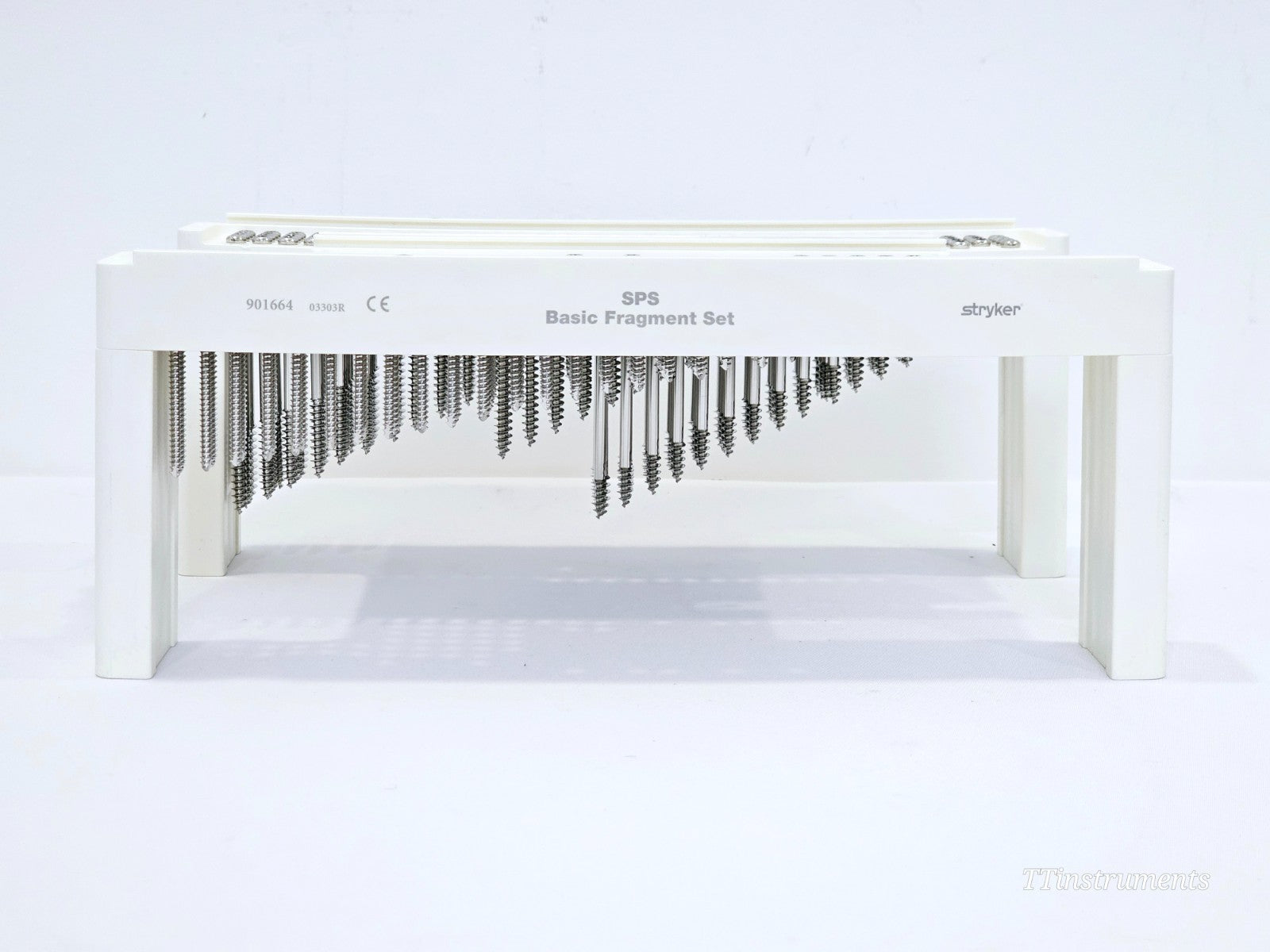

Implant Case Screws REF: 901664
Brochure REF: 982183

This product is intended solely for use by qualified healthcare professionals. Always refer to the package insert, product label, and instructions for use before clinical application.

Stryker SPS Basic Fragment Set — features, benefits, indications, operative technique and ordering information brochure (PDF): Download PDF

Stryker AxSOS Small and Basic Fragment Locking Plate System — operative technique guide covering SPS Basic Fragment instruments and ordering (PDF): Download PDF
