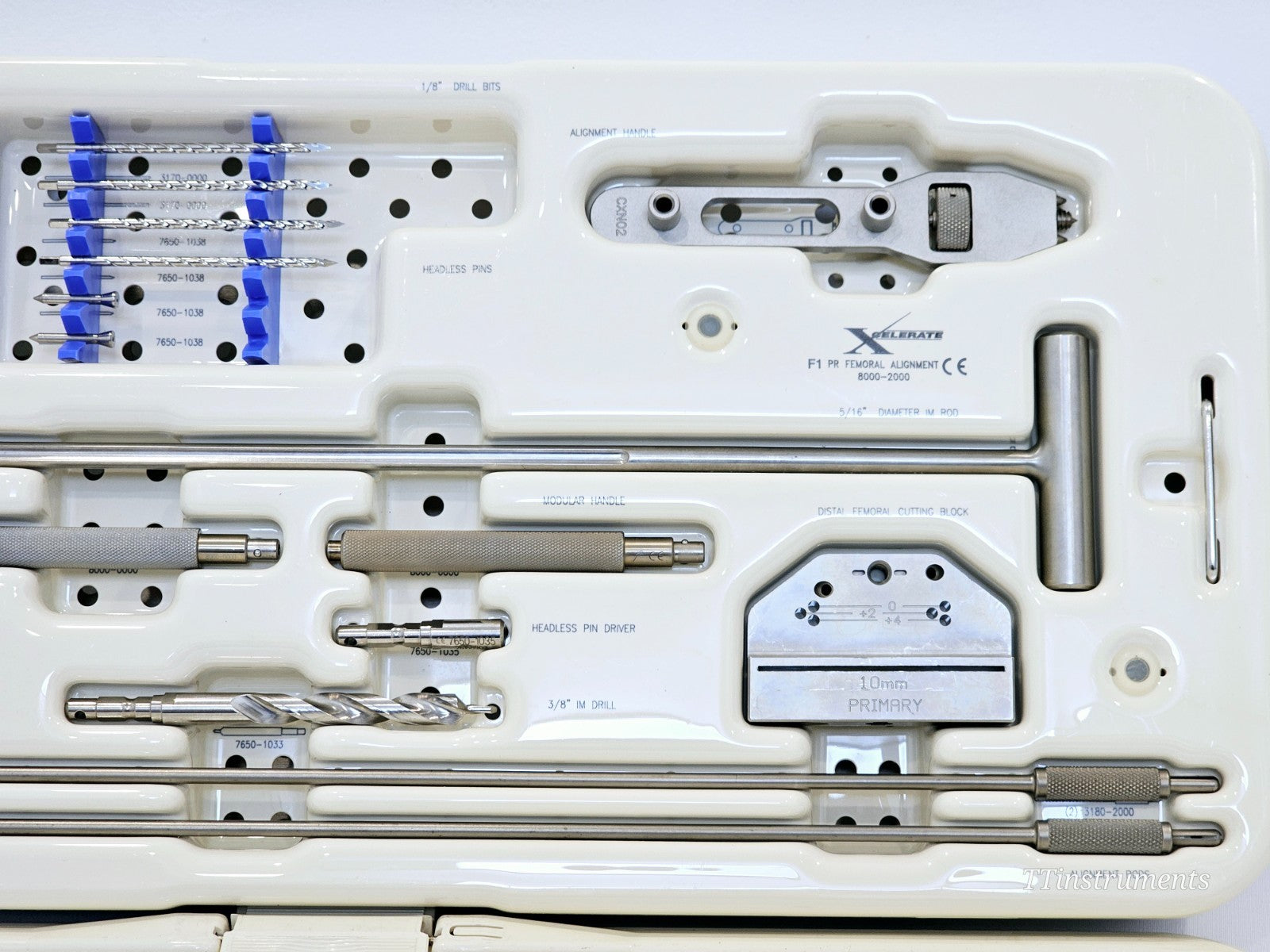

Stryker 8000-2000 XCELARATE Scorpio PR Femoral Preparation Instrument Set – Used Includes: 3180-1000 – Femoral Alignment Guide 3180-2000 – Modular Handle (x2) 8000-0000 – Alignment Handle (x2) 8000-1000 – 5/16" IM Rod 7650-1135 – 1/8" Drill Bit 7650-1035 – 3/8" IM Drill 7650-1033 – 1/4" IM Drill 7650-1019 – Headless Pin Driver Distal Femoral Cutting Block – 8 mm PRIMARY Distal Femoral Cutting Block – 10 mm PRIMARY Headless Pins – 7650-1038 (multiple pieces) Regulatory Notice: The sale of this item may be subject to regulation by the U.S. Food and Drug Administration (FDA) and state and local regulatory agencies. Do not purchase unless you are an authorized buyer. Verification may be required before shipping. Buyer Responsibility: Any commissioning, calibration, certification, or validation required before clinical use is the buyer's responsibility. Disclaimer: Regardless of the origin or any identification appearing on this equipment, it is not certified or recommended for any specific medical use. The seller is not responsible for any injuries, damages, or other consequences arising from its use. By purchasing, you acknowledge and agree to these terms.

The Stryker XCELARATE Scorpio PR Femoral Preparation Instrument Set (Ref: 8000-2000) is part of the Scorpio NRG (New Rotational Geometry) Single Radius Primary Knee System instrument platform from Stryker Orthopaedics. The XCELARATE instrumentation system is designed to facilitate efficient and accurate femoral preparation during primary total knee arthroplasty (TKA), supporting both intramedullary (IM) and extramedullary alignment techniques.

The Scorpio NRG knee system upon which this instrument set is based features a single radius design — meaning the centre of rotation of the femoral component is fixed — which is intended to address mid-flexion instability and provide consistent ligament tension throughout the arc of motion. The NRG system incorporates spherical geometry in the coronal plane to improve rotation during flexion.

The F1 PR (Primary, Posterior Reference) Femoral Alignment set provides the instrumentation required for:
— Femoral intramedullary canal entry and alignment
— Distal femoral resection level selection (8 mm and 10 mm resection options)
— Rotational alignment and varus/valgus setting
— Distal femoral cutting block fixation

Key Instrument Components and Specifications:

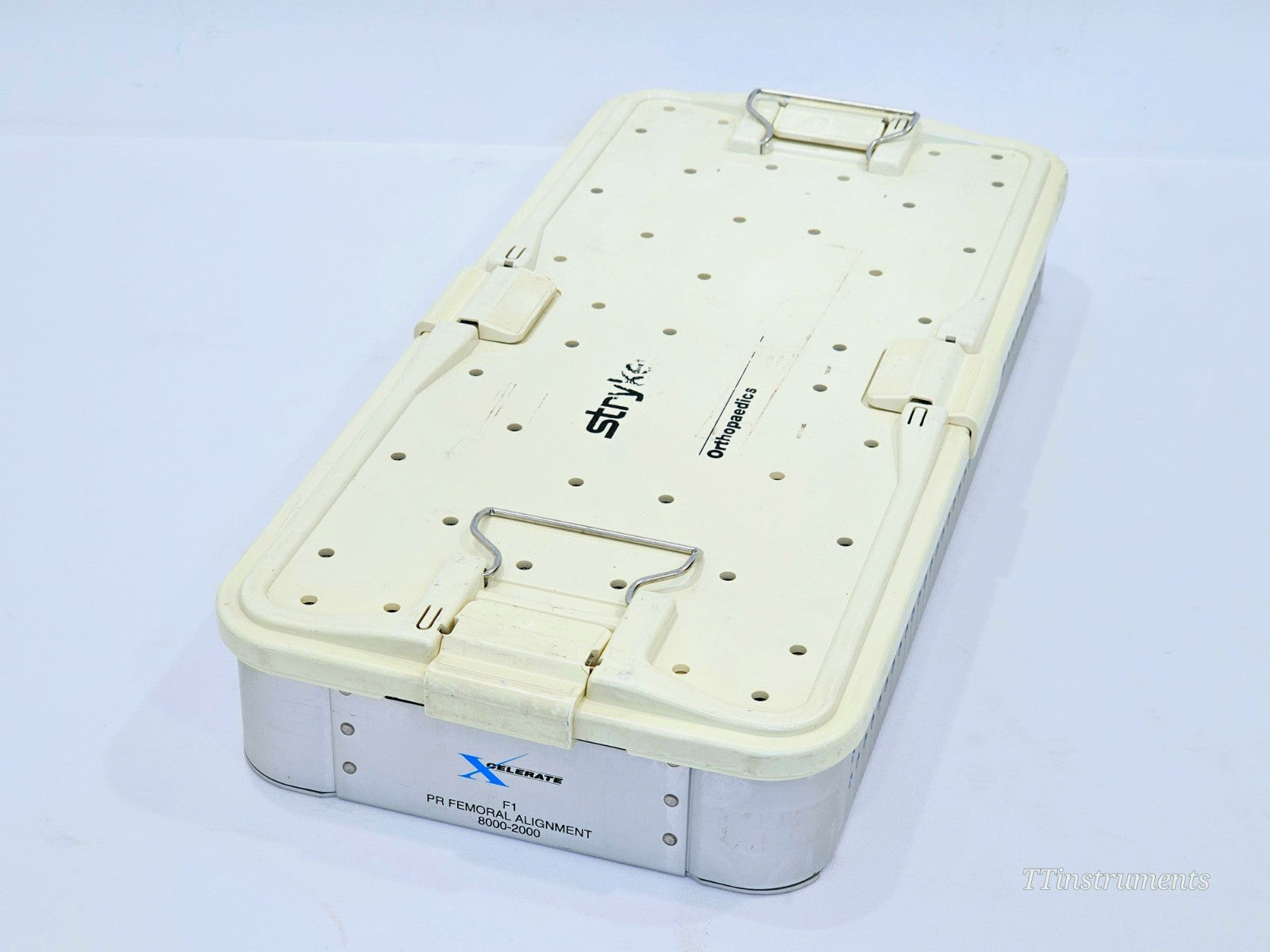

Sterilisation Tray Reference: 8000-2000
Alignment Handle: 8000-0000
Femoral Alignment Guide Reference: 3180-1000
Modular Handle Reference: 3180-2000
5/16" Diameter IM Rod Reference: 8000-1000
1/8" Drill Bit Reference: 7650-1135
Headless Pin Reference: 7650-1038
Headless Pin Driver Reference: 7650-1035
3/8" IM Drill Reference: 7650-1033
Distal Femoral Cutting Block — 8 mm PRIMARY
Distal Femoral Cutting Block — 10 mm PRIMARY
IM Rod Diameter: 5/16"
3/8" IM Drill Diameter: 3/8"
CE Marked: Yes (CE marking visible on tray label)
System Compatibility: Scorpio NRG CR and PS Single Radius Primary Knee System
Intended Use: Primary total knee arthroplasty — femoral alignment and distal femoral preparation

This instrument set is intended for use by trained orthopaedic surgeons only. A surgeon must always refer to the package insert, product label and/or instructions for use before using any Stryker product.

Scorpio NRG CR & PS Single Radius Primary Knee System Surgical Protocol (PR) — femoral preparation and alignment technique guide: Download PDF

Scorpio NRG CR & PS Single Radius Primary Knee System Surgical Protocol (AR) — alternative approach technique guide: Download PDF
