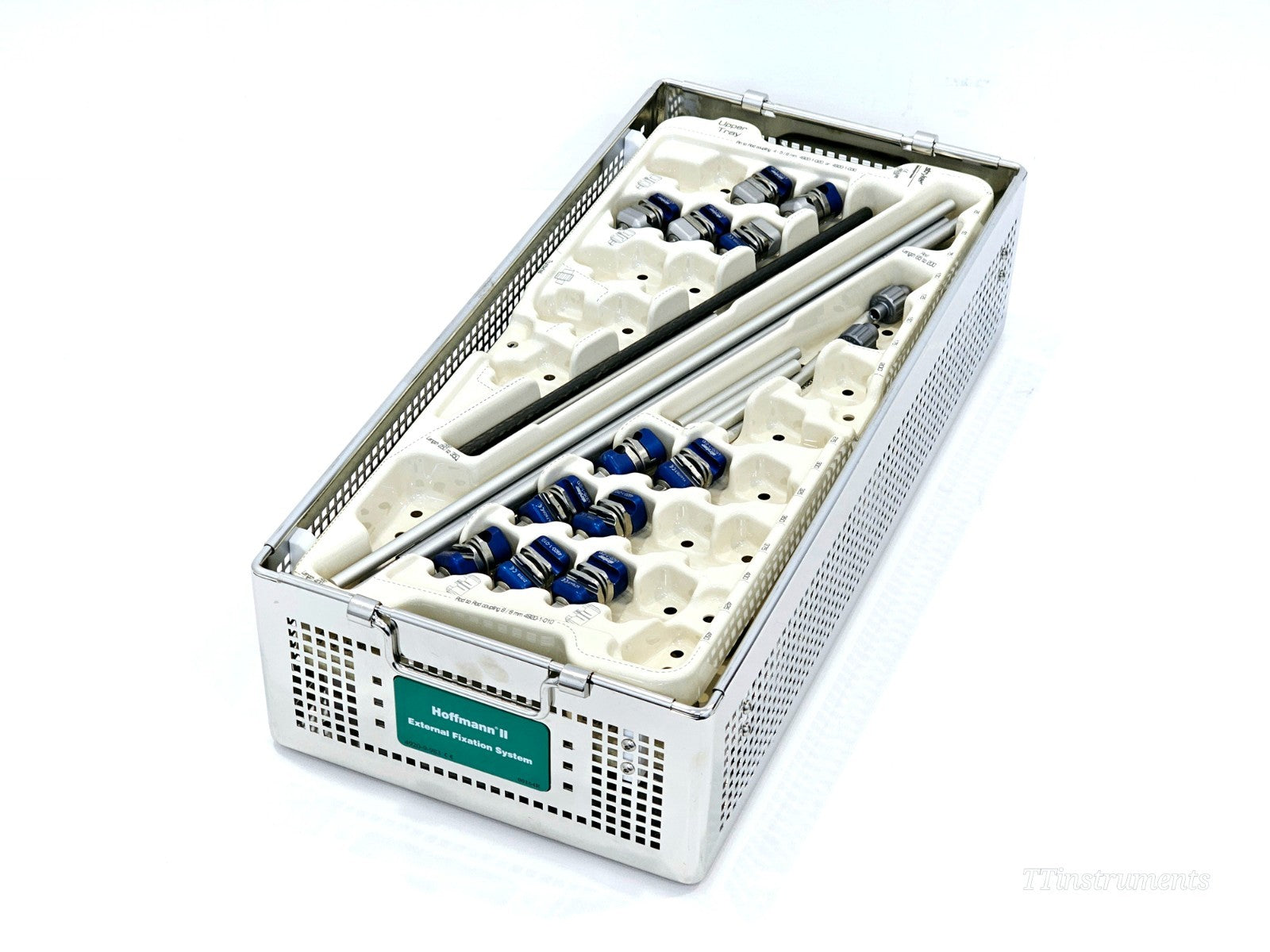

Stryker 4920-9-983 Hoffman II External Fixation System – Used Includes: 5029-7-028 – Carbon Fiber Rod 280 mm 5029-7-030 – Carbon Fiber Rod 300 mm 5029-7-032 – Carbon Fiber Rod 320 mm 4920-9-010 – Large Pin Clamp Assembly (x2) 4920-9-30 – Stainless Steel Connecting Rod 300 mm 5054-8-009 – Carbon Fiber Rod Holder 4920-2-080 – Straight Post 80 mm (x2) 5054-3-005 – Torque/Assembly Tool 4920-2-140 – Straight Post 140 mm (x8) 4920-2-120 – Straight Post 120 mm (x4) 4920-2-020 – Angled Post 20° (x2) 4920-2-060 – Angled Post 60° 4920-1-010 – Standard Pin-to-Rod Clamp (x7) 4920-1-030 – Rod-to-Rod Coupling Clamp 4920-9-020 – Multiplanar Pin Clamp Assembly (x2) 5029-8-400 – Large Blue Clamp (x2) 5029-8-640 – Bar-to-Bar Clamp (x2) 5029-8-645 – Bar-to-Bar Angled Clamp 5029-8-630 – Rod-to-Rod Clamp (Heavy Duty) 5029-8-650 – Threaded Adjustable Clamp (x2) 5029-8-620 – Adjustable Open Clamp (x2) 5029-8-815 – Ø5/6 Pin Clamp 5029-8-835 – Variable Pin Clamp (x2) 5029-8-610 – Multiplanar Clamp Medium (x3) 5029-8-605 – Multiplanar Clamp Small (x4) Regulatory Notice: The sale of this item may be subject to regulation by the U.S. Food and Drug Administration (FDA) and state and local regulatory agencies. Do not purchase unless you are an authorized buyer. Verification may be required before shipping. Buyer Responsibility: Any commissioning, calibration, certification, or validation required before clinical use is the buyer's responsibility. Disclaimer: Regardless of the origin or any identification appearing on this equipment, it is not certified or recommended for any specific medical use. The seller is not responsible for any injuries, damages, or other consequences arising from its use. By purchasing, you acknowledge and agree to these terms.

The Stryker Hoffmann II External Fixation System is a modular external fixation system designed for long bones, the pelvis, femur, humerus, and other complex fracture applications. Originally conceived by Dr. Raoul Hoffmann in 1938, the Hoffmann II builds upon the foundational principles of modular design and the ability to reduce fractures and make post-operative corrections to fragment alignment in three planes with the frame in situ. The system is considered the gold standard in modular external fixation and is unmatched in ease-of-use, versatility, and patient comfort.

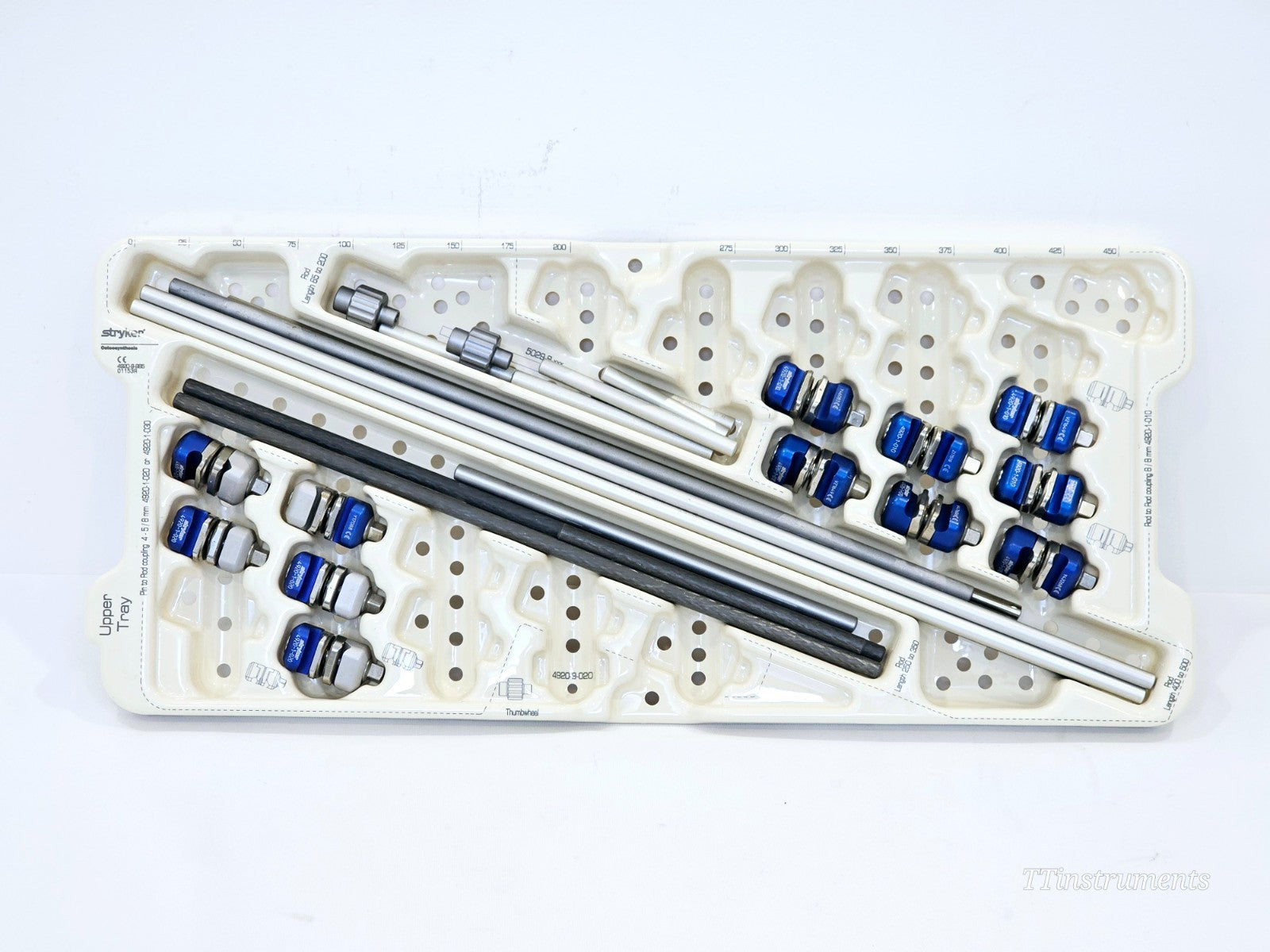

The system uses Ø8mm rods and posts, compatible with Ø4, Ø5, and Ø6mm Apex pins. Carbon fibre connecting rods provide radiolucency, reducing imaging interference. The modular architecture allows surgeons to construct unilateral, bilateral, biplanar, and hybrid frame configurations from a common set of components — including pin clamps, rod-to-rod couplings, straight and angled posts, and thumbwheel assemblies — to suit the clinical requirements of each individual case.

Indications include:
• Stabilisation of open and/or unstable long bone fractures
• Pelvic ring disruptions and complex pelvic fractures
• Femur, tibia, and humerus fractures
• Cases where soft tissue injury precludes the use of internal fixation, IM nailing, or casting
• Post-operative correction of fragment alignment
• Temporary stabilisation pending definitive fixation

Key Specifications:
System Designation: Hoffmann II External Fixation System

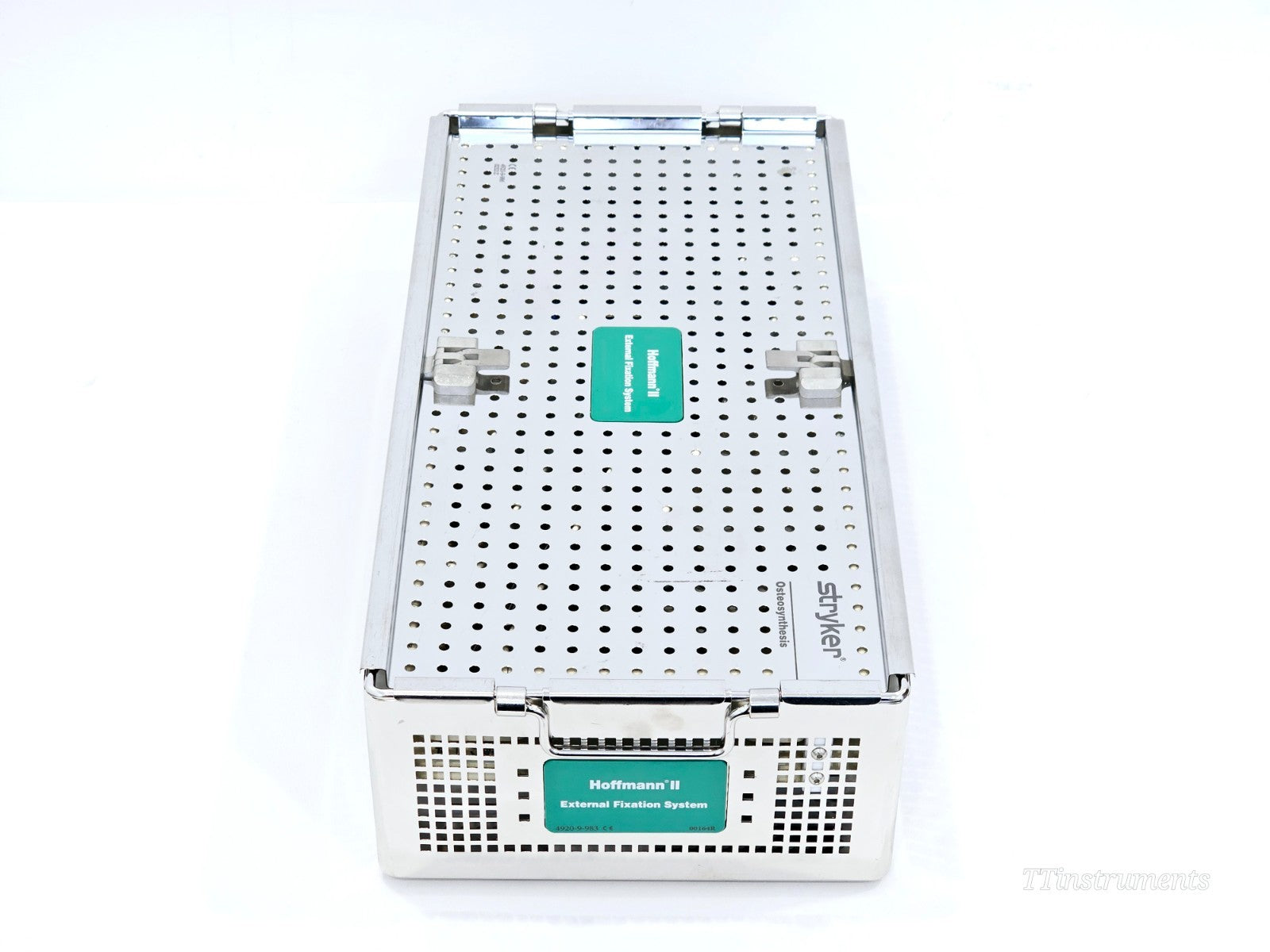

Manufacturer REF (Storage Case): 4920-9-983
Rod/Post Diameter: Ø8mm
Pin Compatibility: Ø4mm, Ø5mm, Ø6mm Apex pins
Rod Material Options: Carbon fibre (radiolucent), stainless steel
Frame Configurations: Unilateral, bilateral, biplanar, hybrid

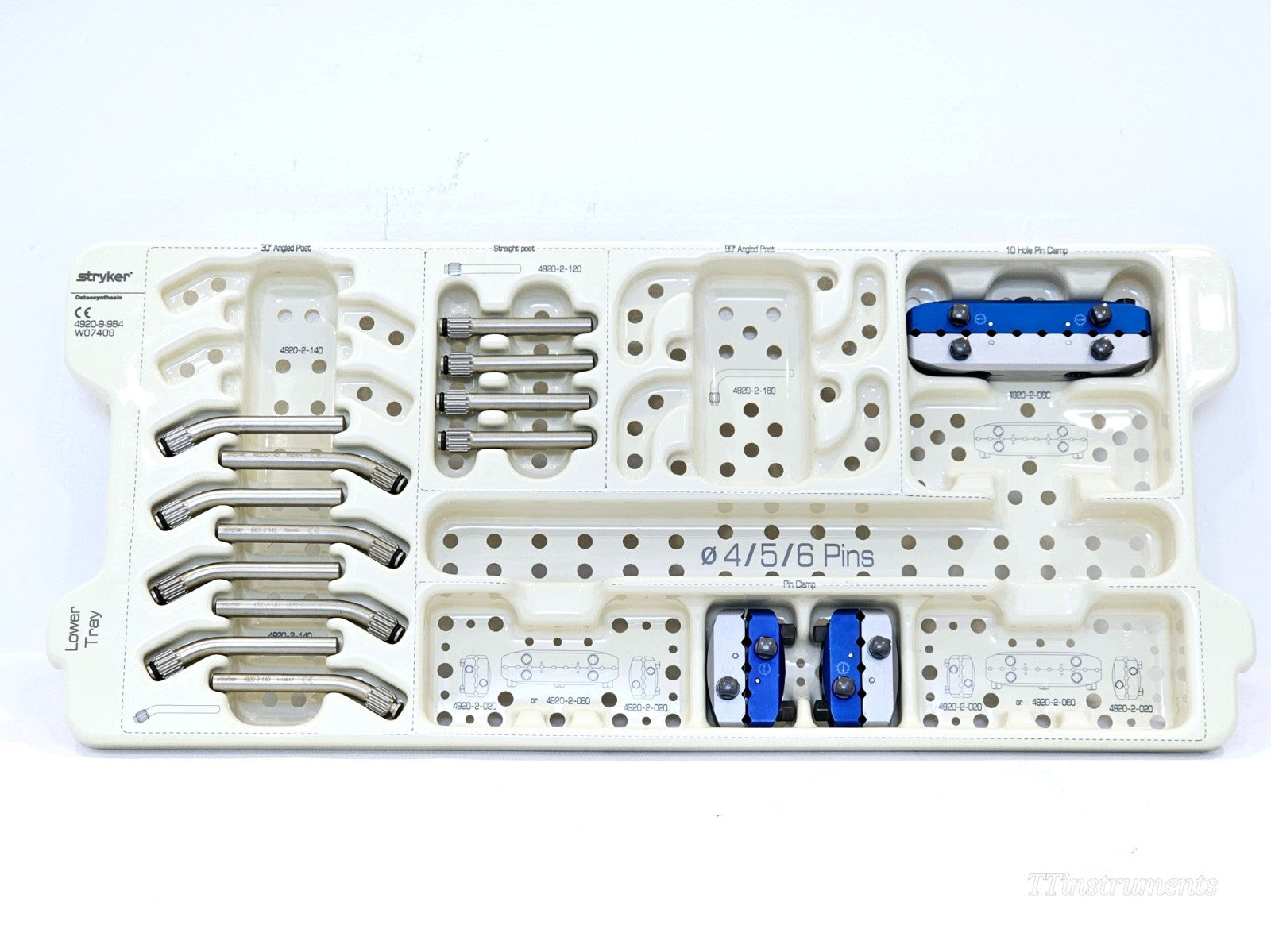

Post Angles Available: Straight, 30°, 90°
Pin Clamp Options: 5-hole and 10-hole clamps for Ø4, Ø5, and Ø6mm pins
Manufacturer: Stryker Trauma AG, Bohnackerweg 1, CH-2545 Selzach, Switzerland
