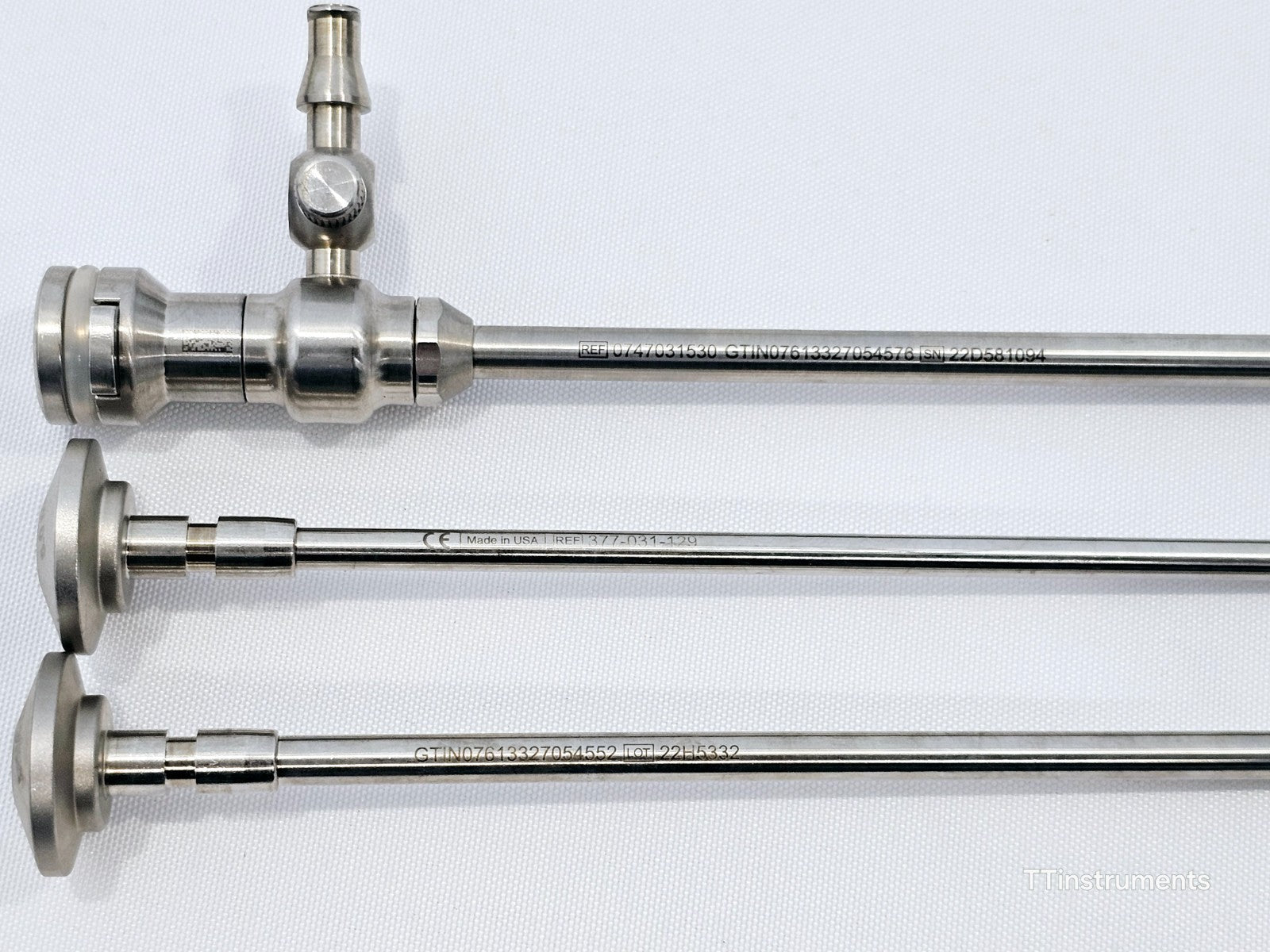

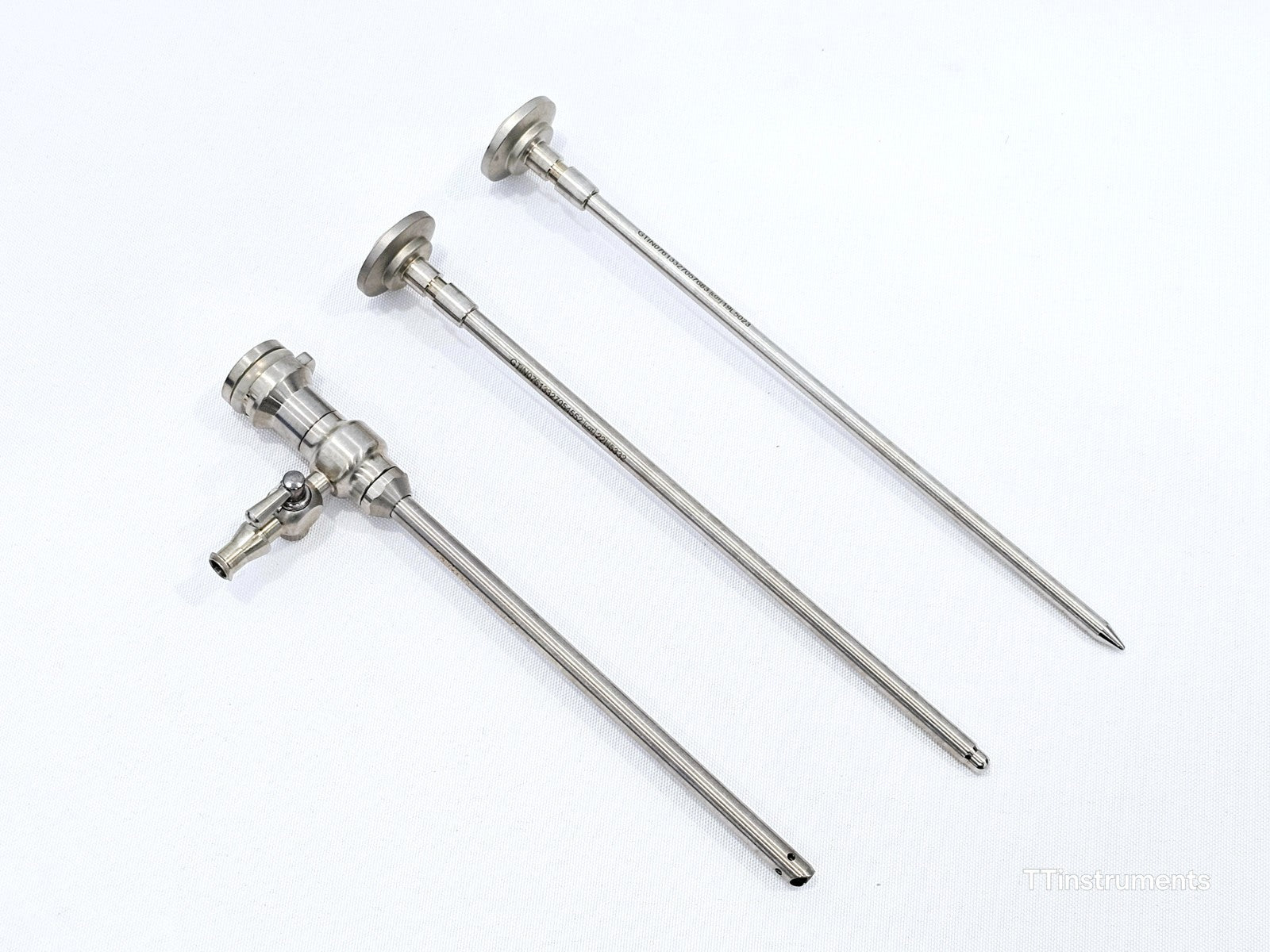

Stryker 233-032-116 Arthroscope and Hardware Tray Set – Used Condition: Used Included in this sale: 0747031530 – Arthroscope sheath / working channel assembly 377-031-129 – Rigid obturator / scope shaft 0747031511 – Rigid endoscope shaft 4mm 30° arthroscope Canula sleeves / adaptors – 2 pcs Trocar / obturator assembly Original Stryker 233-032-116 sterilisation tray with blue silicone matrix The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, do not bid on this item unless you are an authorized purchaser. If the item is subject to FDA regulation, the seller will verify your status as an authorized purchaser before shipping. Buyer Responsibility Any commissioning, calibration, certification, and validation required before clinical use is the buyer's responsibility. Disclaimer Regardless of the origin of the equipment or any identification appearing upon it, the equipment is not certified or recommended by the seller for any specific use. The purchaser agrees that the seller is not responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment. By purchasing this equipment, the purchaser acknowledges and agrees to these terms.

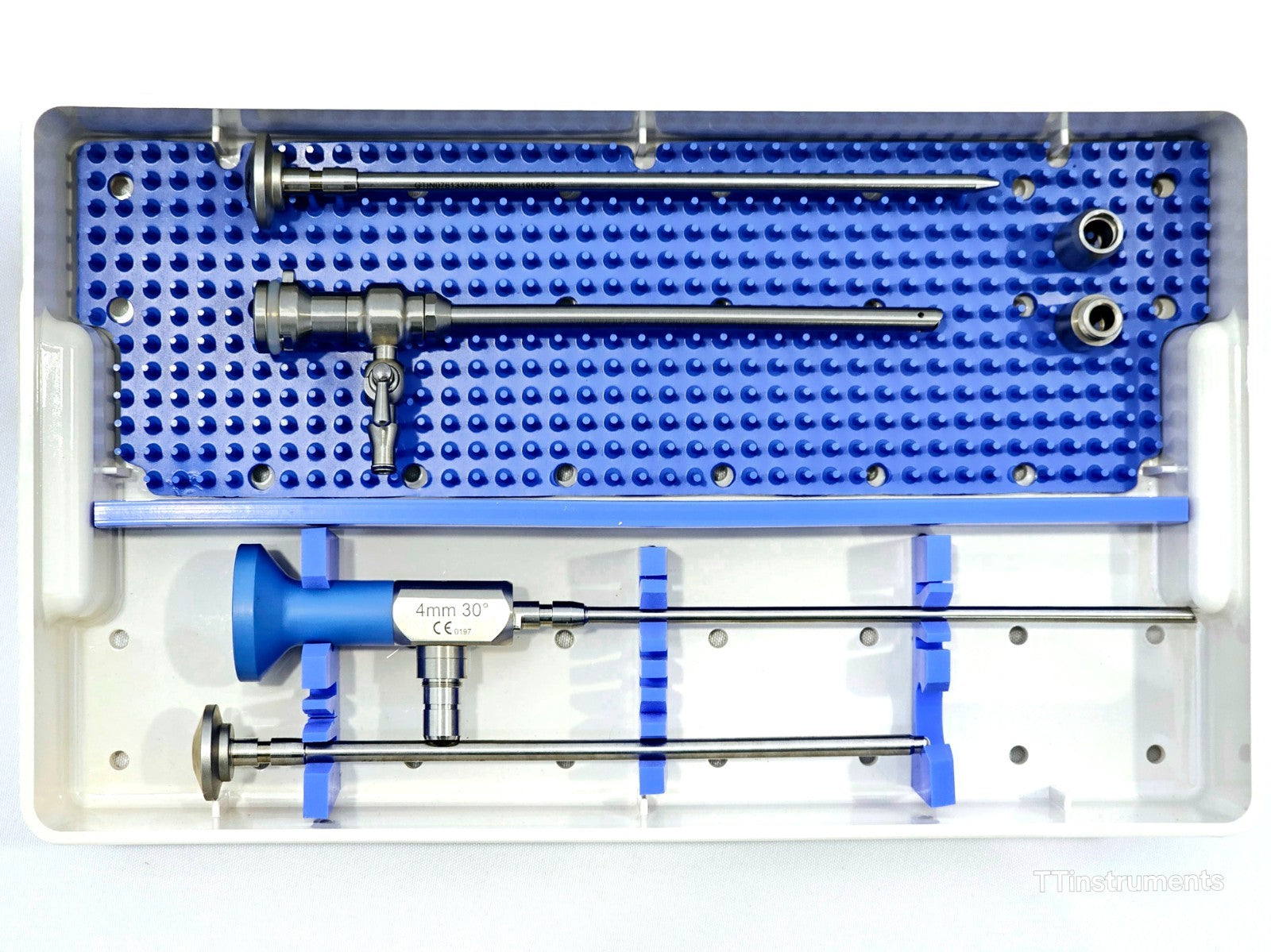

The Stryker 233-032-116 Arthroscope and Hardware Set Tray is produced by Stryker Endoscopy (San Jose, CA, USA) and is designed to store and sterilise a complete large-joint arthroscopy instrument set. The tray is compatible with Steam, STERRAD, and ETO sterilisation methods and features a perforated lid, locking clips, and a blue silicone instrument-retention matrix to secure components during sterilisation and transport.

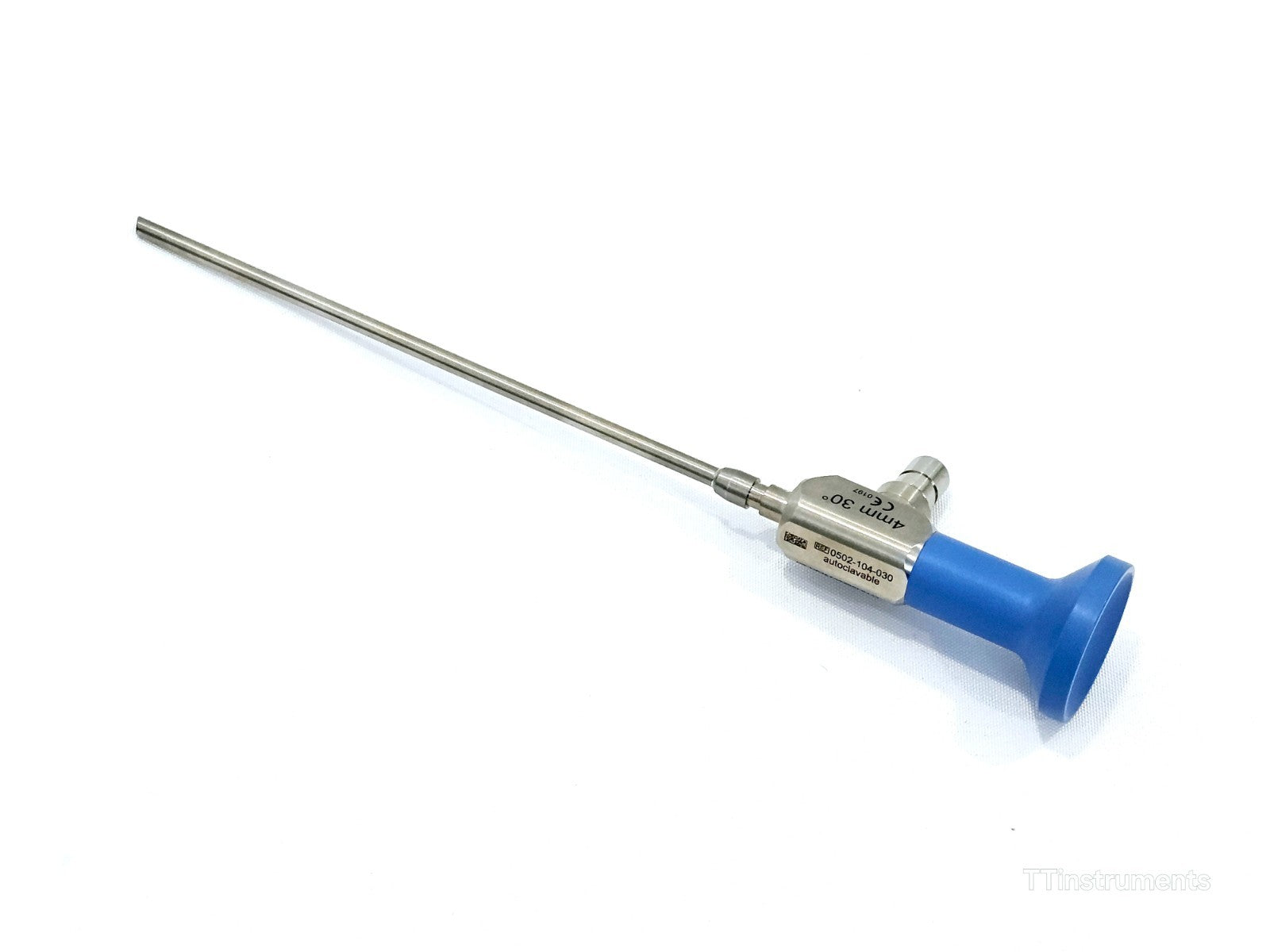

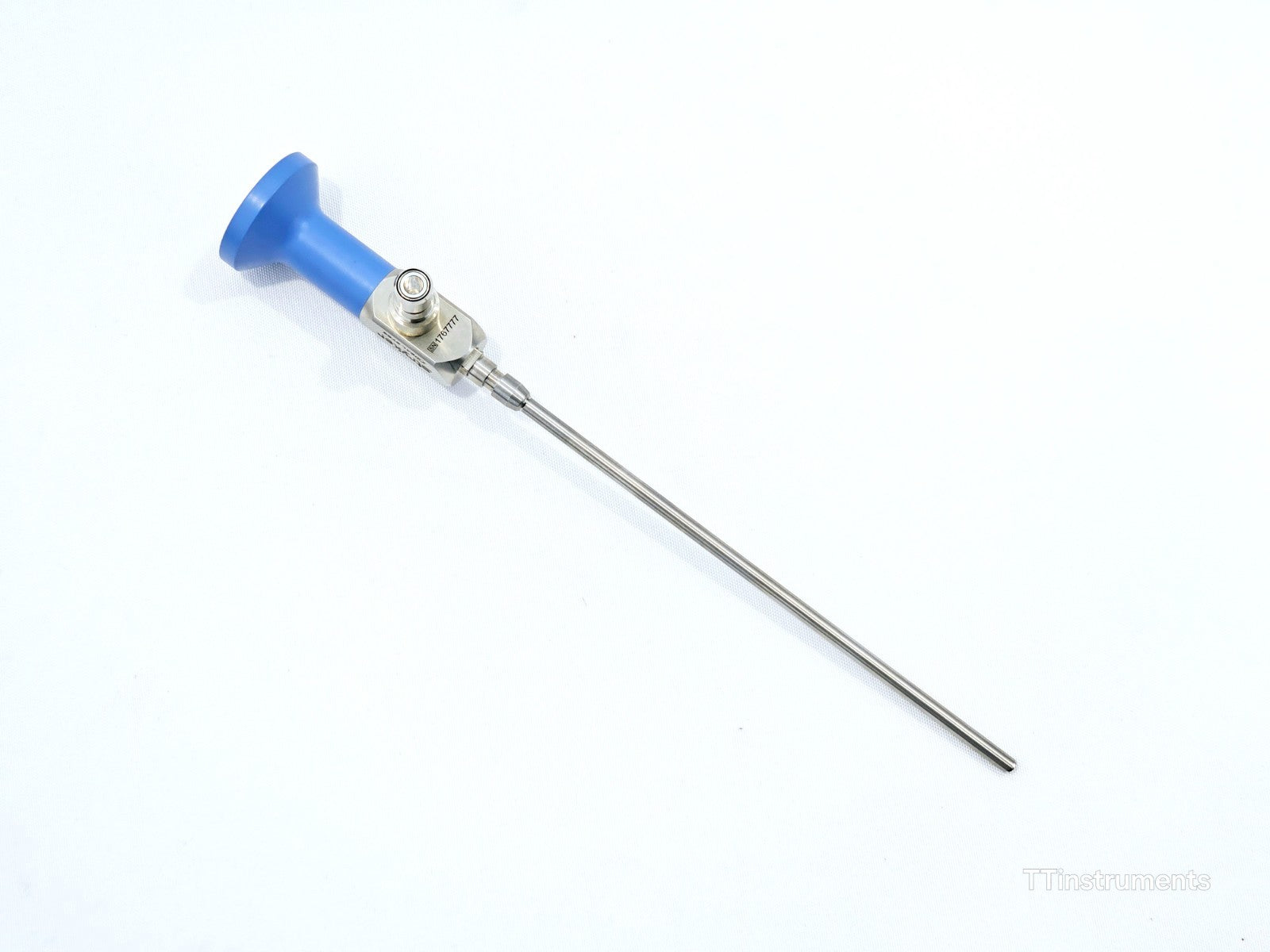

The centrepiece of this set is the Stryker IDEAL EYES HD 4mm 30° Autoclavable Arthroscope (REF 502-104-030), which uses rod lens technology for optimal image transmission, excellent detail recognition, and improved durability. The arthroscope connects to standard Stryker camera systems via an eyepiece coupler and features the Speed-Lock locking mechanism for secure, tool-free attachment to compatible sheaths.

IDEAL EYES HD 4mm 30° Arthroscope (REF 502-104-030) Key Specifications:
Diameter: 4 mm
Viewing Angle: 30°
Working Length: 140 mm
Field of View: 105°
Camera Connection: Eyepiece (coupler required)
Locking Mechanism: Speed-Lock
Light Post Direction: Standard
Sterilisation: Autoclave, Sterrad, Steris, ETO, Cidex compatible
Primary Use: Knee, shoulder, and large joint arthroscopy procedures
Compatible Obturator: Pencil Tip

Sterilisation Tray (REF 233-032-116) Key Details:
Manufacturer: Stryker Endoscopy, San Jose, CA, USA
Sterilisation Methods: Steam, STERRAD, and ETO
Features: Perforated base and lid for steam penetration, blue silicone matrix, four corner locking clips
Made in USA
