Condition: Used

This Spirent SPT-N4U-220 2-slot chassis has been tested with MX2 10G modules and is fully operational. The unit runs Firmware Version 4.71.0296 on Controller Revision E14 and carries several active licences. Serial Number: E17060250.

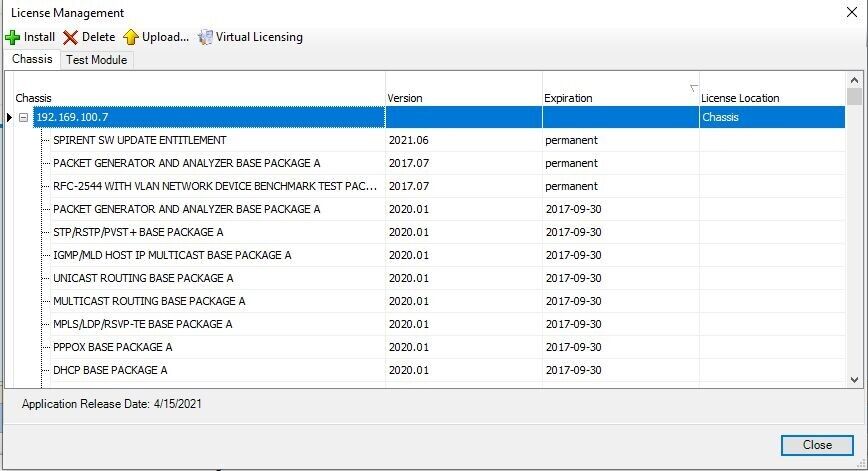

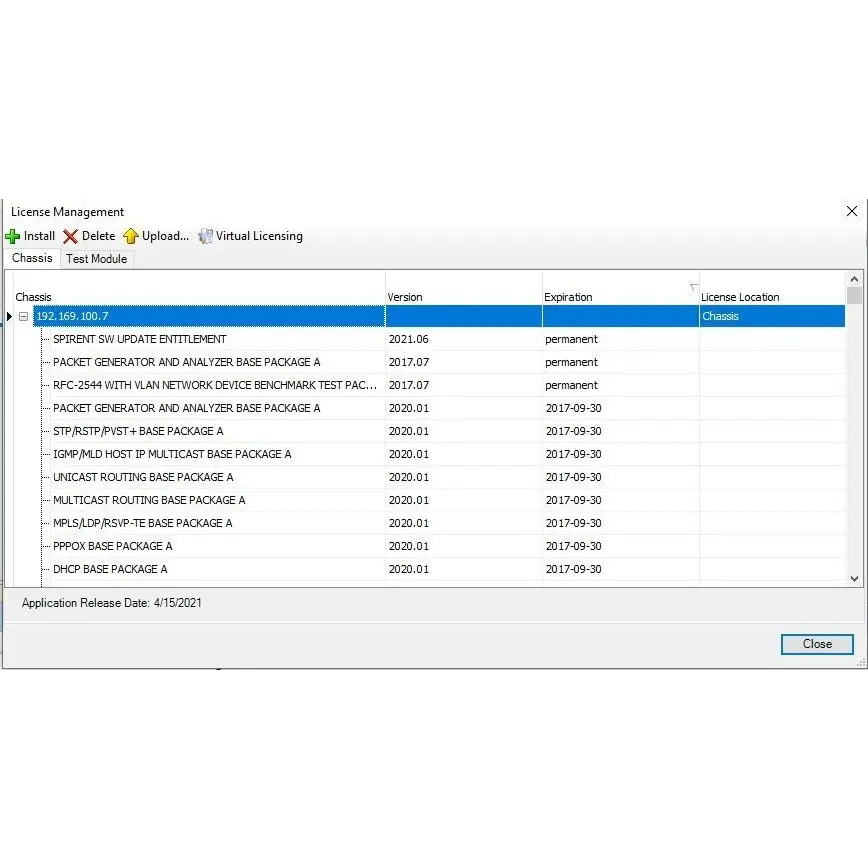

Active Licences:
• RFC-2544 with VLAN network device benchmark test pack
• Spirent SW update entitlement
• Packet generator and analyzer base package
• KP4 Licence: Active
• L1 Licence: Active
• TSN Licence: Active

Chassis Details:
• Model: SPT-N4U (9U Chassis)
• Slot Count: 2
• Controller Revision: E14 / Controller Version: 3
• Backplane Version: 2
• Firmware Version: 4.71.0296
• Sync Status: Synchronized (Internal Source)
• Compact Flash Total: ~80 GB / Free: ~65 GB
• Secure Mode: FALSE

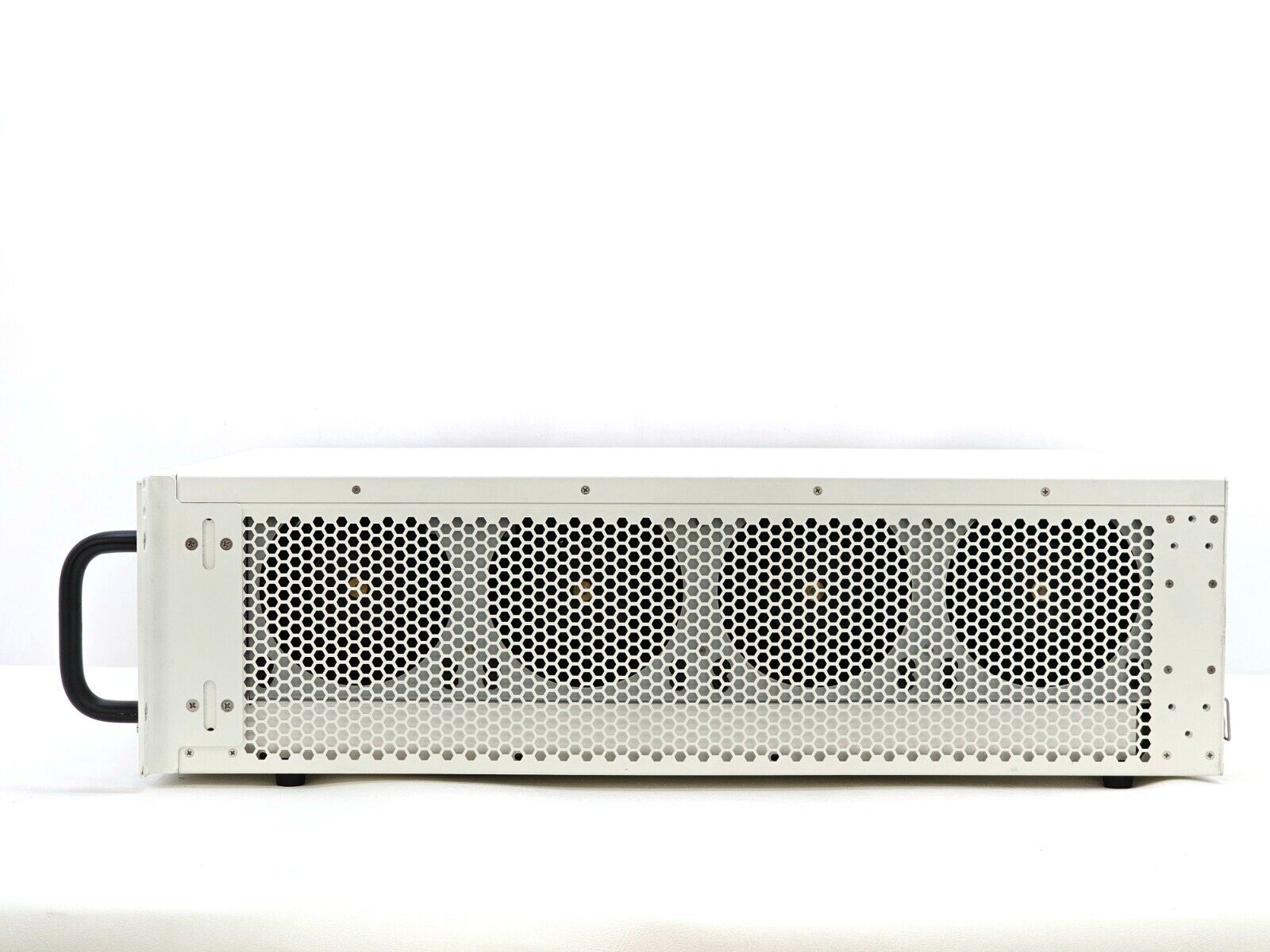

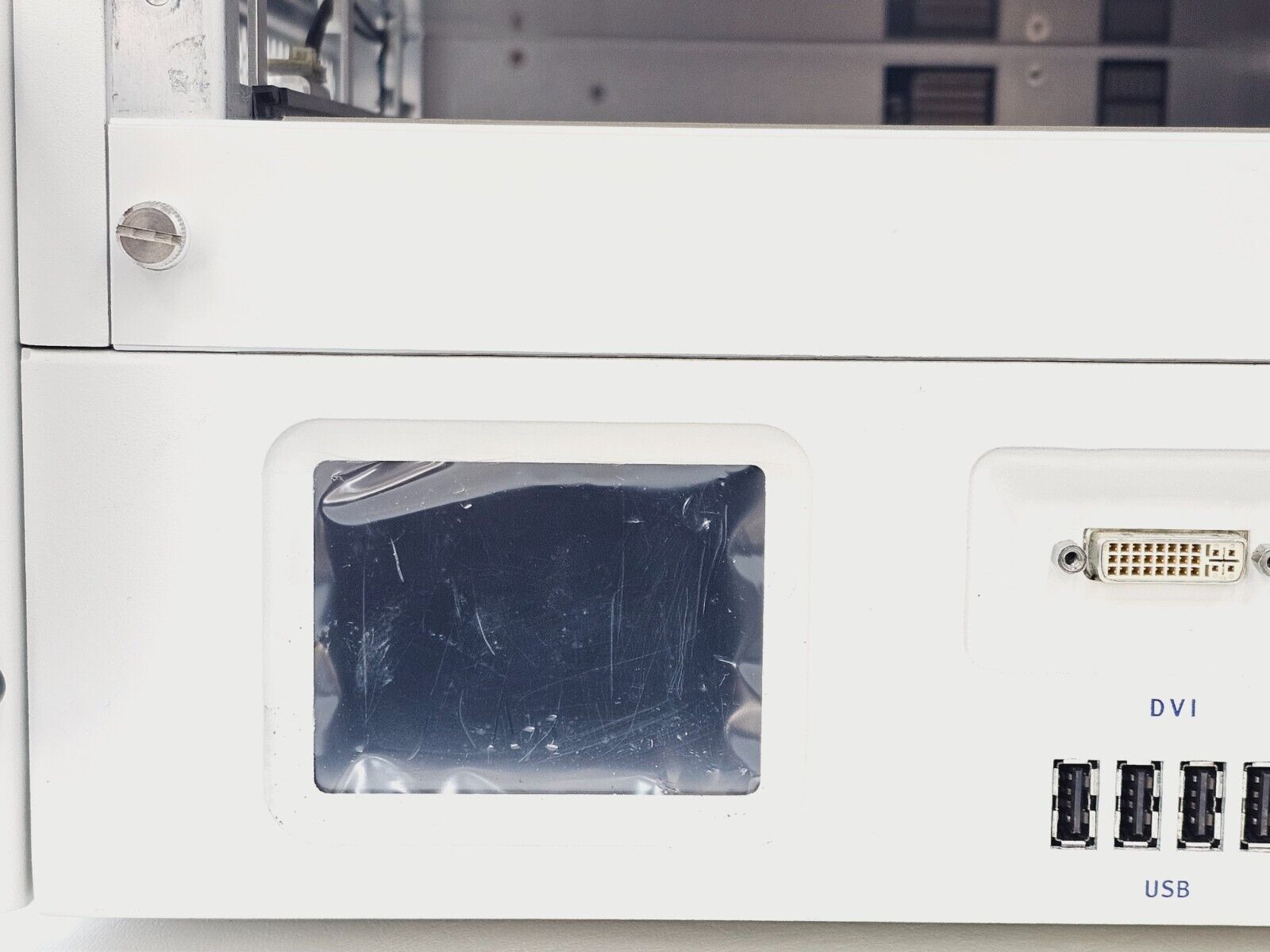

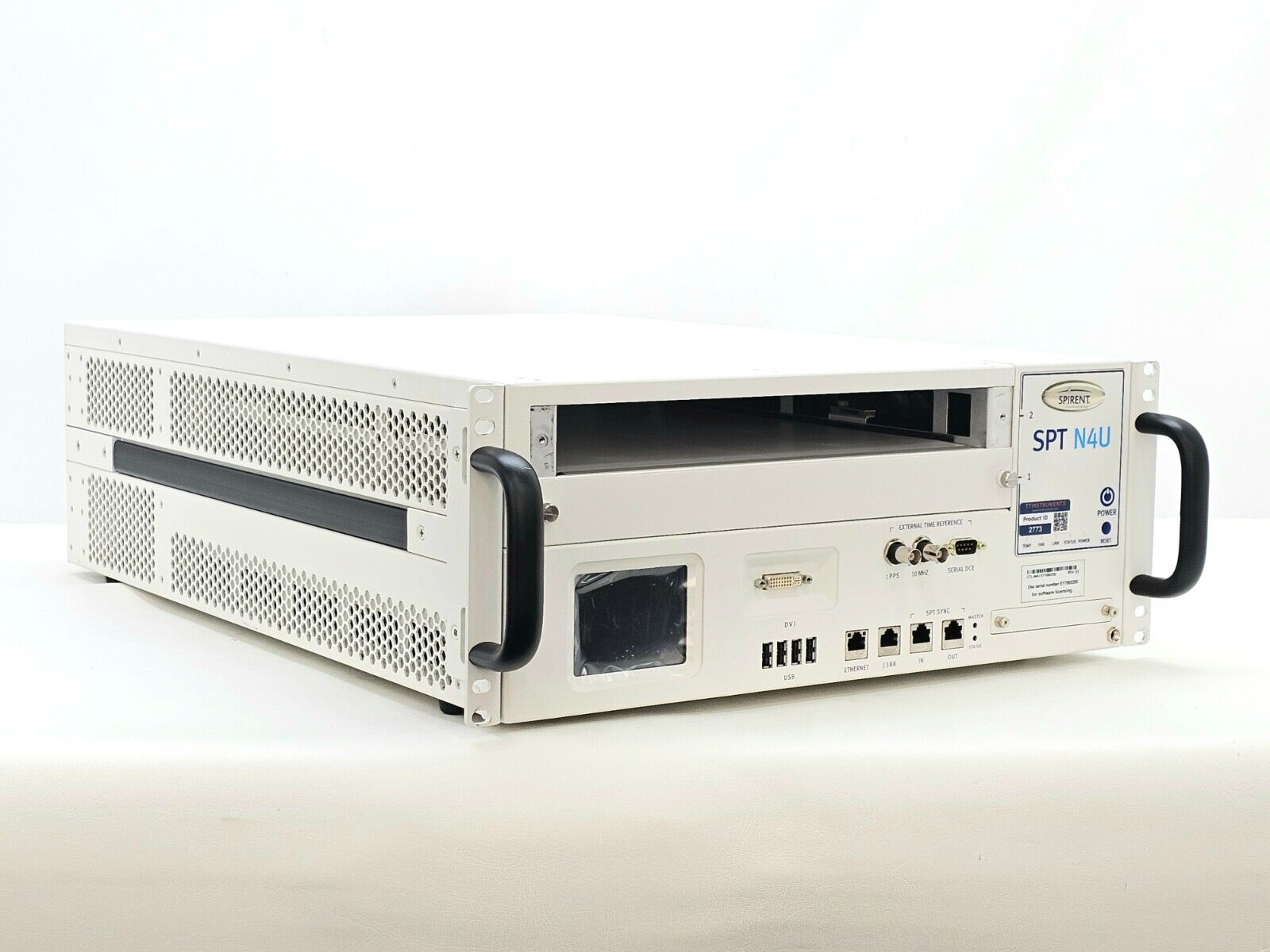

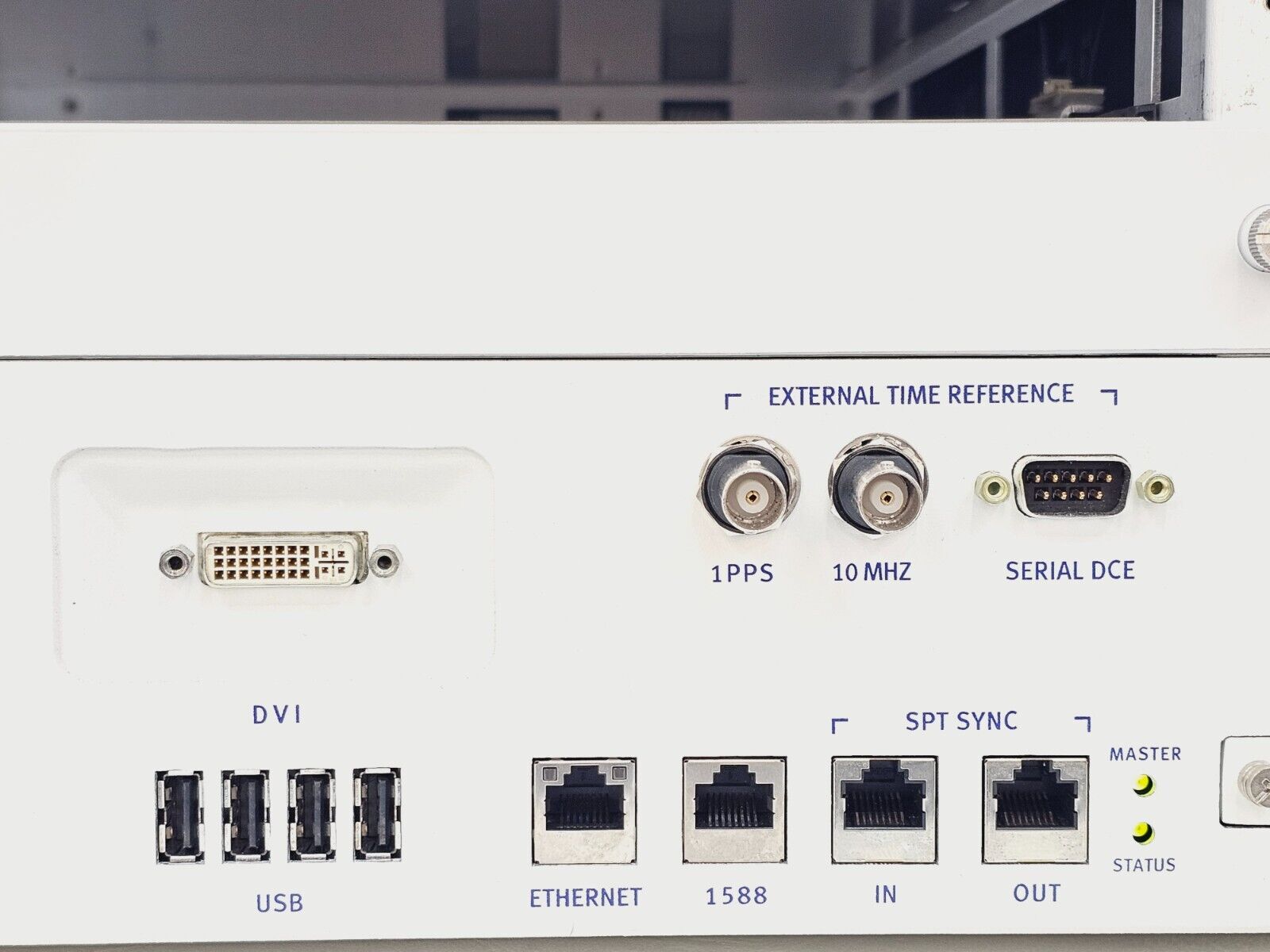

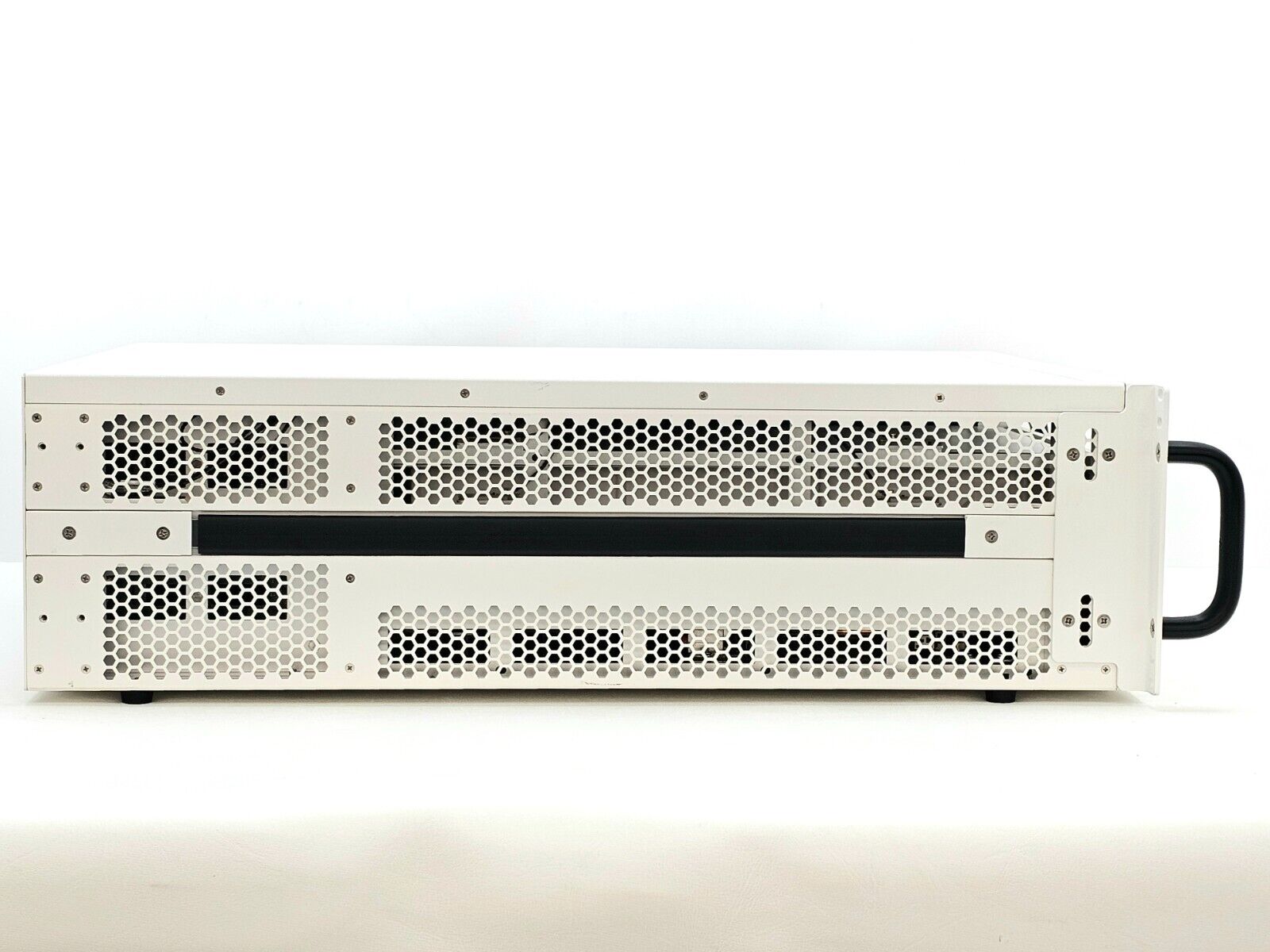

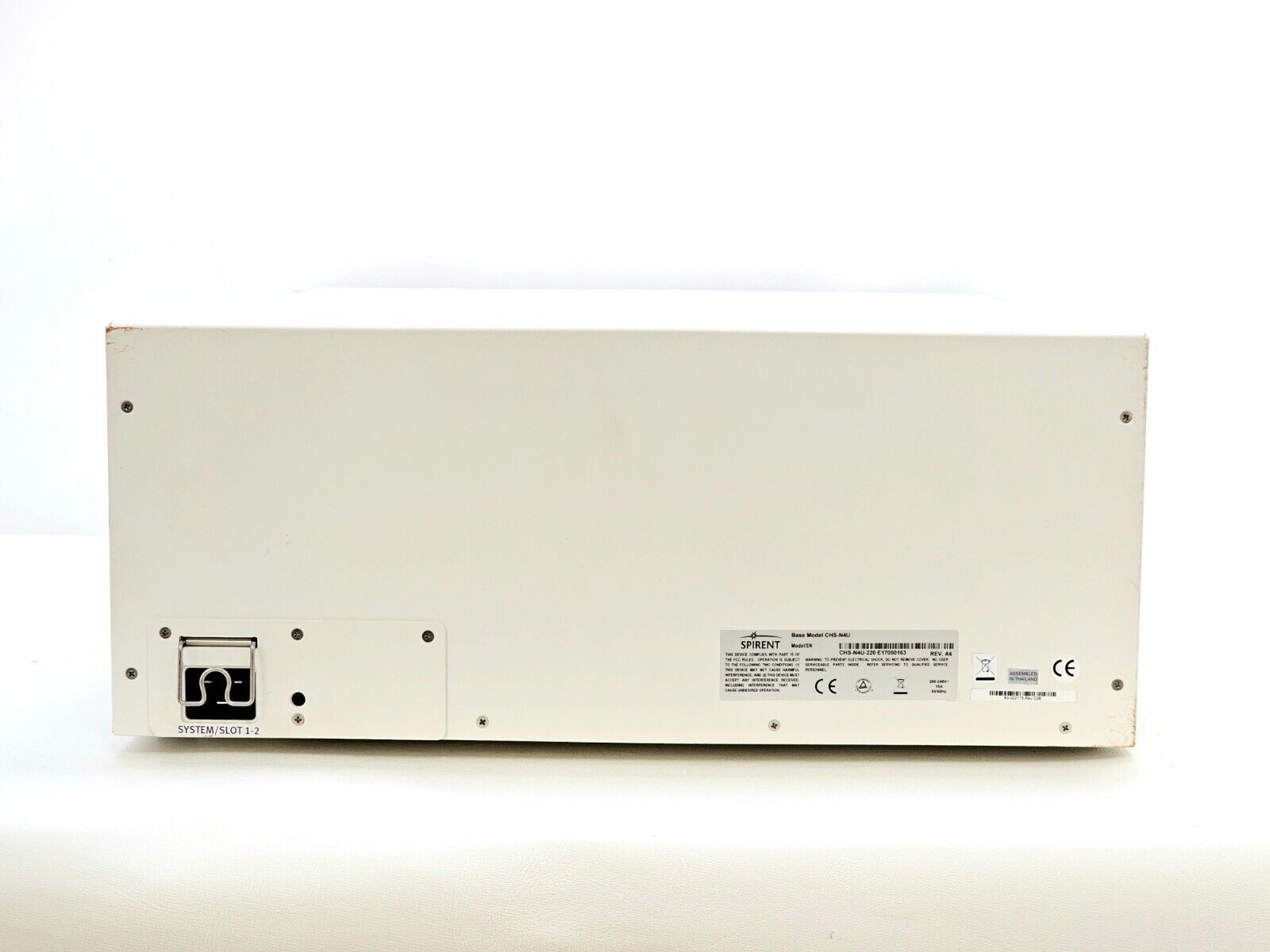

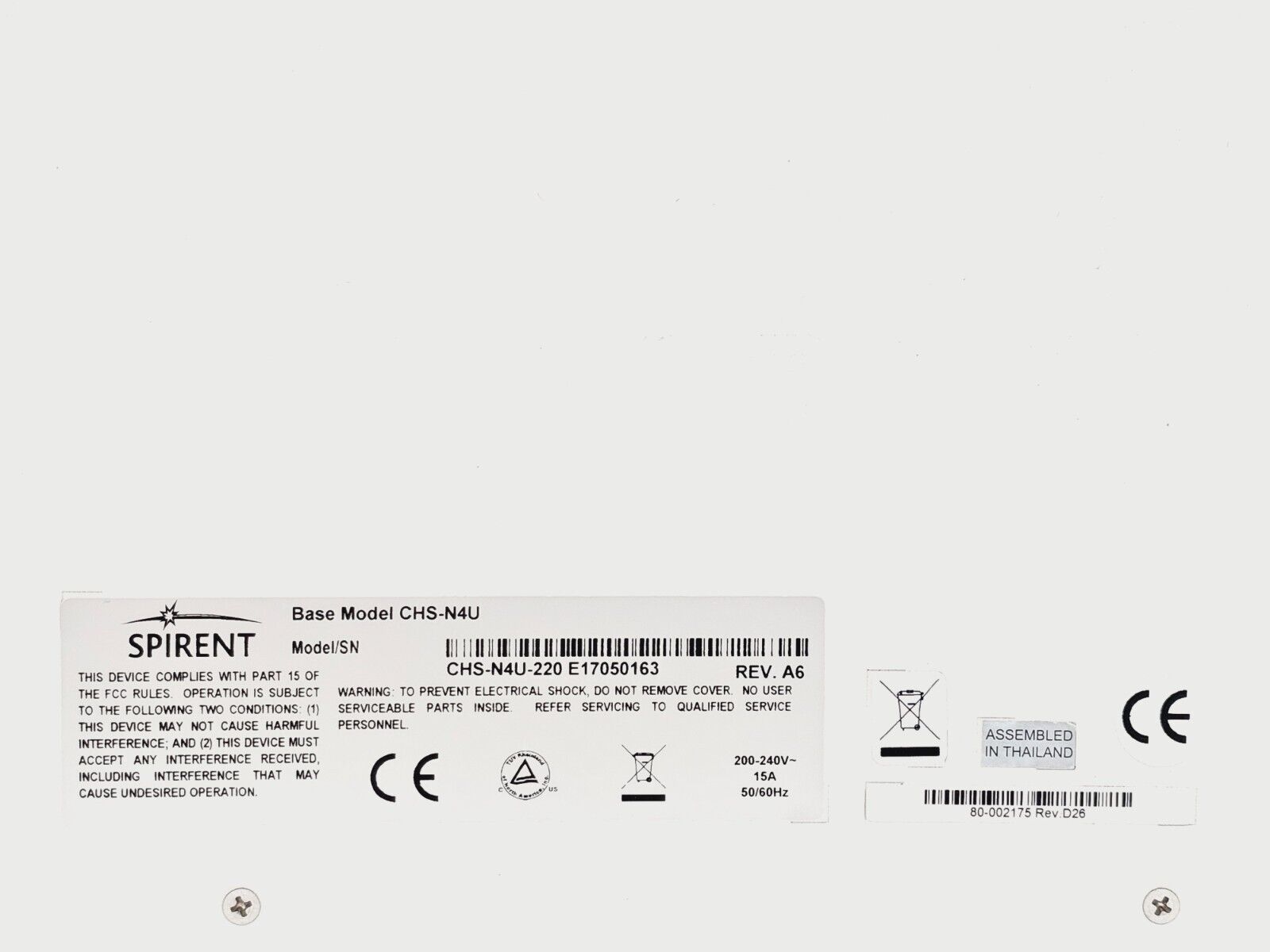

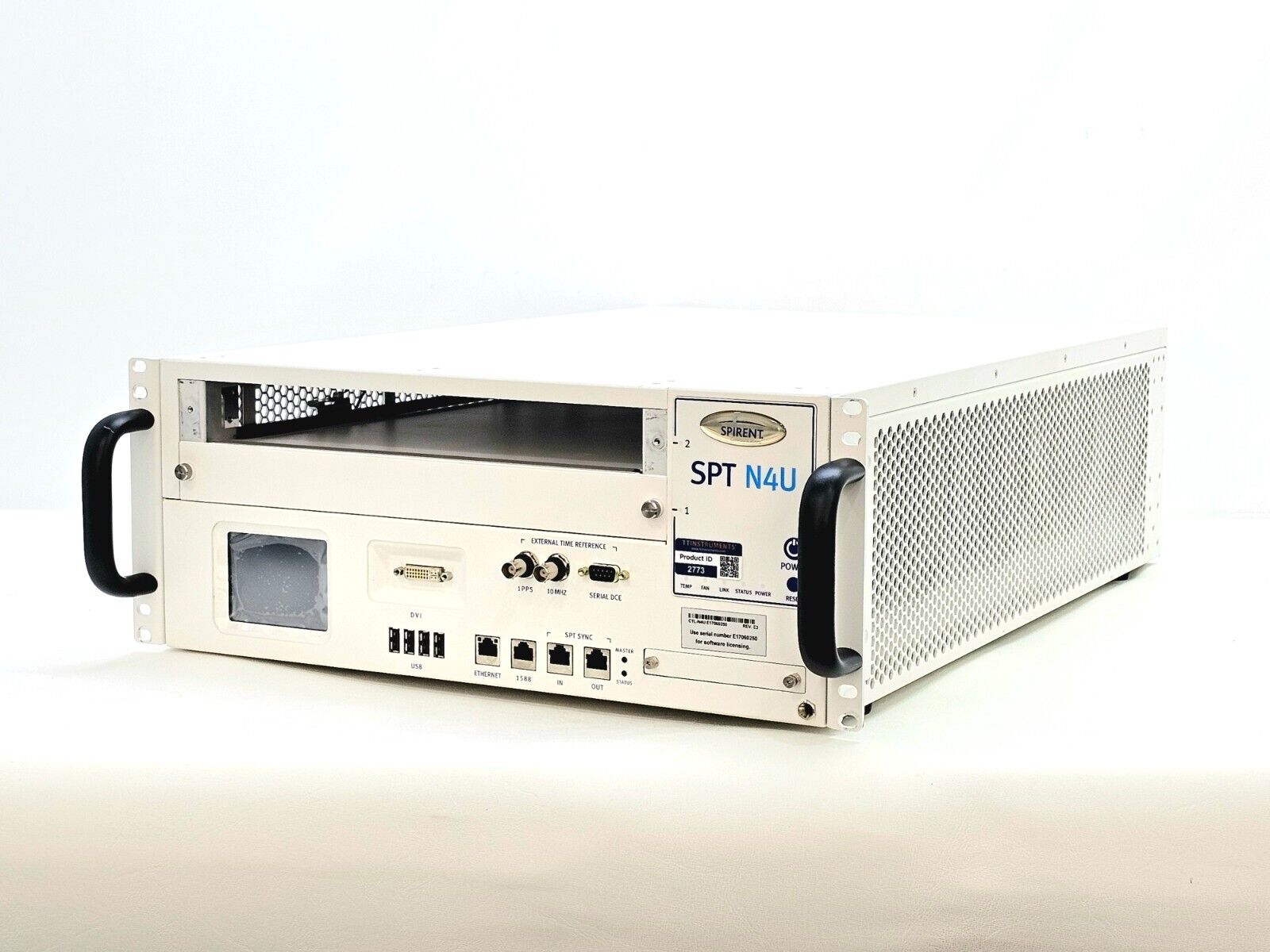

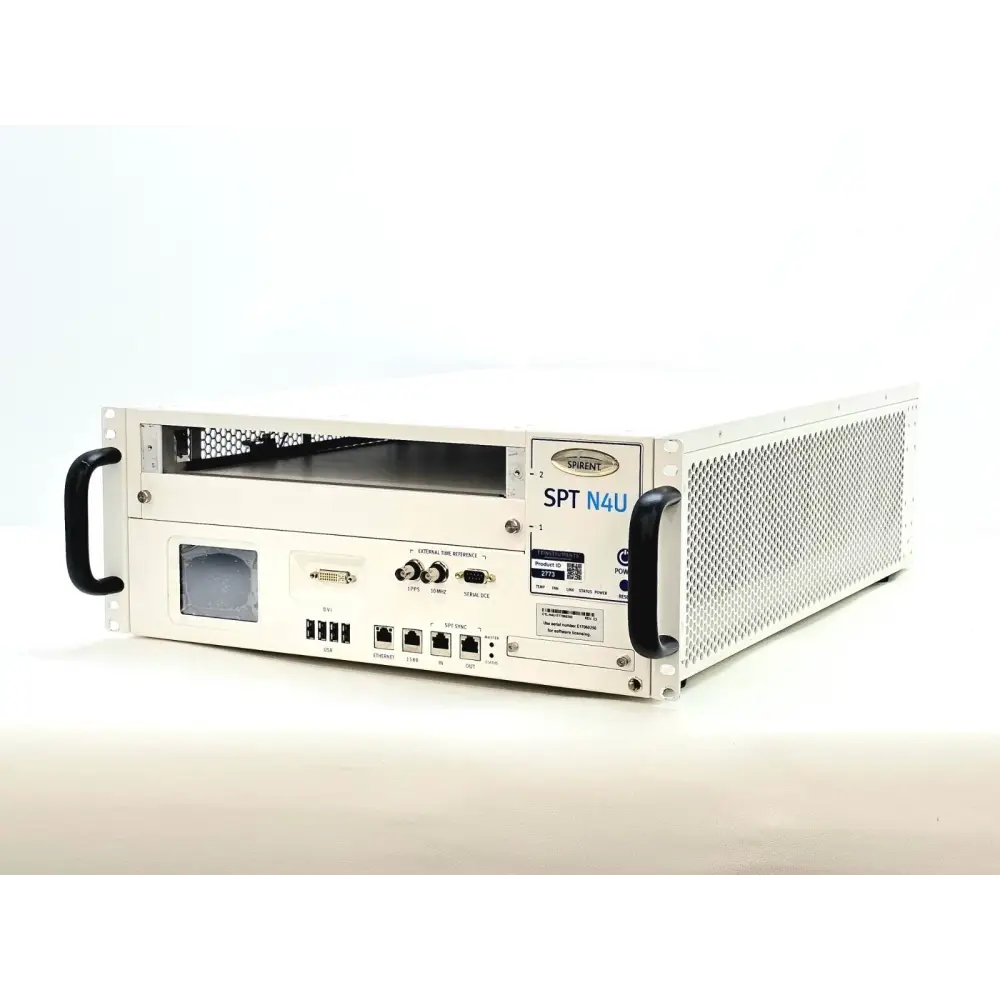

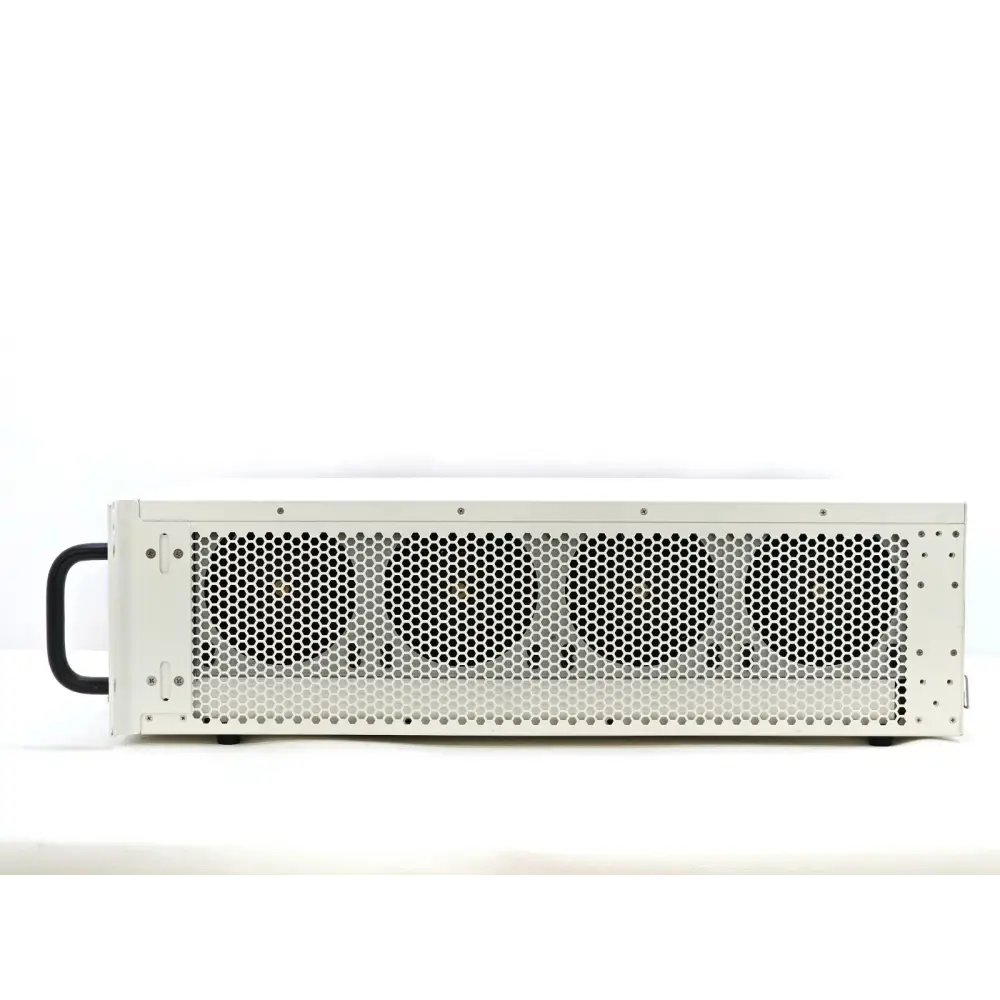

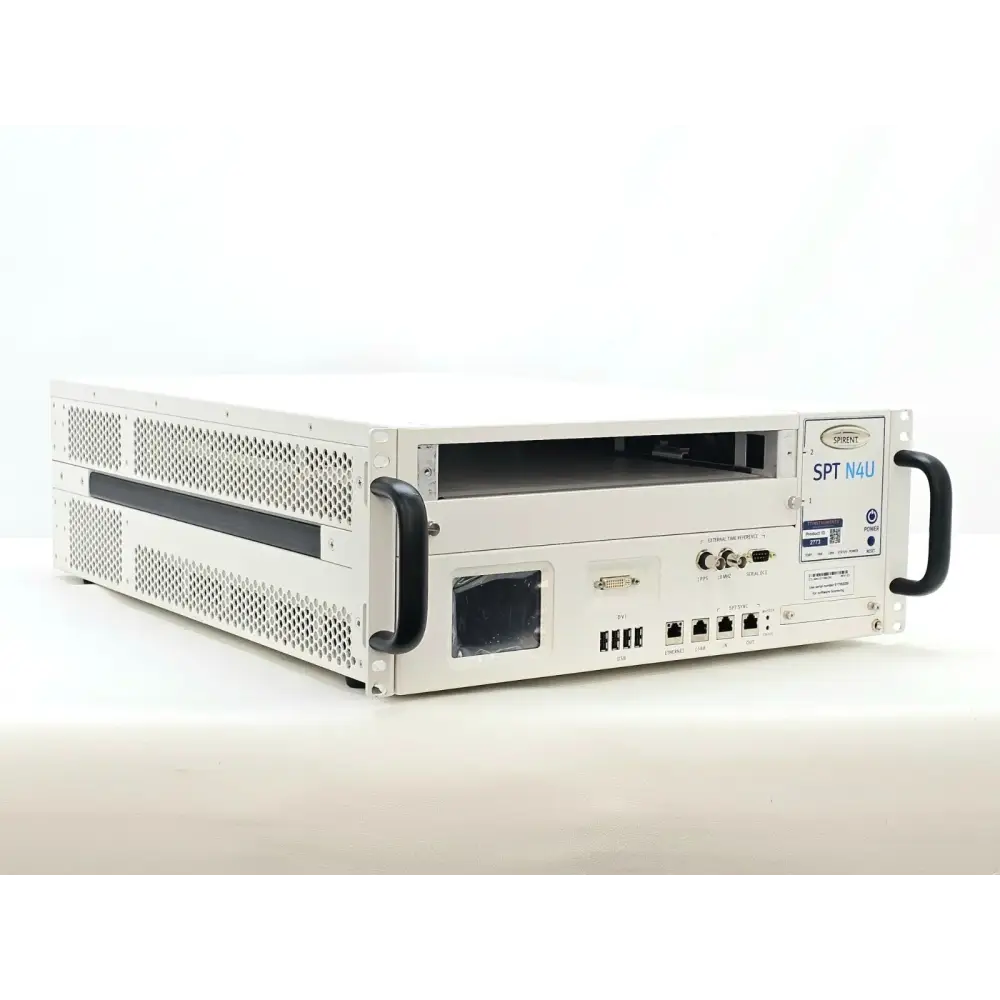

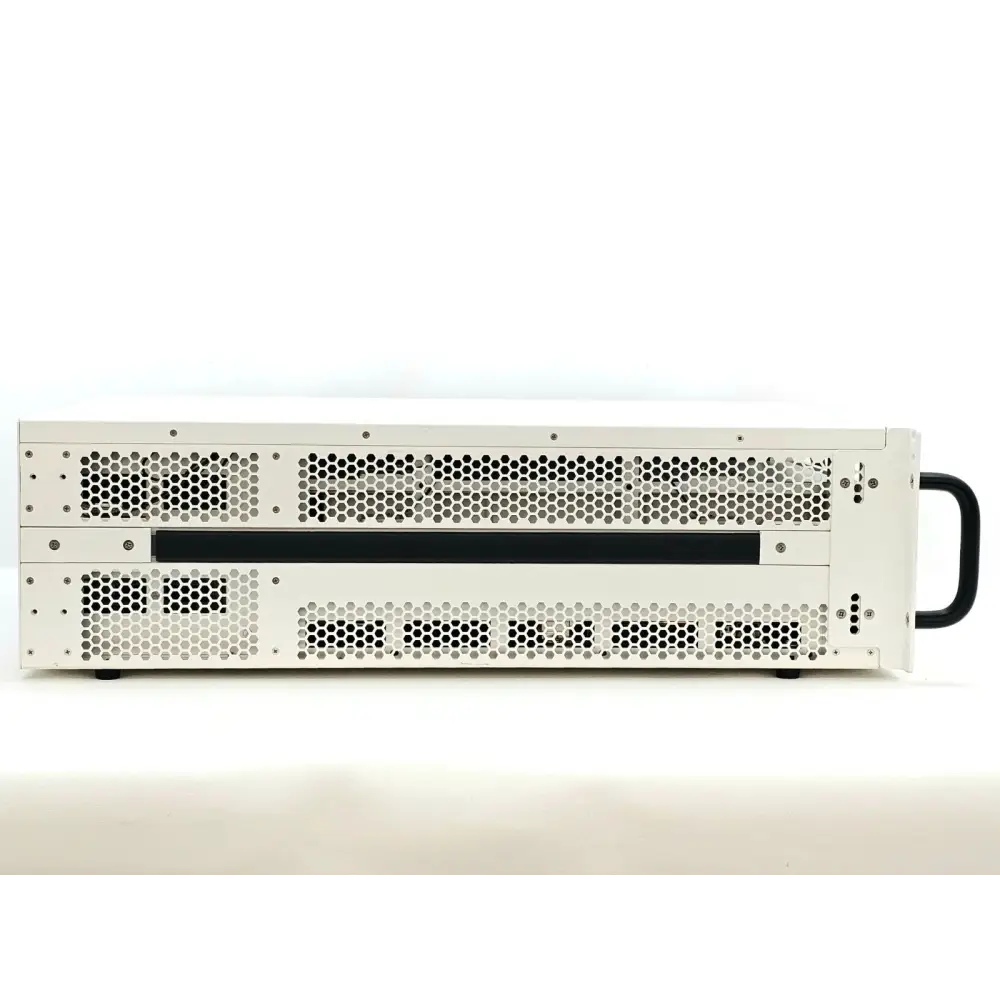

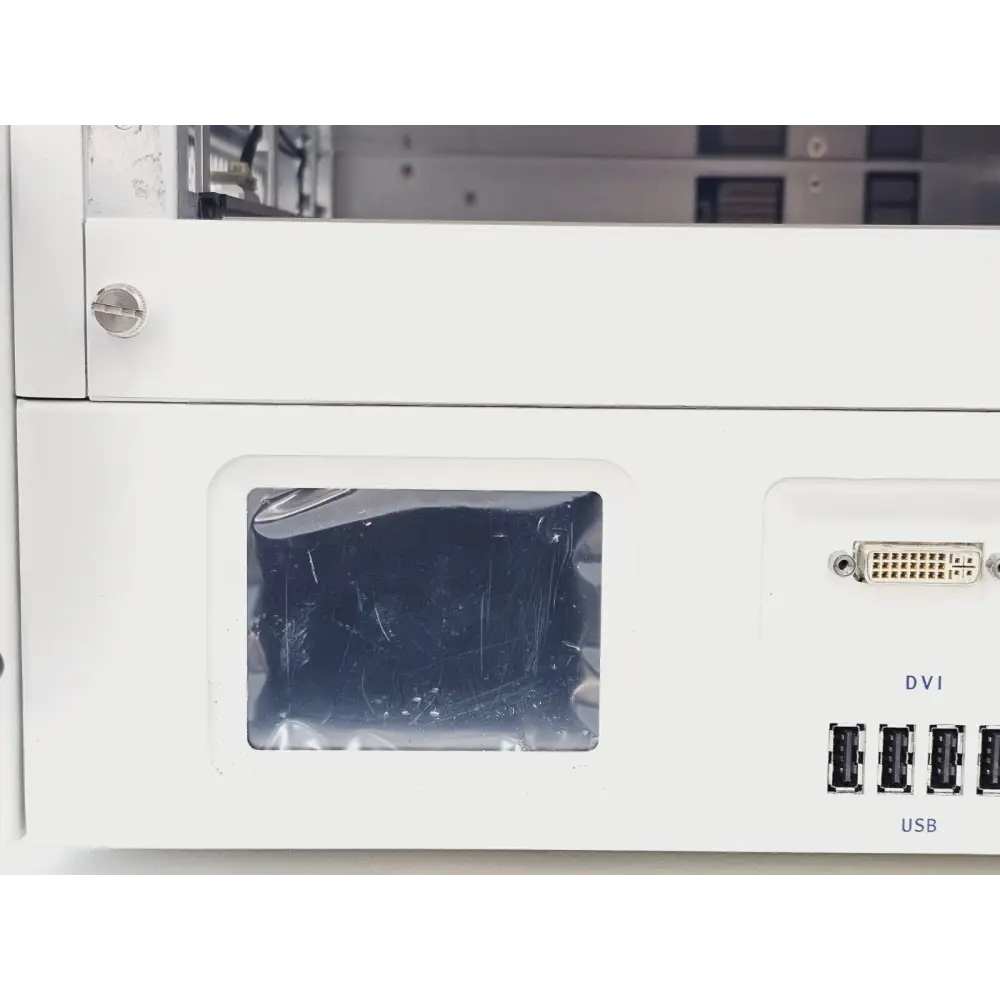

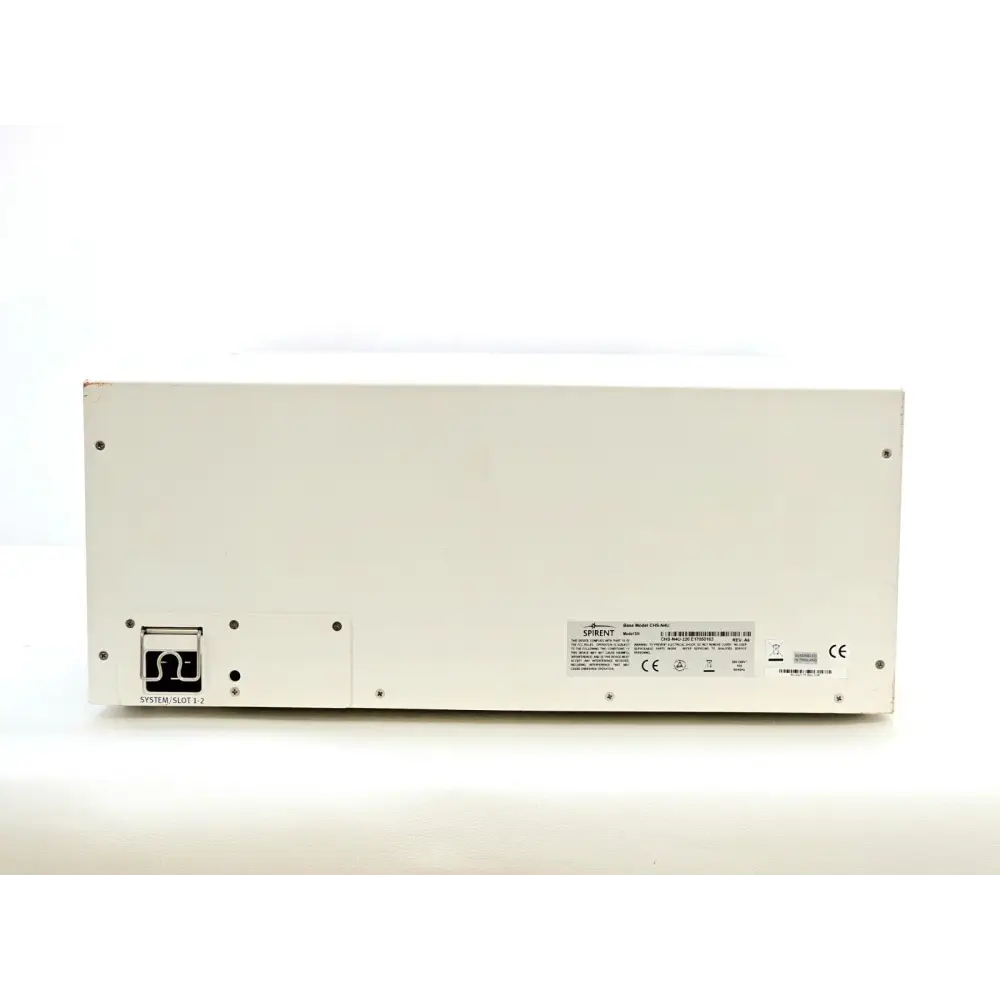

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The Spirent SPT-N4U is a compact modular network test chassis from Spirent Communications, designed to support a range of high-density test modules for Ethernet, IP, and multi-service network validation. As part of Spirent's TestCenter N-Series platform, the SPT-N4U provides a flexible and scalable hardware foundation for performance testing, benchmarking, and protocol conformance in both lab and field environments.

The chassis supports a variety of plug-in test modules covering speeds from 1GbE through to high-speed interfaces, enabling engineers to validate network devices, data centre switching, and carrier Ethernet equipment. With support for RFC-2544, Y.1564, and advanced packet generation/analysis, the platform is widely used for network device benchmarking, QoS validation, and service activation testing.

Key Specifications:
Model: SPT-N4U-220
Slot Count: 2
Form Factor: Compact modular chassis
Supported Module Types: MX2 10G and compatible N-Series modules
Licensing: Software-based licence keys for protocol and feature packs
Management: Remote chassis management via IP

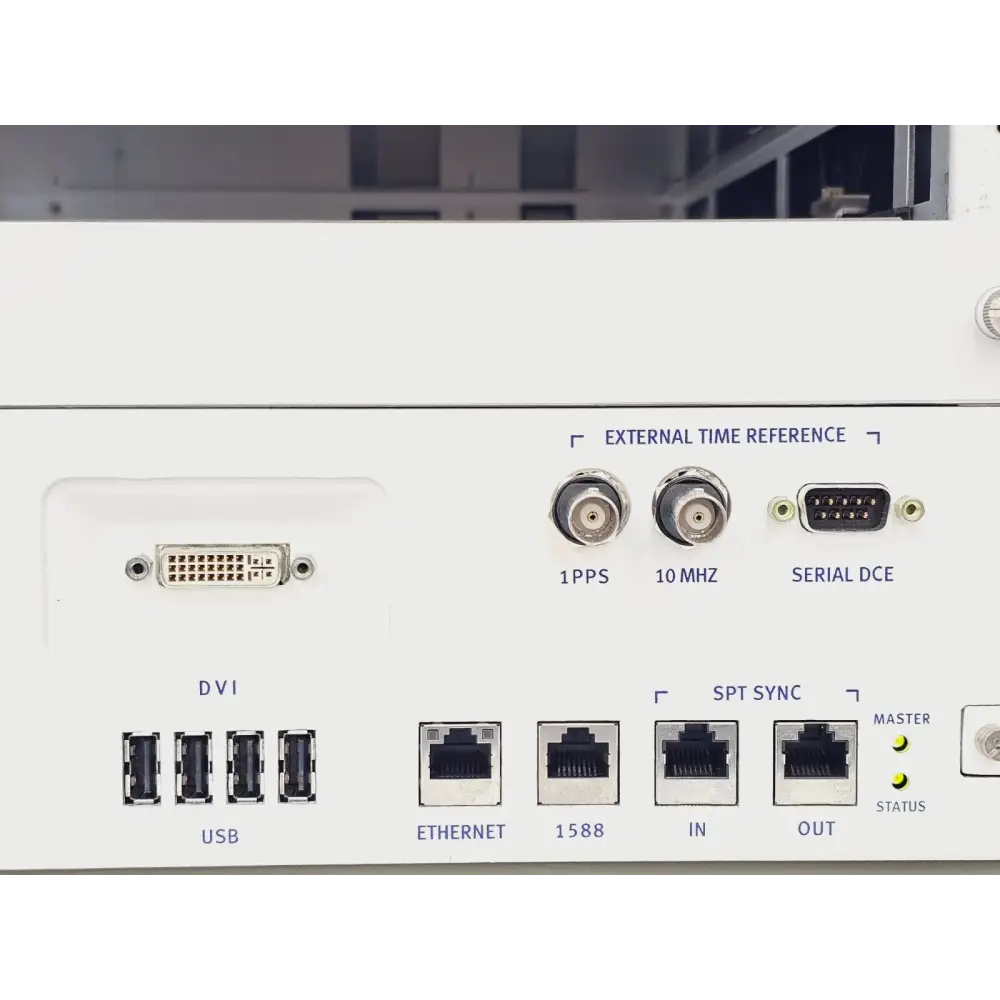

Sync Support: Internal and external synchronisation sources
Firmware: Field-upgradeable via Spirent TestCenter application
Platform: Spirent TestCenter N-Series

For full specifications and the latest datasheet, please refer to the Spirent Communications website.

Chassis Report:

Chassis IP or Hostname

192.168.8.128

Chassis Password

Is Chassis in Secure Mode

FALSE

Does Chassis have the KP4 License

TRUE

Does Chassis have the Tsn License

TRUE

Does Chassis have 5G License for MGIG

FALSE

Does Chassis have 2.5 License for MGIG

FALSE

Does Chassis have the L1 License

TRUE

TCP Port Number

40004

Model

9U Chassis

Model

SPT-N4U

Firmware Version

4.71.0296

Standby Firmware Version

NA

Expected Firmware Version

2.20.0000

Previous Active Version

Is Firmware Version Valid

TRUE

Firmware Version Status

Controller Revision

E14

Controller Version

3

Backplane Version

2

Serial Number

E17060250

Uptime (HH:MM:SS)

Unknown

Sync Status Check

TRUE

Sync Status

Synchronized

Sync Source

Internal

Sync Event

Chain Update

Slot Count

2

Connection Status

TRUE

Status

Up

Status Change

Power Save

Firmware Install Status

Chassis Firmware Install Progress (% complete)

0

Total Compact Flash Disk Size (in kilobytes)

82438848

Used Compact Flash Disk Space (in kilobytes)

13782816

Free Compact Flash Space (in kilobytes)

68656032

Chassis Event

NTP Peer

NTP Offset (msec)

0

NTP Estimated Error (msec)

0

Chassis IP or Hostname

192.168.8.128

Temperature Sensors

L1-L L1-1 L1-2 L1-3 BP1-L BP1-1 BP1-2 BP1-3 BP2-L BP2-1
BP3-L BP3-3 BP3-4 BP3-5 BP3-6 FNC-L FNC-1 FNC-2 FNC-3 FNC-4

Sensor Description

Local MotherBoard Controller {HDD / SW Card} {BackPlane
Local 1} {Inlet 1} {Inlet 2} {Inlet 3} {Back Plane Local 2} {Inlet 4} {Back
Plane Local 3} {Outlet 3} {Outlet 4} {Outlet 5} {Outlet 6} {PSU Local} {PSU
1} {PSU 2} {PSU 3} {PSU 4}

Sensor Temperature

29 27 24 24 27 25 26 25 28 29 27 23 23 23 23 0 0 0 0 0

Sensor Status

0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Sensor Ids

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

Temperature Sensor

All

Sensor Temperature

0

Temperature Status

Normal

Fan id

0

Fan name

psu-1

Fan state

On

PartNo

Slot

1

FPGA

CPU

Status

Power Supplies

chs-1 slot-1 slot-2

Power Supply Status

0 0 0

Power Supply Voltage

12.09 12.08 12.05

Power Supply Current

9.75 0 0

Power Supply

 All (3)

Power Supply Status

0

Power Supply Voltage

12.09

Power Supply Current

9.75
