Condition: Used

This Spirent MX2-10G-S4 4-port 10G/1GbE SFP+ test module has been tested with a Spirent SPT-N4U chassis (not included) and is fully functional. The firmware test package is STC version 4.93.6016. This listing is for the module only; chassis and other cards are sold separately.

What's included:
• Spirent MX2-10G-S4 test module (module only)

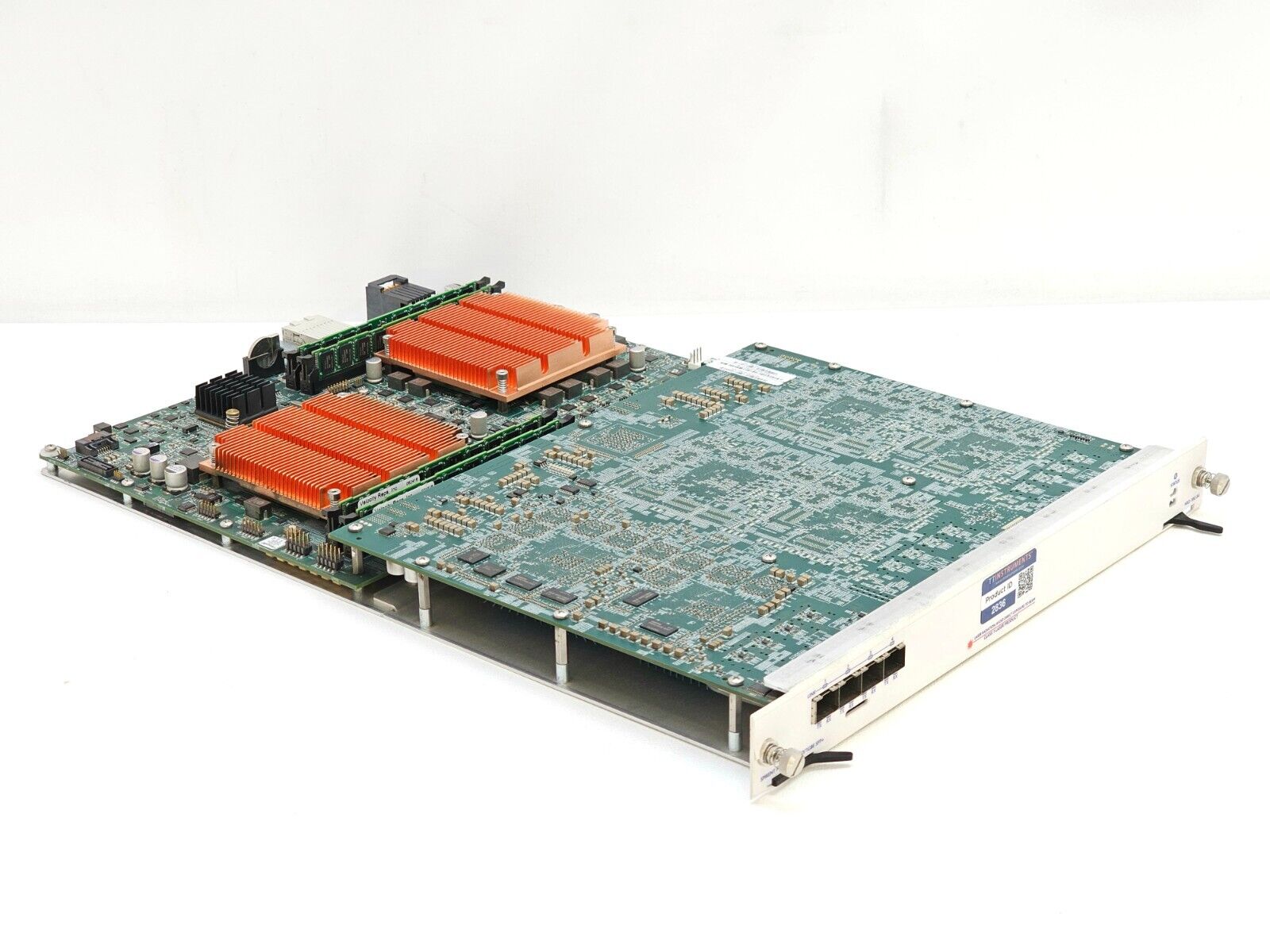

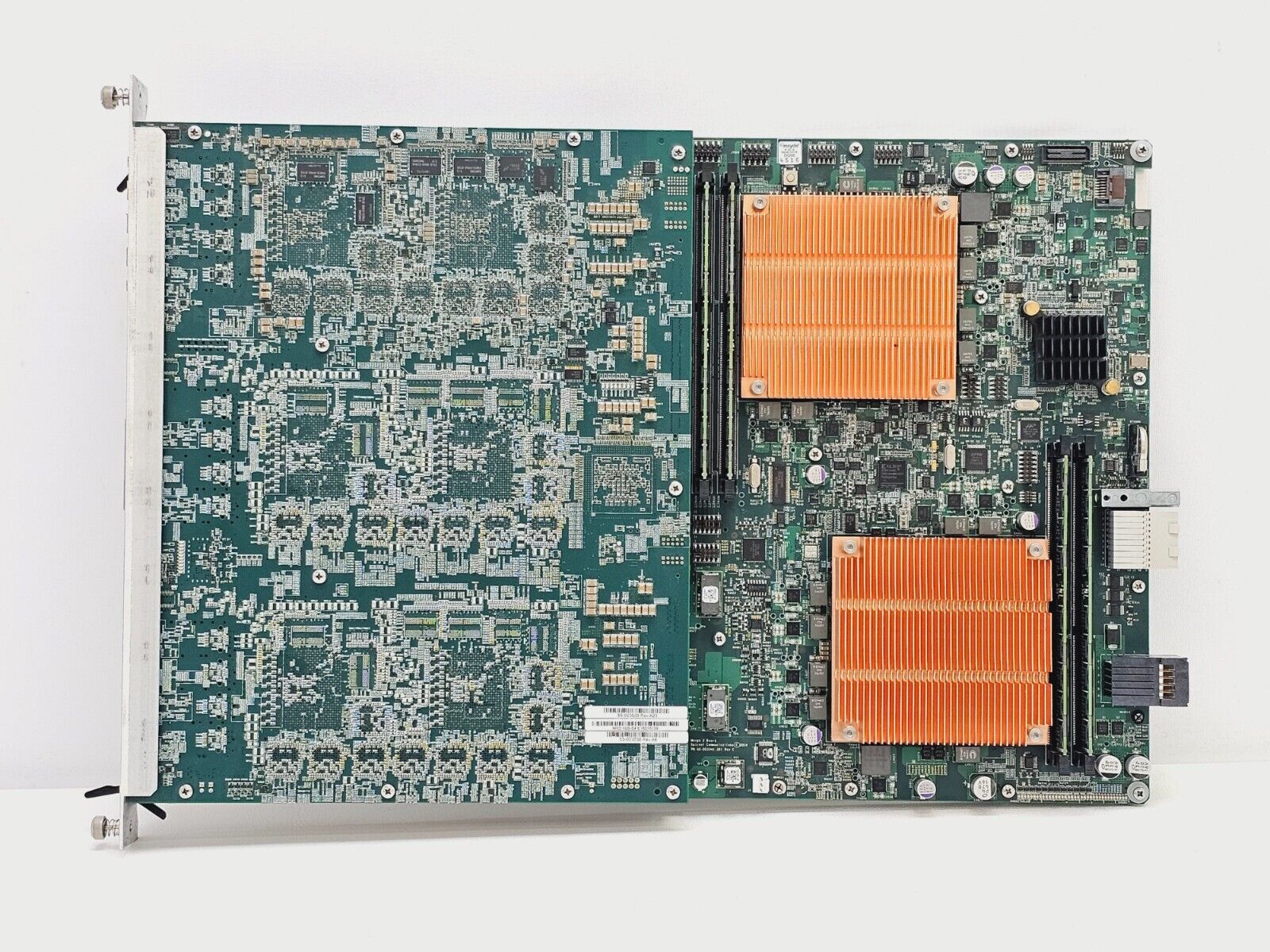

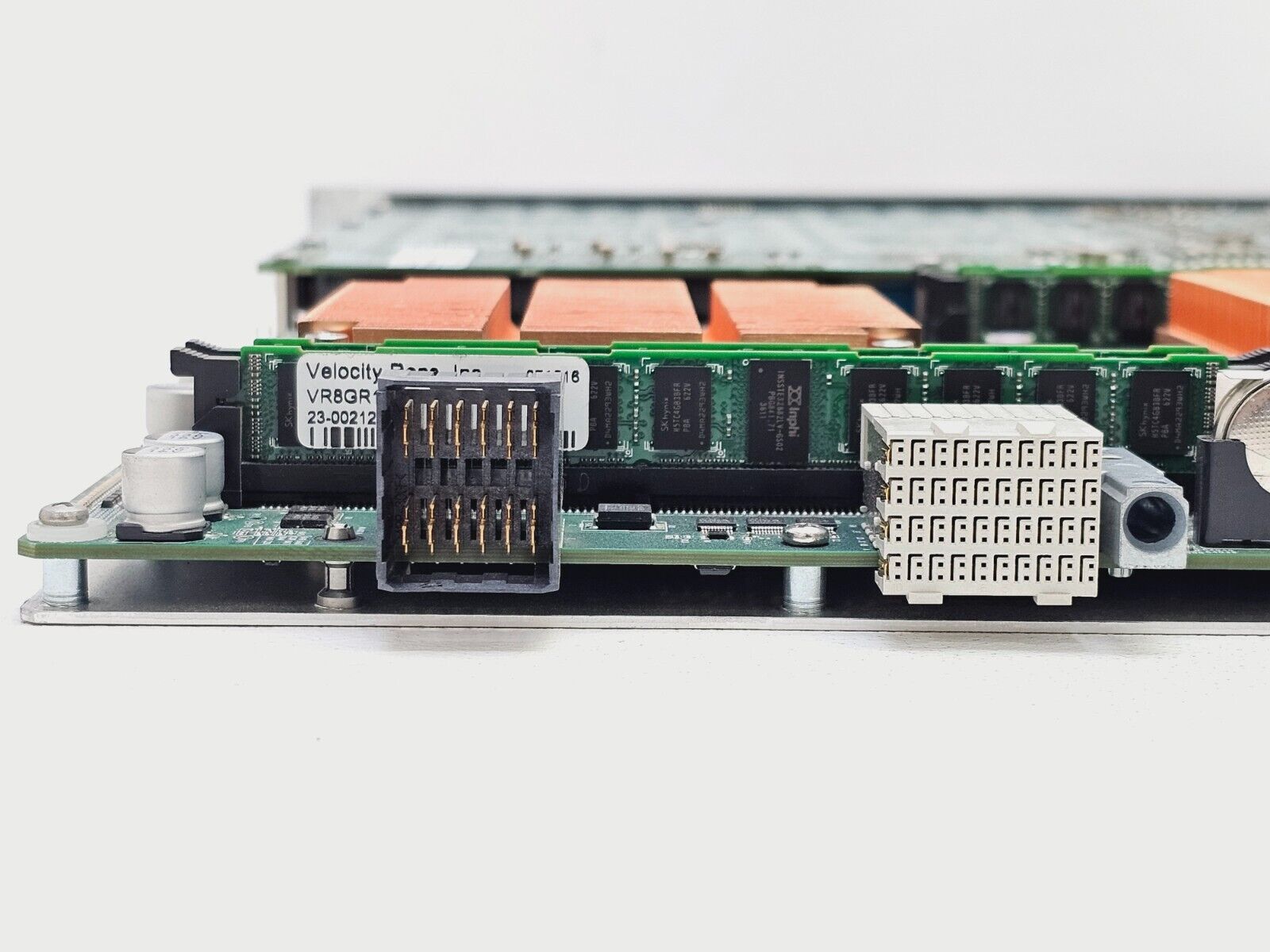

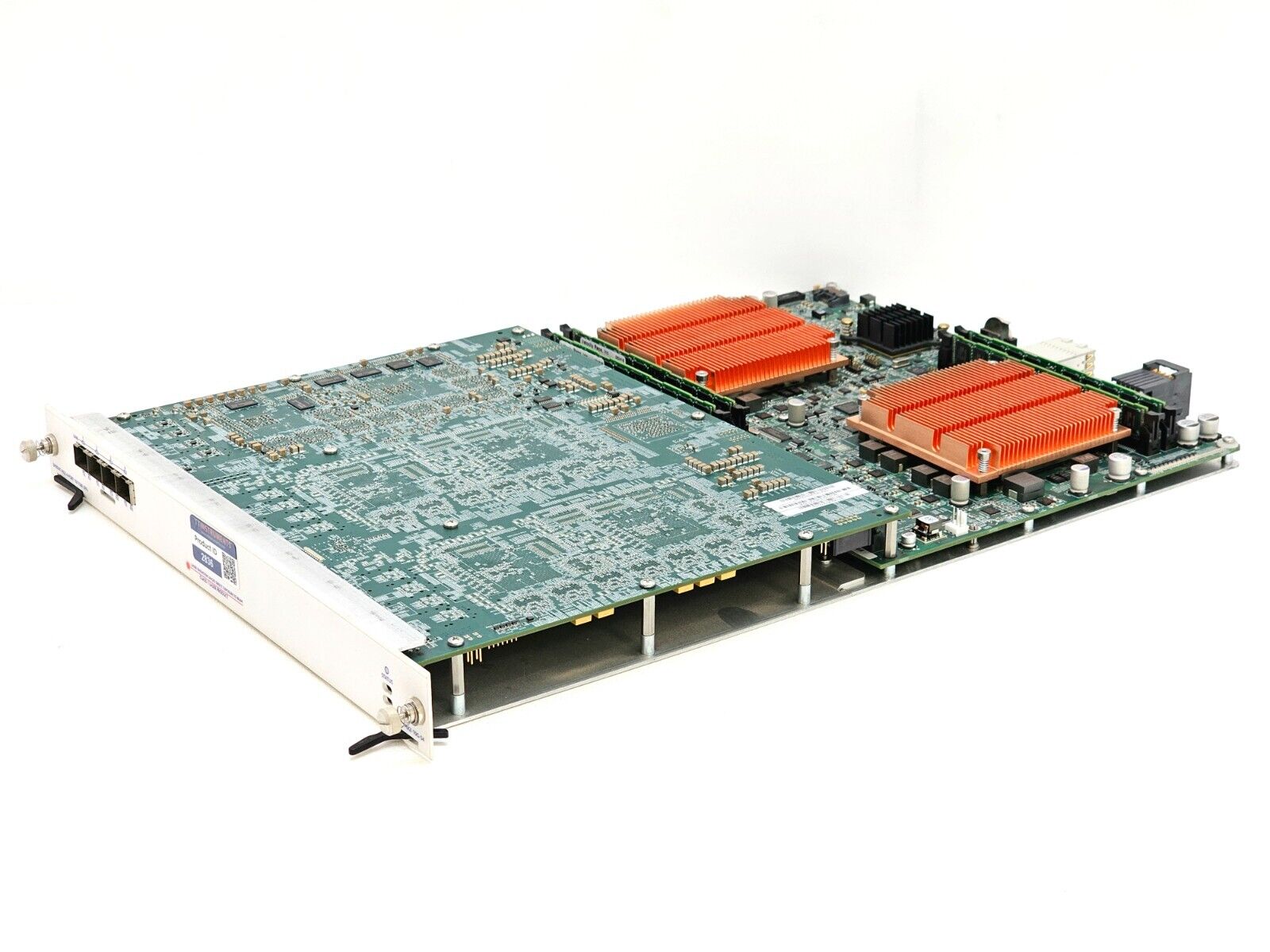

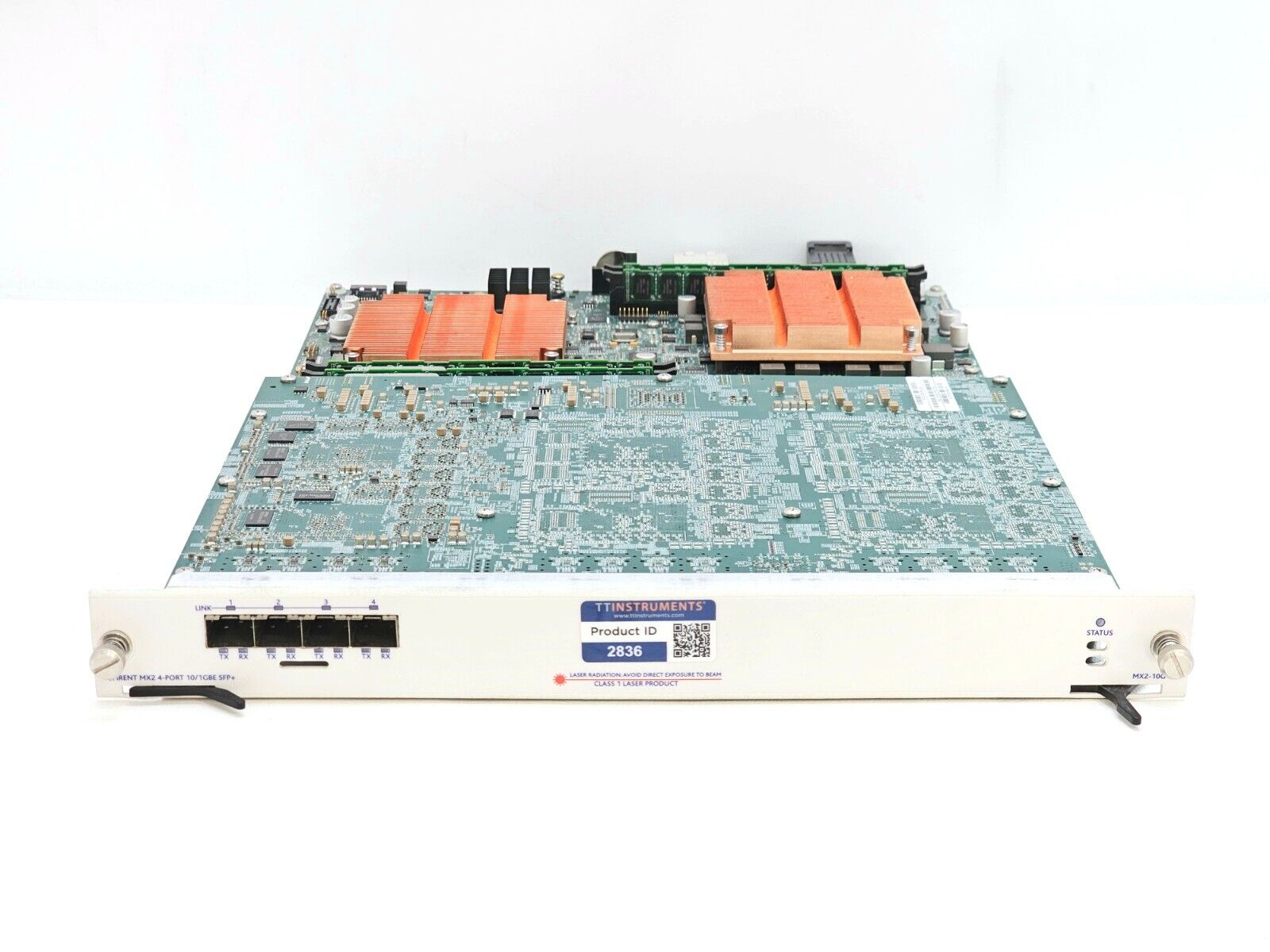

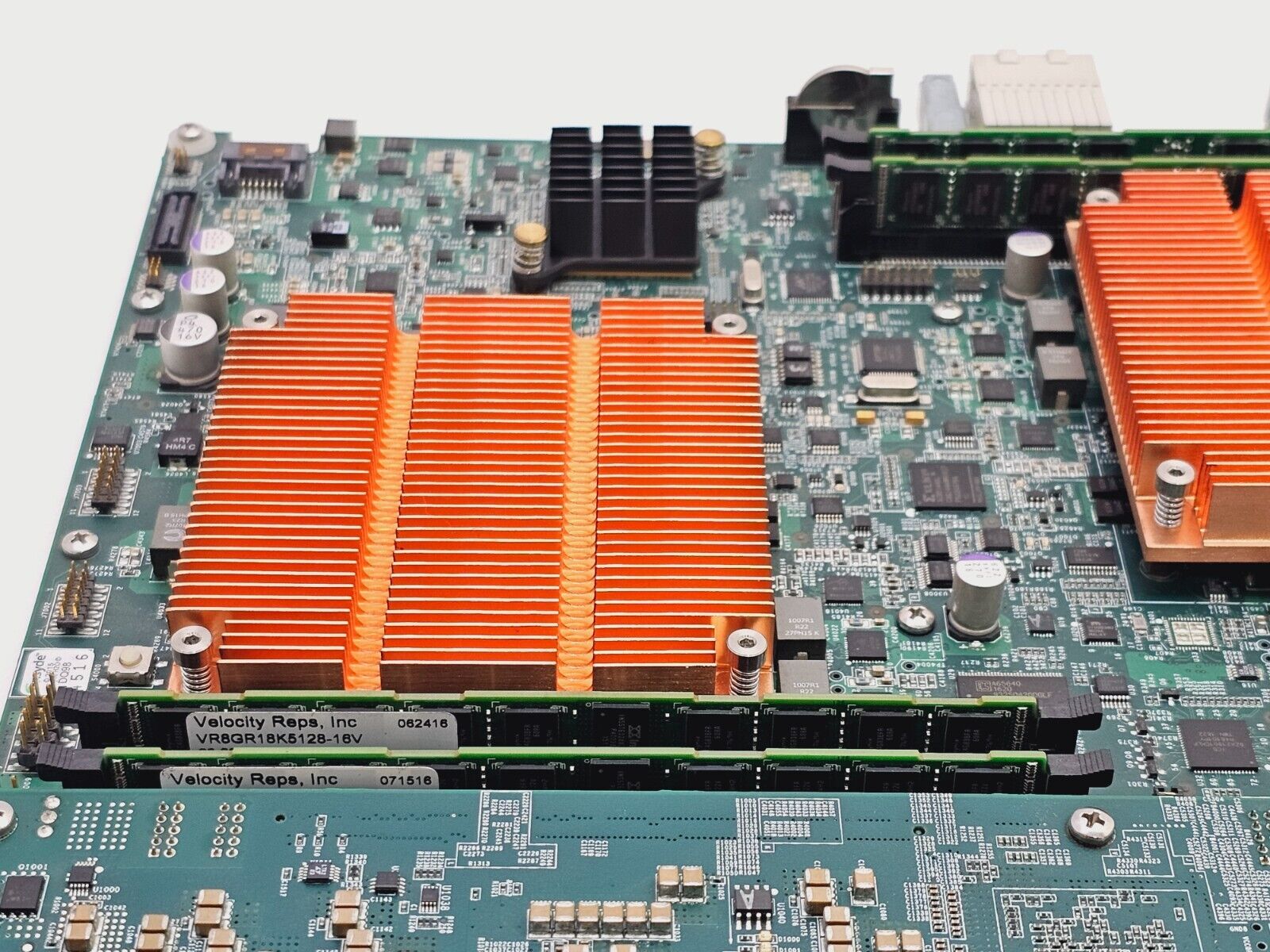

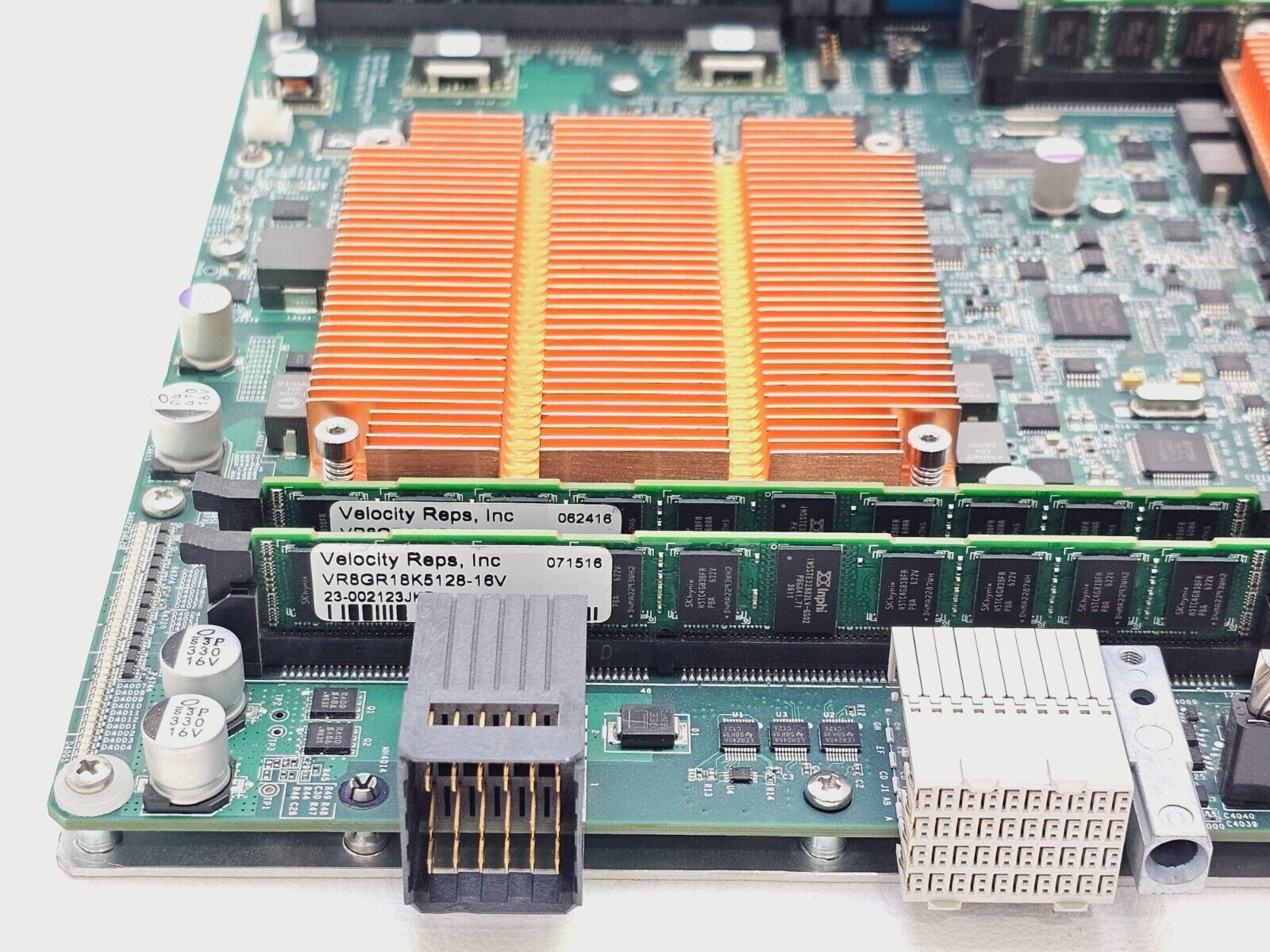

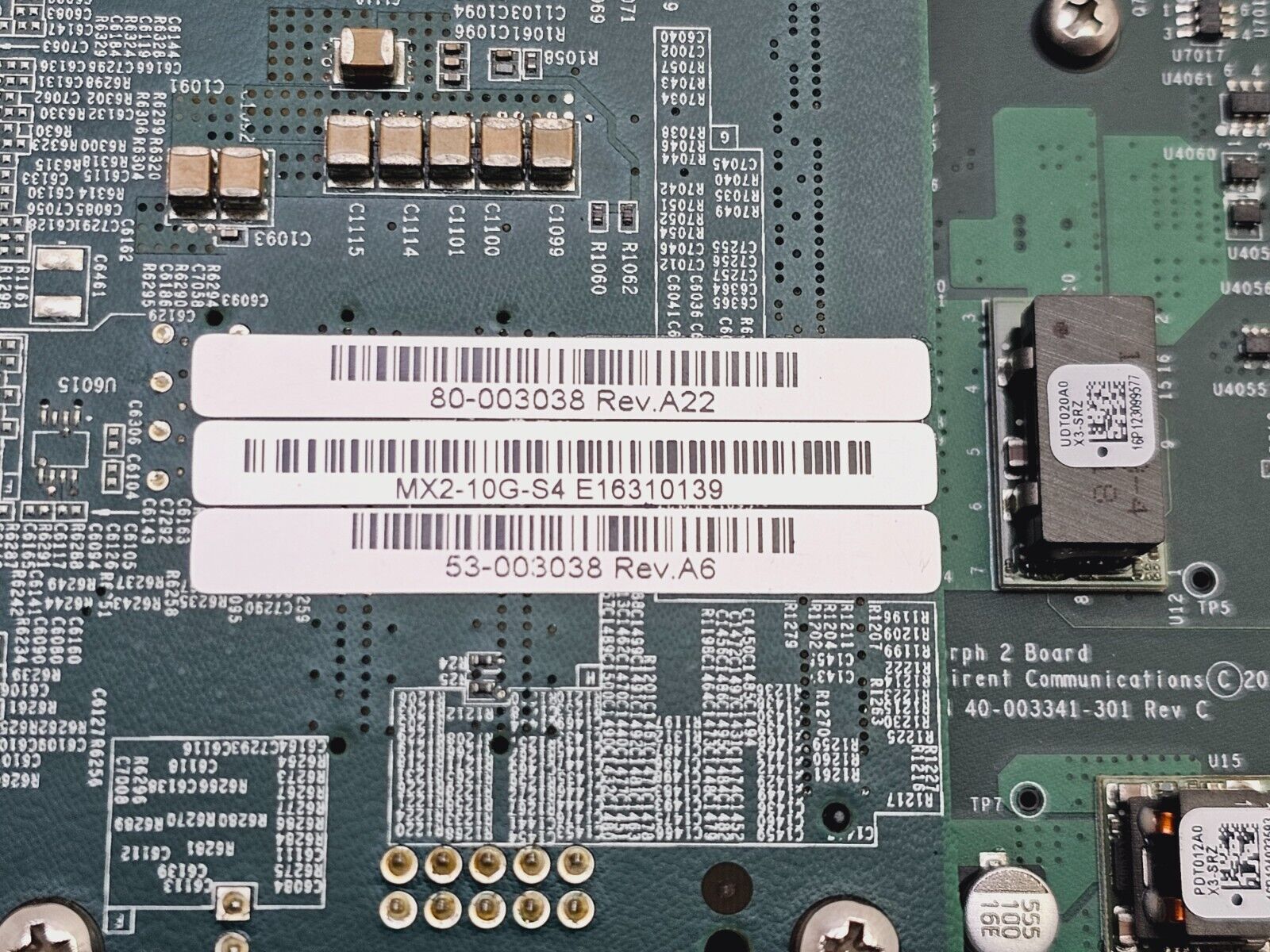

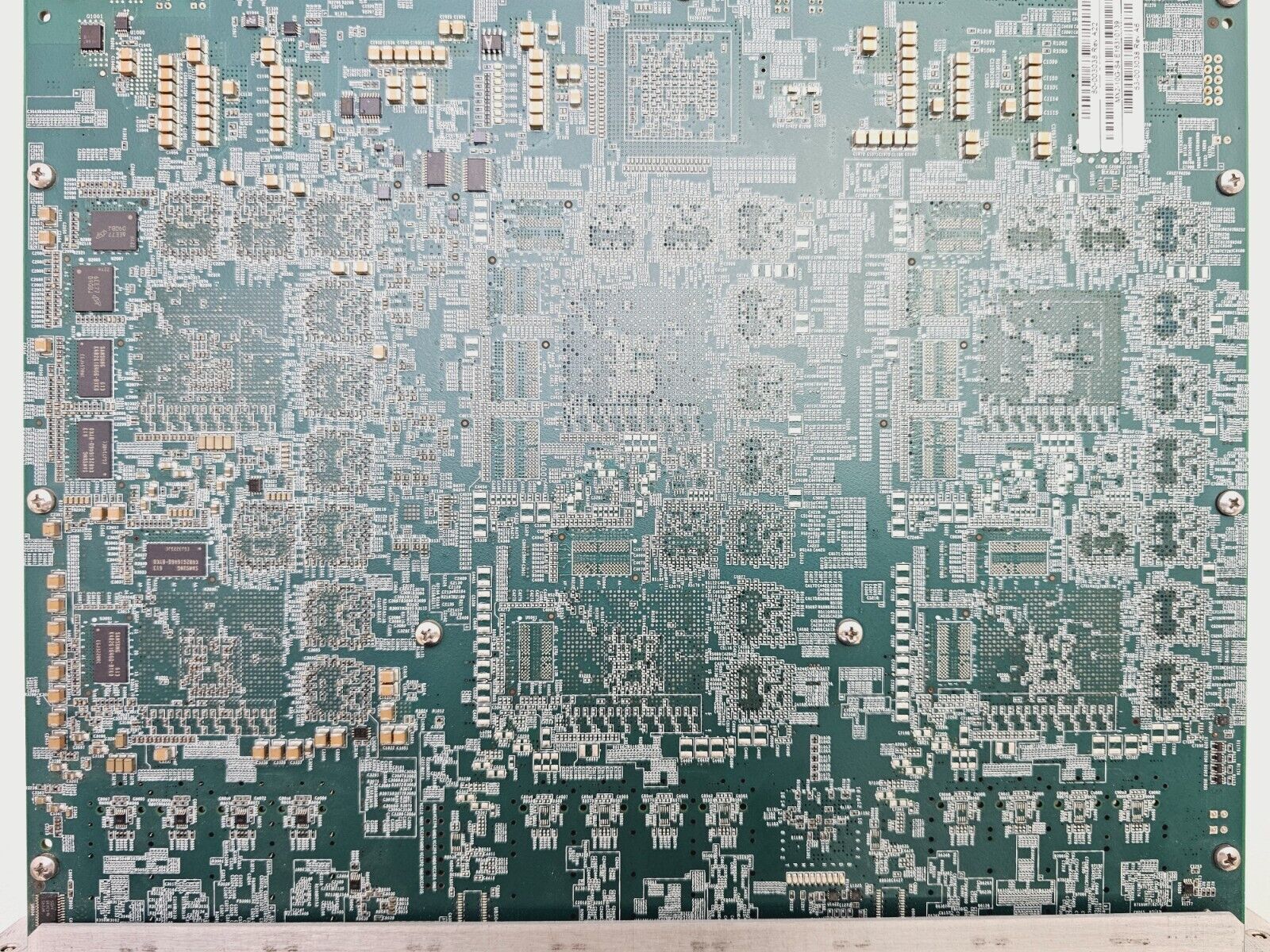

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

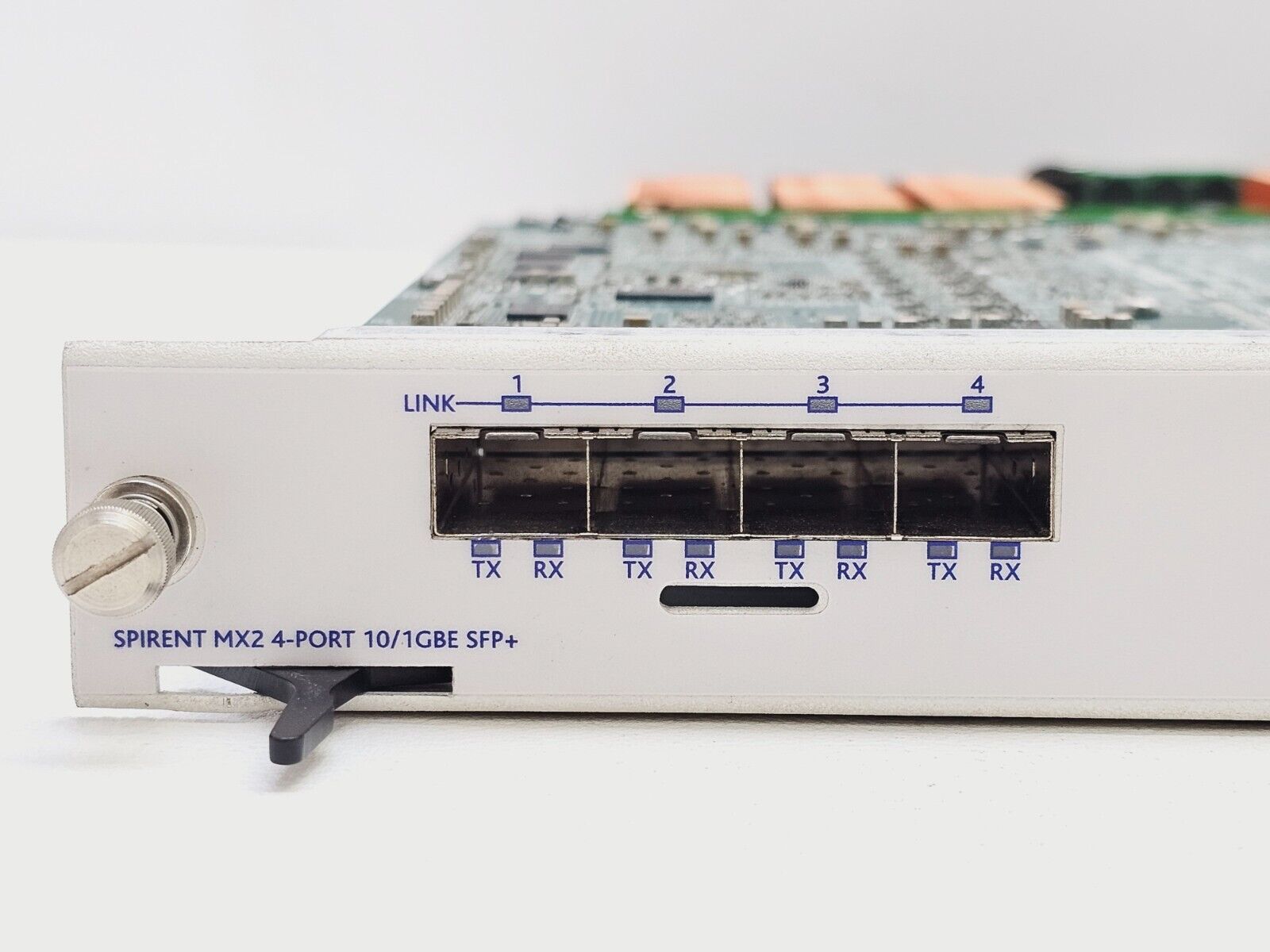

The Spirent mX2 is a high-density, dual-speed Ethernet test module for the Spirent TestCenter platform, designed to validate Layer 2–7 control and user plane performance in demanding network environments. The MX2-10G-S4 variant provides 4 SFP+ ports capable of operating at either 10GbE or 1GbE per port.

The mX2 architecture combines Spirent Cloud Core™ processing with high-performance multi-core CPUs to intelligently distribute processing resources across ports. This enables superior scale testing with multiple protocols running simultaneously on the same port — ideal for testing converged devices such as PE routers and mobile gateways.

A single module is capable of generating and analysing line-rate stateful and stateless traffic from all ports simultaneously, supporting high-scale routing, access, mobile, and enterprise application traffic.

Key Features:
• Dual-speed 10GbE/1GbE SFP+ operation per port
• Spirent Cloud Core™ multi-core CPU architecture
• Layer 2–7 stateful and stateless traffic generation and analysis
• Line-rate performance on all ports simultaneously
• Stratum-3 rated oscillator as default time source
• Spirent-patented self-calibrating inter-chassis timing chain with ±20ns synchronisation
• IEEE 1588 and NTP packet-based timing support
• External GPS or CDMA network synchronisation
• Nearly 50 transmit statistics per port reported in real time (L1, L2, L3+ counters and rates)
• Over 50 receive statistics per port in real time
• PFC Pause frame support with up to 8 queues
• DCBX emulation for automatic queue setup
• Spirent TestCenter protocol support via separately licensed packages

Technical Specifications:
Model: MX2-10G-S4
Port Count: 4
Port Type: SFP+
Port Speeds: 10GbE / 1GbE (dual-speed, per port)
Interface: SFP+
Cloud Core Architecture: Yes
Compatible Chassis: SPT-N4U, SPT-N12U
Module Weight (S4): 3.066 kg
Operating Temperature: 15°C to 35°C (59°F to 95°F)
Relative Humidity: 20% to 80%
Timing Accuracy: ±1 PPM on initial shipment; ±4.6 PPM over 15 years
Inter-Chassis Synchronisation: ±20ns
Protocols: Available as separately licensed packages via Spirent TestCenter
