Condition: Used

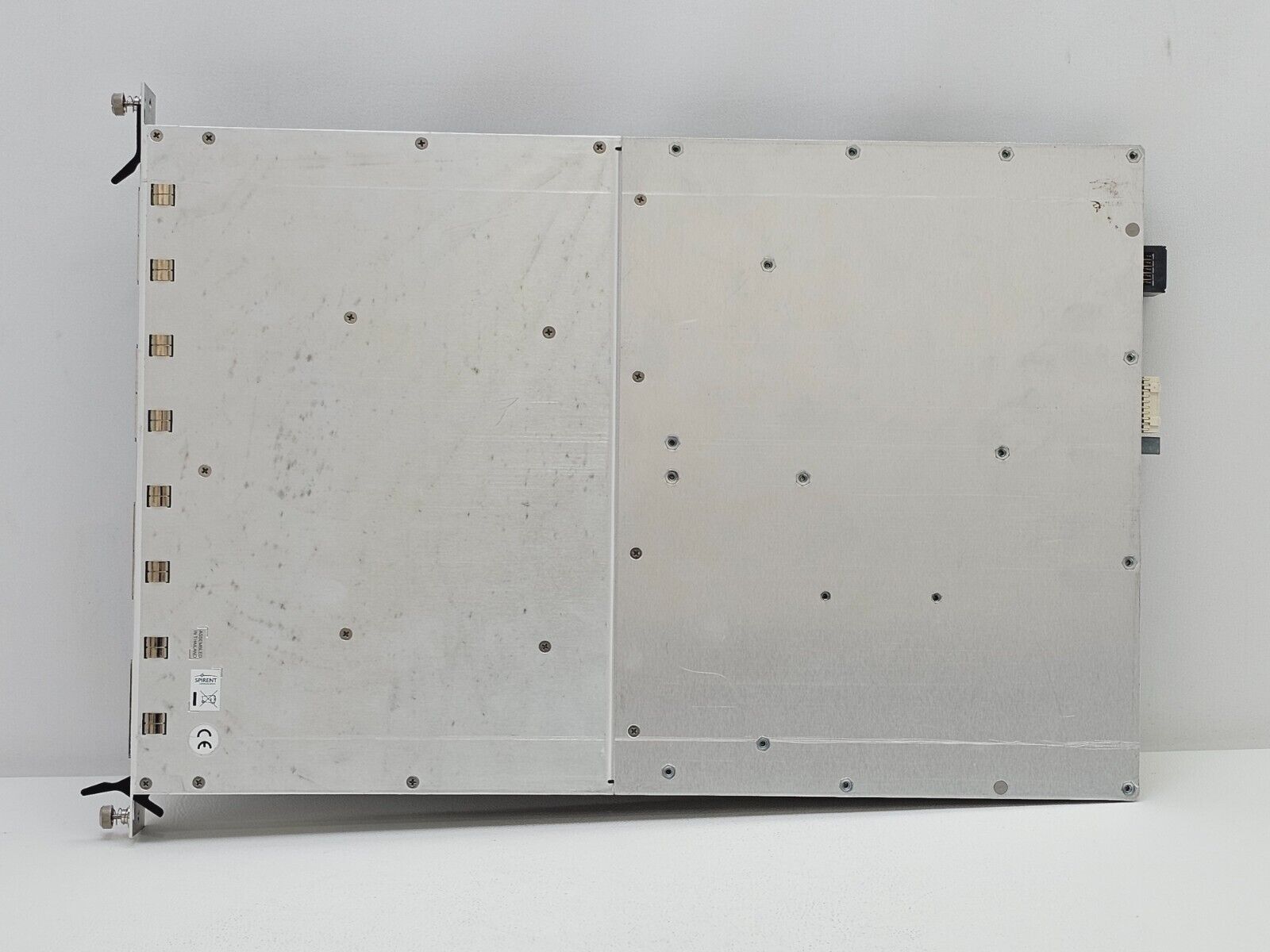

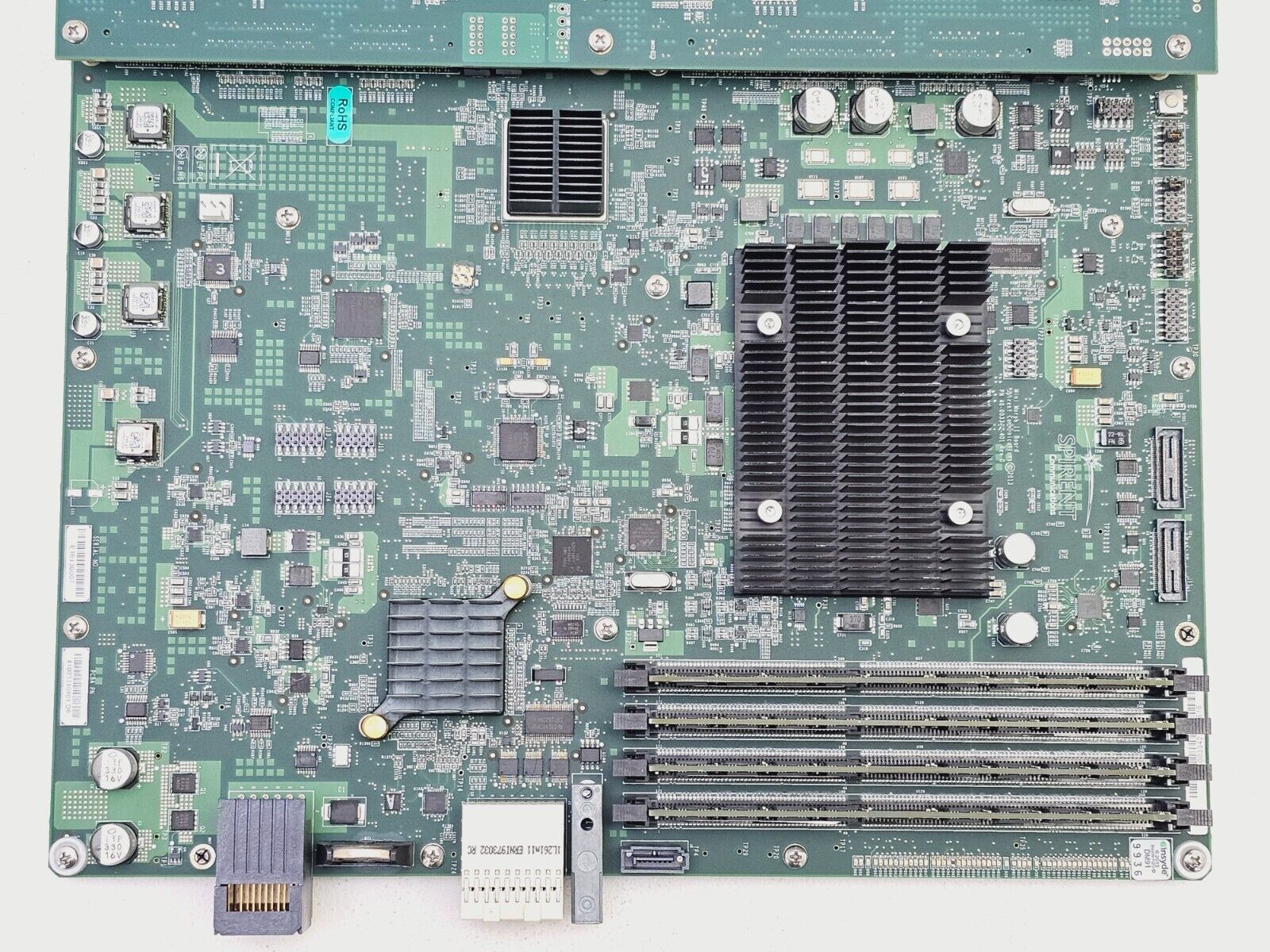

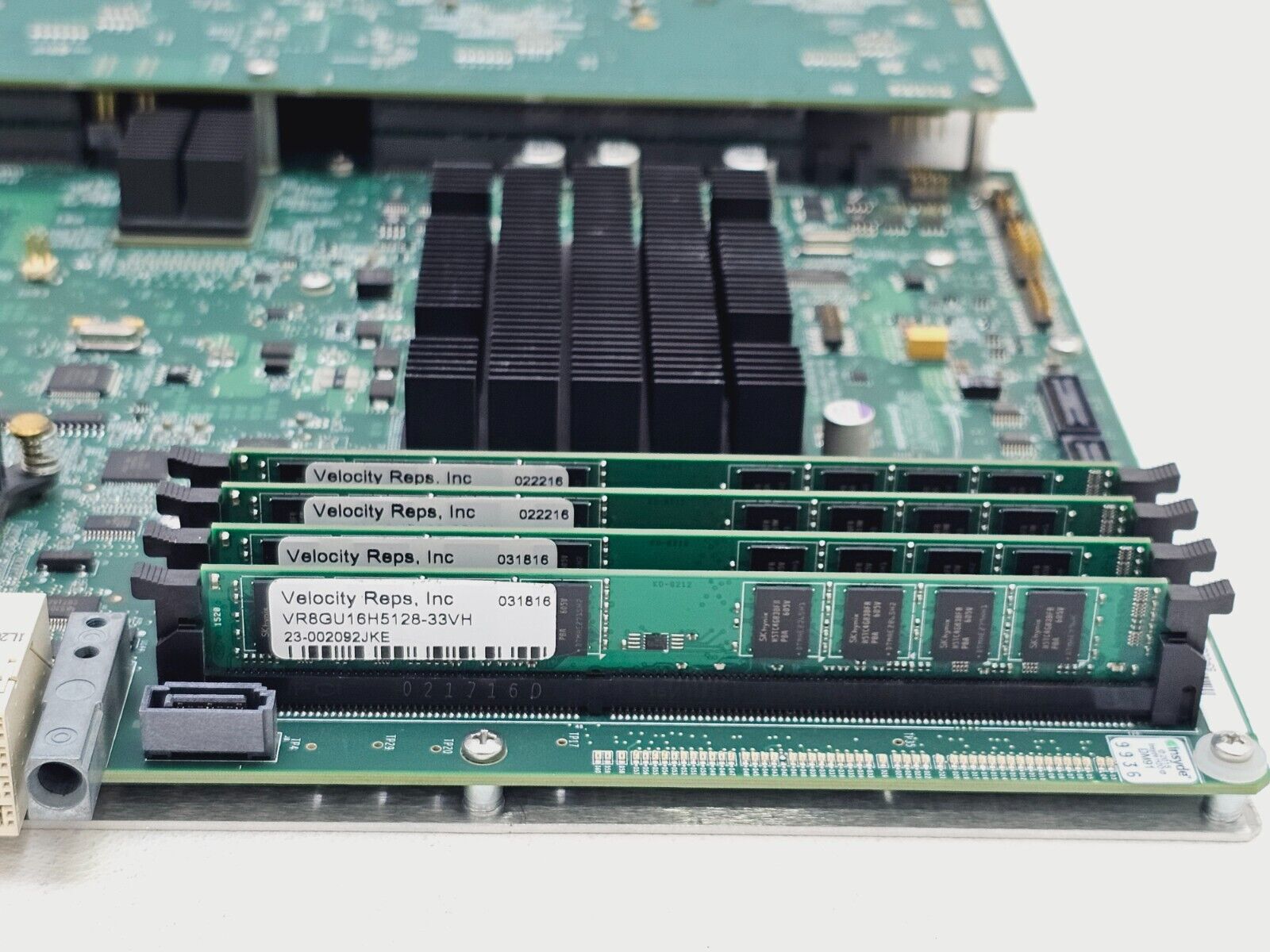

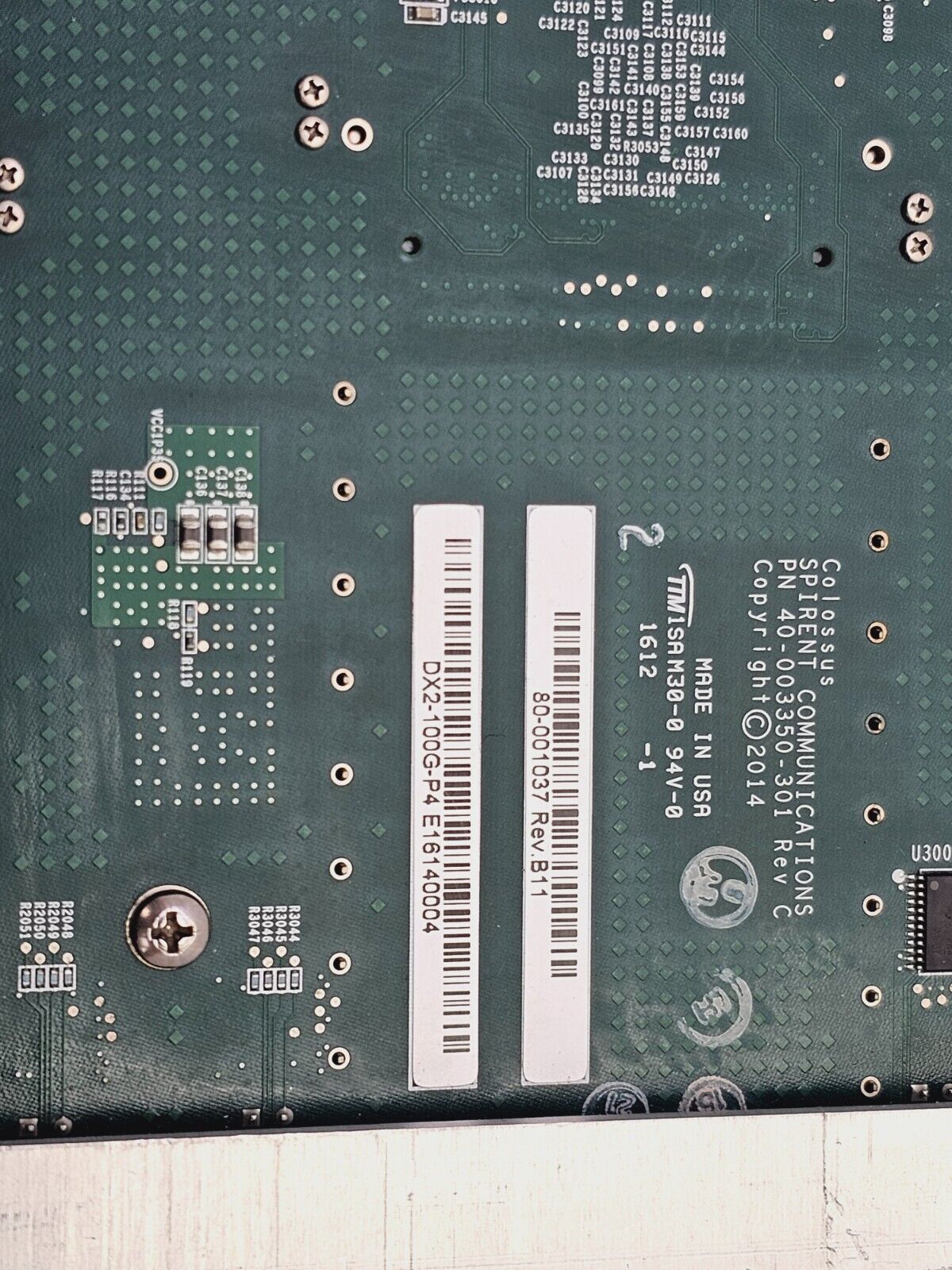

This module has been tested with a SPT-N4U chassis (not included) and is fully working, images are of actual product, further details in the description below.CFPs not included.This listing is for the module only, should you require the chassis (SPT N11U etc) or other cards (1G etc) or CFPs, please check our shop, these are sold separately.

Licensed Speeds: 10G/40G/100G

Firmware Version 4.93.6016

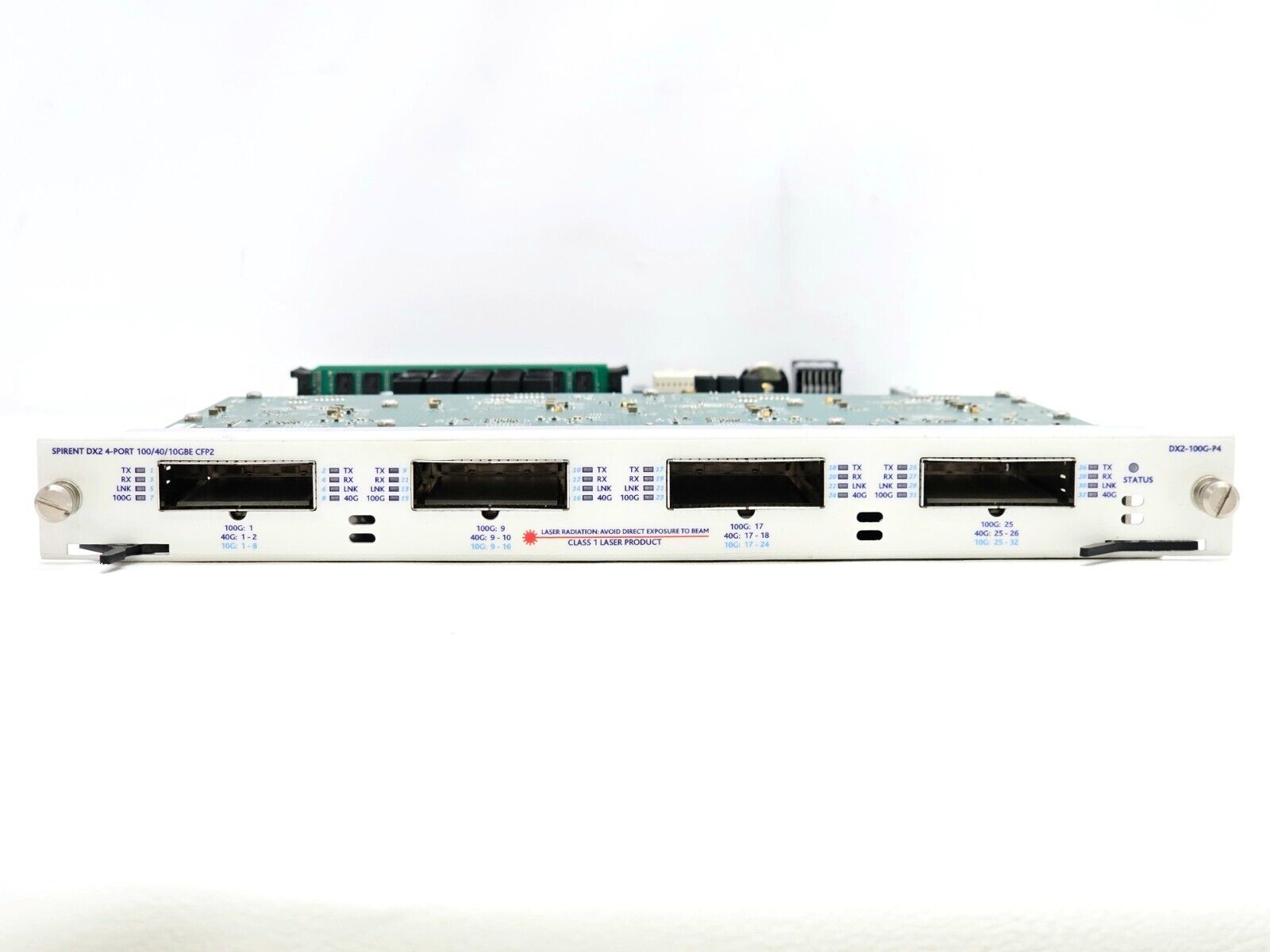

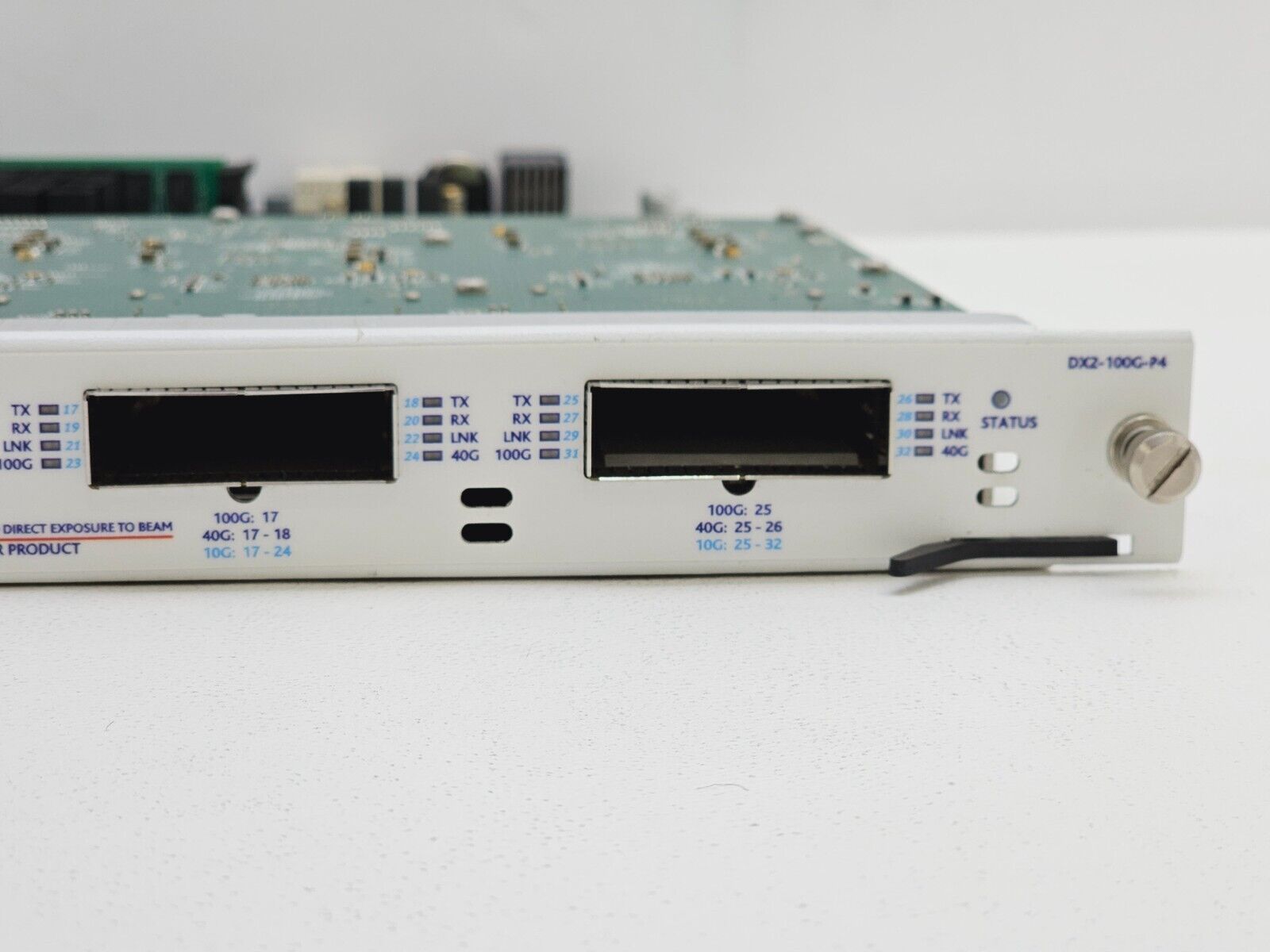

Spirent High Density dX2 100 GbE, 40 GbE, and 10 GbE Tri-Speed Test Module

The dX2 modules come in both a 100 GbE only or a tri-speed 100 GbE, 2x40 GbE and 8x10 GbE variant. The Spirent dX2 100 GbE test modules deliver a high density solution with the lowest total cost of ownership. It supports CFP2 optical modules which use a smaller form factor, use less power, and cost significantly less than CFP optics.
The module also supports smart power control and fast boot to reduce test time and eliminate wasted power. With the combination of processing and the deep real-time analysis that Spirent is known for, these modules deliver enhanced realism with scale and performance. The Spirent dX2-100 GbE module can also be purchased with optional CFP2 to CFP4 or CFP2 to QSFP28 adapters as referenced in the ordering information section.
An upgrade is also available from the 100G only version to the trispeed module. The modules also support RS-FEC, Auto-Negotiation and associated PMD’s such as SR10,CR4, SR4, LR4, Active Optical Cables and various Direct Access Copper cable lengths for the supported form factors CFP2, CFP4 and QSFP28.

Solutions overview

The Spirent dX2-100G-P4 CFP2 form factor module is the ONLY trispeed 100, 40 and 10 GbE module in the industry that also supports CFP4 and QSFP28 (via adapters). This flexibility enables testing of industry latest 100 GbE optical and copper technologies all from a single module. No other module in the market offers this type of power and versatility. It supports CFP2 optical modules which use a smaller form factor, use less power, and cost significantly less than CFP optics. This highest density solution also supports smart power control and fast boot to reduce test time and eliminate wasted power for the lowest total cost of ownership.
With the combination of processing and the deep real-time analysis that Spirent is known for, these modules deliver enhanced realism with scale and performance. The Spirent dX2-100 GbE module can also be purchased with optional CFP2 to CFP4 or CFP2 to QSFP28 or CFP2 to CPAK adapters as referenced in the ordering information section, Spirent is the only test equipment vendor to support the CPAK adapter. The 100 G and 40 G speeds support real-time loss (and advance sequencing) along with jitter. The modules also support RS-FEC, Auto-Negotiation and associated PMD’s such as SR10,CR4, SR4, LR4, Active Optical Cables and various Direct Access Copper cable lengths for the supported form factors CFP2, CFP4 and QSFP28. An upgrade is also available from the 100 G only version to the tri-speed module.

Applications

Data center ToR and EoR switches and fabrics: Validate forwarding performance, latency, MAC capacity and functional capabilities of ultra high-scale, next-generation SPB and TRILL enabled multi-terabit cloud data center fabrics
Terabit routers: Test 100 GbE core routers with high-scale, multi-protocol topologies
Data center fabrics: Validate the forwarding performance and functional capabilities of ultrahigh-scale, next-generation multi-terabit fabrics

Features & benefits

 Testing 100 GbE enabled routers or data center switches requires a tester that can emulate multiple layers of network protocols and scale to perform real-time cause/effect analysis on millions of statistics while putting the system through realistic scenarios, such as dynamic topology changes and fail-overs. The Spirent dX2 100 GbE module’s processing and real-time cause/effect analysis enables testing of highlyscaled terabit networks and devices.
Tri-speed modules are upgradeable and support 100 GbE, 40 GbE and 10GbE operation from each port adding flexibility and cost savings for users needing highdensity test solutions at multiple port speeds
Spirent combined with Intel Inside® maximizes performance and scale of emulated topologies and stateful application traffic
Enables scalability to meet the requirements of IP/ Ethernet mobile networks while maintaining enhanced realism and performance

Allows for benchmarking, Mobile Broadband and Application Experience
Available test packages and integrated configuration wizards simplify and accelerate configuration, ultra-high scale mobility, mobile backhaul,

Productivity

ƒ Intelligent Results™

‚ When creating test beds at the scale that Spirent 100 GbE can achieve, the amount of data that is produced is astronomical. An advanced and highly efficient distributed database processes billons of realtime results to validate tests and identify problems, giving engineers the immediate feedback they need to debug problems and accelerate development
ƒ Delivers more results with tight correlation, and more information to find those obscure bugs. With more coverage and more information, Spirent answers questions faster and in a single test run where multiple runs are necessary with other test tools
ƒ Interesting streams uses real-time results data mining to dynamically filter through mountains of data and display the results that matter
ƒ Powerful automation with Command Sequencer (Visual Programming) and GUI to Script empowers the test operator to:

‚ Construct sophisticated, stressful, automated test cases without programming experience

‚ Combine numerous individual test cases into a single run to save regression test time

‚ Develop a catalog of broad automated test cases in a fraction of the time

‚ Export automated test cases to run from a command line for headless test execution that can be integrated with any automated regression system
Extensive, flexible reporting—Real-time statistics for critical variables across all protocols. SNMP statistics can be gathered from the components under test and correlated with statistics from Spirent.
Flexible load specifications—Flexibility to specify load variables such as user sessions, new user sessions per second, transactions, transactions per second, connections or connections per second.

Requirements

ƒ Spirent Chassis and Controller (see table)
ƒ Windows-based workstation with 10/100/1000 Mbps Ethernet NIC; mouse and color monitor required for GUI operation
ƒ Linux or Windows-based workstation for Tcl automation for complete GUI requirement
