Condition: Used

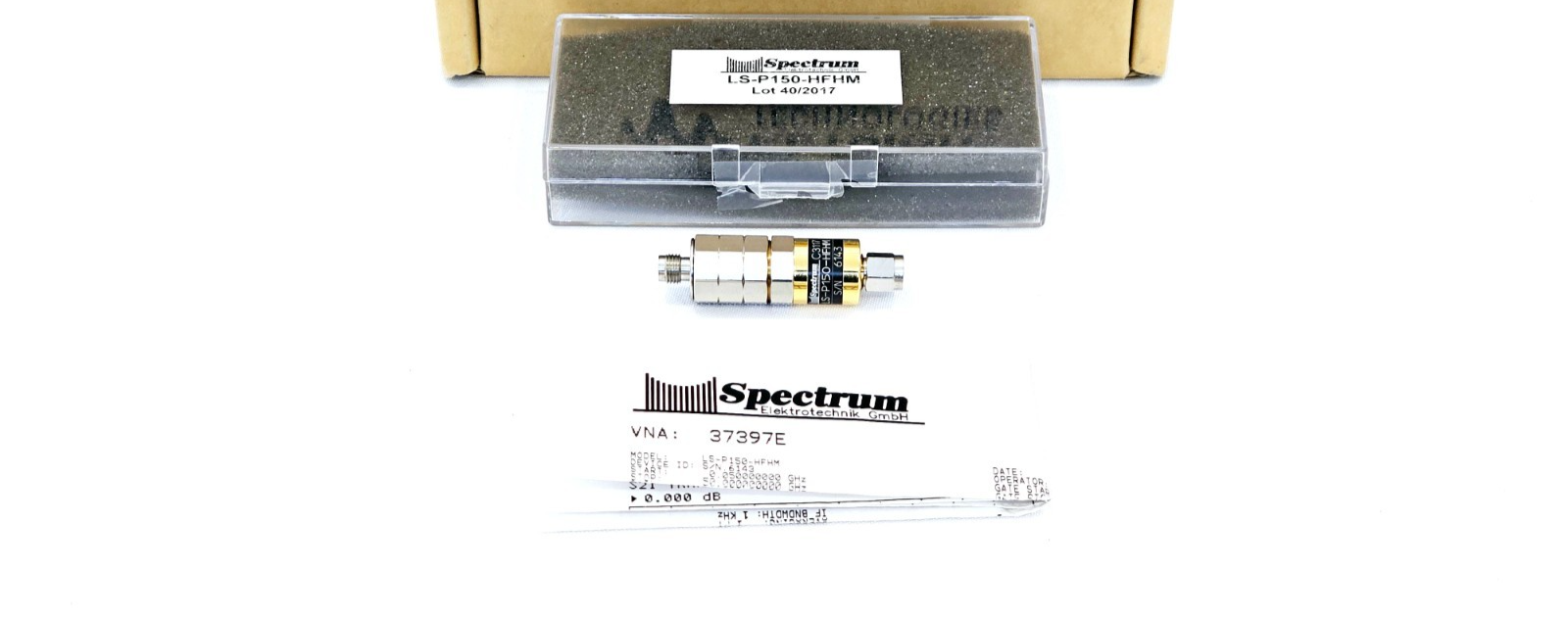

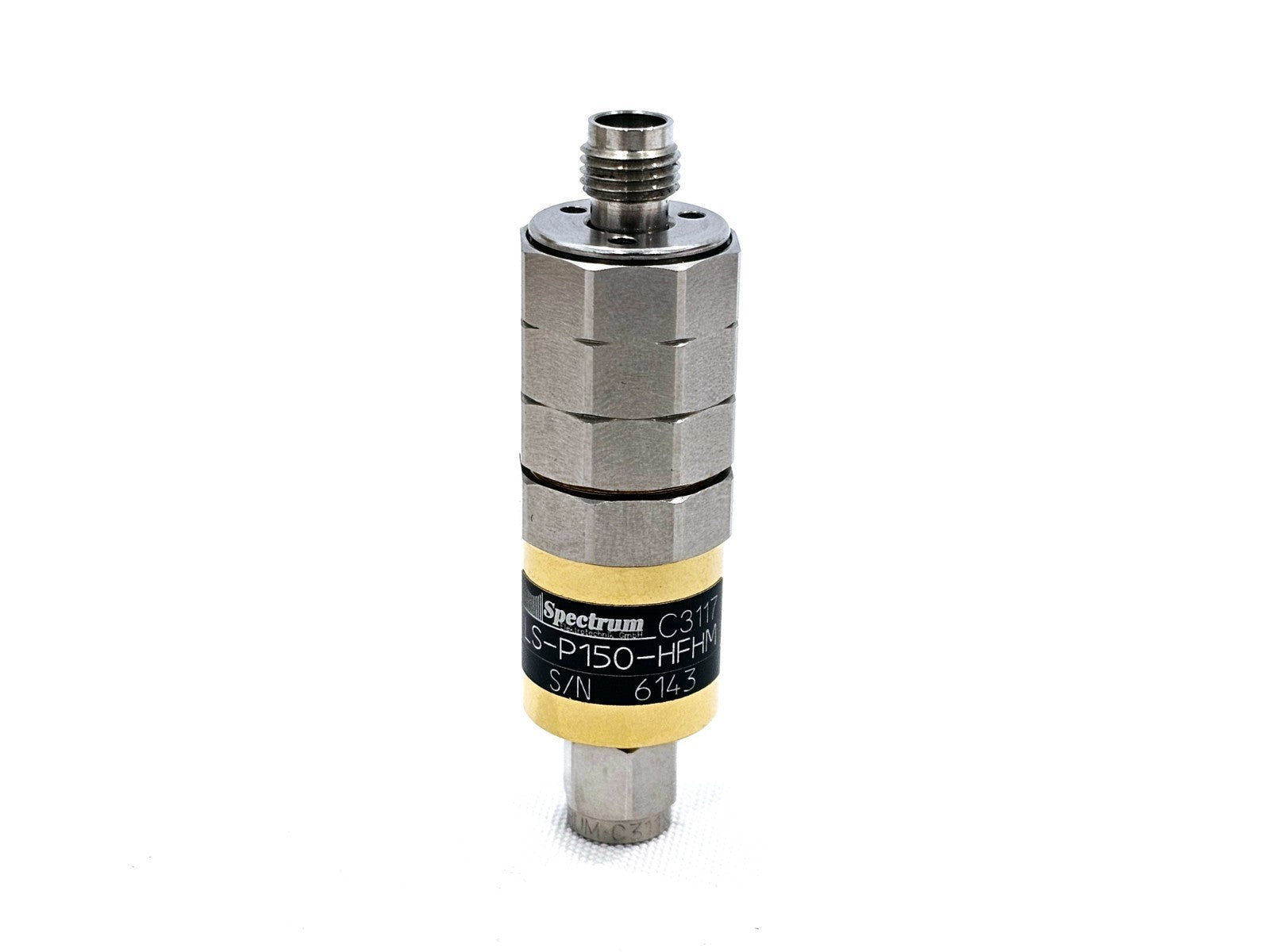

Tested and fully functional. Cosmetic imperfections are present but do not affect performance. The unit is supplied in its original clear plastic storage case along with a Spectrum Elektrotechnik VNA verification printout (VNA: 37397E), confirming S21 insertion loss measurement at 0.000 dB. Lot 40/2017, Serial Number 6143.

Included in the sale:
• 1x Spectrum Elektrotechnik LS-P150-HFHM Phase Trimmer (2.4 mm F–M, DC–50 GHz)
• 1x Original clear plastic carry/storage case
• 1x Spectrum Elektrotechnik VNA verification/test printout
• 1x Cardboard shipping box

Please note that we have multiple units in stock, and the images presented are of one of them, therefore the cosmetic condition of the exact item you will receive may slightly differ.

The Spectrum Elektrotechnik GmbH LS-P150-HFHM is a precision phase-adjustable adapter designed for use in RF and microwave test and measurement systems. Manufactured by Spectrum Elektrotechnik GmbH of Munich, Germany — a leading developer of RF and microwave components covering DC to 65 GHz — this inline adapter allows fine, repeatable phase trimming across an ultra-wide frequency range from DC to 50 GHz. It is suited to applications including antenna phased-array alignment, vector network analyser calibration, radar and defence systems, satellite communications, and phase-matched test setups.

The air-line design principle employed by Spectrum Elektrotechnik yields low insertion loss and excellent VSWR performance. The rotating mechanism provides up to 7 turns of smooth adjustment, enabling a minimum of 400° of phase shift at 50 GHz with a nominal sensitivity of 1.2°/GHz per turn. The stainless steel body ensures durability across a wide operating temperature range.

Technical Specifications:
Part Number: LS-P150-HFHM
Sub-Category: Phase-adjustable Adapters

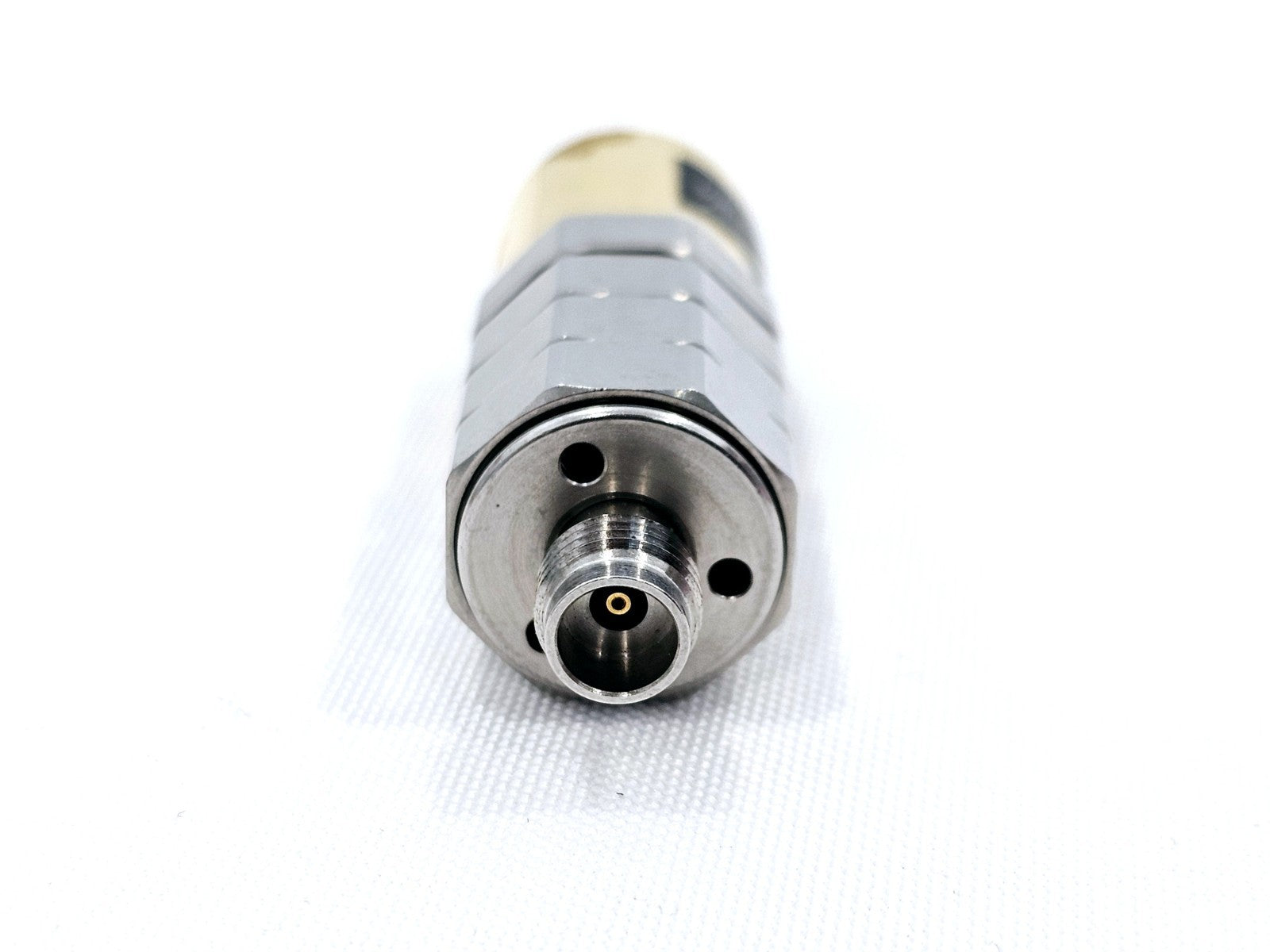

Interface 1: 2.4 mm female (jack)

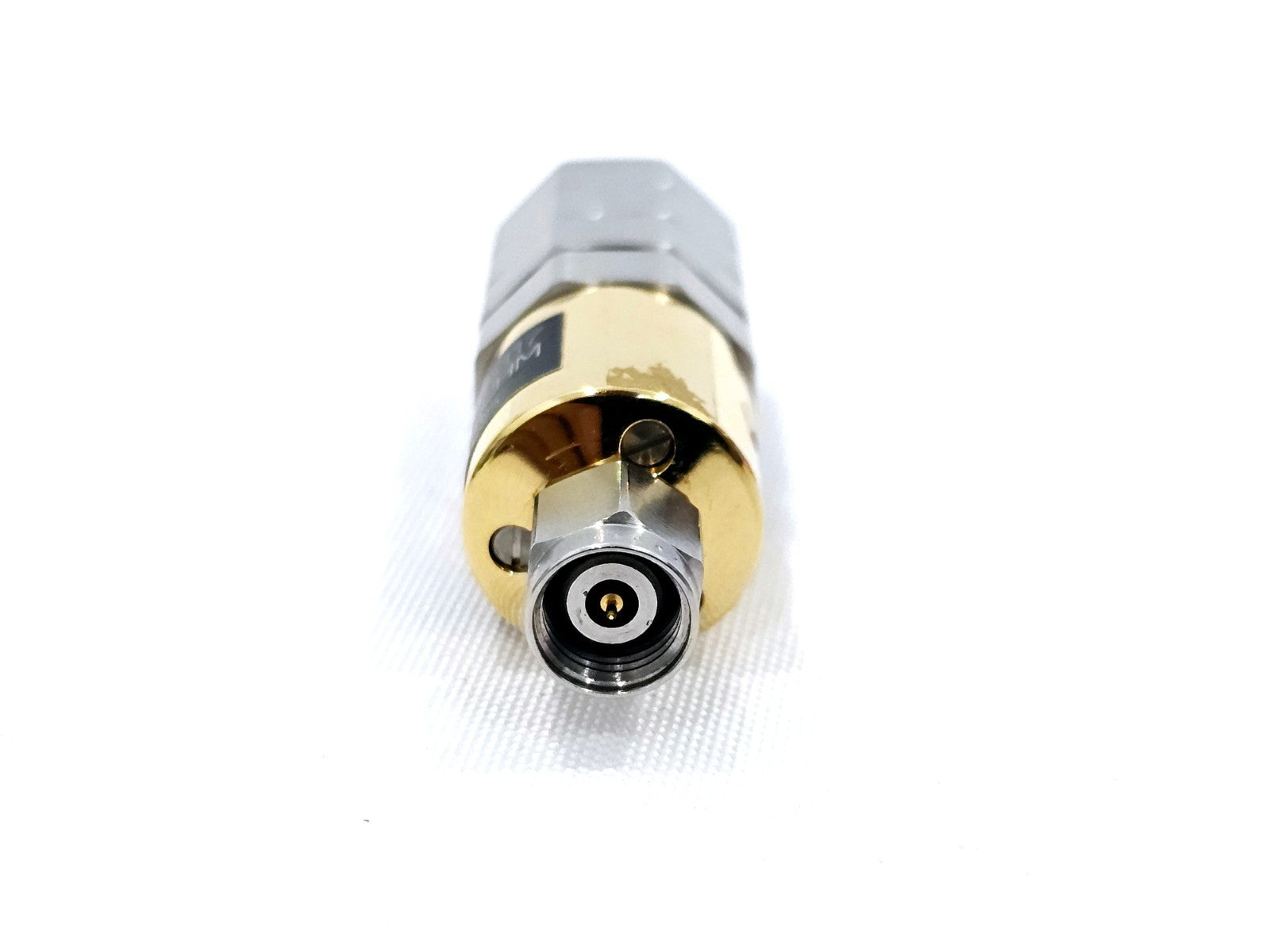

Interface 2: 2.4 mm male (plug)
Frequency Range: DC to 50.0 GHz
VSWR: 1.3:1 max.
Insertion Loss: 0.8 dB max. @ 50.0 GHz
Phase Shift: 400° min. @ 50.0 GHz
Nominal Phase Shift Sensitivity: 1.2°/GHz/Turn
Max. Number of Turns: 7
Time Delay: 172 psec. min. / 195 psec. max.
Operating Temperature Range: -54°C to +85°C
Material: Stainless Steel
Weight: 55 g

Spectrum Elektrotechnik Adjusting Phase handbook — full product catalogue covering phase adjusters DC to 65 GHz including LS-P150-HFHM specifications: Download PDF

Spectrum Elektrotechnik Adjusting Phase 2020 catalogue PDF — phase adjuster specifications including LS-P150-HFHM: Download PDF

Spectrum Elektrotechnik Short-form product catalogue 2018 — summary specifications for phase adjusters including LS-P150-HFHM: Download PDF
