SonoSite P07682-30 HFL38x/13-6 MHz Transducer MFD 2012

Condition: Used — Very Good

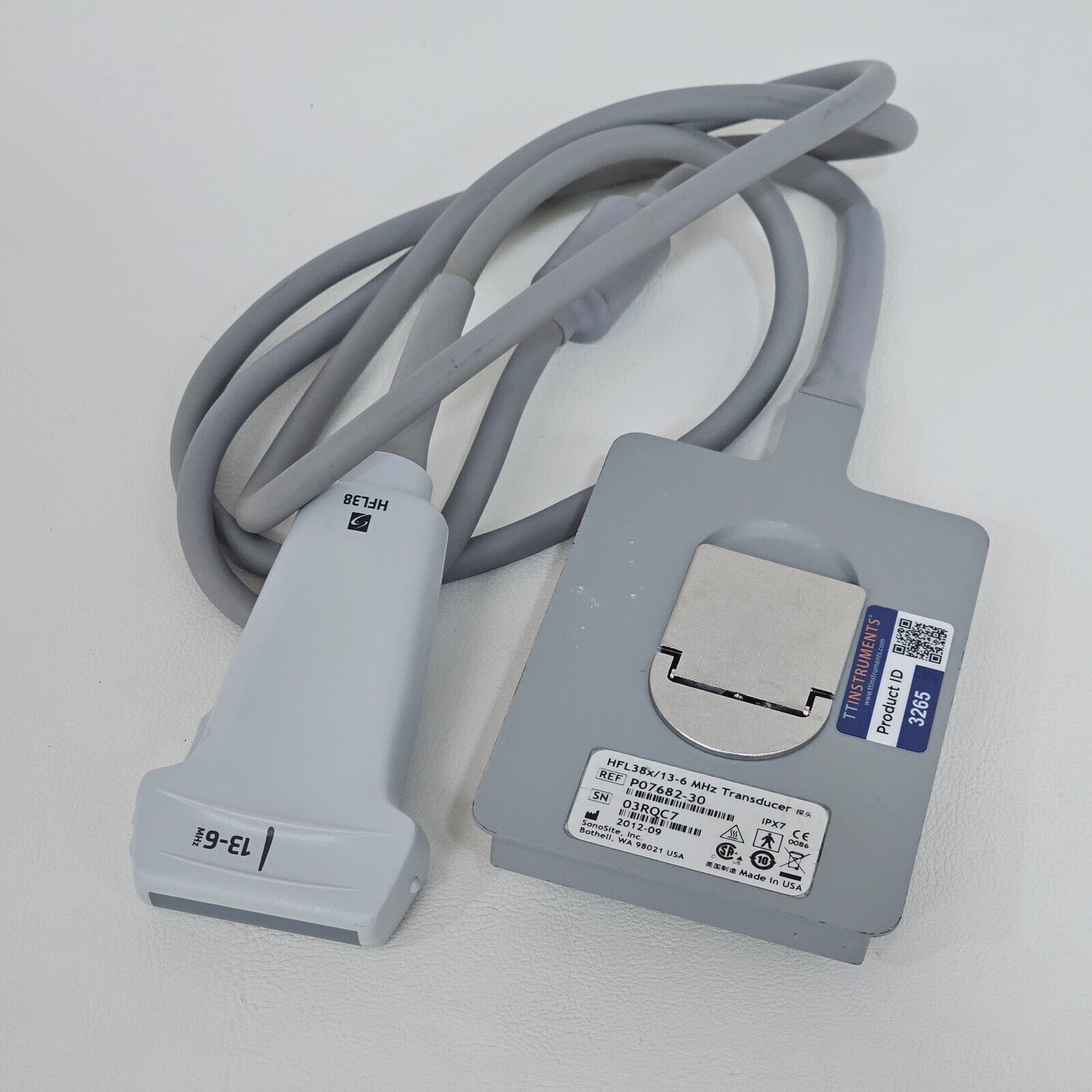

This is the SonoSite P07682-30 HFL38x/13-6 MHz linear array transducer, manufactured in 2012. The unit is in very good condition and is suitable for use with compatible SonoSite ultrasound systems. The HFL38x operates across a 13–6 MHz frequency range, making it well suited for high-resolution superficial imaging tasks including vascular access and musculoskeletal examinations.

Included in the sale:
• SonoSite HFL38x transducer (P07682-30)

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

The SonoSite HFL38x (Part No. P07682-30) is a high-frequency linear array ultrasound transducer developed by FUJIFILM SonoSite for use with their range of portable and cart-based point-of-care ultrasound systems. Operating across a 13–6 MHz frequency range, the HFL38x delivers exceptional resolution for near-field and superficial anatomical structures.

The transducer is commonly used across a wide range of clinical applications including:
- Vascular access and venous cannulation
- Musculoskeletal and soft tissue imaging
- Small parts and thyroid imaging
- Nerve blocks and regional anaesthesia guidance
- Superficial lesion assessment

Specification Name: Value
Part Number: P07682-30
Model: HFL38x
Frequency Range: 13–6 MHz
Transducer Type: Linear Array

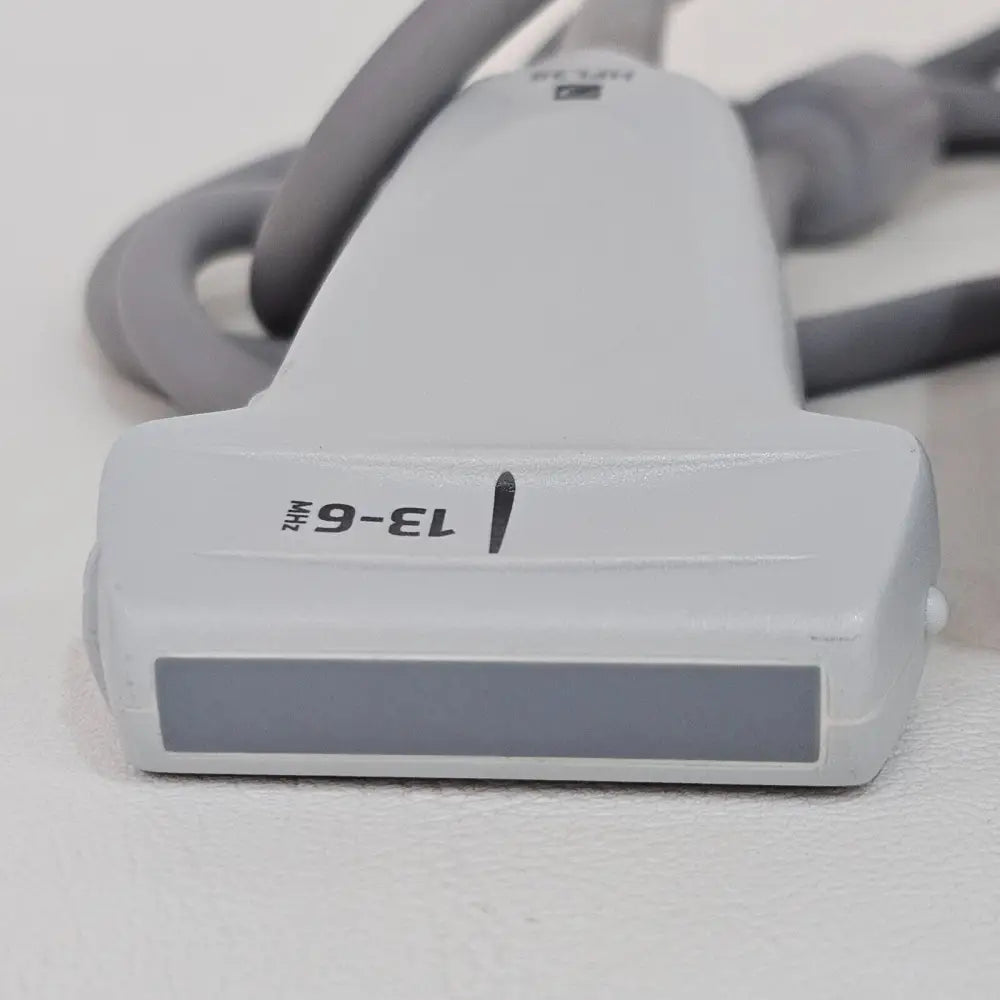

Footprint: 38 mm
Applications: Vascular, MSK, Small Parts, Nerve Block

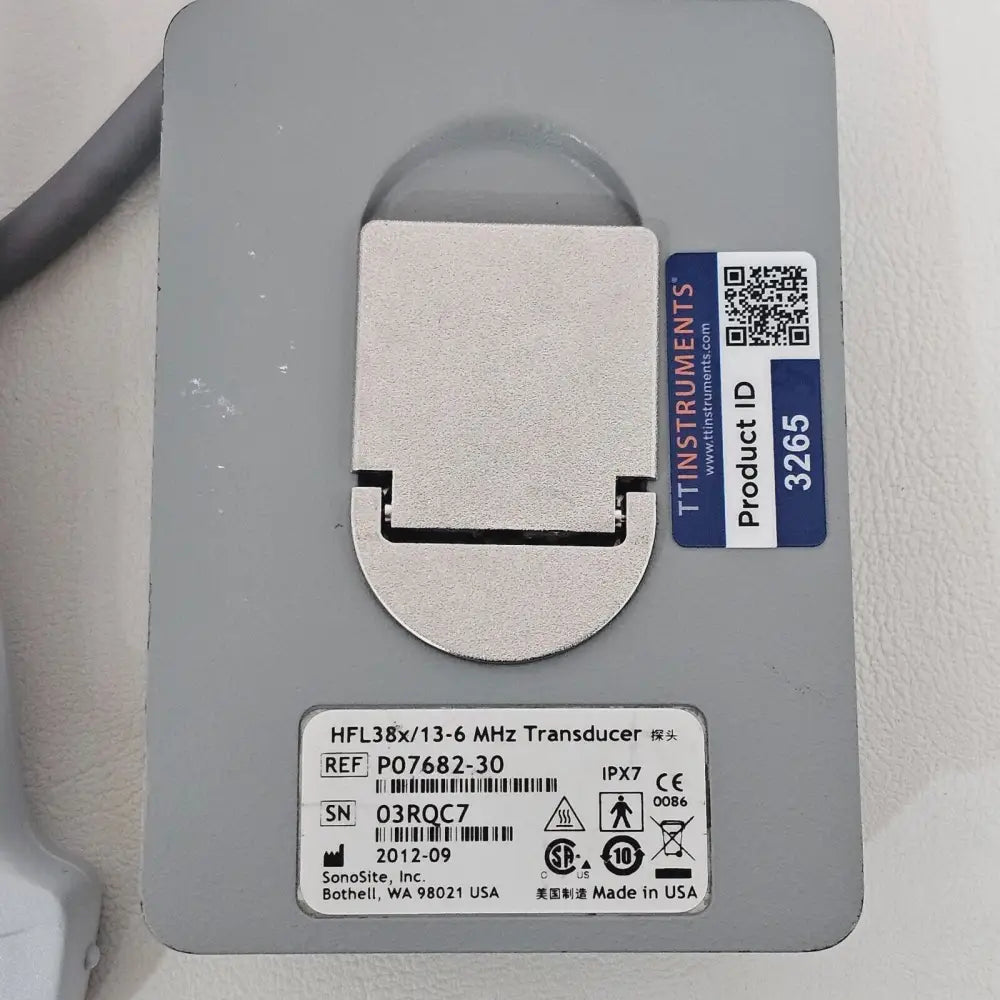

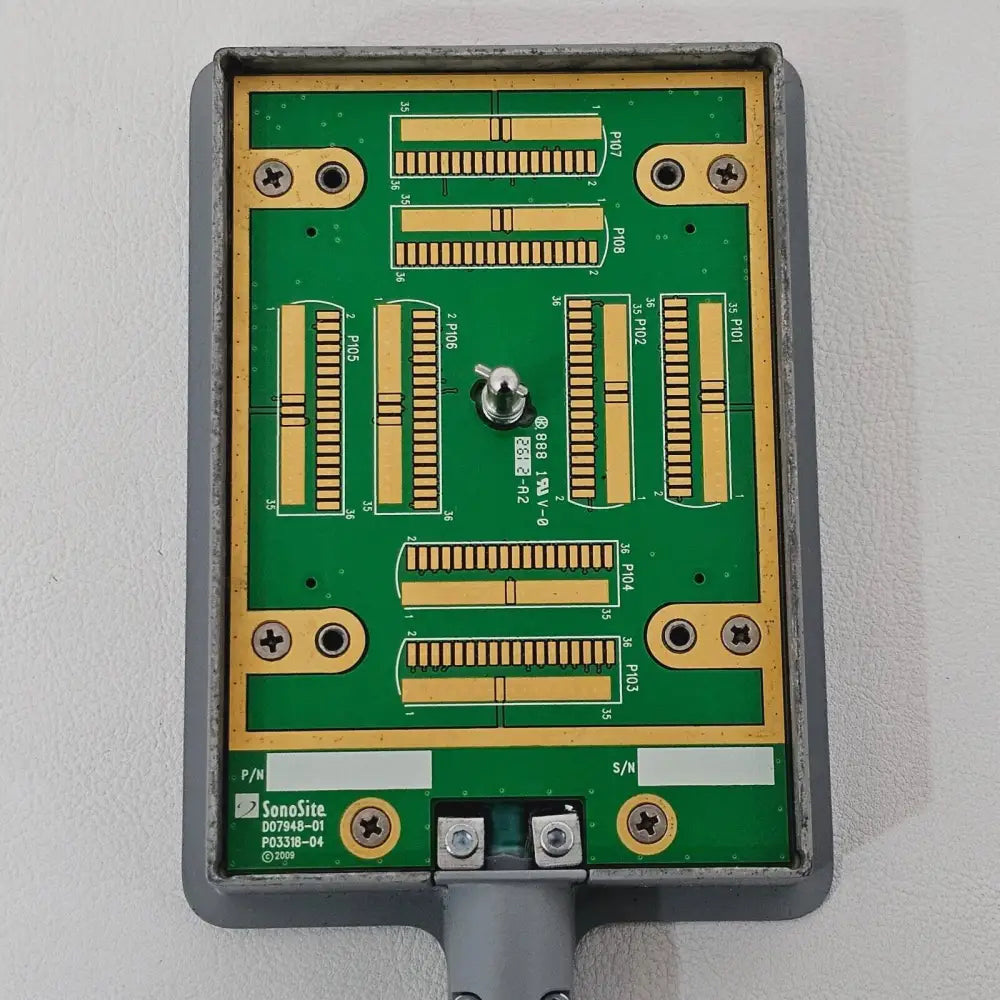

Connector Type: SonoSite proprietary connector
Manufacturer: FUJIFILM SonoSite
Year of Manufacture: 2012

The HFL38x is noted for its wide frequency bandwidth, ergonomic design, and robust build quality, making it a reliable choice for demanding clinical environments. Please refer to the SonoSite manufacturer website for full compatibility and system requirements.
