Condition: Used
INSTRUMENT WILL BE SHIPPED ON A PALLET. PLEASE CONTACT US PRIOR TO PURCHASING FOR AN ACCURATE SHIPPING QUOTE.

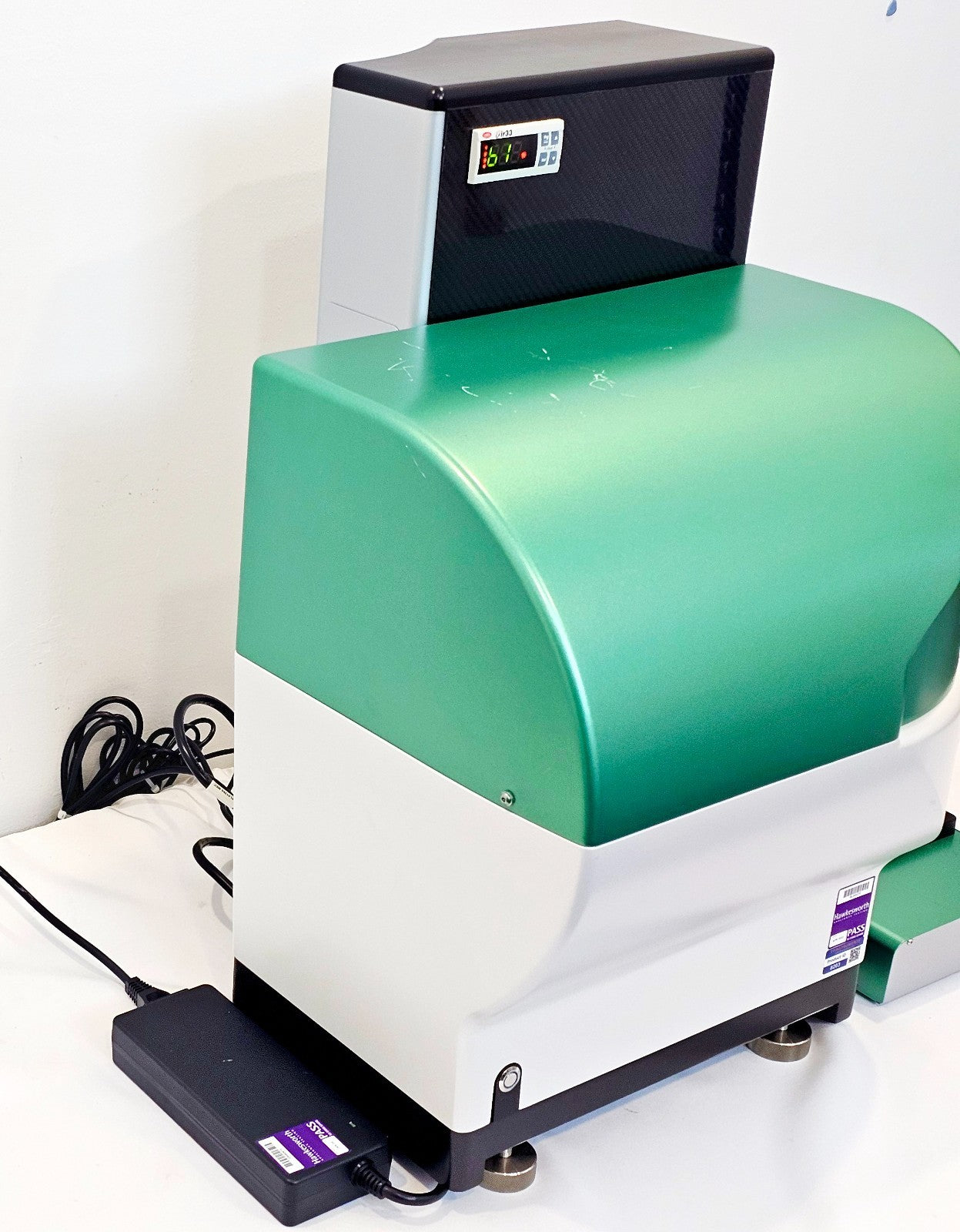

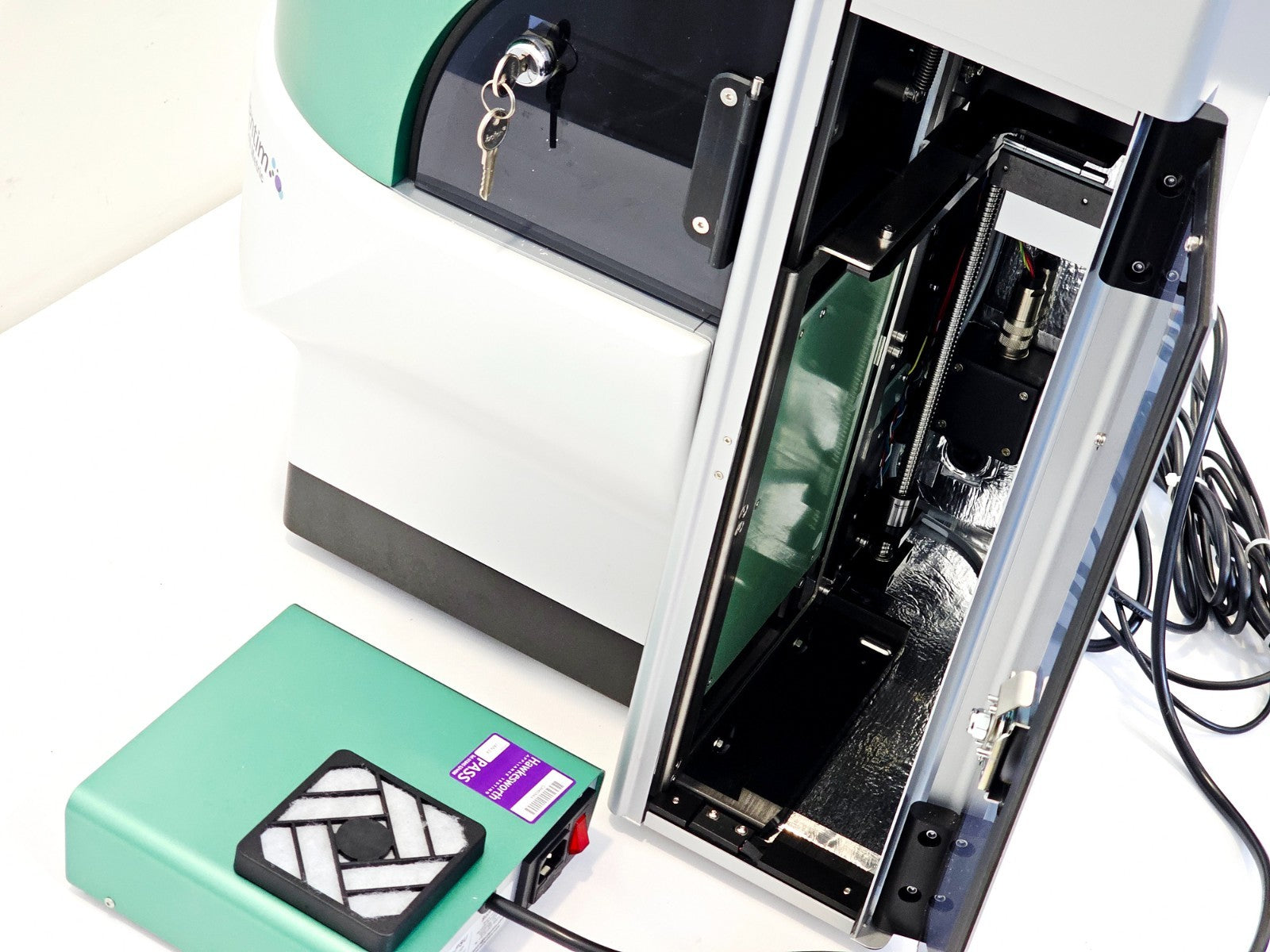

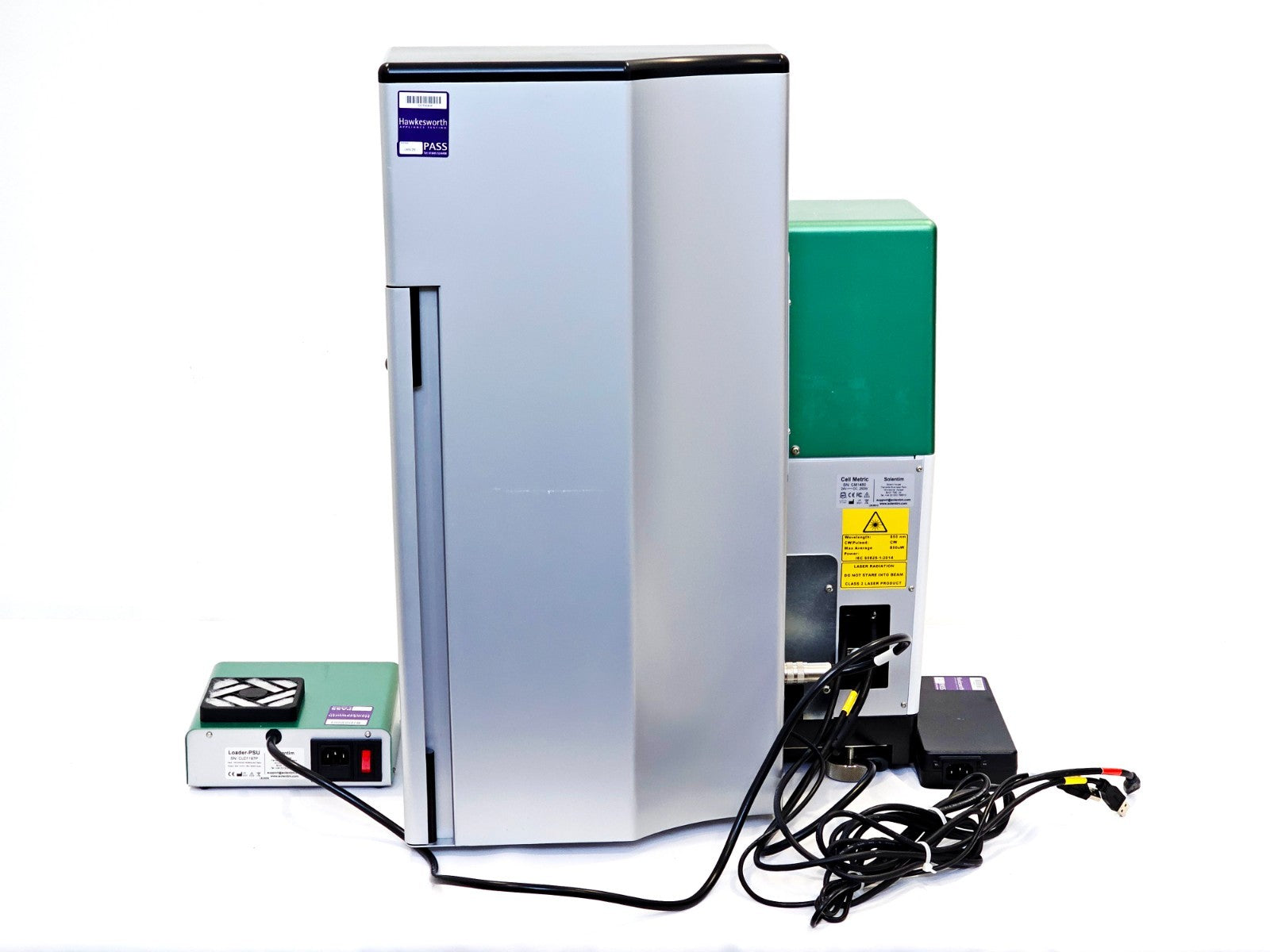

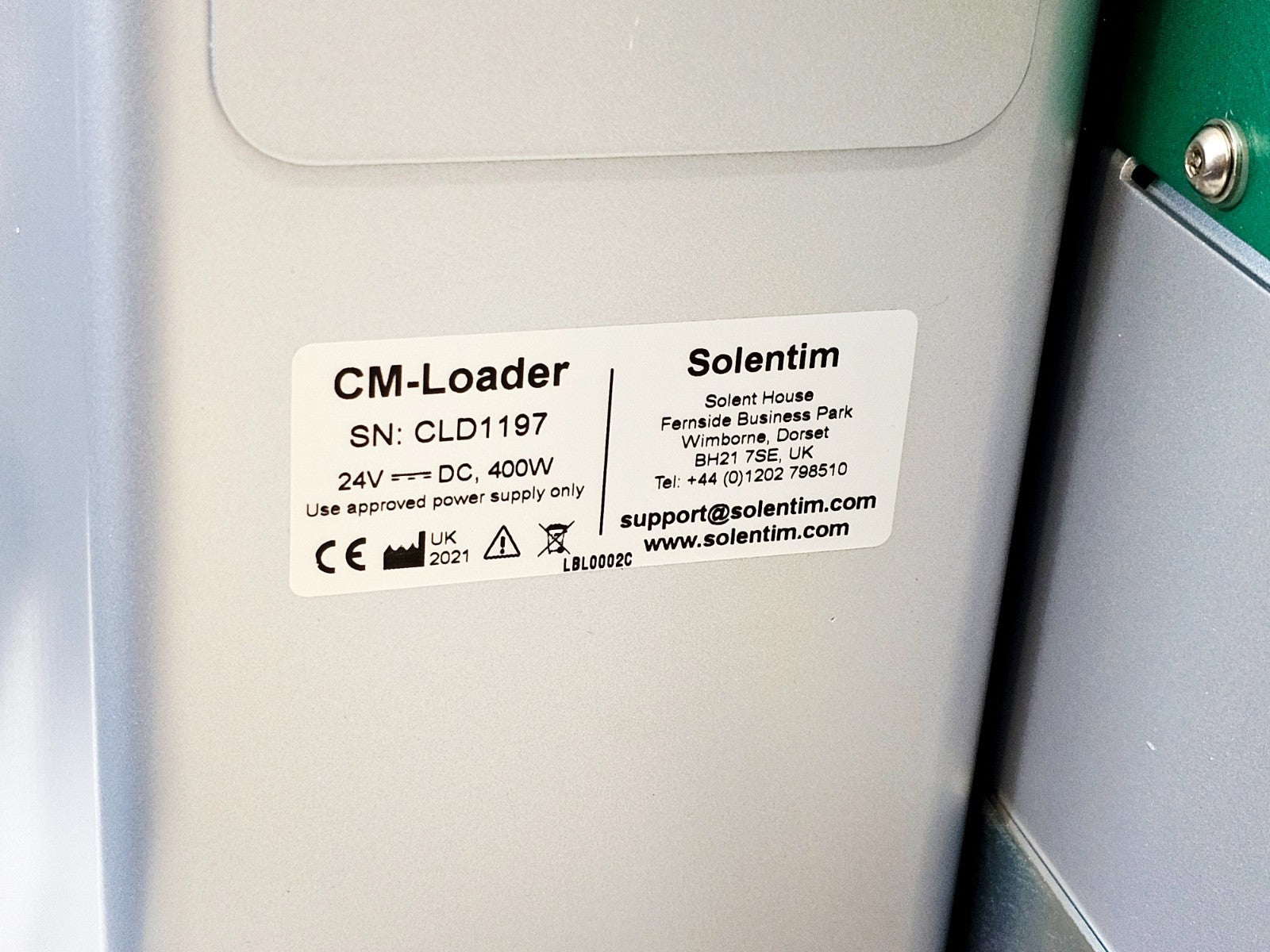

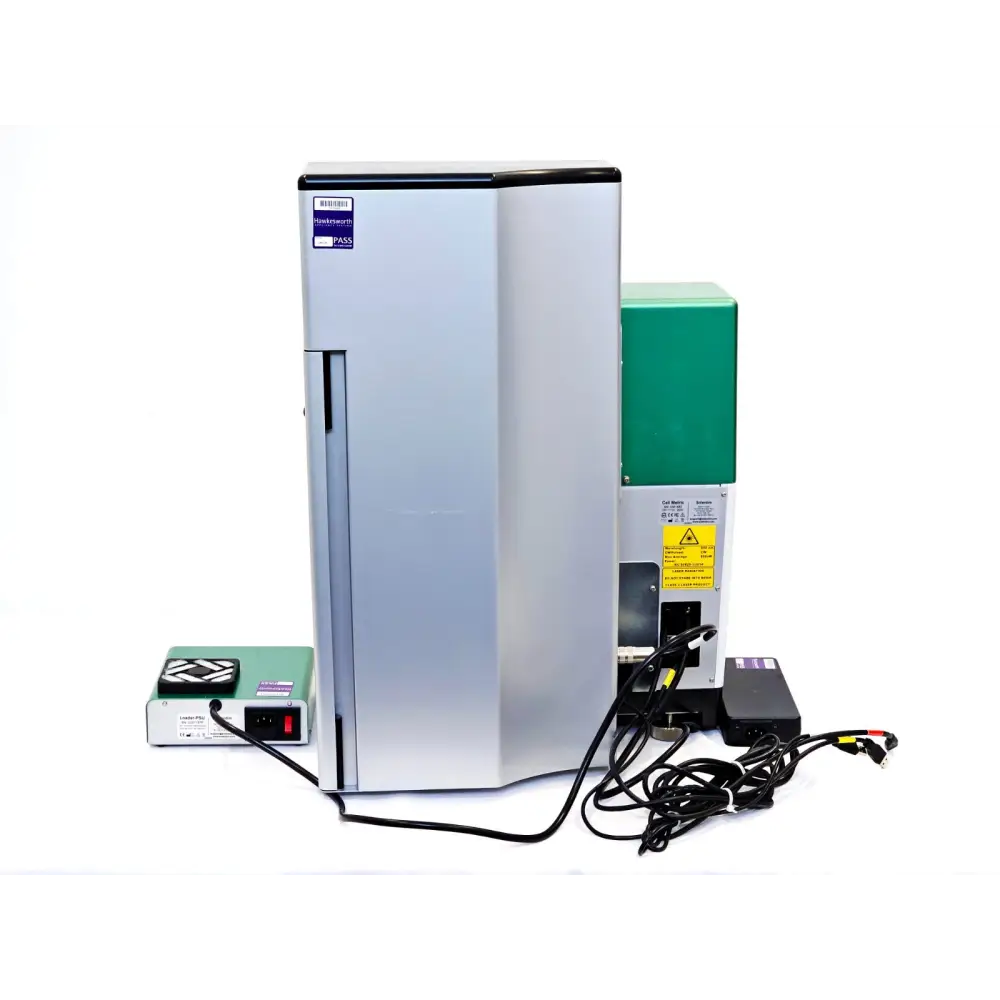

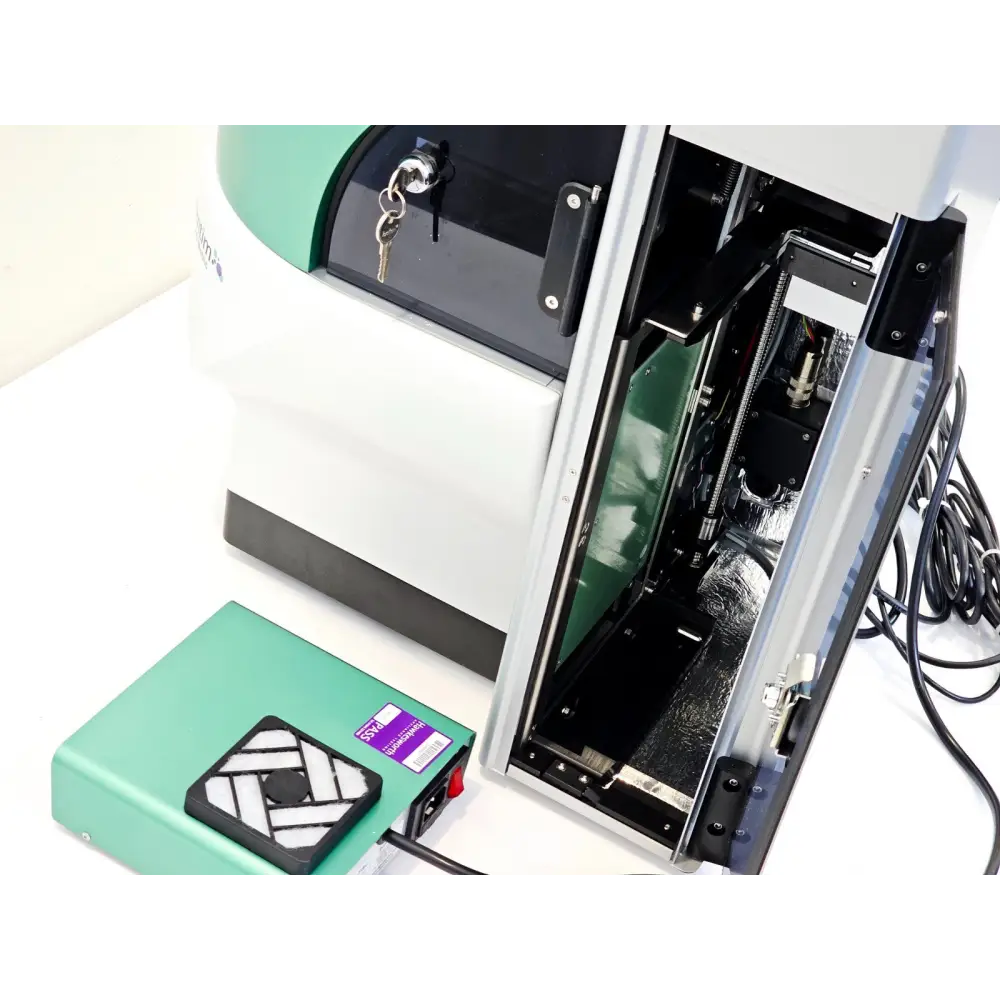

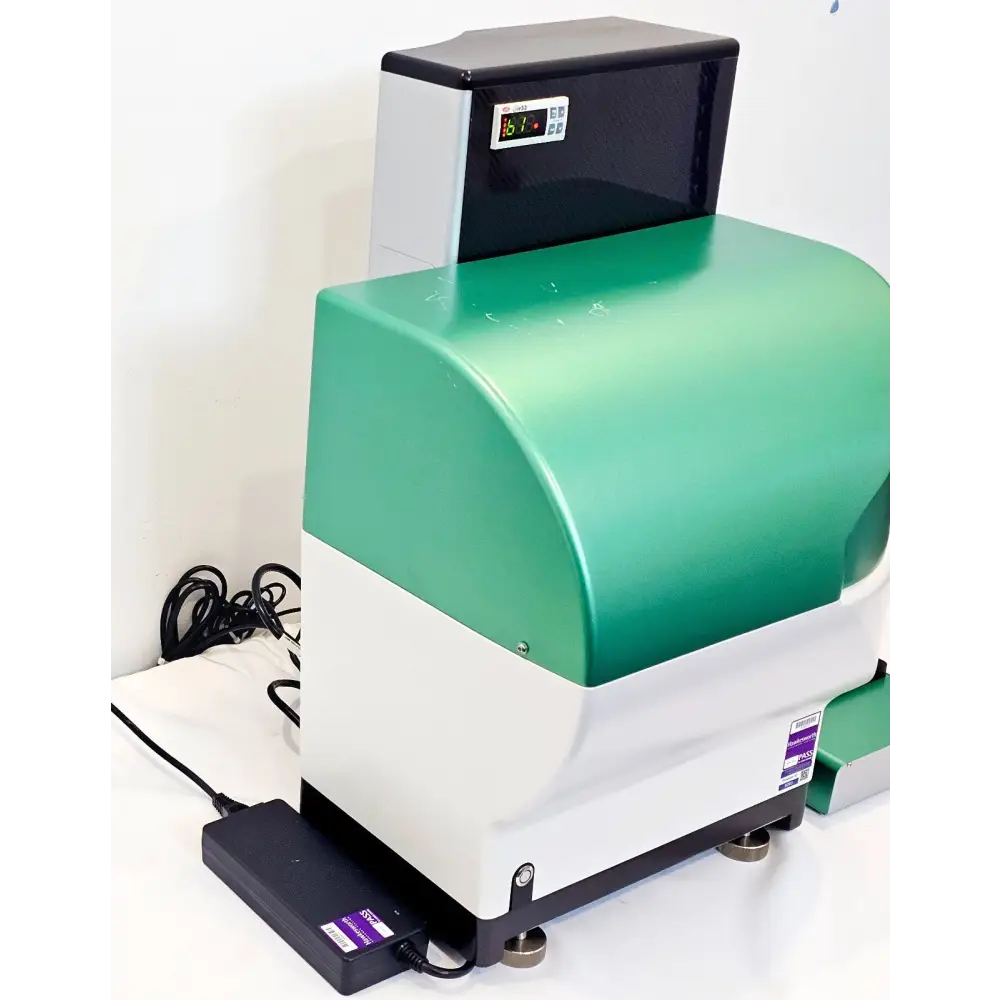

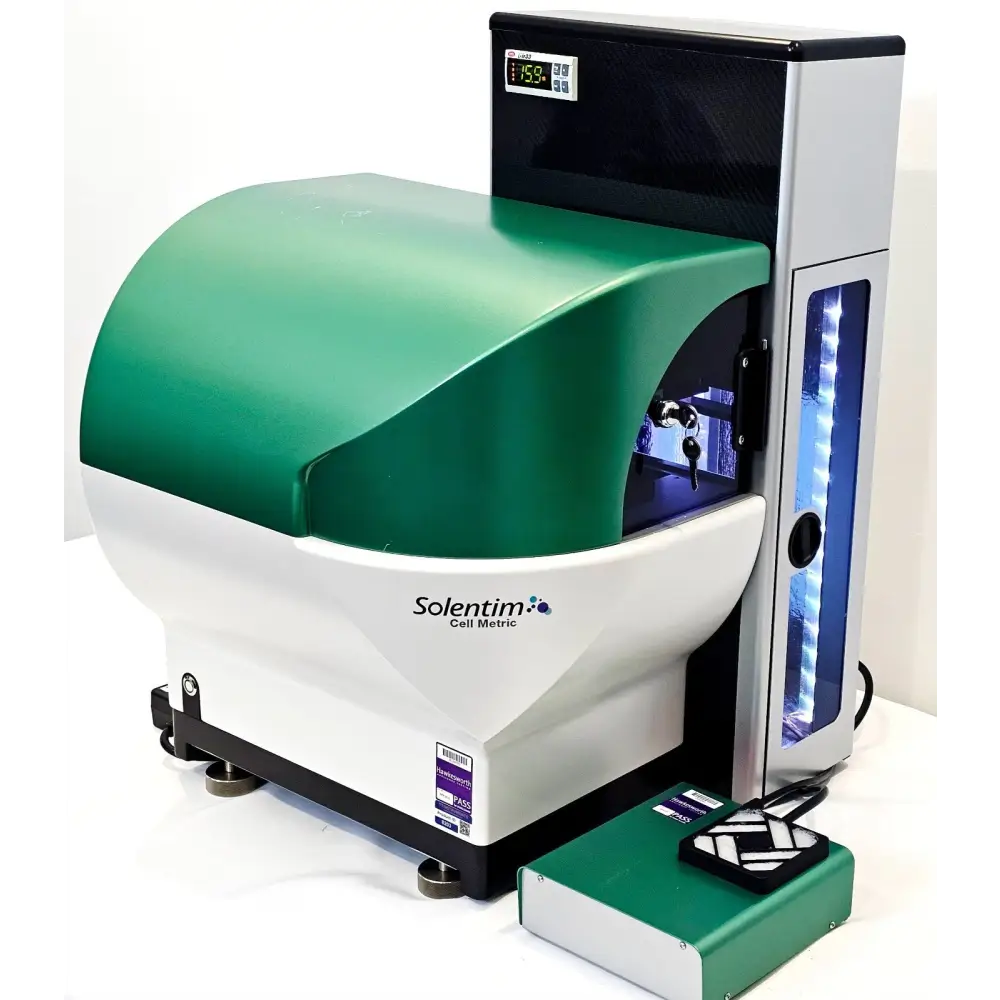

This Solentim Cell Metric CLD High Contrast Imager (CM-Loader) was manufactured in 2021 and has been removed from a working laboratory environment. The unit powers on and is in good overall cosmetic condition. A Hawksworth PAT test pass label is visible on the instrument and accessories. The system includes the integrated heated plate stacker module with temperature display and the dedicated Loader-PSU power supply unit (SN: CLD1197P).

Included in the sale:
• Solentim Cell Metric CLD High Contrast Imager (CM-Loader)

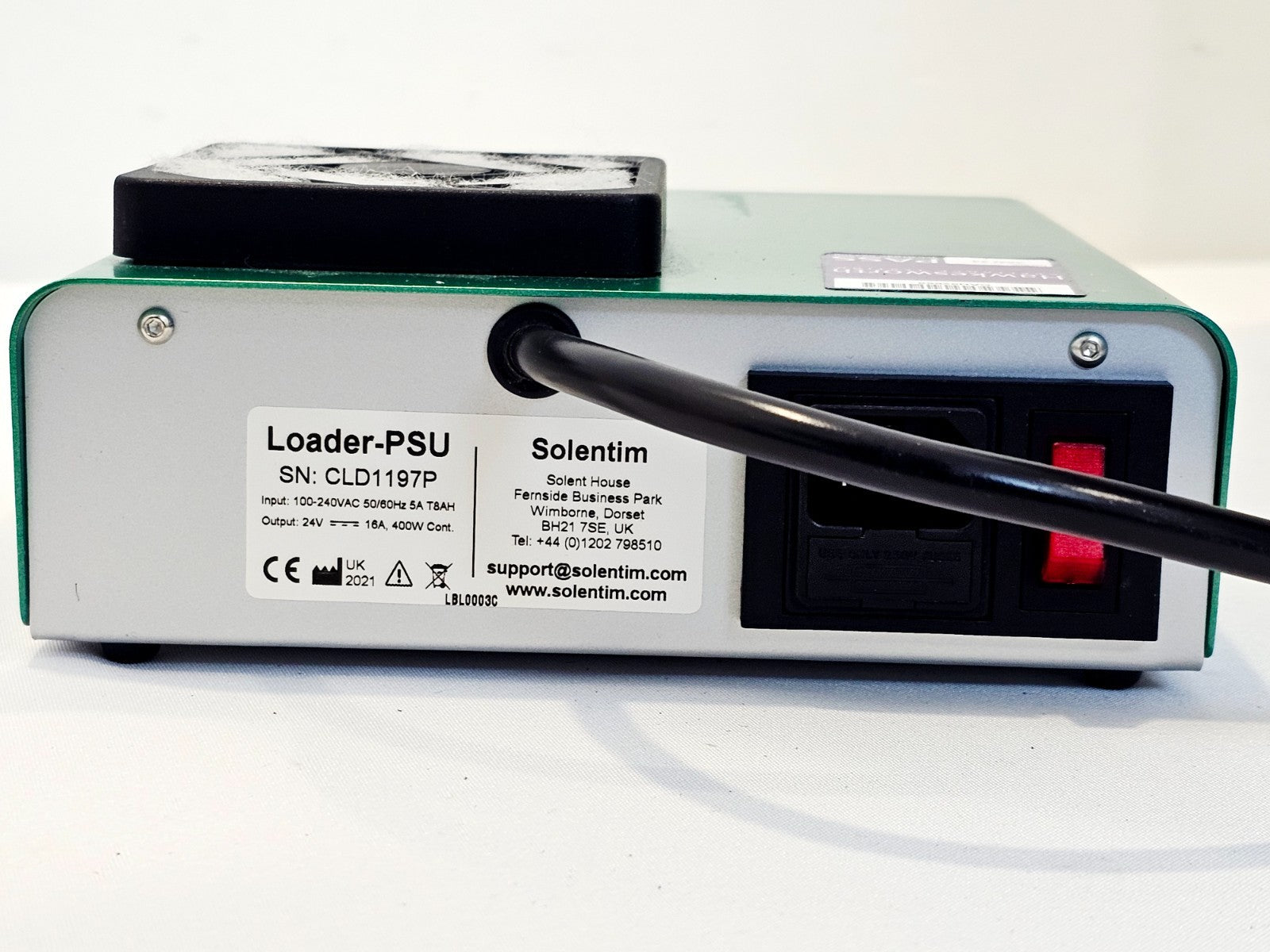

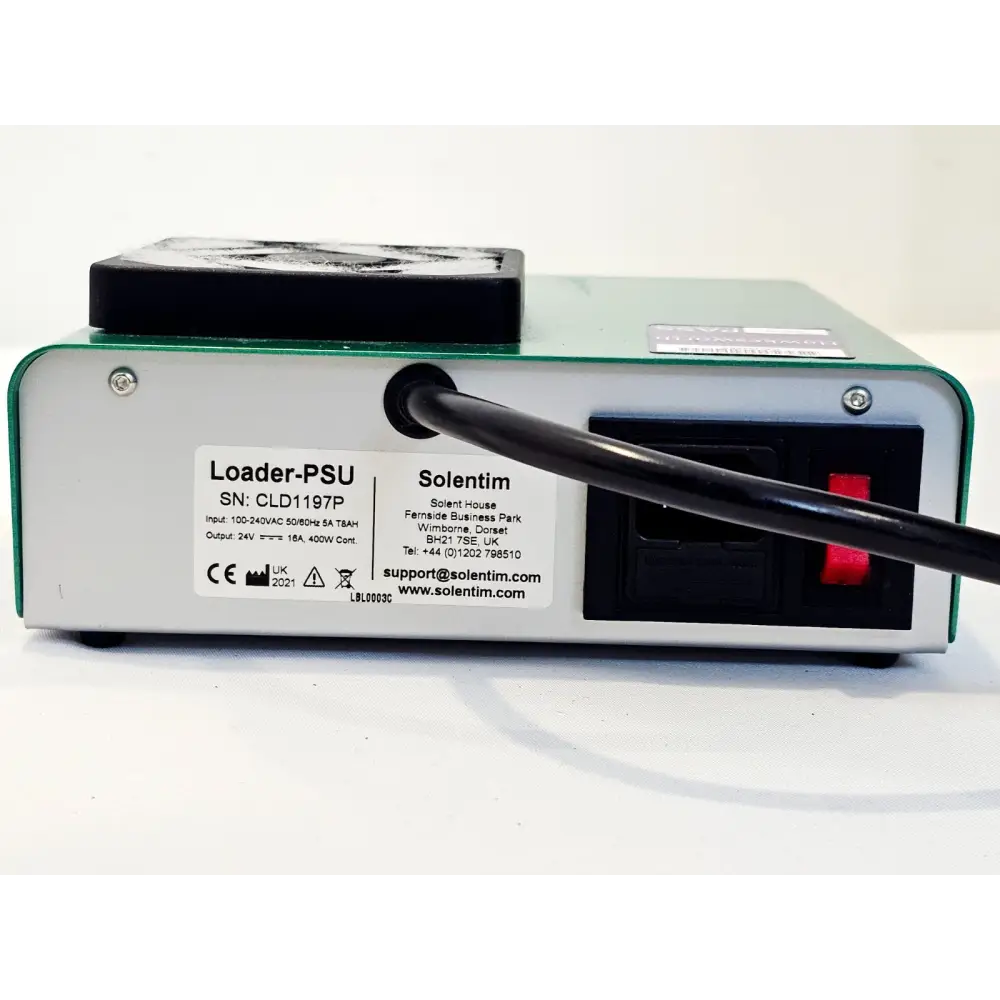

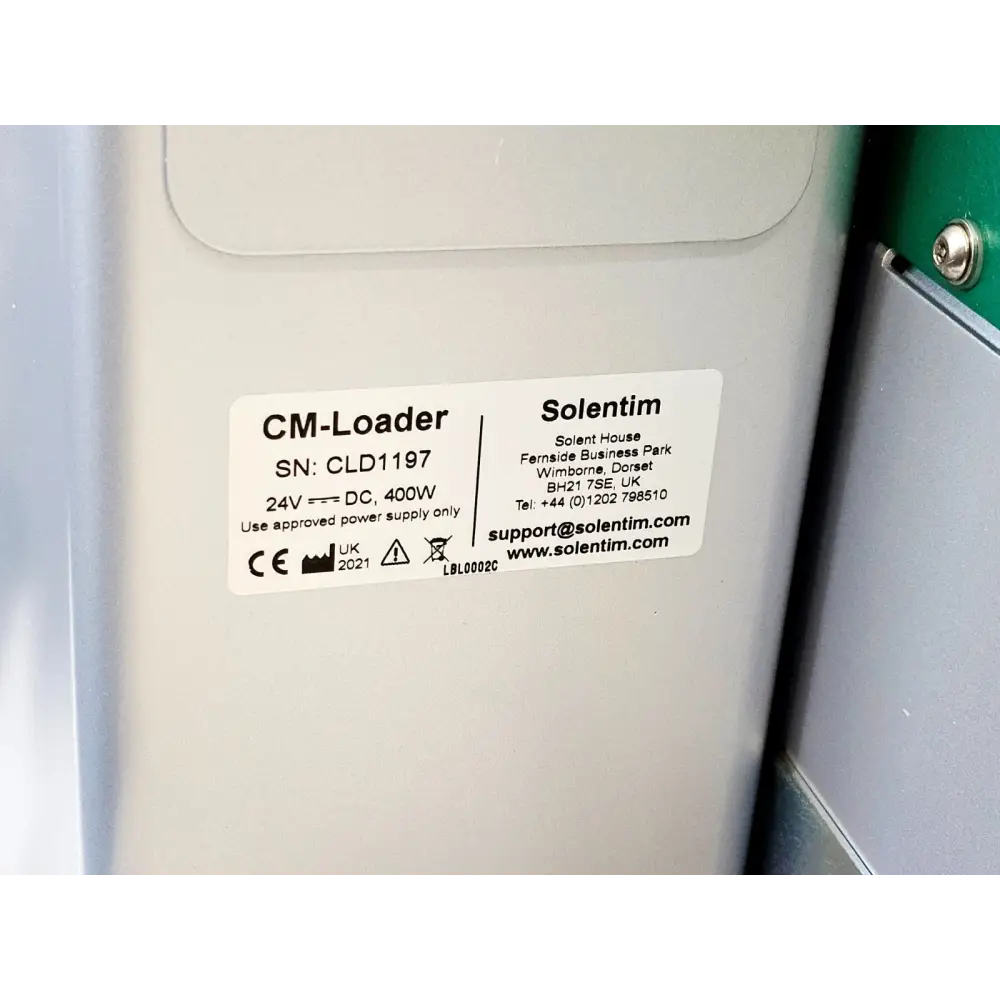

• Solentim Loader-PSU Power Supply Unit (SN: CLD1197P, 100–240 VAC input, 24V/400W output)

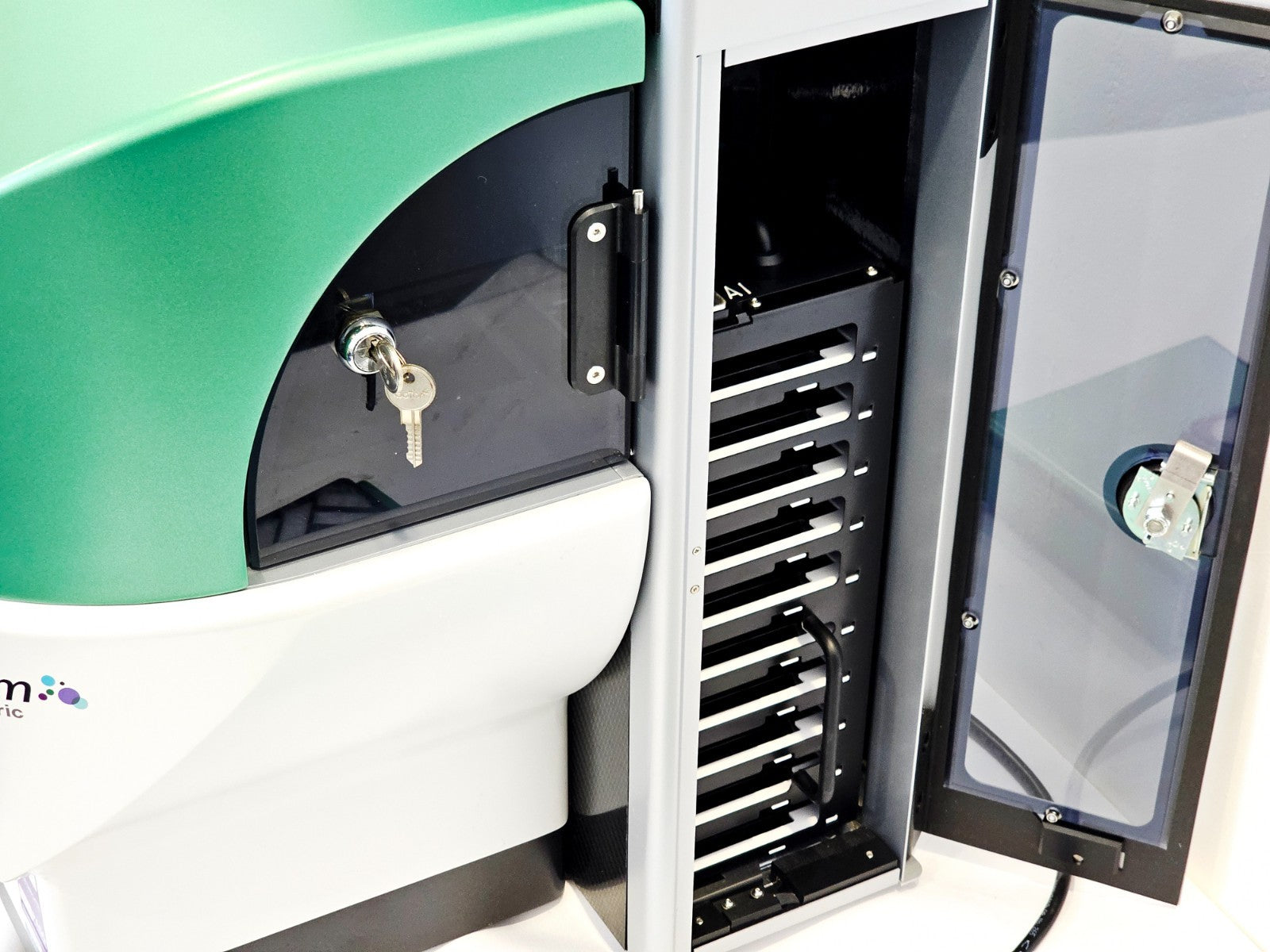

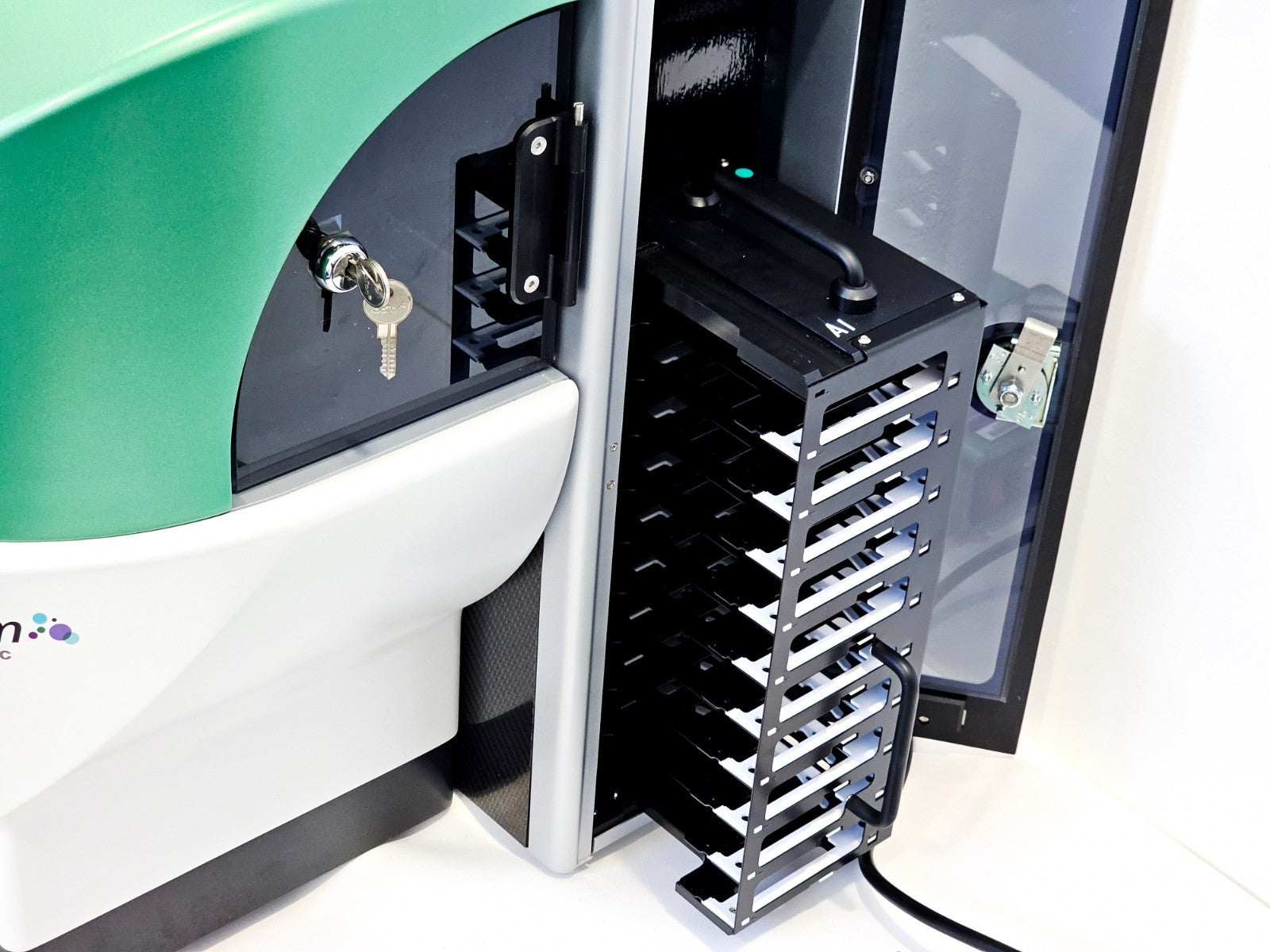

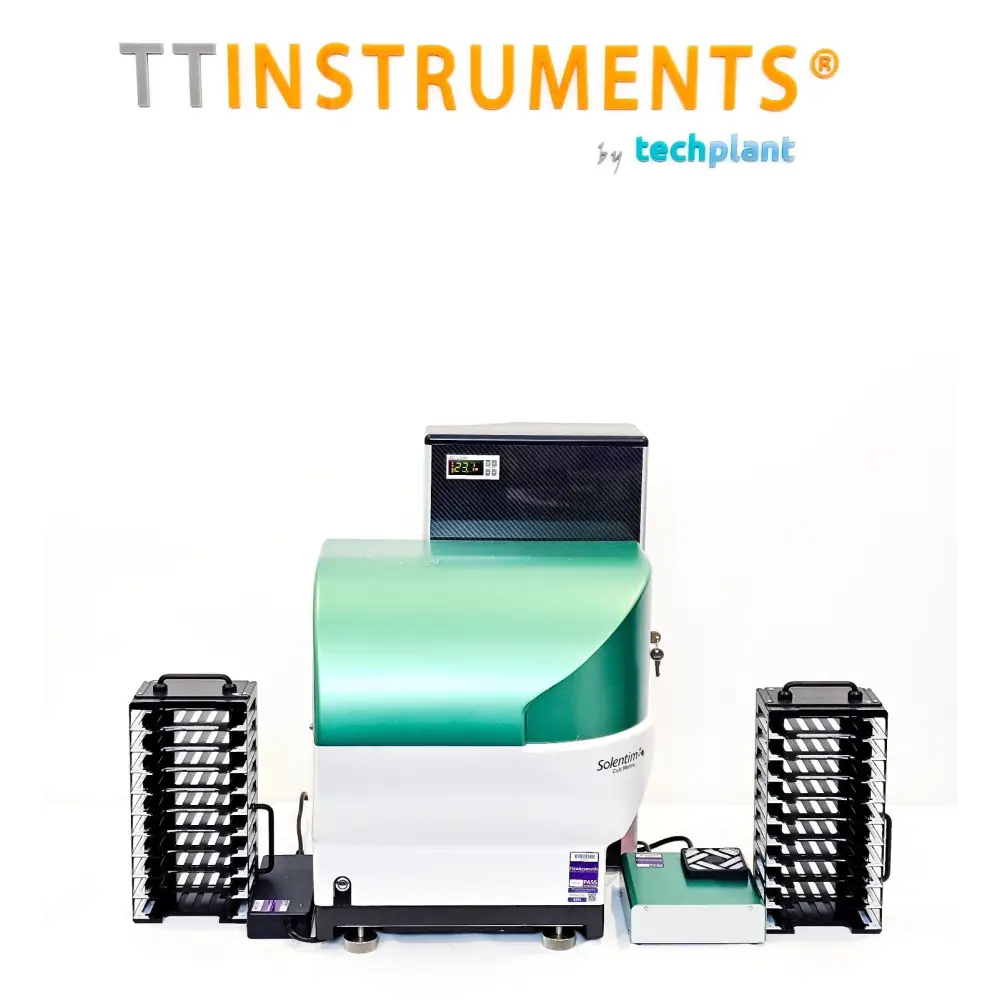

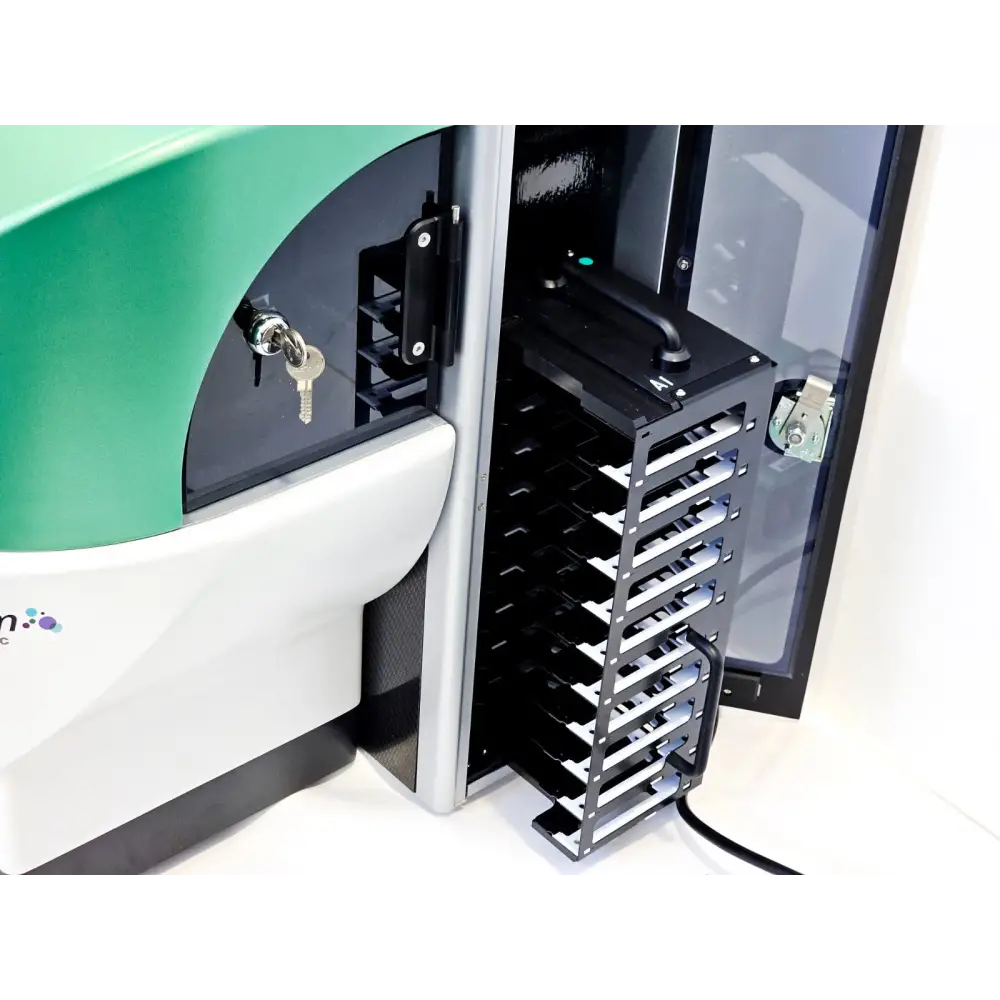

• 2x Plate Stacker Cassettes (10 plates each, 20 plates total capacity)
• Associated power and interconnect cabling

The images provided are of the actual item you will receive. Please review them carefully for the cosmetic condition and what is included in the sale.

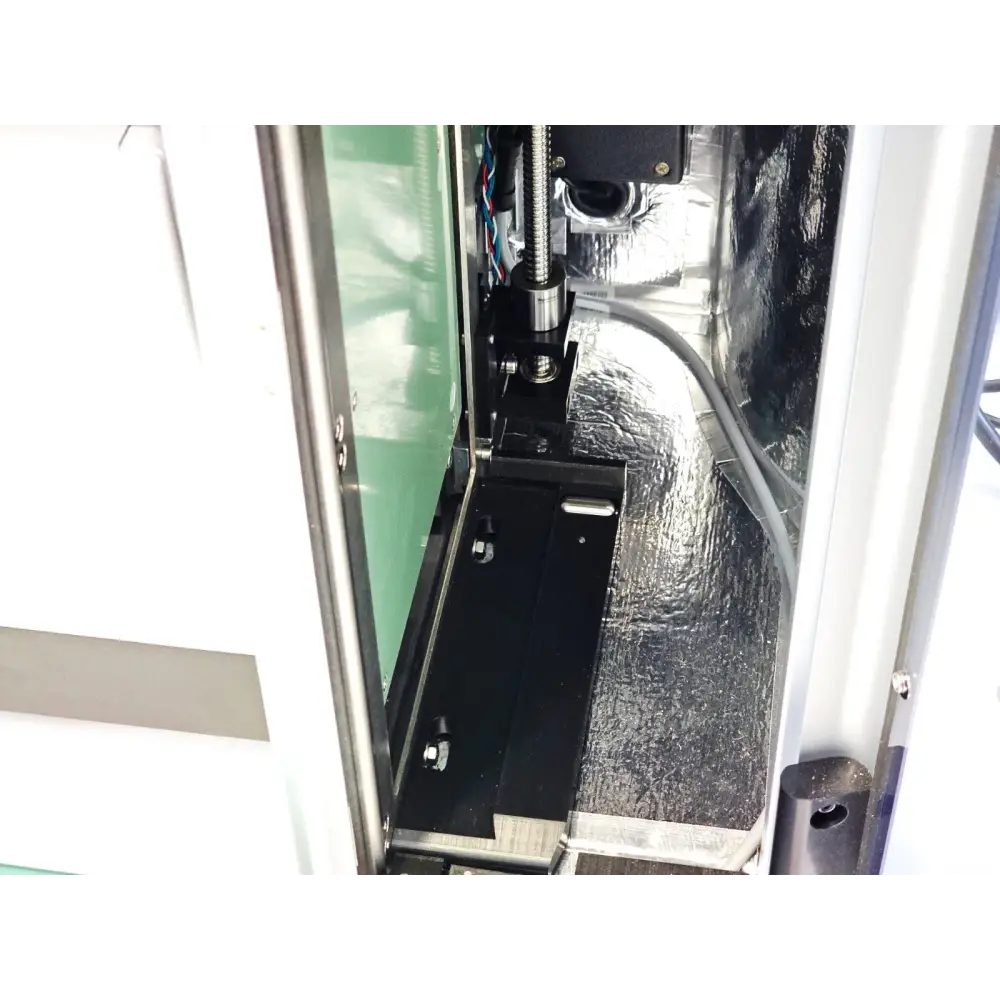

The Solentim Cell Metric CLD is a high-resolution, high-contrast benchtop whole-well imaging system designed specifically for cell line development (CLD). It is the industry-accepted standard for providing unambiguous, image-based evidence of clonality for regulatory submissions including FDA Investigational New Drug (IND) applications. The CLD variant incorporates an integrated, temperature-controlled automated plate stacker, enabling batch processing of up to 10 lidded plates per run with automatic plate transfer and barcode reading.

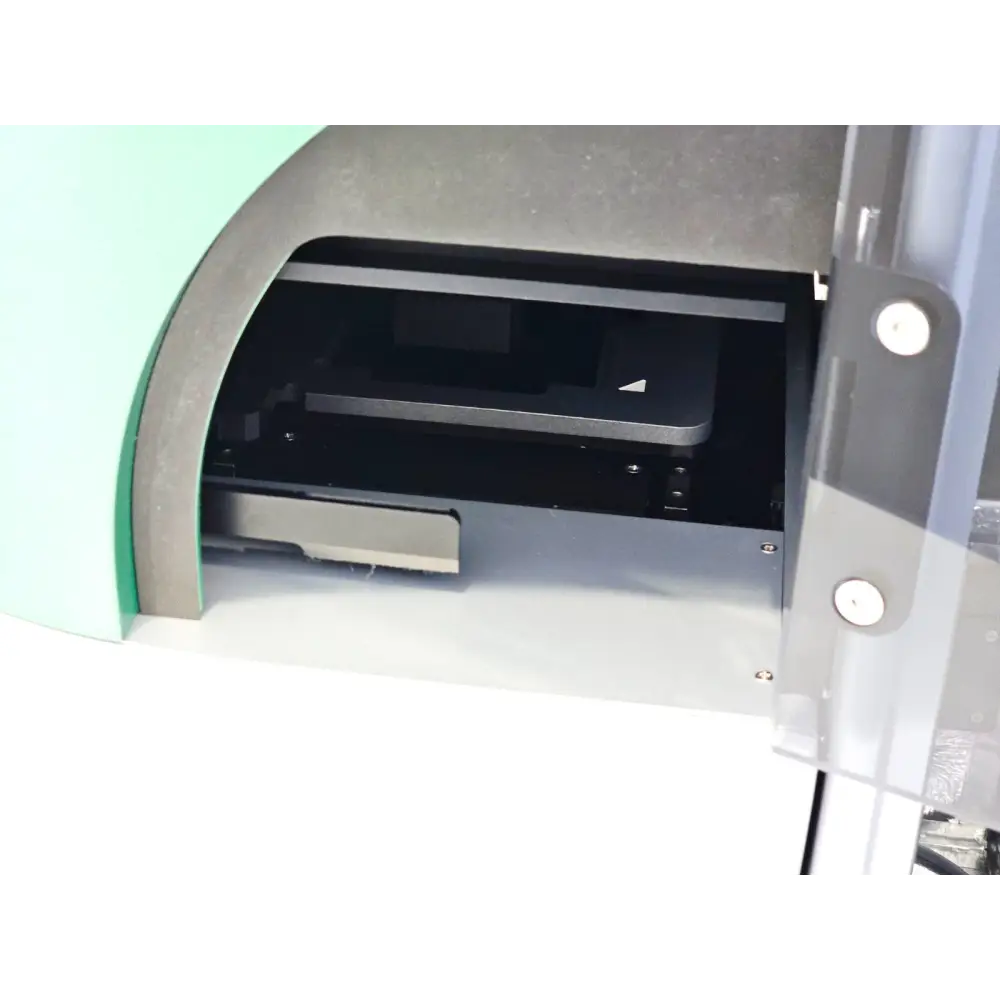

The Cell Metric CLD uses non-invasive brightfield imaging to analyse settled suspension or adherent cells in situ. Proprietary laser focussing ensures optimal focal position in each and every well, maintaining image clarity right to the well edges. The system captures whole-well images at single-cell resolution, providing a permanent, time-stamped photographic record of cell growth from day 0 through to clonal outgrowth — all consolidated into a regulatory-compliant Clonality Report.

Used globally across the world's leading pharmaceutical and biotherapeutics companies, the Cell Metric CLD is designed to compress sub-cloning workflows, mini-pools, and repeated limited dilution rounds, saving time and resources. It is compatible with the Solentim VIPS system via Data Sync for enhanced laboratory workflows.

Key Specifications:
Imaging Mode: Brightfield (non-invasive)
Magnification: 10x objective lens
Resolution: 2 µm per pixel (approx. 10 million pixels per well in a 96-well plate)
Image Format: TIFF
Image Size: Approx. 200 MB per 96-well microplate (compressed)
Acquisition Speed: From 3 minutes for a full 96-well plate scan

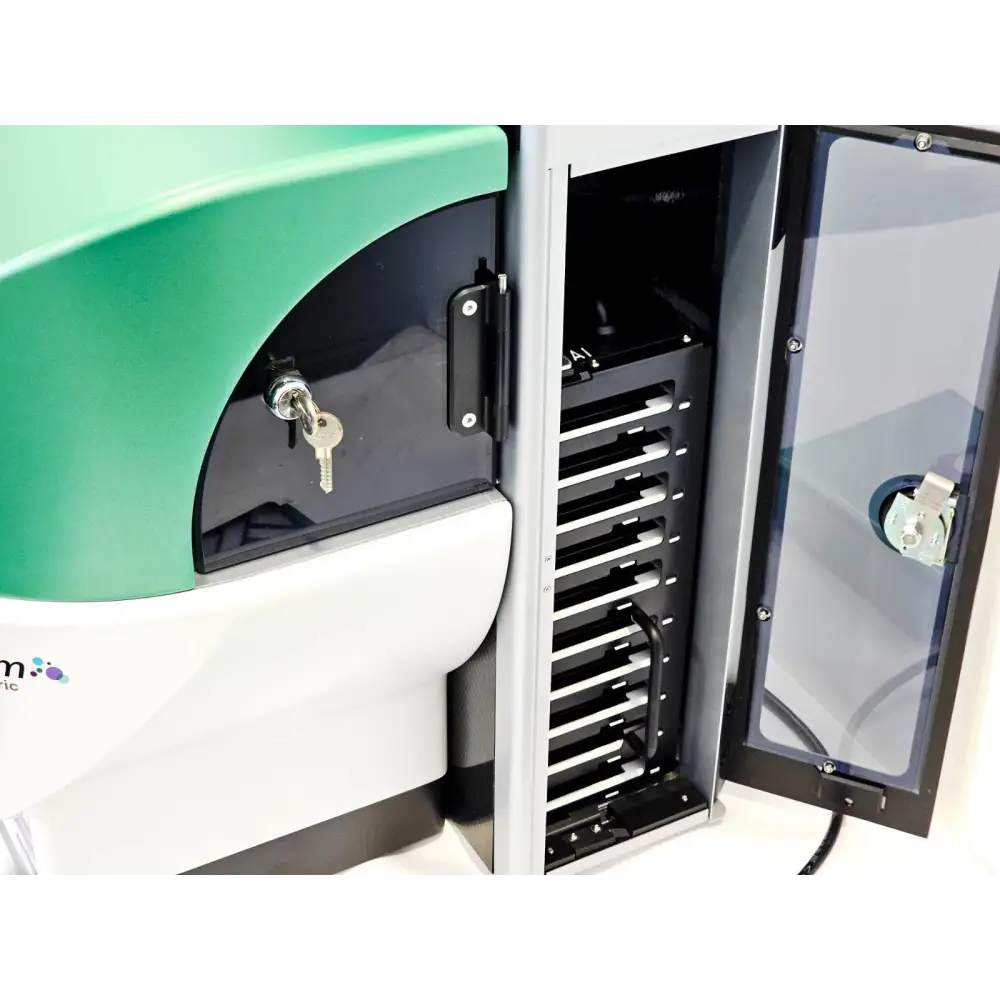

Plate Stacker Capacity: Up to 10 lidded plates (automated loading)
Supported Plate Formats (automated): 96-well (multiple brands including BD Falcon, Corning, Eppendorf, Greiner, Nunc, TPP)
Supported Plate Formats (manual scan): 6, 12, 24, 48-well plates
Operating Temperature: 10°C – 40°C (50°F – 104°F)
Operating Humidity: 20% – 80% non-condensing
Maximum Operating Altitude: 2,000 m

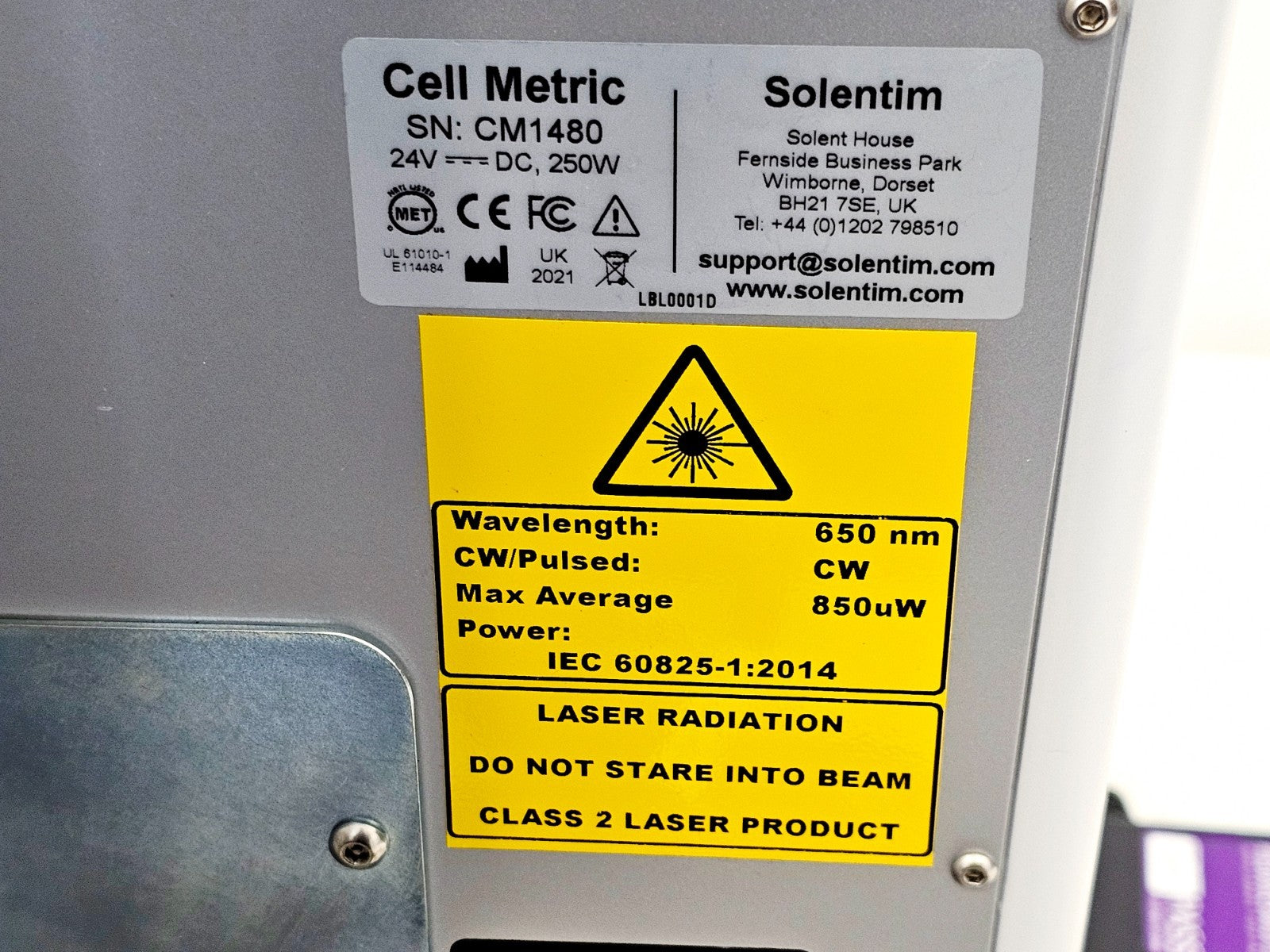

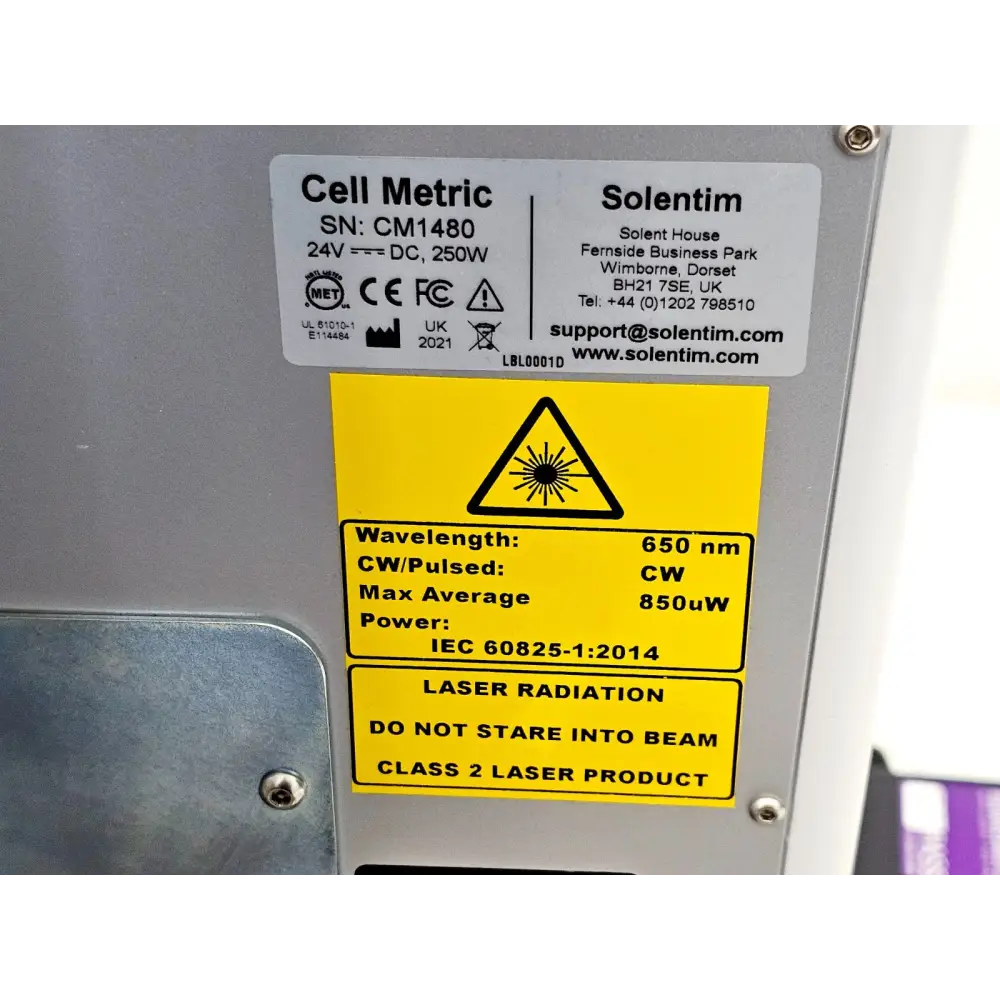

Imager Electrical Supply Input: 100–240 VAC, 50/60 Hz, 3A single phase
Imager Power Supply Output: 24V DC, 250W
Loader-PSU Input: 100–240 VAC, 50/60 Hz, 5A T8AH
Loader-PSU Output: 24V DC, 400W continuous
Input Connection: IEC
Form Factor: Benchtop
Manufacturer: Solentim Ltd (a division of Advanced Instruments), Wimborne, Dorset, UK
